1MODEL #493722
User's manual Manual del usuario Manuel de l'utilisateur
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
Default Settings: Public Mode
Master Code : 99551133
Technician Code: 147258
Models: 493722
Electronic Lock Surface Mounted Vertical
Keypad
Features:
• 4 Different Operator's Codes:
• 8 Digit Master Code
• 6 Digit Sub-Master Code
• 6 Digit Technician Code
• 4 Digit User Code
• Two Modes: Public and Private
• Two-Color LED for Lock Status
• Mechanical Keyway for Emergency Override w/ Master Key
• Requires (2) AA Batteries (Not included)
Functions:
Public Mode (Default)
This function is used for short term, multi user applications.
While the lock is unlocked, input a 4 digit code to lock the lock.
When the lock is unlocked using the same code, the code is erased
and a new code can be input by the next user.
Private Mode
User code is set once and can be reused to lock and unlock the unit.
Switching Modes:
To set to Private Mode: C -- 11 -- OK -- Master code -- OK
Example: C -- 11 -- OK -- 99551133 -- OK
The lock will revert to the default user code of 1111 when switched to
Private Mode. Don't forget to set a new user code!
To set back to Public Mode: C -- 22 -- OK -- Master code -- OK
The lock will now remain open until next user enters their own code
into the lock
Step 1: enter new user code -- OK Close the locker and lock the lock.
Step 2: enter user code -- Unlocks the lock and erases the previous
code.

2
Electronic Lock User Manual

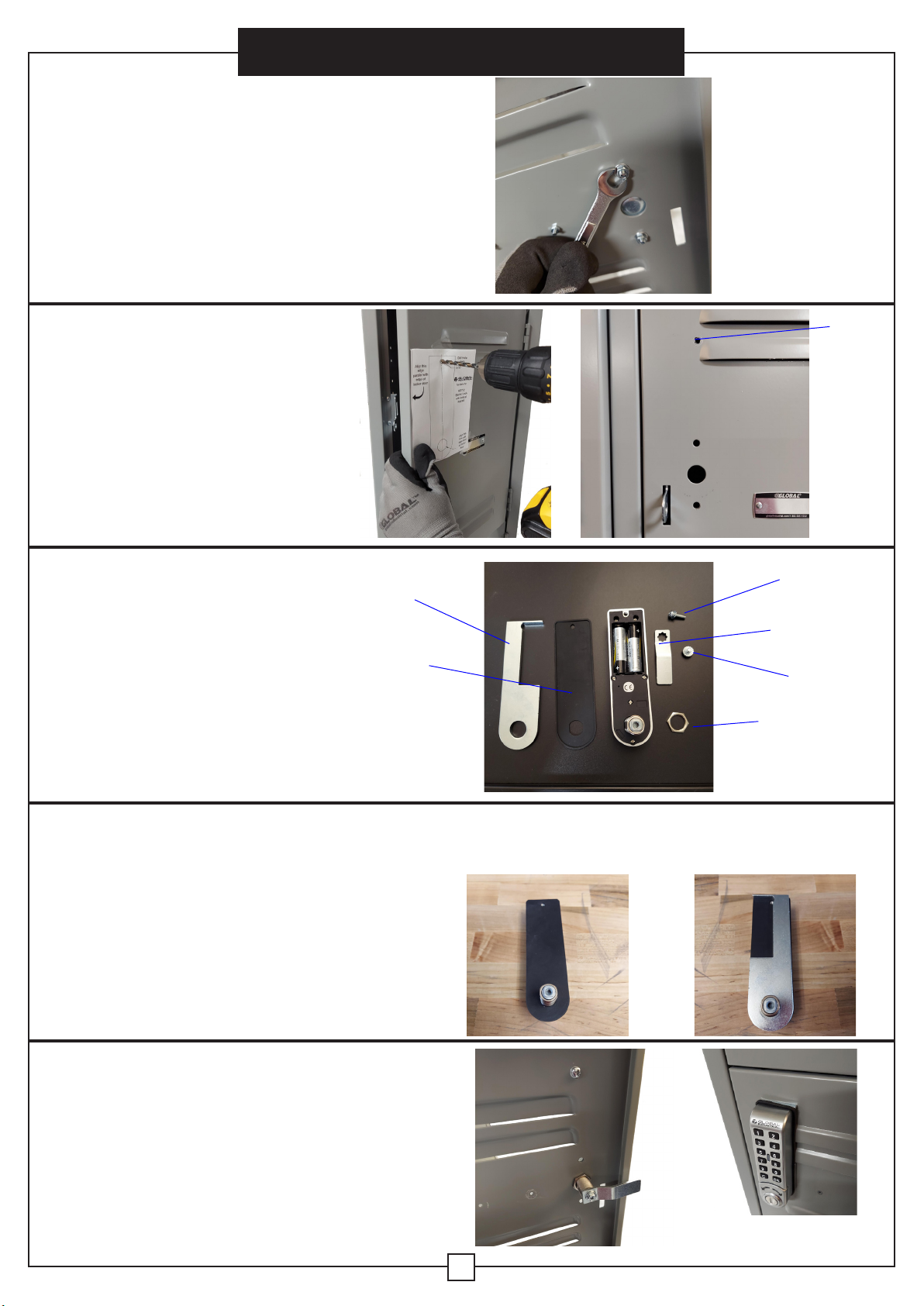

Installation
1. Open the locker door that
the Electronic Lock will
be installed on. Remove
the nuts holding the plate
that covers the hole in the
door.
2. Using the included
template, align the large
hole on the locker and the
hole indicated in the template.
Align the edge of the template so
that it is parallel with the edge of
the locker door. Drill a second
hole for the securing screw
included in the Electronic Lock.
Clean off any metal dust.
Drilled Hole
3. Remove the locking bar
from the lock and the
securing nut from the
threaded core. Place
batteries inside the unit.
Vent Plate
Rubber Backing
Securing Screw
Securing Nut
Locking Screw
Lock Bar
4. Insert the rubber cover over the
batteries, putting the threaded core
through the rubber. Depending on the
size of the door on the locker, the
Vent Plate may be necessary.
If Plate is necessary, slide the Plate
over the rubber mount so that the
gap is on the left Side
5. Insert the threaded core
through the door of the locker.
Reattach the Securing Nut, Lock Bar,
and Locking Screw onto the threaded
core. Insert the Securing Screw
through the drilled hole and secure
the unit through the hole on the top.
No Plate:
Single Tier
Double Tier
Plate Required:
Triple Tier
4 Tier
6 Tier
The lock should rest atly against the
locker door with the plate

3
Electronic Lock User Manual
Setup:
Before programming, choose which mode would be most appropriate for the application: Public Mode
or Private Mode
New locks operate with the default user and master codes. A new user and master code must be
programmed to prevent the default codes from operating the lock and reducing lock security.
Be sure to change the master code after installation.
Operating Instructions:
The lock has a 10 button keypad, a C button and an OK button.
The lock has three codes that allow you to perform the following actions:
1) Master code:
Open the lock
Change the master code
Set/Change/Delete the sub-master and user code
Select between Private and Public functions
Activate/deactivate technician code
2) Sub-master code:
Open the lock
Change the sub-master code
Set/Change/Delete the user code
3) User code:
Open the lock
Change the user code (Public Mode)
4) Technician code: open the lock

4
Electronic Lock User Manual
Master Code Functions:
1) Open:
Enter master code
(The user code will be deleted when using master code when the lock is in public mode)
2) Programing Master Code
Press C -- 01 -- OK -- current master code -- OK -- new master code -- OK
Example: C -- 01 -- OK -- 99551133 -- OK -- 12345678 -- OK
Result: Master code has been changed to 12345678
3) Set or change the sub-master Code
Press C -- 02 -- OK -- master code -- OK -- new sub-master code -- OK
4) Delete sub-master code
Press C -- 03 -- OK -- Master code -- OK
5) Set or change the User Code (Private Mode)
Press C -- 00 -- OK -- master code -- OK -- new user code -- OK
 thebluelightash2timesandonebeepwillbeheard
Example: C -- 00 -- OK -- 99551133 -- OK -- 1234 -- OK
Result: The user code has been set toe 1234
6) Delete User code
C -- 04 -- OK -- Master code -- OK
7) Activate/deactivate technician code
Activate: C -- 77 -- OK -- Master code -- OK
Deactivate: C -- 88 -- OK -- Master code -- OK
Sub-Master Code Functions:
1) Open:
Enter sub-master code
(The user code will be deleted with the sub master code when the lock is in public mode)
2) Change the sub-master Code
C -- 02 -- OK -- current sub-master code -- OK -- new sub-master code -- OK
3) Set/Change the User Code (Private Use mode)
C -- 00 -- OK -- sub-master code -- OK -- new user code -- OK
4) Delete User code (Private Use mode)
C -- 04 -- OK -- sub-master code -- OK
User Code Functions:
Private Mode
1) Open:
Enter user code
2) Change the User Code
C -- current user code -- OK -- new user code -- OK
Public Mode
1) Set code:
Enter user code -- OK
2) Open:
Enter user code -- OK
Technician Code Functions:
1) Open:
Enter technician code -- OK
In private mode using the Technician code will not delete or change the user codes.
In public mode it will delete the user code.
2) Initialize:
C -- 99 -- OK
Lock resets to default settings

5
Electronic Lock User Manual
Additional Functions
Occupied Status Indicator (Public Mode) – deactivated by default
Whenactivated,thebluelightwillashevery2secondstoindicatethelockerisinuseActivate:
C -- 33 -- OK -- Master code -- OK
Deactivate: C -- 44 -- OK -- Master code -- OK
Password protection – deactivated by default
Entering incorrect codes 5 times will cause the lock to shutdown for 5 minutes
Automatically locked in Private Mode
The PCB will be lock 3 seconds after being opened
Emergency Opening
Masterkeyforemergencyopening,thelockcodestillkeeptheprevioussetting
Sound signals
Press button: beep
Successful unlocking: beep
Low power alarm: 5 beeps
Colour signals
 Bluelightasheswhen:1)unlockedsuccessfully2)programmingsuccessful
 Redlightasheswhen:1)wrongcodeentered2)lowpoweralarm
Low power alarm Function
Alarmwillsoundifthebatterypowerislow(5beeps,redlightashes3timesbeforebluelight
ashesonce)informinguserstoreplacethebatteries.
Changing the Battery
1. Removexingscrew
2. Rotate the lock down over the edge of door
3. Take out the batteries
4. Put in the new batteries and screw lock back into place
Schematics and Specifications
