Interlogix TVK-800 User manual

TVK-800 User Manual
P/N 1072696A • REV • ISS 13MAY14

Copyright
©
2014 United Technologies Corporation.
Interlogix is part of UTC
Building and Industrial Systems, a unit of
United Technologies Corporation
. All rights reserved.
Trademarks and
patents
Trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacturer
United Technologies Corporation
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
FCC compliance
Class A
: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
Canada
This Class A digital apparatus complies with Canadian ICES
-003.
Cet appareil mumérique de la classe
A est conforme à la norme
NMB
-003 du Canada.
ACMA compliance
Notice!
This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
Certification
N4131
EU directives
2004/108/EC (EMC directive)
: Hereby, UTC Building and Industrial
Systems
declares that this device is in compliance or with the
essential requirements and other relevant provisions of Directive
2004/108/EC.
2002/96/EC (WEEE
directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
design
ated collection points. For more information see:
www.recyclethis.info.
Contact information
For contact information
, see www.interlogix.com or
www.utcfssecurityproducts.eu

TVK-800 User Manual i
Content
Introduction 3
Features 3
Package contents 4
Installation environment 4
Description 5
Connections 5
Keypad description 6
Function keys 6
Playback control dial and keys 7
Select options on the LCD display 8
Joystick operation 8
Using the key commands 8
Overview of the user groups 10
Logging in/out 11
Menu overview 13
Keypad configuration via the web browser 14
Login 14
Keypad management 15
Device management 16
User management 16
Input settings 18
Output list 20
Auxiliary functions 21
Live view and PTZ speed settings 21
FTP settings 21
System status 22
Local keypad configuration by the Administrator 24
Keypad management 24
Device management 29
Local live view 33
Playback a file 33
User management 35
Camera settings 37
Output settings 38
Macro settings 40
Playback files from a recorder 41
Advanced settings 42
Log out of the keypad 44
Reboot the keypad 44
Shutdown 44

ii TVK-800 User Manual
Local keypad configuration by the Manager 45
Logging in/out 45
Display list of accessible devices 46
Local live view 46
Playback a file 47
User management 48
Input settings 49
Output settings 50
Macro settings 50
Playback files from an encoder 51
Advanced settings 51
Log out of the keypad 51
Reboot the keypad 51
Shutdown 51
Local keypad configuration by the Operator and Custom users 52
Logging in/out 52
Display list of accessible devices 52
Change password 53
Shutdown 53
Using the keypad 54
Using shortcut operations 54
Local live view 54
Display decoded video on a monitor 55
Instant playback 61
Auxiliary functions 61
Saving recordings 62
Moving to next/previous cameras 63
Operating PTZ cameras 64
Setting a preset 64
Calling up a preset 65
Setting a preset tour 66
Calling up a preset tour 67
Setting a shadow tour 68
Calling up a shadow tour 69
Specifications 70
Index 71

TVK-800 User Manual 3
Introduction
Features
Hardware
•7’’ TFT touch screen at 800×480 resolution
•4-axis joystick
•Shortcut keys for PTZ control, setting and calling of preset, preset tour, and shadow
tour
•Shortcut keys for playback operation
•Shortcut keys for input groups and output groups
•Shortcut keys for wiper and light control operation
Software
•Admin, manager, operator, and custom user management
•Supports upgrade by USB flash drive
•Auto searches connected devices in the same network area
•Imports and exports keypad configuration parameters
•Macro command operation
•Storage of recorded files and snapshots to USB flash drive or FTP server
•Plays back recorded files from the USB flash drive
•Plays back remotely recorded files
•Bidirectional audio
•Supports configuration by web server
Decoding capability
•Provides 1-ch video decoding
•Supports standard MPEG4 and H.264 encoding formats
•Decodes at up to 720P real-time resolution
Display decoded video on the monitor
•Displays a decoded camera on the selected window
•Displays a decoded camera group on the selected window
•Sequences a display of a decoded camera group on a monitor
•Sequences a display of a decoded camera group on a monitor group

4 TVK-800 User Manual
Package contents
When you receive the product, check the package and contents for damage and verify
that all items are included. If any items are damaged or missing, please contact your
local supplier.
Items shipped with the product include:
•TVK-800 keypad
•Power supply unit (PSU)
•Power supply cords (UK and Europe)
•CD-ROM
•User manual
Installation environment
When installing your keypad, consider these factors:
Ventilation: Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. Ensure that the location planned for the installation of the
unit is well ventilated and dust-free.
Temperature: Consider the device’s operating temperature (-10 to +55 ºC, 14 to
131 °F) and noncondensing humidity specifications (10 to 90%) before choosing an
installation location. Do not install the device on top of other hot equipment.
Moisture: Do not use the unit near water. To reduce the risk of fire or electric shock, do
not expose this unit to rain or moisture.
Electrical: Ensure that the device is connected to a power supply that corresponds with
the characteristics listed in the technical specifications.
Working surface: Place the device on a horizontal solid surface. Avoid exposure to
severe vibrations.
Caution: Do not attempt to dismantle this product. Any attempt to dismantle or remove
the covers from this product will invalidate the warranty and may also result in serious
injury.

TVK-800 User Manual 5
Description
This chapter describes how to connect the keypad as well the functions of the different
keys on the keypad.
Connections

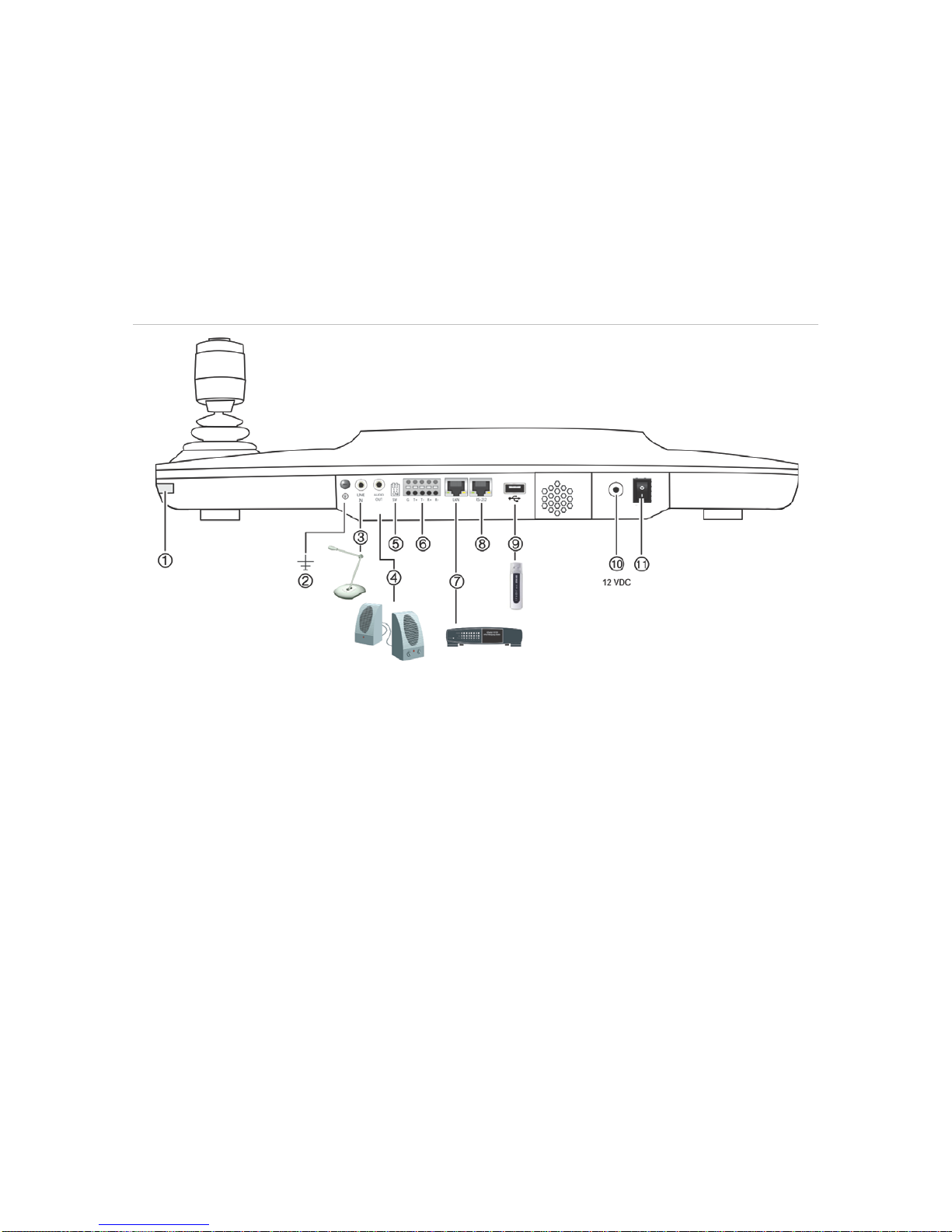

Figure 1: Back view of the keypad
1. Touch pen
2. GND
3. Line in
4. Audio out
5. Reserved
6. RS-485 interface
7. LAN, PoE (802.3af)
8. RS-232 interface
9. USB interface
10. 12 VDC power supply
11. Power on/off

6 TVK-800 User Manual
Keypad description
Figure 2: Keypad top view
1. Playback control
See “Playback control dial and keys” on
page 7 for further information.
2. Function keys
Each key has a special function. See
“Function keys” below for further
information.
3. Numeric keys
Input numbers as well as ESC and
ENTER.
4. Lens control keys
Zoom in or out, focus near or far, open or
close iris.
5. 4-axis joystick.
Control pan, tilt and zoom as well as
capture snapshots. See “Joystick
operation” on page 8 for further
information.
6. Turn light and wiper on or off.
7. Touch-sensitive LCD display
8. LED indicators:
POWER: Lit when keypad is powered up.
LINK: Lit when the keypad is connected to
the network.
Tx/Rx: Flickers when the keypad is
transmitting/receiving data.
COM: Reserved.
ALARM: Reserved.
Function keys
There are 20 function keys. They allow you to quickly select regularly used functions
such as to call up presets or to select a monitor.
See Figure 2 above for the location of the function keys on the keypad.
The keys are lit blue when inactive and red when active.

TVK-800 User Manual 7
Figure 3: Description of the function keys
MON WIN CAM MON-G CAM-G
Select
a monitor Select a video tile
(decoders only) Select a camera Select a monitor group Select a camera group
MULT MAC TOUR GROUP SET
Select a multiview
display format
Call a macro Set or call a tour Set or call a
group .
Set preset tour,
shadow tour
PRESET CALL PATROL PATTERN AUX1
Set
a preset Call a preset Call a preset tour Call a shadow
tour AUX 1
SHIFT LOCK PREV NEXT AUX2
Shift
Lock screen Previous camera Next camera AUX 2
Locking the keypad
When in live view mode, press the LOCK key to lock the keypad and mouse. Once
locked, none of the keys (except LOCK), the joystick, the mouse, or the touch screen
can be used.
To lock the keypad in live view, press and hold the LOCK key, or press the SHIFT +
LOCK keys. When the keypad is locked, the LOCK key is lit red.
To unlock the keypad, press and hold the LOCK key, or press the SHIFT + LOCK keys.
The LOCK key turns blue.
The keypad automatically locks after a predetermined period of inactivity. The time (in
minutes) can be set in the Keypad > Hardware Settings menu.
Note: The keys are also locked when the screen is automatically locked.
Playback control dial and keys
See Figure 2 on page 6 for the location of playback control on the keypad.

8 TVK-800 User Manual

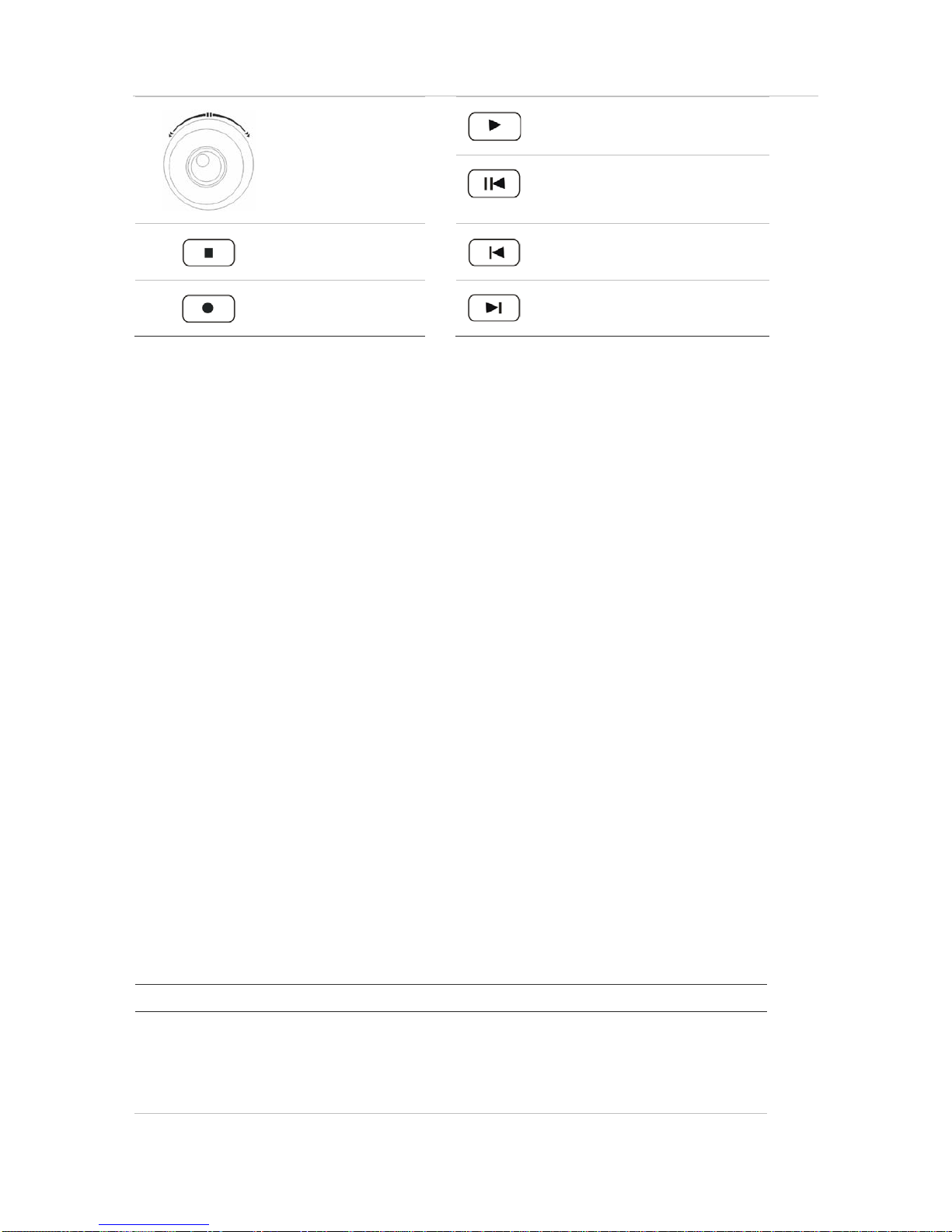

Figure 4: Description of the playback control dial and keys
Not used. Play the last five minutes in
decoder playback mode.
Play/pause.
Stop play back. Play back the previous file (not
available in USB playback mode).
Record. Play back the next file (not
available in USB playback mode).
Select options on the LCD display
There are four ways to select and enter items on the LDC display:
•Touch pen: Use the touch pen (see Figure 1 on page 5) to select options on
screen. Replace the touch pen in its holder when finished using it.
•Finger: Use your finger to select options on screen.
•Joystick: Rotate the joystick to position the on-screen cursor in the desired location.
Press the center key on the joystick to select.
•Mouse: Use a mouse. Plug the mouse into the USB socket on the back of the
keypad.
Joystick operation
Move the joystick in one of eight directions to control pan/tilt. Rotate the knob for zoom
control.
Press the center key on the joystick for the Enter function and to capture snapshots.
Save the snapshots to a USB flash drive or to a FTP site.
Using the key commands
Key operation
Table 1: Operating a multiple video display
Key
Description Example
MON
Num+MON: Select the video output to
be controlled by the decoder, NVR, or
DVR.
Note: When Num=0, the system enters
local live view mode.
Press the 2+MON keys to select monitor
2.

TVK-800 User Manual 9
Key
Description Example
MULT
Num+MULT: Select the multiview
display format for the selected output
channel.
Press the 2+MON+2+MULT keys to
configure a two-division display for
monitor 2.
WIN
Num+MON+Num+WIN+Num+CAM-G:
Output and display the video signal
from the camera group on the selected
video tile of the monitor in cycle.
Press the 2+MON+3+WIN keys to select
video tile 3 of monitor 2.
CAM
Num+CAM: Select the video input. Press the 2+MON+3+WIN+5+CAM keys
to display video input 5 on video tile 3 of
monitor 2.
MON
-G Num+MON-G: Select the monitor
group. Press the 1+MON-G keys to select monitor group 1.
CAM
-G Num+CAM-G: Select the camera
group. Press the 1+MON+1+CAM-G keys to select camera group 1 to be displayed on
monitor 1.
SET
SET+Num+TOUR/ GROUP/ PATROL/
PATTERN/ PRESET: Set the tour,
group, preset tour, shadow tour, or
preset.
Press the SET+1+PATTERN keys to set
shadow tour 1.
TOUR
SET+Num+TOUR: Set the tour.
Num+TOUR: Call the defined tour. Press the SET+1+TOUR keys to set tour
1.
Press the 1+TOUR keys to call the pre-
defined tour 1.
GROUP
SET+Num+GROUP: Set the group.
Num+GROUP: Call the defined group. Press the SET+1+GROUP keys to set
group 1.
Press the 1+GROUP keys to call the
defined group 1.
PTZ control keys
Table 2: PTZ control keys
Key
Description Example
PRESET
Num+PRESET: Move the PTZ
camera to the desired position, and
then press the Num+PRESET keys to
set a preset.
Press the 1+PRESET keys to set preset 1.
CALL
Num+CALL: Call the predefined
preset. Press the 1+CALL keys to call preset 1.
PATROL
SET+Num+PATROL: Set a preset
tour.
Num+PATROL: Call a predefined
preset tour.
Press the SET+1+PATROL keys to set
preset tour 1.
Press the 1+PATROL keys to call preset
tour 1.
PATTERN
Num+PATTERN: Call a predefined
shadow tour. Press the SET+1+PATTERN keys to set shadow tour 1.
Press the 1+PATTERN keys to call
shadow
tour 1.

10 TVK-800 User Manual
Other keys
Table 3: Functions of the other keys
Key
Description Example
MAC
Num+MAC: Call the MAC command. Press the 1+MAC keys to call MAC
command 1.
SHIFT
SHIFT+LOCK: Lock/unlock the
system. Press the SHIFT+LOCK keys
to lock/unlock
the system.
LOCK
Lock/unlock the system. Press and hold the LOCK key, or press the
SHIFT+LOCK key, to lock/unlock the
system.
PREV
Select the previous camera for live view on the keypad or a multiview display.
NEXT
Select the next camera for live view on the keypad or a multiview display.
AUX1
Press the AUX1 key to set its defined function (bidirectional audio or snapshot).
AUX2
Press the AUX2 key to set its defined function (bidirectional audio or snapshot).
Entering characters on screen
A soft keyboard will appear on screen when you need to enter characters in a screen
option. Click a key to input that character.
Figure 5: Soft keyboard
Click to enter letters or numbers. Click to switch between upper and
lower case.
Overview of the user groups
By default the keypad comes with four user groups: Administrator, Manager, Operator,
and Customized User.

TVK-800 User Manual 11
Table 4: User levels
User
Description
Admin
The administrator has full access to all menu settings.
•Configure basic parameters of the keypad
•Add, modify, and delete devices
•Remotely control the front panel
•Add, modify, and delete manager users
•Assign devices to manager users
•Modify number of inputs and outputs
•Local live view and PTZ control
There can only be one administrator.
The user name is “admin”. It cannot be modified.
The default password is 1234.
Manager
The manager has reduced menu access:
•Remotely control the front panel
•Add, modify, delete operator and custom users
•Assign devices to operator and custom
•Local live view and PTZ control
Only the manager can add operator and custom users.
Each manager has their own list of operator and custom users.
Operator
The operator only has access to the
remote control of DVR/NVR front
panels.
Custo
m The customized user only has access to the remote control of
DVR/NVRs front panel.
Logging in/out
1. Power up the keypad. The following display appears:

12 TVK-800 User Manual
2. Select your user name from the drop-down list (admin, manager,
operator/custom) and enter the password.
Note: Record your password in a safe place. If you should forget your password,
you will not be able to access the keypad functions. Please contact technical
support for assistance.
3. Check Save Password to save the login password for future use.
4. Click Login. The main screen for the user type appears with the list of menu
options available displayed.
Note: The list of menu options available will depend on the user type.
To log out of the system:
1. Click the Logout button in one of the configuration screens.
You return to the Login screen.

TVK-800 User Manual 13
Menu overview
Not all user types have permission to access all menu functions.

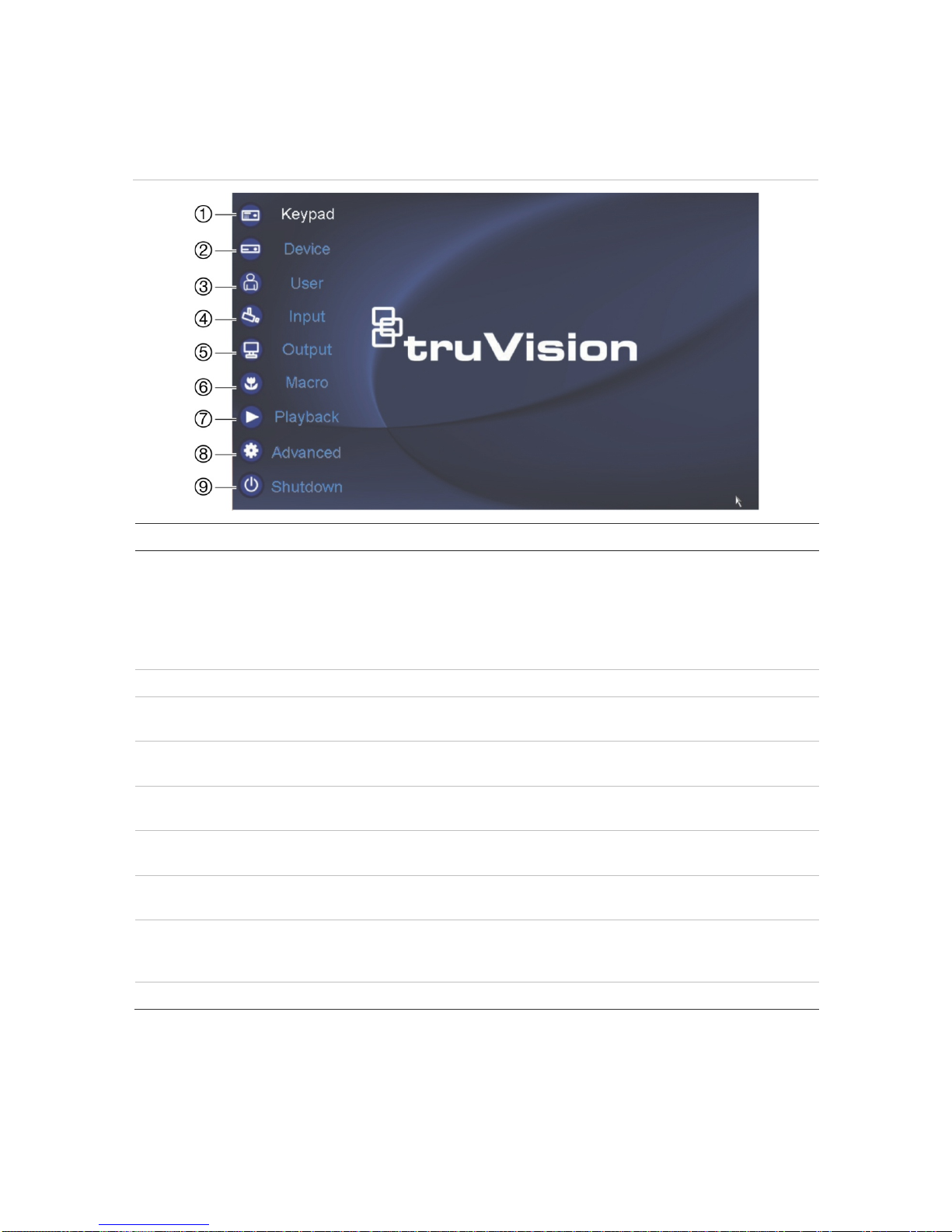

Figure 6: Main menu (Admin shown)
Menu function Description
1.
Keypad
Keypad management: View the device version, configure network
parameters, configure hardware settings, set date and time, select the
language, calibrate the touch screen, upgrade the system, and
import/export a configuration file.
Only available to the Admin. See “Keypad management” on page 24 for
more information.
2.
Device
Device management: Add, modify, and delete a device.
3.
User
User management: Add and delete a user, add and delete devices
associated with a user, and change the password.
4.
Input
Input settings: Start local live view, change camera name/ number/
protocol/ stream type, and group cameras.
5.
Output
Output settings: Display output channels of user, play back recordings,
modify an output channel, and group outputs.
6.
Macro
Macro settings: Set up a sequence of actions. Add, view, run, and delete a
macro.
7.
Playback
Playback recordings: Playback recordings from a USB flash drive or FTP
site through a decoder.
8.
Advanced
Advanced settings: Set AUX1 and AUX2 keys to bidirectional audio and
snapshots. Modify network performance and PTZ speed. Set up FTP server
settings.
9.
Shutdown
Log out, reboot, and shutdown the system.

14 TVK-800 User Manual
Keypad configuration via the web
browser
You can quickly and easily configure remotely the keypad via a web browser. The main
menu functions available depend on the type of user: Administrator, Manager, or
Operator/Customized user.
This chapter provides an overview on configuring the keypad via a browser. For further
information on how to configure by the different user types, see:
•Administrator: “Local keypad configuration by the Administrator” on page 24.
•Manager: “Local keypad configuration by the Manager” on page 45.
•Operator and Customized user: “Local keypad configuration by the Operator and
Custom users” on page 52.
Login
To access the keypad, open a web browser and enter the IP address assigned to the
keypad as a web address. In the Login window, enter the Admin user name and
password.
Admin User ID: admin
Password: 1234
IP address: 192.168.1.70
Subnet mask: 255.255.255.0
Port: 8000

TVK-800 User Manual 15
Figure 7: Main web window (Version menu shown)
User type (Admin shown) Logout
Menu panel
Click a menu item to select it. Setup window Enter the required data for each parameter.
Keypad management
This menu is only accessible by the Administrator.
You can configure all the keypad parameters from the browser by clicking Keypad in
the submenu panel and entering the required parameters. Click Save to save the
changes. See Figure 8 below.
For information on setting up keypad parameters locally, see “Keypad management” on
page 24.
Figure 8: Keypad management window

16 TVK-800 User Manual
Device management
The Administrator can add, modify, or delete a device from the keypad. See Figure 9
below. The Manager and Operator/Custom users can only see the list of devices
available. For further information on setting up device parameters, see “Device
management” on page 29.

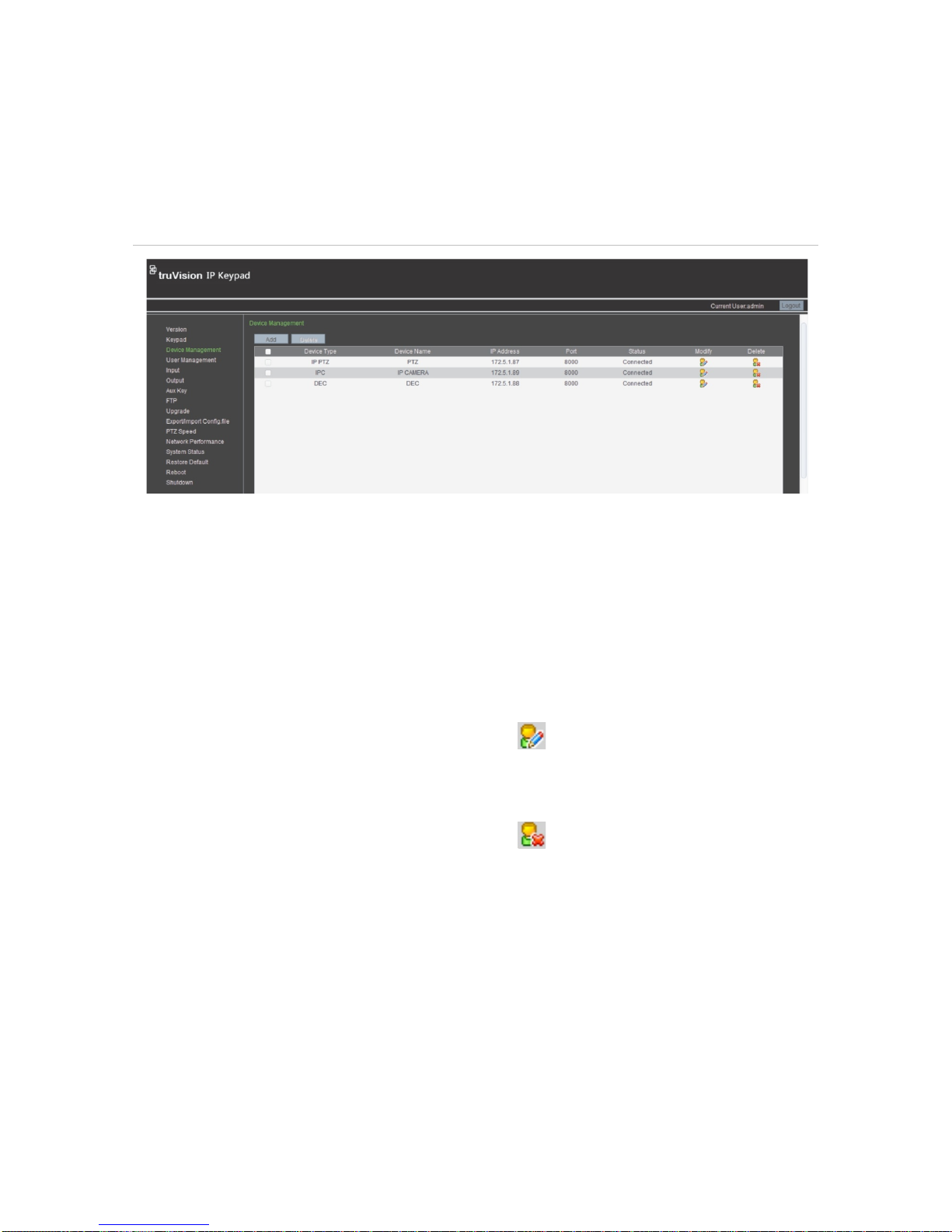

Figure 9: Device Management window
Add a device
1. Click Device Management in the submenu panel. The “Device Management”
window appears.
2. Click the Add button. In the pop-up window, add the device name, IP address,
port, as well as user name and password. Click OK to confirm.
The successfully added device is then listed in the Device Management window.
Modify a device
1. In the “Device Management” window, click for the selected device. In the
pop-up window, enter the new device name. Click OK to confirm.
Delete a device
1. In the “Device Management” window, click for the selected device. Click OK
to confirm the deletion of the user.
User management
The Administrator and Manager can use the browser to add, delete, and change the
user parameters. The Operator/Custom users can modify their passwords.
Note: Only the Administrator can create Managers. However, only Managers can
create Operator and Custom users
See Figure 10 on page 17. For further information on setting up user parameters, see
“User management” on page 35.

TVK-800 User Manual 17

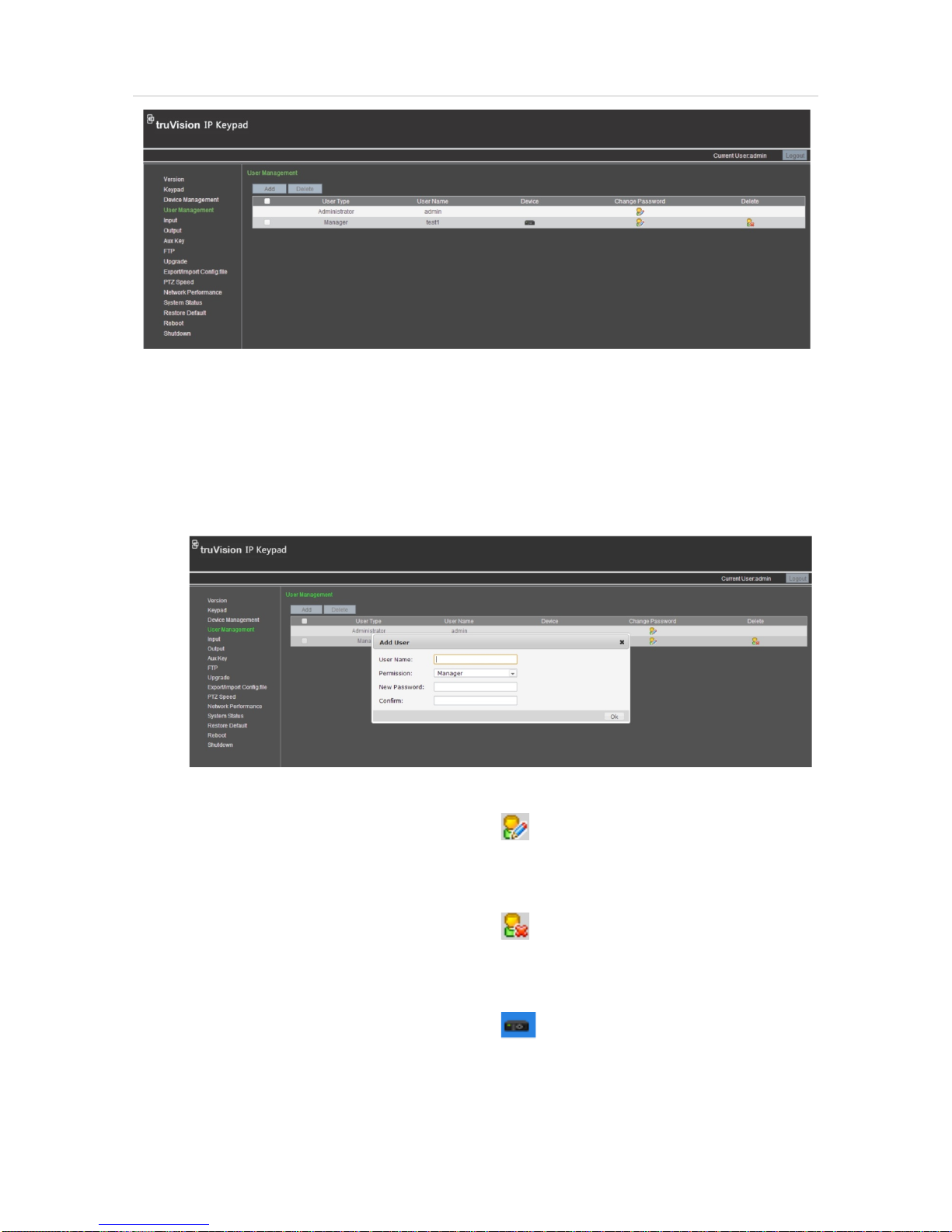

Figure 10: User Management window
Add a user
1. Click User Management in the submenu panel. The “User Management” window
appears.
2. Click the Add button. In the pop-up window, add the new user details. Enter the
user type (“Permission”) and new password. Confirm the password and then click
OK.
Modify a user
1. In the “User Management” window, click for the selected user. In the pop-up
window, change the user password. Confirm the password and then click OK.
Delete a user
1. In the “User Management” window, click for the selected user. Click OK to
confirm the deletion of the user.
Set up a user to access a specific device
1. In the “User Management” window, click for the selected user. The “User-
Device” pop-up window appears, listing all the devices available.

18 TVK-800 User Manual
2. Click the Add button. The “User-Add Device” pop-up window appears, listing all
the devices added to the keypad by the Administrator.
3. Select the desired devices and click the Add button to add the devices to the
selected user. The successfully added devices are then added to the “User-
Device” window.
4. To delete a device from the list, click for the device you want to delete.
Input settings
The Administrator and Manager can modify inputs, such as cameras, from the browser.
Click Input in the submenu panel to get the Input window. See Figure 11 on page 19.
Cameras can also be grouped together so that they can be called up to appear together
on a specific monitor. For example, one group can be cameras viewing the car park
and another group can be cameras viewing the building entrances.
You can set up to 16 camera groups.
For further information on setting up input parameters, see “Input settings” on page 49.
