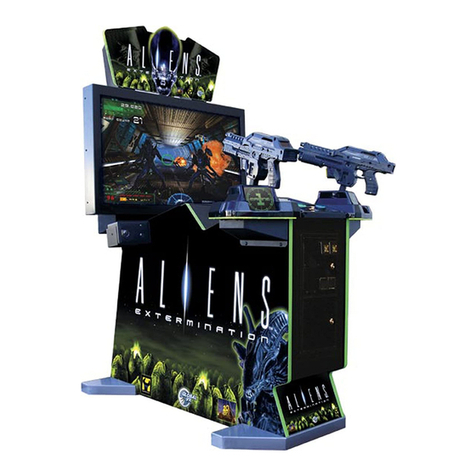

Global VR Aliens Extermination Installation and operating instructions

Operation & Service Manual
For 42" & 50" Cabinets
040-0120-01 Rev. B
www.globalvr.com
http:
// service.globalvr.com
[e-mail]
Phone: [phone]
Fax: [phone]
© 2011 Global VR. Inc. GLOBAL VR and the GLOBAL VR logo are registered trademarks of Global VR, Inc.
ALIENS ™ & © 1986, 2006 Twentieth Century Fox Film Corporation. All Rights Reserved. Aliens: Extermination, 20th Century Fox and their respective logos are
trademarks of Twentieth Century Fox Film Corporation. Game engine and certain software elements © 2006 Play Mechanix, Inc. Play Mechanix, Inc. and the
Play Mechanix, Inc. logo are trademarks or registered trademarks of Play Mechanix, Inc. All Rights Reserved.
All other trademarks are the properties of their respective owners.
¾Read this manual before use.
¾Keep this manual with the machine at all times.

Preface
Aliens™ Extermination Operation & Service Manual
Page 2 of 58 040-0120-01 Rev. B 11/11/2011
Table of Contents
Preface ...................................................................4
Safety..................................................................4
Warnings .........................................................5
Environmental Conditions ..............................5
FCC Notices (United States) ..............................5
Chapter 1 — Introduction..................................6
Cabinet Specifications........................................7
Power Requirements (Approximate) ..............7
Hardware Features ..........................................7
Chapter 2 — Installing a New Cabinet..............8
Chapter 3 — Playing a Game ............................9
Chapter 4 — Operator Menu and Game
Setup .........................................................10
Navigating the Menus ......................................10
Main Menu .......................................................11
System Tests Menu...........................................12
Using the Gun Test & Calibrate Screens.......13
Coinage Audits Menu.......................................14
System Audits Menu ........................................15
Game Audits Menu ..........................................16
Coinage Adjustments Menu .............................17
System Adjustments Menu...............................18
Game Adjustments Menu .................................19
Gun Adjustments Menu....................................20
Reset Menu.......................................................21
Chapter 5 — Software Restoration..................22
System Recovery Disk ..................................22
Game Install CD ...........................................22
Chapter 6 — Service and Repair .....................23
Audio System Service ......................................23
Speaker Replacement (42" Cabinet) .............24
Speaker Replacement (50" Cabinet) .............24
Subwoofer Replacement ..................................24
Gun Service......................................................24
Gun Power Harness Fuses............................ 25
Opening the Gun Case.................................. 25
Closing the Gun Case ................................... 25
Gun Trigger Service ..................................... 26
Gun Button Service ...................................... 26
Gun Coil Assembly Service ......................... 27
Gun Pot and Gear Service ............................ 28
The Gun PCB ............................................... 29
GVRI/O PCB Service...................................... 30
Start Button Service......................................... 31
50" LCD Monitor Service................................ 32
42" LCD Monitor Service................................ 32
42" Monitor Power Supply........................... 33
Computer Replacement ................................... 33
Coin Mech Replacement ................................. 34
Coin Meter Replacement ................................. 34
Power Distribution Service.............................. 35
AC Power Plate ............................................ 35
AC Power Strip Replacement....................... 35
DC Power Supply Replacement ................... 36
Marquee Florescent Light Service................... 37
LED Light Tubes (50" Cabinet)....................... 37
Cold-Cathode Florescent Light (CCFL)
Service....................................................... 37
Setting the Computer BIOS (CMOS),
DG41TY Motherboard.............................. 38
Chapter 7 — Replacement Parts ..................... 42
Chapter 8 — Troubleshooting......................... 48
Video Troubleshooting ................................. 48
Audio Troubleshooting................................. 49
Gun Troubleshooting.................................... 49
Miscellaneous Troubleshooting.................... 50
Checking the Game Dongle............................. 51
Chapter 9 — Diagrams and Schematics ......... 52
Warranty Information ...................................... 57

Preface
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 3 of 58
List of Figures
Figure 1. Cabinet Dimensions.............................. 7
Figure 2. Coin Door with Key Locations............. 8
Figure 3. Back of the Marquee Front................... 8
Figure4. Using the Guns ...................................... 9
Figure 5. Operator Buttons ................................ 10
Figure 6. Main Menu ......................................... 11
Figure 7. System Test Screens ........................... 12
Figure 8. Gun Calibration Screens..................... 13
Figure 9. Coinage Audits Menu ......................... 14
Figure 10. System Audits Menu......................... 15
Figure 11. Game Audits Menu ........................... 16
Figure 12. Coinage Adjustments Menu.............. 17
Figure 13. System Adjustments Menu ............... 18
Figure 14. Game Adjustments Menu ................. 19
Figure 15. Gun Adjustments Menu.................... 20
Figure 16. Reset Menu ....................................... 21
Figure 17. Audio Wiring with 5.1 Audio Amp... 23
Figure 18. Gun Case Screws .............................. 25
Figure 19. Gun Trigger Assembly...................... 26
Figure 20. Gun Button, Lamp, and Micro
Switch ....................................................... 27
Figure 21. Gun Coil Assembly Service.............. 27
Figure 22. Gun Pot Replacement ....................... 28
Figure 23. Gun PCB ...........................................29
Figure 24. Gun Internal Parts .............................29
Figure 25. GVRI/O Mini PCB, Version 04 ........30
Figure 26. Start Button Assembly ......................31
Figure 27. 50" Monitor Mounting ......................32
Figure 28. Servicing the Coin Mech and Coin
Meter .........................................................34
Figure 29. AC Power Plate (Shown Without
Labels).......................................................35
Figure 30. Cold-Cathode Light Detail................37
Figure 31. 42" Cabinet Artwork .........................44
Figure 32. 50" Cabinet Artwork .........................45
Figure 33. Gun Exploded-View Drawing...........47
Figure 34. USB Game Dongle ...........................51
Figure 35. GVRI/O Wiring Diagram (42"
Cabinet) .....................................................52
Figure 36. Gun Wiring Diagram.........................53
Figure 37. Overall Cabinet Wiring Diagram
(42" Cabinet) .............................................54
Figure 38. Power Distribution Diagram .............55
Figure 39. Computer Rear Panel Diagram
(DG41TY Motherboard) ...........................56

Preface
Aliens Extermination Operation & Service Manual
Page 4 of 58 040-0120-01 Rev. B 11/11/2011
Preface
Safety
Please read this page before preparing your arcade cabinet for game play.
The following safety instructions apply to all game operators and service personnel. Specific warnings and cautions will
be included throughout this manual.
Use the following safety guidelines to help protect the system from potential damage and to ensure your personal safety:
•Electronic components in the game cabinet run on 115 VAC. The voltage switch on the back of the computer must
be set to 115. If you power up the computer outside of the cabinet, set the switch to match the local AC voltage:
−115 volts / 60Hz in most of North and South America and some Far Eastern countries such as Japan, South
Korea and Taiwan
−230 volts / 50Hz in most of Europe, the Middle East and the Far East
•To help prevent electric shock, plug the system into a properly grounded power source. These cables are equipped
with 3-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from
a cable. If you must use an extension cable, use a 3-wire cable with properly grounded plugs.
•To help protect your system from sudden increases and decreases in electrical power, use a surge suppressor, line
conditioner or Uninterruptible Power Supply (UPS).
•Be sure nothing rests on the system's cables and that the cables are not located where they can be stepped on or
tripped over.
•Keep your system far away from radiators and other heat sources.
•Do not block cooling vents.
Precautions for Game Operation
•To avoid injury and accidents, people who fall under the following categories should not play the game:
−Those who need assistance when walking.
−Those who have high blood pressure or a heart problem.
−Those who have experienced muscle convulsions or loss of consciousness when playing a video game or similar
activities.
−Those who have trouble in the neck or spinal cord.
−Intoxicated persons.
−Pregnant women.
−Persons susceptible to motion sickness.
−Persons who do not abide by the warning labels on the game.
•A player who has never been adversely affected by light stimulus might experience dizziness or headache when
playing the game. Small children can be especially susceptible to these conditions. Caution guardians of small
children to keep watch over their children during play.
•Instruct those who feel sick during play to see a doctor.
•To avoid injury from falling objects, and electric shock due to spilled drinks, instruct players not to place heavy
items, food, or drinks on the product.
•To avoid electric shock or short circuit, do not allow customers to put hands and fingers or extraneous matter in the
openings of the product.
•To avoid risk of injury from falling, immediately stop customers from leaning against or climbing on the product.

Preface
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 5 of 58
Warnings
To avoid electrical shock, unplug the cabinet before performing
installation or service procedures.
If the power cord is damaged, it must be replaced by the
equivalent power cord available from GLOBAL VR or your
distributor.
GLOBAL VR®assumes no liability for any damages or injuries
incurred while setting up or servicing the cabinet. Only
qualified service personnel should perform installation or
service procedures!
Environmental Conditions
Cabinet is intended for indoor use only. Be sure to keep the cabinet dry and maintain operating temperatures of
59°—86°F (15°—30°C).
FCC Notices (United States)
Electromagnetic Interference (EMI) is any signal or emission radiated in free space or conducted along power or signal
leads, that endangers the functioning of radio navigation or other safety service, or that seriously degrades, obstructs, or
repeatedly interrupts a licensed radio communications service. Radio communications services include, but are not
limited to, AM/FM commercial broadcast, television, cellular services, radar, air-traffic control, pager, and Personal
Communication Services (PCS). These licensed services, along with unintentional radiators such as digital devices
(including computer systems) contribute to the electromagnetic environment.
Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function properly together in the
electronic environment. While this computer system has been designed and determined to be compliant with regulatory
agency limits for EMI, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference with radio communications services, which can be determined by turning the equipment off and
on, you are encouraged to try to correct the interference by one or more of the following measures:
•Re-orient the receiving antenna.
•Relocate the cabinet relative to the receiver.
•Plug the game into a different outlet so that the computer and the receiver are on different branch circuits.
If necessary, consult a Regulatory EMC representative of GLOBAL VR®or an experienced radio/television technician
for additional suggestions. You may find the FCC Interference Handbook, to be helpful. It is available from the U.S.
Government Print Office, Washington, DC 20402.
This device has been tested and complies with the limits for a Class A digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instruction manual, it may cause harmful interference with radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case
you will be required to correct the interference at your own expense.
Operation is subject to the following conditions:
•This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.

Chapter 1 — Introduction
Aliens Extermination Operation & Service Manual
Page 6 of 58 040-0120-01 Rev. B 11/11/2011
Chapter 1 — Introduction
THIS IS NOT JUST ANOTHER BUG HUNT!
It’s been years since the Colonial Marines left planet LV-426 and the Alien population behind.
It’s time to go back to finish off the Alien race…and more!
The world seems familiar, but the scenario is not.
Since the Marine’s last visit, the Weyland-Yutani Corporation reprogrammed an army of
synthetic humans to stop anything from getting in the way of the company’s development of
their deadly Bio Weapons. It’s not as simple as just killing the Alien Queen any more.
Game Features:
•Force-feedback recoil gun action
•2 player simultaneous cooperative action
•Original licensed characters
Colonial Marines, Face Hugger, Warrior Aliens, and Eggs
•State of the art arsenal includes:
M41-A Pulse Rifle, Flamethrower, Grenades, and Missile Launcher
•Power-Up for Health, Ammo, Grenades, Missiles, and Flame Canisters
•4 Levels of Nail Biting Action
•Two Different Play Modes – Story and Chapter

Chapter 1 — Introduction
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 7 of 58
Cabinet Specifications
Figure 1. Cabinet Dimensions
Power Requirements (Approximate)
42" Cabinet: 115 VAC
•Inrush AC Current: 7 Amps
•Operating AC Current: 5 Amps
230 VAC
•Inrush AC Current: 3.5 Amps
•Operating AC Current: 3 Amps
50" Cabinet: 115 VAC
•Inrush AC Current: 7 Amps
•Operating AC Current: 5 Amps
230 VAC
•Inrush AC Current: 3.5 Amps
•Operating AC Current: 3 Amps
Hardware Features
•Pentium®computer
•1 gigabyte RAM
•Nvidia®GeForce®graphics
•42" or 50" HD LCD monitor
•Enhanced audio with subwoofer
•Supports dollar bill validator
•State-of-the-art cabinet design with
unique edge-lit control panel
•Mounted guns with force-feedback recoil
action and LED ammo readout
•Reliable USB Gun interface
•Eye-catching 3-D Marquee on 50" model

Chapter 2 — Installing a New Cabinet
Aliens Extermination Operation & Service Manual
Page 8 of 58 040-0120-01 Rev. B 11/11/2011
Chapter 2 — Installing a New Cabinet
Use the following procedure to install a new cabinet:
1. Carefully remove the cabinet from the shipping container, giving yourself plenty of space around
the cabinet. Inspect the exterior of the cabinet for any damage.
2. Remove the keys from the coin return slot. Open the coin door to locate the second set of keys
(see 0).
Figure 2. Coin Door with Key Locations
3. 50" Cabinet: Refer to the document 50" Cabinet Installation Instructions (Part #: 040-0246-
01) for complete instructions on setting up the display stand with the monitor and marquee.
4. 42" Cabinet: Unpack the marquee front. Remove the five (5) nuts and washers from the pre-
installed screws with standoffs, shown by the rectangles below. (Leave the standoffs in place.)
Remove the three (3) wood screws, shown by the circles below, from the back of the support
piece at the top. Use this hardware to secure the marquee front in place on top of the cabinet.
5. Connect the AC power cord to a grounded outlet and power on the game.
6. Play a game to verify everything is working properly.
7. Refer to Chapter 4 for information on using the Operator menus to set up your game.
Figure 3. Back of the Marquee Front

Chapter 3 — Playing a Game
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 9 of 58
Chapter 3 — Playing a Game
Playing the game is easy and intuitive. Blast the aliens, but don't hit the other marines!
1. Insert coins and press the START button next to the gun you want to use.
2. Select Story mode, where you start at the beginning, or Chapter mode, where you pick your
starting level. (You can disable Chapter mode from the Operator menu.)
3. Shoot at the aliens with guns, flamethrower, grenades and rockets as you automatically move
through the base. See the picture below for special features of the gun.
4. Don't shoot the other marines! Hitting them depletes your health.
5. Shoot at weapons and medical kits to increase your ammunition and health. Gather special
weapons and fuel for your flamethrower.
6. When your game is about to end, a countdown appears onscreen. To continue, insert coins and
press the START button on your side.
Figure4. Using the Guns

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 10 of 58 040-0120-01 Rev. B 11/11/2011
Chapter 4 — Operator Menu and Game Setup
This chapter describes the Game Operator menus, their functions, and default settings. These
menus let you set up the game, diagnose problems, and view gameplay and earnings statistics.
Navigating the Menus
1. Open the coin door and press the red TEST/BACK button to open the Operator Main Menu.
2. Use the VOL UP and VOL DN buttons to navigate through the list of menu items. Each item
will flash as it is highlighted.
3. Press the green SELECT button to open a sub-menu or select an item when it is highlighted.
4. To change the setting for a menu item, highlight the item and press SELECT, and then use the
VOL UP and VOL DN buttons to modify the setting. When you finish, press TEST/BACK to
exit from the item.
5. The last item in each submenu will take you back to the previous menu when you press
SELECT. (Pressing the TEST/BACK button to automatically highlight this item.)
6. Once you get back to the Main Menu, highlight EXIT TO GAME and press SELECT to return
to the Attract Mode.
Figure 5. Operator Buttons

Chapter 4 — Operator Menu and Game Setup
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 11 of 58
Main Menu
The main menu appears first when you press the TEST/BACK button. This is the starting point
for all features of the Operator Menus.
The information box that appears on the right side of this screen lists important information
about the hardware and software in the game.
Figure 6. Main Menu
Menu Item Description
SYSTEM TESTS
MENU Opens System Tests where you can test and calibrate the guns, test the buttons, switches, and audio, or display video test screens to help you adjust
the video.
COIN AUDITS Opens CoinageAudits where you can view earnings statistics.
SYSTEM AUDITS Open System Audits where you can view basic game play statistics.
GAME AUDITS Opens GameAudits where you can view detailed game play statistics.
COINAGE
ADJUSTMENTS Opens CoinageAdjustments where you can set up pricing and coin mechs.
SYSTEM
ADJUSTMENTS Opens SystemAdjustments where you can set up audio volume and attract mode sounds, and set the video gamma.
GAME
ADJUSTMENTS Opens GameAdjustments where you can set the minimum game time and turn the Chapter Select Screen on or off.
GUN ADJUSTMENTS Opens Gun Adjustments where you can set up gun features, or flip the guns if
they should happen to be wired backwards.
RESET MENU Opens Reset Menu where you can clear credits, audits, and adjustments, or
return the game to factory default settings.
EXIT TO GAME Returns you to the Attract Mode.

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 12 of 58 040-0120-01 Rev. B 11/11/2011
System Tests Menu
Each item in the System Tests menu opens another menu, as shown below, that lets you test
various game functions.
Figure 7. System Test Screens
Menu Item Description
GUN TEST & CALIBRATE The Gun Calibration screens allow you to calibrate the guns so they aim
properly. Refer to Using the Gun Test & Calibrate Screens, on page 13,
for instructions on calibrating the guns.
SWITCH INPUT TEST The Switch Input screen lists each switch on the cabinet. To confirm a
switch is working, operate the switch and observe that it highlights on the
screen. Press the VOL UP and VOL DN buttons together to exit from the
test screen.
VIDEO SCREEN TESTS Each item on the Video Screen Tests menu opens a screen that helps
you adjust the video using the monitor remote control board located
inside the coin door. Press the Select button to close these screens.
SOUND TEST The items on the Sound Tests menu help you diagnose audio problems.
Music Test plays music to help you judge audio quality. Speaker Test
plays each speaker in turn, followed by both speakers in stereo. The
remaining items each play a tone at the stated frequency, to test the
speaker frequency response.
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 13 of 58
Using the Gun Test & Calibrate Screens
1. Select GUN TEST & CALIBRATE from the System Tests menu. The screen shown below on
the left will open. Observe the lists on the left and right side of the screen. Each of these
provides information about the gun on that side of the cabinet.
2. Move a gun and observe the corresponding icon moving on the screen. When the gun is properly
calibrated, you should be able to move the icon all around the edge of the screen, without going
off the screen. Note that the coordinate numbers next to X and Y on the screen change as you
move the gun.
3. Press the Trigger, Flamethrower, and Grenade buttons and observe that the corresponding word
changes color onscreen. You should also feel the Kicker (force-feedback recoil) when you pull
the trigger.
4. To test the gun LED display, press the Grenade button to cycle the ones-place LED, and press
the Flamethrower button to cycle the tens-place LED. Confirm all LED segments light, and the
readout matches the onscreen number next to LED for that gun.
5. To calibrate the right gun (Player 2), press the START button for that gun.
6. The Gun Calibration screen, shown below on the right, will appear. When the screen first
appears, only the PLAYER 2 GUN LEFT numbers will be visible, and a blue triangle will be
visible at the far left of the screen, as shown below.
As you move the gun, the numbers next to PLAYER 2 GUN LEFT will change, indicating
the gun position. Point the gun at the far left of the screen, as indicated by the triangle, and
pull the trigger to set the position.
7. Once you set the LEFT position, PLAYER 2 GUN RIGHT will automatically become active,
and a blue triangle will appear at the far right of the screen. Move the gun all the way to the
right and pull the trigger.
8. Set the UP and DOWN positions the same way. Once you set the DOWN position, the screen
shown below on the left will appear again.
9. When finished testing guns, press the SELECT button to return to the System Tests Menu.
Figure 8. Gun Calibration Screens

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 14 of 58 040-0120-01 Rev. B 11/11/2011
Coinage Audits Menu
This screen provides basic coin count information.
Figure 9. Coinage Audits Menu
Menu Item Description
COIN 1 Displays current coin count for COIN 1, used for coin mechs 1 and 2.
COIN 2 Displays current coin count for COIN 2, used for the optional dollar bill
validator.
COIN 3 Not used.
COIN 4 Not used.
PAID CREDITS Displays total credits inserted since the last reset.
UNSPENT CREDITS Displays credits currently available.
LIFETIME COIN COUNT Displays total credits inserted since the software was installed.
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 15 of 58
System Audits Menu
This screen provides basic game play statistics.
Figure 10. System Audits Menu
Menu Item Description
UP TIME Displays total time the cabinet has been turned on since the software was
installed. Format is: years days hours:minutes:seconds
PLAY TIME Displays total game play time since the software was installed.
Format is: years days hours:minutes:seconds
1P TIME Displays the percent of total play time that is for Player 1.
2P TIME Displays the percent of total play time that is for Player 2.
PLAYER 1 STARTS Displays the number of times a game has been started for Player 1.
PLAYER 2 STARTS Displays the number of times a game has been started for Player 2.
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 16 of 58 040-0120-01 Rev. B 11/11/2011
Game Audits Menu
The Game Audits Menu provides access to all of the game audit screens, where you can view
game play and earnings statistics.
Figure 11. Game Audits Menu
Table 1. Game Audits Menu Items
Menu Item Description
SCORE AUDITS Displays the average score and high score for the cabinet.
CONTINUE HISTOGRAM Opens the Continue Histogram, a graph that shows how many players
have continued from each level.
TIME HISTOGRAM Opens the Time Histogram, a graph that shows how many players have
played for specific lengths of time.
LEVELAUDITS Displays start and finish information for each game play level.
GUN AUDITS Displays detailed statistics on how players have used the various
weapons, including the number of shots and hits, and power-ups
collected.
MISC AUDITS Displays additional detailed game play statistics.
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 17 of 58
Coinage Adjustments Menu
The Coinage Adjustments Menu lets you set up the coin mechs and set game pricing.
Figure 12. Coinage Adjustments Menu
Table 2. Coinage Adjustments Menu
Menu Item Description
COIN SLOT 1 UNITS
COIN SLOT 2 UNITS
COIN SLOT 3 UNITS
COIN SLOT 4 UNITS
Sets the units per coin drop for the selected coin slot.
Coin Slot 1 is used for both coin mechs.
Coin Slot 2 is used for the optional Dollar Bill Validator (DBV).
Coin Slots 3 & 4 are not currently supported.
CREDITS TO START Sets the number of credits to start a game.
MAXIMUM CREDITS Sets the maximum number of credits that can be inserted at one time
(1—99), or set to OFF for no maximum.
FREE PLAY Turns Free Play On or Off
INSERT COIN MESSAGE Sets the payment message displayed in Attract Mode. (Options: Insert
Coins, Insert Card, Insert Key, Swipe Card)
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 18 of 58 040-0120-01 Rev. B 11/11/2011
System Adjustments Menu
This screen provides audio adjustments and video gamma settings.
Figure 13. System Adjustments Menu
Menu Item Description
MASTER VOLUME Increases or decreases the Master volume. Plays music during
adjustment to help you judge the setting. (Range is 0—100.)
(This has the same effect as using the VOL UP & VOL DN buttons in
attract mode.)
ATTRACT VOLUME Sets theAttract Mode volume as a percent of the Master Volume.
PLAY ATTRACT SOUNDS Sets whether theAttract Mode plays sound effects (Alien scream, etc.)
Options are ON, OCCASIONALLY, or OFF.
GAMMA Increases or decreases the overall screen brightness.
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
©2011 Global VR, Inc.
040-0120-01 Rev. B 11/11/2011 Page 19 of 58
Game Adjustments Menu
This screen allows you to set some game play timing settings, turn the Chapter Select option on
or off, and select whether to play all five levels or only the three that are less violent.
Figure 14. Game Adjustments Menu
Menu Item Description
MINIMUM GAME TIME Sets the minimum time a game will run, in seconds. Ensures less skilled
players get at least this much gameplay time.
(Range: OFF—180; Default 80)
MINIMUM BOSS FIGHT
TIME Sets the minimum gameplay time for the boss fight at the end of a level, in seconds. Overrides 'MINIMUM GAME TIME' setting during boss fights.
(Range: OFF—180; Default: 40)
MINIMUM RECOVERY
TIME Grace period, in seconds, after a player is hit until the player can be hit again.
(Range: OFF—20; Default: 3)
SELECT SCREEN Turns the Chapter Select screen ON or OFF. Turning this ON allows players
to pick which chapter they want to play; OFF forces them to start at the
beginning of the story. (Default: ON)
GAME VERSION Sets game to FULL – 5 LEVELS or LITE – 3 LEVELS.
LITE plays in Story Mode only, and omits the two levels that are the most
violent. (Default: FULL)
BACK TO MAIN MENU Returns you to the Main Menu.

Chapter 4 — Operator Menu and Game Setup
Aliens Extermination Operation & Service Manual
Page 20 of 58 040-0120-01 Rev. B 11/11/2011
Gun Adjustments Menu
This screen allows you to adjust how the guns perform.
Figure 15. Gun Adjustments Menu
Menu Item Description
GUN BOARD REVISION Set this to the version of gun board installed.
GUN OUTPUT CONTROL
GUN INPUT CONTROL
These options let you compensate if the guns are wired backwards (for
example, if firing Gun 1 causes recoil in Gun 2). Setting both options to
FLIPPED will reverse the input and output signals the guns send to the
system computer. (Options: NORMAL or FLIPPED)
GUN KICKER Turns gun force feedback recoil ON or OFF.
P1 GUN POWER
P2 GUN POWER
Sets the strength of the force feedback recoil for the selected gun. 100%
is considered normal. Higher numbers make the recoil stronger; lower
numbers make the recoil weaker. (Options: 25%-133%; Default: 100%)
BACK TO MAIN MENU Returns you to the Main Menu.
