MODEL 989021
SELF-PROPELLED,
STRADDLE LIFT TRUCK
Operation
Maintenance
Repair Parts List

WARNING
Do not operate this truck unless you have been autho-
rized and trained to do so, and have read all warnings
and instructions in Operator’s Manual and on this
truck.
Do not operate this truck until you have checked its
condition. Give special attention to tires, horn, battery,
controller, lift system (including forks or attachments,
chains, cables and limit switches), brakes, steering
mechanism, guards and safety devices.
Operate truck only from designated operating position.
Never place any part of your body into the mast struc-
ture or between the mast and the truck. Do not carry
passengers. Keep feet clear of truck and wear foot
protection.
Observe applicable traffic regulations. Yield right of
way to pedestrians. Slow down and sound horn at
cross aisles and wherever vision is obstructed.
Start, stop, travel, steer and brake smoothly. Slow
down for turns and on uneven or slippery surfaces that
could cause truck to slide or overturn. Use special
care when traveling without load as the risk of overturn
may be greater.
Travel with lifting mechanism as low as possible.
Always look in direction of travel. Keep a clear view,
and when load interferes with visibility, travel with load
trailing.
Use special care when operating on ramps travel
slowly, and do not angle or turn. Travel with load
downhill.
Do not overload truck. Check nameplate for capacity
and load center information.
When using forks, space forks as far apart as load will
permit. Before lifting, be sure load is centered, forks
are completely under load, and load is as far back as
possible against load backrest.
Do not handle unstable or loosely stacked loads. Use
special care when handling long, high or wide loads, to
avoid losing the load, striking bystanders, or tipping
the truck.
Do not handle loads which are higher than the load
backrest or load backrest extension unless load is
secured so that no part of it could fall backward.
Elevate forks or other lifting mechanism only to pick up
or stack a load. Watch out for obstructions, especially
overhead.
Do not lift personnel except on a securely attached
specially designed work platform. USE EXTREME
CARE WHEN LIFTING PERSONNEL. Make sure
mast is vertical, place truck controls in neutral and
apply brakes. Lift and lower smoothly. Remain in oper-
ating position or immediate vicinity as long as person-
nel are on the work platform. Never transport
personnel on forks or work platform.
Do not allow anyone to stand or pass under load or lift-
ing mechanism.
When leaving truck, neutralize travel control, fully
lower lifting mechanism and set brake. When leaving
truck unattended, also shut off power.

TABLE OF CONTENTS
BL-GL22-1119 - 11-20-2019 1
Section Page Section Page
1 DESCRIPTION ............................................................1-1
1-1 INTRODUCTION. .........................................1-1
1-2 GENERAL DESCRIPTION. ..........................1-1
1-3 SAFETY FEATURES....................................1-1
2 OPERATION ...............................................................2-1
2-1 GENERAL.....................................................2-1
2-2 OPERATING PRECAUTIONS......................2-1
2-3 BEFORE OPERATION.................................2-2
2-4 GENERAL CONTROL OPERATION............2-4
2-5 DRIVING AND STOPPING PROCEDURES 2-4
2-5.1 STOPPING ...................................................2-4
2-6 BELLY-BUTTON SWITCH............................2-5
2-7 STEERING ARM GAS SPRING. ..................2-5
2-8 LIFT AND LOWER CONTROLS...................2-5
2-9 LOADING AND UNLOADING.......................2-5
2-10 PARKING......................................................2-5
3 PLANNED MAINTENANCE ........................................3-1
3-1 GENERAL.....................................................3-1
3-2 MONTHLY AND QUARTERLY CHECKS.....3-1
3-3 BATTERY CARE. .........................................3-1
3-3.1 GENERAL.....................................................3-1
3-3.2 SAFETY RULES...........................................3-2
3-3.3 BATTERY CARE AND CHARGING .............3-2
3-3.4 MAINTENANCE FREE BATTERIES ............3-2
3-4 CHARGING BATTERIES..............................3-2
3-5 CHANGING BATTERIES..............................3-4
3-6 LUBRICATION..............................................3-4
3-7 LIFT CHAIN MAINTENANCE. ......................3-4
4 TROUBLESHOOTING ................................................4-1
4-1 GENERAL.....................................................4-1
4-2 CONTROLLER TROUBLESHOOTING ........4-5
4-2.1 FAULT DETECTION.....................................4-5
4-2.2 HAND HELD PROGRAMMER (OPTIONAL) 4-5
4-2.3 FAULT RECORDING....................................4-5
4-2.4 GENERAL CHECKOUT................................4-5
4-2.5 DIAGNOSTIC HISTORY...............................4-6
4-2.6 TEST FAULT DETECTION CIRCUITRY ......4-6
4-2.7 PROGRAMMABLE PARAMETERS .............4-7
4-2.8 DIAGNOSTICS AND
TROUBLESHOOTING................................4-16
4-2.8.1 LED DIAGNOSTICS ...................................4-16
4-2.9 PROGRAMMER DIAGNOSTICS................4-16
5 STEERING ARM, CONTROL HEAD AND
COMPARTMENT ........................................................5-1
5-1 CONTROL HEAD .........................................5-1
5-1.1 CAP ASSEMBLY REMOVAL........................5-1
5-1.2 CAP ASSEMBLY INSTALLATION................5-2
5-1.3 CONTROL HEAD REMOVAL.......................5-2
5-1.4 CONTROL HEAD INSTALLATION...............5-3
5-1.5 SPEED POTENTIOMETER
REPLACEMENT...........................................5-3
5-1.6 BELLY-BUTTON SWITCH REPLACEMENT5-3
5-1.7 HORN SWITCH REPLACEMENT................ 5-4
5-1.8 LIFT AND LOWER SWITCH
REPLACEMENT. ......................................... 5-6
5-2 STEERING ARM.......................................... 5-6
5-2.1 RETURN SPRING REPLACEMENT............ 5-6
5-2.2 STEERING ARM REMOVAL. ...................... 5-6
5-2.3 STEERING ARM INSTALLATION. .............. 5-6
5-3 COMPARTMENT COVERS......................... 5-6
5-3.1 REMOVAL....................................................5-6
5-3.2 INSTALLATION............................................ 5-6
5-4 WINDSHIELD............................................... 5-6
5-4.1 REMOVAL....................................................5-6
5-4.2 INSTALLATION............................................ 5-6
6 BRAKE SERVICING................................................... 6-1
6-1 BRAKES.......................................................6-1
6-1.1 BRAKE ASSEMBLY REPLACEMENT......... 6-1
7 TRANSMISSION, DRIVE WHEEL AND
LOAD WHEEL ............................................................ 7-1
7-1 DRIVE WHEEL. ........................................... 7-1
7-2 TRANSMISSION.......................................... 7-1
7-3 LOAD WHEEL.............................................. 7-3
7-3.1 REMOVAL....................................................7-3
7-3.2 REPAIR ........................................................ 7-3
7-3.3 LOAD WHEEL INSTALLATION ................... 7-3
8 ELEVATION SYSTEM SERVICING ........................... 8-1
8-1 GENERAL. ................................................... 8-1
8-2 LIFT CHAIN LENGTH ADJUSTMENT......... 8-1
8-3 LIFT CHAIN WEAR INSPECTION............... 8-2
8-4 LIFT CHAIN REPLACEMENT...................... 8-2
8-4 LIFT CYLINDERS. ....................................... 8-2
9 HYDRAULIC SYSTEM SERVICING........................... 9-1
9-1 LINES AND FITTINGS................................. 9-1
9-2 HYDRAULIC PUMP, MOTOR AND
RESERVOIR ASSEMBLY............................ 9-2
9-2.1 REMOVAL....................................................9-2
9-2.2 DISASSEMBLY AND REASSEMBLY.......... 9-2
9-2.3 INSTALLATION............................................ 9-2
9-3 LIFT CYLINDER........................................... 9-2
9-3.1 REMOVAL....................................................9-2
9-3.2 REPAIR........................................................ 9-4
9-3.3 INSTALLATION............................................ 9-4
10 ELECTRICAL COMPONENTS ................................. 10-1
10-1 ELECTRICAL CONTROL PANEL.............. 10-1
10-1.1 MAINTENANCE ......................................... 10-1
10-1.2 CLEANING................................................. 10-1
10-1.3 CONTROLLER REMOVAL ........................ 10-1
10-1.4 CONTROLLER INSTALLATION. ............... 10-1
10-1.5 CHARGER REMOVAL............................... 10-1
10-1.6 CHARGER INSTALLATION....................... 10-1
10-1.7 BUZZER REMOVAL .................................. 10-3
10-1.8 BUZZER INSTALLATION. ......................... 10-3
10-1.9 KEY SWITCH REMOVAL. ......................... 10-3

TABLE OF CONTENTS - Continued
1-2 BL-GL22-1119 - 11-20-2019
Section Page Section Page
10-1.10 KEY SWITCH INSTALLATION. ................. 10-3
10-1.11 BATTERY INDICATOR REMOVAL. .......... 10-3
10-1.12 BATTERY INDICATOR INSTALLATION. .. 10-3
10-1.13 LED INDICATOR REMOVAL. .................... 10-3
10-1.14 LED INDICATOR INSTALLATION ............. 10-3
10-1.15 EMERGENCY STOP SWITCH REMOVAL 10-3
10-1.16 EMERGENCY STOP SWITCH
INSTALLATION.......................................... 10-3
10-1.17 LIFT LIMIT SWITCH REMOVAL ................ 10-4
10-1.18 LIFT LIMIT SWITCH INSTALLATION. .......10-4
10-2 PUMP MOTOR...........................................10-4
10-3 DRIVE MOTOR. .........................................10-4
10-4 DEADMAN SWITCH...................................10-4
11 OPTIONAL EQUIPMENT..........................................11-1
12 ILLUSTRATED PARTS BREAKDOWN ....................12-1

BL-GL22-1119 - 11-20-2019 1-1
SECTION 1
DESCRIPTION
1-1. INTRODUCTION.
This publication describes the 24 volt 989021 lift truck
distributed by Global Industrial. Included are operating
instructions, planned maintenance instructions, lubri-
cation procedures, corrective maintenance procedures
and a complete parts list with part location illustrations.
Users shall comply with all requirements indicated in
applicable OSHA standards and current edition of
A.N.S.I. B56.1 Part II. By following these requirements
and the recommendations contained in this manual,
you will receive many years of dependable service
from your 989021 lift truck.
1-2. GENERAL DESCRIPTION.
The self-propelled 989021 truck (Figure 1-2) lifts and
transports payloads up to 2200 pounds on adjustable
forks.
The forward and reverse motion is controlled by either
of two controller levers mounted on the control head.

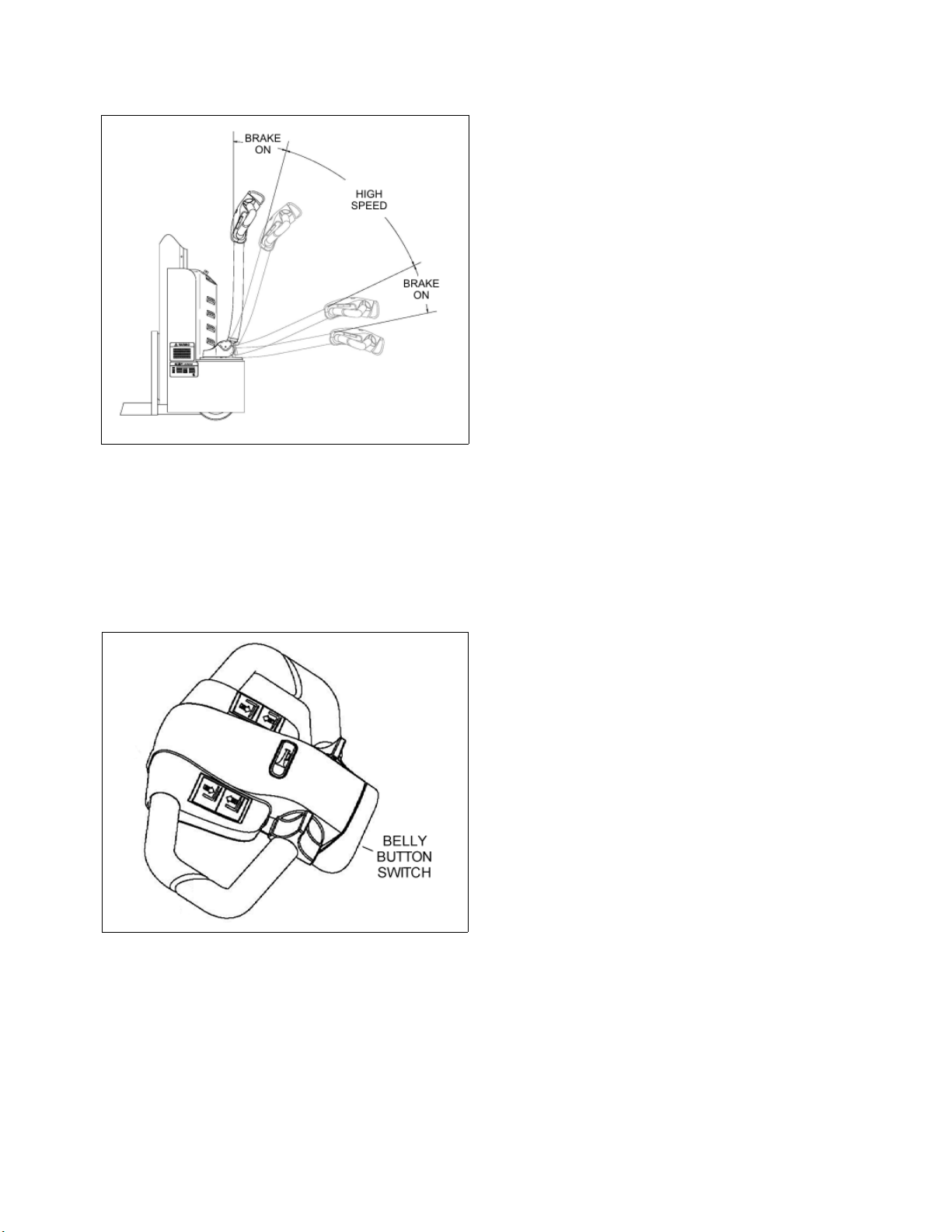

Stopping and turning is controlled by the steering arm.
Lift and Lower is controlled by pushbuttons on the con-
trol head. The battery powered lift truck is quiet and
without exhaust fumes.
The reversible DC motor propels the lift truck in for-
ward or reverse direction throughout the available
speed range. The 989021 lift truck can be driven with
forks raised or lowered; however, the speed is
restricted when the platform is raised above a preset
limit.
The model number will be found on the name plate
(Figure 1-1) along with the serial number, lifting capac-
ity, and load center. (Figure 1-2) shows the locations of
the truck’s main components and controls.
1-3. SAFETY FEATURES.
The 989021 is designed engineered to provide maxi-
mum safety for operator and payload. Some of the
safety features incorporated into the design are:

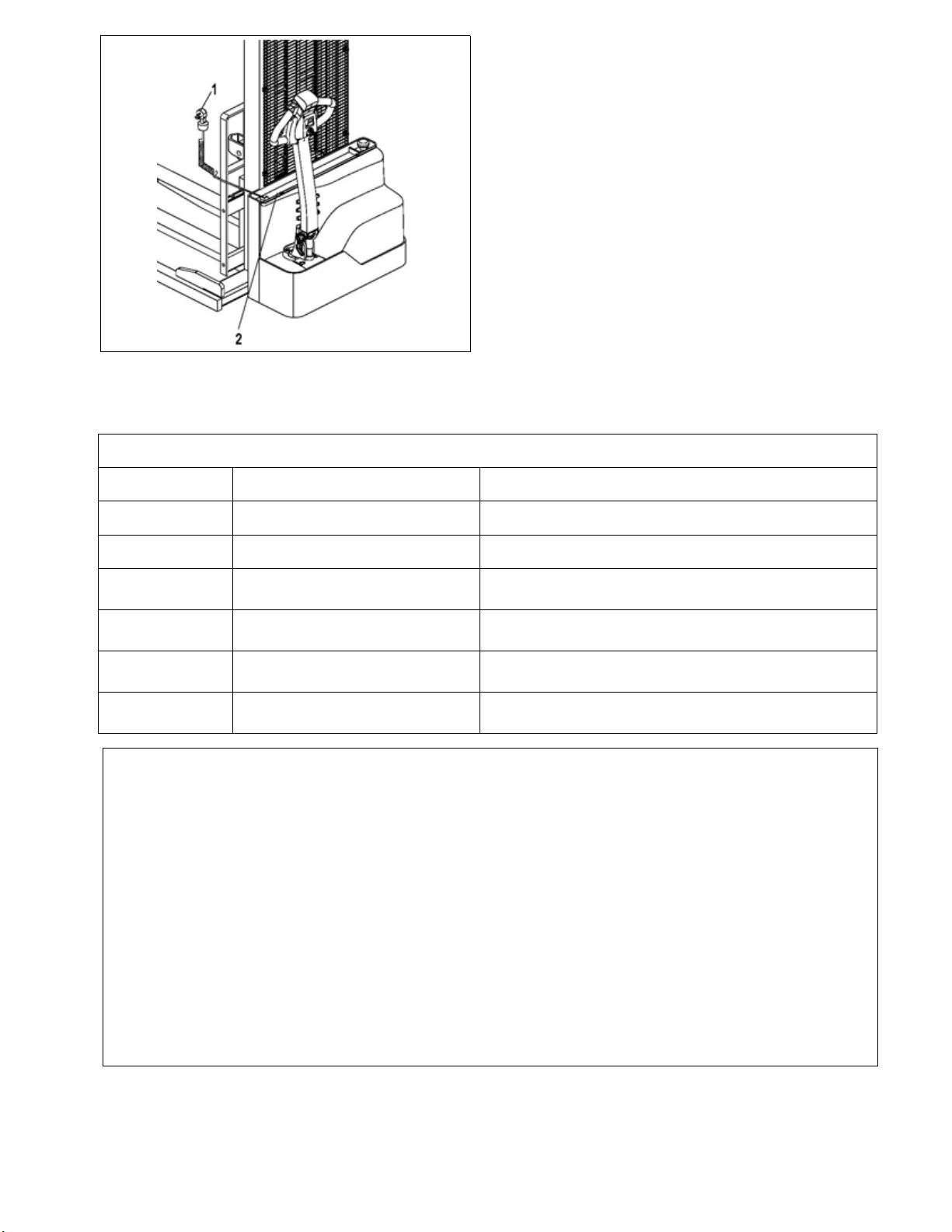

Figure 1-1 Name Plate
• Dead-man brake to apply the brake and cut off drive
power when the steering arm is released.
• Emergency brake switch to apply the brake and cut
off drive power when depressed.
• Belly-button switch to reverse truck should the oper-
ator accidentally pin himself against a wall or
obstruction when backing up in slow speed.
• High speed limit switch to restrict speed when lift
carriage is raised above the preset limit.
• All control functions automatically return to “OFF”
when released.
• Externally accessible emergency stop switch within
operator's reach.
• Separately fused control circuits and power circuits.
• Readily accessible horn button.
• Lift carriage backrest to help stabilize the load.
• Handle to provide a firm hand hold for operator.
• Flow control valve regulates maximum lowering
speed within prescribed limits.
• Relief valve maintains hydraulic pressure within pre-
scribed limits.
• High visibility color scheme of truck provides visual
alert of truck’s presence.
• Battery Indicator
•Caster.
R8559

1-2 BL-GL22-1119 - 11-20-2019
Figure 1-2 989021 Lift Truck
R8560
ITEM COMPONENT
1 Control handle.
2 Drive wheel
3 Cover
4 Battery
5Caster wheel
6 Hydraulic pump and motor assembly
7Chassis
8 Emergency stop switch
9Forks
10 Lift cylinder
11 Load wheel
12 Power plug
13 Battery indicator display
14 Key switch
15 Lowering button
16 Lift button
17 Directional/speed control knob
18 Horn button
19 Emergency reverse button
ITEM COMPONENT

BL-GL22-1119 - 11-20-2019 2-1
SECTION 2
OPERATION
2-1. GENERAL.
This section gives detailed operating instructions for
the 989021 lift truck. The instructions are divided into
the various phases of operations, such as operating
lift, driving, and stopping. Routine precautions are
included for safe operation.
2-2. OPERATING PRECAUTIONS.
WARNING: Improper operation of the lift truck may
result in operator injury, or load and/or lift
truck damage. Observe the following
precautions when operating the 989021
lift truck.
The following safety precautions must be adhered to
at all times.
• Do not operate this truck unless you have been
trained and authorized to do so.
• All warnings and instructions must be read and
understood before using the equipment.
• Equipment must not be altered in any way.
• Equipment must be inspected by a qualified person
on a regular basis.
• Do not exceed the rated capacity. Overloading may
result in damage to the hydraulic system and struc-
tural components.
• Be certain that the lifting mechanism is operating
smoothly throughout its entire height, both empty
and loaded.
• Be sure that mast is vertical - do not operate on a
side slope.
• Be sure the truck has a firm and level footing.
• Avoid overhead wires and obstructions.
• Check for obstructions when raising or lowering the
lift carriage.
• Do not handle unstable or loosely stacked loads.
Use special care when handling long, high, or wide
loads to avoid tipping, loss of load, or striking
bystanders.
• Center and carry the load as far back as possible
toward the lift carriage back rest. The center of grav-
ity of the load must not exceed the load center listed
on the nameplate. See Figure 2-1 for load center
limitations.
• Pick up loads on both forks. Do not pick up on only
one fork.
• When traveling, always lower the load as far as pos-
sible.
Figure 2-1 Load Center
R3814

2-2 BL-GL22-1119 - 11-20-2019
• When stacking pallets in racks and it is necessary to
move the load in a raised position, use caution.
Operate truck smoothly.
• Observe applicable traffic regulations. Yield right of
way to pedestrians. Slow down and sound horn at
cross aisles and wherever vision is obstructed.
• Operate truck only from designated operation posi-
tion. Never place any part of your body between the
mast uprights. Do not carry passengers.
• Do not allow anyone to stand or pass under load or
lifting mechanism.
• When leaving truck, neutralize travel control. Fully
lower lifting mechanism and set brake. When leaving
truck unattended, turn off key switch, remove key
and disengage the emergency stop switch.
2-3. BEFORE OPERATION
Table 2-1 covers important inspection points on the
989021 lift truck which should be checked prior to
operation. Depending on use, some trucks may
require additional checks.
Figure 2-2 shows a sample format for an Operator
Checklist, which can be modified as necessary to fit
your operation.
WARNING: Periodic maintenance of this truck by a
QUALIFIED TECHNICIAN is required.
CAUTION: A QUALIFIED SERVICE TECHNICIAN
should check the truck monthly for
proper lubrication, proper fluid levels,
brake maintenance, motor maintenance
and other areas specified in the SEC-
TION 3.
WARNING: If the truck is found to be unsafe and in
need of repair, or contributes to an
unsafe condition, report it immediately to
the designated authority. Do not operate
it until it has been restored to a safe
operating condition. Do not make any
unauthorized repairs or adjustments. All
service must be performed by a qualified
maintenance technician.
Table 2-1 Operator Checks
ITEM PROCEDURE
Transmission
and hydraulic
systems.
Check for signs of fluid leakage.
Forks Check for cracks and damage;
and, that they are properly
secured.
Chains, cables
and hoses
Check that they are in place,
secured correctly, functioning
properly and free of binding or
damage.
Windshield and
load backrest
Check that the windshield and
load backrest are in place,
properly secured and not dam-
aged.
Safety signs Check that warning labels,
nameplate, etc., are in good
condition and legible.
Horn Check that horn sounds when
operated.
Steering Check for binding or looseness in
steering arm when steering.
Travel controls Check that speed controls on
control head operate in all
speed ranges in forward and
reverse and that belly button
switch functions.
Wheels Check drive wheel for cracks or
damage. Move truck to check
load for freedom of rotation.
Hydraulic
controls
Check operation of lift and lower
to their maximum positions.
Brakes Check that brakes actuate when
steering arm is raised to upright
position, and when lowered to
horizontal position.
Deadman/
Parking brake
Check that steering arm raises to
upright position when released
and brake applies.
Emergency Stop
Switch
Check that emergency stop
switch can be disengaged and
reengaged.
Battery charge Check the battery indicator.
High speed limit
switch
Allow for enough space to oper-
ate truck in high speed. Elevate
forks approximately two feet,
then test drive truck to check if
high speed is cut out.
ITEM PROCEDURE

BL-GL22-1119 - 11-20-2019 2-3
Figure 2-2 Sample of Operator Check List
R8549

2-4 BL-GL22-1119 - 11-20-2019
2-4. GENERAL CONTROL OPERATION.
The speed control (See Figure 2-3) located on each
side of the control head provides fingertip control for
driving the truck. Rotate the control in the direction you
want to travel. The farther you rotate the control from
the neutral position, the faster the truck will travel.
Figure 2-3 Forward/Reverse Control
The pushbutton switches (See Figure 2-4), located on
the front of the control head activate the lift-lower con-
trols and the horn.
Figure 2-4 Pushbutton Switches
2-5. DRIVING AND STOPPING PROCEDURES.
1. Disengage the emergency stop switch and turn
on the key switch. Grasp the grips of the steering
head so that the speed control can be comfortably
operated by either thumb.
2. Lower the steering arm to a comfortable position
above horizontal to disengage the brake and to
energize the electrical circuits. If the truck is not
moved, the electrical circuits will time out and will
deenergize. See Figure 2-5.
3. To move forward (with load in back), slowly press
the speed control forward. See Figure 2-3. Press
the forward speed control farther to increase
speed.
4. To slow down or stop, release the speed control
and lower or raise the steering arm to the horizon-
tal or vertical position. See Figure 2-5. In those
positions, the brake engages, slowing or stopping
the truck.
5. Procedures for movement in reverse are the
same as in the forward direction except slowly
press the speed control backward. See Figure 2-
3.
2-5.1. Stopping
The stopping distance of the truck depends on the
ground conditions. The driver must take this into
account when operating the truck.
The driver must be looking ahead when traveling. If
there is no hazard, brake moderately to avoid moving
the load.
There are four different ways to stop the truck:
1. Plugging: This electrical braking function con-
sists of rotating the speed control lever in the
opposite direction of travel and then releasing it
when the truck stops. Plugging is a convenient
way to slow down the truck during normal opera-
tion. If the control is not released, the truck will
accelerate in the opposite direction.
2. Steering arm (See Figure 2-5): The brake is fully
applied by lowering or raising the steering arm.
(See Figure 2-5) All traction control power is shut
off when the brake is engaged. When the steering
arm is in the upright position, the brake acts as a
parking brake. Deadman braking occurs when the
handle is released and spring action raises steer-
ing arm to the upright position.
3. Emergency braking: Press the emergency brake
switch, all electrical functions are cut out and the
truck automatically brakes.
4. Regenerative braking: If the speed control lever
is released, the truck automatically brakes regen-
eratively. When the speed is below 0.5 MPH, the
brake applies.
R6617
R6618

BL-GL22-1119 - 11-20-2019 2-5
Figure 2-5 Brake Actuation
2-6. BELLY-BUTTON SWITCH.
The belly-button switch (Figure 2-6) minimizes the
possibility of the driver being pinned by the steering
arm while driving the lift truck in slow speed. If the
switch presses against the operator while the lift truck
is being driven toward the operator, the switch
changes the direction of the lift truck.
Figure 2-6 Belly-Button Switch
2-7. STEERING ARM GAS SPRING.
The steering arm gas spring automatically raises the
steering arm to the upright position when the steering
arm is released. If the steering arm does not return
fully, the steering arm gas spring requires replace-
ment. Return truck to maintenance for repair.
2-8. LIFT AND LOWER CONTROLS.
Lift/Lower Control buttons are located on the steering
control head. (Figure 2-4)
To lift forks, push in either LIFT button and hold until
forks reach desired height. To lower forks, push in
either LOWER button and hold until forks descend to
desired height.
2-9. LOADING AND UNLOADING.
1. Move truck to location where load is to be picked
up.
2. Move the truck into position so forks are within
pallet or skid, and the load is centered over the
forks and as far back as possible.
3. Raise forks to lift load.
4. Drive to area where load is to be placed.
5. Move truck to align load with its new position.
6. Lower the load until it rests squarely in place and
the forks are free.
7. Slowly move the truck out from under the load.
2-10.PARKING.
When finished with moving loads, return the truck to its
maintenance or storage area. Turn off the key switch
and engage the emergency stop switch. Charge bat-
teries as necessary. Refer to battery care instructions,
SECTION 3.
R6772
R6619

2-6 BL-GL22-1119 - 11-20-2019
NOTES

BL-GL22-1119 - 11-20-2019 3-1
SECTION 3
PLANNED MAINTENANCE
3-1. GENERAL.
Planned maintenance consists of periodic visual and
operational checks, parts inspection, lubrication, and
scheduled maintenance designed to prevent or dis-
cover malfunctions and defective parts. The operator
performs the checks in SECTION 2, and refers any
required servicing to a qualified maintenance techni-
cian who performs the scheduled maintenance and
any required servicing.
3-2. MONTHLY AND QUARTERLY CHECKS.
Table 3-1 is a monthly and quarterly inspection and
service chart based on normal usage of equipment
eight hours per day, five days per week. If the lift truck
is used in excess of forty hours per week, the fre-
quency of inspection and service should be increased
accordingly. These procedures must be performed by
a qualified service technician or your Global Industrial
Service Representative.
3-3. BATTERY CARE.
3-3.1. General
The 989021 is equipped with maintenance free batter-
ies.
The care and maintenance of the battery is very
important to obtain efficient truck operation and maxi-
mum battery life.
CAUTION: Gases produced by a battery can be
explosive. Do not smoke, use an open
flame, create an arc or sparks in the
vicinity of the battery. Ventilate an
enclosed area well when charging.
CAUTION: Batteries contain sulfuric acid which may
cause severe burns. Avoid contact with
eyes, skin or clothing. In case of contact,
flush immediately and thoroughly with
clean water. Obtain medical attention
when eyes are affected. A baking soda
solution (one pound to one gallon of
water) applied to spilled acid until bub-
bling stops, neutralizes the acid for safe
handing and disposal.
Leakage voltage from battery terminals to battery case
can cause misleading trouble symptoms with the truck
electrical system. Since components of the truck elec-
trical system are insulated from truck frame, leakage
voltage will not normally affect truck operation unless a
short circuit or breakdown of circuit wire insulation to
truck frame occurs.
A voltage check from battery connector terminal to
battery case should indicate near zero volts. Typically,
however, the sum of the voltages at both terminals will
equal battery volts. This leakage voltage will discharge
the battery. As battery cleanliness deteriorates, the
usable charge of the battery decreases due to this self
discharge.
Table 3-1 Monthly and Quarterly Inspection and Service Chart
Although a leakage voltage reading of zero volts may
not be possible, a cleaner battery will have more
usable charge for truck operation and not affect opera-
tion of electronic devices on the unit.
VISUAL CHECKS
INTERVAL INSPECTION OR SERVICE
Monthly Check electrical brake for proper operation.
Monthly Check load wheels for wear. A poly load wheel must be replaced if worn to within 1/16 inch
of hub. Check for separation from hub.
Monthly Check drive wheel for wear. A poly drive wheel must be replaced if worn to within 3/4 inch of
hub. Check for separation from hub.
Monthly Inspect wiring for loose connections and damaged insulation.
Monthly Check deadman brake switch for proper operation.
Monthly Check lift chain tension, lubrication & operation (see paragraph 3-7.)
Quarterly Check lift cylinder for leakage.
Quarterly Check for excessive jerking of steering arm when stopping or starting.
Semi-annually Inspect for chain wear (See SECTION 8)

3-2 BL-GL22-1119 - 11-20-2019
3-3.2. Safety Rules
• Wear protective clothing, such as rubber apron,
gloves, boots and goggles when performing any
maintenance on batteries. Do not allow electrolyte to
come in contact with eyes, skin, clothing or floor. If
electrolyte comes in contact with eyes, flush immedi-
ately and thoroughly with clean water. Obtain medi-
cal attention immediately. Should electrolyte be
spilled on skin, rinse promptly with clean water and
wash with soap. A baking soda solution (one pound
to one gallon of water) will neutralize acid spilled on
clothing, floor or any other surface. Apply solution
until bubbing stops and rinse with clean water.
• Do not bring any type of flame, spark, etc., near the
battery. Gas formed while the battery is charging, is
highly explosive. This gas remains in cell long after
charging has stopped.
• Do not lay metallic or conductive objects on battery.
Arcing will result.
• Do not touch non-insulated parts of DC output con-
nector or battery terminals to avoid possible electri-
cal shock.
• De-energize all power connections before servicing
battery.
• Do not charge a frozen battery.
• Do not use charger if it has been dropped or other-
wise damaged.
3-3.3. Battery Care and Charging
CAUTION: Never smoke or bring open flame near
the battery. Gas formed during charging
is highly explosive and can cause seri-
ous injury.
1. Charge the battery only in areas designated for
that use.
2. Battery terminals should be checked and cleaned
of corrosion regularly. Good battery terminal con-
tact is essential not only for operation, but also for
proper charging of the battery.
3. The charging requirements will vary depending on
the use of the truck. The battery should be given
as equalizing charge on a weekly basis. This
charge should normally be an additional three
hours at the finish rate.
4. Make certain battery used meets weight and size
requirements of truck. NEVER operate truck with
an undersized battery.
3-3.4. MAINTENANCE FREE BATTERIES
Trucks are equipped with maintenance free batteries.
These batteries are completely sealed, will not require
any watering and have a full 80% discharge available.
Sealed Maintenance Free batteries contain a pressure
release valve and under normal operating conditions
do not require any special ventilation.
CAUTION: Do not try to open this battery or remove
the pressure release valve.
Only under severe overcharging, such as connected
to an improperly sized charger, will any significant
amount of gasses be released from the battery. Also,
being a valve regulated battery, it never requires
watering.
3-4. CHARGING BATTERIES
Charging requirements will vary depending on depth of
discharge and temperature. Follow safety rules when
placing a battery on charge.
Proceed as follows:
1. Park truck at charging station with carriage low-
ered and turn the key switch off.
2. Check the condition of the AC cord and battery
cables. If there are any cuts in the cable, any
exposed wires, loose plugs or connectors, DO
NOT attempt to charge the batteries. Contact
appropriate personnel for repairs to be made.
3. Pull the charger cord out of the cover (1, Figure 3-
1) and connect to the appropriate power supply,
4. The LED (2) flashes red to indicate that the char-
ger is connected (see Table 3-2 for LED explana-
tions).
5. Charge the batteries until the LED (2) produces a
permanent green light.
6. Disconnect the charger cord and insert it in its
receptacle on the truck.

BL-GL22-1119 - 11-20-2019 3-3
Figure 3-1 Battery Charging
Table 3-2 Battery Charging LED
R8561
Battery Charging LED Light (2)
DISPLAY DESCRIPTION TROUBLESHOOTING
Solid Red Battery is charging Normal operation.
Solid Green Battery is fully charged Normal operation.
Solid Yellow Battery failure The battery voltage is less than 13V or greater than
32.5V.
Flashing Yellow Charger failure a. Output current or output voltage is too large.
b. The temperature of charger is too high.
Flashing Red Charger without output current a. Charger failure.
b. The battery is not connected; battery failure.
No Light Charger failure a. Charger failure.
b. The input of charger is not connected.
R6115

3-4 BL-GL22-1119 - 11-20-2019
Figure 3-2 Changing Battery
3-5. CHANGING BATTERIES
Park truck at charging station with carriage lowered
and turn the key switch off and engage the emergency
stop switch.
1. Remove two screws (Figure 3-2) and remove
cover.
2. Remove two screw (3) and remove cover (4).
3. Remove one nut (5) and take out bracket (6).
4. Tag and disconnect the cables (7) from the batter-
ies and replace the batteries.
5. Install in the reverse order of removal.
3-6. LUBRICATION.
Refer to Table 3-3 for the recommended types of
grease and oil. Table 3-4 in conjunction with
Figure 3-3 identifies the items requiring lubrication.
3-7. LIFT CHAIN MAINTENANCE.
Fully raise and lower lift carriage while observing
chains as they move over chain sheaves. Ensure
chain is aligned and tracking properly and all links are
pivoting freely. With lift carriage fully lowered, spray or
brush on a film of SAE 30 or 40 engine oil.
Table 3-3 Recommended Lubricants
(See Table 3-4 for Application)
R8562
No.
1,
2, 3
Grease—Lithium base, general purpose.
No.
4
Transmission oil—EP SAE 80W-90
Transmission Grease - Grease(MoS2)
No.
5
Hydraulic oil-Heavy duty with a viscosity of
150 SUS foam suppressing agent and rust
and oxidation inhibitors
Anti-wear hydraulic - L-HM32
Low temp. anti-wear hydraulic oil - LHV32
(Note)

BL-GL22-1119 - 11-20-2019 3-5
Figure 3-3 Lubrication Diagram
Table 3-4 Lubrication Chart
FIG 3-2
INDEX
NO.
LOCATION METHOD OF
APPLICATION
TYPE
(Table
3-3)
APPLICATION
OF
LUBRICANT
1 Inner & Outer Mast Brush No. 2 Full length of channel where rollers
operate.
2 Lift Chain Brush or Spray No. 4 See Paragraph 3-7.
3 Lift Carriage Brush No. 2 Light coating where forks slide.
4 Transmission
Capacity 2 pints
Can No. 1 Fill to level plug.
5 Hydraulic Reservoir
Capacity-1 quarts
Can No. 3 With lift carriage fully lowered, fill
reservoir with hydraulic oil to
level on breather dip stick.
R8563

3-6 BL-GL22-1119 - 11-20-2019
NOTES

BL-GL22-1119 - 11-20-2019 4-1
SECTION 4
TROUBLESHOOTING
4-1. GENERAL
Use Table 4-1 as a guide to determine possible
causes of trouble. The table is divided into five main
categories: Truck and Hydraulic System Will Not Oper-
ate: Truck Does Not Operate Forward or Reverse:
Trouble With Braking: Trouble With Lifting Or Lower-
ing, and Miscellaneous malfunctions.

4-2 BL-GL22-1119 - 11-20-2019
Table 4-1 Troubleshooting Chart
MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION
TRUCK AND HYDRAULIC
SYSTEM WILL NOT OPERATE
Truck will not travel not will lift sys-
tem operate.
a. Fuse blown. Check fuse and replace if
necessary.
b. Fuse blown. Check fuse and replace if
necessary.
c. Battery dead or disconnected. Check battery connections and
check battery voltage.
d. Keyswitch defective. Bypass keyswitch to determine if it
is malfunctioning.
e. Emergency stop switch defec-
tive.
Bypass keyswitch to determine if it
is malfunctioning.
f. Defective wiring. Check for open circuit. Repair as
required.
TRUCK DOES NOT OPERATE
FORWARD OR REVERSE
Truck does not travel forward or
reverse. All other functions oper-
ate normally.
a. Check all wiring. A loose con-
nection may be the cause of
malfunction.
Tighten all loose connections
before further troubleshooting.
b. Defective deadman switch. Check and replace switch if
defective.
c. Defective controller. Check for proper operation and
replace if necessary.
d. Defective potentiometer. Check and replace potentiometer
if defective.
Truck travels forward but not in
reverse.
Defective potentiometer in control
head.
Check and replace potentiometer
if defective.
Truck travels reverse but not in
forward.
Defective potentiometer in control
head.
Check and replace potentiometer
if defective.
Truck travels forward and in
reverse at lower speeds; will not
travel at high speed.
Defective potentiometer in control
head.
Check and replace potentiometer
if defective.
