Globalmediapro SP016C User manual

1
Online Coaxial / Twisted Pair Surge Protection Device
ITEM NO.: SP016C, SP016T
Application for protects equipment from high voltage surges such as lightning strikes.
UL grounding requirements for coaxial cable offer protection from hazardous voltages
that may occur on the shielding. Because of the physical length of ground wires, UL
grounding systems may appear as an open circuit to lightning caused, high frequency
surges and provide no protection from these surges getting into a home and destroying
CATV converters, TV sets, VCR, Camera etc.
Features:
Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: under100ns –90V, over 100ns-12V.
Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video
SP016 Video Surge Protection For DVR in 1U Rack Mounting Panel
SP016C: 16 BNC female to 16 BNC female,
SP016T: 16 Terminal connector to 16 terminal connector.
Provide protection for DVR, multiplexers or any equipment with multiple video inputs.

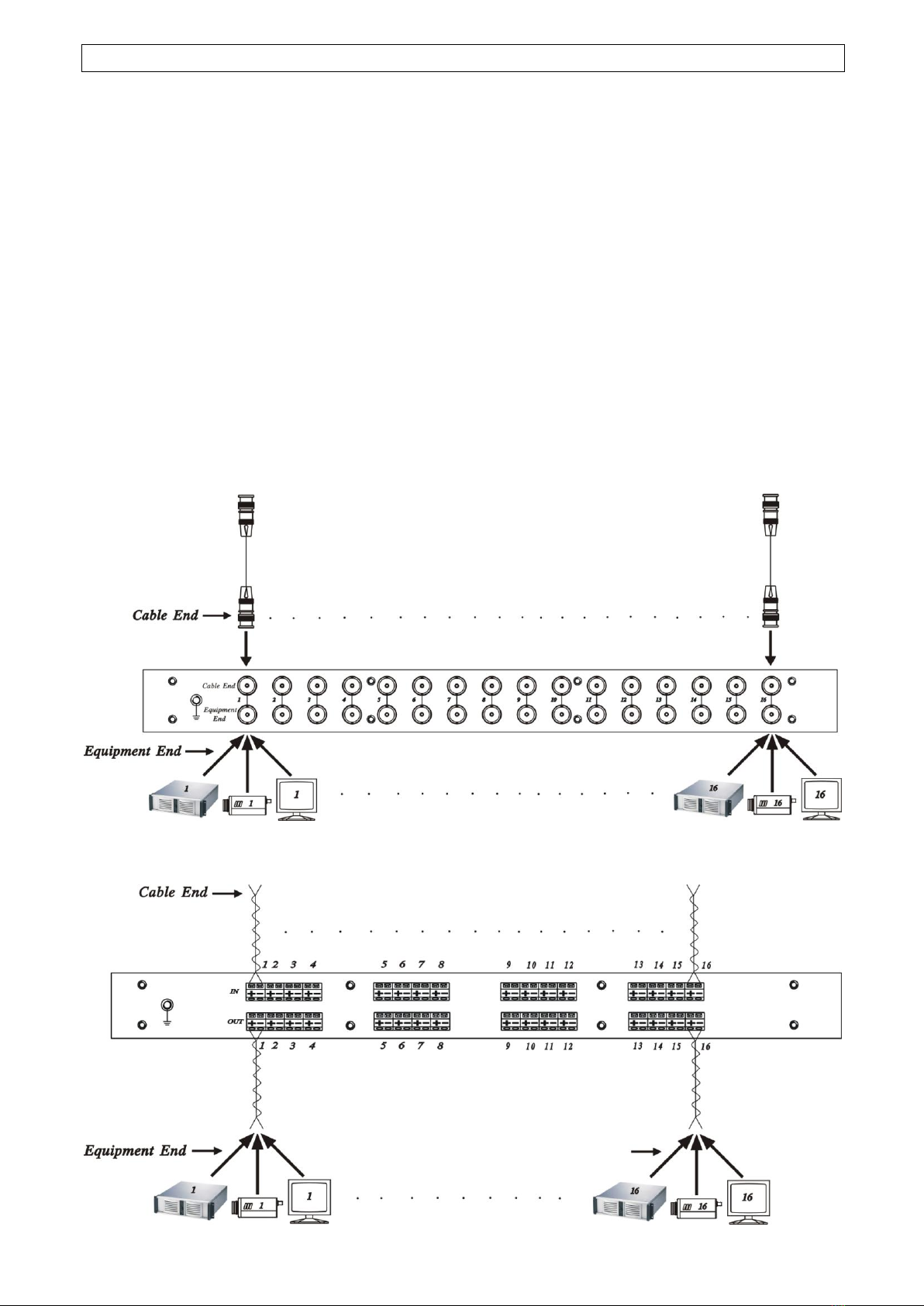

Installation View:
SP016C
SP016T

2
* SP003 Pair2 , Pair4 with surge protection.
* SP006 all 4 pairs with surge protection.
Application
CATV System
Antenna of Television
Video Cassette Recorders
Satellite Receivers
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processor
Specification
Item
SP016C
SP016T
Surge Protection Attack Time
1 ns
Maximum Surge Voltage
4 KV
Surge Life
300 surges of 100Amps
Normal Resistance Across Coax
10,000 MΩ
Surge Resistance
Approx. 0Ω
BAND PASS
1 GHZ
0~1 GHZ
Power Passing Capability
130V AC / DC, 65 Vrms at10 Amps
Insertion Loss
Less than 0.2 dB
Return Loss (75 ohms)
16dB
Connectors
BNC
Terminal
Dimensions mm
482x170x 44mm standard 1U Rack Panel
WEIGHT g
1200
1200
Note:
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
