Matchmaster Digimatch 03MM-V8 User manual

Step 1
Open elements on both booms and snap into place.
They will snap out at right angles to the boom.
Step 2
Join the two booms together.
Slide single piece boom into the square opening
in the black section holding the ‘F’ connection.
Ensure the ‘F’ connection is pointing downwards.
and the elements are on top of the single boom.
Step 3
Using the supplied twist on connector, prepare your
cable and attach connector.
Strip cable & pull braid and two layers of foil over black
jacket as illustrated. Leave bonded foil attached to
centre white piece, ensuring all braid strands are pulled
away from centre conductor.
03MM-V8 and 03MM-V6
VHF Ch (6-12) ‘F’ Type Log Periodic Antenna Instructions

To Transmitter
For any technical enquiries, please call Matchmaster TV Reception Systems on
Toll Free Aust: 1800-AERIAL (1800-237425) or Toll Free NZ: 0800-AERIAL (0800-237425)

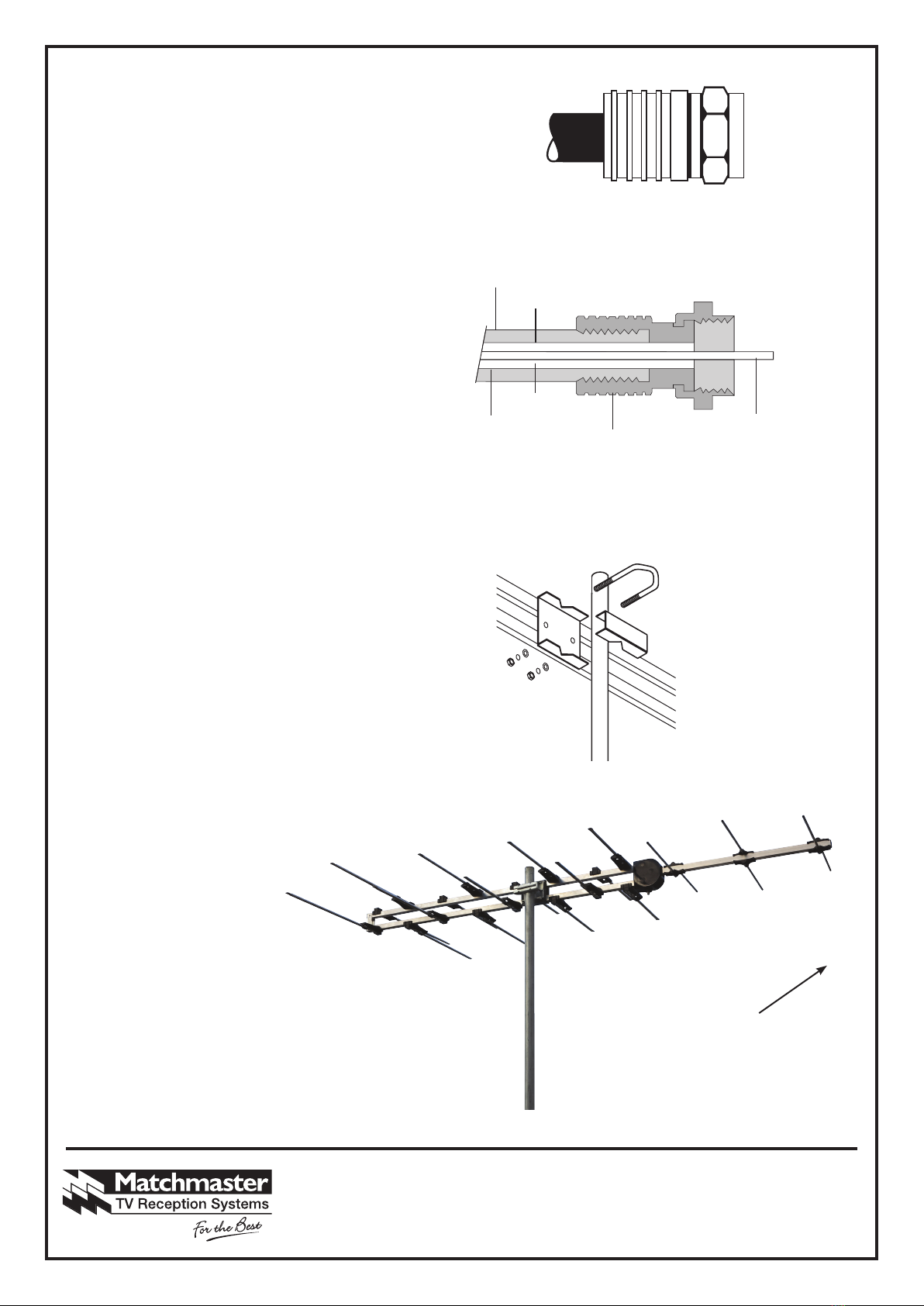

Step 4
Select connector provided.
Place “F” connector on and twist to ensure that all braid is at.
(Suitable for RG6 Quadshield. For other cable types you will
need to purchase the corresponding connector)
Step 5
Then insert cable into rear of connector and
twist connector clockwise until dielectric is ush
with the bottom nut as in diagram.
Ensure that 2-3mm of centre core conductor
protrudes past the nut.
Step 6
Slightly bend the cable in a loop and lay it back
along the boom and down the mast.
Use cable ties to secure the cable to boom
and mast to stop it from moving.
Ensure there is a downward loop in the cable
from the balun and it’s not bent at a sharp angle,
as this will damage the cable and balun.
Attach antenna to mast using u-bolt supplied.
Prepare other end of cable ( repeat steps 4 & 5 ).
Connect to your outlet plate or TV.
Step 7
Rotate the antenna so it points towards
your local transmitter.
Picture shows 03MM-V8 for instruction purposes.
Plastic Outer Case
Metal Braid
Dielectric
Metal Sheath Knurled Surface Core
Conductor
