Introduction
Thank you for selecting Glow for your photo lighting solution!
The Glow Portable LED Photo Booth simplied the daunting task of lighting a wide range of large
products, apparel, and even people, on location or in the studio.
The 6.5 X 4 X 2.75 foot lightweight aluminum frame chamber is lined with a neutral silvered,
plasticized tough fabric, providing the maximum wrap-around lighting with the least amount
of effort.
The exible and bright daylight balance (5500K) LED modular strip design can be congured to
create awless shadow-free images or more dramatic contrasts in lighting, simply with the ip of
a switch.
The use of the many lighting options with the integrated diffusers, background integration and
bafes give endless possibilities for any level of user.
The Photo Booth materials are designed to be transportable, durable, and serve for years of
photo sessions in and out of the studio. The frame sets up quickly, with easy break-down of all its
components for storage in its own travel case and redeployment time and time again.
PRECAUTIONS
•Please read and follow these instructions and keep this manual in a safe place.
•Keep the Photo Booth away from water and any ammable gases or liquids.
•Hand this unit with care in use and assemblage.
•Use only the Glow parts supplied in the kit.
•Make sure that the components are complete and that no parts are missing.
•All images in this manual are for illustrative purposes only.
•The LED strips can be warm to the touch when in use. Handle the LED bulbs with caution.

3GlowLightControl.com
Nomenclature
Specications
Power input 100-250V 47-63Hz
Power adapter output 18V, 1.5A (2 lead)
Color Redering Index (CRI) 92+
Luminance 13,000 Ix
Color temperature 5500 K
LED count 480 diodes
Dimensions (H x W x D) 79.5 x 49.5 x 32.5 in. / 202 x 126 x 83 cm
Total Weight 17.5 lbs. / 8 kg
CONNECTORS, CLIPS & JOINTS
1
2
3
Corner rod connector bracket ( x 8)
Background Clips ( x 2)
LED Fixture Clip (x16)
13 2
LIGHTS & POWER
1
26
1LED array strip (x8)
2Locking power connector
3AC leads
4Power adapter (x4)
5Power switch
6Locking female connectors
54
3

4GlowLightControl.com
Nomenclature
OUTER SHELL
INCLUDED ACCESSORIES
1Top LED Diuser Panel
2Top Section
3Back Section
4Zipper Closures
5Bottom Panel
6Side Panels
7Power Supply Lead Holes
8Side LED Diusers Panels
9Bottom Exterior Flap
1White vinyl background
2Travel and Storage case
2
1
5
44
66
7 7
8
9
2
3
1

5GlowLightControl.com
Assembly Diagram
D
H
H
D
D
H
H
D
W
W
W
W

6GlowLightControl.com
Instructions
Assembling the Tubular Frame and Booth Shell
Refer to the frame assembly diagram while following these steps.
1. First, assemble the base of the frame, with the shorter “D” and longer “W” tubes
tting in the Corner Rod Connector Bracket to attach the rods. The nal base forms
a rectangle.
2. Slip and lock the
1
2 section “H” (height) rods together to create four 6.5’ long
poles. The spring loaded pins t into the holes of the receiving end and lock automati-
cally. Insert the nished poles into the 4 corner brackets of the base.
3. Attach the
2
four remaining Corner Rod Connectors to the tops of the 4 6.5’ pole
rods you just added. Rotate them to mirror the position of the base rectangle form.
4. Insert the two remaining “W” and “D” rods into the top corner joints to form a perfect
rectangular box with even and parallel sides. Be sure that all rods are assembled
properly and inserted correctly. An irregular shape means that the rods are
improperly constructed or tted inaccurately.
5. Now that the frame is complete, it is time to clad the reective skin around the
structure. The outer skin is shaped to t the frame. Position the frame exactly on the
seams of the shell so that the panels match to the shape. Align the bottom of the shell
to the bottom of the frame.
6. Find the zipper on the edge of the bottom rear panel and join the two sections
3
by
closing the zipper along the frame rod length of the booth. Continue zippering until
you reach the top of the box, curve over the top of the frame and forward to the front
top of the enclosure.
7. Do the same procedure for the opposite side wall, closing up the long zipper to form the
complete booth.
Getting Started
•As the the outer shell is so large, the best way to construct the booth is to open the outer shell at on
the oor, join the rods and then assemble the tubular frame on top of the shell.
•The support column rods join and lock together with spring pins that t neatly into its matching receiving
pole. They slip together and insert easily. Pressing the spring loaded pin down and insert that end past
the mate opening with a hole to receive the pin. Do not use force when connecting
them. Nice and easy does it! 1
1
2
3

7GlowLightControl.com
Instructions

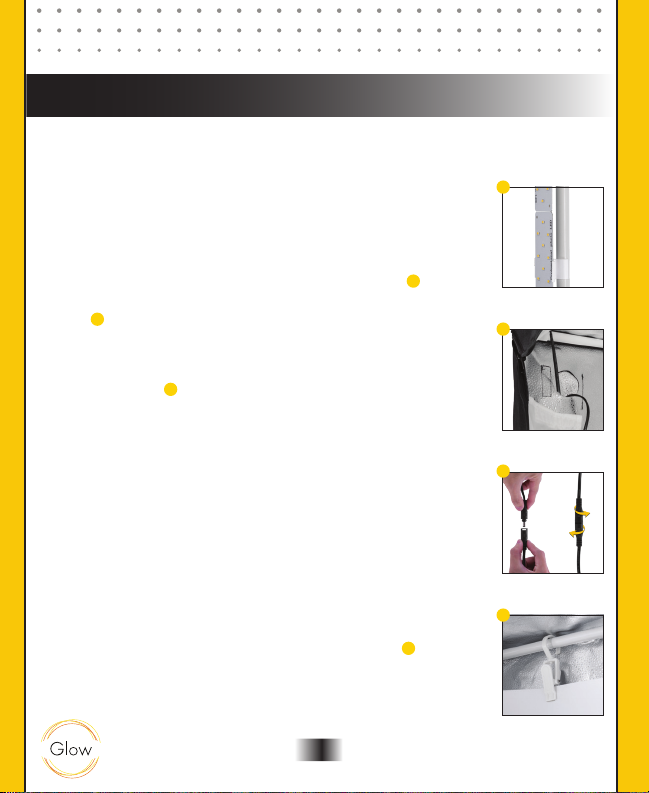

Attaching the LED Panels
The 8 LED strips can be clipped onto any of the booth’s rods for the perfect
custom lighting arrangement as your shoot requires.
To attach an LED strip to the booth, follow these steps:
1. Attach two LED clips about one third from the ends of the at (non bulb) side of
an LED strip.
2. Snap the LED strip to the frame by pressing the clip onto the rod until it is rmly in
place. Slide the LED array panel on the rod to any desired position.
5
3. Run the LED strip’s power cord through the nearest opening on the side of the
booth.
6
4. Each Power Adapter has leads to connect to 2 LED Arrays. Plug the mating LED
Array power cord end into one of the power adapter’s locking connectors, and
twist to lock the pieces rmly together. The power adapter may rest on the outside
surface of the booth.
7
5. Connect every power adapter to an AC wall outlet. Switch on each adapter to
illuminate the LED arrays, as you chose. For convenience, plug all the power
adapters into power strips to control them simultaneously.
Diffusers and Light Control
The light quality emanating from the LED bulbs can be modied to be more
diffuse and shadow-free. The top and side panels have integrated diffusers along
the length of the box that can cover the LED strips for a softer and less glaring
light output.
Use the Velcro tabs on the diffuser material to cover the LEDs as you wish.
Attaching the Background
1A background can be attached, with the background clips, to the top-back
wide rod. Use the 4 clips to hold the background securely in place.
8
2. The front end of the background can be tucked into the bottom-front
interior ap.
5
6
7
8

8GlowLightControl.com
