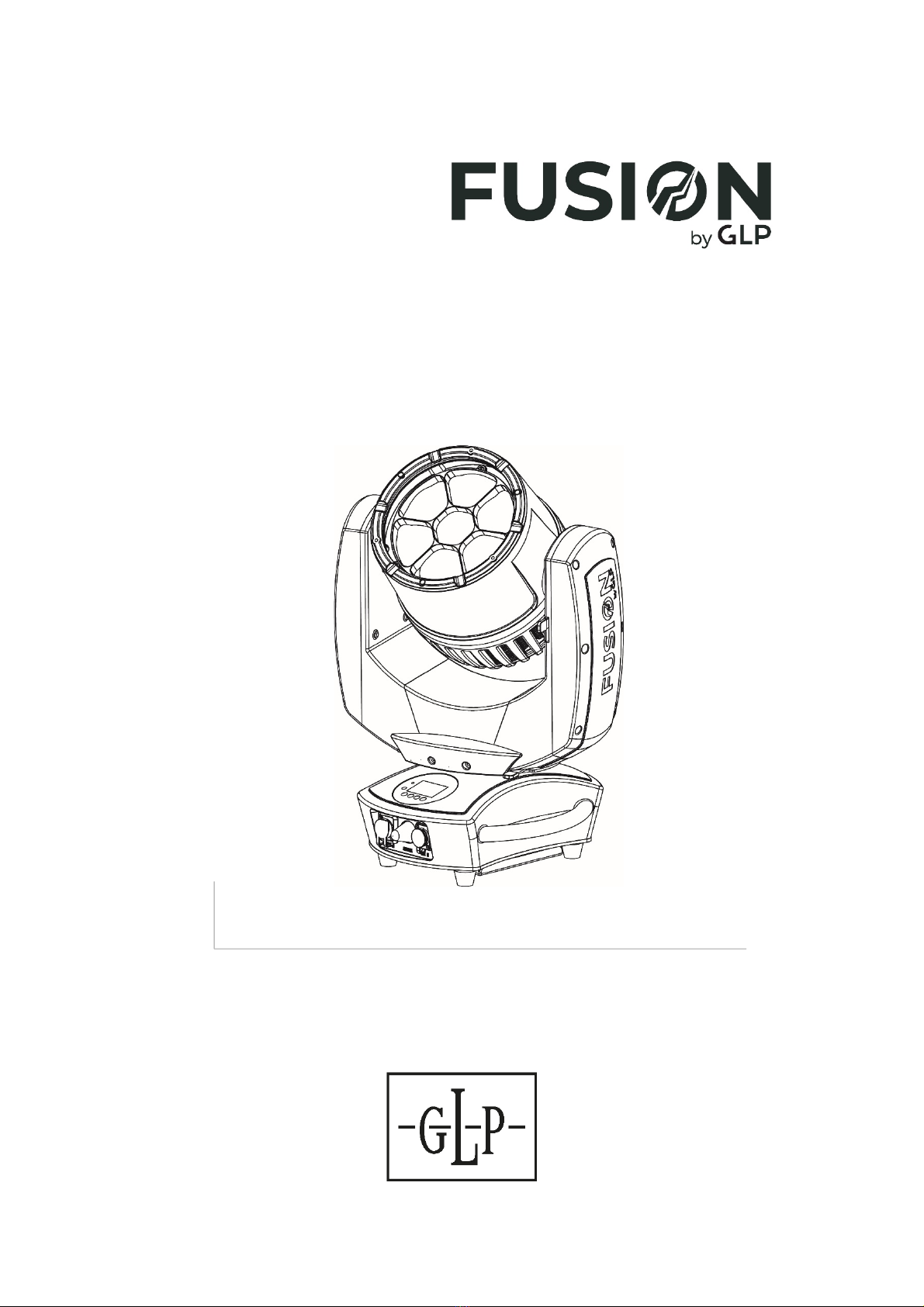

GLP Fusion EXO Wash 30 User manual

Fusion EXO Wash 30
User Manual
Software version V1.0.00

GLP® Fusion EXO Wash User Manual – Revision B
This document covers fixture software version V1.0.00
© 2019 German Light Products GmbH. All rights reserved.
The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German
Light Products GmbH in Germany, in the United States of America and in other countries.
The information contained in this document is subject to change without notice. German Light
Products GmbH and all affiliated companies disclaim liability for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to
use or reliance on the information contained in this document.
Manufacturer’s head office:
German Light Products GmbH (GLP), Industriestrasse 2, 76307 Karlsbad, Germany
Tel (Germany): [phone] - 0
Service & Support EMEA:
GLP, Industriestrasse 2, 76307 Karlsbad, Germany
Tel. (Germany): [phone]
Email: [email protected]
www.glp.de
Service & Support USA:
GLP USA, 1145 Arroyo St., Ste. A, 91340 San Fernando, California
Tel (USA): [phone]
Support (US): [e-mail]
www.germanlightproducts.com

Table of Contents
1. Safety .......................................................................................................... 5
Key to symbols ...................................................................................... 5
General safety information ................................................................. 5
Electrical safety .................................................................................... 6
Fire safety and protection from burns................................................ 7
Eye safety .............................................................................................. 8
Strobe safety ......................................................................................... 8
Installation safety and protection from personal injury ................... 9
2. Avoiding damage to the fixture ............................................................ 10
General precautions.......................................................................... 10
Avoiding damage from light sources and heat ............................. 10
IP rating................................................................................................ 11

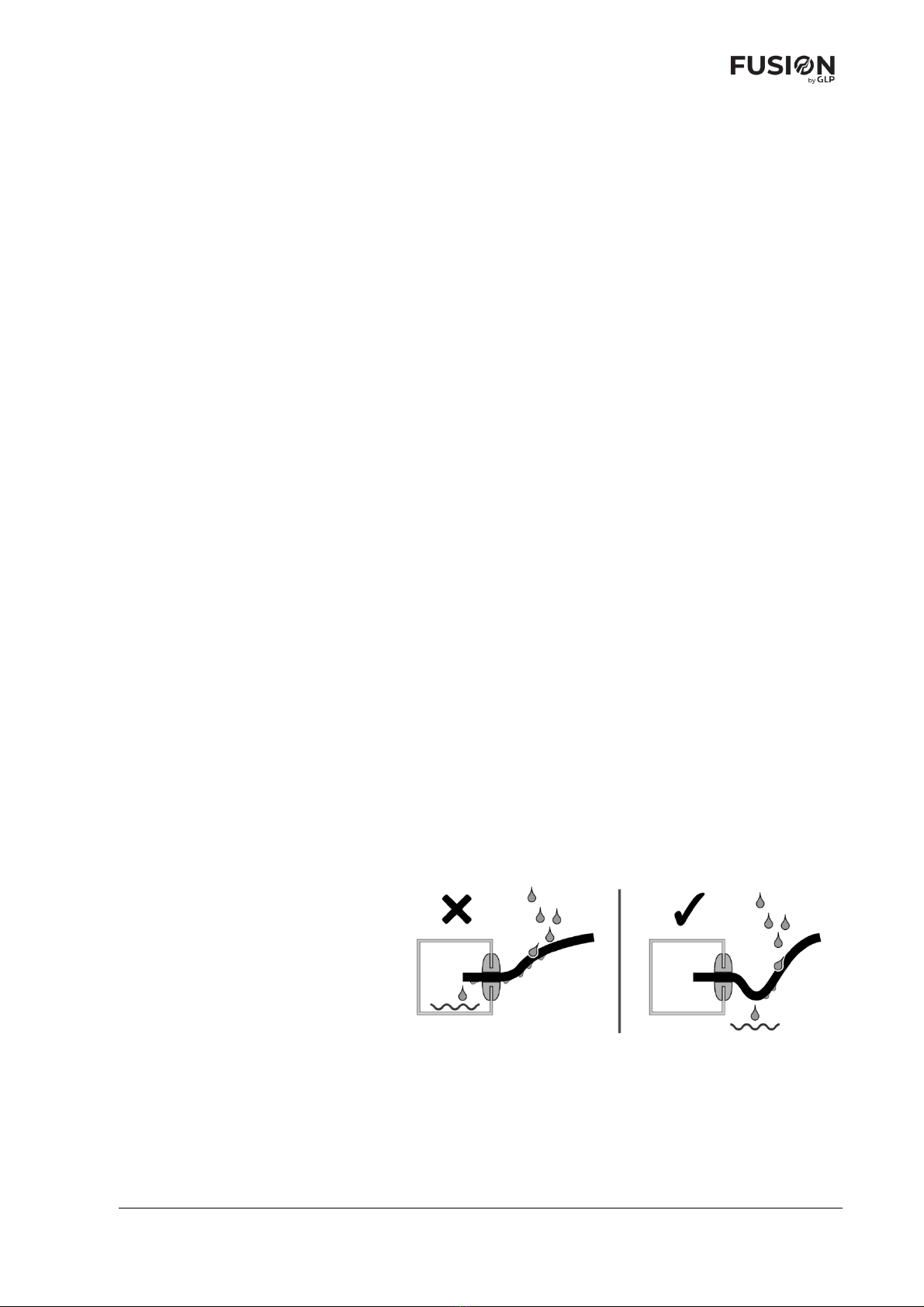

Avoiding damage from water and humidity.................................. 11
Avoiding damage from dust and airborne particles..................... 12
Transportation and storage............................................................... 12
GLP Service and Support................................................................... 12
3. EXO Wash 30 overview ........................................................................... 13
4. Installation................................................................................................. 15
Permitted mounting options ............................................................. 15
Securing fixtures with a safety cable ............................................... 15
Installing on a rigging truss or similar structure................................. 16
Standing on a horizontal surface ..................................................... 17
5. AC mains power ...................................................................................... 18
Included items .................................................................................... 18
Connecting to power ........................................................................ 18
Installing power connectors.............................................................. 19
Connecting multiple fixtures to power in a chain .......................... 19
6. Connecting to DMX data....................................................................... 20
7. Starting and stopping operation ........................................................... 21
8. Features .................................................................................................... 22
Position................................................................................................. 22
Color .................................................................................................... 22
.............................................................................................................. 22
Dimming .............................................................................................. 23
Strobe / shutter ................................................................................... 23
Zoom .................................................................................................... 23
Behavior when the fixture is not receiving a DMX signal ............... 23
9. Control menus and onboard display.................................................... 24
Display options.................................................................................... 25
Display Locking ................................................................................... 25
Manual Control................................................................................... 25
LED PWM frequency........................................................................... 25

Fan control .......................................................................................... 25
Fixture information .............................................................................. 25
Pan disable / Tilt disable .................................................................... 26
Preset settings and factory defaults................................................. 26
10. Control menu layout ............................................................................... 27
Service Advanced menu .................................................................. 29
11. DMX control modes overview................................................................ 30
12. DMX control channel layout tables....................................................... 33
DMX Mode 1: Compact .................................................................... 33
DMX Mode 2: Standard ..................................................................... 35
DMX Mode 3: Extended .................................................................... 39
13. Service ...................................................................................................... 48
Cleaning .............................................................................................. 48
GLP Service and Support................................................................... 48
14. Technical specifications ......................................................................... 49
Optics................................................................................................... 49
Control ................................................................................................. 49
Installation ........................................................................................... 49
Electrical .............................................................................................. 49
Connections........................................................................................ 49
Construction........................................................................................ 49
Thermal ................................................................................................ 49
Included items .................................................................................... 50
Dimensions and weight ..................................................................... 50
15. Dimensions................................................................................................ 51

German Light Products® Safety
EXO Wash 30 User Manual Rev. B 5
1. Safety
Key to symbols
The following symbols are used in the Fusion EXO Wash 30 lighting fixture’s user
documentation:
General safety information
Read this manual carefully before installing, using or servicing the Fusion EXO Wash 30
lighting fixture.
If you have any doubts or questions about how to use the fixture safely, contact your
GLP® supplier for assistance. Your GLP supplier will be happy to help.
The user documentation for GLP Fusion EXO Wash 30 lighting fixtures consists of:
● This document, the EXO Wash 30 User Manual, supplied with the fixture and
available for download from www.glp.de. The User Manual contains important
safety information and installation instructions that the installer and user must read.
● The EXO Wash 30 DMX Channel Index, available for download from www.glp.de.
The Channel Index is a separate guide to the DMX control channel layout and DMX
commands available.
All documents are available for download from www.glp.de.
The Fusion EXO Wash 30 is intended for use by experienced professionals with the
knowledge and skills to set up, operate, and maintain high-powered, remotely
controlled lighting equipment safely and efficiently. These operations require expertise
that may not be provided in this Manual or in the User Manual.
● Respect all warnings and directions given in the fixture’s user documentation and
on the fixture. Read the user documentation and familiarize yourself with the safety
precautions it contains before installing or using the fixture. GLP and affiliated
Warning! Safety hazard.
Risk of severe injury or
death.
Warning! Hazardous voltage.
Risk of lethal or severe
electric shock.
Warning! See user
manual for important
safety information.
Warning! Fire hazard.
Warning! Risk of eye
injury.

www.glp.de Safety
6 EXO Wash User Manual Rev. B
companies will take no responsibility for damage or injury resulting from disregard for
the information in the user documentation.
● Check the GLP website at www.glp.de and make sure that you have the latest
version of this manual. Check the fixture software version indicated on page 2 of this
manual and then use the fixture’s control panel to check the version installed in the
fixture. If the versions are not the same, this manual may still cover the fixture,
because software updates do not always affect the way you use the fixture.
However, it is possible that this manual does not match the fixture perfectly.
Software release notes can help clarify this question. You can consult software
release notes and download the correct version of this manual on the GLP website if
necessary.
● Make all user documentation available to all installers and operators. Save this
document for future reference.
● If you have any questions about the safe operation of the fixture, please contact an
authorized GLP distributor (see list of distributors at www.glp.de).
● Use the fixture only as directed in this manual. Observe all markings in this manual
and on the fixture.
● Refer all repairs and any service operation not described in this manual to a
technician authorized by GLP.
● The light source in this fixture must not be changed by the end user.
● Read and follow the user documentation for all additional equipment.
Electrical safety
● Do not allow the fixture to become immersed. Do not expose the fixture to high-
pressure water projections.
● Keep any unused connectors on the fixture sealed with their protective caps at all
times, both when the fixture is in use and when not in use.
● Use only a source of AC mains power that complies with local building and
electrical codes and has both overload and ground fault (earth fault) protection.
● Ensure that the fixture is electrically connected to ground (earth).
● Disconnect the fixture from AC mains power before carrying out any installation or
maintenance work and when the fixture is not in use.
● Disconnect the fixture from power immediately if any seal, cover, cable, connector
or other component is damaged, defective, deformed or showing signs of
overheating. Do not reapply power until the fixture has been repaired and made
safe by a technician authorized by GLP.
● Check that all power distribution equipment, cables and connectors are in perfect
condition, rated for the electrical requirements of all connected devices, suitable
for their application and suitable for the installation environment.

German Light Products® Safety
EXO Wash 30 User Manual Rev. B 7
● Use only Neutrik PowerCON TRUE1 cable connectors for AC mains power input at
the fixture’s Mains IN connector and for relaying AC mains power from one fixture’s
Mains OUT (Thru) connector to another fixture’s Mains IN connector.
● Use minimum 14 AWG or 1.5 mm2power input and relay cables that are minimum
16 A-rated and temperature-rated to suit the application. In the USA and Canada
the cables must be UL-listed, type SJT or equivalent. In the EU the cables must be
type H05VV-F or equivalent.
● Do not connect devices to power in a chain if the total maximum current draw of all
the devices in the chain when added together will exceed the current rating of any
cable or connector used at any point in the chain. The supplied power input cable
is rated as follows:
- US power cable: 16 A, 14 AWG, UL-listed, E304117, SJT, 4.9 ft.
- EU power cable: 16 A, 1.5 mm², H07RN-F, 1.5 m.
Do not connect more than four (4) Fusion EXO Wash 30 fixtures to power in a chain at
100-120 V, 60 Hz.
Do not connect more than eight (8) Fusion EXO Wash 30 fixtures to power in a chain
at 200-240 V, 50 Hz.
● The voltage and frequency at the Mains OUT socket are the same as the voltage
and frequency applied to the Mains IN socket. Only connect devices to the Mains
Out socket that accept this voltage and frequency.
● Fusion EXO Wash 30 fixtures do not have a user-replaceable fuse. If you suspect that
a fuse has blown, disconnect the fixture from power and send it to a technician
authorized by GLP for repair.
Fire safety and protection from burns
● Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C / 104° F.
● The surface of the fixture’s casing can reach up to 90° C / 194° F during operation.
Avoid contact by persons and materials. Do not install the fixture in a location where
there is a risk of accidental contact. Allow the fixture to cool for at least 20 minutes
before handling
● Keep the fixture well away from flammable materials.
● Keep all combustible materials (e.g. fabric, wood, paper) at least 0.5 m / 20 in.
away from the fixture.
● Ensure that there is free and unobstructed airflow around the fixture.
● Do not illuminate surfaces within 0.5 m / 20 in. of the fixture. The light output from the
fixture is powerful enough to cause burns or fire in illuminated objects at very close
range.
● Do not stick filters, masks or other materials onto the fixture. Do not block the light
output in any way. The front surface becomes hot during operation and can melt or

www.glp.de Safety
8 EXO Wash User Manual Rev. B
ignite objects that are in contact with the surface. Ensure that the front surface Is
clean and unobstructed at all times in order to prevent a fire hazard and damage
to the fixture.
● The fixture’s optical components can focus the sun’s rays, creating a risk of fire and
damage. Do not expose the front of the fixture to sunlight or any other intense light
source, even from an angle.
Eye safety
● The EXO Wash 30 is classified as a Risk Group 3 lighting fixture according to EN 62471.
Possibly hazardous radiation emitted. Do not stare into the light output from the
fixture. May be harmful to the eyes.
● Do not look at the fixture’s light output with optical instruments or any device that
may concentrate the light output.
● Make sure that persons near to or working on the fixture are not looking directly into
the light output when the fixture lights up suddenly. This can happen when power is
applied, when the fixture receives a DMX signal, or when certain control menu items
are selected.
● The warning below is printed on the fixture. If the warning becomes impossible to
read, replace it with a label reproduced from this illustration:
● Provide well-lit conditions to reduce the pupil diameter of anyone working on or
near the fixture.
Strobe safety
● Flashing light, particularly at 5 - 30 Hz, may cause seizures in persons with
photosensitive epilepsy. Do not use strobe effects for extended periods.
● Comply with local regulations on the use of strobe lighting and notify the public in
advance with highly visible warning signs when strobe effects are used.
● If a seizure occurs, stop using strobe effects. Seek professional medical help. Note
the time that the seizure starts and finishes. Call emergency medical help urgently if

German Light Products® Safety
EXO Wash 30 User Manual Rev. B 9
the seizure lasts more than five minutes, if it is the person’s first seizure, or if the person
is injured. While waiting for help to arrive, protect the affected person from injuring
themselves on hard or sharp objects. If necessary, move the person to a safe place.
Lay them on their side with their head supported to prevent it from hitting the floor.
Loosen any tight clothing around their neck. Do not use force to hold the person or
restrict their movements. Do not put anything in their mouth, including your fingers.
Installation safety and protection from personal injury
● Installation must be performed by qualified personnel only and carried out in
accordance with all locally applicable regulations such as DIN VDE 0711-217.
● The fixture is not portable when installed.
● Ensure that the supporting structure and installation hardware used can hold at least
ten times the weight of the load that they support.
● Fasten the fixture to a structure or surface only as directed in this manual and only
with hardware that is specifically designed and rated for its purpose. Do not use a
safety cable as the primary means of support. Check that installation hardware is in
perfect condition. Fasteners must be steel grade 8.8 strength or better. Rigging
clamps must be half-coupler type that completely encircle the rigging truss chord.
● If the fixture is installed in a location where it may cause injury or damage if it falls,
install as directed in this manual a safety cable or similar secondary attachment that
will hold the fixture if a primary attachment fails. The secondary attachment must be
approved by an official body such as TÜV as a safety attachment for the weight
that it secures, it must comply with EN 60598-2-17 Section 17.6.6, and it must be able
to support a static suspended load that is ten times the weight that it secures.
● If the fixture is installed in a location where it may be exposed to forces such as wind
pressure, vibration or movement, make sure that the installation can withstand these
forces. Monitor weather forecasts constantly. Take down the installation
immediately if there is any risk of weather conditions that could destabilize the
installation.
● Check that all covers and items of rigging hardware are secure before using the
fixture. Do not operate the fixture with missing or damaged covers, shields or any
optical component.
● Restrict access below the work area and work from a stable platform whenever
installing, servicing or moving the fixture.
● If the fixture becomes damaged, stop using it immediately and disconnect it from
power. Do not attempt to use a fixture that is obviously damaged.
● Do not modify the fixture in any way not described in its user documentation.
● Install genuine GLP parts only.

www.glp.de Avoiding damage to the fixture
10 EXO Wash User Manual Rev. B
2. Avoiding damage to the fixture
Important! Follow the directions in this section carefully, or the fixture may suffer
damage that is not covered by the product warranty.
General precautions
Do not drop the fixture or expose it to mechanical stress.
Protect the onboard LCD display and control panel from shocks, or they may suffer
damage that is not covered by the product warranty.
Do not expose the fixture to heat (from other lighting fixtures for example).
Clean optical components only as directed. Oils, solvents, and other chemicals
commonly used for cleaning can damage the lens coatings and surfaces.
Use only original spare parts. Do not make any structural modifications to the fixture or
you will void the product warranty.
Avoiding damage from light sources and heat
Do not point the front of the fixture towards the sun or other strong light sources. Strong
light can cause internal damage to the fixture, melting components or starting an
internal fire within seconds.
Figure 1. Avoiding damage from light sources
Damage can occur whether the fixture is powered on or off. See Figure 1. Damage
can also occur if the light hits the front of the fixture at an angle: the fixture does not
need to be pointing directly at the sun or other light source.
To avoid problems from strong light sources:
● Do not expose the front of the fixture to sunlight or any other strong light source.
● In outdoor applications during daylight, make sure that the front face of the fixture is
shielded or points away from the sun, even when not in use.
● Do not aim other high-powered beam lights directly at the fixture.
Do not operate the fixture in ambient temperatures above 40° C / 104° F. Allow free
airflow around the fixture.

German Light Products® Avoiding damage to the fixture
EXO Wash 30 User Manual Rev. B 11
IP rating
EXO Wash 30 fixtures are IP65-rated:
● IP stands for Ingress (entry into the fixture) Protection.
● The first figure 6in the rating means that fixtures are protected against the entry of
dust and airborne particles.
● The second figure 5 in the rating means that fixtures are protected against the entry
of rain and water projections from all angles. Fixtures are not protected against
immersion in water and they are not protected against high-pressure water jets.
Avoiding damage from water and humidity
● Do not install EXO Wash 30 fixtures in a location where water can pool around the
fixture or allow EXO Wash 30 fixtures to become submerged in any other way. Do
not aim low- or high-pressure water jets at fixtures.
● Keep all unused connectors on the fixture sealed with their protective caps, both
when the fixture is being used and when it is not in use.
● In outdoor and high-humidity environments, use IP65-rated power and data
connectors and cable (an IP65 rating means that the item is protected against the
entry of water from rain, projections and low-pressure jets as well as the entry of
dust). When assembling connectors and installing them on cable, follow the
manufacturer’s instructions (see www.neutrik.com) and ensure that an IP65 rating is
maintained for the complete assembly. Use only the following cable connectors:
- IP65-rated 5-pin XLR connectors for data IN and OUT (THRU)
- Neutrik powerCON TRUE1 NAC3FX-W for Power IN
- Neutrik powerCON TRUE1 NAC3MX-W for Power OUT (THRU).
● Apply a dielectric grease (available from electrical suppliers) to connector terminals
and caps to prevent corrosion and/or electrical short circuits.
● Make sure that cables open into dry areas or sealed junction boxes. Moisture can
be drawn along cables by capillary action or pressure variations resulting from
thermal expansion.
● See drawing on right.
Arrange cables so that they
arrive at connectors from
below. Make sure that it is
impossible for water to flow
down cables and
accumulate at connectors.
If necessary, provide extra
cable slack and create ‘drip loops’ before connectors.
● Create loose cable bends only. Do not subject connections to bending forces or
allow connections to bear the weight of long lengths of cable.

www.glp.de Avoiding damage to the fixture
12 EXO Wash User Manual Rev. B
Avoiding damage from dust and airborne particles
● Carry out regular visual inspections of the fixture to make sure that there is no
accumulation of dirt, especially on the front of the fixture.
● If cleaning is necessary, follow the instructions in ‘Service’ on page 48.
Transportation and storage
● Transport the fixture in its original packaging or a suitably designed flight case to
protect it from damage caused by shocks during transportation.
● Release the tilt lock and support the fixture’s head with the original packaging
inserts or flight case inserts during transportation.
● Store the fixture in a dry location when not in use.
GLP Service and Support
Contact information for the nearest GLP Service and Support is available online at
www.glp.de/en/service, by email at [email protected], or by telephone at the following
numbers:
● GLP Germany: [phone]
● GLP N. America: [phone]
● GLP UK: [phone]
● GLP Asia: [phone]
● GLP Nordic: [phone]

German Light Products® EXO Wash 30 overview
EXO Wash 30 User Manual Rev. B 13
3. EXO Wash 30 overview
The Fusion EXO Wash 30 from GLP is a powerful LED-based wash light fixture with fast
pan and tilt, 4 to 54 degree variable zoom and seven independently controllable
RGBW zones.
The fixture can be controlled by DMX or by settings on its built in color LCD control
panel. An optional wireless DMX module can be fitted to enable LumenRadio wireless
control. The fixture has a built-in battery to allow the display to be operated for setup
before mains power is connected.
The EXO Wash 30 can be used indoors in permanent and temporary installations. Its
rugged construction and IP65 rating mean that it can also be used outdoors in
temporary installations if precautions are taken to prevent immersion in water and
damage from direct sunlight. It can stand on a horizontal surface or be suspended
from a suitable structure as described in Section 4.
The EXO Wash 30 is not suitable for household use, for use in any location where
unattended children have access to it, or for use in permanent outdoor installations.

www.glp.de EXO Wash 30 overview
14 EXO Wash User Manual Rev. B
Figure 2. EXO Wash 30 overview
1 – Output lens
2 – Head
3 – Tilt lock
4 – Yoke
5 – Base
6 – Control panel
7 – Rubber feet
8– Wireless indicator
9– Battery button
10 – PowerCON TRUE1 input
11 – Mode / Esc button
12 – Up button
13 – Down button
14 – Enter button
15 – Optional wireless antenna
16 – 5 pin XLR DMX input
17 – 5 pin XLR DMX link out
18 – Vent valve
19 – PowerCON TRUE1 link out

German Light Products® Installation
EXO Wash 30 User Manual Rev. B 15
4. Installation
Warning! Read ‘Safety’ starting on page 5 for important safety information
that you must understand before you install or operate the fixture. Install
EXO Wash 30 fixtures only as described in this chapter, or you may create an
installation that is unsafe.
Install the fixture at least 0.5 m / 20 in. away from combustible materials
(wood, textiles, paper, etc.), 0.5 m / 20 in. away from any surface that will
be illuminated, and a safe distance away from any flammable materials
(volatile spirits, etc.).
It is the installer’s responsibility to provide a stable, secure supporting
structure that is suitable for the environment and application and that
meets all applicable codes and legal requirements. Note the requirement
to secure lighting fixtures with safety cables in temporary installations.
Permitted mounting options
An EXO Wash 30 fixture may be installed in one of the following ways:
1. Fastened to a rigging truss or similar structure at any angle by means of
truss couplers or other clamps fixed to the two Omega brackets which attach
to the half-turn couplers on the underside of the base.
2. Standing upright on the base on a horizontal surface.
Securing fixtures with a safety cable
In temporary installations, if a fixture can cause injury or damage if it falls you must
secure it with a secondary attachment such as a safety cable that will hold it if the
primary means of attachment fails. The safety cable must be approved for the weight
that it secures. In multiple installations, each fixture must have its own safety cable.

www.glp.de Installation
16 EXO Wash User Manual Rev. B
To secure an EXO Wash 30 fixture with a safety cable:
Figure 3. Safety cable attachment
1. Loop a safety cable around a secure anchoring point such as a truss
beam or fixed structure so that it will catch the fixture if a rigging clamp fails.
Take up as much slack as possible in the safety cable (by looping it more than
once around the bar, for example).
2. See Figure 3 and Figure 4. Fasten the safety cable through the slot “B” on
the underside of the fixture base. Check that the fixture is now secured.
Installing on a rigging truss or similar structure
You can suspend an EXO Wash 30 fixture from a rigging truss or pipe using suitable
clamps attached to the Omega Brackets supplied with the EXO Wash 30.
If you are going to install the fixture hanging vertically downwards from a horizontal
rigging truss or pipe, you can fasten it to the truss using G-clamps. If you are going to
install the fixture in any other orientation, you must use half-coupler clamps that
completely surround the truss chord or pipe.

German Light Products® Installation
EXO Wash 30 User Manual Rev. B 17
Figure 4. Omega bracket fasteners
1. Attach suitable clamps to the Omega brackets.
2. Line up the fasteners of the Omega bracket with the holes “A” in the
base of the EXO Wash 30 as shown in Figure 4. The brackets may be installed
either way round so the cabling is in line with the bar or at right angles to it.
3. Lock the Omega brackets onto the EXO Wash 30 by turning the fasteners
through 90 degrees.
4. Attach the clamp to the truss or structure. Ensure that the head and yoke
of the fixture will not collide with any fixed objects as the fixture moves. Ensure
that the fixture has sufficient clearance to any adjacent surfaces or objects.
5. Secure the fixture with a safety cable through slots “B” as described in the
previous section.
Standing on a horizontal surface
To install an EXO Wash 30 fixture on a horizontal surface:
1. Check that the surface is secure and can safely hold the weight of the
fixture plus all hardware and cables.
2. Stand the fixture firmly on the rubber feet fitted to the base of the unit.
Ensure that the head and yoke of the fixture will not collide with any fixed
objects as the fixture moves. Ensure that the fixture has sufficient clearance to
any adjacent surfaces or objects.

www.glp.de AC mains power
18 EXO Wash User Manual Rev. B
5. AC mains power
Warning! Read ‘Safety’ starting on page 5 for important safety information
that you must understand before you install or operate the fixture.
Check that all cables and connectors are suitable for the installation
environment and application (see recommendations in ‘Avoiding damage
to the fixture’ on page 10).
Use H07 RN-F 3 x 2.5mm / SJT 12 AWG cables with original Neutrik powerCON
TRUE1 connectors to supply power to fixtures.
Line up the keyways in connectors carefully. Do not try to insert or twist a
connector if it feels excessively stiff. Resistance to insertion or twisting is a sign
that connectors may be incorrectly lined up.
Keep connectors sealed with their rubber caps at all times when not in use.
Included items
The EXO Wash 30 is supplied with a power cord with Neutrik powerCON TRUE1
connector.
Connecting to power
The AC mains power supply must include a connection to ground / protective earth. It
must be protected against ground / earth leakage and overload. The fixture’s internal
auto-sensing power supply accepts AC power at 100-240 V, 50/60 Hz. Do not connect
the fixture to power at any other voltage or to an external dimmer.
The EXO Wash 30 does not have a power ON/OFF switch. Power is applied to the
fixture as soon as the power cable becomes live.
The EXO Wash 30 has a 3-conductor Neutrik powerCON TRUE1 Mains IN power input
socket that accepts AC power from a TRUE1 female cable connector. Although TRUE1
connectors support hot plugging, it is still good practice to shut down power to power
cables before connecting them to fixtures.
To connect the fixture to power:
1. If convenient, shut down power to the power input cable.
2. Note the position of the keys and keyways on the TRUE1 power cable
connector and Mains IN socket and align them with each other. Insert the
cable connector into the socket and twist clockwise to lock. Do not use force.
If the connector feels excessively stiff, remove it and check again that it is
lined up correctly.
3. Before applying power to the power cable, check that nobody is looking
directly into the front of the fixture.
To disconnect the fixture from power, pull the latch on the cable connector outwards
to release it, then twist the connector counterclockwise and pull to remove it from the
socket.

German Light Products® AC mains power
EXO Wash 30 User Manual Rev. B 19
Installing power connectors
If you intend to draw power from convenience receptacles / consumer mains power
sockets, it is possible to install a suitable cord cap / power plug on the supplied power
cord / input cable. If you do this, check that the cord cap / plug is rated minimum
250 V, 16 A, that it has a connection to ground / earth and that it has an integral cable
grip. Follow the cord cap / plug manufacturer’s assembly instructions.
If you need to install a Neutrik powerCON TRUE1 connector on a power cable, follow
the instructions given in the Support area of the Neutrik website at www.neutrik.com.
Respect the color coding used in the supplied power cable and in your local mains
power wiring system. US and EU systems use the color coding shown below:
Live or L
Neutral or N
Ground / Earth or
US system
Black
White
Green
EU system
Brown
Blue
Yellow/green
Connecting multiple fixtures to power in a chain
You can connect fixtures to power in a daisy-chain to simplify your power circuit
layout.
EXO Wash 30 fixtures have 2.5 mm2internal wiring from Power IN to Power THRU
connectors.
Warning! Do not connect more than four (4) EXO Wash 30 fixtures in total to
power in one chain at 100-120 V, 60 Hz. Do not connect more than eight (8)
EXO Wash 30 fixtures in total to power in one chain at 200-240 V, 50 Hz.
The power input cable supplied with the fixture is rated 16 A maximum. Add
together the maximum current draw ratings of all the devices that you
intend to connect to power in a daisy chain and do not create a chain with
a total maximum current draw of more than 16 A, or you will create a risk of
fire and electric shock.
To connect fixtures to power in a chain:
1. Obtain power relay cables that have male and female Neutrik
powerCON TRUE1 connectors. Cables must be minimum 14 AWG or 1.5mm2,
rated minimum 16 A and suitable for the environment and application.
2. Connect the power input cable to the Mains IN socket of the first fixture
as described under ‘Connecting to power’ on page 18.
3. Connect a relay cable to the Mains OUT / THRU socket of the first fixture
and to the Mains IN socket of the second fixture.
4. If you are using 100-120 V, 60 Hz AC mains power you can continue
connecting EXO Wash 30 fixtures Mains OUT / THRU socket to Mains IN socket
until the chain contains a maximum of four (4) fixtures in total. If you are using
200-240 V, 50 Hz AC mains power you can continue connecting fixtures Mains
OUT to Mains IN until the chain contains a maximum of eight (8) fixtures total.

www.glp.de Connecting to DMX data
20 EXO Wash User Manual Rev. B
6. Connecting to DMX data
Check that all cables and connectors are suitable for the installation environment and
application (see recommendations in ‘Avoiding damage to the fixture’ on page 10).
Use digital 110 Ohm DMX cable with IP65 5-pin XLR connectors to supply DMX data to
fixtures.
Keep connectors sealed with their rubber caps at all times when not in use.
The EXO Wash 30 has two 5-pin XLR sockets for IN and THRU connections to a DMX
data link. EXO Wash 30 fixtures support the USITT DMX 512A signal protocol. They also
support RDM (Remote Device Management).
The 5-pin XLR connectors use standard pin allocations:
1
Signal Ground
2
Data –
3
Data +
4
Not used
5
Not used
The DMX cable should start at the console and be daisy-chained through each fixture
to be controlled using the DMX input and DMX link out connectors. If you need to split
the DMX cable, use a powered DMX splitter.
If you would like advice with planning and installing a DMX link, your GLP supplier will
be happy to provide assistance.
