Glunz & Jensen MultiLine 950 User manual

MultiLine 950/1250/1550
MultiLine 37/49/61
This manual is for Service Technicians only and the directions given
must not be followed by unauthorized personnel. Always read the Safety
Instruction Manual part No 21741 before starting up the equipment and
keep it with the machine for reference at all times.
Edition D - February 2000 This manual has part No 11744-B

GENERAL INFORMATION
This manual is published by: Glunz & Jensen A/S Glunz & Jensen Inc.
13 - 15 Haslevvej 21405 Airpark Drive
DK - 4100 Ringsted P.O. Box 97, Elkwood,
Denmark Virginia 22718, USA
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
Copyright © 1997 by Glunz & Jensen A/S
This manual is valid for: MultiLine 950 film processors from serial nos 9385-0075 and 9395-0036
MultiLine 1250 film processors from serial nos 9386-0118 and 9396-0044
MultiLine 1550 film processors from serial no 9387-0020 and 9397-0005
MultiLine 37 film processors from serial no 90168-0039
MultiLine 49 film processors from serial no 90169-0046
MultiLine 61 film processors from serial no 90170-0014
The serial no is specified on the processor nameplate located on the backside of the machine next to the
film basket.
The manual was written and illustrated using the best possible information available at the time of
publication.
Any differences between the manual and the equipment reflect improvements introduced after the
publication of the manual.
Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.
As a part of our policy of continuous improvement, we reserve the right to alter design and specifications
without further notice.
0.2 0008
950/1250/1550 FILM PROCESSOR
37/49/61

IMPORTANT!
It is the responsibility of the owner and operator/s of this machine, that the installation is made in
accordance with local regulations, and by engineers authorized to carry out plumbing and electrical
installations.
The manufacturer cannot be held responsible for any damage caused by incorrect installation of this
machine.
The installation procedure is described in chapter 2 “INSTALLATION”.
SILVER RECOVERY
To avoid any damage (ex. corrosion of the fixer tank heater element) only a special Silver Recovery Unit
must be connected to the processor! Contact your local dealer for more information.
0008 0.3
FILM PROCESSOR 950/1250/1550
37/49/61

WARNINGS, CAUTIONS AND NOTES!
Throughout the manual warnings, cautions, and notes are written in italics on a grey background like the
example below:
CAUTION! Fuses should only be changed by authorized personnel.
Explanation:
NOTE!
The operator should observe and/or act according to the information in order to obtain the best possible
function of the equipment.
CAUTION!
The operator must observe and/or act according to the information in order to avoid any mechanical or
electrical damage to the equipment.
WARNING!
The operator must observe/and or act according to the information in order to avoid any personnel injury.
AUTHORIZED PERSONNEL
Some notes, cautions and warnings refer to Authorized personnel or Service Technician like the example
below:
NOTE! Authorized personnel only.
NOTE! Call service technician.
Explanation:
Authorized personnel:
Persons inside your company who are familiar with all the processors functions, change in programs and
maintenance.
Service Technician:
Service personnel from your local dealer, who is trained in servicing the film processors.
0.4 0008
950/1250/1550 FILM PROCESSOR
37/49/61

TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
GENERAL INFORMATION 0.2
APPROVALS . . . . . . . . . . . . . . ....................0.2
WARNINGS, CAUTIONS AND NOTES . . . . . . . . . . . . . . . .......0.4
AUTHORIZED PERSONNEL . . . . . . . . . . . ................0.4
TECHNICAL SPECIFICATIONS 1.1
PROCESSING MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1
SPECIFICATIONS. ...............................1.1
ADDITIONAL SPECIFICATIONS . . . . . . . . . . . . . . . . . (SEE APPENDIX B)
INSTALLATION 2.1
PREPARATIONS BEFORE INSTALLATION . . . . . . . . . . . .........2.1
ENVIRONMENTAL REQUIREMENTS . . . . . . . . . . . .........2.1
SPACE REQUIREMENTS . . . . . . . . . . . . . ............2.1
WATER SUPPLY . ............................2.1
DRAIN OUTLETS . ............................2.1
CLEANING FACILITIES . .........................2.1
POWER CONNECTIONS . . . . . . . . . . . . . ............2.1
UNPACKING . . . . . . . . . . . . . . ....................2.2
MECHANICAL INSTALLATION . . . . . . . . . . . . . ............2.2
INSTALLATION KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
INSTALLATION OF ROLLERS AND GUIDES . . . . . . . . . . . . . . . . 2.2
“THROUGH-THE-WALL” INSTALLATION. . . . . . . . . . . . . . . . . . 2.6
WATER CONNECTION . .........................2.7
DRAIN CONNECTIONS . .........................2.8
REPLENISHMENT HOSES . . . . . . . . . . . . . . . . . (SEE APPENDIX B)
EXHAUST INSTALLATION FOR CHEMICAL VAPOURS . . . . . ......2.9
LEVELLING OF THE MACHINE . . . . . . . . . . . . . . . .......2.9
ELECTRICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
MOUNTING A PLUG . . . . . . . . . . . . . .............2.10
MODIFICATION FOR TRANSFORMER . . . . . . . . . . . .......2.10
MAIN POWER CONNECTION, USA-MODELS . . . . . . . . . . . ....2.11
TIMER . . . . . . . . . ........................2.12
0008 0.5
FILM PROCESSOR 950/1250/1550
37/49/61

TABLE OF CONTENTS
.......................................PAGE
FUNCTIONAL DESCRIPTION 3.1
GENERAL . . . . . . . . . . . ........................3.1
DEVELOPER/FIXER SECTIONS . . . . . . . . . . . . . . . . . . . . . . 3.2
WASH SECTION . . . . . . . . . . . . . . ...............3.2
DRYER SECTION. . . . . . . . . . . . . . ...............3.2
REPLENISHMENT SYSTEM . .......................3.3
ECOLOGICAL UNITS . ..........................3.3
TRANSPORT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3
MAIN COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5
ELECTRONIC CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
MAINBOARD PCB GCB . ........................3.11
FUSES . . . . . . . . . . . ......................3.11
DRAWER LOCK . . . . . . .......................3.11
OPERATING MODES . . . . . . .......................3.13
“OFF”-MODE . . . . ..........................3.13
“STAND-BY” MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
PROCES MODE . . . . . . .......................3.13
ECOLOGY EQUIPMENT . . . .........................3.15
FIXER UNIT . . . . . . .........................3.15
DEVELOPER UNIT. . . .........................3.15
INSTALLATION . . . . . . .......................3.15
FUSES ....................................3.16
ELECTRICAL DIAGRAM . . . . . . . . . . . . . . . . (SEE BEHIND APPENDICES)
OPERATING PROCEDURES 4.1
INITIAL START-UP ...............................4.3
SETTING OF THE PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . 4.5
DAILY START-UP ...............................4.5
PROCESSING FROM THE FEED TABLE . . . . . . . . . . . . . . . . . . . . . 4.7
PROCESSING FROM THE ROLL FILM TRAY. . . . . . . . . . . . . . . . . . . 4.7
PROCESSING PTS-CASSETTES FROM THE DAYLIGHT CASSETTE . . . . . . . 4.9
PROCESSING FROM THE DAYLIGHT SLOT . . . . . . . . ..........4.11
USING THE REWASH SLOT . .........................4.11
ADJUSTMENTS ................................4.13
MAKING ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.13
SHUT-DOWN PROCEDURE . .........................4.15
0.6 0008
950/1250/1550 FILM PROCESSOR
37/49/61

TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
THE CONTROL BOX 5.1
GENERAL . . . . ...............................5.1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.1
FEATURES . ...............................5.1
FUNCTIONAL DESCRIPTION . .........................5.3
DAYLIGHT AND REWASH LAMPS. . . . . . . . . . . . . . . . . .......5.6
CLEANING AND MAINTENANCE 6.1
GENERAL . . . . ...............................6.1
ROLLERS AND GEARS . ............................6.3
CLEANING . . . . ...............................6.5
GENERAL . ...............................6.5
DAILY CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
WEEKLY CLEANING . . . . . . . . . . . ................6.5
MONTHLY CLEANING . .........................6.7
CLEANING OF VALVES IN THE REPLENISHMENT PUMPS . . . . . ....6.7
DEVELOPER FILTER . . . . . . . . . . . ................6.7
CLEANING OF CIRCULATION PUMP . . . . . . . . . . . . . ......6.8
MAINTENANCE . ...............................6.9
REPLACING A FUSE . . . . . . . . . . . ................6.9
REPLACING THE RELAY . . . . . . . . . . . . . ............6.9
CHECK OF DEVELOPER REPLENISHMENT . . . . . . . . . . . ....6.10
CHECK OF FIXER REPLENISHMENT . . . . . ..............6.10
CHECK OF OXIDATION REPLENISHMENT . . . . . ...........6.10
TROUBLE SHOOTING 7.1
GENERAL . . . . ...............................7.1
CONDITIONS BEFORE TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . 7.1
PROBLEMS WITH THE PROCESSOR . . . . . . . . . . . . . . . .......7.2
PROBLEMS WITH PROCESSED MATERIAL . . . . . . . . . . . . . ......7.5
0008 0.7
FILM PROCESSOR 950/1250/1550
37/49/61

TABLE OF CONTENTS
.......................................PAGE
SPAREPARTS 8.1
PARTS DELIVERED . . . . . . . . . . . . . . . . . . . . . . . (SEE APPENDIX B)
INSTALLATION KIT . . . . . . . . . . . . . . . . . . . . . . . (SEE APPENDIX B)
SPAREPARTS KIT . .......................(SEE APPENDIX B)
ISOMETRIC DRAWINGS AND SPARE PARTS . . . . . . . . . . . . . . . . . . 8.2
ADDITIONAL SPAREPARTS . ..................(SEE APPENDIX B)
SERVICE INFORMATION APPENDIX A
PARAMETER LEVELS, PCB GCB . . . . . . . . . . . . . . . . . . . . . . . . A.1
PARAMETERS (EUR) . . . . . . . . . . ....................A.2
PARAMETERS (USA) . . . . . . . . . . ....................A.4
EXPLANATION, PARAMETERS . ........................A.6
DISPLAY FORMAT IN NORMAL MODE . . . . . . . . . . . . . . . . . . A.9
CALCULATING THE REPLENISHMENT. . . . .................A.11
GENERAL . . .............................A.11
CALCULATION . ............................A.11
DISPLAY OF REPLENISHMENT VALUES . . . . .............A.11
TEST-PROGRAM . . .............................A.12
ENTERING TEST-MODE . . . . . . . . . . . . . . . . . . . . . ....A.12
DISPLAY FORMAT IN TEST-MODE . . . . . . . . . . . . . . . . . . . A.12
LEAVING TEST MODE. . . .......................A.12
SUB-TEST PROGRAMS . . . . . . . . . . . . . . . . . . . . . .......A.13
ADJUSTING OF THE PCB GCB . .......................A.15
LED DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . .......A.16
CURL-TEST. .................................A.17
ADDITIONAL INFORMATION APPENDIX B
PARTS DELIVERED . . . . ..........................B.1
INSTALLATION KITS . . . . ..........................B.1
SPAREPARTS KIT . . . . . . .........................B.5
ADDITIONAL SPAREPARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . B.6
ADDITIONAL SPECIFICATIONS . . . . . . . . . . . . . . ...........B.9
REPLENISHMENT HOSES . . . . . . . . . . . . . . . . . . . . . . . . . . . B.9
ELECTRICAL DIAGRAM
0.8 0008
950/1250/1550 FILM PROCESSOR
37/49/61

CHAPTER 1
TECHNICAL SPECIFICATIONS
NOTE! Some film processors may have other
technical specifications than described in the
following.
See APPENDIX B for further information.
PROCESSING MATERIAL
•Rali materials.
•Imagesetting on RC paper and polyester film.
•Camera line exposures on rapid access film.
•Contact work on contact film, rapid access film
and daylight film.
•Laser scanner positives on rapid access film.
•Halftones on rapid access film.
•Paper contact work.
SPECIFICATIONS
FILM WIDTH
Model 950: 7.0 - 95 cm (2.8" - 37.4")
Model 1250: 7.0 - 125 cm (2.8" - 49.2")
Model 1550: 7.0 - 155 cm (2.8" - 61.0")
FILM LENGTH
12.0 cm - 3.0 m (4.7"-118.1")
FILM THICKNESS
0.0762 - 0.1905 mm (0.003"-0.0075")
DEV. TIME
15 - 60 sec.
TRANSPORT SPEED
29 - 116 cm/min. (11.4 - 45.7 in/min.)
DRY-TO-DRY TIME
70 - 279 sec.
CONVERSION TABLE
Dev. time
in sec.
Film speed
cm/min. (in/min.)
Dry-to-dr
y
in sec.
60 29 (11.4) 279
55 32 (12.6) 256
50 35 (13.8) 233
45 39 (15.4) 209
40 44 (17.3) 186
35 50 (19.7) 163
30 58 (22.8) 140
25 70 (27.6) 116
20 87 (34.3) 93
15 116 (45.7) 70
TEMPERATURES
Dev : 20 - 40°C (68 - 104° F)
Fix : 20 - 40°C (68 - 104° F)
Dryer : 20 - 70°C (68 - 158° F)
Dryer stand-by: 40°C app. (104°F)
0008 1.1
FILM PROCESSOR 950/1250/1550
37/49/61

TANK CAPACITIES
Model 950: Dev 21.0 l (5.5 US gal.)
Fix 22.0 l (5.8 US gal.)
Wash 18.0 l (4.8 US gal.)
Model 1250: Dev 27.0 l (7.1 US gal.)
Fix 28.0 l (7.4 US gal.)
Wash 24.0 l (6.3 US gal.)
Model 1550: Dev 33.0 l (8.7 US gal.)
Fix 34.0 l (8.9 US gal.)
Wash 30.0 l (7.9 US gal.)
HOSE CONNECTIONS
Water supply: 12 mm reinforced hose
(3/4" or 1/2" male thread)
Drains:
Dev: 22/25 mm (1")
Fix: 22/25 mm (1")
Wash: 22/25 mm (1")
(Water hose and drain hoses are delivered with
the machine).
Air exhaust: 100 mm (4")
WATER SUPPLY
Consumption:
in operate: 1.65 l/min. (0.43 gal./min.)
or
3.3 l/min (0.86 gal./min.)
in stand-by: 0.0 l/min (0.0 gal./min.)
Pressure: 1.5 - 4 bar (22 - 60 psi)
Temperature: 5-40°C (41-104°F)
DEVELOPER FILTER
Some processors are equipped with a developer
filter. Information about the developer filter is
specified in a separate manual delivered with the
processor.
POWER SUPPLY
• 230V AC, single phase + PE, 50-60 Hz
28 A, or
• 230V AC, 3 phases + PE, 50-60 Hz,
3x17A,or
• 3 x 230/400V AC+N+PE,50-60 Hz,
3x12A
Total, max.: 6800 Watt
VOLTAGE TOLERANCES
230V +10% / -14%
POWER CONSUMPTION
Max: 6.800 Watt
NOISE LEVEL
In operate: < 70 dB (A)
In stand-by: < 70 dB (A)
DIMENSIONS, PTS-CASSETTES
The max. dimensions of the PTS-cassettes that fit
into the daylight cassette (option) are:
Model 950:
Width: 103 cm (40.5")
Depth: 19.5 cm (7.7")
Height: 19.5 cm (7.7")
Model 1250:
Width: 133 cm (52.3")
Depth: 19.5 cm (7.7")
Height: 19.5 cm (7.7")
Model 1550:
Width: 163 cm (64.2")
Depth: 19.5 cm (7.7")
Height: 19.5 cm (7.7")
1.2 0008
950/1250/1550 FILM PROCESSOR
37/49/61

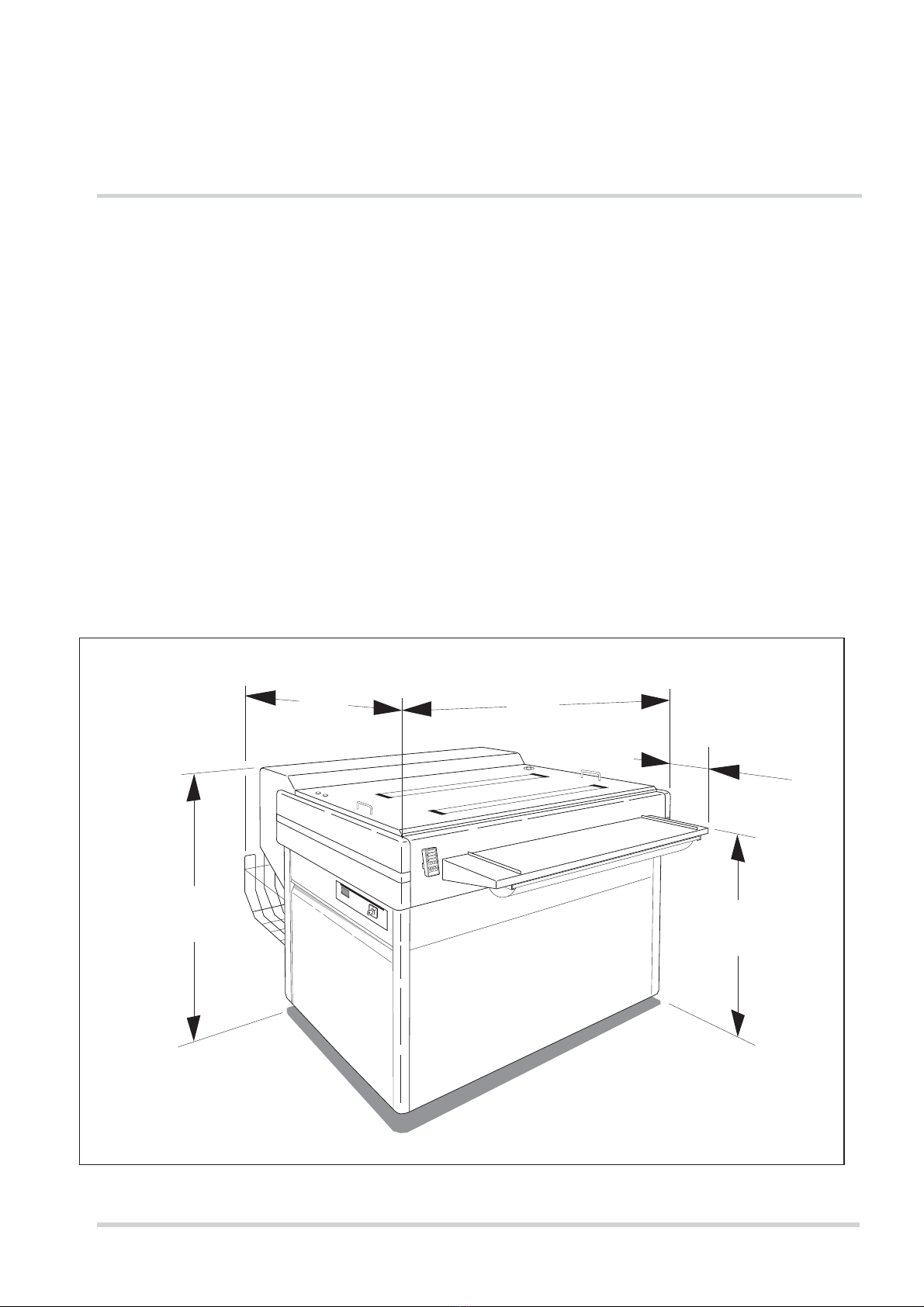

DIMENSIONS
(See Fig. 1/1)
Model 950:
Width (W): 140 cm (55.1")
Depth (D): 125 cm (49.2")
Depth (D2): 26 cm (10.2")
Height (H1): 113-115 cm (44.5-45.3")
Height (H2): 99-101 cm (39-39.8")
Model 1250:
Width (W): 170 cm (66.9")
Depth (D): 125 cm (49.2")
Depth (D2): 26 cm (10.2")
Height (H1): 113-115 cm (44.5-45.3")
Height (H2): 99-101 cm (39-39.8")
Model 1550:
Width (W): 200 cm (78.7")
Depth (D): 125 cm (49.2")
Depth (D2): 26 cm (10.2")
Height (H1): 113-115 cm (44.5-45.3")
Height (H2): 99-101 cm (39-39.8")
WEIGHT
See APPENDIX B.
0008 1.3
FILM PROCESSOR 950/1250/1550
37/49/61
T 1355
W
DD2
H1
H2
Fig. 1/1 Processor Dimensions

1.4 0008
950/1250/1550 FILM PROCESSOR
37/49/61

CHAPTER 2
INSTALLATION
PREPARATIONS BEFORE
INSTALLATION
To avoid waste of your production time as well as
the time it will take for the engineer to install the
machine, make sure that the requirements listed
below are fulfilled before you make the installation.
Installation procedure is described from on the next
pages.
ENVIRONMENTAL REQUIREMENTS
Provide a heating and ventilating system capable of
maintaining room temperature between 15 and
25°C (59 - 77°F) and relative humidity (RH) on max.
80%.
SPACE REQUIREMENTS
Make sure that free space around the machine at
the installation site will be approx. 1m(3-4 ft). This
makes servicing possible, and allows you to pull
out the electronics drawer and the trolley.
WATER SUPPLY
A water tap should be installed close to the
installation site. Max. distance to the machine
should be 2-3m(6 - 10 ft). See chapter 1 for
specifications. The water hose is included with the
installation kit.
DRAIN OUTLETS
The drain outlet should have a funnel shape to
allow for proper drain line routing.
The recommended distance from the machine to
the drain is 0.5 m - max. 2 m (2 - 6 ft).
NOTE! Copper or brass should not be used in
the drainage system as fixer containing silver
might attack it. Therefore plastic or rubber is
recommended.
(See also “DRAIN CONNECTIONS”).
NOTE! If silver recovery is desired, the drain
hose from the fixer tank can be connected to a
silver recovery unit.
(See chapter 3, “ECOLOGICAL UNITS”).
CLEANING FACILITIES
For cleaning purposes it would be convenient to
have easy access to a water tap and a suitable
sink, where rollers and guides can be washed and
chemicals mixed.
POWER CONNECTIONS
If not already there, a main power outlet should be
installed in the room, where the machine will be
situated. Max. recommended distance to the
machine is 2m(6 ft).
The requirements are specified in chapter 1.
0008 2.1
FILM PROCESSOR 950/1250/1550
37/49/61

UNPACKING
Carefully unpack the machine and check that all
parts are present and in good condition. The parts
included in the delivery are listed on page 8/1.
Delivered with the processor are the different parts
needed for the installation and parts for minor
repairs:
Parts delivered ...
are specified on a packing list delivered with the
processor.
Installation kit ...
is delivered with the processor in a cardboard box.
The kit consists of different parts needed for the
installation. The parts are specified on a separate
list included.
Spareparts kit ...
is delivered in a small red box. Inside is a label with
list of enclosed spareparts, numbers of each
sparepart and sparepart order numbers.
Make sure that all parts are present and in good
condition.
MECHANICAL INSTALLATION
INSTALLATION KIT
An installation kit is included with the processor.
It comprises the different parts necessary for the
installation.
See APPENDIX B for further information.
INSTALLATION OF
ROLLERS AND GUIDES
The rollers and guides are delivered in boxes
packed seperately for each section (DEV, FIX and
WASH).
Install the rollers and guides etc. in the sequence
indicated on the illustrations on the following pages.
For references see roller configuration diagram in
chapter 6.
NOTE! When installing the 50 mm bottom rollers
remember to secure them with the clamp in the
tank wall (see Fig. 2/1).
2.2 0008
950/1250/1550 FILM PROCESSOR
37/49/61
à
T 3579
Fig. 2/1

INSTALLATION SEQUENCE
DEVELOPER SECTION
NOTE! Some film processors may have special
configuration in the developer section. See
APPENDIX B for further information.
1. REMOVE GEAR Z70
2. RUBBER ROLLER
3. SPLIT-ROLLER
4. LIGHT ROLLER
5. BOTTOM GUIDE
6. LIGHT ROLLER
7. 50 MM ROLLER
(SECURE WITH CLAMP)
8. INSERT GEAR Z70
9. SPRAY TUBE
10. GUIDE
11. HEAVY ROLLER
12. GUIDE
13. HEAVY ROLLER W/O-RING
14. ENTRANCE GUIDE
15. GUIDE
16. HEAVY ROLLER
17. GUIDE
18. SPRAY TUBE
19. 50 MM ROLLER
20. OXI LID
21. CROSS-OVER GUIDE
22. DAYLIGHT GUIDE (NOT STANDARD)
0008 2.3
FILM PROCESSOR 950/1250/1550
37/49/61
2
3
4
17
15
75 612
T 3576
10
9
11
13
14 22 1+8 20 18 19 21 16
DEV

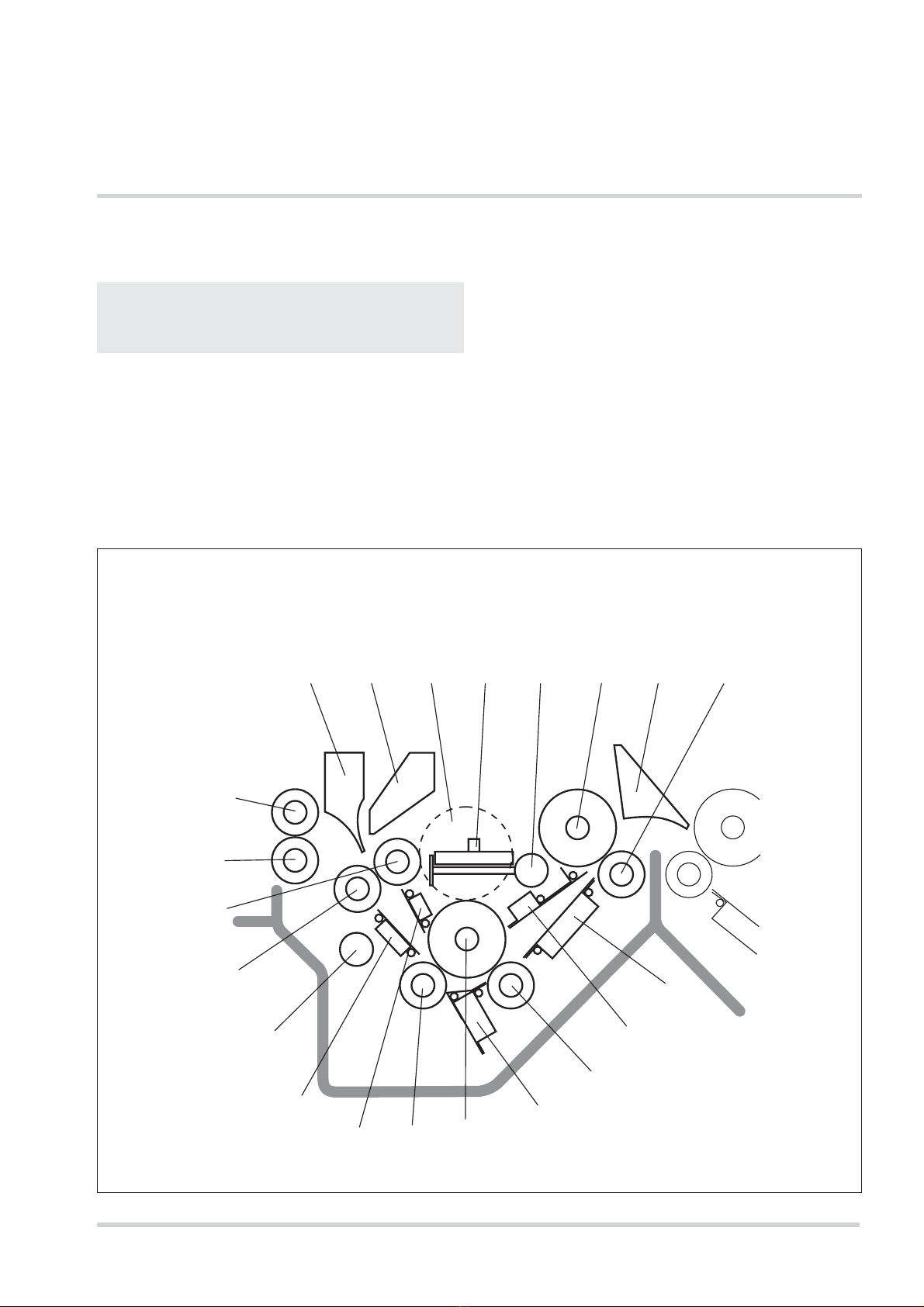

INSTALLATION SEQUENCE
FIXER SECTION
NOTE! Some film processors may have special
configuration in the fixer section. See
APPENDIX B for further information.
1. REMOVE GEAR Z70
2. LIGHT ROLLER
3. BOTTOM GUIDE
4. LIGHT ROLLER
5. 50 MM ROLLER
(SECURE WITH CLAMP)
6. INSERT GEAR Z70
7. GUIDE
8. HEAVY ROLLER
9. GUIDE
10. GUIDE
11. HEAVY ROLLER
12. GUIDE
13. SPRAY TUBE
14. 50 MM ROLLER
15. 50 MM ROLLER
16. OXI LID
17. CROSS-OVER GUIDE
18. REWASH GUIDE (NOT STANDARD)
2.4 0008
950/1250/1550 FILM PROCESSOR
37/49/61
12
10
11
3
T 3577 2
5
4
9
7
8 14 1+6 16 13 15 17 18
FIX

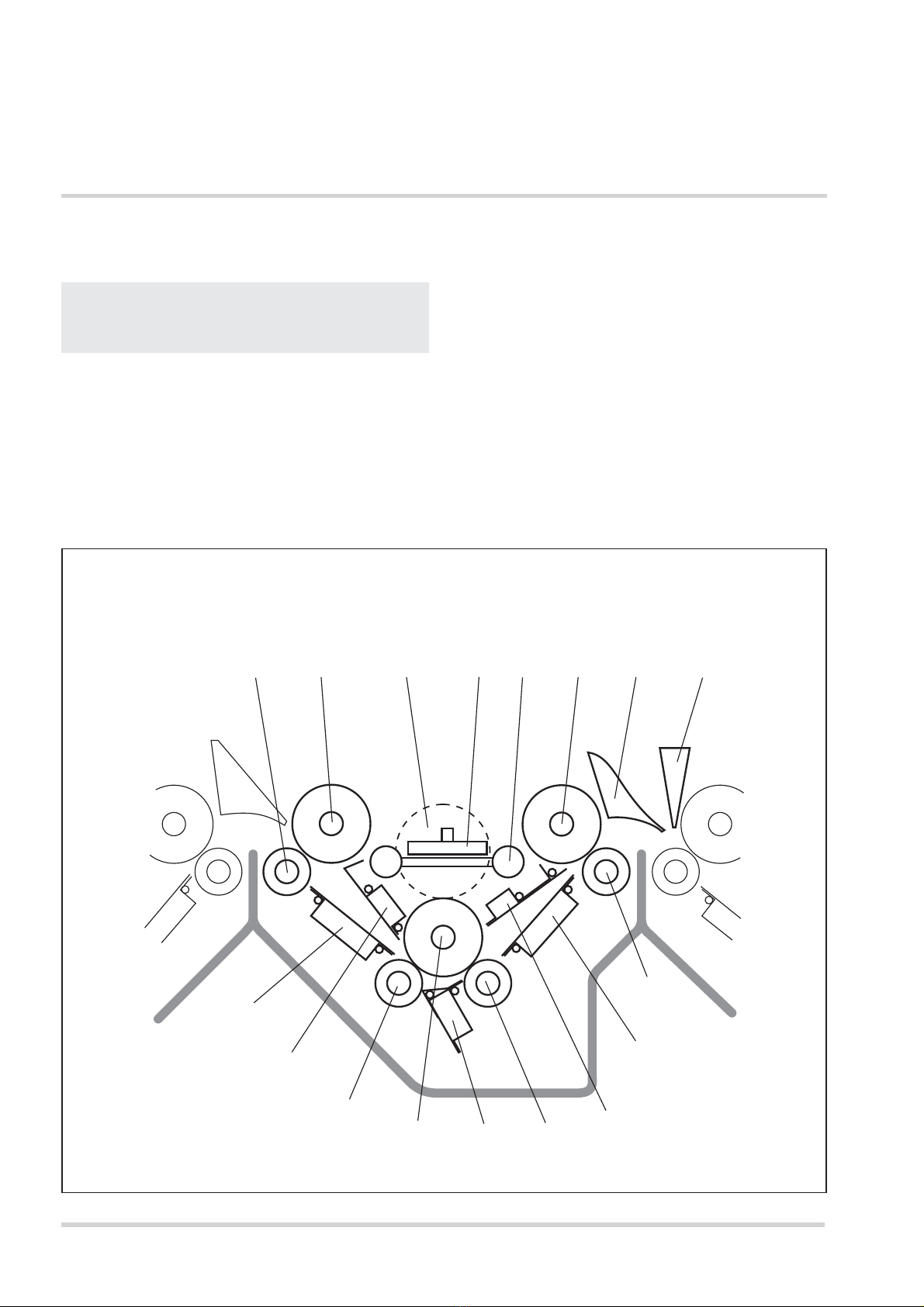

INSTALLATION SEQUENCE
WASH SECTION
1. REMOVE GEAR Z70
2. REMOVE GEAR Z24
3. LIGHT ROLLER
4. BOTTOM GUIDE
5. LIGHT ROLLER
6. 50 MM ROLLER
(SECURE WITH CLAMP)
7. INSERT GEAR Z70
8. GUIDE
9. HEAVY ROLLER
10. GUIDE
11. GUIDE
12. HEAVY ROLLER
13. INSERT GEAR Z24
14. GUIDE
15. 50 MM ROLLER
16. RUBBER ROLLER
17. GUIDE
18. HEAVY ROLLER
19. 50 MM ROLLER
20. SPRAY TUBE
0008 2.5
FILM PROCESSOR 950/1250/1550
37/49/61
14
11
12
4
T 3578 3
6
5
10
8
9 15 20 1+7
16
2+13
19 17 18
WA
S
H

“THROUGH-THE-WALL”
INSTALLATION
(See Fig. 2/2).
If the processor has to be installed in a
“through-the-wall” installation, a hole has to be cut
in the wall, through which the machine is going to
be installed.
The hole should be cut min. 100 mm (4") wider
than the max. width of the machine (see chapter 1)
and min. 200 mm (8") higher than the feed table
surface. Walls thicker than 50 mm (2") should be
cut with a slope (approx. 45°) above the feed table.
When the machine has been placed in position, the
hole in the wall should be reduced to the exact size
of the machine by means of a light-tight material
(thickness 7 - 7.5 mm).
For this purpose a special “TWO-ROOM KIT” is
available. Ask your local dealer for information
about the kit.
With this kind of installation it should be taken into
consideration that it must be possible, without any
difficulties, to use the daylight feeding slot and to
remove the top cover and the rollers and guides for
cleaning and servicing purposes.
2.6 0008
950/1250/1550 FILM PROCESSOR
37/49/61
DARK-ROOM
TIGHTEN
WALL
PROCESSOR
T 3529
LIGHT
TIGHT
MATERIAL
7 - 7.5 mm
Min. 200 mm
45
Fig. 2/2

WATER CONNECTION
The water supply connection is made by means of
the plastic hose and the fitting (WRG) delivered with
the machine.
As shown in Fig. 2/3 the hose must be connected
between the water tap and the water inlet solenoid
valve located at the left underneath the wash
section.
The hose can be connected to a water tap with
1/2" or 3/4" male thread (WRG). When connecting
to 3/4", the reduction nipple shall not be used.
0008 2.7
FILM PROCESSOR 950/1250/1550
37/49/61
WATER
TAP
GASKET
NIPPLE
3/4" - 1/2"
(WRG)
GASKET
T 3542
PLASTIC
HOSE
SOLENOID
VALVE
Fig. 2.3

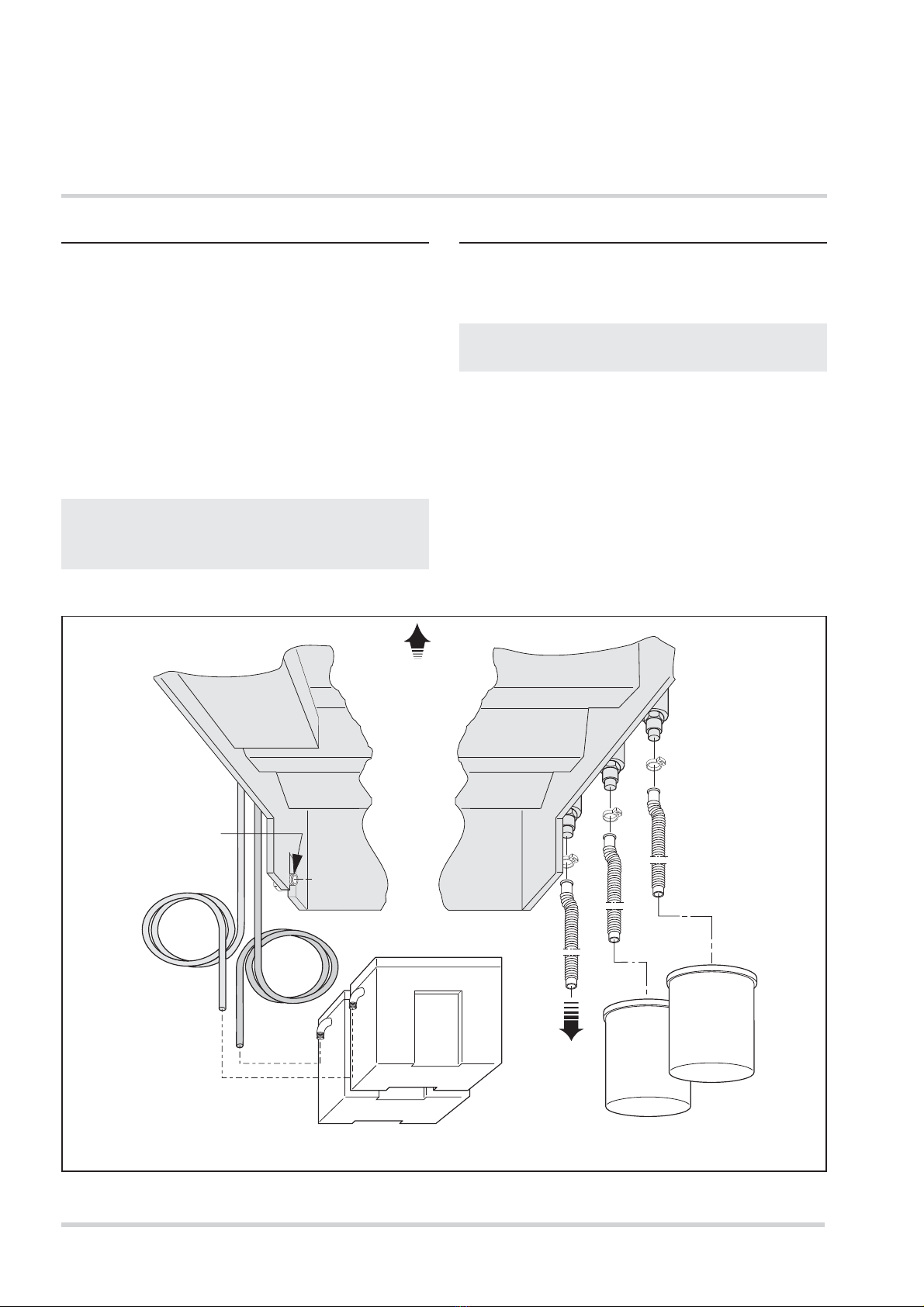

DRAIN CONNECTIONS
Drain connections should be made underneath the
machine (see Fig. 2/4). The drains from the baths
are at the righthand side. Drain hoses are delivered
with the machine. Lead the hoses out through the
lowest hole in the lower right corner in the backside
of the stand. The water drain should be led to a
drain placed 0.5 - max. 2 m (2 - max. 6 ft) from the
machine. Make sure there is a positive fall from the
machine to the drain, and that the hoses do not sag
or form water traps.
NOTE! Do not lead chemicals down the drain.
Lead the drains from the chemical baths to
waste chemical containers.
REPLENISHMENT HOSES
The replenishment hoses are located underneath
the machine as well.
NOTE! See “APPENDIX B” for correct
connection of replenishment hoses.
2.8 0008
950/1250/1550 FILM PROCESSOR
37/49/61
FIX
DEV
PROCESSOR
FRONT
TO
DRAIN
T 3531
REPLENISHMENT
CONTAINERS
WATER
SOLENOID
VALVE
WASTE
CONTAINERS
F
I
X
D
E V
Fig. 2/4
