GMDE GBESS 2.4 4.8KWH User manual

–GBESS 2.4_4.8KWH
Next generation battery inverter and system solution
User Manual
Version 1.1

GBESS 2.4_4.8KWH system user manual
Global Mainstream Dynamic Energy Technology Ltd.
Content
1. Safety.................................................................................................................... 1
1.1 How to Use This Manual.................................................................................................. 1
1.2 Safety Rules ..................................................................................................................... 1
1.3 Warning Notices Affixed to the Device ........................................................................... 2
1.4 Important Safety Information ......................................................................................... 2
1.5 Disposal ........................................................................................................................... 4
1.6 Exclusion of Liability ........................................................................................................ 4
2．Description.......................................................................................................... 5
2.1 General System Description ............................................................................................ 5
2.2 System Connection.......................................................................................................... 6
3. System installation ................................................................................................ 7
3.1 Unpacking the Device...................................................................................................... 7
3.1.1 Before Unpacking ..................................................................................................... 7
3.1.2 Mounting .................................................................................................................. 8

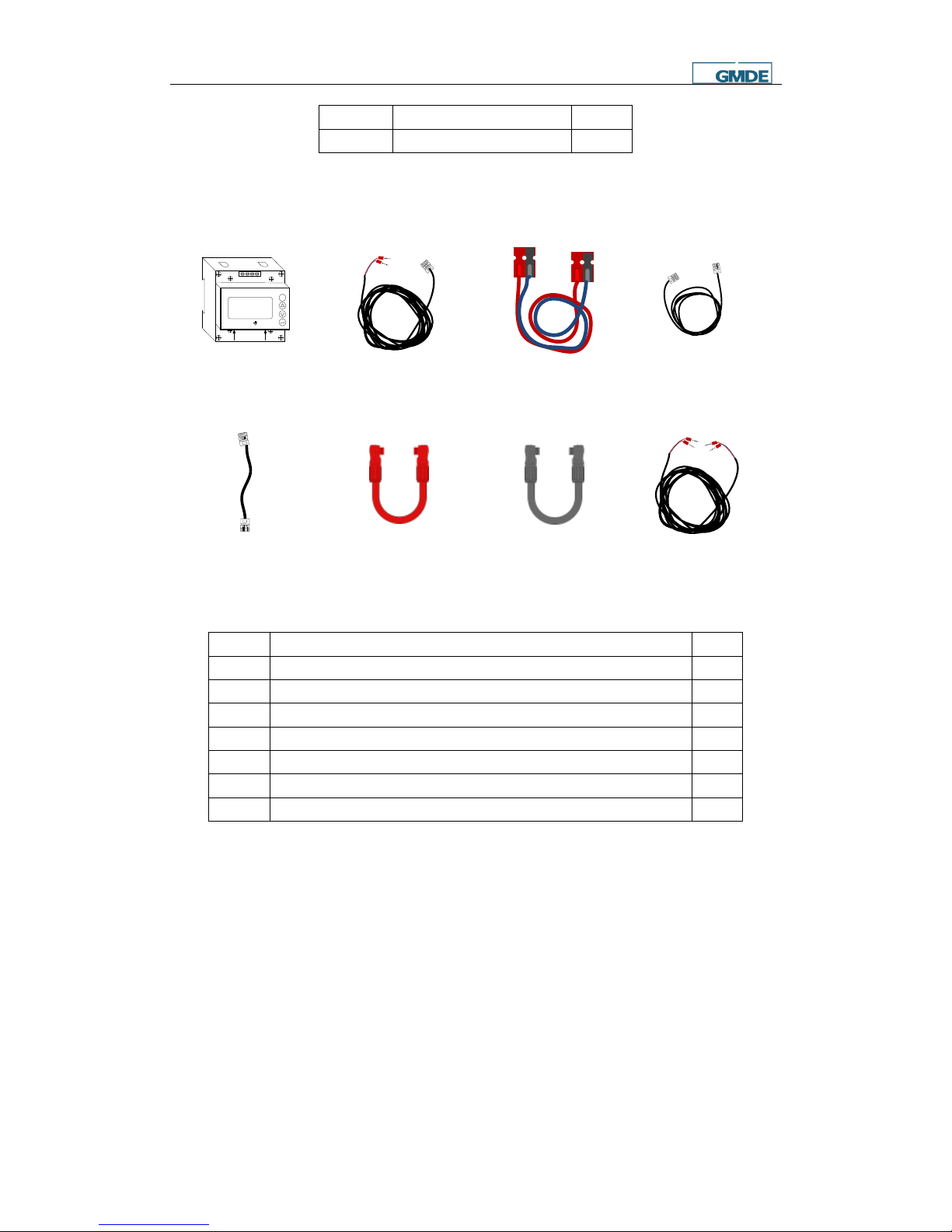

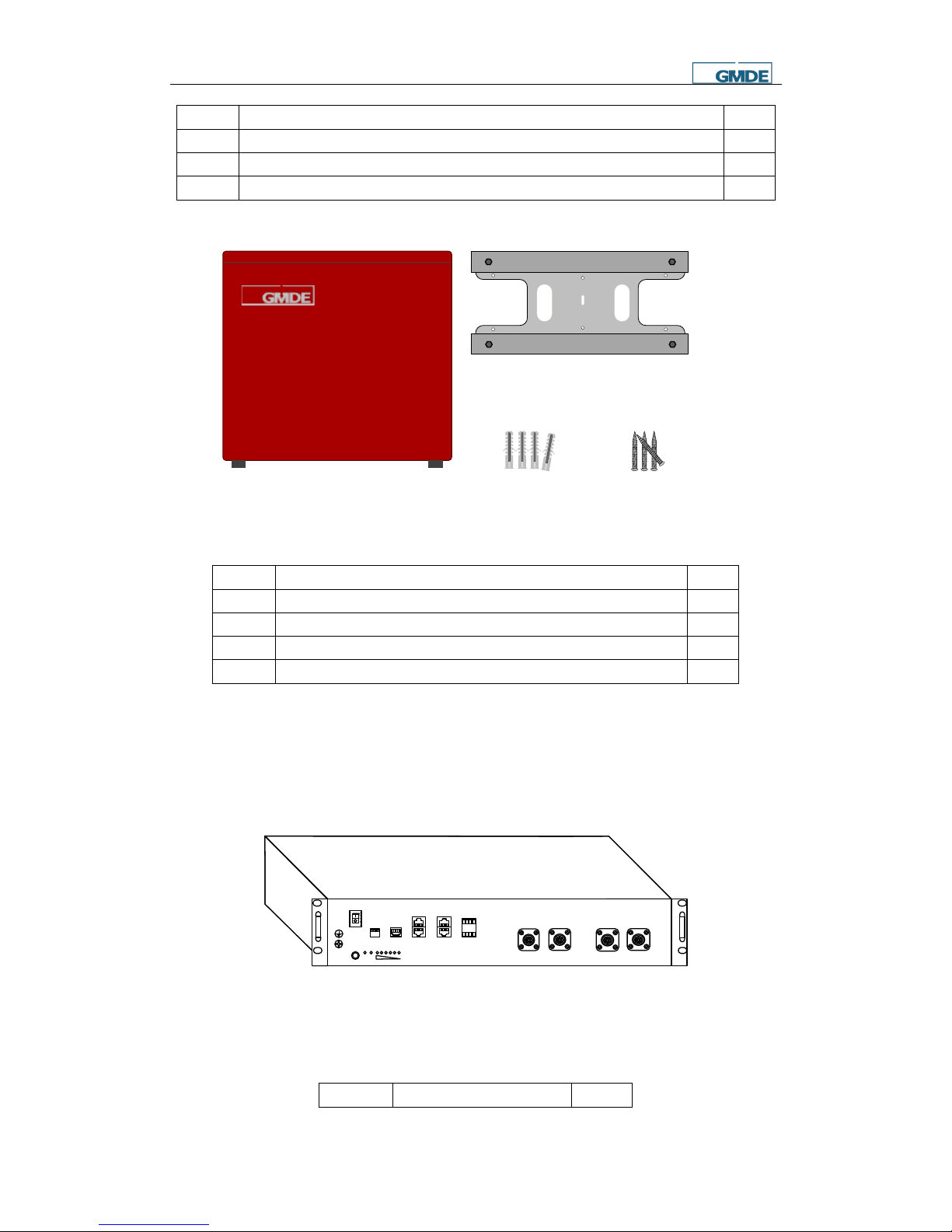

3.1.3 Packing List ............................................................................................................. 10
3.2 Mounting ....................................................................................................................... 13
3.2.1 SolDate 3100 / 3700TL and BM024 Installation..................................................... 13
3.2.2 Mounting Battery Cabinet...................................................................................... 14
3.2.3 Mounting Energy Meter ......................................................................................... 18
3.3 System Connection........................................................................................................ 20
3.3.1 How to Make Power Connecting Line .................................................................... 21
3.3.2 RS485 Communication Line.................................................................................... 22
3.3.3 System Connection................................................................................................. 22
3.3.4 9.6kWhSystem Connection .................................................................................... 24
4. System Settings ................................................................................................... 26
4.1 LCD................................................................................................................................. 26
4.1.1 LCD Interface .......................................................................................................... 26
4.1.2 LCD Indication Lights .............................................................................................. 26

GBESS 2.4_4.8KWH system user manual
Global Mainstream Dynamic Energy Technology Ltd.
4.1.3 LCD Display Definition ............................................................................................ 27
4.1.4 LCD Display Menu Definition.................................................................................. 27
4.1.5 LCD Setting Menu................................................................................................... 28
4.2 Wi-Fi............................................................................................................................... 40
4.2.1 Wi-Fi Function......................................................................................................... 40
4.2.2 Wi-Fi Configuration ................................................................................................ 40
5 System Operation................................................................................................. 44
5.1 System Settings ............................................................................................................. 44
5.2 System Starting.............................................................................................................. 44
5.3 System Operating Instructions ...................................................................................... 45
5.3.1 On-grid Operation .................................................................................................. 45
5.3.2 Off-grid Operation .................................................................................................. 45
5.4 System Maintenance..................................................................................................... 45
6 Troubleshooting ................................................................................................... 46
6.1 Safety during Troubleshooting ...................................................................................... 46
6.2 Faults ............................................................................................................................. 46
6.3 Fault Messages and Actions List.................................................................................... 46
6.4 Fault Acknowledgement................................................................................................ 49
6.5 Technical Service ........................................................................................................... 49

GBESS 2.4_4.8KWH system user manual
Global Mainstream Dynamic Energy Technology Ltd.
Prelude
Published by
Legal Disclaimer
Copyright
Global Mainstream Dynamic Energy Technology Ltd. (GMDE)
Room 604-605, Tongpu Road No.1220, Putuo District, Shanghai,
P.R.China.
Tel: [phone] Fax: [phone]
www.global-mde.com
All information in this documentation has been compiled and checked
with most care. Despite of this, faults or deviations cannot be
completely excluded. We assume no liability and are hereby
acknowledged.
The relevant up-to-date version can be obtained from
www.global-mde.com
The details of this documentation are the property of GMDE.
Using and publicizing this documentation, even if only in parts require
the written consent of GMDE.

GBESS 2.4_4.8KWH system user manual
Read this user manual before you start
Thank you for purchasing our products, this hybrid solution is highly reliable and efficient. This GBESS
2.4_4.8KWH system device is IP20 which is rated for dusty or humid environments and is only suitable
for indoor installation.
If you are reading the electronic version of the manual, please note that you can click the content to
find information you want quickly. All the characters with underline are clickable. A phrase named
‘Back to Top’at the bottom of each chapter can help you go back to the first page quickly.
Before using this device, please ensure that you have read this manual including installation and safety
operation carefully.
If you have any difficulties during installation or operation, please refer to this manual or send email to
[e-mail],we will help to solve your problems as soon as possible.

GBESS 2.4_4.8KWH system user manual
1
1. Safety
1.1 How to Use This Manual
Please read the safety instructions in this manual first. Throughout the manual it is assumed that the
reader is familiar with AC and DC installations and knows the rules and regulations for electrical
equipment and for connecting it to the utility AC grid. It is especially important to be familiar with the
general safety rules for working with electrical equipment.
This manual is intended for qualified electricians.
1.2 Safety Rules
General introduction
These safety-related guidelines use the following warning notices to describe the various levels of
danger:
Death or severe personal injury will occur.
DANGER
Death or severe personal injury may occur.
WARNING
Personal injury or material damage may occur.
CAUTION
Explanations
Electric Shock!
Do not open the device! Dangerous voltage may still be applied inside the
device even after it has been switched off.
ELECTRIC SHOCK!

GBESS 2.4_4.8KWH system user manual
2
High leakage current!
Make absolutely sure you establish connection to ground before connecting
the device to the supply circuit!
WARNING
Health risk!
Health risk for persons with cardiac pacemakers, metallic implants or hearing
aids in the immediate vicinity of electrical equipment!
WARNING
Risk of improper handling!
Personal injury by crushing, shearing, cutting or striking.
CAUTION
Cancellation of the operating license!
If the GMDE inverter is operated with a wrong country code, the electric
supply company may cancel the operating license.
CAUTION
Hot surface!
Surfaces of the housing can be hot! Risk of injury! Risk of burns.
The housing top and the heat sinks may have a surface temperature of 70°C .
HOT SURFACE!
1.3 Warning Notices Affixed to the Device
1.4 Important Safety Information
The following operating and maintenance instructions must be read before installing, operating or
maintaining the inverter.
Before installation:

GBESS 2.4_4.8KWH system user manual
3
Check for damage on the device and package. If you are in doubt, please contact us or the distributor
before installing the device.
Before connecting the solar modules or battery packs with the product, please check the voltages and
make sure they are within the limits of the GMDE inverter specifications. Failure to observe these
specifications could void your warranty.
Installation:
Only trained and qualified personnel familiar with local electrical codes may work with the electrical
installations. For optimum safety, please follow the steps described in this manual.
Disconnecting the product:
Please refer to “Disconnecting for maintenance” in Section 5.4 System Maintenance. Note that, after
disconnecting the inverter from AC grid and battery packs, wait at least 15 minutes before proceeding.
Operating the product:
Do not commission the device until the whole system complies with the application-specific national
rules and safety regulations.
The ambient conditions given in the product documentation must be observed.
The device manufacturer or installer is responsible for compliance with the limit values as prescribed
in the national regulations.
Only persons who are trained and qualified for the use and operation of this device may work on the
device.
Maintenance and modification:
Only authorized personnel are allowed to repair or modify the inverter. To ensure optimum safety for
user and environment, only the original spare parts available from your supplier should be used.
Functional safety parameters:
Unauthorized changes of functional safety parameters may cause injury or accidents to people or
inverter. Additionally it will lead to the cancellation of all inverter operating approval certificates.

GBESS 2.4_4.8KWH system user manual
4
1.5 Disposal
Please dispose the package and replaced parts according to the rules applicable
in the country where the device is installed. Do not dispose the GMDE inverter
with normal domestic waste.
1.6 Exclusion of Liability
GMDE Technology Ltd. will not be liable for any direct, indirect or consequential damages, losses,
costs or losses including without restriction any economic losses of any kind, any loss or damage to
property, any personal injury, any damage or injury arising from or as a result of misuse or abuse, or
the incorrect installation, integration or operation of the product. We disclaim any liability for direct or
indirect damages due to:
1. Improper installation or commissioning,
2. Modifications, alterations or repair attempts,
3. Inappropriate use or operation,
4. Insufficient ventilation of the device,
5. Non-compliance with relevant safety standards or regulations,
6. Flood, lightning, overvoltage, storm, fire (acts of nature).
We do not assume any liability for an incorrectly set country code.
We reserve the right to make alterations that will improve the function of the device.
Back to top

GBESS 2.4_4.8KWH system user manual
5
2．Description
2.1 General System Description
GBESS 2.4_4.8KWH system is designed for the existing solar system to have storage function.
Battery
Pack
S
E
T
SingleEnergy Meter
LN
L
’
N
’
5 6 7
8
S
E
T
SingleEnergy Meter
LN
L
’
N
’
5 6 7
8
Figure 1 GBESS 2.4_4.8KWH System
The system includes four modules: Soldate 3100/3700 TL, BM024 battery manager, lithium battery
packs and energy meter.
A
B
C
D
Figure 2 Main System Components
1) SolDate3100/3700TL inverter
The inverter converts the DC power from BM024 into AC power. The electricity from battery is used by
the household loads or fed into the grid.
2) BM024 battery manager
In connection with the SolDate3100/3700TL via DC bus line, BM024 battery manager charges /
discharges the battery packs according to commands from integrated energy management unit.
3) Battery packs

GBESS 2.4_4.8KWH system user manual
6
Battery packs stores the energy generated from PV generator. Generally each battery module’s
capacity is 2.4kWh; so two battery modules can constitute 4.8kWh battery pack.

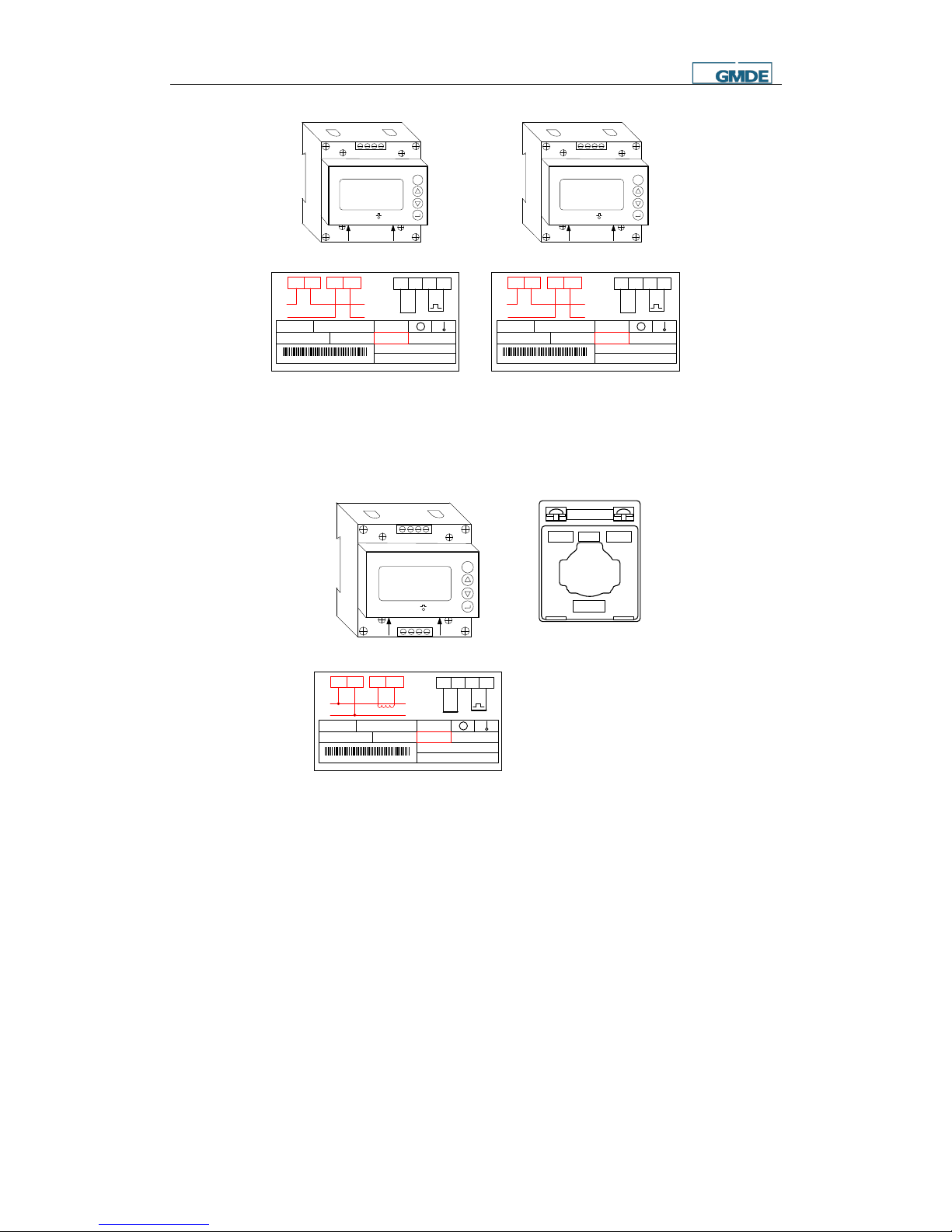

4) Energy meter
Two 1-phase bi-directional energy meters are needed. One is for grid data collection, another is for PV
inverter data collection. With the meter data, the GEatom 103KHF decides when to charge/discharge
the battery packs.
2.2 System Connection
The four main components are connected as displayed in Figure 1, which can not only optimize solar
energy self-use and realize peak shaving, but also protect family from power outages.
PV Inverter
DC
AC
DC
AC
Geatom103KHF
DC
AC
DC
AC
PV
GRID
LOAD
K-battery
BAT
S E T
Single Energy Meter
LN
L ’
N ’
5 6 7 8
K-inv
Grid
K-load
Meter for Grid
K-el
Emergency Load Load
S E T
Single Energy Meter
LN
L ’
N ’
5 6 7 8
K-pv
Meter for PV

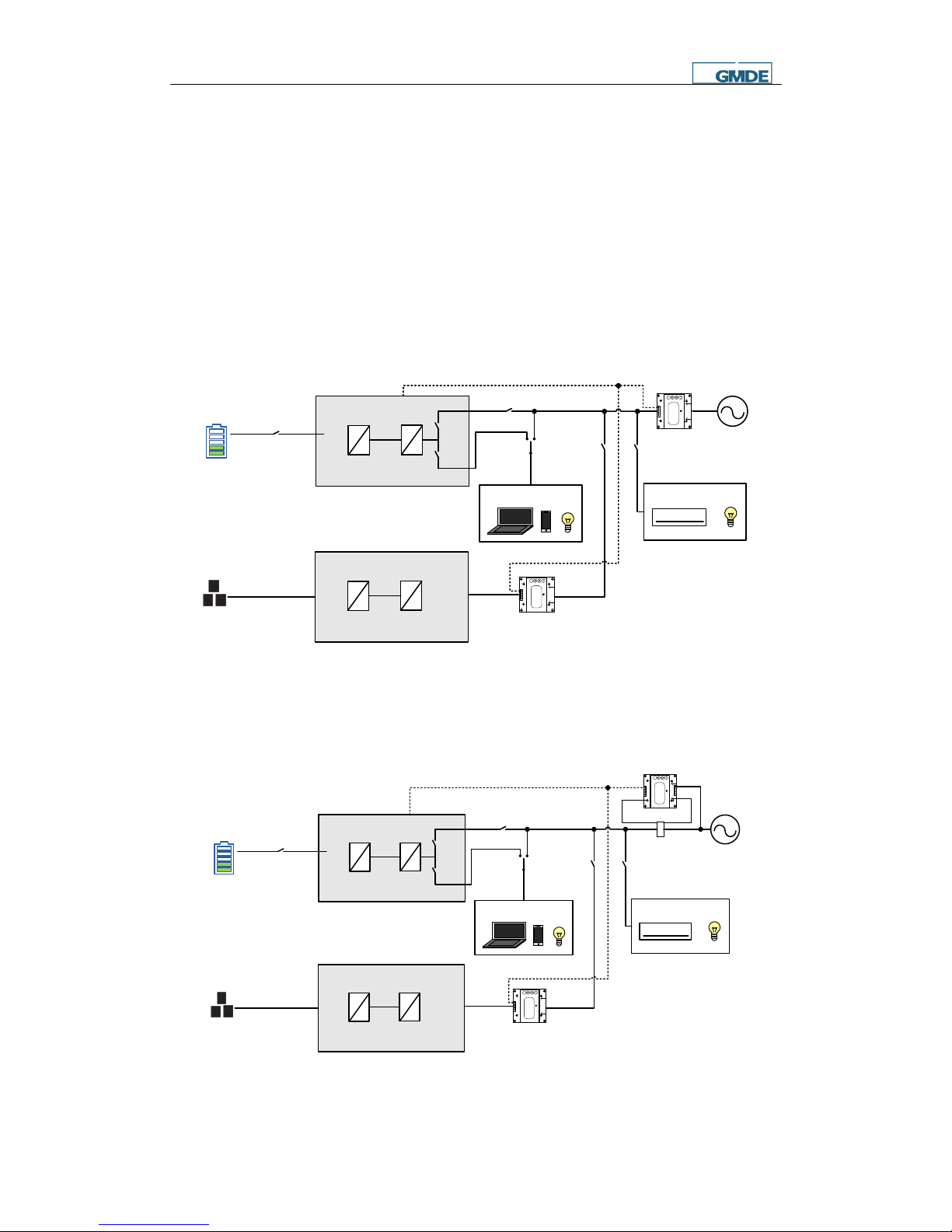

Figure 3 System Wiring Diagram (meter for grid without CT)
Attention: The nominal current of meter is only 20A. If the power of load and emergency load is
larger than 4.6kW, the system is recommended to change a meter with CT as Figure 4 to avoid from
current over range.
PV Inverter
DC
AC
DC
AC
Geatom103KHF
DC
AC
DC
AC
PV
GRID
LOAD
K-battery
BAT
S E T
Single Energy Meter
LN
L’N
’
5 6 7 8
K-inv
Grid
K-load
K-el
Emergency Load Load
S E T
Single Energy Meter
LN
L ’
N ’
5 6 7 8
Meter for PV
K-pv
CT
Meter for Grid
Figure 4 System Wiring Diagram (meter for grid with CT)

GBESS 2.4_4.8KWH system user manual
7
Please add an AC breaker K-grid before the energy meter if users need to switch to off-grid function
manually, please refer to Figure 5.
PV1 PV2 BUS
GRID LOAD
DC Switch
ON
OFF
WIFI
TO BAT
CANRS485Ethernet
BUS
TO PV
CAN
BAT
BAT
CHG
DISCHG
Distribution box Load
Meter for Grid Emergency load
PV PANEL Geatom103KHF system Battery Cabinet
Lead type battery
B5 B6 D3
F3 F4
SET
Single Energy Meter
LN
L’N'
5 6 7 8
PV INVERTER
DC
AC
Meter for PV
SET
Single Energy Meter
LN
L’N'
5 6 7 8
L
N
K-GRID
To
Meter
DC
BREAKER
To
Inerter
To
Cabinet
Figure 5 System Connection for Manual Off-grid Switching
3. System installation
3.1 Unpacking the Device
3.1.1 Before Unpacking
All products are thoroughly tested and inspected before they’re packed and transported. Although
they’re shipped in reliable package, damage during transportation could still occur.
It is important to inspect the shipping package prior to the installation carefully. If any external
damage on the package makes you suspect the device could be damaged or if you find that the device
is damaged after unpacking it, report the damage immediately to your distributor or the goods
forwarder.
If it becomes necessary to return the device, please use the original packages in which they were
delivered.
The gross weight of SolDate 3100/3700TL is 25kg, for which BM024 is 10kg. To avoid injury, take the
device by the two holding grips that are visible on the side and take the device out of the package.
Ensure a second person to assist in the unpacking and installation of the devices.

GBESS 2.4_4.8KWH system user manual
8
3.1.2 Mounting
1. Don’t install the device in direct sunshine. External heating from exposure to the sun may cause
excessive internal heating. This may result in output power being reduced in order to protect the
internal components from damage.
2. The SolDate 3100/3700TL weights 25kg, the BM024 weights 10 kg. The installation wall must be
vertical and can carry the weight of the devices.
3. Install the GBESS 2.4_4.8KWH in a location where the ambient air temperature is less than 45◦C.
The GBESS 2.4_4.8KWH may reduce its output power if the ambient air temperature exceeds 45◦C
(The cooler the air temperature, the longer the life expectancy of any electronics device).
4. The installation space for GEatom103KHF and battery cabinet, please refer to the device dimension
figure and installation space figure (Figure 6~Figure 8).
5. The system should be installed in a location where is inaccessible to children.
6. The device is designed for indoor installation (IP20).
7. It is recommended to mount the device at eye level to ensure optimum user comfort.
8. Do not install the system on flammable construction materials, in areas close to flammable or
explosive materials.
Figure 6 GEatom103KHF Dimension
PV1 PV2 BUS
GRID LOAD
DC Switch
ON
OFF
WIFI
TO BAT
CANRS485Ethernet
BUS
TO PV
CAN
BAT
BAT
CHG
DISCHG

GBESS 2.4_4.8KWH system user manual
9
600 245
500
Battery Pack
To Inverter
To Meter
To Meter
DCBREAKER
To Inverter
To Ca binet
Figure 7 Battery Cabinet Dimension
Module
SolDate3100/3700TL
BM024
Battery Cabinet
Dimension(L*W*D)(mm)
500 x 380 x 150
500 x 280 x150
570 x 600 x245
Weight(kg)
25
10
15(cabinet)+25*2(battery)
Table 1 Main Modules Specification
Battery Pack
245.0
600.0
482.0
500.0
280.0380.0
500.0
300 300
200
200
170.0
To Meter
DC
BREAKER
To Cabinet
To Inverter
Figure 8 Installation Space

GBESS 2.4_4.8KWH system user manual
10
3.1.3 Packing List
3.1.3.1 SolDate3100/3700TL Packing List
A2
A3
A4
User
Manual
A1
A5
A6
A7
Figure 9 SolDate3100/3700TL Packing List
Item
Description
pcs
A1
SolDate3100/3700TL
1
A2
SolDate3100/3700TL mounting bracket
1
A3
Expansion Tube
4
A4
Tapping Screws
4
A5
Aviation Plug Female (for AC grid connection) x 1
1
A6
Aviation Plug Male Connector (for emergency load connection) x1
1
A7
GBESS 2.4_4.8KWH system user manual
1
Table 2 SolDate 3100/3700TL Packing List
3.1.3.2 BM024 Packing List
B2
B3
B4
B5
B6
Figure 10 BM024 Packing List
Item
Description
pcs
B1
BM024 battery manager
1
B2
BM024 mounting bracket
1

GBESS 2.4_4.8KWH system user manual
11
B3
Expansion Tube
4
B4
Tapping Screws
4
B5
DC connection line between BM024 and SolDate3100/3700TL(Inverter only)
1
B6
Communication line betweenBM024 and SolDate3100/3700TL(Inverter only)
1
Table 3 BM024 Packing List
3.1.3.3 Unpacking Battery Cabinet
Battery Pack
C2
C1
C3
C4
Figure 11 Battery Cabinet Packing List
Item
Description
pcs
C1
Battery cabinet
1
C2
Battery cabinet mounting bracket
1
C3
Expansion Tube
4
C4
Tapping Screws
4
Table 4 Battery Cabinet Packing List
3.1.3.4 Unpacking Battery Packs
-+
-+
RS485
Link P ort 0
ON
OFF
COM1COM3 NO1
NO3
SW
PO WER
ADD
RUN
Console
SOC
ALM
CAN
Link P ort 1
IN+
GND
NO2
COM2
Figure 12 48V50Ah Battery Module (E)
Item
Description
pcs

GBESS 2.4_4.8KWH system user manual
12
C1
Battery cabinet
1
E
48V50Ah battery module
2
Table 5 Battery Cabinet Packing List
3.1.3.5 Unpacking the Accessories Box
LN
L’N’
5 6 7 8
SET
Single Energy Meter
D1
D2
D3
D4
D5
D6
D7
D8
Figure 13 Accessories box (D) packing list
D1
Energy meter 1-phase
2
D2
Communication line between meter and battery cabinet
1
D3
DC connection line between BM024 and battery cabinet
1
D4
Communication line between SolDate3700TL and battery cabinet
1
D5
Communication line between two battery modules
1
D6
Positive power line between two battery modules
1
D7
Negative power line between two battery modules
1
D8
Communication line between two meters
1
Table 6 Accessories box packing list
About Meter:

GBESS 2.4_4.8KWH system user manual
13
LN
L’N’
5 6 7 8
SET
Single Energy Meter
LN
L’N’
5 6 7 8
SET
Single Energy Meter
LL’NN’5 6 7 8
A
ADL 100 E/C Single-Phase Energy Meter 800imp/kWh
50/60Hz
GB/T 17215.321-2008
DATE: 06/06/16
220VAddress: 001
B+—
1
*99999999999999*
L
N
Load
RS485 kWh
20(80)A
LL’NN’5 6 7 8
A
ADL 100 E/C Single-Phase Energy Meter 800imp/kWh
50/60Hz
GB/T 17215.321-2008
DATE: 06/06/16
220VAddress: 001
B+—
1
*99999999999999*
L
N
Load
RS485 kWh
20(80)A
D1 Meter for Grid
D2 Meter for PV
Figure 14 Energy Meter
If the current flow through the meter large than 20A, a CT is recommended to add.
LN
L’N’
5 6 7 8
SET
Single Energy Meter
1 2 3 4
S2S1
P1
30I
1 4 L L’5 6 7 8
A
ADL 100 E/C Single-Phase Energy Meter 12800imp/kWh
50Hz
GB/T 17215.321-2008
DATE: 06/06/16
220VAddress: 002
B+—
1
L
N
Load
RS485 kWh
*
*99999999999999*
1.5(6)A
200:5
Meter for Grid(with CT)(Optional)
D3 CT(Optional)
Figure 15 Energy Meter with CT
3.2 Mounting
3.2.1 SolDate 3100 / 3700TL and BM024 Installation
Choose a proper location to install the system according to Figure 16.
3.2.1.1 Mounting SolDate3100/3700TL (A1)
1) Choose a proper position for the bracket A2 on the wall and mark it
2) Use Φ10 drill template to drill holes on marked position

GBESS 2.4_4.8KWH system user manual
14
3) Fix the expansion bolt A3 into the hole
4) Fix wall bracket A2 on the wall
5) Fix screw A4 through bracket A2 to expansion bolt A3, adjust the bracket position and screw up
6) Align with wall bracket, move SolDate3100/3700TL (A1) in horizontal direction to proper position
7) Make the hook on wall bracket insert into the hole on SolDate3100/3700TL (A1)
8) Slowly lower SolDate3100/3700TL (A1) , ensure the device hang on the hook of wall bracket A2
9) Check if SolDate3100/3700TL (A1) is properly fixed on the wall
3.2.1.2 Mounting BM024 (B1)
1) Choose a proper position for the bracket B2 on the wall and mark it
2) Use Φ10 drill template to drill holes on marked position
3) Fix the expansion bolt B3 in the hole
4) Fix wall bracket B2 on the wall
5) Fix screw B4 through wall bracket B2 to expansion bolt B3, adjust the bracket position and screw
up
6) Align with wall bracket B2, move BM024 (B1) in horizon direction at proper position.
7) Make the hook on wall bracket B2 insert into the hole on BM024(B1)
8) Slowly lower BM024(B1), ensure the device hang on the hook of wall bracket B2
9) Check if BM024(B1) is properly fixed on the wall
Install demonstration:
Figure 16 SolDate3100/3700TL and BM024 Installation Demonstration
3.2.2 Mounting Battery Cabinet
3.2.2.1 Install the battery modules into the battery cabinet:
1) Side view on the battery cabinet, and confirm that the “DC BREAKER” is turn off:

GBESS 2.4_4.8KWH system user manual
15
To Meter
DC BREAKER
To Inverter
To Cabinet
To Meter
DCBREAKER
To Inverter
To Ca binet
Figure 17 Side View of Battery Cabinet
2) Open the top cover;
3) Remove the baffle in the middle;
4) Put in battery module E;
5) Put on the top cover to finish the battery packs installation into the cabinet.
Figure 18 Install Battery Modules into Battery Cabinet
3.2.2.2 Mounting battery cabinet (C1)
1) Choose a proper position for the bracket C2 on the wall and mark it
2) Use Φ10 drill template to drill holes on marked position
3) Fix the expansion bolt C3 in the hole
4) Fix wall bracket C2 on the wall
5) Fix screw C4 through wall bracket C2 to expansion bolt C3, adjust the bracket position and screw
