GMP G Series User manual

G14.25 G15.35
G18.35
G21.35
G26.35
G21.50
G26.50
G32.50
1
GLine - INSTALLATION MANUAL
INSTALLATION
MANUAL
Gline

2
GLine - INSTALLATION MANUAL
INDEX OF CONTENTS
SAFETY INFORMATION 3
POSITIONING
TRANSPORT | UNLOADING | UNPACKING 6
IRONER POSITIONING 7
RECOMMENDED CLEARANCE AROUND THE IRONER 8
REMOVING THE TRANSPORT SAFETIES 9
REMOVING THE ANTIOXIDANT PAPER 12
CONNECTIONS
TECHNICAL DATA 5
CONNECTIONS SCHEME
G 14.25 14
G 15.35 16
G 18.35 18
G 21.35 20
G 21.50 24
G 26.35 22
G 26.50 26
G 32.50 28
EXHAUST DUCTING
ROOM CHARACTERISTICS 34
EXHAUST REQUIREMENTS 35
ELECTRICITY
ELECTRICAL CONNECTIONS 30
ELECTRICAL SPECIFICATIONS 31
GAS
APPLIANCE CATEGORY 36
GAS SPECIFICATIONS 37
GAS CONNECTION 38
CHECKING THE GAS PRESSURE 39
CHANGING THE GAS TYPE 40
STEAM
STEAM CONNECTION 44
STEAM SPECIFICATIONS 43

3
GLine - INSTALLATION MANUAL
SAFETY INFORMATION
DANGER!
Informs of a dangerous situation that, if not avoided, will cause death or severe body injury.
WARNING!
Informs of a dangerous situation that, if not avoided, will cause severe body injury or damage to property.
CAUTION!
Informs of a dangerous situation that, if not avoided, will cause minor body injury or damage to property.
IMPORTANT!
Informs of a procedure that, if not respected, will cause damage to appliance.

4
GLine - INSTALLATION MANUAL
WARNING!
Failure to install, maintain, and/or operate the ironer according to the manufacturer’s instructions may result in conditions which can
produce body injury and/or property damage.
WARNING!
For your safety and to reduce the risk of fire or explosions, do not store or use flammable substances or substances that can generate
flammable vapours and in proximity of this appliance.
Do not process with this appliance fabrics containing residuals of flammable substances.
NOTE: The DANGER, WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur.
It must be understood that common sense, caution, and carefulness must be applied whenever installing, operating or servicing the
ironer.
DANGER!
To prevent personal injury, fire or explosion, the ironer may only be positioned, connected, adjusted, installed, and started
by fully qualified engineers.
Read the manual
prior to carrying out any operation.

5
GLine - INSTALLATION MANUAL
TECHNICAL DATA
Model G14.25 G15.35 G18.35 G21.35 G26.35
Roller Ø 270 mm 325 mm 325 mm 325 mm 325 mm
Roller length 1450 mm 1480 mm 1800 mm 2100 mm 2580 mm
Ironing speed 0,8÷3 m/min 1,6÷5 m/min 1,6÷5 m/min 1,6÷5 m/min 1,6÷5 m/
min
Hourly production 25 kg 43 kg 50 kg 56 kg 78 kg
Maximum recommended
moisture
50% 50% 50% 50% 50%
Ironer net weight 310 kg 450 kg 490 kg 548 kg 780 kg
Table A1
Model G21.50 G26.50 G32.50
Roller Ø 500 mm 500 mm 500 mm
Roller length 2100 mm 2580 mm 3200 mm
Ironing speed 1,6÷8 m/min 1,6÷8 m/min 1,6÷8 m/min
Hourly production
electric
gas
steam
75 kg
85 kg
95 kg
95 kg
110 kg
115 kg
120 kg
135 kg
145 kg
Maximum recommended
moisture
50% 50% 50%
Ironer net weight 1200 1320 1700
Table A2

6
GLine - INSTALLATION MANUAL
TRANSPORT | UNLOADING | UNPACKING
INSPECTION
When ironer is delivered, visually inspect the packing and the parts of the ironer visible through the packing.
Before signing any delivery document to the forwarder, make sure the product is delivered intact.

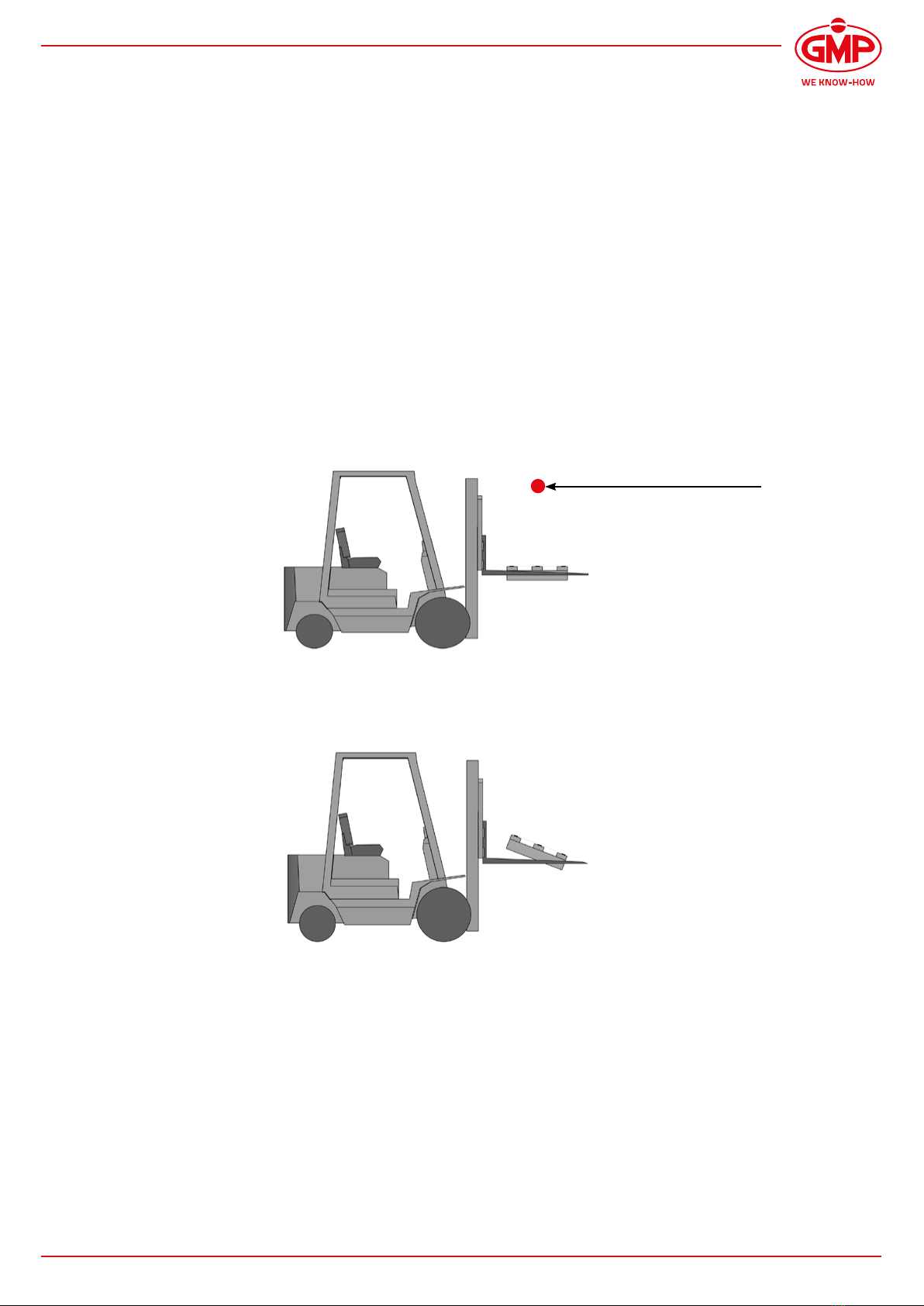

UNLOADING
The ironer must be unloaded from truck and transported keeping forklift forks as wide apart as possible to avoid any
torsion to the frame.
In case an unloading with crane is necessary, a balancer should be used to ensure the machine frame remains level during
the handling.
IMPORTANT!
To avoid damaging the appliance, do not let it drop when handling.
DANGER!
Remember the center of gravity is high: machine should therefore be handled with extreme precaution, since shocks might
cause it to fall.
UNPACKING
Keep all packing (plastic bags, polystyrene foam, nails, screws, metal or plastic straps, etc.) out of reach of children and
dispose of suitably, as they are potential sources of danger and pollution.
All packing parts are completely recyclable, so a separate waste sorting should be used whenever possible.
CENTRE OF GRAVITY

7
GLine - INSTALLATION MANUAL
IRONER POSITIONING
CAUTION!
All operations must be carried out by fully qualified engineers.
DANGER!
Make sure that the floor static load limit complies with the equipment weight before positioning the ironer.
IMPORTANT!
To avoid damaging the appliance, do not let it drop when handling.
G.25 and G.35
Open the doors using the key provided and remove the screws fixing the ironer to the pallet.
Slide 2 metal bars having a diameter of 25 mm and a length of 900 mm through the holes provided to the purpose, and hang
there 2 sets of belts suitable to lift the ironer weight.
On top of the belts, position a balancer.
Using a forklift, lift up the balancer carefully and place the ironer on the floor, ensuring it is perfectly stable.
G.50
Open the doors using the key provided and remove the screws fixing the ironer to the pallet.
Slide the forklift forks between ironer and pallet, and lift it carefully from the pallet.
Place the appliance on the floor, ensuring it is perfectly stable.

8
GLine - INSTALLATION MANUAL
RECOMMENDED CLEARANCE AROUND THE IRONER
For a correct use and operation it is recommended to leave free space around the ironer.
Model Right Left Rear
G14.25 50 cm 50 cm 50 cm
G15.35 50 cm 50 cm 50 cm
G18.35 50 cm 50 cm 50 cm
G21.35 50 cm 50 cm 50 cm
G26.35 50 cm 50 cm 50 cm
G21.50 50 cm 50 cm 70 cm
G26.50 50 cm 50 cm 70 cm
G32.50 50 cm 50 cm 70 cm
Table 1

9
GLine - INSTALLATION MANUAL
REMOVING THE TRANSPORT SAFETIES
CAUTION!
All operations must be carried out by fully qualified engineers.
Before connecting the ironer, it is necessary to remove the safeties installed to protect the machine from damages that
might occur during the transport.
G.25 and G.35
G.50

10
GLine - INSTALLATION MANUAL
Remove the belts sustaining the cylinder weight, on both sides.
Remove the screw that fix the transport safeties to the panels and remove the safeties.
Repeat the operation on both sides.
DO NOT DISCARD THE SCREWS.

11
GLine - INSTALLATION MANUAL
Remove the transport safeties.
Install the centering teflon guides (2 pcs) that come with the machine. The set is packed inside the left side panel.
Fix the centering guides using the screws removed before.

12
GLine - INSTALLATION MANUAL
REMOVING THE ANTIOXIDANT PAPER
(models with polished cylinder only)
The ironing cylinder is protected from oxidation effects by an anti-oxidation paper that MUST be removed on the first
installation.
Don’t discard the protective paper: wrap it on the ironing cylinder again in case of a prolonged inactivity of the machine ( ~
more than 1 week).
STEP1: Insert the emergency handwheel to the ironer left side as illustrated in the figure below:
STEP 2: Turn clockwise the handwheel. The anti-oxidation paper will start coming out.
IMPORTANT!
Make sure that paper does not get stuck or trapped in any component.
EMERGENCY HANDWHEEL

13
GLine - INSTALLATION MANUAL
STEP 3: Complete the operation making sure that the detaching linen springs and and the brass plates supporting the
thermostat sensors are perfectly in contact with the cylinder.
WARNING!
Disconnect the handwheel before starting the ironer.
IMPORTANT!
Do not tear the paper, and make sure no piece of paper remains inside the ironer when heating is activated.
IF THE EQUIPMENT IS NOT INSTALLED AND USED IMMEDIATELY, IT SHOULD BE STORED IN A DRY PLACE:
• Care should be taken that condensation does not occur: if condensation occurs, cylinder will be subject to oxidation.
• In case of extreme ambient conditions during transport or storage, double-check the state of the cylinder surface looking
for oxidation traces.
• In case of storage periods longer than 30 days, a systematic inspection schedule should be established.
• In case of oxidation, coat the cylinder with protective anti-oxidation treatment.
BRASS PLATEDETACHING LINEN SPRING

2022
1073
A
B
G
E

78

82
2022
1073
300 120
939
267
14
GLine - INSTALLATION MANUAL

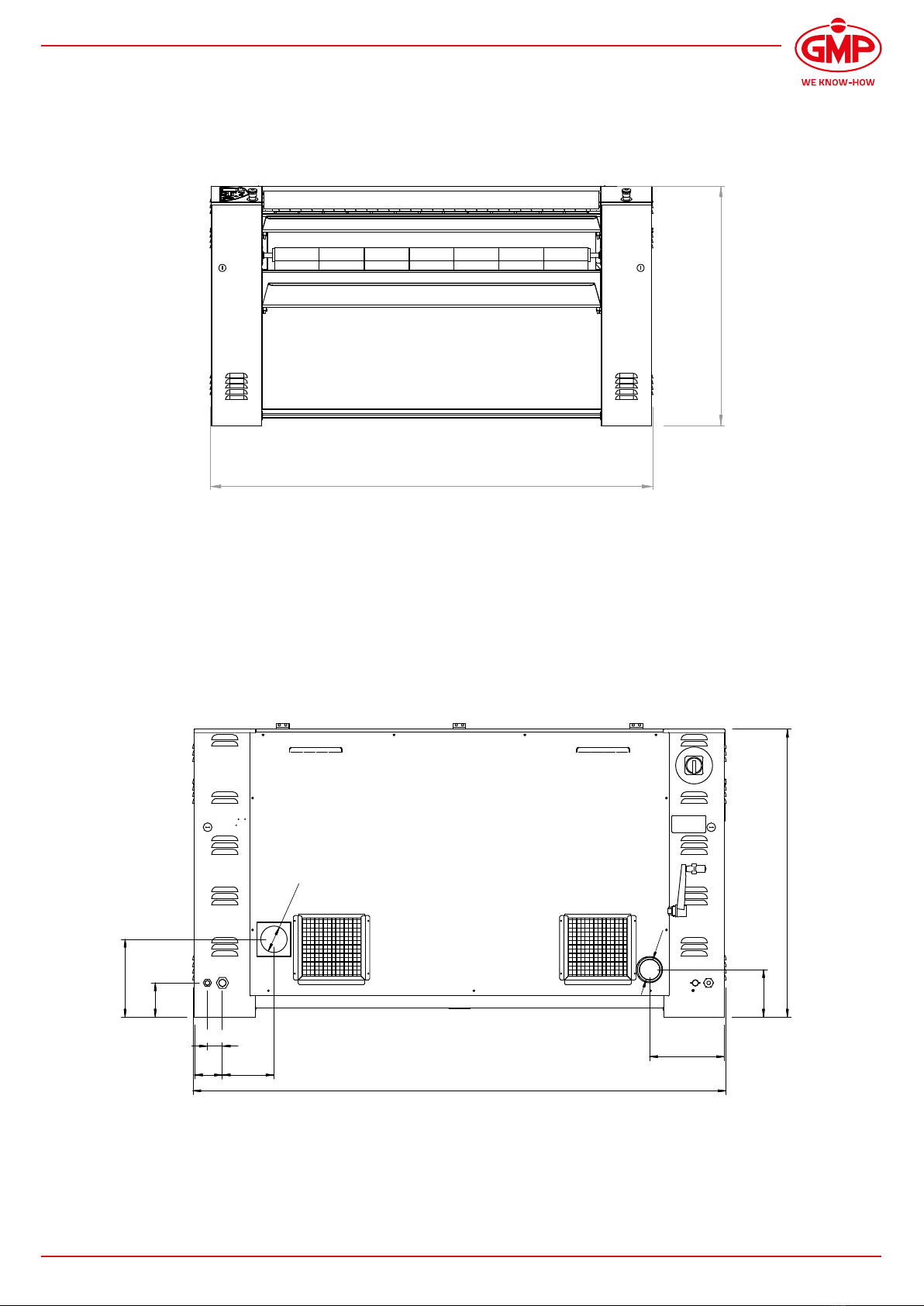

CONNECTIONS SCHEME
G14.25

712
1073
267 672 134
8278
B
A
E
G
15

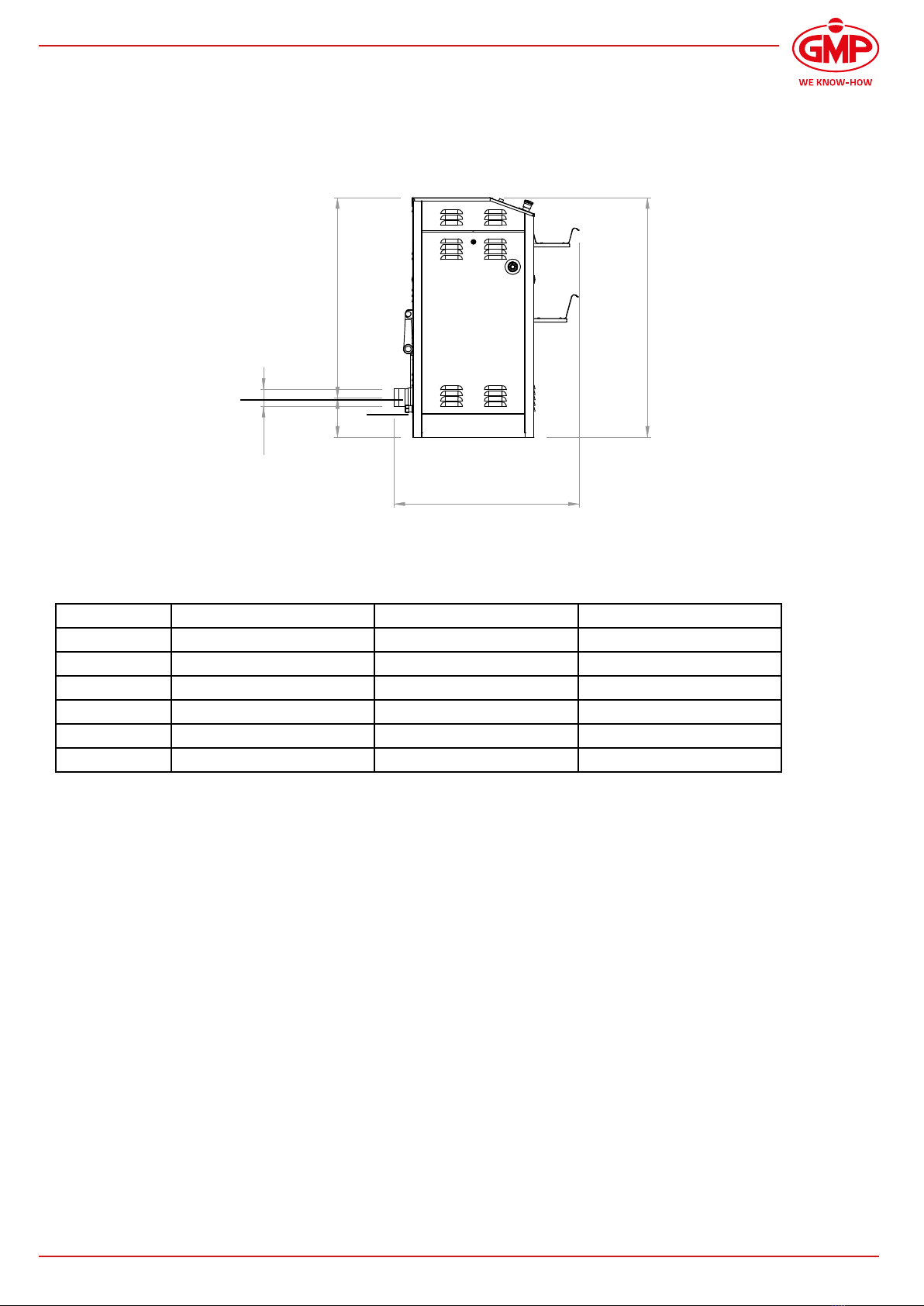

GLine - INSTALLATION MANUAL
LEGEND
Letter Correspondence Notes
ASteam output Ø78 mm, 280 m³/h
BFumes output Gas heated models only Ø80 mm, 100 m³/h
EElectricity connection PG21
GGas connection Gas heated models only G 1/2” M
Table 2A

2022
1094
290

80
2022
1092
180
130
106
57
195
295

100
A
E
B
G
HI
1094
16
GLine - INSTALLATION MANUAL

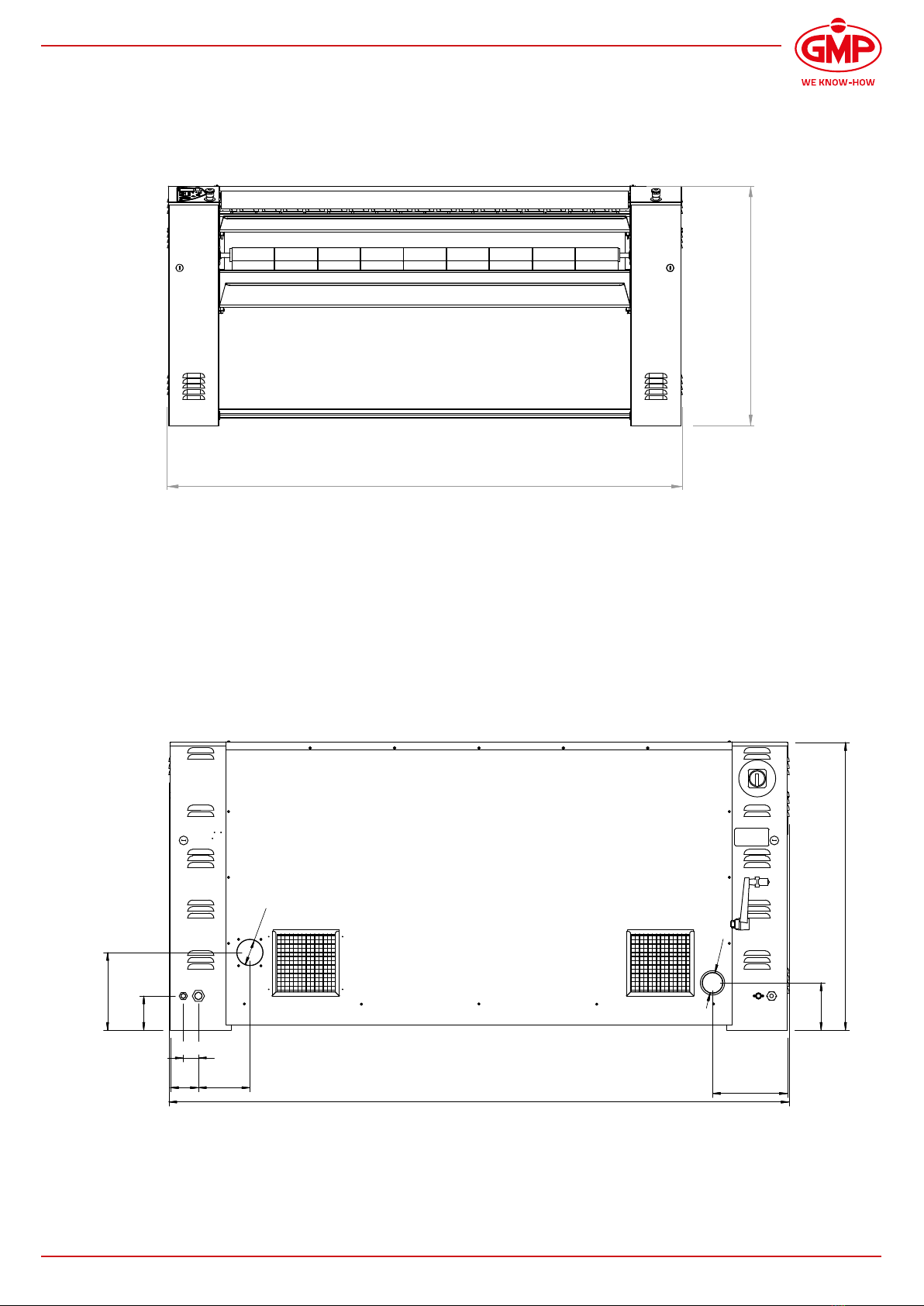

CONNECTIONS SCHEME
G15.35

845
1094
180 914
78
A
EI
H
17
GLine - INSTALLATION MANUAL
LEGEND
Letter Correspondence Notes
ASteam output Ø80 mm, 280 m³/h
BFumes output Gas heated models only Ø100 mm, 140 m³/h
EElectricity connection PG21
GGas connection Gas heated models only G 1/2” M
HSteam connection Steam heated models only 3/4” M
ICondensate exit Steam heated models only 3/8” M
Table 2B

2352
1094
2352
1094
130
106
57
195
295
100
284
180
80
B
HI
A
EG
18
GLine - INSTALLATION MANUAL

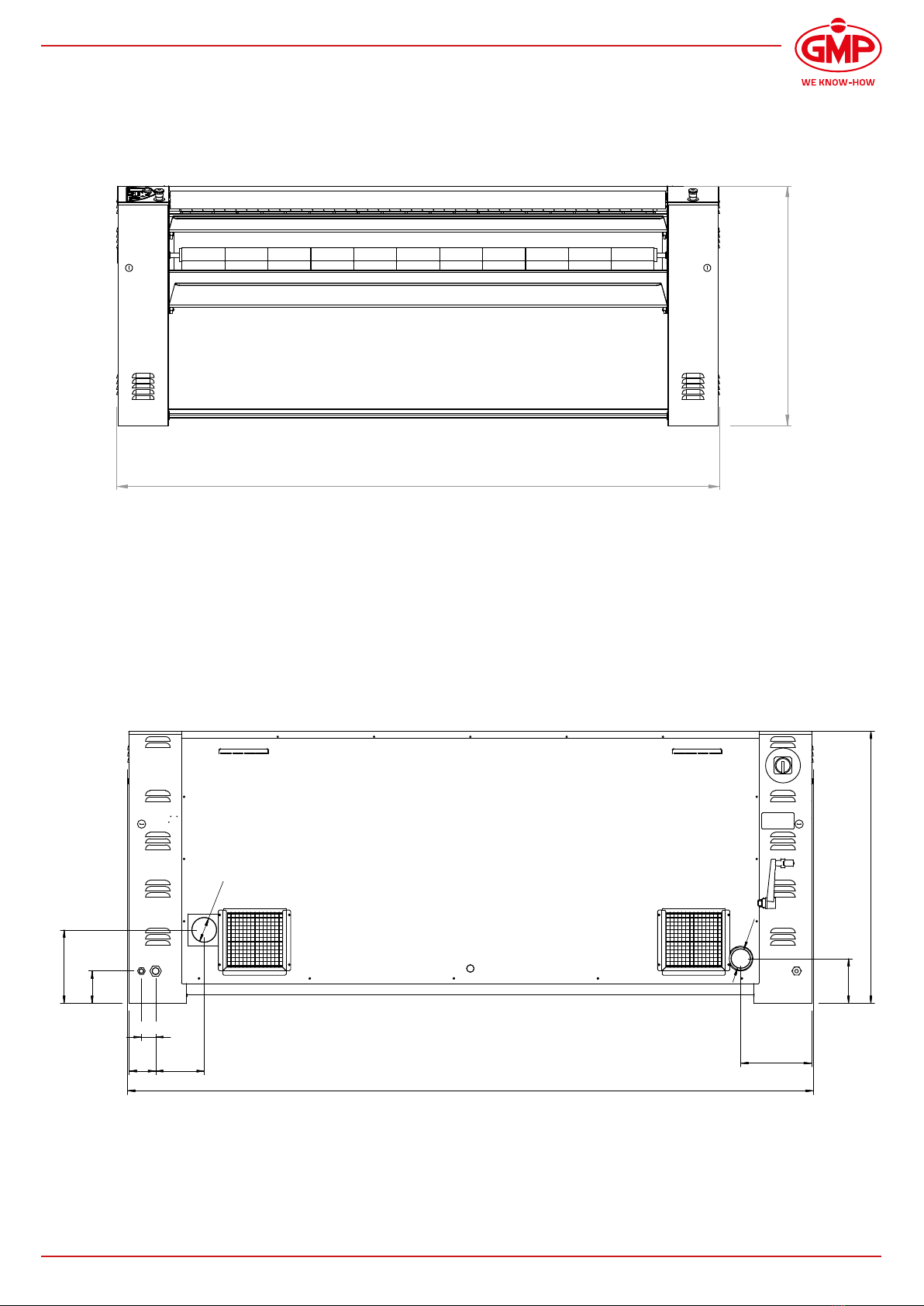

CONNECTIONS SCHEME
G18.35

845
1094
180 115 799
100
78
A
GI H
B
E
19
GLine - INSTALLATION MANUAL
LEGEND
Letter Correspondence Notes
ASteam output Ø80 mm, 280 m³/h
BFumes output Gas heated models only Ø100 mm, 140 m³/h
EElectricity connection PG21
GGas connection Gas heated models only G 1/2” M
HSteam connection Steam heated models only 3/4” M
ICondensate exit Steam heated models only 3/8” M
Table 2C

2752
1094
2752
1094

80
180
284
130
106
57
195
295

100
B
HI
A
E
G
20
GLine - INSTALLATION MANUAL
CONNECTIONS SCHEME
G21.35
