Gold's Gym G4510 User manual

Exclusively distributed by:
RFE UK Ltd
The Performance Centre
Maidstone Road
Kingston, Milton Keynes
MK10 0BD, UK
[phone]
sales@goldsgymtness.com
www.goldsgymtness.com
©2010. All rights reserved.
Manufactured under license
from Gold’s Gym inc.

UTILITY BENCH
USER MANUAL
BUILDING THE BEST BODIES SINCE 1965
G4510

Technical Support
0800 440 2459
[e-mail]
Welcome from Gold’s Gym
Thank you for choosing Gold’s Gym. Before you get started,
please read these instructions carefully. If you experience
any diculties, our support team will be happy to help or
check out our website at goldsgymtness.com
Important note:
Consult your doctor before starting any exercise programme. If you feel any sickness, chest pain, dizziness
or breathlessness during your training, stop exercising and consult your doctor immediately.
If you have any further queries please contact our Technical Support team on the details provided either
at the foot of this page or on the top of each page.

UTILITY BENCH
01
www.goldsgymtness.com
Parts .............................................................02
Preparation ......................................................04
Assembly ........................................................05
Precautions ......................................................09
Functions ........................................................11
Correct Use.......................................................12
Maintenance .....................................................13
Warm Up ........................................................14
Parts ID ..........................................................15
Limited Warranty .................................................17
Model name: Utility Bench GG0-G4510
Serial number: ......................................................
These details can be found on the underside of your product.
Contents

UTILITY BENCH
02
Technical Support 0800 440 2459
Checking The Parts
Before you begin, please check all parts are present and undamaged. If you are missing any
parts, please call our Technical Support team on the number above.
Parts
Rear Foot Tube x 1 Under-carriage x 1 Front Foot Tube x 1 Seat Tubes x 2
Leg Bar x 1 Dumbbell Bracket x 1 Seat x 1 Back Rest x 1
Foam Roller x 2
1
5
9
2
6
3
7
4
8

UTILITY BENCH
03
www.goldsgymtness.com

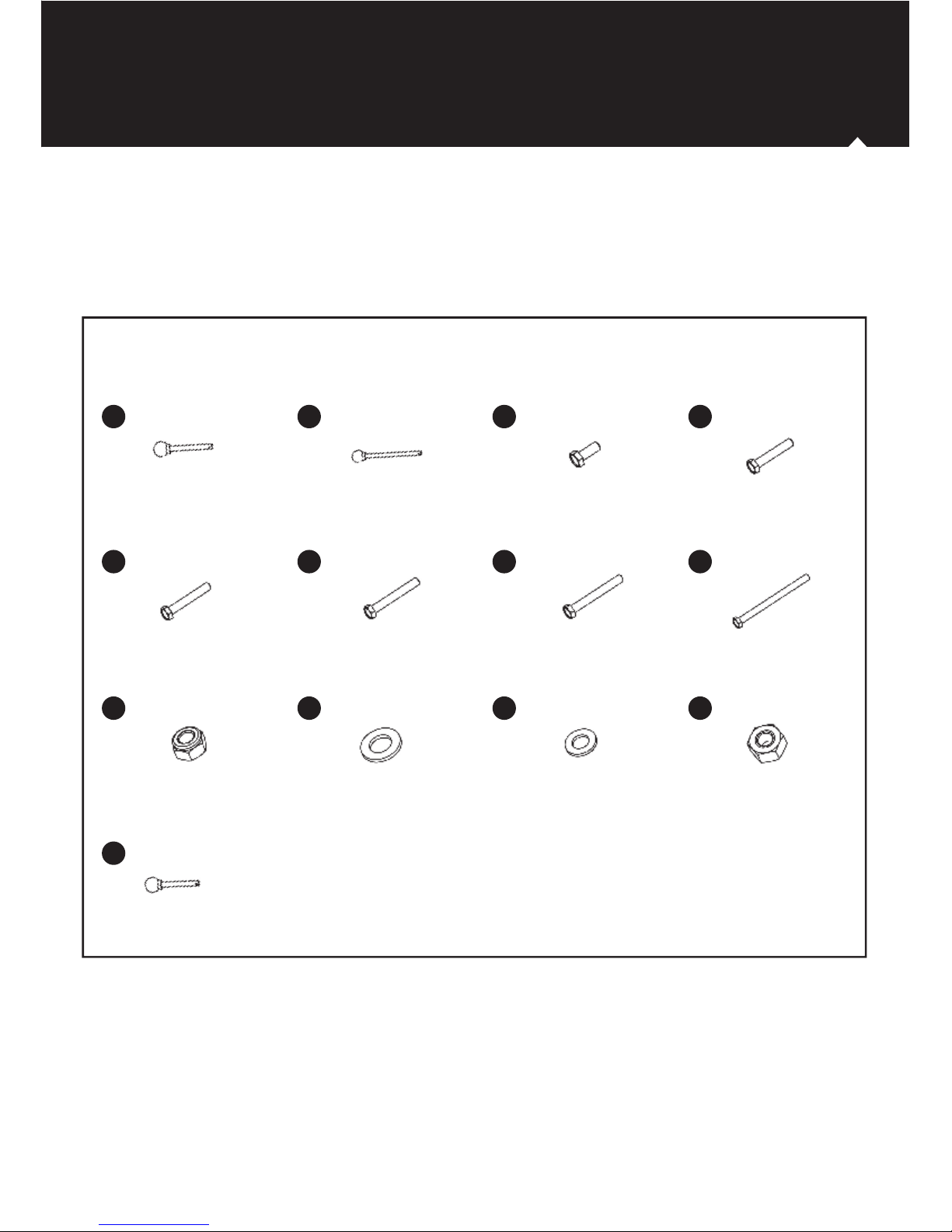

Blister Pack
Pull Pin x 2 Pin x 1 Bolt M6x16 x 4 Bolt M6x45 x 4
Bolt M10x65 x 2 Bolt M10x75 x 1 Bolt M10x85 x 2 Bolt M10x140 x 1
Lock Nut M10 x 4 Washer 10mm x 12 Washer 6mm x 8 Nut M10 x 2
Short Pull Pin x 1
14
19
23
28
15
20
24
17
21
25
18
22
26

UTILITY BENCH
04
Technical Support 0800 440 2459
Preparation
IMPORTANT SAFETY NOTICE
Note the following precautions before assembling the Utility Bench:
1. Keep children and pets away from the equipment at all times. DO NOT leave children
unattended in the room with the machine.
2. Only one person at a time should be using the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A DOCTOR IMMEDIATELY.
4. Place the machine on a clean, level surface. DO NOT use the equipment near water.
5. Always wear appropriate workout clothing when exercising. Running or aerobic shoes are
also required.
6. Usethemachineonlyforitsintendedpurpose.Donotuseattachmentsnotrecommendedby
the manufacturer.
7. Do not place any sharp objects near the equipment.
8. Handicappedordisabledpersonsshouldnotusetheequipmentwithouttheassistanceofa
qualied person or doctor.
9. Always stretch out before exercising.
10. Never operate the equipment if it is not functioning properly.

UTILITY BENCH
05
www.goldsgymtness.com
Assembly
Step 1
Attach the front foot tube (3) and rear foot tube (1) to the under-carriage (2) with bolt (21), washer
(24), lock nut (23) and pull pin (14).
You will require:
2
23
24
23
24
14
21
1
14 3
Pull Pin x 2Lock Nut M10 x 2
Bolt M10x85 x 2 Washer 10mm x 2
21 24 23 14

UTILITY BENCH
06
Technical Support 0800 440 2459
Assembly
Step 2
Attach the seat tubes (4) to the under-carriage (2) with bolt (22), washer (24),
lock nut (23) and pin (15).
You will require:
4
4
24 23
2
24
15
22
Lock Nut M10 x 1 Pin x 1
Washer 10mm x 2
Bolt M10x140 x 1
22 24 23 15

UTILITY BENCH
07
www.goldsgymtness.com
Step 3
Attach the dumbbell bracket (6) to the rear foot tube (1) with bolt (19), washer (24)
and nut (26).
Slide the leg bar (5) into the designated bracket on the front foot tube (3), secure with a
washer (24), bolt (20) and lock nut (23). Insert the short pull pin (28) into the hole in the
bracket
Notice: For your convenience the foam roller (9) has been preassembled.
You will require:
19
24
19
24
6
124
24
26
28
20
24
9
9
5
23
24
3
Bolt M10x65 x 2 Lock Nut M10 x 1
Short Pull Pin x 1
Bolt M10x75 x 1 Washer 10mm x 6 Nut M10 x 2
19
28
20 24 26 23

UTILITY BENCH
08
Technical Support 0800 440 2459
Step 4
Attach the seat (7) to the seat tubes (4) with bolt (18) and washer (25).
Attach the back rest (8) to the under-carriage (2) with bolt (17) and washer (25).
Your Utility Bench is now ready to use.
You will require:
8
25
17
2
25
17
18
25
4
7
Bolt M6x16 x 4 Washer 6mm x 8Bolt M6x45 x 4
18 17 25
Your nished Utility Bench.

UTILITY BENCH
09
www.goldsgymtness.com
IMPORTANT SAFETY NOTICE
Note the following precautions before operating the Utility Bench:
These instructions are intended to provide important information for use and
maintenance of the equipment as well as for your personal safety. Keep this user
manual in a safe place for future reference.
WARNING!
This product is made for home use only and tested up to a maximum body weight of
120kg.
RFE International Ltd. assumes no responsibility for personal injury or property damage
sustained by or through the use of this equipment. It is the responsibility of the owner
to ensure that all users of this equipment are adequately informed of all warnings and
precautions.
SCOPE
• Maximum user weight of 120kg.
• Thisproductisdesignedforphysicalexercisebyadults.Thisproductisnotsuitablefor
use by persons under 14 years of age.
• Never allow more than one person on the equipment at a time.
ENVIRONMENT
• Ensure that those present are aware of possible hazards e.g. moveable parts
during training.
• Ensure that sucient space is available to use the product.
• Please ensure that liquids or perspiration are wiped o the product.
• This product is designed to be used and stored indoors. Do not store the product
outside, or in damp/dusty environments.
• The product is made for home use only.Warranty and manufacturer’s liability do not
extend to any product or damage to the product caused by commercial use.
Precautions

UTILITY BENCH
10
Technical Support 0800 440 2459
USER HEALTH
• Consultyourdoctorbeforestartinganyexerciseprogrammetoreceiveadviceonthe
optimal training.
• Ensure the product is on a at, level surface with at least 1.0m of clear area
surrounding the product.
• Incorrect/excessive training can cause health injuries.
• Ifyoufeelsickness,chestpain,tsofdizzinessorbreathlessnessduringyourtraining,
immediately stop the training and consult your doctor.
PRODUCT PREPARATION
• Ensure that training only starts after correct assembly, adjustment and inspection
of the product.
• Follow the steps of the assembly instructions carefully.
• Only use suitable tools for assembly and ask for assistance if necessary.
• Only use original Gold’s Gym parts as delivered (see checklist).
SAFETY CHECKS (Before Every Use)
• Tighten all adjustable parts to prevent sudden movement while training.
• Tighten all nuts and bolts.
• Check that the tension knob is secure.
• Ensure the product is on a at, level surface.
• Do not use the product without shoes or with loose shoes.
• Beawareof non-xedor moving parts whilst mounting ordismountingtheproduct.
• Donotwearlooseorpoorlyttingclothingthatmaybecometrappedintheproduct.

UTILITY BENCH
11
www.goldsgymtness.com

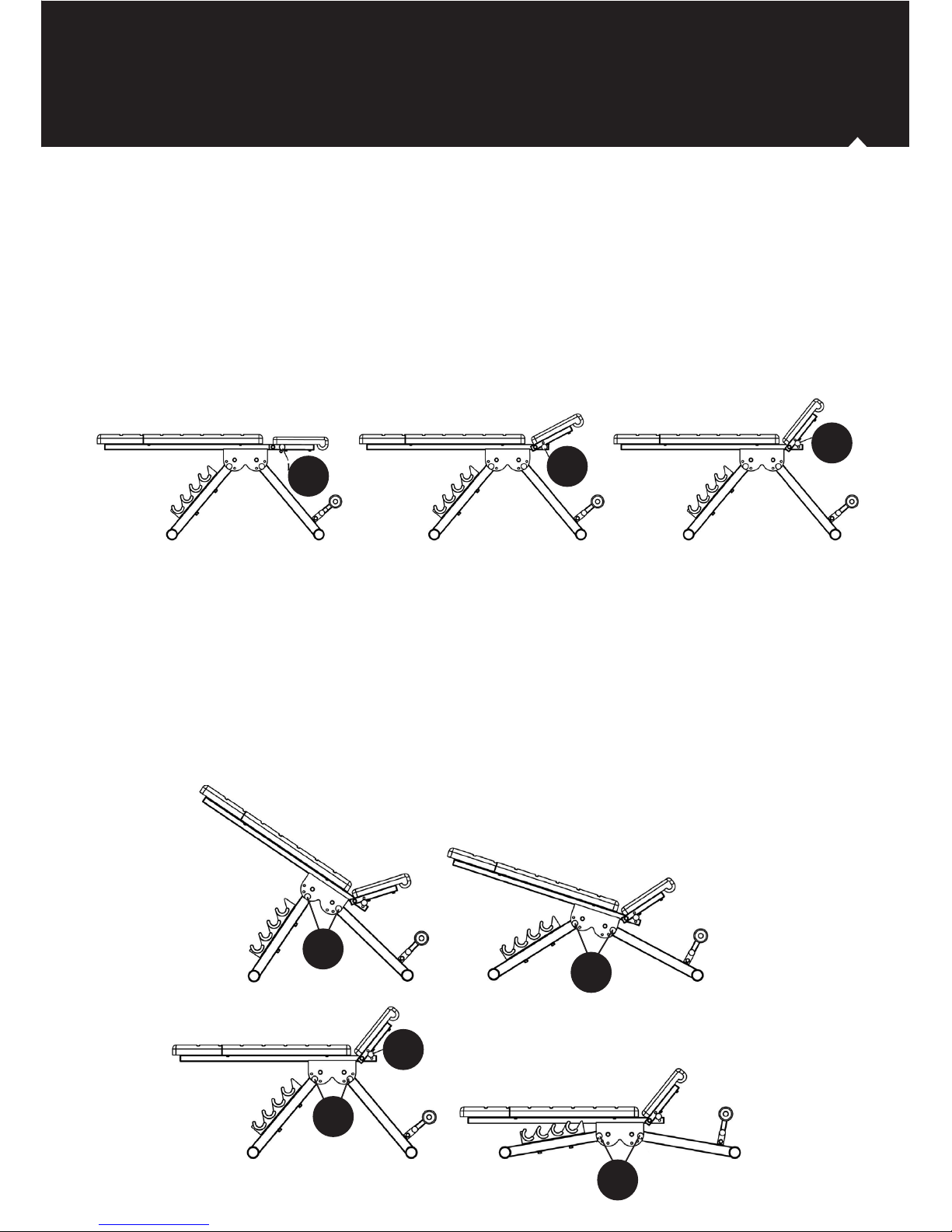

Adjusting the seat cushion
There are 3 incline settings for the seat.
1. Pull out the pin (15).
2. Lift up the seat cushion.
3. Insertthepin(15)intotheholeonunder-carriage(2)orseattubes(4)onceinthepositionyouwant.
Adjusting the foot tube
There are 4 incline settings for foot tube.
1. Pull out the pin (14).
2. Choose your preferred position for the front and rear foot tube.
3. Insert the pin (14) into the corresponding hole.
Functions
14
15
15 15
15
14
14
14

UTILITY BENCH
12
Technical Support 0800 440 2459
We recommend you use your Utility Bench in the following ways:
Correct Use

UTILITY BENCH
13
www.goldsgymtness.com
Proper maintenance is very important to ensure your equipment is always in top working
condition.Impropermaintenancecouldcausedamageorshortenthelifeofyourequipmentas
well as exceeding the warranty coverage.
1. Inspect and tighten all parts of the equipment regularly:
• Any worn parts must be replaced immediately.
• Pay particular attention to nuts, bolts, screws and washers.
2. Forcontinuedsmoothoperationensurethefrontandrearstabilisersarefullytightenedand
kept clean and free from any residue like perspiration or dust.
3. To ensureallcomponentsoftheequipment,including the frame,areinagoodcondition
pleaseensureanyperspirationordustiswipedcleanonaregularbasisusingasoft,damp
cloth.
4. Please don’t use abrasives or solvents as this may aect the colouring or operation of the
components.
5. Check the pedals / footplates are fully tightened before each use.
6. Keep the equipment out of direct sunlight at all times.
Maintenance

UTILITY BENCH
14
Technical Support 0800 440 2459
Warm Up
Warming Up
Itisimportanttowarmupbeforeexercisingtoprepareyourbodyfortheworkoutitisabouttodo.
The rst phase of a warm up is to increase your heart rate and get blood pumping around your
bodyfaster.Chooseanactivitywhichwillwarmupthesamemusclesyouaregoingtouseduring
your workout.
1. 5-10 minutes heart rate raising activity
2. Static stretching
3. Workout

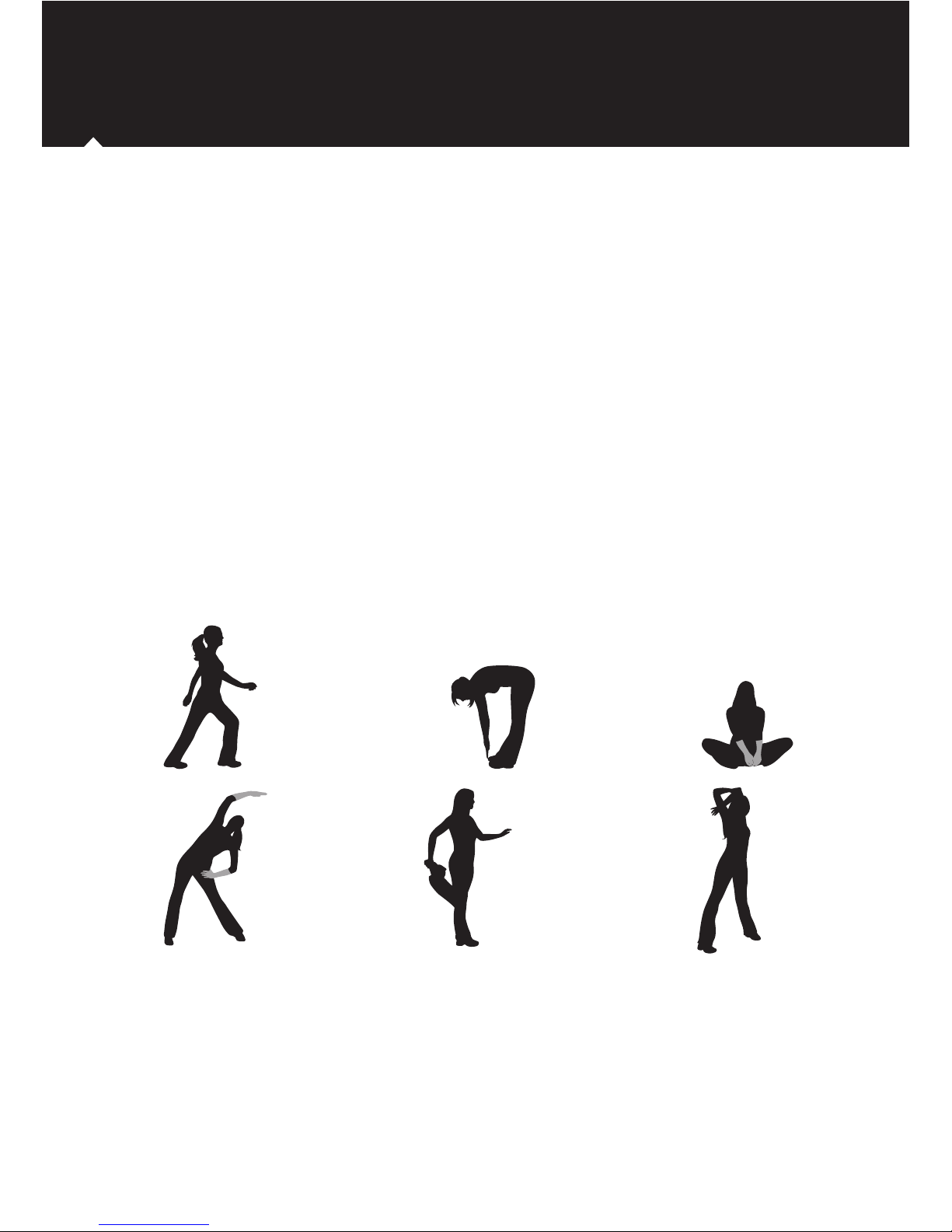

Stretches
Hold each stretch for about 30 seconds. Stretching should not hurt; only stretch your muscles
to as far as is comfortable. If you have a tight or previously injured muscle stretch the aected
musclegroupwithinthewarm up.Do not performanysudden movementswhile warming up.
Cool Down
Following your workout you should carry out a cool down.
Thisshouldgraduallybringyourheartratebacktoarestinglevel.To doacooldownperforman
activity of your choice at a low intensity e.g. a steady 5 minute jog. This should be followed by
static stretches, similar to those in the warm up. Again, hold each stretch for 30 seconds.
Side
Stretch
Arm
Stretch
Hamstring
Stretch Groin Stretch
CalfStretch
Quad
Stretch

UTILITY BENCH
15
www.goldsgymtness.com

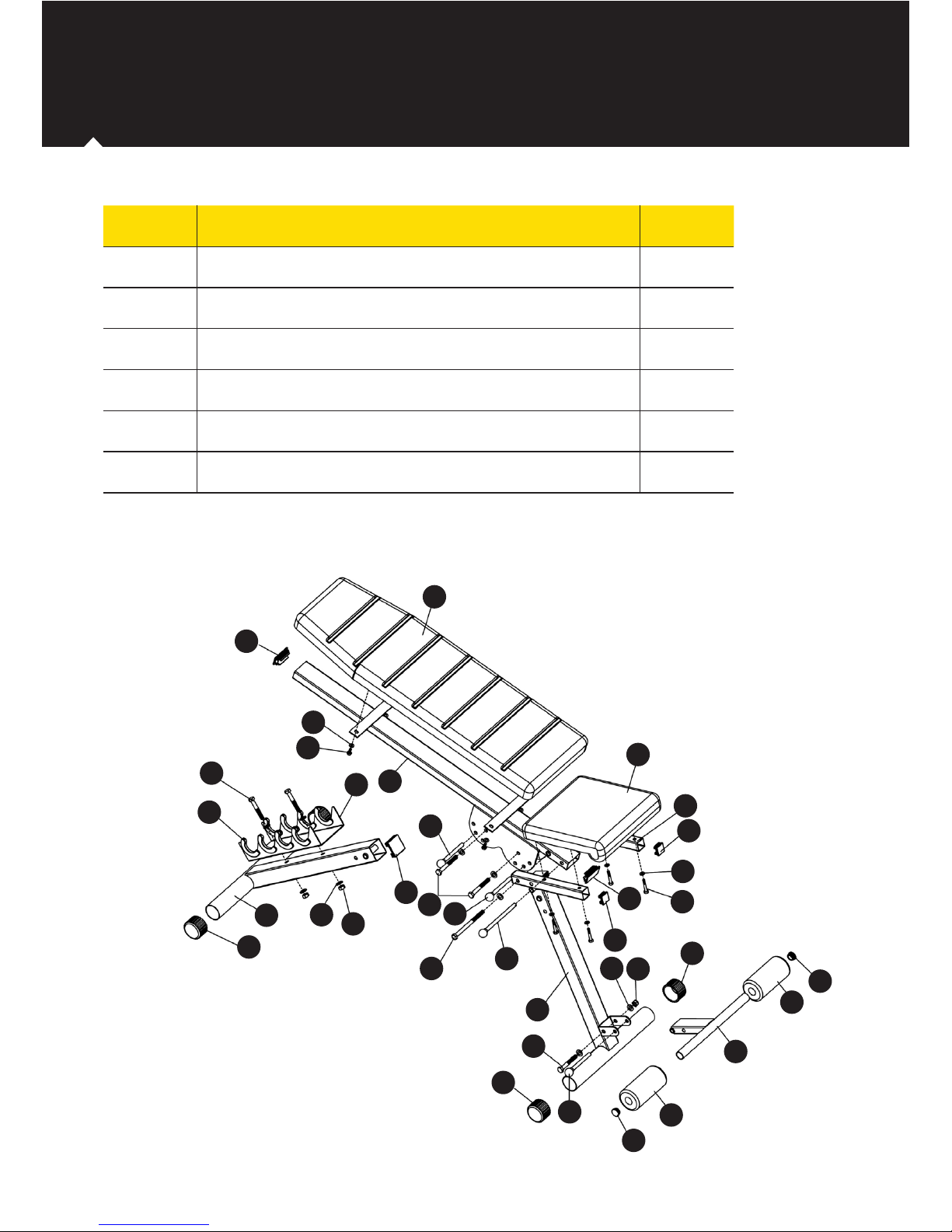

Parts ID
PART NO. DESCRIPTION QUANTITY
1REAR FOOT TUBE 1
2 UNDER-CARRIAGE 1
3FRONT FOOT TUBE 1
4SEAT TUBES 2
5 LEG BAR 1
6 DUMBBELL BRACKET 1
7 SEAT 1
8 BACK REST 1
9 FOAM ROLLER 2
10 TUBE CAP 30x60 2
11 TUBE CAP 30x30 4
12 ROUND CAP ø25mm 2
13 ROUND END CAP ø50mm 4
14 PULL PIN 2
15 PIN 1
16 PLASTIC UNDERLAY 8
17 BOLT M6x16 4
18 BOLT M6x45 4
19 BOLT M10x65 2
20 BOLT M10x75 1
21 BOLT M10x85 2
22 BOLT M10x140 1
23 LOCK NUT M10 4

UTILITY BENCH
16
Technical Support 0800 440 2459
PART NO. DESCRIPTION QUANTITY
24 WASHER 10mm 12
25 WASHER 6mm 8
2 NUT M10 2
27 TUBE CAP 50x50mm 2
27 TUBE CAP 50x50mm 2
28 SHORT PULL PIN 1
10
8
25
17
19 62
16
13
124 26
27
14
21 14
22 15
3
20
13
28
12
9
5
12
9
23
24
13
11
10 18
25
11
4
7

UTILITY BENCH
17
www.goldsgymtness.com
Limited Warranty
Gold’sGymproductsarerecyclable.Attheendofitsuseful lifepleasedisposeofthisGold’sGym
product correctly and safely at a local refuse site.
RFEInternationalLtdwarrantsproductstobefreefromdefectiveworkmanshipandmaterials,
under normal use and service conditions, for the period of 2 years from the date of purchase.
Details of these service conditions can be found within the product’s user manual.
Inordertovalidatewarrantydates,aproofofpurchaseisrequired.Thiswarrantyonlyextends
totheoriginalpurchaserandwillonlybecoveredinthecountrythemachinewaspurchased.
RFE’sobligationunderthiswarrantyislimitedtoreplacingorrepairing,atRFE’sdiscretion,the
productthroughoneofitsauthorisedservicecentres.Allrepairsforwhichwarrantyclaimsare
made must be pre-authorised by RFE.
Thiswarrantydoesnotextendtoanydefectcausedbyabuse,misuse,additions,modications
or repairs not provided by an RFE authorised service centre.
Products usedforcommercialorrentalpurposesand/orusedasstoredisplaymodels arenot
covered by this warranty. This product is designed for home use.
No other warranty beyond that specically set forth above is authorised by RFE.
RFE is not responsible or liable for indirect, special or consequential damages arising out of
or in connection with the use or performance of the product or damages with respect to any
economic loss, loss of property, loss of revenues or prots, loss of enjoyment or use, costs of
removal, installation or other consequential damages of whatsoever nature.
We advise that your product is kept in a room with a constant environment; preventing your
productfrombeingexposedtoextremesintemperature,heat,humidityandmoisture.Guidance
on the correct storage of equipment is contained within the product’s user manual.
PLEASE RETAIN YOUR RECEIPT AS PROOF OF PURCHASE.
Your statutory rights remain unaected.
