USER’S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal (under seat)
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.jumpking.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.reebokhomefitness.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Visit our website at
www.freemotionfitness.com
V
Visit our website at
www.weiderplatinum.com
Visit our website at
www.weiderplatinum.com
Visit our website at
www.goldsgympowerflex.com

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS

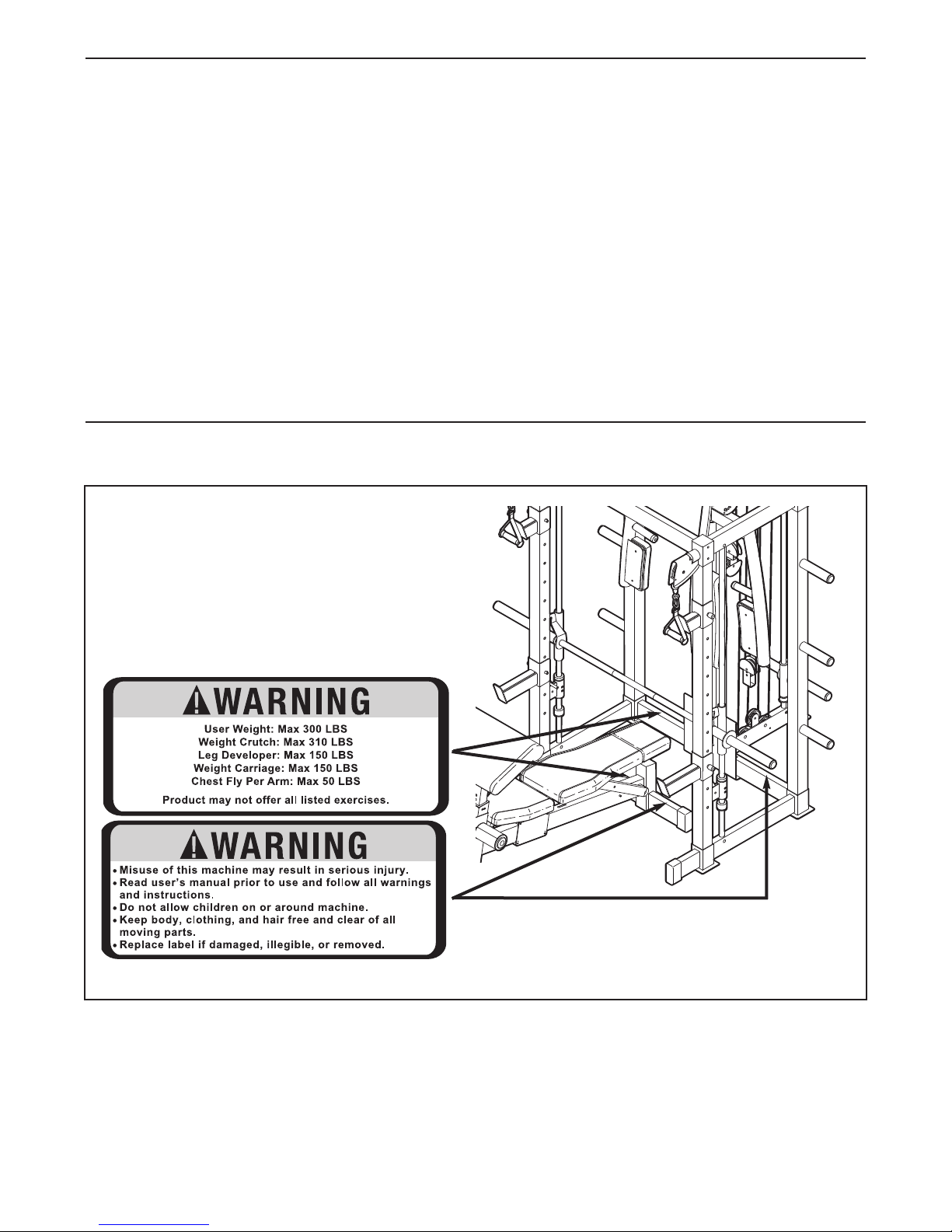

The decals shown here have been applied to
the weight bench. If a decal is missing or
illegible, call the telephone number on the
front cover of this manual and request a free
replacement decal. Apply the decal in the
location shown. Note: The decals may not be
shown at actual size.
GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and
distributed under license from Gold's Gym International, Inc.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on the weight bench before using the weight bench.
ICON assumes no responsibility for personal injury or property damage sustained by or through
the use of the weight bench.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or per-
sons with pre-existing health problems.
2. Use the weight bench only as described in
this manual.
3. It is the responsibility of the owner to
ensure that all users of the weight bench
are adequately informed of all precautions.
4. The weight bench is intended for home use
only. Do not use the weight bench in a
commercial, rental, or institutional setting.
5.
Keep the weight bench indoors, away from
moisture and dust. Place the weight bench
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
bench to mount, dismount, and use it.
6. Keep children under age 12 and pets away
from the weight bench at all times.
7. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
8. Make sure that the pins and knobs are fully
engaged before the weight bench is used.
9. Wear appropriate clothes while exercising.
Always wear athletic shoes for foot protec-
tion while exercising.
10.
The weight bench is designed to support a
maximum user weight of 300 lbs. (136 kg)
and a maximum total weight of 610 lbs. (277
kg). Do not place more than 310 lbs. (141 kg),
including a barbell, on the weight rests. Do
not place more than 150 lbs. (68 kg) on the
leg lever. Do not place more than 150 lbs.
(68kg) on the weight carriage. Note: The
weight bench does not include weights.
11. Make sure that the cables remain on the pul-
leys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
12. Always set all the weight rests and safety
spotters at the same height.
13. Always place an equal amount of weight on
each side of the weight carriage or barbell.
14.
Always exercise with a partner. Your part-
ner should be ready to catch the barbell if
you cannot complete a repetition.
15. Always disconnect the lat bar when perform-
ing an exercise that does not require the lat
bar.
16.
If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.

4
Right Side
Curl Bar
BEFORE YOU BEGIN
Thank you for selecting the versatile GOLD’S GYM®
PRO SERIES weight bench. The weight bench offers
an impressive selection of exercise stations designed
to develop every major muscle group of the body.
Whether your goal is to tone your body, build dramatic
muscle size and strength, or improve your cardiovas-
cular system, the weight bench will help you to
achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

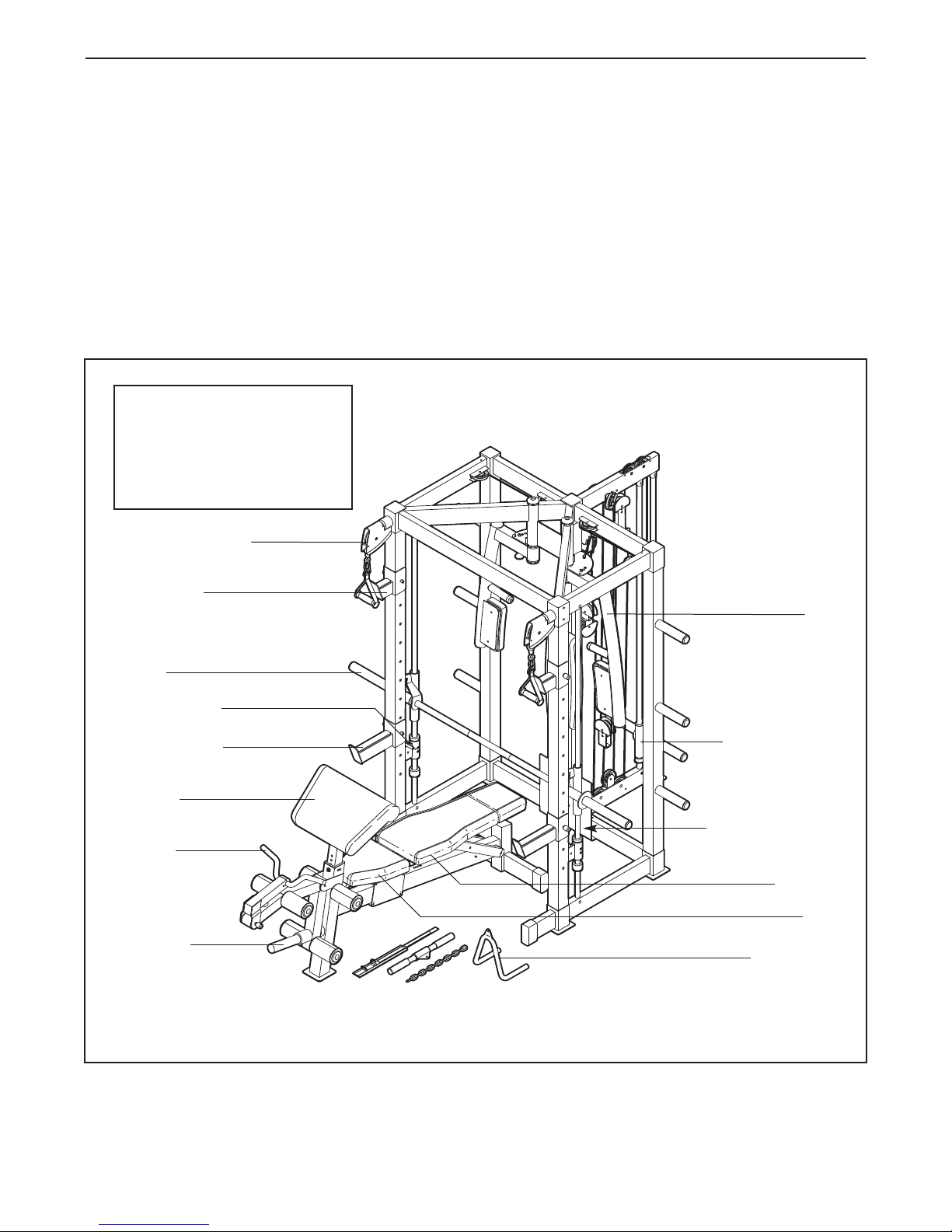

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Left Side
High Pulley Station
Weight Carriage
ASSEMBLED DIMENSIONS:
Height: 83 in. (210 cm)
Width: 81 in. (207 cm)
Depth: 110 in. (279 cm)
Weight: 463 lbs. (210 kg)
Weight Spotter
Barbell
Barbell Spotter
Weight Rest
Curl Pad
Backrest
Leg Lever
Seat
Accessories
Arm
Low Pulley Station
Note: The terms “right side” and “left side” are determined relative to a person sitting with his
back to the backrest; they do not correspond to right and left on the drawings in the manual.

5
M10 x 155mm Screw (131)
M8 Nylon
Locknut (170)
M6 Nylon
Locknut (156) M8 Jamnut
(177)
Bracket Retainer (73)
M10 x 100mm Screw (117)
M10 x 110mm Screw (130)
M10 x 30mm Screw (134) M10 x 60mm Bolt (133)
M10 x 25mm Bolt (166)
M10 x 93mm Bolt (129)
M10 x 55mm Bolt (127)
M10 x 65mm Bolt (137)
M10 x 45mm Bolt (140)
M10 x 90mm Bolt (124)
M10 x 83mm Bolt Set (118)
M10 x 165mm Bolt (123)
M10 x 25mm Screw (128)
M10 x 48mm Bolt (125)
M10 Nylon
Locknut (153)

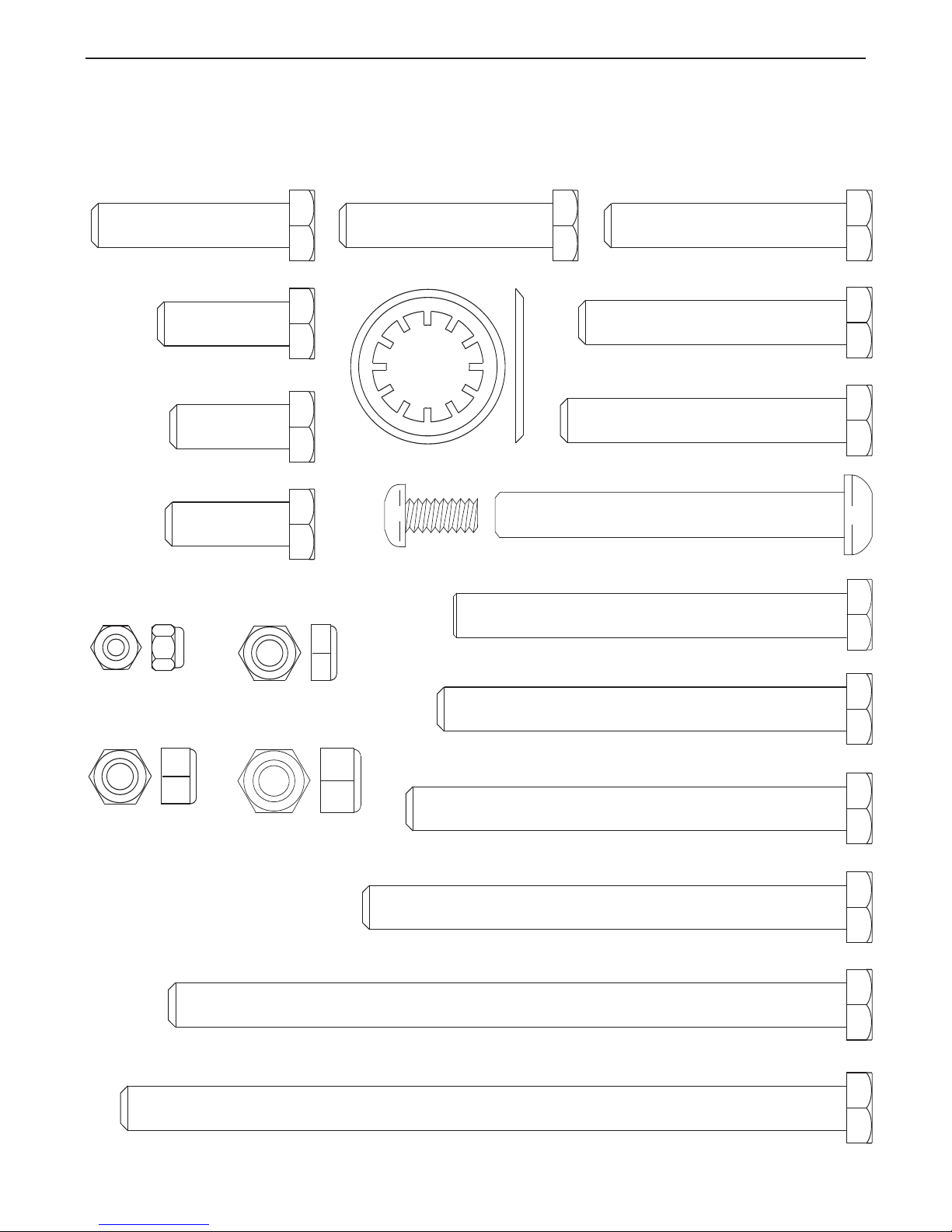

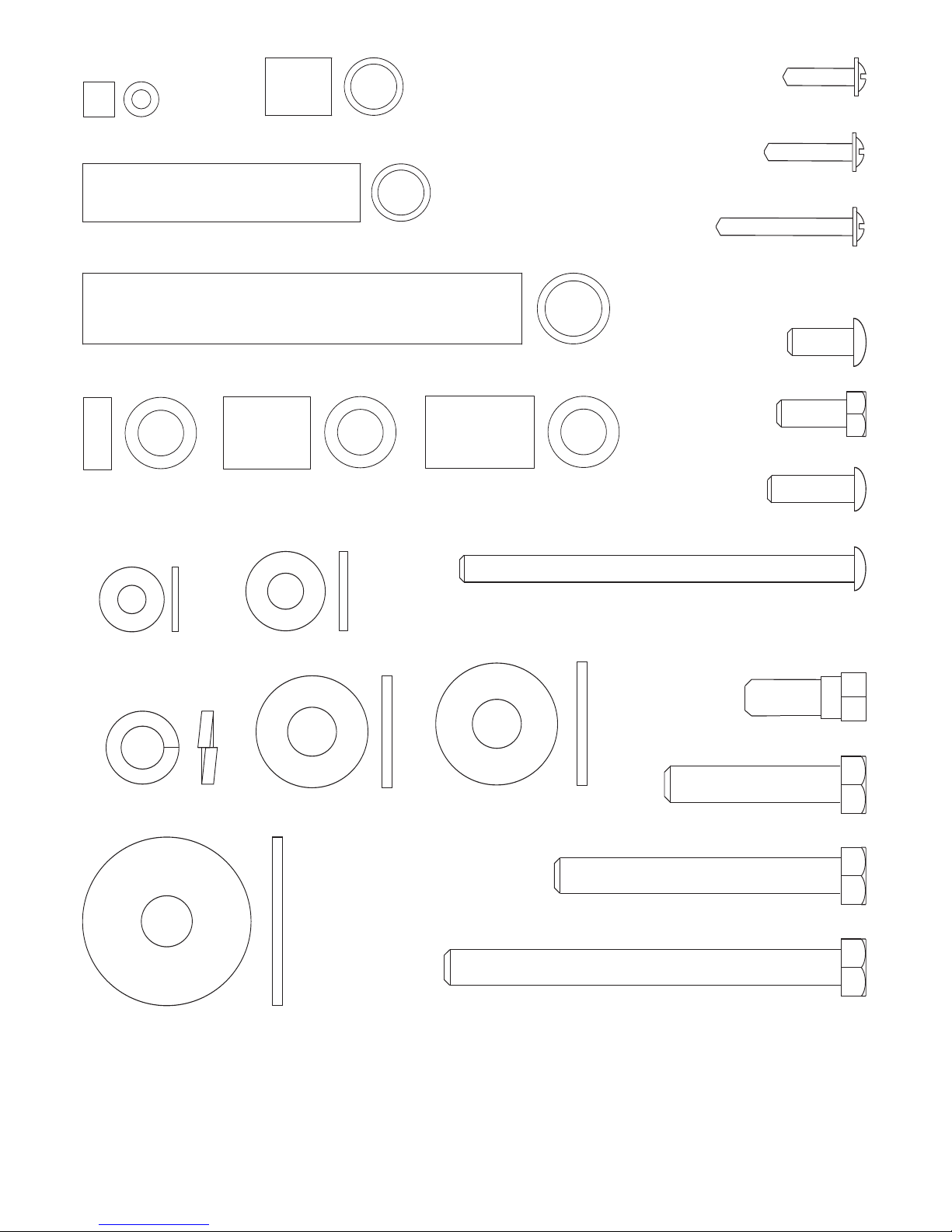

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may
have been preattached. If a part is not in the parts bag, check to see if it has been preattached.
PART IDENTIFICATION CHART

6
M6 Washer (149)
M8 x 40mm Bolt (136)
M8 x 65mm Bolt (146)
M8 x 90mm Bolt (172)
Large Washer (135)
M8 Washer (164)
M8 x 22mm Shoulder Bolt (143)
M10 Lock Washer (86) M10 Washer (148)
M6 x 16mm Screw (141)
M4 x 16mm Self-tapping Screw (147)
M10 Large Washer (171)
M6 x 20mm Screw (122)
M4 x 20mm Self-tapping Screw (120)
M4 x 30mm Self-tapping Screw (79)
M6 x 15mm Bolt (144)
M6 x 90mm Screw (126)
13mm x 63mm Spacer (54)
13mm x 15mm Spacer (154)
Backrest Support Spacer (51)
M10 x 25mm
Spacer (169)
M10 x 20mm
Spacer (150)
M10 x 6.5mm
Spacer (151)
Curl Bar Spacer (178)

7
Before beginning assembly, carefully read the fol-
lowing information and instructions:
• Assembly requires two persons. Some steps may
require three persons.
• Because of its size, the weight bench should be
assembled in the location where it will be used.
Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• In addition to the included tools, assembly
requires the following tools (not included):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Some assembly steps also require a socket set
with an extension.
ASSEMBLY
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.
1.
Orient the Rear Leg (2) so that the Transport
Wheel (46) is on the side shown. Attach the Rear
Leg to the Bench Frame (1) with two M10 x
100mm Screws (117) and two M10 Washers
(148). Do not tighten the Screws yet.
1
2
Before beginning assembly, read the impor-
tant information in the box above. See the
PART IDENTIFICATION CHART on page 5
for help identifying small parts.
2. Orient the Seat Carriage (6) as shown, and slide it
onto the Bench Frame (1).
Tighten the Seat Knob (56) into the Seat Carriage
(6). Next, pull the Seat Knob, slide the Seat
Carriage to the desired position, and engage the
Seat Knob into one of the holes in the Bench
Frame (1).
1
6
56
2
148 117
46
1

8
3. Attach the Front Leg (3) to the Bench Frame (1)
with two M10 x 100mm Screws (117) and two
M10 Washers (148). Tighten the Screws used in
steps 1 and 3.
4. Attach the Backrest (32) and the Headrest (99) to
the Backrest Frame (8) with six M6 x 20mm
Screws (122).
3
1
3
148
117
4
122
99
122 122
8
32
5. Attach the Backrest Support Spacer (51) between
the two Backrest Supports (7) with an M10 x
165mm Bolt (123), two M10 Washers (148), and
an M10 Nylon Locknut (153). Do not tighten the
Nylon Locknut yet.
Orient the Backrest Supports (7) so that the
Backrest Support Spacer (51) is closer to the
upper ends.
Apply some of the included grease to an M10 x
165mm Bolt (123). Attach the Backrest Frame (8)
and two Backrest Bushings (48) between the
Backrest Supports with the Bolt, two M10
Washers (148), and an M10 Nylon Locknut (153).
Do not overtighten the Nylon Locknut; the
Backrest Supports must pivot easily.
5
148
148
148
153
153
148
123
123
Upper
Ends
48
51
48
7
7
8
Grease
Opening
Opening

9
6. Grease an M10 x 165mm Bolt (123). Attach the
Backrest Supports (7) and two Backrest Bushings
(48) to the Bench Frame (1) with the Bolt, two
M10 Washers (148), and an M10 Nylon Locknut
(153). Do not overtighten the Nylon Locknut;
the Backrest Supports must pivot easily.
Insert a 13mm x 63mm Spacer (54) into the
Backrest Frame (8). Grease an M10 x 90mm Bolt
(124). Attach the Backrest Frame (8) to the Seat
Carriage (6) with the Bolt, two 19mm x 6mm
Spacers (155), and an M10 Nylon Locknut (153).
Do not overtighten the Nylon Locknut; the
Backrest Frame must pivot easily.
See step 5. Tighten the two M10 Nylon
Locknuts (153).
123
48
48
148
148
153
153
155
155
124
Grease
Grease
Opening
1
8
54
6
7
6
7
7. Attach the Seat (33) to the Seat Frame (9) with
two M6 x 20mm Screws (122).
8. Insert a 13mm x 63mm Spacer (54) into the Seat
Frame (9). Grease an M10 x 90mm Bolt (124).
Attach the Seat Frame (9) to the Seat Carriage
(6) with the Bolt, two 19mm x 6mm Spacers
(155), and an M10 Nylon Locknut (153). Do not
tighten the Nylon Locknut yet.
See the inset drawing. Grease an M8 x 90mm
Bolt (172). Attach the Bolt, two 13mm x 15mm
Spacers (154), and an M8 Nylon Locknut (170) to
the Seat Carriage (6) and the Seat Frame (9).
Tighten both Nylon Locknuts used in this
step. Do not overtighten the Nylon Locknuts;
the Seat Frame must pivot easily.
8
33
9
9
6
6
9
122
124
54
Grease
172
Grease
155
155
154
154
170
153

10
10. Slide two Foam Pads (35) onto the Front Leg (3).
Then, press two Pad Caps (37) into the Foam
Pads.
Insert the two Pad Tubes (159) into the Leg Lever
(4). Slide two Foam Pads (35) onto each Pad
Tube. Then, press a Pad Cap (37) into each
Foam Pad.
10
9. Slide the Weight Spacer (160) onto the Leg Lever
(4).
Grease the outside of the barrel of an M10 x
83mm Bolt Set (118). Attach the Leg Lever (4) to
the Front Leg (3) with the Bolt Set. Make sure
that the barrel of the Bolt Set is inserted
through both sides of the bracket on the Leg
Lever.
Attach the Curl Bar Pin/Tether (36) to the Leg
Lever (4) with an M4 x 16mm Self-tapping Screw
(147).
9
11. Insert the Curl Bar (40) into the 50mm x 1.5mm
Connecting Cap (42) as shown. Next, tighten an
M4 x 30mm Self-tapping Screw (79) with a Curl
Bar Spacer (178) into the slot in the Connecting
Cap and into the hole in the Curl Bar.
Attach the 50mm x 1.5mm Connecting Cap (42)
to the Curl Bar Frame (5) with an M8 x 65mm
Bolt (146), two M8 Washers (164), and an M8
Nylon Locknut (170).
11
4
118
3
118
35
35
35
35
35
35
37
37
37
37
37
3
4
159
40
36
42
79
5
170
164
164 146
178
147
160
Grease

11

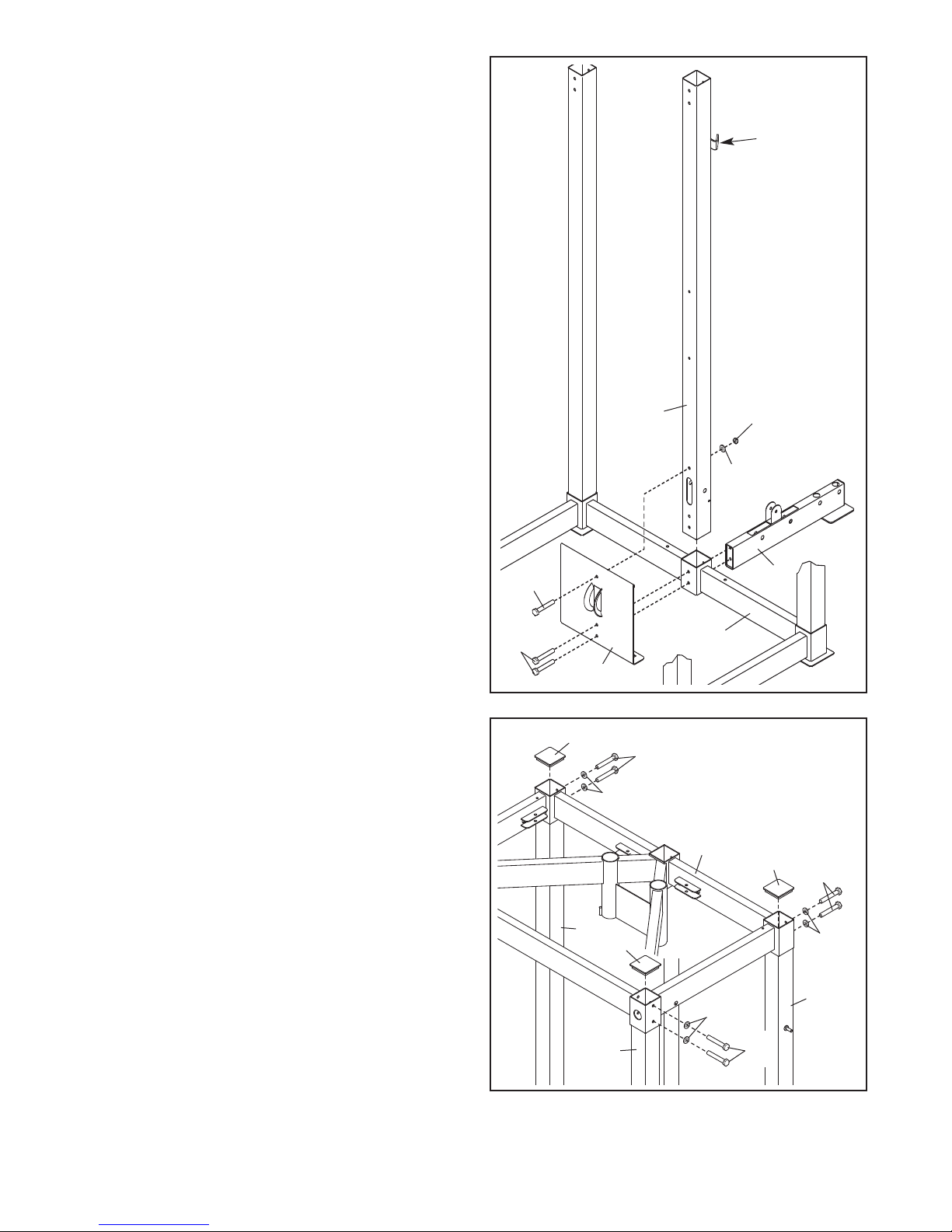

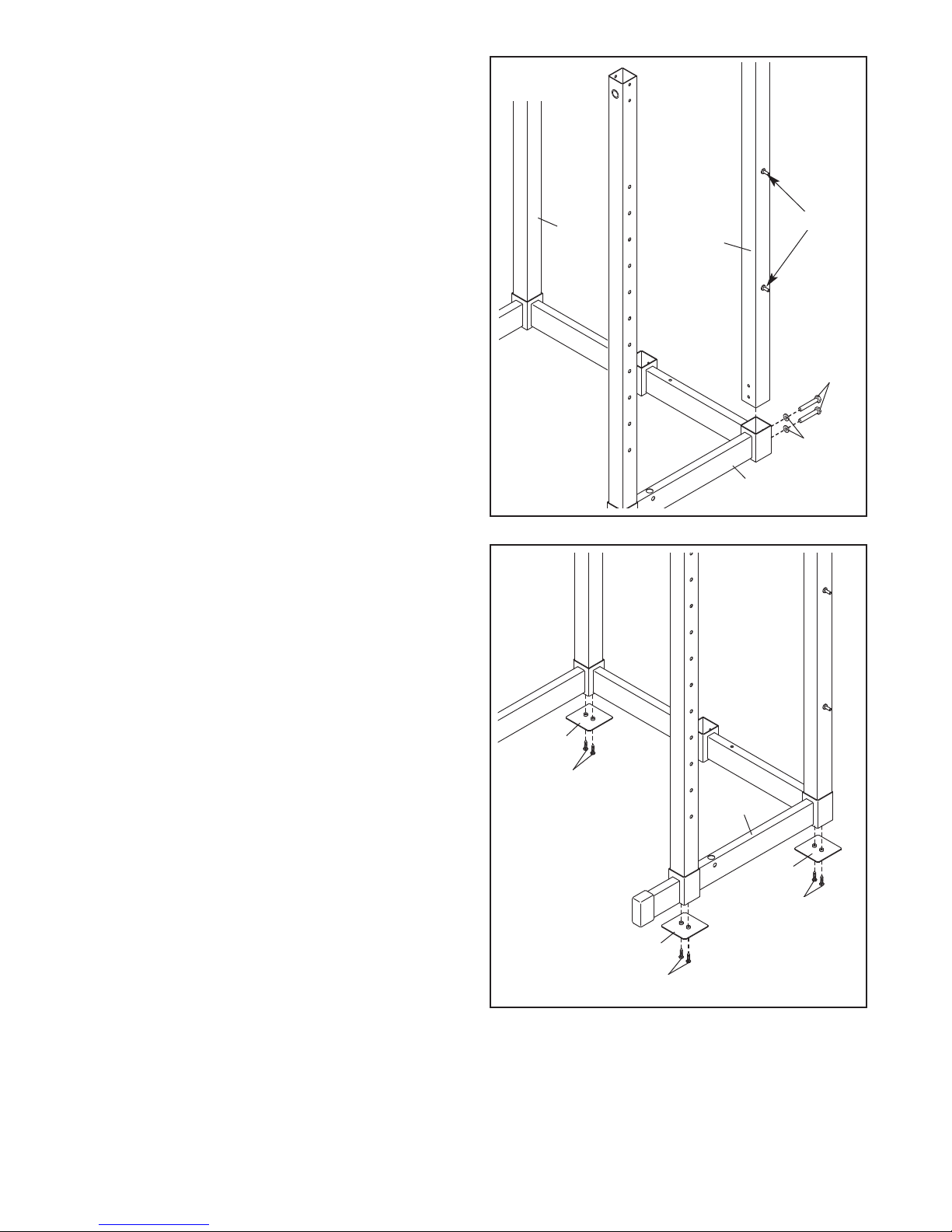

13. Orient one of the Front Uprights (11) and one of
the Base Feet (16) as shown. Attach the Front
Upright and the Base Foot to the Base (14) with
two M10 x 155mm Screws (131). Then, orient a
38mm x 100mm Large Outer Cap (180) so that
the thick end is at the bottom (see the inset
drawing), and press it onto the Base Foot.
Attach the other Front Upright (11), Base Foot
(16), and 38mm x 100mm Large Outer Cap
(180) in the same way.
13
11 11
14
16
16
180
180
180
Thick
End
131 Hole
Holes
Large Hole
12. Attach the Curl Pad (34) to the Curl Post (10) with
two M6 x 20mm Screws (122). 12
34
10
122

12
15. Attach a Floor Guard (78) to the the Base (14)
with two M4 x 20mm Self-tapping Screws (120).
Attach the remaining three Floor Guards (78)
to the Base (14) in the same way.
15
78
78
78
14
120
120
120
14. Orient a Rear Upright (12) as shown. Attach the
Rear Upright to the Base (14) with two M10 x
110mm Screws (130) and two M10 Washers
(148). Do not tighten the Screws yet.
Attach the other Rear Upright (12) to the Base
(14) in the same way.
12
12
14
148
130
Posts
14

13
16. Orient the Center Upright (13) as shown and
insert it into the Base (14). Hold the Foot Plate
(15) and the Weight Carriage Base (20) against
the Base. Attach the Foot Plate, Center Upright,
and Weight Carriage Base to the Base with two
M10 x 110mm Screws (130). Do not tighten the
Screws yet.
Attach the Foot Plate (15) to the Center Upright
(13) with an M10 x 93mm Bolt (129), an M10
Washer (148), and an M10 Nylon Locknut (153).
16
20
15
14
13
130
129
153
Bracket
148

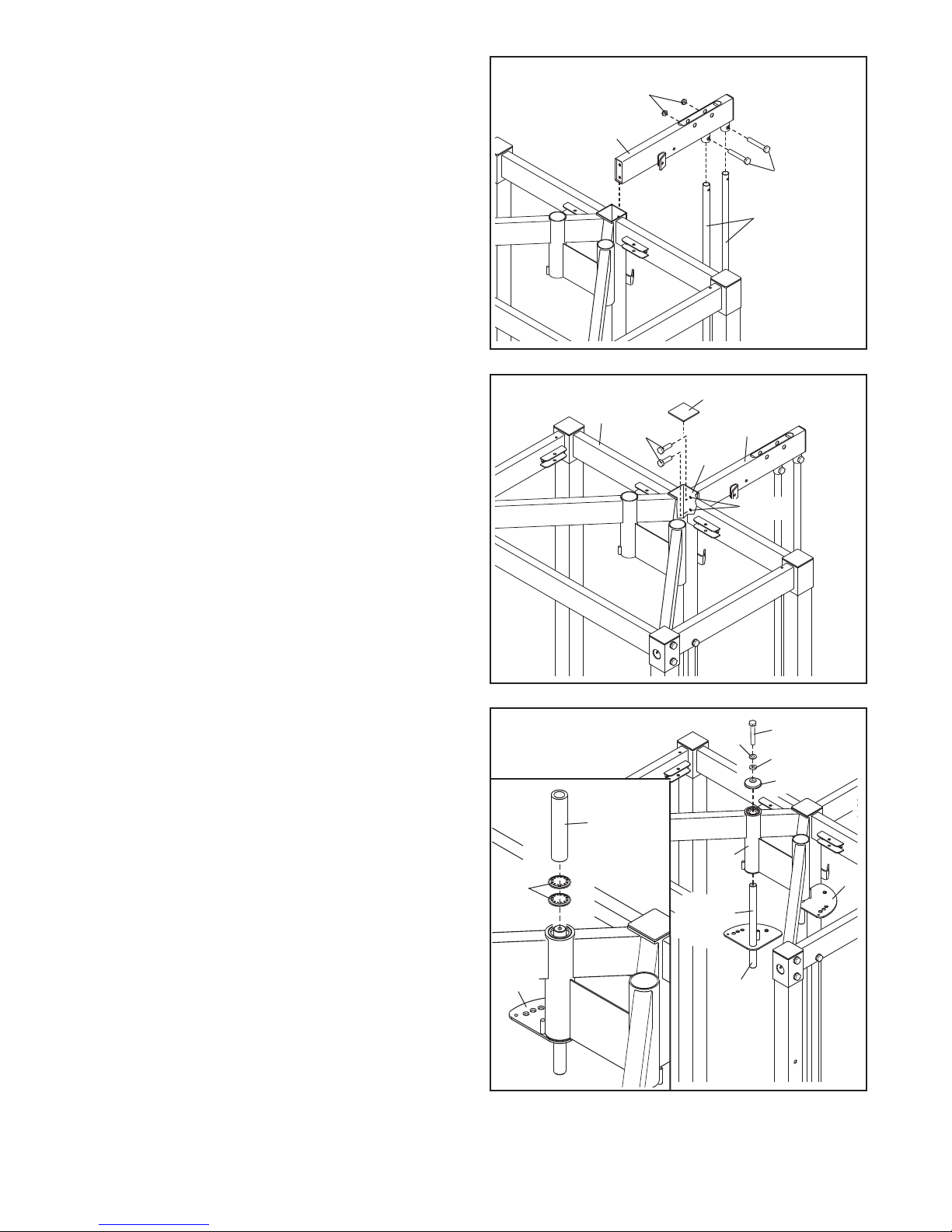

17. Attach the Top Frame (17) to the Rear Uprights
(12) with four M10 x 110mm Screws (130) and
four M10 Washers (148). Do not tighten the
Screws yet.
Attach the Top Frame (17) to the Front
Uprights (11) in the same way.
Press four 75mm Square Inner Caps (95) into the
corners of the Top Frame (17).
17
130
148
148
148
95
17
12
12
11
95
95
130
130

14
18
19. Insert the Barbell Guide (112) into the indicated
hole in the Base (14). Next, lift the Barbell Guide
up into the hole in the Top Frame (not shown).
Attach the Barbell Guide to the Base with an M10
x55mm Bolt (127), two M10 Washers (148), two
M10 x 6.5mm Spacers (151), and an M10 Nylon
Locknut (153).
Engage the Left Spotter Hook (115) into an
adjustment slot near the bottom of the Front
Upright (11).
Repeat steps 18 and 19 with the other Barbell
Guide (not shown). Always position both
Barbell Spotters (109) at the same height.
19
14
11
153
148
148
127
151 151
Hole
115
115
166
153
109
111
107
104
112
Long End
18. Attach the Left Spotter Hook (115) to a Barbell
Spotter (109) with an M10 x 25mm Bolt (166) and
an M10 Nylon Locknut (153). Do not overtighten
the Nylon Locknut; the Left Spotter Hook
must pivot easily.

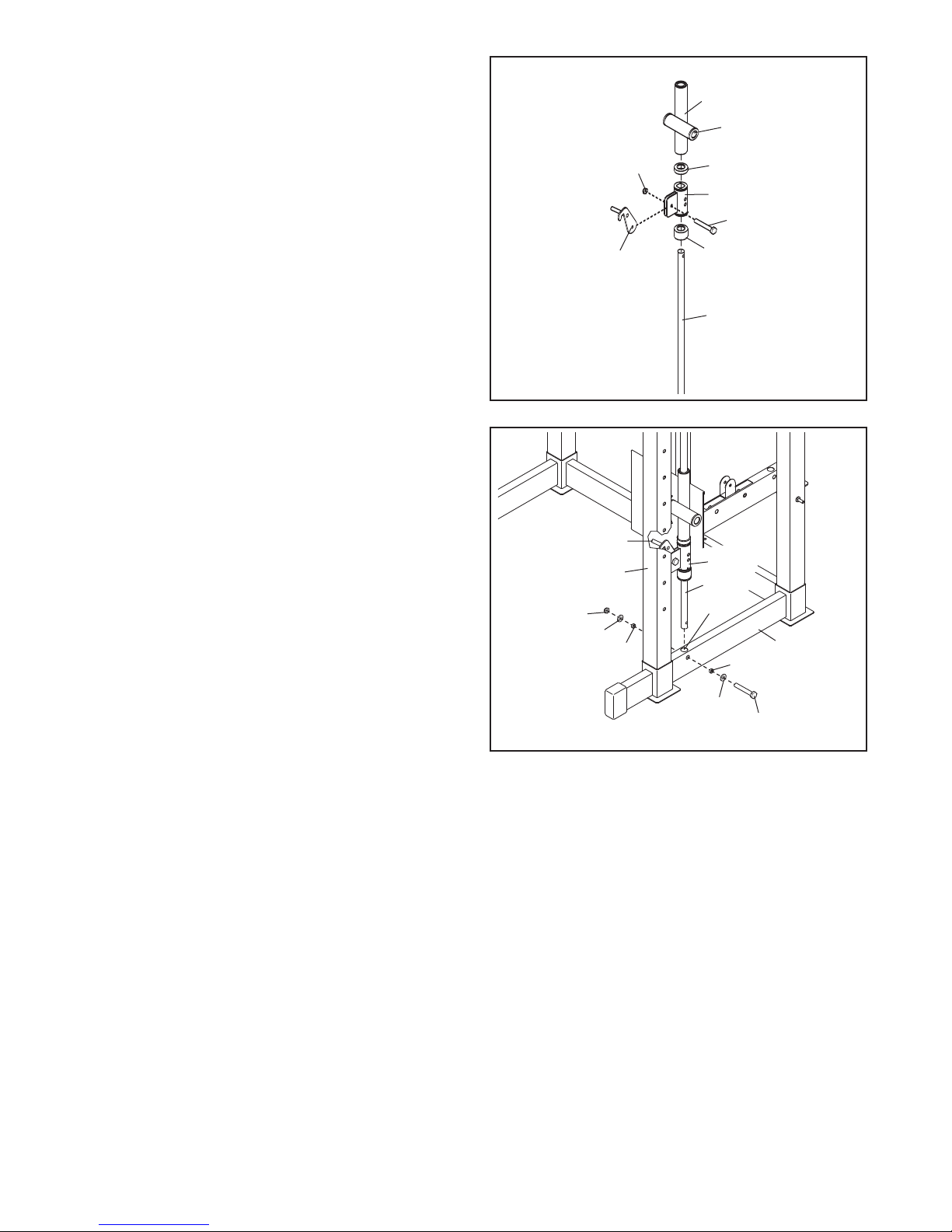

Identify a Barbell Guide (112), which is slightly
shorter than a Weight Carriage Guide (not
shown). Slide a Barbell Spotter Bumper (111) and
the Barbell Spotter (109) onto the Barbell Guide.
Orient a Barbell Carriage (104) as shown. Slide a
Barbell Bumper (107) and the Barbell Carriage
onto the Barbell Guide (112).
109
112

15
20. Attach a Barbell Guide (112) to the Top Frame
(17) with an M10 x 55mm Bolt (127), two M10
Washers (148), two M10 x 6.5mm Spacers (151),
and an M10 Nylon Locknut (153).
Attach the other Barbell Guide (not shown) to
the Top Frame (17) in the same way.
See steps 14, 16, and 17. Tighten the M10 x
110mm Screws (130).
21. Attach a Weight Carriage Guide (21) to the
Weight Carriage Base (20) with an M10 x 55mm
Bolt (127), two M10 Washers (148), two M10 x
6.5mm Spacers (151), and an M10 Nylon Locknut
(153). Do not tighten the Nylon Locknut yet.
Attach the other Weight Carriage Guide (21) to
the Weight Carriage Base (20) in the same
way.
22. Slide the two Weight Carriage Bumpers (138)
onto the Weight Carriage Guides (21).
Orient the Weight Carriage (19) as shown, and
slide it onto the Weight Carriage Guides (21).
Tighten the two Weight Carriage Tubes (96) onto
the Weight Carriage. Next, slide the Weight
Bumpers (97) onto the Weight Carriage Tubes.
127
148
112
127
148
153 151
148
17
21
21
20
151
153
96
97
96
97
Hole
19
138
21
20
151
148
22
21
151

16
23. Attach the Weight Carriage Frame (18) to the
Weight Carriage Guides (21) with two M8 x 40mm
Bolts (136) and two M8 Nylon Locknuts (170). Do
not tighten the Nylon Locknuts yet.
23
24. Locate the indicated holes inside the Center
Upright (13). Insert an M10 x 25mm Screw (128)
into the lower hole, and tighten the Screw into
the Weight Carriage Frame (18). Next, tighten an
M10 x 25mm Screw (128) into the upper hole.
Press a 75mm Square Inner Cap (95) into the
Top Frame (17).
See step 21. Tighten the M10 Nylon Locknut
(153). See step 23. Tighten the M8 Nylon
Locknuts (170).
24
18
18
13
95
128
17
136
170
21

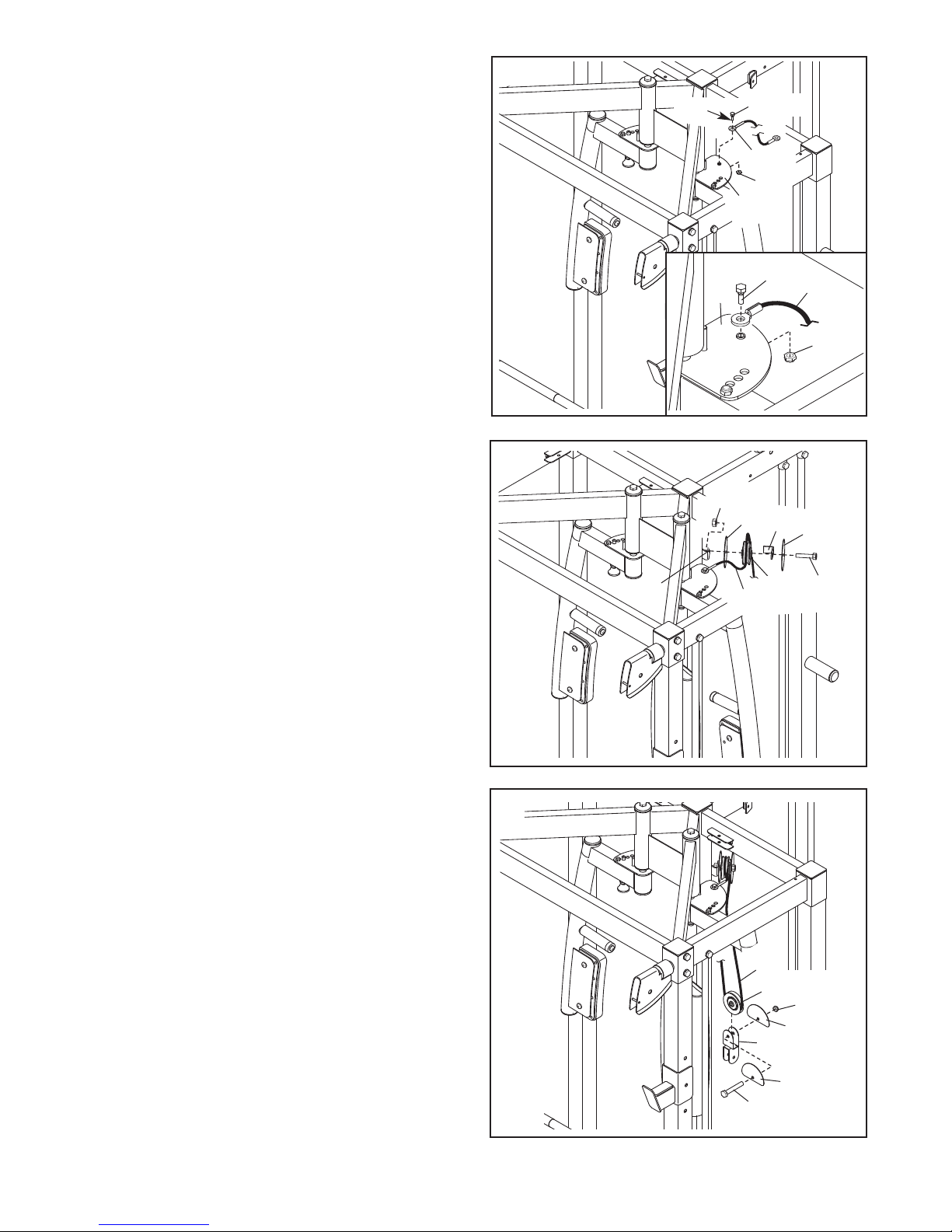

25. Grease the top of the Right Adjustment Bracket
(24), and insert it into the Top Frame (17). See
the inset drawing. Orient two Bracket Retainers
(73) so that the teeth bend upward. Using the
included retainer tool, tap the Bracket Retainers
onto the Right Adjustment Bracket.
Attach the Right Adjustment Bracket (24) to the
Top Frame (17) with an M10 x 30mm Screw
(134), an M10 Lock Washer (86), an M10 Large
Washer (171), and a Bushing Cap (88). Do not
overtighten the Screw; the Right Adjustment
Bracket must pivot easily.
Attach the Left Adjustment Bracket (25) in the
same way.
25 134
171
86
24
25
Grease
17
24
88
73
Retainer
Tool
Holes

17

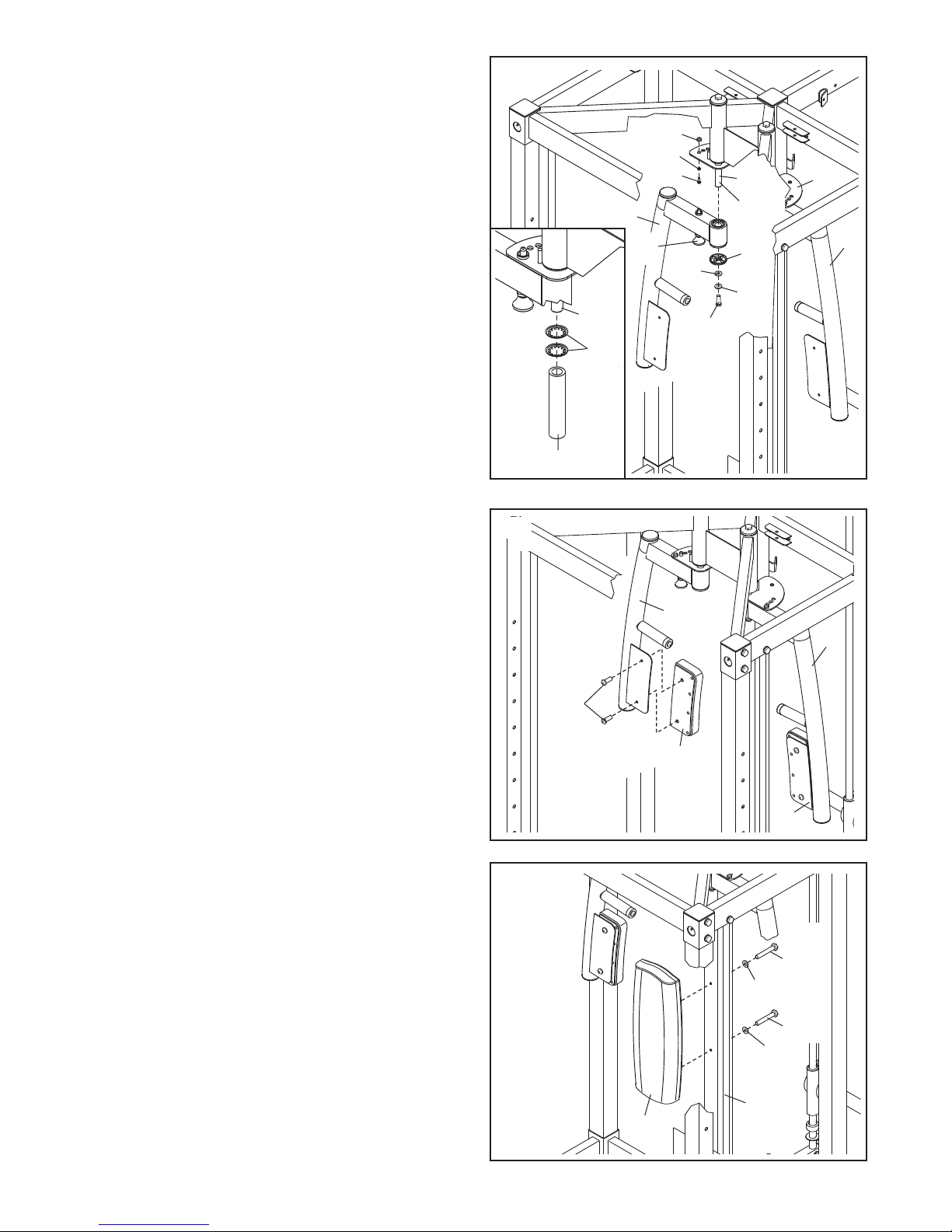

26. Grease the bottom of the Right Adjustment
Bracket (24), and slide the Right Arm (23) onto
the Right Adjustment Bracket. See the inset
drawing. Orient two Bracket Retainers (73) so
that the teeth bend downward. Tap the Bracket
Retainers onto the Right Adjustment Bracket.
Attach the Right Arm (23) to Right Adjustment
Bracket (24) with an M10 x 30mm Screw (134),
an M10 Lock Washer (86), an M10 Large Washer
(171), and a Bushing Cap (88). Do not overtight-
en the Screw; the Right Arm must pivot easily.
Pull the Arm Knob (85), and engage it into a hole
in the Right Adjustment Bracket (24). Then, attach
an M6 x 15mm Bolt (144) to the Right Adjustment
Bracket with an Adjustment Bracket Bushing
(157) and an M6 Nylon Locknut (156).
Attach the Left Arm (22) to the Left
Adjustment Bracket (25) in the same way.
24
22
25
27. Identify the Right Arm Pad (89), which is labeled
with an “R.” Attach the Right Arm Pad to the Right
Arm (23) with two M6 x 16mm Screws (141).
Attach the Left Arm Pad (90) to the Left Arm
(22) in the same way.
141
89
90
22
23
28. Attach the Butterfly Backrest (69) to the Center
Upright (13) with two M6 x 90mm Screws (126)
and two M6 Washers (149).
28
126
126
149
149
13
69
26
134
86
88
171
85
156
157
144
Grease
27
23
73
24
Retainer Tool

18

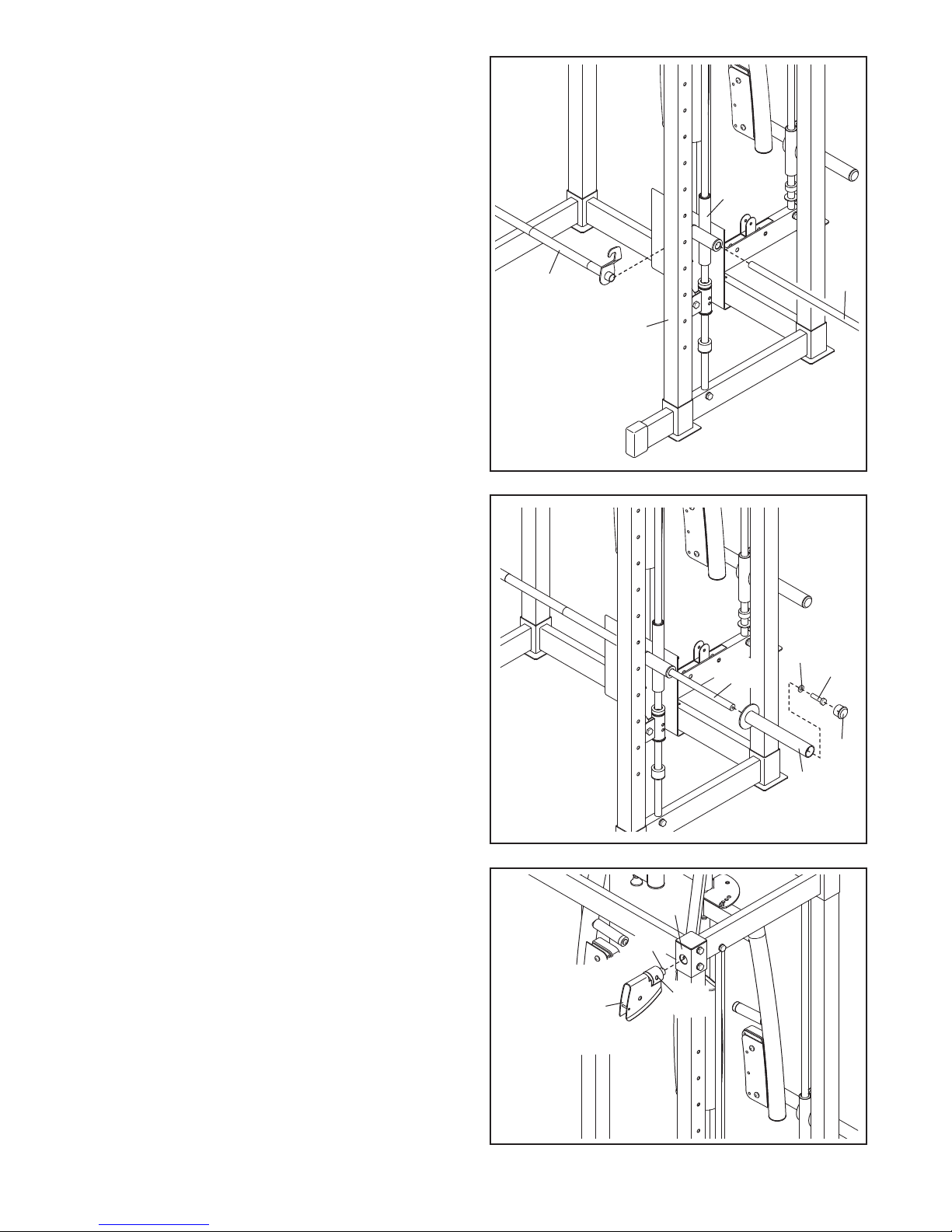

30. Attach a Barbell Adapter (102) to the Barbell
(113) with an M10 x 25mm Screw (128) and a
Large Washer (135). Then, press a 48mm x 3mm
Round Inner Cap (103) into the Barbell Adapter.
Attach the other Barbell Adapter (not shown)
in the same way.
30
102
135 128
103
29. Orient the Locking Bar (114) as shown. Hold the
Locking Bar between the left Barbell Carriage
(104) and the right Barbell Carriage (not shown).
Insert the Barbell (113) into the left Barbell
Carriage, the Locking Bar, and the right Barbell
Carriage. Center the Barbell in the Barbell
Carriages. Then, engage the Locking Bar into
slots in the Front Uprights (11).
29
114 113
104
11
31. Insert a Phillips screwdriver into the indicated
hole in a Swivel Bracket (31). Use the Phillips
screwdriver to tighten the Trunnion (70) and the
Swivel Bracket into the Top Frame (17).
Attach the other Swivel Bracket (not shown)
in the same way.
31
17
31
113
Hole
70

19
32. Tighten three Weight Storage Tubes (67) onto a
Rear Upright (12).
Attach the remaining three Weight Storage
Tubes (not shown) onto the other Rear
Upright (12) in the same way.
12
12
67
67
67
33. Attach an Upright Pin/Tether (28) to a Weight
Rest (26) with an M4 x 16mm Self-tapping Screw
(147). Hold the Weight Rest against one of the
Front Uprights (11), and fully insert the Upright
Pin into the Weight Rest and into one of the holes
in the Front Upright. Do not overtighten the
Screw; the Tether must rotate easily.
Attach an Upright Pin/Tether (28) to a Weight
Spotter (29) with an M4 x 16mm Self-tapping
Screw (147). Hold the Weight Spotter against the
Front Upright (11), and fully insert the Upright Pin
into the Weight Spotter and into one of the holes
in the Front Upright.
Attach the other Weight Rest (not shown) and
the other Weight Spotter (not shown) to the
other Front Upright (not shown) in the same
way.
33
29
26
11
28
28
147
32
147

20
34. See the CABLE DIAGRAM on page 34 to iden-
tify the cables as you assemble them.
Identify the Arm Cable (145). Grease an M8 x
22mm Shoulder Bolt (143). Attach the Cable to
the Left Adjustment Bracket (25) with the
Shoulder Bolt and an M8 Nylon Locknut (170).
Make sure that the flat edge of the cable is
against the Adjustment Bracket. Do not over-
tighten the Shoulder Bolt; the Cable must
pivot easily.
36. Wrap the Arm Cable (145) under a Small Pulley
(74). Attach the Small Pulley and two Half Pulley
Guards (91) to the Double “U”-bracket (98) with
an M10 x 45mm Bolt (140) and an M10 Nylon
Locknut (153). Make sure that the Half Pulley
Guards are oriented as shown.
35. Identify the two “V”-pulleys (75), which are
wider than the other pulleys. Wrap the Arm
Cable (145) over a “V”-pulley. Attach the “V”-pul-
ley, a Large Cable Trap (77), and two Full Pulley
Guards (76) to the indicated bracket on the
Center Upright (13) with an M10 x 60mm Bolt
(133) and an M10 Nylon Locknut (153). Make
sure that the Cable Trap is oriented to hold
the Cable in the groove of the “V”-pulley.
36
25
75
76
133
77
153
76
13
91
91
98
153
140
145
74
145
Grease
34
25
145
170
145
143
170
143
35
