Goldair GTRL Series User manual

Operating Instructions
GTRM & GTRL Series Towel Warmers
For Models: GTRMC, GTRMW, GTRLC, GTRLW
GTRM* GTRL*
* Available in either stainless steel or white

Safety Information
YOUR SAFETY IS IMPORTANT TO US.
PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
When using any electrical appliance, basic safety precautions should always be observed.
PLEASE READ THESE INSTRUCTIONS CAREFULLY
▪This appliance is intended to warm and dry towels and therefore is hot to the touch. When
used by or near young children or infirm persons, close supervision is necessary.
▪Young children should be supervised to ensure that they do not play with the appliance.
▪Any rise in ambient temperature is directly reflected in the appliance, and as a result of
this, the appliance will feel hotter to the touch during warmer periods. Also the insulation
effect of towels will cause the operating temperature to increase slightly.
▪The towel rail is to be installed so that switches and other controls cannot be touched by a
person in the bath or shower.
▪To avoid a hazard this heated towel rail MUST NOT be used to carry towels or any other
articles that have been in contact with oil, petroleum based products or dry cleaning fluids.
▪Use this appliance only with the voltage specified on the rating label, or elsewhere in these
instructions.
▪Regulations require that electrical work be carried out only by authorised persons. For your
own safety and that of others ensure this is done.
▪DO NOT immerse in any liquid.
▪For service contact your nearest Authorised Service Agent.
▪WARNING:In order to avoid a hazard for young children, this appliance must be installed so
that the bottom rail is at least 600mm above the floor.
▪DO NOT use this appliance for any purpose other than its intended use.

DIMENSIONS
Model: GTRM* GTRL*
Height: 630mm 605mm
Width: 560mm 730mm
Depth: 85mm 85mm
ELECTRICAL
GTRMW 50W 220-240VAC 50Hz
GTRMC 40W 220-240VAC 50Hz
GTRLC 60W 230-240VAC 50Hz
GTRLW 60W 230-240VAC 50Hz
International Protection Rating: IP55
Specifications

Dimensions
GTRMC
GTRLC

Installation
WARNING: Installation must be completed by a registered electrician.
Always choose a safe location for the Towel Rail, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use.

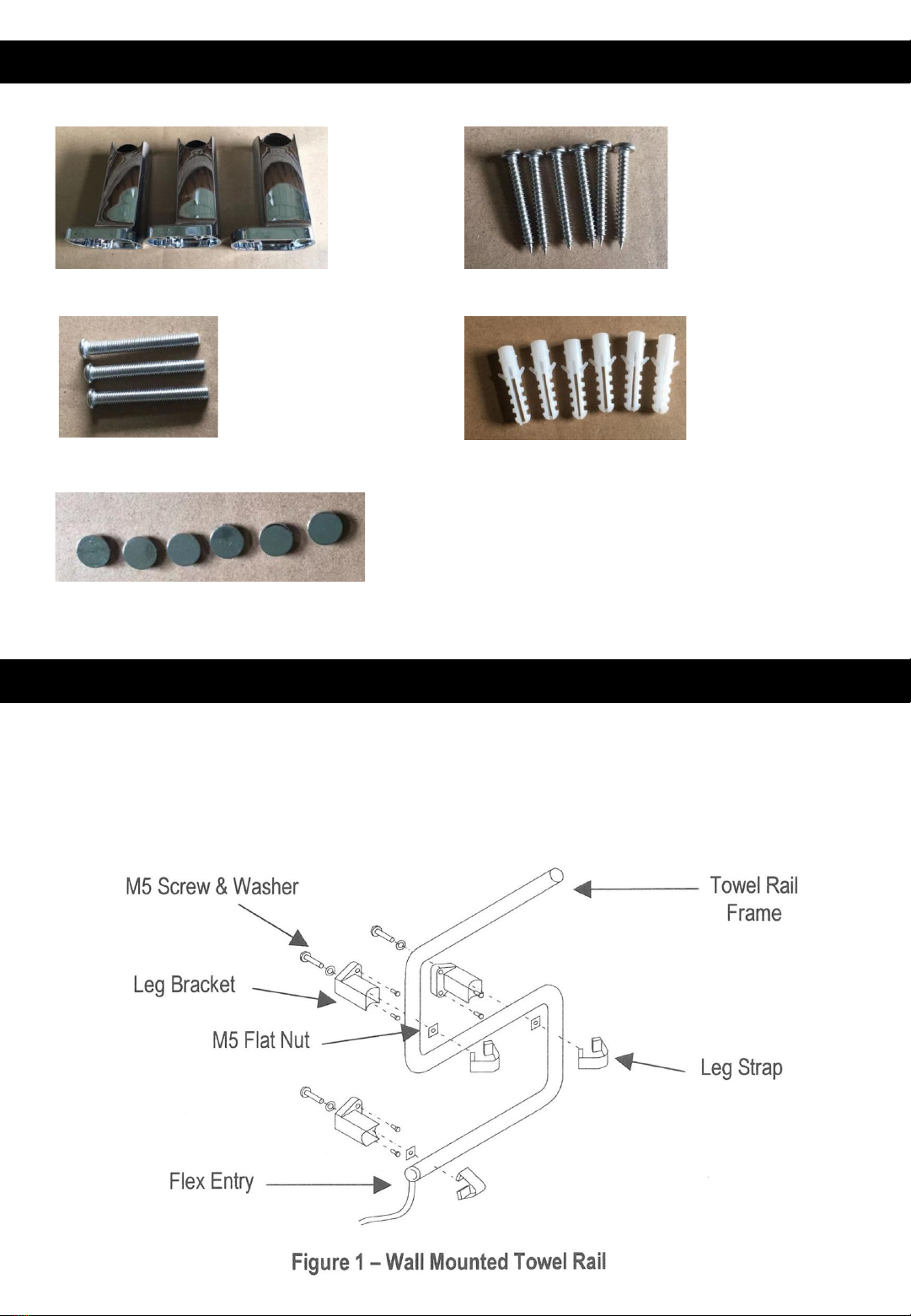

Components
3 x Leg Brackets
6 x Wall Plugs
6 x Screws
3 x M5 Long Screw
6 x Screw Hole caps

This appliance MUST be installed in accordance with the relevant wiring rules and
regulations and in particular those regulations which cover installation of appliances
and accessories in damp situations such as bathrooms, showers, laundries and other
areas with fixed water containers. It is to be fitted in accordance with applicable
Australian/New Zealand standards (AS/NZS).
In accordance with New Zealand’s wiring regulations this appliance is required to be
connected to a power supply that includes an earth circuit. This appliance cannot be
connected to a two wire (lighting) power circuit.
WARNING
•In order to avoid a hazard for young children, this appliance must be installed so
that the bottom rail is at least 600 mm above the floor.
•Special purpose tools are required for the replacement of the power supply cord
and element. Contact an Authorised Service Agent for service.
•Please note that if mounting your Heated Towel Rail yourself contact your local
hardware professional for advice on the best mounting hardware for your walls,
as this may vary.
NOTE: Attempting to fix into plasterboard or cement sheeting alone is not
recommended. Plasterboard in particular will not hold long term.
WALL PREPARATION
•Goldair Heated Towel Rails may be fixed to any type of timber stud, steel stud or
masonry (solid or cavity) wall.
•Walls made from timber or steel require studs at the correct position for all rails. If
the precise position can’t be determined early in the job, consider sheets of 18mm
construction ply, covering a larger area.
•This rail has a small footprint against the wall. The wire holes and mounting holes
must be drilled neatly and accurately.
•For drilling through hard materials such as porcelain tiles, marble, granite etc. an
appropriate drill bit must be used.
•No responsibility will be taken by Goldair for instances where installers drill
incorrectly.
Installation cont.

WALL MOUNTED MODELS: GTRM AND GTRL
•Choose a suitable position on the wall to mount the Heated Towel Rail. The flex entry can
be either on the left or right hand side but it must be horizontal and at the bottom of the
frame.
•Fit the leg brackets and straps loosely to the frame, in the positions shown in figure 1.
•Place the Heated Towel Rail on a flat surface, check that all the leg brackets are sitting
parallel and then tighten the screws, enough to hold the brackets firmly against the
frame, without over tightening.
•Level up the top rail of the Heated Towel Rail and fasten to the wall with either the
screws provided or with suitable toggle bolts.
•Fit the screw caps to cover the screw holes in each of the leg brackets.
PRE WIRING
NOTE: Only drill holes when you are 100% sure of your measurements.
A means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring guidelines AS/NZS 3000:2007.
Electrical installation
WALL MOUNTED TOWEL RAILS ARE ONLY TO BE MOUNTED ON HEAT RESISTANT
WALLS THAT COMPLY WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING
REGULATIONS

Operating your Towel Rail
ELECTRICIAN INFORMATION
A copy of this User Manual should be left with the consumer for future reference.
A means for disconnection must be incorporated in the fixed wiring in accordance with
the wiring guidelines AS/NZS 3000:2007.
HEAT CONTROL
These towel rails run at a single temperature. Be aware they do get very hot to the
touch.
CAUTION: The Towel Rail generates heat during use. Proper precautions must be taken
to prevent the risk of burns, scalds, fires or other damage to persons
Do not attempt to dismantle the Towel Rail. There are no user serviceable parts. For
service or repair, contact an authorised electrical service technician.
CARE AND CLEANING
The Towel Rail requires regular cleaning to ensure longevity of the product.
Turn off the isolating switch before cleaning. For additional protection, turn the mains
supply off before cleaning.
Ensure that the towel rail has been allowed to cool down completely before cleaning.
Use a damp cloth (not wet) to wipe the exterior of the towel rail to remove dust and
dirt.
Never use solutions such as benzene, thinners or polishing agents.
Never use abrasive materials like steel wool / scourers to scrub the towel rail.
Ensure the Towel Rail is dry before switching back on the mains supply and isolating
switch.
Goldair –New Zealand
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]
Goldair –Australia
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]om.au
SUPPORT AND TECHNICAL ADVICE
RUST
Surface rust can occur on stainless steel over time. To avoid this the Heated Towel Rail is
best wiped down from time to time with a damp cloth and a stainless-steel cleaner. Fine
scratching can be removed using a metal polish such as ‘Autosol’ or ‘Brasso’ Paste which
are available from most supermarkets and car care shops.
PROOF OF PURCHASE
To receive warranty, retain receipt as proof of purchase.

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when
used in normal domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty
to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing
fault during the warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried
out by anyone other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in
relation to the goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act
(1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
