Golden Tornado 4-CYLINDER User manual

17611 East St, North Fort Myers, FL 33917
[phone]
GoldenMarineSystems.com GoldenBoatLifts.com
REVISION A
PUBLISHED 7/15/2020
INSTALLATION
MANUAL
MODEL:
4-CYLINDER

2
TABLE OF CONTENTS
TABLE OF CONTENTS............................................................................. 2
PRODUCT SPECIFICATIONS ................................................................. 2
SAFETY REQUIREMENTS....................................................................... 3
TORNADO LIFT OVERVIEW…………………………………………………………………….4
PART/HARDWARE IDENTIFICATION TABLE...................................... 5
GENERAL ASSEMBLY ............................................................................ 6
MOUNT CROSS BEAM............................................................................ 6
ATTACH FOOT PAD ................................................................................. 7
MOUNT SIDE BEAM**.............................................................................8
ATTACH LOWER CYLINDER MOUNT**................................................ 9
MOUNT STERN SIDE H-FRAME .........................................................10
MOUNT BOW SIDE H-FRAME ..............................................................11
MOUNT HYDRAULIC CYLINDER...........................................................12
MOUNT ALUMINUM MULTI-BUNK......................................................14
ATTACH GUIDE POLE MOUNTING BRACKET....................................15
ATTACH GUIDE POLE ............................................................................16
LAUNCHING THE TORNADO LIFT........................................................17
REFERENCE NOTES...............................................................................18
SPECIFICATIONS
•LIFT CAPACITY: 8,000 / 10,000 / 12,000 lbs. (3,629 /
4,536 / 5,443 kgs)
•NUMBER OF CYLINDERS: 4
•WEIGHT ≈1,062 lbs. (482 kgs)
•HEIGHT ADJUSTMENT RANGE ≈55 in –117 in
(1.4 m –3 m)
•FRAME SIZE ≈144 in x 132 in [L x W] (3.65 m x 3.35 m)
•BUNK LENGTH ≈144 in (3.65 m)
•POWER SUPPLY: 12 V DC H.D. Pump & Solar Package
enclosed within fiberglass lock box (Operated using
provided transmitters)
FEATURES
•Hardened Stainless Axles with Nylatron Sleeves.
•Highest Lift Travel at 6′of Rise
•Long Range Wireless Remote with 2 Transmitters
•Marine Grade Aluminum & Stainless-Steel
Construction.
•Aluminum Bunks with Rubber Capped Adjustable
Inserts.
•Hydraulic Cylinders with Stainless Steel Shafts.
•Hydraulic Cylinder Shafts are Protected with the
Exclusive Air Bellows
•Larger Structural Components Prevent Flex and Wear;
our Lifts are much Heavier than all Others.
•The Golden Exclusive Multi-Bunk Can Accommodate V-
hulls, Step-Hulls, Pontoon and Deck Boats, As Well As
PWCs.
•Optional and Removable Accessories Such as
Adjustable Guide Poles with Cushions, Bumpers or
Optional Walkways, Bow Stops and Wheel Kits (see
accessories).
INTRODUCTION
Golden is proud to introduce the Tornado Lift to our line of
lifts.
This lift is a free-standing adjustable hydraulic lift
manufactured with T-6 marine grade aluminum and
stainless-steel hardware. This lift is ideal for freshwater and
saltwater applications where shore power might be an issue
or code regulations prevent piling or fixed structure lifts.
We weld all components that are not adjustable, which
prevents premature loosening of parts and there is no
contact of dissimilar metals in a saltwater environment, we
enclose our hydraulic shafts in our exclusive Air Bellow. The
‘Air Bellows’ prevent any harmful particles and marine
growth from damaging the hydraulic cylinders, seals and
shafts.
We use only eco-friendly biodegradable fluid. It is 100 %
water soluble and meets the strict guidelines of the US Fish
& Wildlife Service as non-toxic.

3
SAFETY
SAFETY INFORMATION (READ THOROUGHLY)
The TORNADO BOAT LIFT was designed, tested and certified to
be installed in the recommended area approved by certified
and approved personnel under the specific installation and
operation guidelines laid out in the installation and operation
manuals issued by GOLDEN BOAT LIFTS.
Note: Any installation or operation methods outside the
guidelines described within the manual(s) mentioned above
will void the product warranty.
Note: Only a trained and certified service provider should
install the Tornado boat Lift.
Note: Before beginning installation of the Tornado Boat Lift,
please ensure that the area selected for installation meets all
local and state guidelines and regulations.
Note: To avoid damage to the Tornado Boat Lift and/or personal
injury/death, carefully follow each step outlined in the
manual(s).
Note: Before beginning installation of the Tornado boat Lift,
clear adequate space around the installation site so that all
parts, hardware, and tools can be laid out in a safe and
organized fashion.
When completing the steps outlined in this Installation Manual,
please ensure that only proper handling and lifting techniques
are used to transport parts to desired locations. In some
circumstances, machinery may be required to move individual
parts.
The Tornado Boat Lift comes with a 12V DC Double-Acting
Hydraulic Power Unit (SPX Stone Hydraulic Power unit) which
provides the power for operation of the Tornado Boat Lift.
Note: After installation of the Tornado Boat Lift, please
reference the HYDRAULIC POWER PACK INSTALLATION
MANUAL provided to continue installation of the power supply
for the Tornado Boat Lift. Failure to reference and follow these
instructions before attempting to operate the Tornado Boat Lift
may cause damage to the lift and/or personal injury/death.
After completing the steps outline in the TORNADO
INSTALLATION MANUAL and the HYDRAULIC POWER PACK
INSTALLATION MANUAL, the Tornado Boat Lift should be ready
to operate.
Note: Before operation, it is important to verify that every step
outlined in the TORNADO INSTALLATION MANUAL and the
HYDRAULIC POWER PACK INSTALLATION MANUAL has been
correctly completed.
To operate the Tornado Boat Lift, please reference the
TORNADO BOAT LIFT OPERATING MANUAL.
Note: Never Exceed the maximum capacity of the lift.
Note: Never go under the lift or boat, especially when the lift
is in the raised position. Never operate a lift while on the lift
or inside the boat.
Note: It is recommended that the Tornado Lift be raised to the
upward position after removing the boat, indicating a hidden
underwater obstruction for others.
SAVE THESE SAFETY INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING
!
!
MOVING PARTS HAZARD
Failure to follow this warning can result in personal injury or
death and/or damage to the Tornado Boat Lift.
The Tornado Boat Lift has many moving parts while in operation.
To avoid bodily harm and/or damage to the Tornado Boat Lift,
ensure the lift is operated from a safe distance, and never on
the lift or boat.
Note: Never operate a lift while on the lift or
inside the boat.
caution
!
!
HEAVY OBJECTS
Failure to follow this warning can result in personal injury or
death and/or damage to the Tornado Boat Lift.
The Tornado Boat Lift has many heavy parts. To avoid bodily
harm and/or damage to the Tornado Boat Lift, ensure that
proper handling and lifting techniques are used.
Note: Machinery may be required to move individual parts
and/or finished product.
SAVE THESE INSTRUCTIONS

4

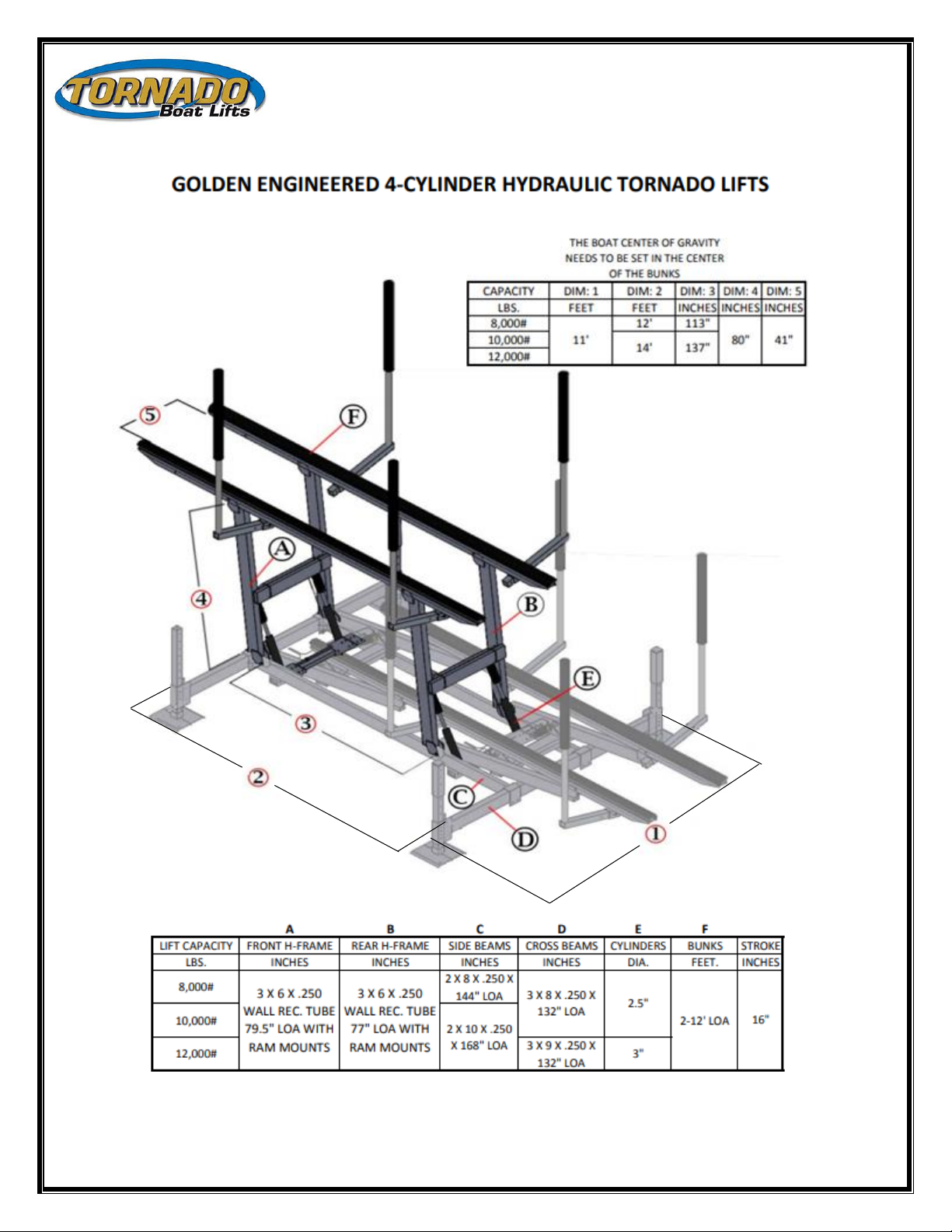

5
OPT

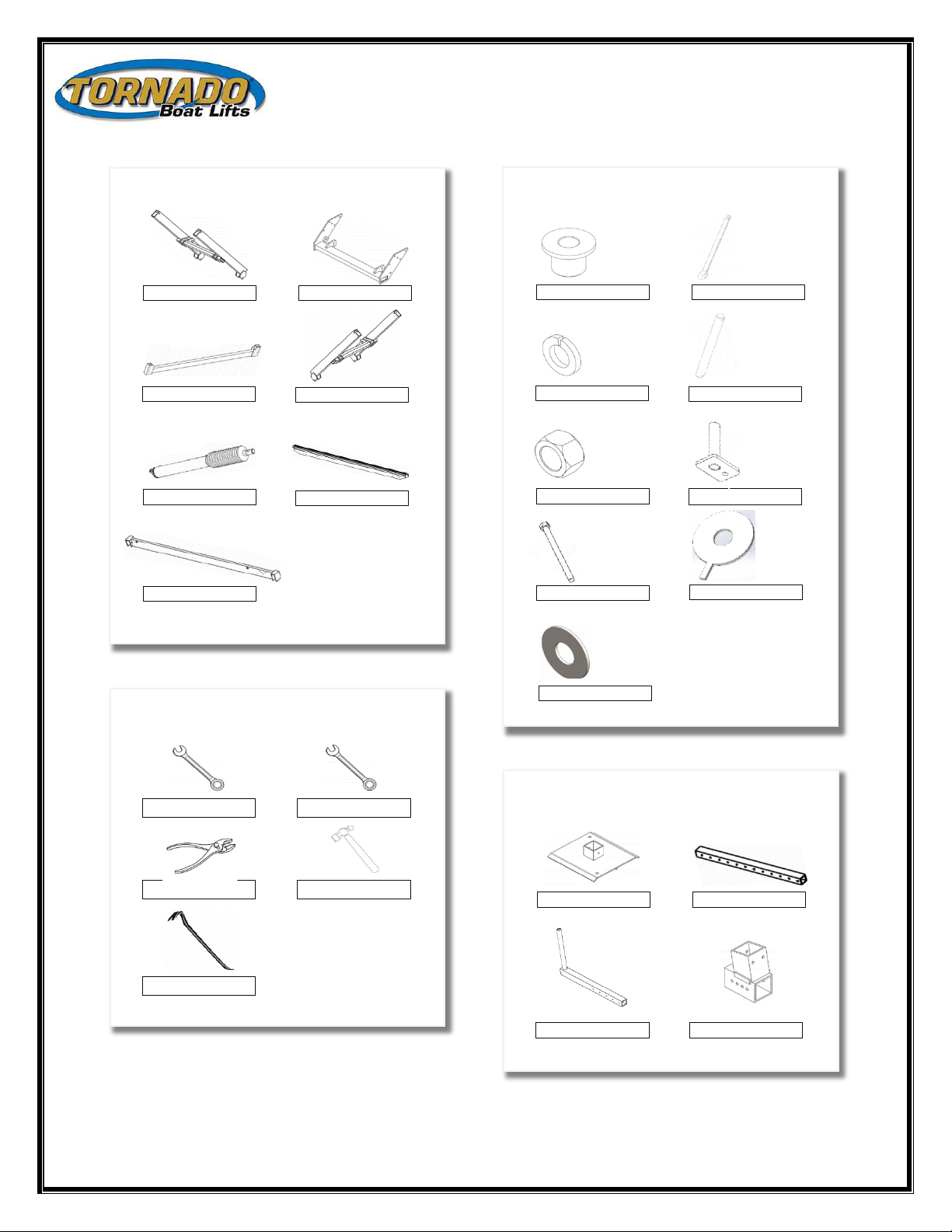

PART IDENTIFICATION
Stern Side H-Frame
Lower Cylinder Mount
Cross Beam
Bow Side H-Frame
Aluminum Multi-Bunk
Hydraulic Cylinder
Side Beam
OPTIONAL PART(S)
Foot Pad
Square Tube Leg
Guide Pole Arm
Guide Pole Mount
REQUIRED TOOLS
Wrench 9/16”
Wrench 3/4"
Pliers
Mallet
Pry Bar
HARDWARE IDENTIFICATION
Hinge Bearing
Cotter Pin
Lock Washer
Hinge Pin
Hex Nut
Hex Bolt
Cylinder Pin
Lollipop Washer
Flat Washer
1/2” (20)
3/8” (52)**
(8)
1/8” (16)
3/4" (8)
(8)
1/2” (20)
3/8” (52)**
1/2” X 3-1/2” (20)
3/8” X 5” (8)**
3/8” X 4-1/2” (36)**
3/8” X 1-1/2” (8)
3/16” (16)
1/2” (40)
3/8” (88)**
3/4" (8)**
** Note: Hardware amounts may vary
depending on optional accessories.

6
Figure 2
MOUNT CROSSBEAMS
Note: Cross Beams will ship with leg pockets pre-assembled.
Note: Ensure Crossbeam and Leg Pocket is oriented in the
upward position as shown in Figure 1.
Note: The Square Tube Leg(s) referenced in this step is an
optional part purchased with the Tornado Boat Lift. If the Square
Tube Leg part was not ordered and included, you may skip to the
next step.
1.
Slide Crossbeam Leg Pocket over Square Tube Leg as
shown in Figure 1 and adjust to desired height.
2.
Attach one (1) 3/8” Flat Washer onto two (2) 3/8” x 4-1/2” Hex
Bolts and insert them into Leg Pocket, securing the
Crossbeam to the Square Tube Leg shown in Figure 2.
3.
Attach one (1) 3/8” Flat Washer, one (1) 3/8” Lock Washer,
and one (1) 3/8” Hex Nut over the two (2) protruding ends of
the Hex Bolts and securely fasten with appropriate wrench
until secure as shown in Figure 2.
4.
Repeat these steps three (3) more times, once for the
opposite side of the Cross Beam, and twice for the second
Cross Beam.
PARTS REQUIRED TO MOUNT CROSSBEAM
Leg Pocket
3/8” Flat Washer (16)
3/8” x 4-1/2” Hex Bolt
(8)
Crossbeam (2)
3/8” Lock Washer (8)
3/8” Hex Nut (8)
Square Tube Leg (4)
Figure 1

7

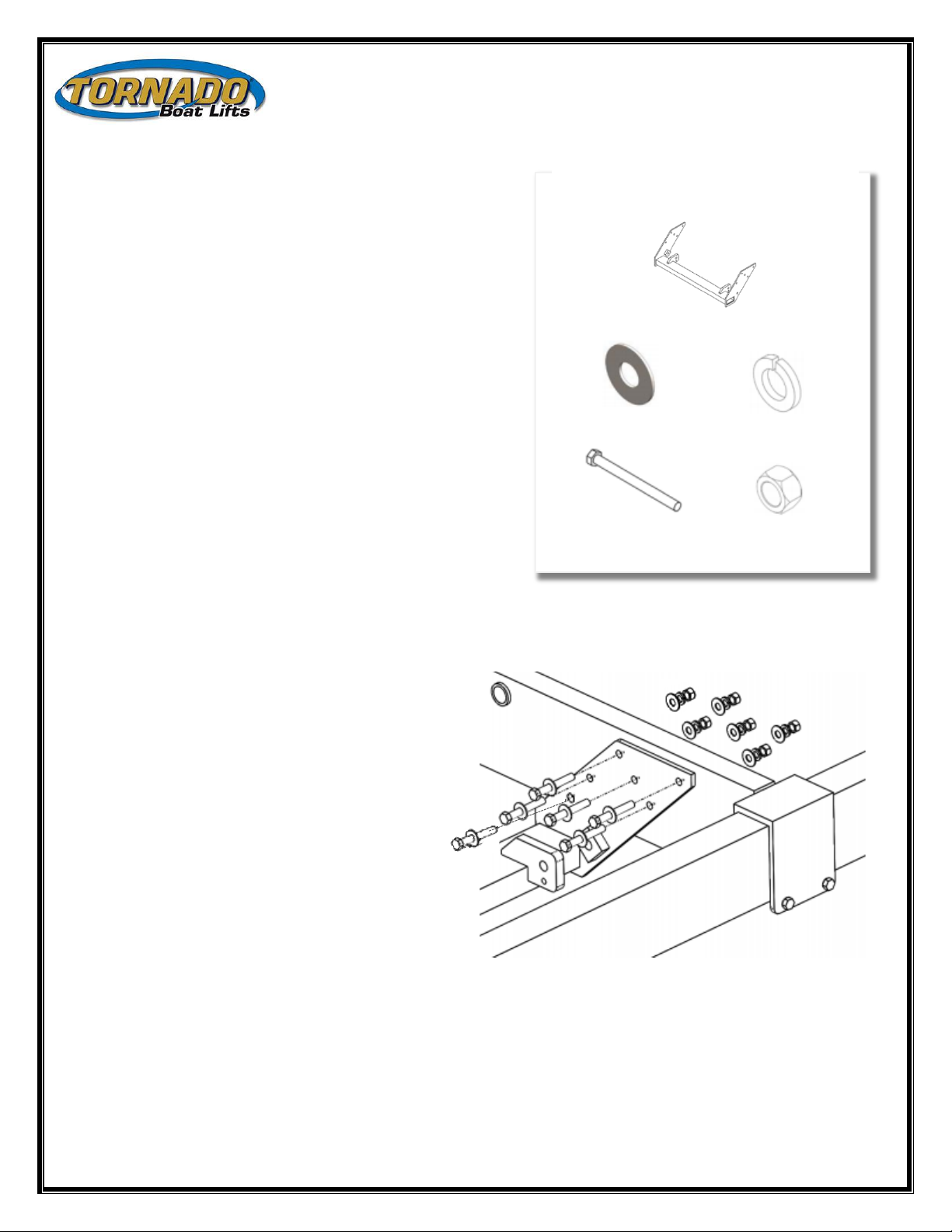

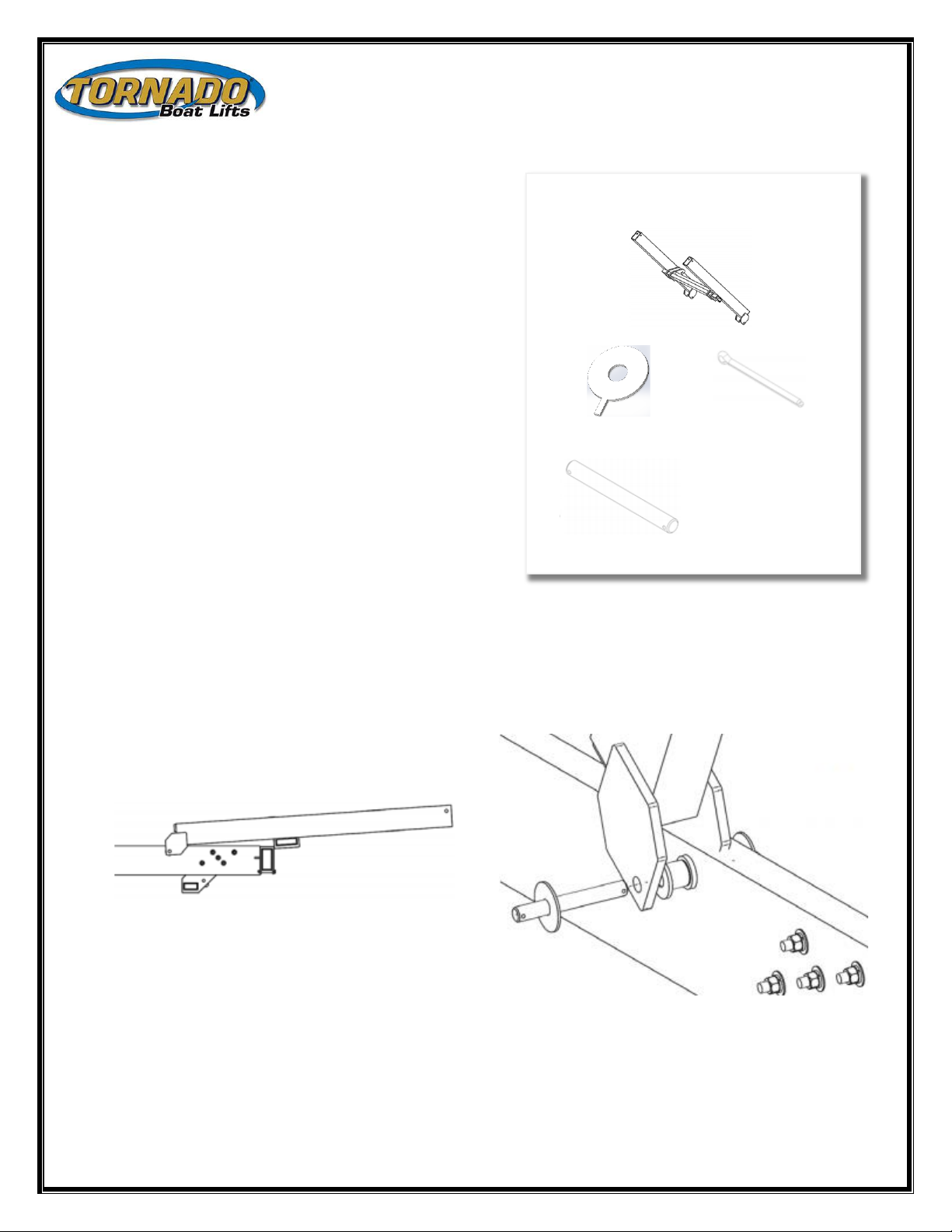

ATTACH FOOT PADS
Note: The Foot Pad(s) referenced in this step is an optional part
purchased with the Tornado Boat Lift. If the Foot Pad part was not
ordered and included, you may skip to the next step.
1) Attach one (1) Foot Pad to the end of one (1) Square Tube Leg
from previous step and align as shown in Figure 3.
2) Attach one (1) 3/8” Flat Washer to one (1) 3/8” Hex Bolt and
insert through hole(s) in the Foot Pad and Square Tube Leg
as shown in Figure 3.
3) Attach one (1) 3/8” Lock Washer and one (1) 3/8” Hex Nut to
the protruding end of the Hex Bolt and securely fasten with
appropriate wrench until secure.
4) Repeat these steps for the remaining three (3) Foot Pads.
PARTS REQUIRED TO ATTATCH FOOT PAD
Foot Pad (4)
3/8” Flat Washer (4)
3/8” x 4-1/2” Hex Bolt
(4)
Square Tube Leg (4)
3/8” Lock Washer (4)
3/8” Hex Nut (4)
Figure 3
Figure 4

8

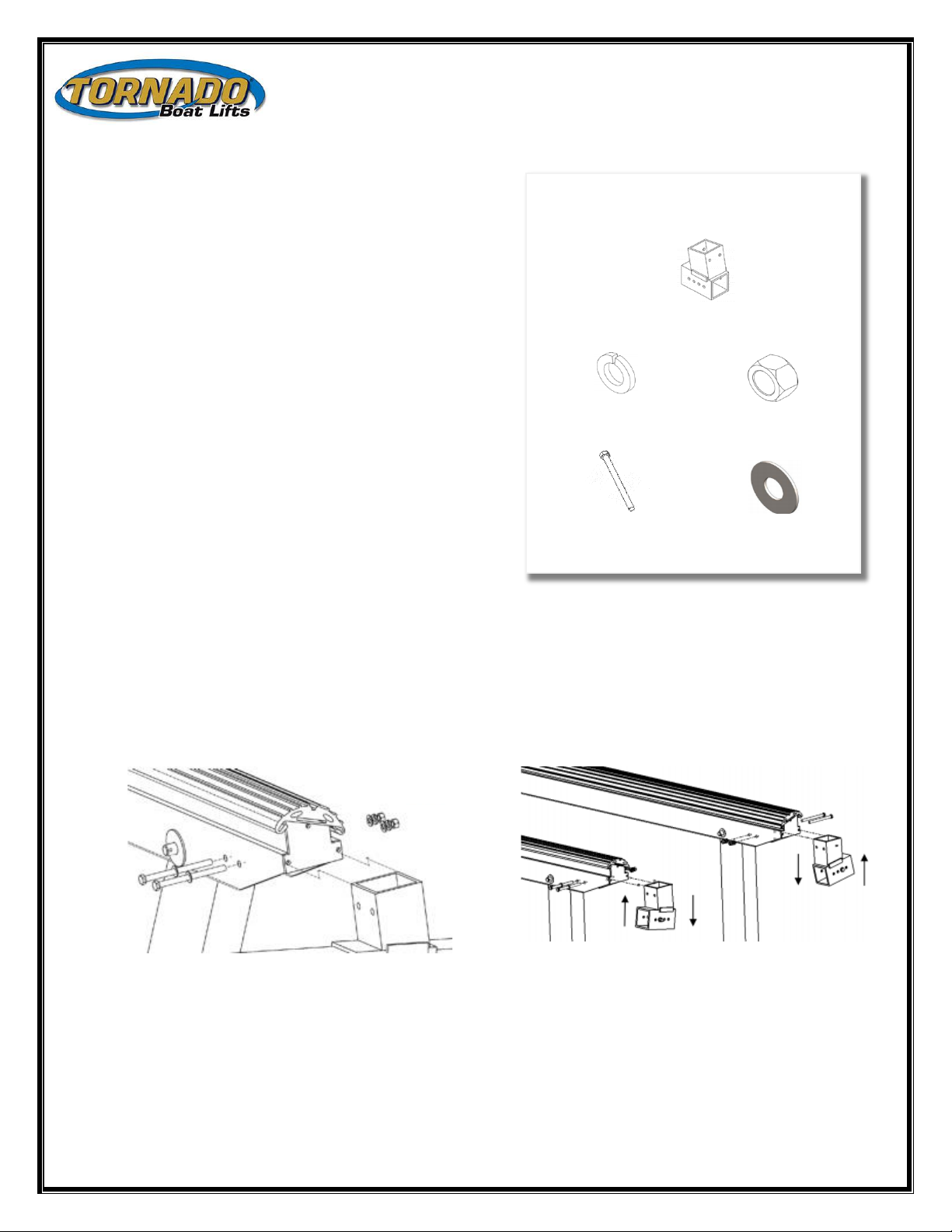

MOUNT SIDE BEAMS**
Note: Ensure Side Beam Saddle is positioned so that open end of
saddle is facing downward during installation shown in Figure 5.
1.
Slide the Side Beam Saddle down over the Cross Beam as
shown in Figure 5.
Note: Ensure mounting holes in the bottom of the Side Beam
Saddle rest below and clear of the Cross Beam.
2.
Attach one (1) 3/8” Flat Washer over two (2) 3/8” x 4-1/2” Hex
Bolts and insert them into the mounting holes on the bottom
of the Side Beam Saddle as shown in Figure 5.
3.
Attach one (1) 3/8” Flat Washer, one (1) 3/8” Lock Washer,
and one (1) 3/8” Hex Nut to the two (2) protruding ends of
the Hex Bolts and hand tighten.
Note: It is important not to over tighten Hex Nuts to allow for Side
Beam adjustability.
4.
Repeat these steps three (3) more times, once for the
opposite side of the Side Beam, and twice for the second
Side Beam.
Note: Please return to this step when instructed to fully tighten
hardware.
PARTS REQUIRED TO MOUNT SIDE BEAM
Side Beam Saddle
3/8” Flat Washer (16)
3/8” x 4-1/2” Hex Bolt
(8)
Side Beam (2)
3/8” Lock Washer (8)
3/8” Hex Nut (8)
Figure 5

9

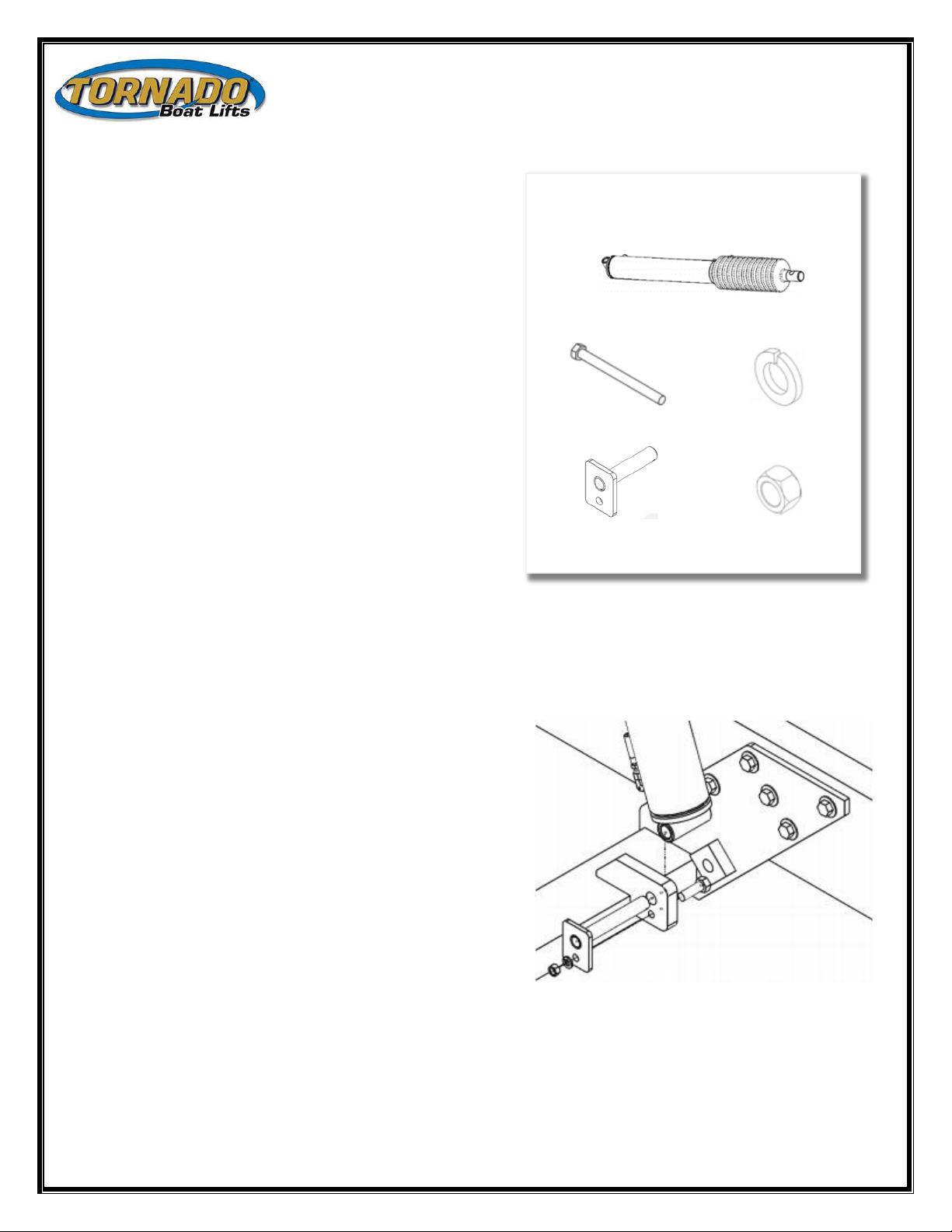

ATTACH LOWER CYLINDER MOUNT**
Note: Ensure lower Cylinder Mount is between both Side Beams
when mounting.
1.
Align the holes on the Lower Cylinder Mount with the
corresponding holes on the Side Beam as shown in figure 6.
2.
Attach one (1) 1/2” Flat Washer to five (5) 1/2” x 3-1/2” Hex
Bolts and insert into the corresponding holes as shown in
Figure 6.
3.
Attach one (1) 1/2" Flat Washer, one (1) 1/2" Lock Washer, and
one (1) 1/2" Hex Nut to each of the five (5) protruding ends of
the Hex Bolts and hand tighten.
Note: It is important not to over tighten Hex Nuts to allow for
Lower Cylinder Mount adjustability.
4.
Repeat these steps for three (3) more times, once for the
other side of the Lower Cylinder Mount, and twice for the
second mount.
Note: Please return to this step when instructed to fully tighten
hardware.
PARTS REQUIRED TO MOUNT LOWER
CYLINDER MOUNT
1/2” Flat Washer (48)
1/2” x 3-1/2” Hex Bolt
(24)
1/2” Lock Washer (24)
1/2” Hex Nut (24)
Lower Cylinder Mount (2)
Figure 6

10
MOUNT STERN SIDE H-FRAME
Note: For this step, ensure the Stern Side H-Frame is being used.
Note: Hinge Bushings are preinstalled on Side Beam.
1.
Align the mounting holes on the Stern Side H-Frame hinge
plate with the Hinge Bushings located on the Side Beam as
shown in Figure 8.
Note: Stern Side H-Frame should be oriented so that the Cylinder
Mounting Cross Support overhangs the stern side Cross Beam as
shown in Figure 7.
2.
Insert one (1) 1/8” Cotter Pin into one (1) 3/4" x 5” Hinge Pin,
bending the tines of the Cotter Pin outward and apart,
securing the Cotter Pin within the Hinge Pin.
3. Attach a Lollipop Washer to the open end of the Hinge Pin.
4.
Slide the Hinge Pin through the hinge plate as shown in
Figure 8.
5.
Insert one (1) Lollipop Washer and one (1) 1/8” Cotter Pin into
the protruding end of the Hinge Pin, bending the tines of the
Cotter Pin outward and apart, securing the Cotter Pin within
the Hinge Pin.
6. Repeat this step for the opposite side of the Stern Side H-
Frame.
PARTS REQUIRED TO MOUNT STERN SIDE
H-FRAME
Stern Side H-Frame
Lollipop Washer
(4)
1/8” Cotter Pin (4)
3/4” x 5” Hinge Pin (2)
Figure 8
Figure 7

11
MOUNT BOW SIDE H-FRAME
Note: For this step, ensure the Bow Side H-Frame is being used.
Note: Hinge Bushings are preinstalled on Side Beam.
1.
Align the mounting holes on the Bow Side H-Frame hinge
plate with the Hinge Bushings located on the Side Beam as
shown in Figure 10.
2.
Insert one (1) 1/8” Cotter Pin into one (1) 3/4" x 5” Hinge Pin,
bending the tines of the Cotter Pin outward and apart,
securing the Cotter Pin within the Hinge Pin.
3. Attach a Lollipop Washer to the open end of the Hinge Pin.
4.
Slide the Hinge Pin through the hinge plate as shown in
Figure 10.
5.
Insert one (1) Lollipop Washer and one (1) 1/8” Cotter Pin into
the protruding end of the Hinge Pin, bending the tines of the
Cotter Pin outward and apart, securing the Cotter Pin within
the Hinge Pin.
6. Repeat this step for the opposite side of the Bow Side H-
Frame.
PARTS REQUIRED TO MOUNT BOW SIDE H-
FRAME
Figure 10
Figure 9
Bow Side H-Frame
Lollipop Washer
(4)
1/8” Cotter Pin (4)
3/4” x 5” Hinge Pin (2)

12
MOUNT HYDRAULIC CYLINDER
Note: Ensure Hydraulic Cylinder is oriented so that the lower
mounting hole is facing downward.
1.
Align the lower Hydraulic Cylinder mounting hole with the
corresponding holes on the Lower Cylinder Mount as shown
in Figure 11.
2.
Insert one (1) 3/4” Cylinder Pin into the cylinder hinge plate
through the Hydraulic Cylinder lower mounting hole as
shown in Figure 11.
3.
From the inside of the hinge plate, insert one (1) 3/8” Hex
Bolt through the hinge plate and the lower hole on the
Cylinder Pin.
4.
Attach one (1) 3/8” Lock Washer and one (1) 3/8” Hex Nut to
the protruding end of the Hex Bolt and fasten with
appropriate wrench until secure as shown in Figure 11.
5.
Repeat these steps for the remaining three (3) Hydraulic
Cylinders.
PARTS REQUIRED TO MOUNT HYDRAULIC
CYLINDER(S)
Hydraulic Cylinder (4)
3/8” Lock Washer (4)
3/8” Hex Nut (4)
3/8” x 4-1/2” Hex Bolt (4)
3/4” Cylinder Pin (4)
Figure 11

13
MOUNT HYDRAULIC CYLINDER(S)
cont.
Note: Ensure Hydraulic Cylinder(s) are tightly fastened as
described in previous step before continuing.
1.
Align the upper Hydraulic Cylinder mounting hole with the
corresponding holes on the H-Frame as shown in Figure 12
& 13.
Note: The H-Frame may need to be lifted and rotated upward to
allow proper alignment.
2.
Insert one (1) 3/4” Cylinder Pin into the cylinder mounting
plate through the Hydraulic Cylinder upper mounting hole
as shown in Figure 13.
3.
From the inside of the mounting plate, insert one (1) 3/8” Hex
Bolt through the mounting plate and the hole on the Cylinder
Pin shown in Figure 13.
4.
Attach one (1) 3/8” Lock Washer and one (1) 3/8” Hex Nut to
the protruding end of the Hex Bolt and fasten with
appropriate wrench until secure as shown in Figure 13.
5.
Repeat these steps for the remaining three (3) Hydraulic
Cylinders.
PARTS REQUIRED TO MOUNT HYDRAULIC
CYLINDER(S)
Hydraulic Cylinder (4)
3/8” Lock Washer (4)
3/8” Hex Nut (4)
3/8” x 4-1/2” Hex Bolt (4)
3/4” Cylinder Pin (4)
Figure 12
Figure 13

14
Figure 14
Figure 15
Note: Before proceeding to the following steps, please revisit
steps with asterisks (3 & 4) and use a wrench to tighten all
hardware that was originally hand tightened. Failure to tighten
all hardware as described can cause damage to the Tornado Boat
Lift and/or serious injury/death.
MOUNT ALUMINUM MULTI-BUNK
1.
Align the 3/4” hole in the Aluminum Multi-Bunk with the
corresponding mounting hole in the top of the Stern Side H-
Frame.
2.
Insert one (1) 1/8” Cotter Pin into one end of a 3/4" Hinge Pin.
Using Pliers, bend the tines apart and away from each other,
securing it to the hinge pin as shown in Figure 14.
3.
Attach a 3/4" Flat Washer over the Hinge Pin and insert it
into the bunk support as shown in Figure 15.
Note: Do not fully insert Hinge Pin through H-Frame until
completing next step.
4. Insert a Lollipop Washer between the Bunk and the H-
Frame on both sides as shown in Figure 15 before fully
inserting the Hinge Pin through the H-Frame and out of the
opposite side of the Bunk.
5.
Attach a 3/4" Flat Washer and 1/8” Cotter Pin to the
protruding end of the Hinge Pin. Using Pliers, bend the tines
apart and away from each other, securing it to the hinge pin
as shown in Figure 14.
6.
Repeat this step three (3) more times, once for the opposite
end of the Bunk, and twice for the second Bunk.
PARTS REQUIRED TO MOUNT ALUMINUM
MULTI-BUNK
Aluminum Multi-Bunk (2)
3/4" Hinge pin (4)
Lollipop Washer (8)
3/4" Flat Washer (8)
1/8” Cotter Pin (8)

15
ATTACH GUIDE POLE MOUNTING
BRACKET(S)
Note: The Guide Pole Mounting Bracket referenced in this step
are optional parts purchased with the Tornado Boat Lift. If the
Guide Pole Mounting Bracket part was not ordered and included,
you may skip this and the following step.
1.
Insert the Guide Pole Mounting Bracket into the bottom of
the Bunk support as depicted in Figure 16.
2.
Align holes in Bunk support and Guide Pole Mounting
Bracket, making sure the lower guide adjustment tube is
angled upward toward the outside of the lift, and downward
toward the inside of the lift as shown in Figure 17.
3.
Attach one (1) 3/8” Flat Washer over two (2) Hex Bolts and
insert into the corresponding holes in the Bunk support as
depicted in Figure 16.
4.
Attach one (1) Lock Washer and one (1) Hex Nut to each of
the protruding Hex bolts and fasten with appropriate
wrench until secure.
5.
Repeat this step three (3) more times, once for the opposite
end of the Bunk, and twice for the second Bunk.
PARTS REQUIRED TO INSTALL GUIDE POLE
MOUNTING BRACKET
Guide Pole Mounting Bracket (4)
3/8” Hex Nut (8)
3/8” Lock Washer (8)
3/8” x 5” Hex Bolt (8)
Figure 16
Figure 17
3/4" Flat Washer (16)

16
ATTACH GUIDE POLE(S)
Note: The Guide Poles referenced in this step are optional parts
purchased with the Tornado Boat Lift. If the Guide Pole part was
not ordered and included, you are finished with the Tornado Boat
Lift installation.
1.
Insert the Guide Pole into the Guide pole Mounting Bracket
so that the Guide Pole arm is facing outward and upward as
shown in Figure 18.
2.
Adjust the Guide Pole to the desired outer dimensions and
align the mounting holes accordingly.
3.
Attach one (1) Flat Washer to one (1) Hex Bolt and insert into
the mounting hole.
4.
Attach one (1) Flat Washer, one (1) Lock Washer, and one (1)
Hex Nut to the protruding end of the Hex Bolt and fasten
with appropriate wrench until secure.
5.
Repeat this step three (3) more times, once for the opposite
end of the Bunk, and twice for the second Bunk.
Note: It is important to review all the steps in this manual before
operating the Tornado Boat Lift to ensure all parts and hardware
have been installed correctly. Failure to do this may result in
damage to the Tornado Boat lift and/or serious injury/death.
PARTS REQUIRED TO INSTALL GUIDE POLE
Guide Pole (4)
3/8” Hex Nut (4)
3/8” Lock Washer (4)
3/8” x 4-1/2” Hex Bolt (4)
Figure 18
3/8" Flat Washer (8)

17
Note: Before launching the Tornado Lift, please reference the
HYDRAULIC POWER PACK INSTALLATION MANUAL provided to
continue installation of the power supply for the Tornado
Boat Lift. Failure to reference and follow these instructions
before attempting to launch and operate the Tornado Boat
Lift may cause damage to the lift and/or personal
injury/death.
LAUNCHING THE TORNADO LIFT
Note: It is important to determine the appropriate depth to
store the lift to efficiently use the maximum lifting height.
Note: It is important to consider how much the water levels
fluctuate in the region the lift is stored.
1. After completing all steps in the HYDRAULIC POWER
PACK INSTALLATION MANUAL and testing the hydraulics,
disconnect the hydraulic hoses from the pump end and
connect the hydraulic hoses together to ensure they
remain clean while launching the lift.
2. To launch the lift, it is recommended to use flotation
devices to maneuver the lift safely and carefully into the
desired location, only utilizing properly trained
personnel.
Note: It may be necessary to have a certified diver tighten and
secure all hardware after lift is positioned into place.
3. After securing the lift in the appropriate location, the
hydraulic hoses should carefully be reattached to the
pump.
LEVELING THE TORNADO LIFT
Note: Never operate a lift while on the lift or inside the boat.
1. Now that the lift is in its final position, measure the
distance from each corner of the lift to the surface of the
water. The four measurements should all be within 1-1/2”
of each other, otherwise leg adjustments may need to be
made.
2. Carefully maneuver the boat by hand to the
recommended position on the lift.
Note: Please be aware that the lift may settle during the first
several times lifting the boat, thus, take extra precautions
ensuring that there are no obstructions and no people near or
around the lift or boat.
3. Slowly lift the boat upward, pausing every 6” to ensure
the lift is staying level. Continue this process until the
boat is fully lifted out of the water.
Note: At any time, the lift may begin settling and becoming
unlevel. If this occurs, it is recommended to lower and remove
the boat from the lift so that the appropriate adjustments can
be made to make the lift level again, repeating these steps as
necessary.
Note: It is important to check the level of the lift regularly for
the first few months to ensure that the lift is not settling and
becoming unlevel. Failure to do this may result in damage to
the lift or bodily harm.

18
REFERENCE NOTES
Tornado Boat Lift (2-Cylinder) Capacity: 8K / 10K / 12K
INSTALLATION PROVIDER: ___________________________________________________ INSTALLATION DATE: _________________________
INSTALLATION ADDRESS: _______________________________________________________________________________________________________
INSTALLATION CHECKLIST:
STEP
DATE/TIME
INITIAL
NOTES
SAFETY REQUIREMENTS
PART/HARDWARE IDENTIFICATION TABLE
MOUNT CROSS BEAM
ATTACH FOOT PAD
MOUNT SIDE BEAM
ATTACH LOWER CYLINDER MOUNT
MOUNT STERN SIDE H-FRAME
MOUNT BOW SIDE H-FRAME
MOUNT HYDRAULIC CYLINDER(S)
MOUNT ALUMINUM MULTI-BUNK
ATTACH GUIDE POLE MOUNTING BRACKET
ATTACH GUIDE POLE
COMPLETE WALKTHROUGH OF THE
“HYDRAULIC POWER PACK OPERATING
MANUAL”
I, _____________________________________, hereby verify that all guidelines and procedures were read and followed to the best of my
ability.
SIGNATURE : ____________________________________________ DATE OF COMPLETION: _____________________________
