GoldenDesigns GDI-6880-01 User manual

GDI-6880-01
8 Person FAR Infrared Sauna
Owner’s Manual
CARBON MODEL SAUNAS
SAUNA IS FOR INDOOR USE ONLY
REQUIRES 3 SEPARATE 120VAC 20AMP DEDICATED CIRCUITS
Carefully and thoroughly read this Owner’s Manual before
using/operating the sauna. We recommend keeping this Owner’s
Manual for regular review and future reference.

What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

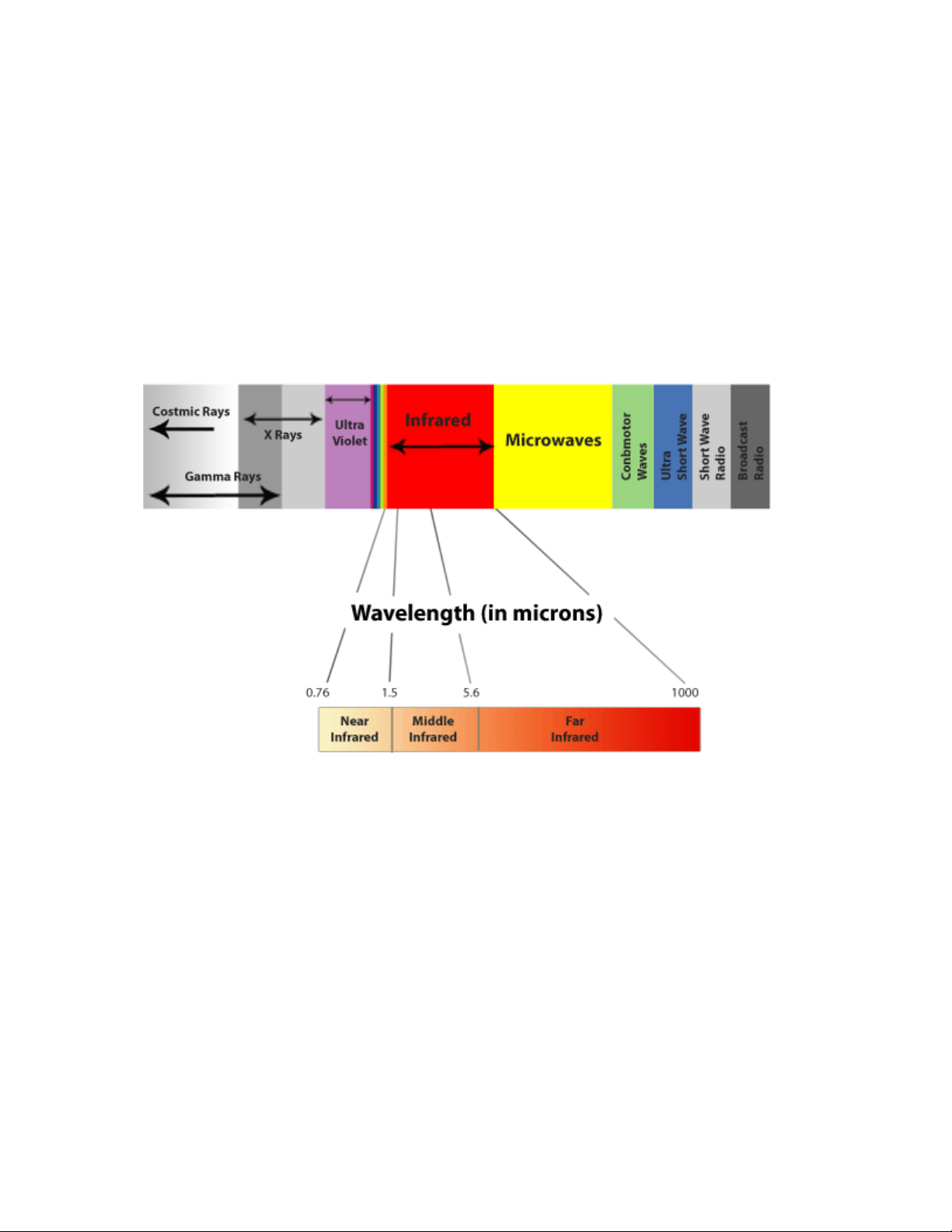

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-
1000 microns. Among these segments, Far Infrared penetrates organic substances such
as the human body two to three inches so that the warming effect is very uniform.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of
perspiring. Through the perspiration process, acid and waste residue like toxins, sodium,
alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed
from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open
and discharge waste products shedding any old skin cells leaving the skin glowing and
clean, with improved tone, elasticity, texture, and color.
Page 1

Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Reduces cellulite
*Relaxes muscle spasms *Removes toxins and mineral waste
*Increases blood circulation *Reduces stress and fatigue
*Cardiovascular conditioning *Enhances skin tone
*Clears rashes, acne
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.
What are electric and magnetic fields (EMF)?
Electric and magnetic fields are a basic force of nature (like gravity), generated by
electricity. They are found almost everywhere. Electric and magnetic fields are found in
nature where they are created by such things as lightning and static electricity. Manmade
fields are found wherever people use electricity, such as near powerlines and electrical
appliances. Like sound, electric and magnetic fields are made of a mixture of components
and so can be described in many different ways. Both have wave-like properties
such as strength and “frequency” (how often they cycle back and forth). Sound can be
loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or
constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture
of components. They can be strong or weak, have a high or low frequency, have sudden
increases in strength (“transients”) or a constant strength, and consist of one pure
frequency or several (called “harmonics”). For example, the strength of a field can be
weak and constant, as in most nighttime home environments, or it can be strong and vary
from high to low every few seconds, as from an electric blanket set on high. Powerlines
Page 2

and wiring in buildings and appliances generate 50 and 60 Hertz fields, sometimes
referred to as “power frequency” fields. Hertz is the unit for measuring the frequency of
fields in the number of wave cycles each second. The lower the frequency of a field, the
lower its energy. Power frequency fields are low frequency fields and have low energy
levels. Microwave and x-ray fields are high frequency fields and have high energy levels.
Below are some EMF measurements.
EMF Levels
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard
from any exposure to EMF. The mainstream scientific evidence suggests that low-power,
low-frequency, electromagnetic radiation associated with household currents like that of
the infrared sauna does not constitute a short or long term health hazard.
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.
Page 3

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
GDI-6880-01

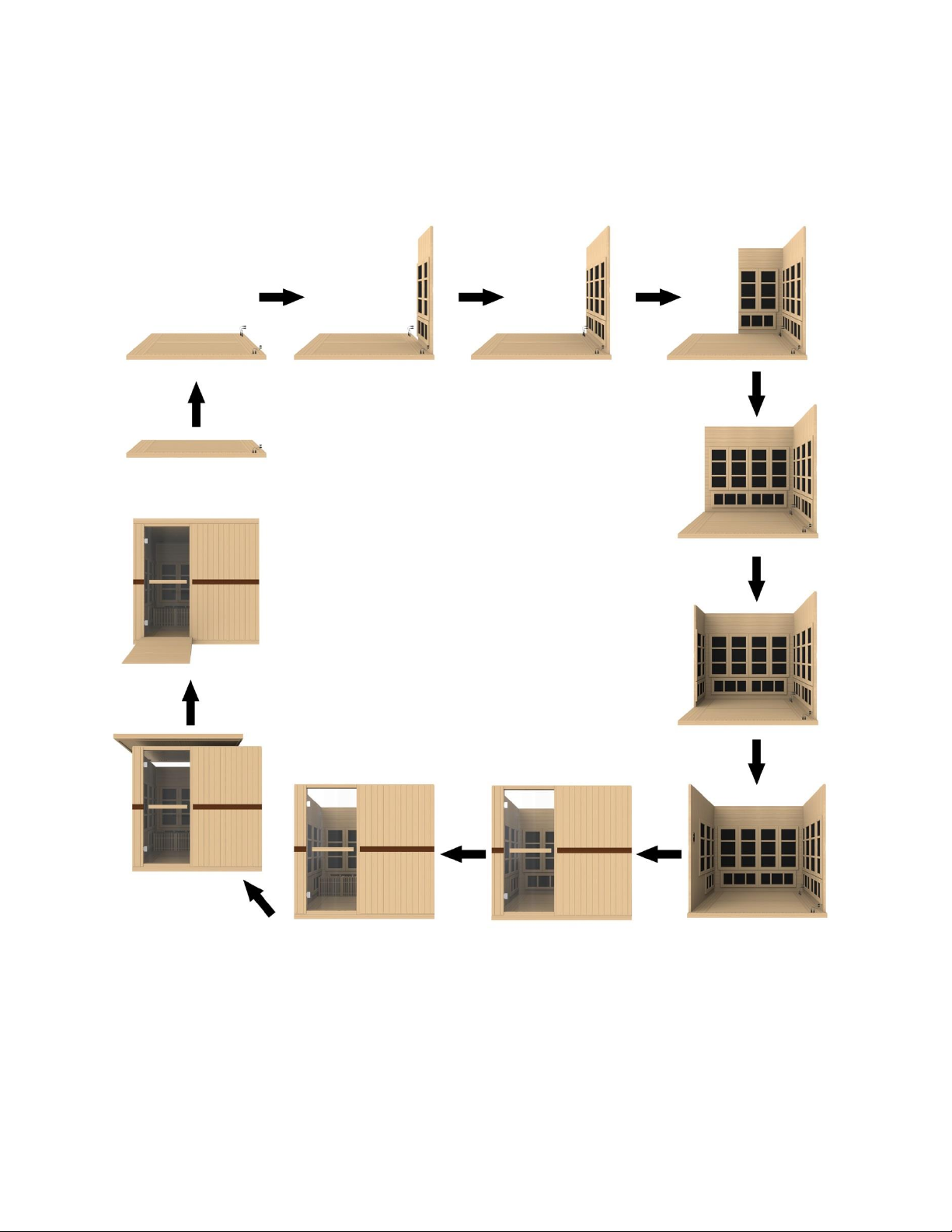

*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 4

TABLEOFCONTENTS
ProductIntroduction 5
PartsDescription 6
AssemblyInstructions 11
OperatingtheSauna 18
TipsforUsingyourSauna 21
SafetyInstructions 22
SafeguardsforyourSauna 24
TroubleshootingGuide 24
Warranty 30
WarrantyCard 32
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage
to the heating elements. DO NOT START the sauna if damage is detected!
Contact your dealer or manufacturer for troubleshooting and replacement
parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a
control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT
SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR
PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna has an optional
floor ramp that can be purchased separately.
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.
Page 5

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE. THE FLOOR RAMP IS SOLD SEPARATELY.
Page 6

I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. Model GDI-
6880-01 has three of these POWER SUPPLIES. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at
this port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel Page 7

III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with
the auxiliary function to the speakers in the sauna room for your listening pleasure.
(see Figure 2)
Figure 2
IV. Buckles
A. External Buckles
The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3

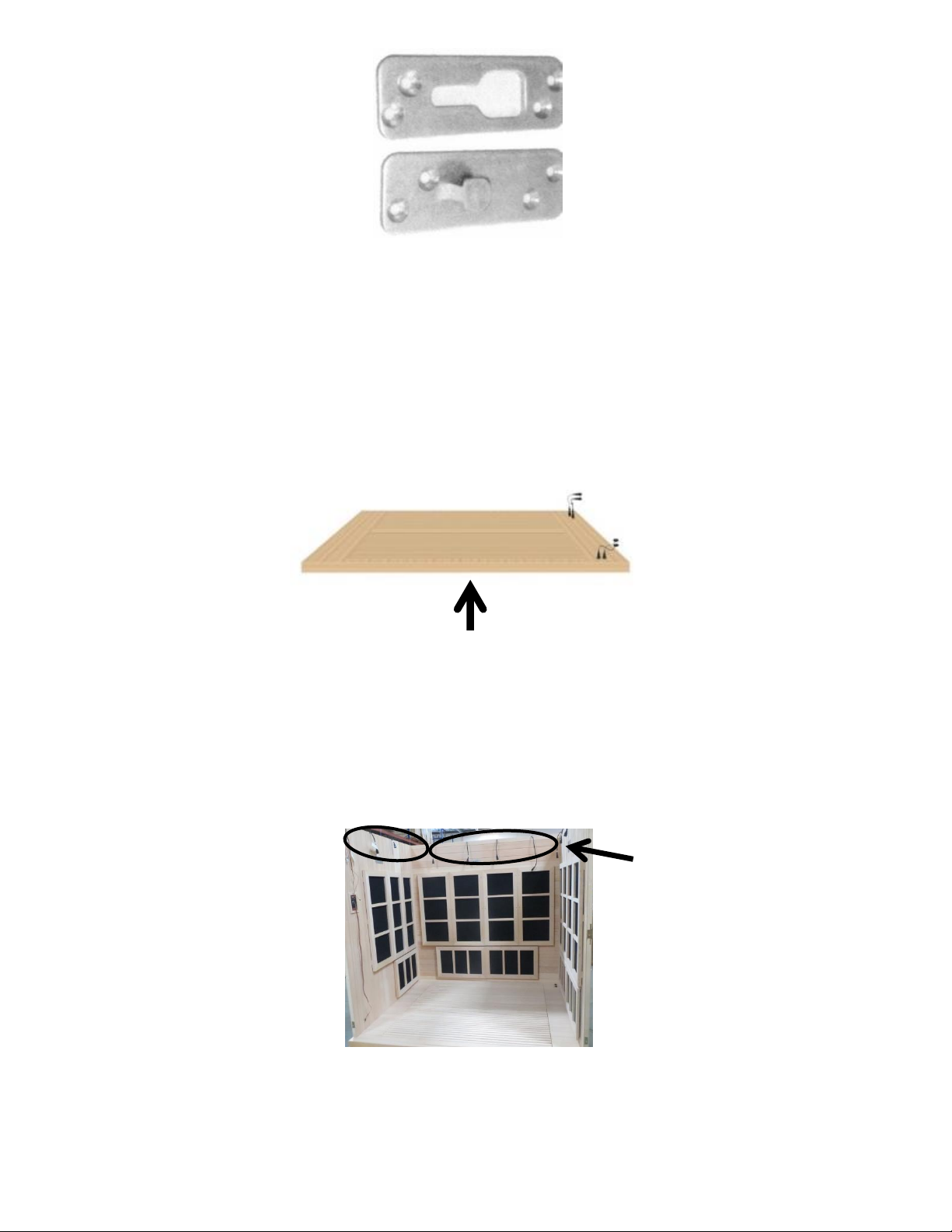

B. Guide and Guide Inserts
The guide and guide inserts are used to connect the side wall panels
to one another. They are also used to connect the FRONT PANEL to
the RIGHT SIDE PANEL and the LEFT SIDE PANEL. (see Figure 4)
Page 8

Figure 4
V. Panel Descriptions
For easier assembly, please understand and distinguish the differences between
each panel.
A. Floor Panel
When the FLOOR PANEL faces upward, you will find the floor heat
emitter(s) on the topside of the FLOOR PANEL. (see Figure 5)
Figure 5
Front
B. Understanding the Difference Between the Top and Bottom of
the Wall Panels
The wall panels are in the upright position when the heat emitter
cords are seen coming from the topside of the wall panels. (see
Figure 6)
Heat Emitter Cords
Figure 6
Page 9

C. Rear Panel
The REAR PANEL is the panel with the buckles. The buckles are
mounted on the exterior side of the REAR PANEL. (see Figure 7)
Figure 7
D. Understanding the Difference Between the Inside and Outside of
the Wall Panels
You will find the heat emitters on the inside of the wall panels.
(see Figure 8)
Heat Emitters
Figure 8
Page 10

Assembly Instructions
1. Choose a good location to assembly the sauna
a. The location must be dry, level, and away from any source of water.
b. The dedicated outlet must be easily accessible.
c. Two adults will be needed to assemble.
d. Wood Cabin Assembly: FLOOR PANEL RIGHT SIDE PANELS REAR
WALL PANELS LEFT SIDE PANELS FRONT
WALL PANELS BENCHES ROOF PANEL
Roof Cover
The sauna can be assembled in different sequences, but the above is
recommended.
e. Tools Required: Philips screwdriver and ladder
2. Installing the FLOOR PANEL
a. Locate the two FLOOR PANEL pieces. The two FLOOR PANEL pieces will
need to be interlocked into one another using the pair of guide and guide
inserts (which are already installed on the FLOOR PANEL pieces). (see
Figure 9)
Right Side of Sauna
Front of Sauna
Guide & Guide Inserts Interlock
Figure 9
Page 11

3. Installing the RIGHT SIDE PANELS
a. One adult will need to place the first of the two RIGHT SIDE PANELS up
and onto the FLOOR PANEL. Please take note of the trim molding on the
FLOOR PANEL that will insert into the bottom of the wall panels. See Figure
10. Once the first of the two RIGHT SIDE PANELS has been placed onto the
FLOOR PANEL and the trim molding on the FLOOR PANEL is inserted, a
second adult will need to lift the second of the two RIGHT SIDE PANELS up
and onto the FLOOR PANEL. In addition, the RIGHT SIDE PANEL with the
guide bracket that has the metal knob sticking outward will need to be lifted
up and inserted into the other RIGHT SIDE PANEL with the guide bracket
that has the hole. Once inserted, the wall panel will need to slide downward
until the top of the two wall panels are flush with one another. If the wall
panels are tight and not sliding down easily, you can loosen the guide and
guide insert screws slightly to allow for less tension and the wall panel will
slide down easier. Figure 11 shows the location of the heat emitter ports in
reference to the RIGHT SIDE PANEL.
1 of the 2 RIGHT 2 of the 2 Right
SIDE PANELS SIDE PANELS
Installed Installed
Figure 10 Trim Molding
Right Side of
Sauna
Right Rear Heat
Emitter Ports Right Front
Heat Emitter
Figure 11 Port
Page 12

4. Installing the REAR WALL PANELS
a. While one adult holds the RIGHT SIDE PANELS in place, a second adult will
need to place the first of the two REAR WALL PANELS up and onto the
FLOOR PANEL. Again, note the trim molding on the FLOOR PANEL that will
insert into the bottom of the wall panels. Pay special attention to the external
buckle in Figure 12a with reference to the wall panels. Once you have placed
the first of the two REAR WALL PANELS up onto the FLOOR PANEL and
against the RIGHT SIDE PANEL, use the external buckles to attach the two
walls together. An adult can now get the other REAR WALL PANEL and
place it up and onto the FLOOR PANEL. As with the RIGHT SIDE PANELS,
locate the REAR WALL PANEL with the guide bracket that has the metal
knob sticking outward. It will need to be lifted up and inserted into the other
REAR WALL PANEL with the guide bracket that has the hole. Once inserted,
the wall panel will need to slide downward until the top of the two wall panels
are flush with one another. If the wall panels are tight and not sliding down
easily, you can loosen the guide and guide insert screws slightly to allow for
less tension and the wall panel will slide down easier. (see Figure 12 and 13)
Side Panel Rear Panel
Figure 12 Figure 12a
Figure 13
Page 13

5. Installing the LEFT SIDE PANELS
a. Place the first of the two LEFT SIDE PANELS up and onto the FLOOR
PANEL. Again, note the trim molding on the FLOOR PANEL that will insert
into the bottom of the wall panels. Pay special attention to the external buckle
in Figure 8 with reference to the wall panels. Once the first of the two LEFT
SIDE PANELS has been placed onto the FLOOR PANEL and the trim
molding on the FLOOR PANEL is inserted, use the external buckles to attach
the LEFT SIDE PANEL to the REAR WALL PANEL. An adult can now lift the
second of the two LEFT SIDE PANELS up and onto the FLOOR PANEL. In
addition, the LEFT SIDE PANEL with the guide bracket that has the metal
knob sticking outward will need to be lifted up and inserted into the other
LEFT SIDE PANEL with the guide bracket that has the hole. Once inserted,
the wall panel will need to slide downward until the top of the two wall panels
are flush with one another. If the wall panels are tight and not sliding down
easily, you can loosen the guide and guide insert screws slightly to allow for
less tension and the wall panel will slide down easier. (see Figure 14 and 15)
Figure 14 Figure15
6. Installing the FRONT WALL PANELS
a. Place the FRONT WALL PANEL with the glass door up and onto the FLOOR
PANEL. Again, note the trim molding on the FLOOR PANEL that will insert into
the bottom of the wall panels. The FRONT WALL PANEL will need to be
placed up against the LEFT SIDE PANEL. You will need one adult on the
interior of the sauna room and one adult on the exterior to assist in lifting the
LEFT SIDE PANEL upward. The LEFT SIDE PANEL will need to be lifted to
attach the two wall panels together using the guide and guide inserts. Once
inserted, the wall panel will need to slide downward until the top of the two wall
panels are flush with one another. If the wall panels are tight and not sliding
Page 14

down easily, you can loosen the guide and guide insert screws slightly to allow
for less tension and the wall panel will slide down easier. Attach the final
FRONT WALL PANEL by lifting the wall panels that have the metal knob
sticking outward and inserting it into the wall panel that has the guide bracket
with the hole. Once inserted, make sure the top of the wall panels are flush.
Install the door handle to the glass door with the natural side on the interior and
the finished side on the exterior. (see Figure 16)
Please note that the black
protection corners used to
protect the corners of the glass
door can be removed and
discarded once the sauna has
been assembled.
Figure 16
7. Placing the removable BENCHES Inside the Sauna
a. This model sauna is also designed for yoga. If yoga is to be performed
within the sauna room, the benches should not be installed. In addition
and if a yoga floor mat is to be used, do not connect the cords for the
floor heat emitters.
b. Before placing the benches inside of the sauna, you will need to locate the
short heat emitter cords from the Accessory Box. These cords are labeled and
will connect the floor heat emitter panels to the FRONT WALL and RIGHT
SIDE WALL. If you do not want the floor heat emitters to operate, you do not
need to install these cords. See Figure 11. Next, you can place the benches
inside of the sauna. (see Figure 17 and 18)
Figure 17 Figure 18
Page 15

8. Installing the ROOF PANEL
a. Note that the roof panel comes in two pieces. The roof panel that has a single
power supply will go towards the front of the sauna. The side with the actual
power supply will go towards the front/right corner of the sauna. The roof panel
that has two power supplies will go towards the rear of the sauna with the
ceiling vent at the rear of the sauna. Carefully lift one of the roof panels up and
over the sauna room. Gently sit the roof panel on top of the sauna room. Next,
carefully lift the second of the two roof pieces and lift it up and over the sauna
room. Gently sit it on top of the sauna room. (see Figure 19)
b. Connect the wire harnesses/cord connections to the respective labels. (see
Figure 20 through 23)
Power Supply
Power Supply
Power Supply
Figure 19 Front of Sauna
Figure 20 Figure 21
Figure 22
Figure 23
Page 16

9. Installing the TEMPERATURE SENSOR
a. Enter the sauna and remove the protective covering (tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is
vertical, pointing downward. (see Figure 24)
Figure 24
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in
case the TEMPERATURE SENSOR is damaged in transit. The manufacturer
decides this according to sauna models and packaging.
10. Installing the ROOF COVER
a. Installing the ROOF COVER is optional. The ROOF COVER will be in
several pieces. You will use the circular holes to run the power cords
thorough. The areas of the ROOF COVER with the vent cutouts should be
placed near the power supplies. Use care when pulling the power cords
through the holes in the ROOF COVER. Once the ROOF COVER is in
place, you can use the short screws to screw it down. (see Figure 25)
Figure 25
Page 17

11. Installing the Ramp (can be purchased separately as an accessory)
a. The optional wheelchair ramp can be placed in front of the door of the sauna.
It must be placed close and butted up against the exterior side of the FRONT
WALL PANEL. The smaller triangular ramp will need to be placed close and
butted up against the interior side of the FRONT WALL PANEL. (see Figure 26
and 27)
Figure 27 (interior view)
Figure 26 (exterior view)
When using the accessible wheelchair ramp, care and caution should be used when
rolling the wheelchair up and into the sauna. Be sure to keep the wheelchair in the
middle of the ramp when entering/exiting the sauna to avoid falling off the edge of
the ramp.
Operating the Sauna
NOTE: Before the sauna is turned on, remove plastic protective covering from the
CONTROL PANELS and the black plastic corners on the glass door. Please check
and confirm that the connections to the POWER SUPPLY(includingthepowercord),
HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected
properlyandaresnugandtight. The power supply voltage and frequency must
match the requested voltage and frequency of the sauna (120VAC 15AMP
Dedicated Circuit or 120VAC 20AMP Dedicated Circuit). Please consult a certified
electrician for any electrical modifications or repairs.
Page 18

Since many materials absorb the infrared rays, minimal clothing is recommended
for maximum effect. The infrared sauna emitters are designed to heat you and not
necessarily the air inside the sauna. It is not a hot box like a traditional sauna. The
temperature gauge is a guide for your safety. It is recommended that you drink
water before, during, and after sauna use to prevent dehydration since body fluids
will be lost through perspiration. It is not recommended to shower immediately
after use since the pores in your skin will be open and could possibly absorb
anything in the water. In addition, it is not recommended to use scented oils as
once the specific fragrance scent absorbs into the wood, it is extremely difficult to
remove that scent before switching to a different fragrance scent.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.
Control Panel
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main power
Work Start/Stop: Press to control the working functions of the
sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature of
the sauna room in
0
C/
0
F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0
C/
0
F
1. Plug the sauna into the wall outlet.
2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY
will show 90 (minutes), the TEMPERATURE DISPLAY will show 1510F / 660C, and
the control panel will flash.
3. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you
want the sauna to remain on. Press the C/F button to choose between Celsius and
Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust
the temperature setting. Once you have set these adjustments to the desired settings,
press the START/WORK button. If you do not press the button for 5 seconds, the
control panel will stop flashing and the set-up values will be memorized. The WORK
and HEAT lights will now be on and the emitters will now be generating heat. You can
Page 19
