GoldenDesigns GDI-6273 User manual

GDI-6273
2 Person Sauna
Owner’s Manual
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15AMP
DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-6273
*The above assembly
diagrams are quick reference visual guides only . All sauna
models are not shown . Model types, parts, and accessories may vary.

1
WHAT ARE INFRARED RAYS?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we
can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared
segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process
is called conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5
microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only
far infrared penetrates organic substances such as the human body two to three inches so that the
warming effect is very uniform.
X R a y s
Cosmic R a y s
Infrared R a y s
Gamma R a y s
UV R a y s
Wavelength (in microns )
0.76 1.5 5.6 1000
Near
Ir
M iddle
Ir
FarInfrared R a y s
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint
problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is one of the
fundamental forces of nature. The field can be viewed as the combination of an electric field and a magnetic
field. The electric field is produced by stationary charges and the magnetic field by moving charges referred
to as currents. Although all of our sauna products have been developed to have low EMF, this specific
model uses our advance carbon panel technology which significantly reduces the amount of EMF exposure
resulting in ultra-low EMF or less than 3 milligauss (mG).

2
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.
Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.
Traditional Infrared
BENEFITS
Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.

3
Benefits include, but are not limited to:
- Pain relief from Rheumatoid Arthritis
- Relaxing muscle spasms
- Increasing blood circulation
- Cardiovascular conditioning
- Clears rashes, acne
- Reduces cellulite
- Removes toxins and mineral waste
- Reduces stress and fatigue
- Enhances skin tone
SAUNA MAINTENANCE
Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning
chemicals as they can be absorbed into the wood and be released into your sauna during use.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.
CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.

4
TABLE OF CONTENTS
Product Introduction 4
Parts Description 5
Assembly Instructions 9
Operating the Sauna 19
Tips for Using Your Sauna 21
Safety Instructions 21
Safeguards for Your Sauna 22
Troubleshooting Guide 23
Warranty 25
Warranty Card 27
WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any
excessive vibrations during transport could cause damage to the heating elements. DO NOT START
the sauna if damage is detected! Contact your dealer or manufacturer for troubleshooting and
replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FRONT PANEL, REAR PANEL, LEFT SIDE PANEL, RIGHT SIDE PANEL, BENCH,
BENCH EMITTER PANEL, FLOOR PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna
comes with control panels, a drink shelf, a reading lamp, and infrared heat emitters.
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary.

5
PARTS DESCRIPTION
A.FRONT OF SAUNA (see figure 1)
B.INSIDE OF SAUNA (see figure 2)
Figure 1 Figure 2
1) Control Panel
2) Door Handle
3) Tempered Glass Door
4) Speaker
5) Temperature Sensor
6) Ventilation Grid
7) Back Protection
Grid
8) MP3 Auxiliary
Socket
(optional)
9) Bench Panel
10) Backrest
(optional)
11) Heat Emitter
12) Floor Panel
Heat Emitter

6
I. Power Supply
The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and
has input/outputs connected to it as seen below. (see figure 3)
Figure 3
MAIN POWER
main power of the sauna room
HT1, HT2, HT3, HT4 emitter power output cords
LIGHT reading lamp power output cord
CTRL control panel connection
CD/SIG signal cable group
II. MP3 Auxiliary Socket (optional)
The MP3 Auxiliary Socket allows you to connect a musical device (with an auxiliary out function) to the
speakers for your listening pleasure. Saunas equipped with a FM/CD Player will not have this option.
(see figure 4)
Figure 4

7
III. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
CTRL Control panel connector
CD/SIG For CD/temperature sensor/buzzer/etc. connectors
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
TEMP SENSOR Temperature sensor
BUZZER Buzzer connector
MP3 AUX INPUT MP3 /radio connection
IV. Buckles
A. External Buckles
The buckles are used to connect the LEFT and RIGHT SIDE PANELS to the REAR PANEL.
(see figure 5)
Figure 5
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL to the RIGHT SIDE
PANEL and the LEFT SIDE PANEL. (see figure 6)

8
Figure 6
V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When the floor panel faces upward, you will find that the edges are raised which the wall
panels will rest on and up against. The rear and front of the floor panel is longer than the
sides. Please note this before you began assembling the wall panels. (see figure 7)
Figure 7
B. Understanding The Difference Between The Top And Bottom Of The Wall Panels
The (4) panels are in the upright position when the heater cords are at the top. Place the heater
cords to the outside of the sauna room before the roof is placed on top of the unit. These heater
cords will be connected once the roof panel is placed on top of the sauna room. (see figure 8)
Figure 8

9
C. Rear Panel
The REAR PANEL has the two heat emitter panels side-by-side. The REAR PANEL will be slightly
warped. This allows for a snug and tight fit once the sauna room is assembled. (see figure 9)
Figure 9
D. Understanding The Difference Between The Inside And Outside Of The Rear Panel
You will find the heat emitter panels on the inside of the rear panel.
Assembly Instructions
A. Choose a good location to install the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Rear Panel Right Side Panel Left Side
Panel Front Panel Roof Panel Floor Emitter Bench Emitter Panel Bench Roof
Cover
5. Tools Required: Philips Screwdriver and Ladder
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Some models have wood braces that must be installed on
the underside of the FLOOR PANEL. Please check to see if such wood braces were packed in the
box containing the FLOOR PANEL. If so, mount according to the designated labels located on the
underside of the FLOOR PANEL. If there are no labels present on the underside of the floor panel,
then disregard mounting any wood braces as your model does not have any. Once installed, turn the
FLOOR PANEL right side up. Make sure the front and rear of the FLOOR PANEL are longer than the
sides. (see Panel Descriptions)

10
C. Installing the REAR PANEL and SIDE PANELS
1. Remove the protection paper (tape) from the buckles. Place the REAR PANEL onto the recessed
area on the FLOOR PANEL. The bottom of the wall panels will rest on and up against the FLOOR
PANEL like a puzzle. Next, attach the REAR PANEL to the SIDE PANELS and buckle them
together. (see figure 10)
Figure 10
D. Installing the FRONT PANEL
1. Place the FRONT PANEL onto the recessed area on the FLOOR PANEL. The RIGHT SIDE
PANEL and LEFT SIDE PANEL will need to be raised slightly, inserted into the FRONT PANEL,
and then pull downward. This can be done one side at a time with two adults, one on the right side
and the other on the left side of the sauna room. (see figure 11)
Figure 11

11
E. Installing the ROOF PANEL
1. The side with the power supply faces up.
2. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the
cords/wires coming from the FRONT PANEL, REAR PANEL, and SIDE PANELS when you set
the ROOF PANEL down onto the wall panels. Feed the cords/wires through the holes in the
ROOF PANEL. .
3. Be careful not to force the ROOF PANEL into place. Make sure that the cords/wires are properly
fed through the holes. (see figure 12)
4. When all the wires are fed through their appropriate holes, lower the ROOF PANEL into place.
5. Optional: The four screws taped to the four sides of the ROOF PANEL are used to mount the
ROOF PANEL to each of the wall panels.
Figure 12
F. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to the respective labels. (see figure 13 –15)
2. Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then
screw together.
3. Connect the buzzer connection. (see figure 16)

12

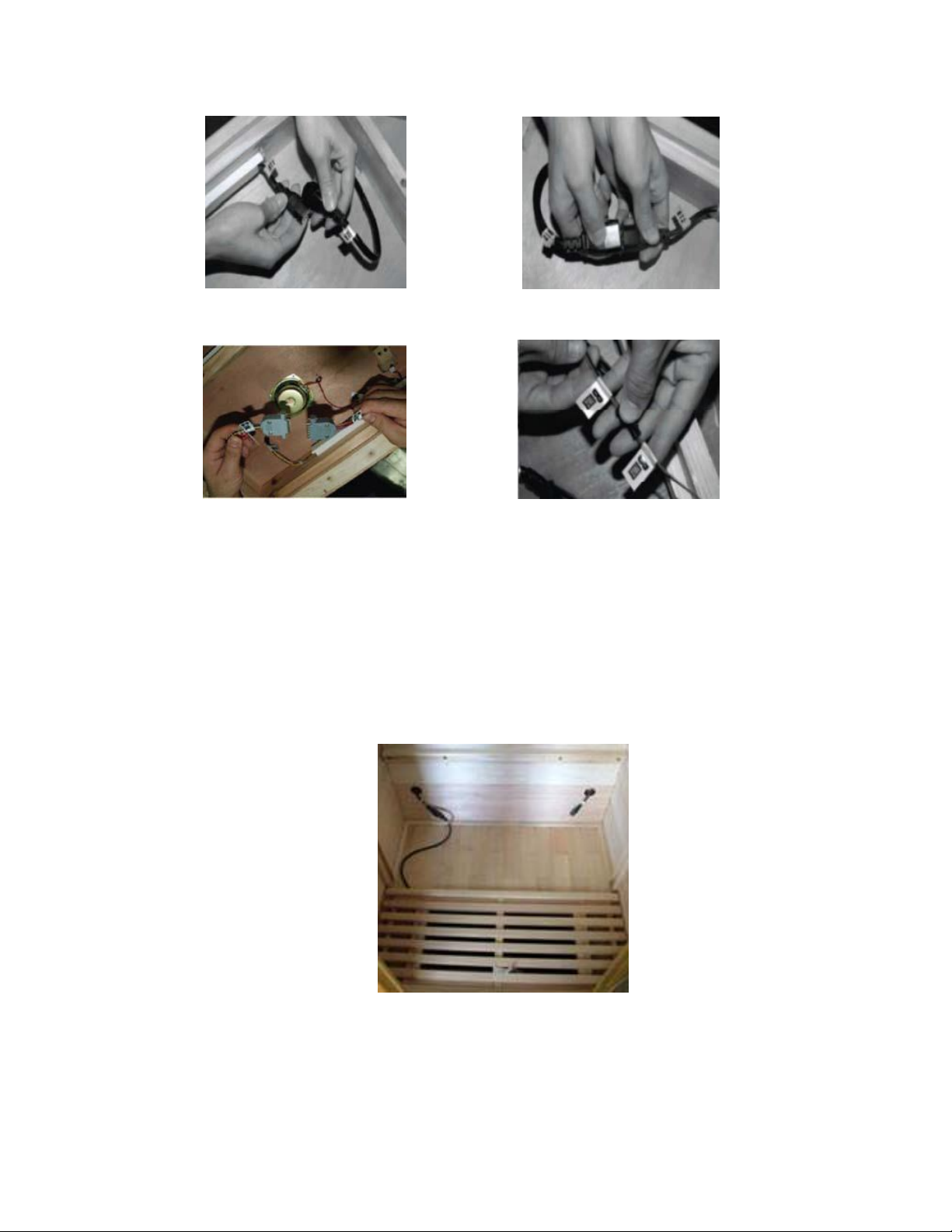

Figure 13 Figure 14
Figure 15 Figure 16
G. Installing the FLOOR EMITTER PANEL
1. Place the FLOOR EMITTER onto the floor as seen in the Figure below. The heater cord can
be connected into the REAR WALL. It is optional if you would like to mount the FLOOR
EMITTER PANEL to the floor using the provided screws. (see figure 17)
Figure 17

13
H. Installing the BENCH EMITTER PANEL and BENCH
1. Slide down the BENCH EMITTER PANEL by lining up its sides with the vertical guides on each
side panel. The emitter grid will face outward. Push the BENCH EMITTER PANEL all the way
down until it is touching the FLOOR PANEL and is secured in place. The FLOOR EMITTER
cord will fit through the notch on the bottom of the BENCH EMITTER PANEL.
2. Plug in the BENCH EMITTER connector into the REAR PANEL. (see figure 18)
3. Install the BENCH by sliding it over the horizontal bench guides on the side panels. Push the
BENCH all the way in until it touches the REAR PANEL and is secured in place. Make sure to
Install the BENCH with the smooth and finished side facing up. It is optional if you would like to
mount the bench using the provided screws.
Figure 18
I. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.

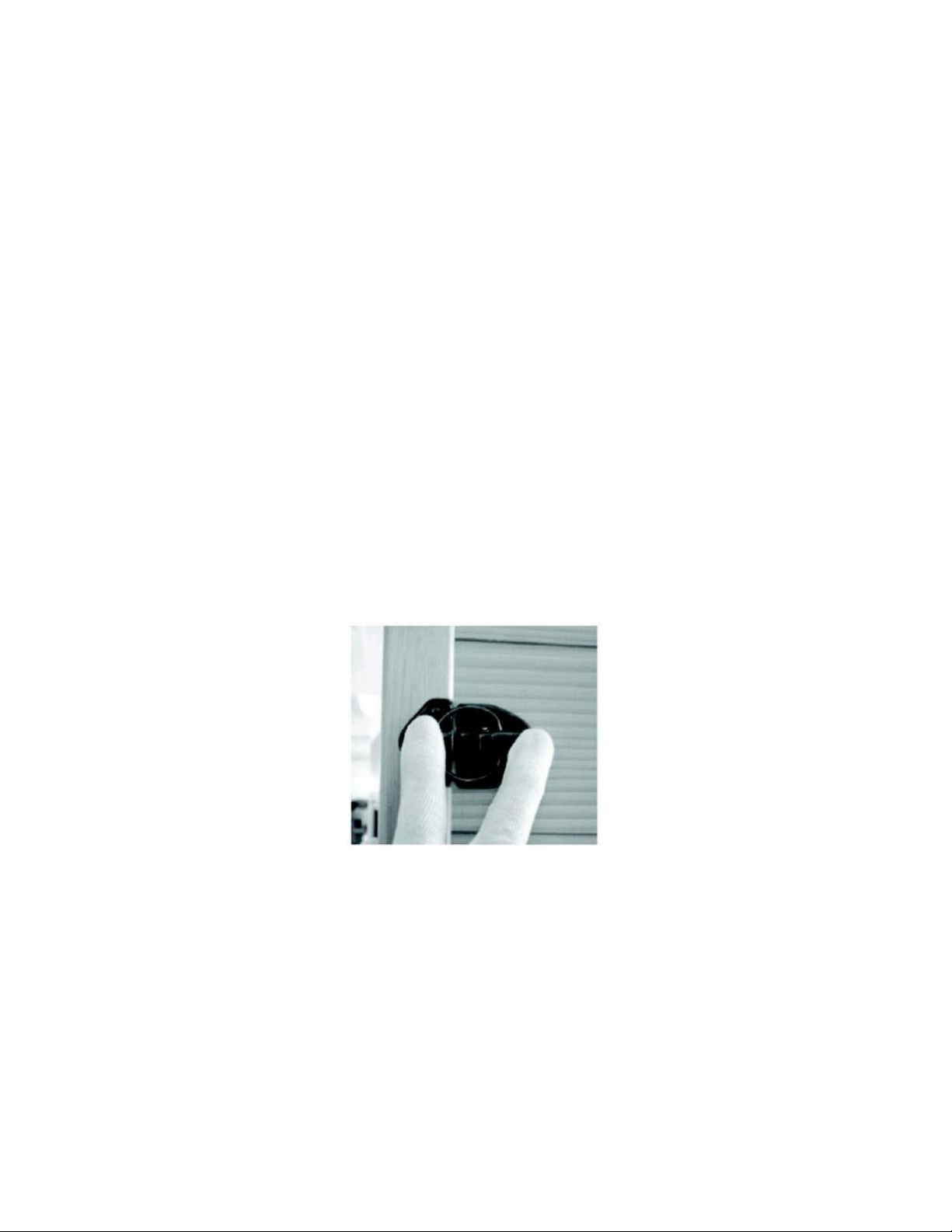

Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see figure 19)
Figure 19
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the
TEMPERATURE SENSOR is damaged in transit. The manufacturer decides this according to
sauna models and packaging.

14

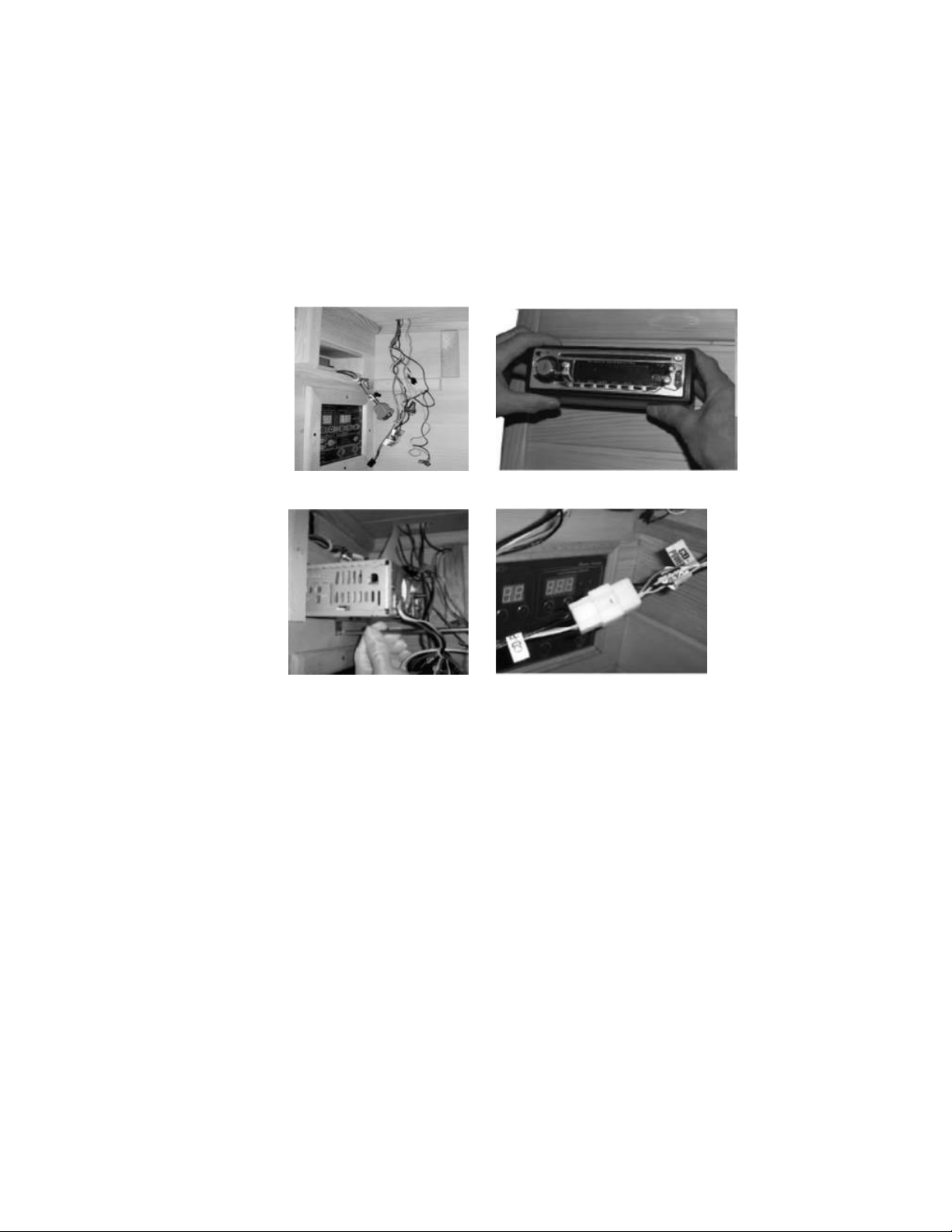

J. Installing the Radio (optional accessory)
1. Remove the two screws from the top of the CD player and discard. Put in the CD/radio from
the outside. (see figure 20 and 21)
2. Attach the bracket using the screw provided. (see figure 22)
3. Plug in the CD/radio power. (see figure 23)
4. Attach the L/speaker and R/speaker connections.
5. Plug in the CD/radio antenna connector.
Figure 20 Figure 21
Figure 22 Figure 23

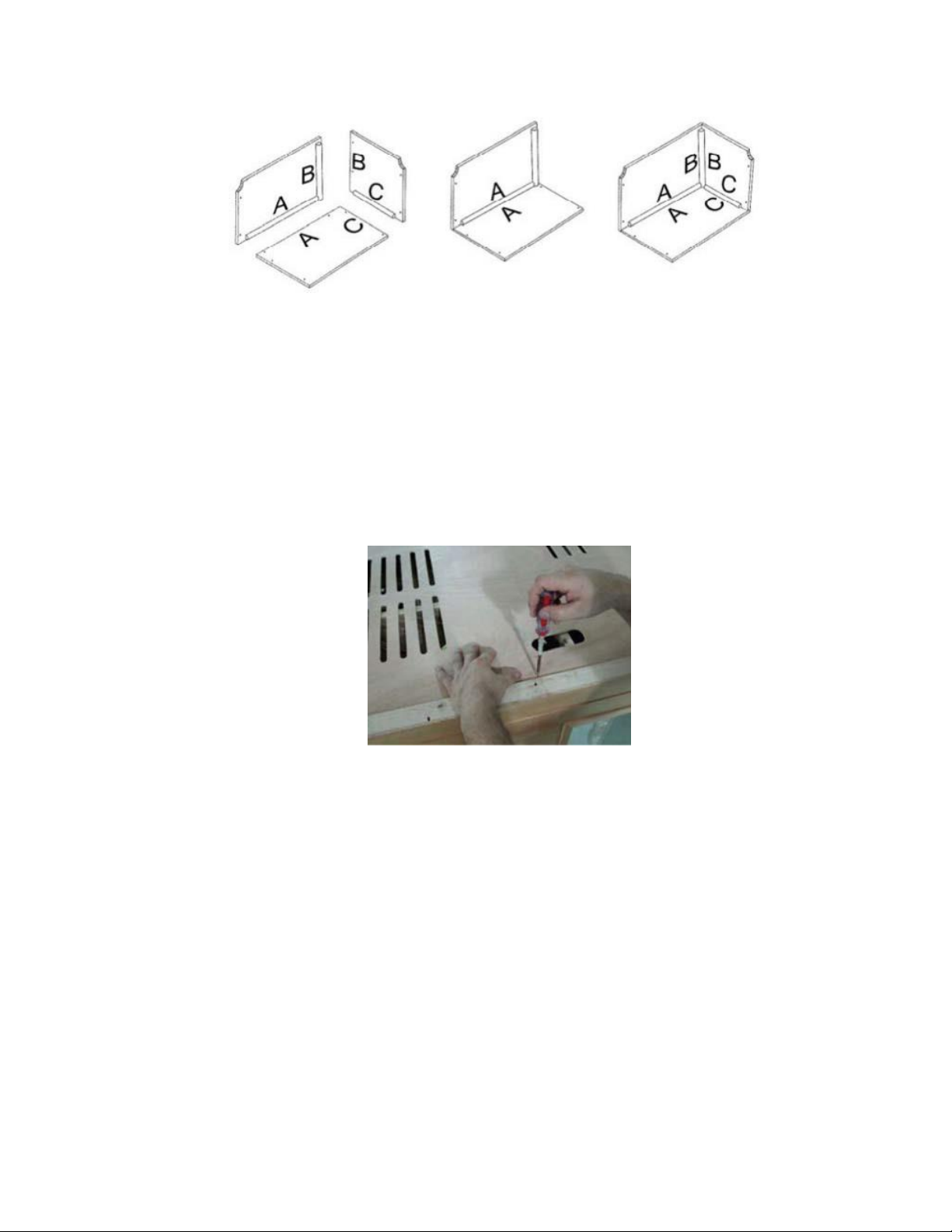

K. Assembling the RADIO BOX (optional)
1. Locate the wood sides for the CD/Radio housing. There is one for the front, side, and
bottom. (see figure 24)
2. Attach “A” on side panel with “A” on bottom panel and insert screws. (see figure 25)
3. Attach “B” on front with “B” on side panel and “C” on front panel with “C” on bottom panel and
insert screws. (see figure 26)
4. Screw the RADIO BOX to the BACK PANEL. The back opening on the RADIO BOX will
face the FRONT PANEL.

15
Figure 24 Figure 25 Figure 26
L. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Becareful when pulling the power cord through
the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the
edges are aligned, screw the ROOF COVER to the roof panel. (see figure 27)
Figure 27
M. Optional Accessories
1. If your sauna comes with the optional MP3 shelf, magazine rack, cup holder shelf, or towel
rack, use the provided screws and mount according to designated labeled locations. The
optional backrest can lean directly up against the heat emitter panels. (see figures 28 - 32)

16
Figure 28 (MP3 Shelf) Figure 29 (Magazine Rack) Figure 30 (Cup Holder Shelf)
Figure 31 (Towel Rack)
Figure 32 (Backrest)

17

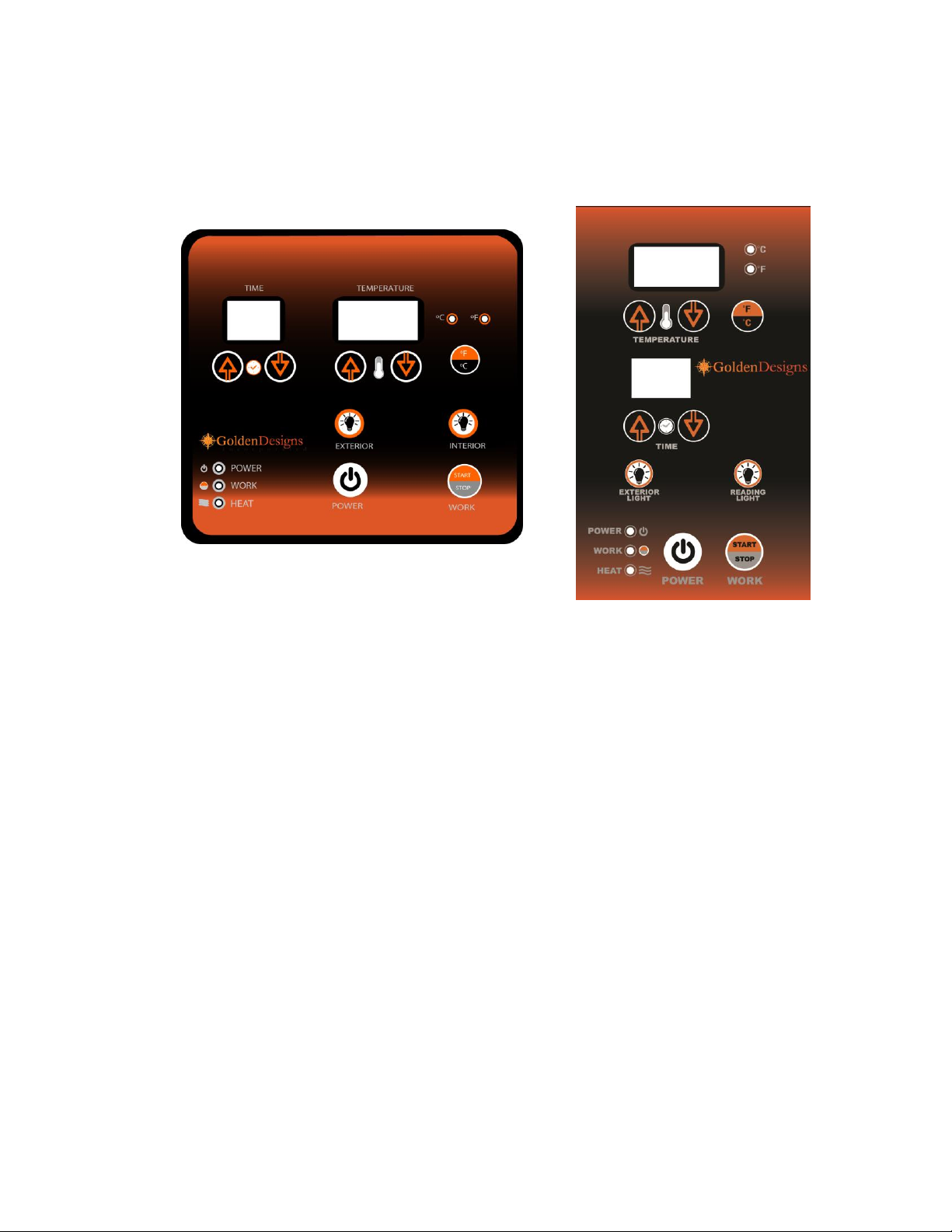

STANDARD CONTROL PANELS
Power On/Off: Press to control the main power of the sauna
Indicator: Indicates the status of the sauna’s main power - “POWER”,
“WORK”, & “HEAT”
Start/Stop: Press to control the working functions of the sauna
Indicator: Indicate the working status of the sauna
Heat Indicator: Indicate the status of heating function
Light: Press to control the lighting function
Time Display: Display the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Display the actual interior temperature of the sauna room in C/F
Temperature: Press to adjust the temperature setting
C/F: Press to change the temperature display between C/F

18

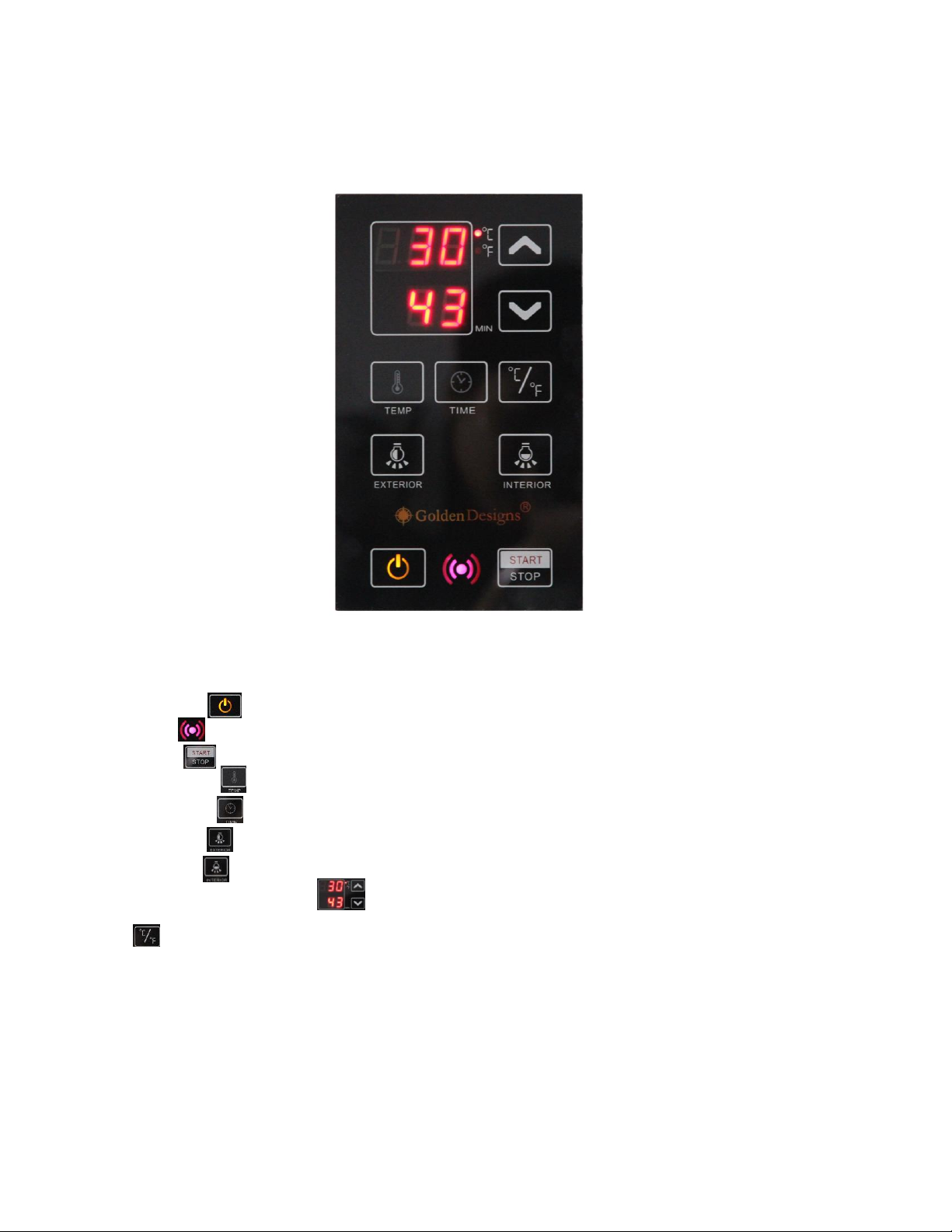

UPGRADED CONTROL PANEL (Optional Upgrade On Some Models)
Power On/Off : Press to control the main power of the sauna
Indicator : Indicates the working status of the sauna
Start/Stop : Press to start/stop the working functions of the sauna
Temp Indicator : Press to select the temperature adjustment mode
Time Indicator : Press to select the time adjustment mode
Exterior Light : Press to control the exterior lighting
Interior Light : Press to control the interior lighting
Time & Temperature Display : Displays the heating time and temperature of the sauna / Press
the arrows to adjust the heating time and temperature
C/F : Press to change the temperature display between Celsius and Fahrenheit
