GoldenDesigns GDI-8105-01 User manual

GDI-8103-01 / GDI-8105-01
3 and 5 Person Steam Saunas
Owner’s Manual
SAUNA IS FOR OUTDOOR USE
120VAC 15AMP Outlet Required for both models
GDI-8103-01 - 240VAC 30AMP Circuit Required
GDI-8105-01 - 240VAC 40AMP Circuit Required
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and future
reference. Follow your local codes and ordinances. The heater must be installed by
a certified licensed electrician per the manufacturer’s manual. The heater must be
installed per the electrical code in your area with reference to the breaker and wire
sizes. Models are subject to change.

2
Thankyouforyourpurchase. As you remove the parts from the boxes, be sure to examine
them for damages. If your unit has any damages or missing parts, please contact Golden
Designs Inc. See the Warranty section for more information.
A Certified Licensed Electrician will be needed to install the electrical wiring. Due to the
heat of the sauna, it is required that copper wire with 90oCelsius rating be used. Aluminum
wiring cannot be used in this application. Consult with your electrician regarding the
electrical requirements in your area. All wiring must be in accordance with all national,
state, and local codes and regulations. Your electrician will supply the needed wiring and
connections.
Sauna models without a specific outdoor roofing cannot be placed directly in the weather
elements. These models, if placed outdoors, can be placed under a covered structural
such as a patio. Before assembling, make sure the surface in which the sauna will be
placed on is level/dry and can support the weight of the sauna and its occupants. We
recommend a concrete base or wood deck to support the sauna. If you will be placing the
sauna directly on the ground, you must use such materials as concrete cinder blocks or
other similar supporting structure to prevent the sauna from settling into the ground over
time.
For sauna models specifically designed to be outdoors, the wood can withstand the
weather elements with proper maintenance. The outdoor model saunas were designed to
be placed in the rain and sun. Please note that the natural weathering elements will
change the color of the wood over time. For sauna models placed directly in the weather
elements, you will have some water seepage. The water seepage will not damage the
sauna and usually dries quickly when the sauna is in operation.

3
FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS.
All electrical wiring must be performed by a certified licensed electrician.
Although this manual is a universal manual, the information within this
manual is applicable to each sauna.
High Voltage Symbol: Be cautious as there is the presence of a high
voltage current that flows through the equipment!
General Caution Symbol: Be cautious as the equipment uses electrical
current that can cause serious injury.
1. Please read this Owner’s Manual thoroughly before use. This will allow the user to
become familiar with the operation of the control system. Please keep the Owner’s
Manual available for future reference. If any technical assistance or repairing is needed,
please contact the manufacturer.
2. The sauna will need to be installed outdoors. If installed outdoors and over time, water
may seep into the sauna room. When not in use and placed outdoors, a rain cover is
recommended to cover the sauna room if your model does not come with an actual
outdoor roof. Please note that water seepage will not hurt the wood and will usually dry
quickly due to the heated environment. If you want to keep the sauna completely dry,
you will need to install the sauna under a covered structure.
3. To reduce the risk of electric shock and/or fire, do not expose the control system to direct
water contact or rain. Do not open the cover to the control system as there are high
tension fittings that can be dangerous. Only dealer authorized qualified
technicians should make any needed or necessary repairs at any time.
4. Any repairs, alterations, or modifications to the control system are not authorized unless
by an approved repair technician. Any non-authorized repairs, alterations, or
modifications can lead to serious injuries and can cause the unit to work
outside its intended specification parameters.
5. Any non-authorized repairs, alterations, or modifications will void the warranty.
6. Before connecting the unit to a power source, please make sure that all wires, cords,
and connections are connected properly. If there are any concerns, please consult with
a certified electrician.
7. Make sure that the sauna is placed in a well-ventilated area. It should not be placed in
an area with other thermal-radiating objects. Make sure that the vents will not be
obstructed for proper air flow.

4
8. When the equipment is not going to be used for an extended period of time, you can
disconnect the sauna from the power source or turn OFF the dedicated circuit breaker.
9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30
seconds between powering the control system “On” and “Off” will prolong the life of the
unit.
10. Confirm that you adhere to the correct power requirements of the control system.
Connecting the control system to other than the required voltage can damage the
control system and possibly cause serious injury. It is very important that the load
parameters are consistent with that needed by the control system. Always consult with
a certified electrician.
11. Canadian Red Cedar (pertaining only to sauna models constructed of
Red Cedar) and its rich aroma can cause an extremely small percentage
of the population to have an adverse reaction known as Multiple Chemical Sensitivity
(MCS). While this is not a universally recognized disorder in the medical field, certain
consumers have an adverse physical reaction to low levels of many common chemicals
and cannot tolerate any aromatic oils, shampoos with perfumes infused or certain
herbs with natural aromas. However, for the majority of the population, Canadian Red
Cedar is the sauna wood of choice.
12. Children must use the sauna under the care of adults and only after consulting with a
medical doctor. Never play in or around the sauna.
13. The power cord and plug must be located out of the reach of children and away from
any water source. Please consult with a certified electrician for safety concerns.
14. Never insert body parts or any other objects into the heater. Never put any foreign
objects on or in the heater. Please follow the heater instructions and safety
precautions.
15. Never use or store flammable liquids/gases near or inside the sauna.
16. Never store items or objects on top of the sauna.
17. Never use the sauna or heater if the power cord is damaged. Contact Customer
Service immediately and do not use the sauna.
18. Never touch the control panel, heater parts, or any electrical parts with wet hands.
19. Never use the sauna in a weather storm.
20. Make sure that the sauna sits on a level surface and the surface can support the weight
of the sauna (when filled with users) which can exceed 1000 lbs. A concrete slab,
concrete pavers, gravel, cinder blocks, or solid wood deck is always best for outdoor
installations. In addition, be sure that the support cradles rest on cinder blocks or other
structures so as to prevent sinking/settling into the ground.
21. For every (4) hours of use, the sauna should be shut down for (1) to prevent
overheating.
22. Never complete unauthorized repairs on the sauna or the heater.
23. Never use the sauna in combination with alcohol, medication, or drugs.

5
24. Pregnant women should never use the sauna. Women should also not use the sauna
during their menstrual cycle.
25. If you have any medical condition, you must consult with your medical doctor before
using the sauna.
26. Be cautious not to over extend yourself after an intense exercise workout by using the
sauna. You can let the body cool down for 10 - 20 minutes before entering the sauna.
27. Prolonged exposure to high temperatures can cause burns. Stop using the sauna
immediately if you experience overheating, dizziness, weakness, sleepiness, or
fainting.
28. Consult with your medical doctor before using the sauna if you suffer from diabetes,
blood circulation disease, blood pressure issues, heart disease, or obesity.
29. Watch your head when entering and exiting the sauna.
30. Never clean the sauna with chemical-based cleaners or detergents. You can clean the
sauna with any non-toxic, water-based cleaners.
31. Make sure the vents are always unobstructed.
32. Being that the sauna will operate in different climates (some areas are colder than
others), it is not recommended to use the traditional sauna above 190 degrees
Fahrenheit / 88 degrees Celsius.
33. To avoid a hazard, do clean the sauna floor of all perspiration and debris after each
sauna session.

6
TABLEOFCONTENTS
Visual Assembly Diagrams 7
Parts Description 9
Dimensional Diagram 11
Screw Identification 13
Wall Panel Descriptions 15
Assembly Instructions 17
Sauna Control Panel 23
Tips for Using Your Sauna 25
Safety Instructions 25
Safeguards for Your Sauna 27
Warranty 28
Warranty Card 31
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts. The
wood is naturally resistant to the weather elements, but the weathering elements
can affect the wood over time.
PLEASE NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual models may vary. Design and construction
are subject to change. If installed outdoors and over time, water may seep between
the gaps of the construction. This would be considered normal. When not in use
and placed outdoors, a water proof cover is recommended to cover the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.

7
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

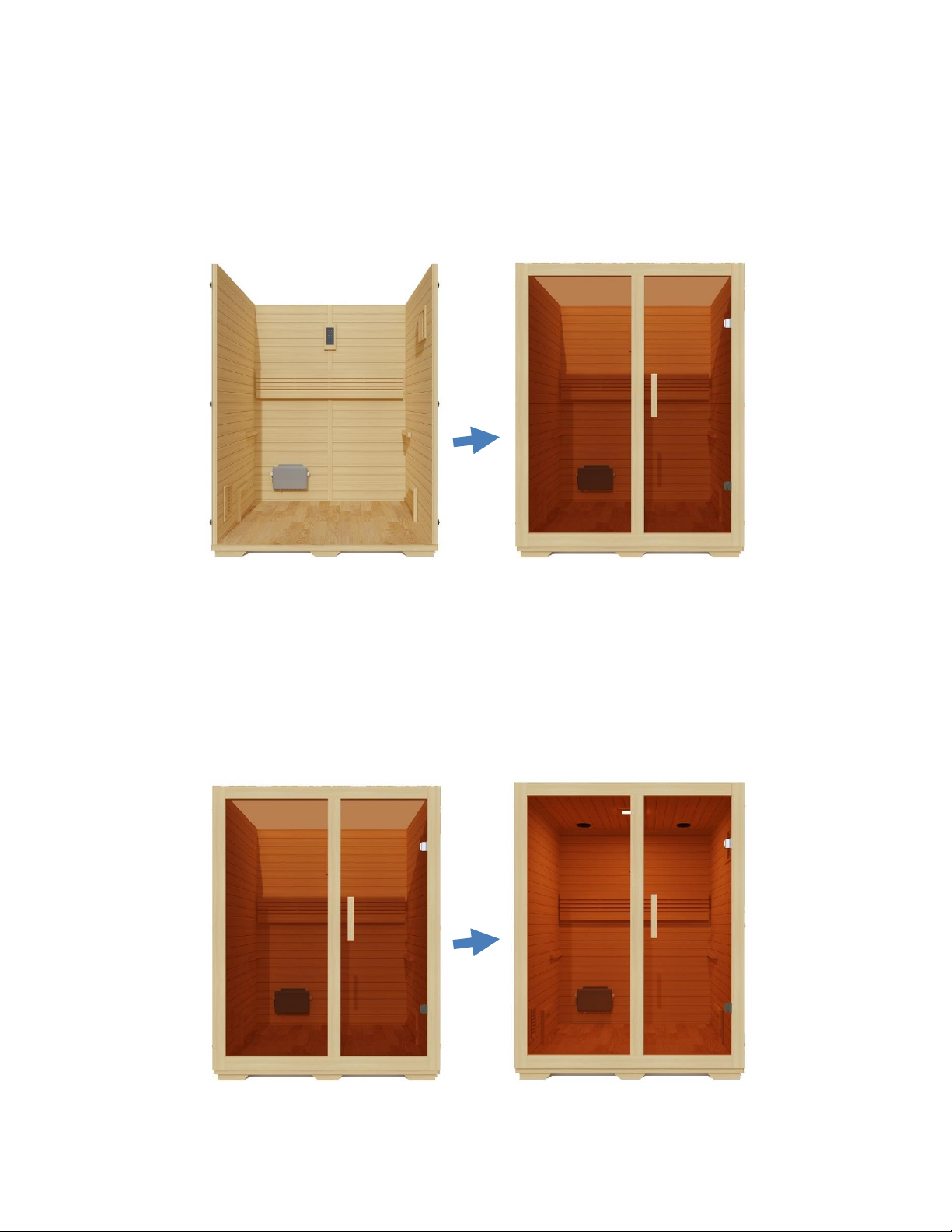

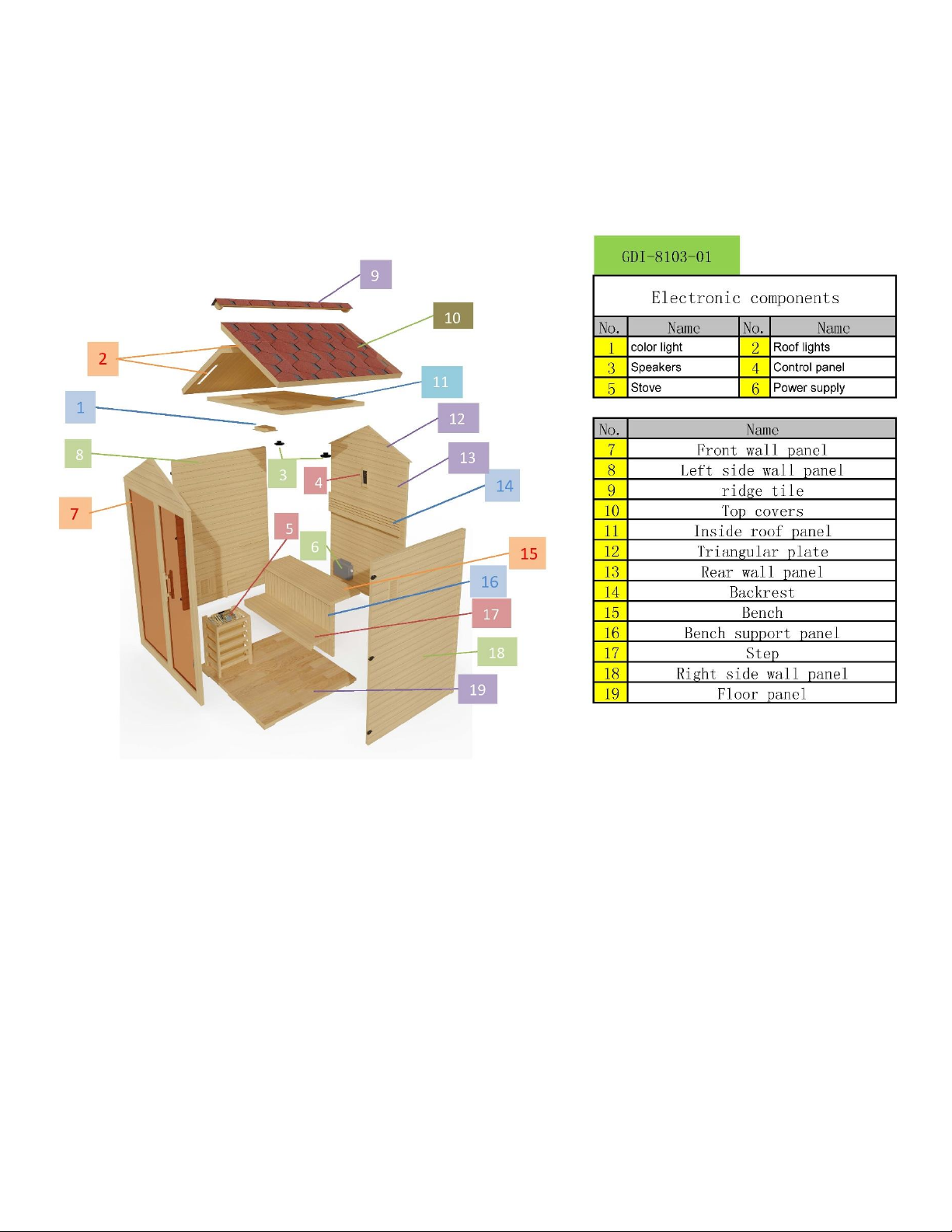

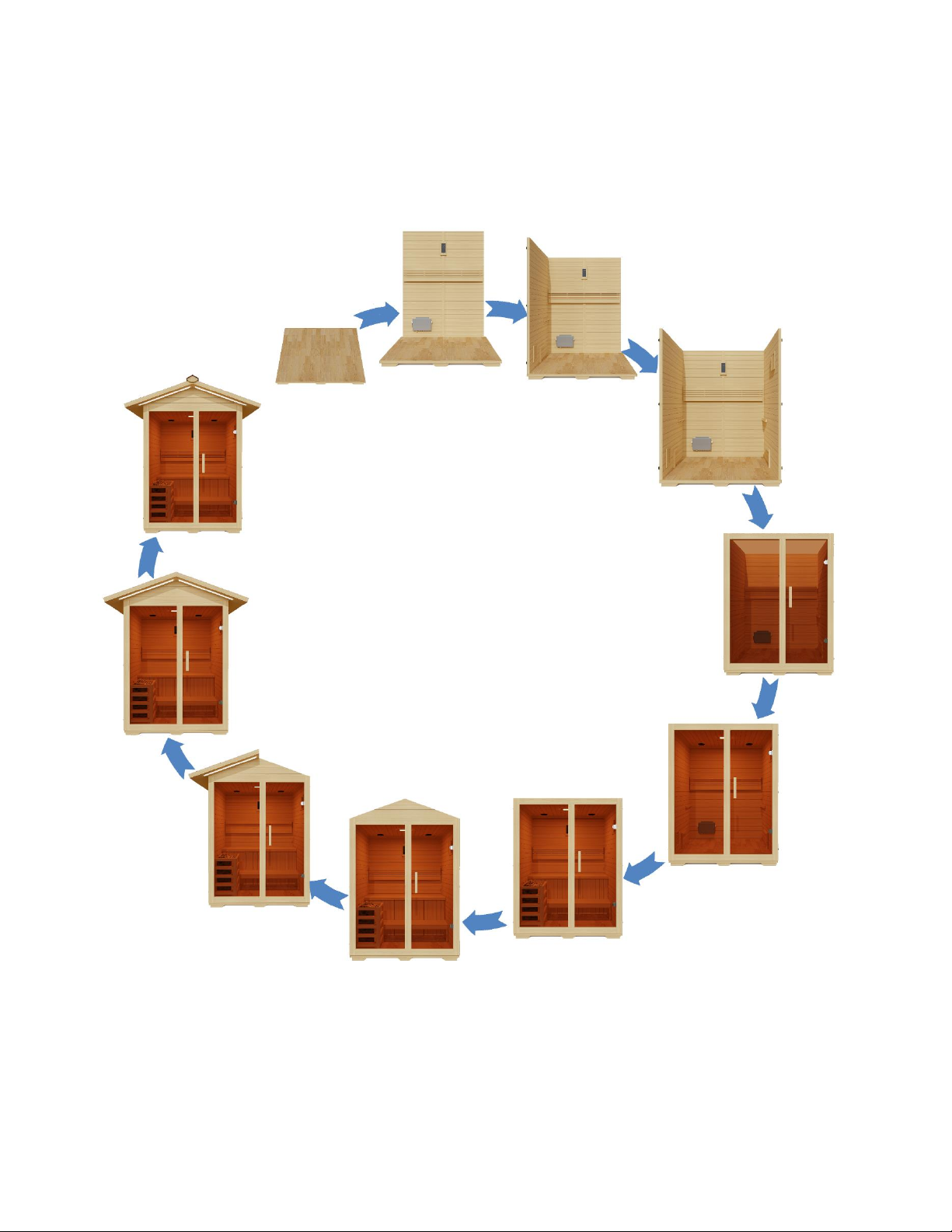

Visual Assembly Diagram
GDI-8103-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

8
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

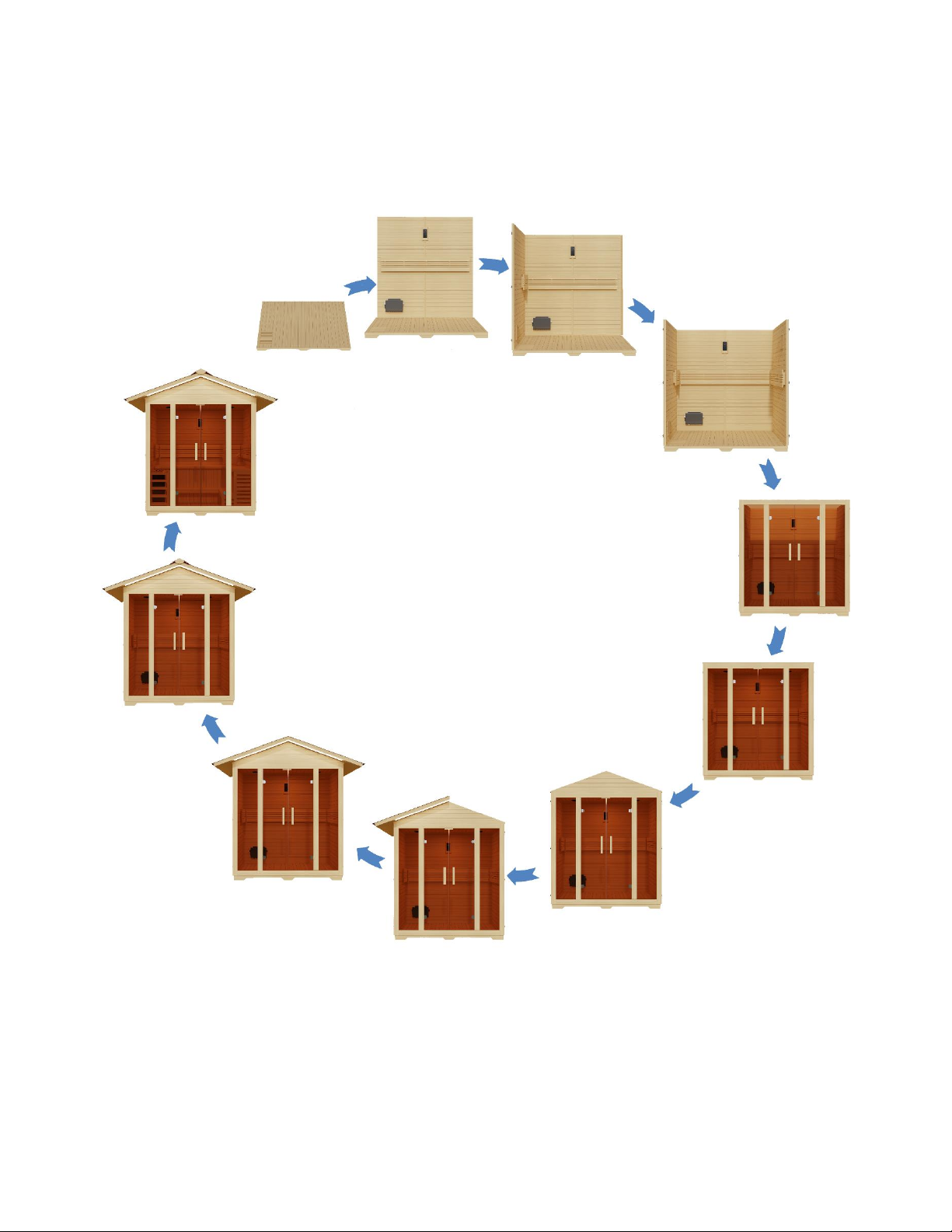

Visual Assembly Diagram
GDI-8105-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

9
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

10
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

11

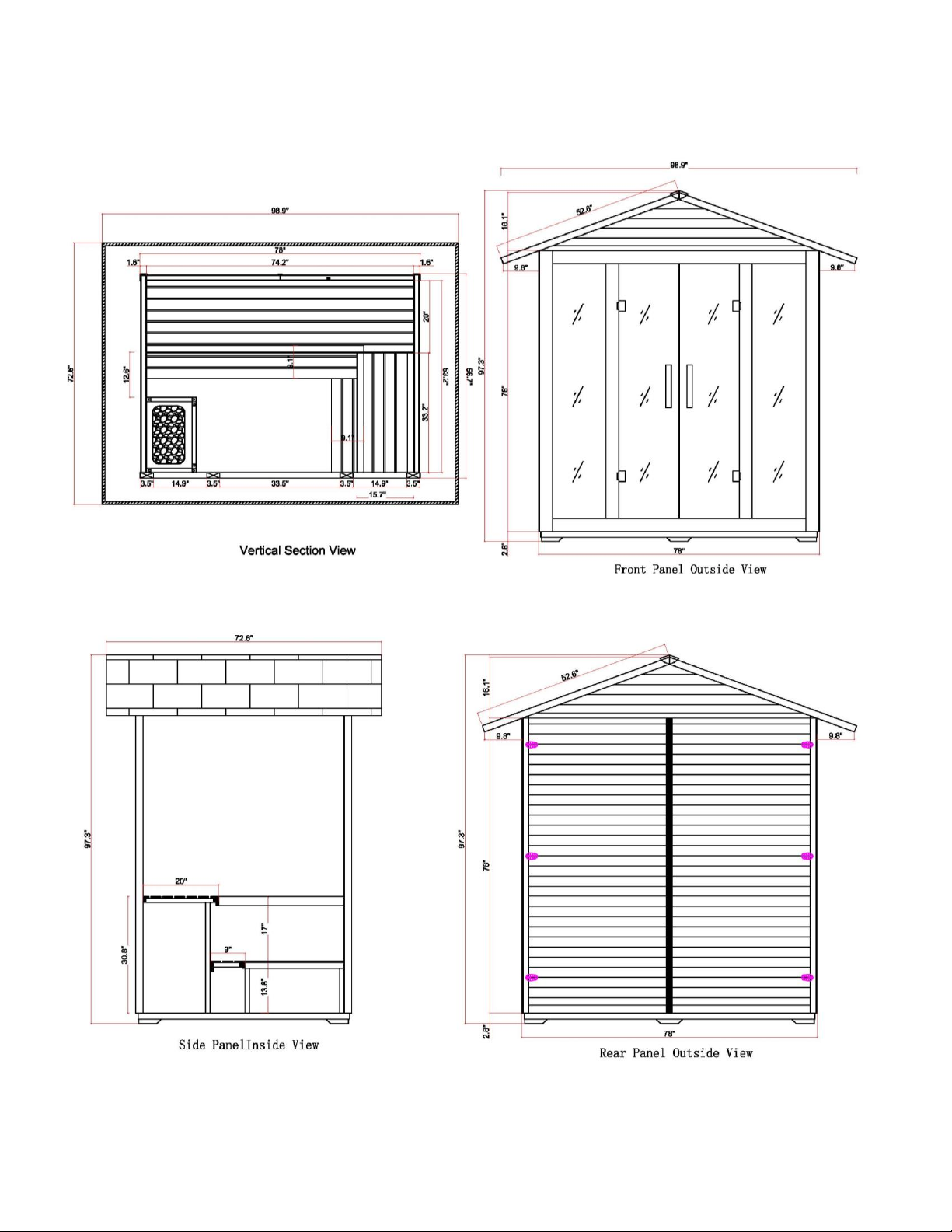

DIMENSIONAL DIAGRAM
GDI-8103-01

12
DIMENSIONAL DIAGRAM
GDI-8105-01

13

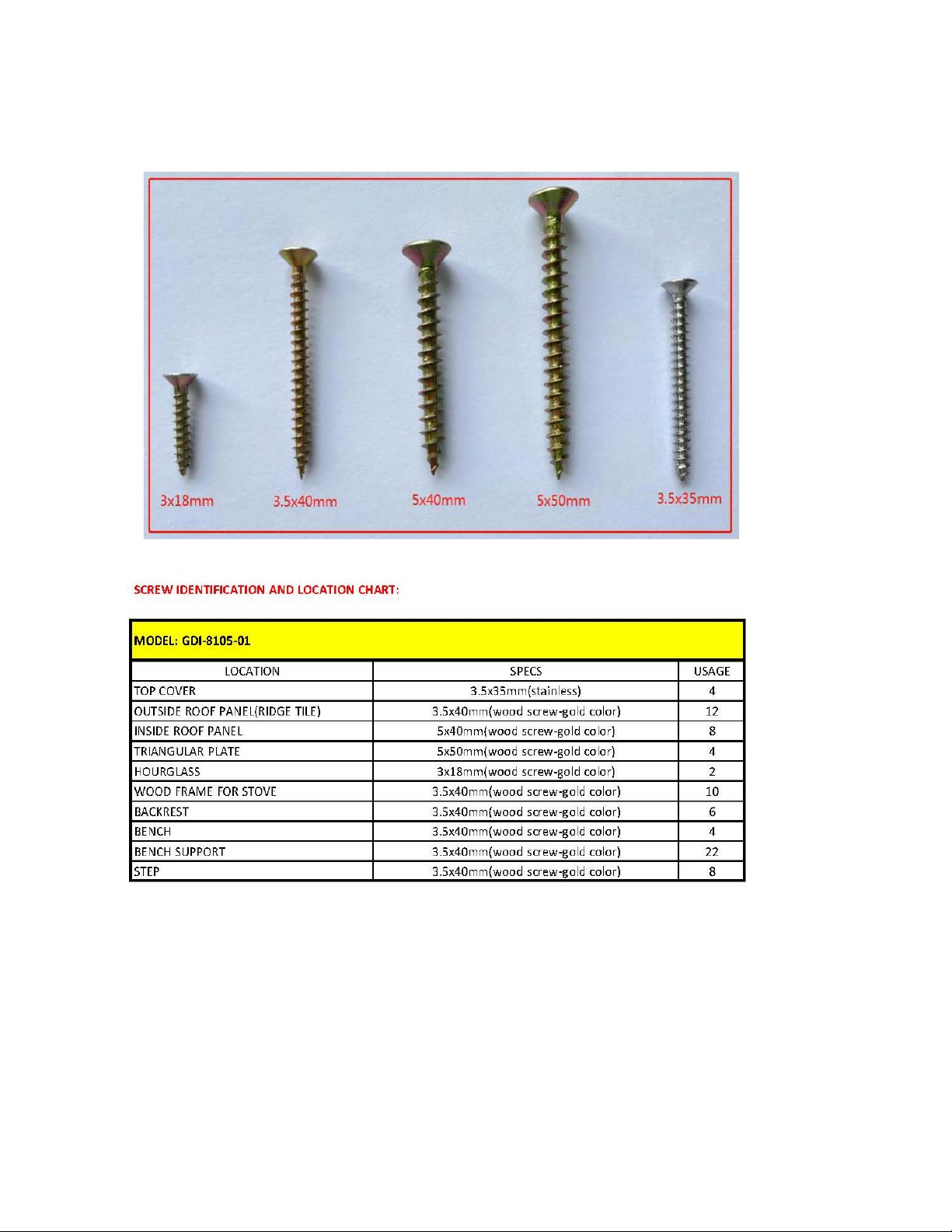

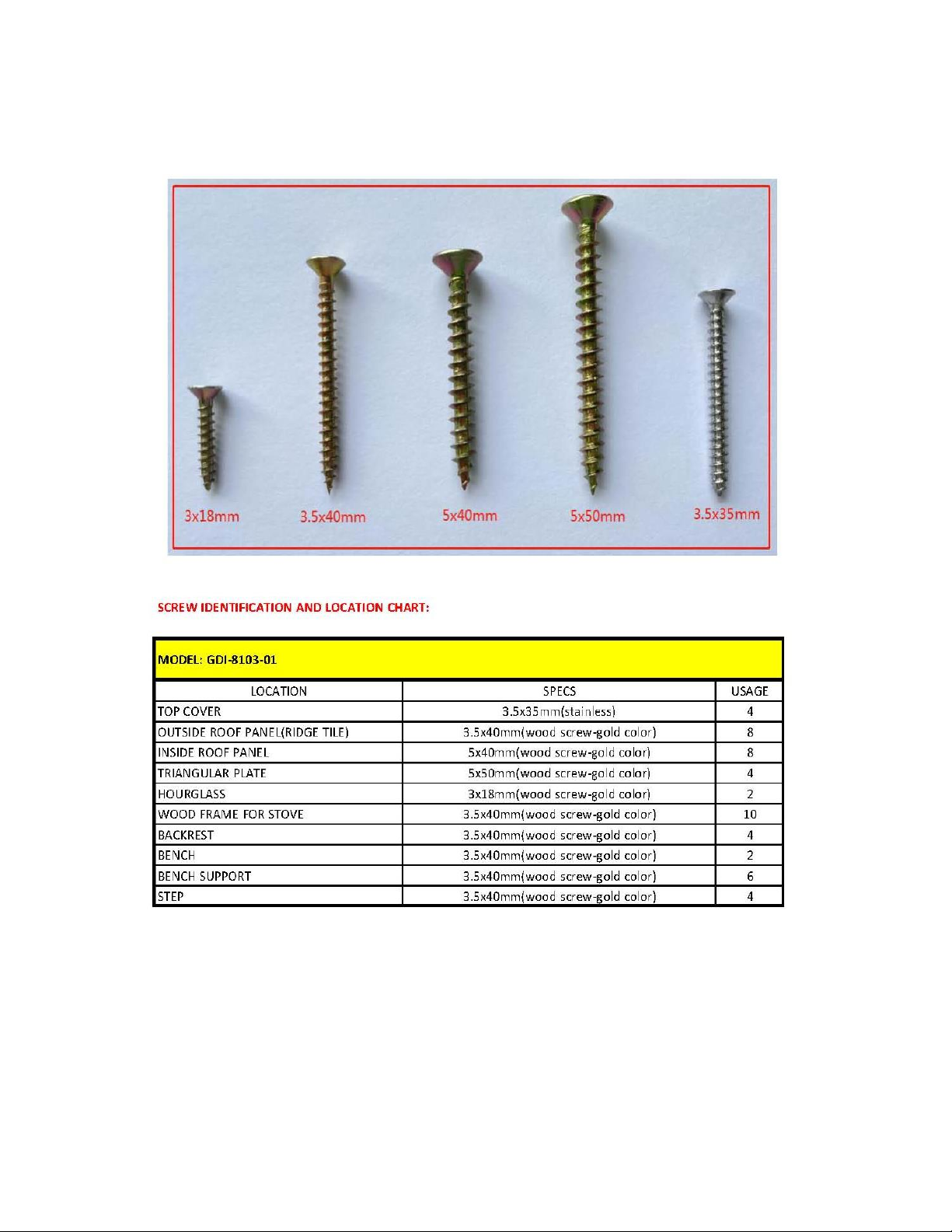

Screw Identification Chart

14
Screw Identification Chart

15

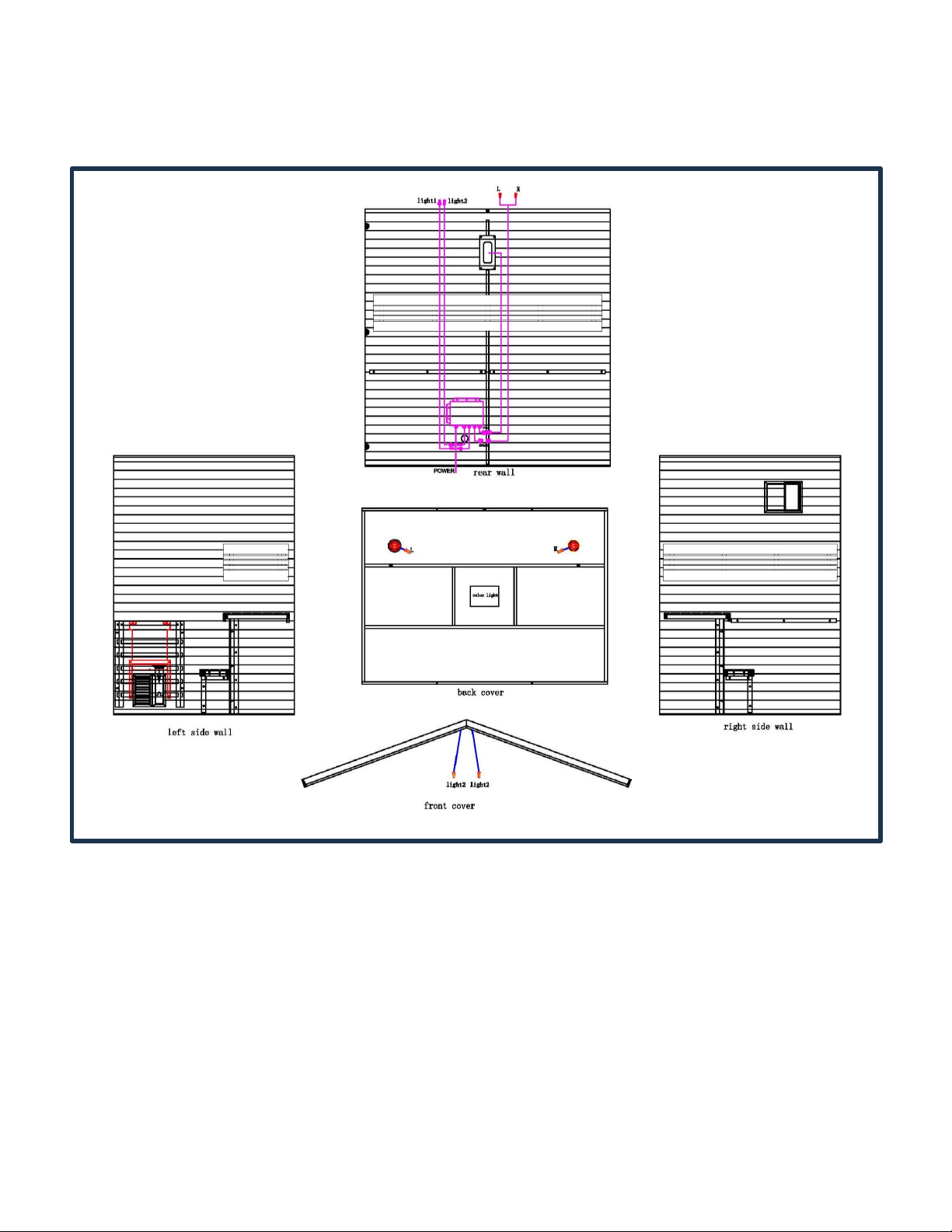

Wall Panel Descriptions for GDI-8103-01
NOTE: The pictures and diagrams shown above/below are for representational
purposes only. Actual model may vary. Parts subject to change.

16
Wall Panel Descriptions for GDI-8105-01
NOTE: The pictures and diagrams shown above/below are for representational
purposes only. Actual model may vary. Parts subject to change.

17
Assembly Instructions
A. Choose a good location to install the sauna
1. The location must be dry, leveled, and away from any source of water.
2. The heater must be installed by a certified electrician.
3. Three adults are required for installation.
4. Sauna Panels: FLOOR PANEL –LEFT SIDE WALL PANEL –REAR WALL
PANEL –RIGHT SIDE WALL PANEL –FRONT WALL PANEL –INTERIOR
ROOF PANEL –BENCHES/BENCH SUPPORT PANEL/BACKREST/STEP –
EXTERIOR ROOF PANEL
5. Tools Required: Battery Operated Screwdriver or Hand-Held Philips
Screwdriver, Rubber Mallet, and (2) Ladders.
B. Installing the FLOOR PANEL and REAR WALL PANEL
1. Place the FLOOR PANEL in the chosen location for the sauna room.
Please note that the wood pattern on the floor runs front-to-back. You will
need to have enough space to navigate around the sauna room while
assembling. Next, place the REAR WALL PANEL up and onto the FLOOR
PANEL. One adult will need to hold the REAR WALL PANEL in place.
Please note that if the BACKREST is not already installed, it will be
installed in a later step. (see Figure 1)
2/3 of the WALL
PANELS will sit on the
FLOOR PANEL
Figure 1

18
C. Installing the LEFT SIDE WALL PANEL
1. Place the LEFT SIDE WALL PANEL up and onto the FLOOR PANEL and next
to the REAR WALL PANEL. Use the buckles to latch the two wall panels
together. (see Figure 2)
Figure 2
D. Installing the RIGHT SIDE WALL PANEL
1. Place the RIGHT SIDE WALL PANEL up and onto the FLOOR PANEL and
next to the REAR WALL PANEL. Use the buckles to latch the two wall panels
together. (see Figure 3)
Figure 3

19
E. Installing the FRONT WALL PANEL
1. Now it is time to install the FRONT WALL PANEL. Place the FRONT WALL
PANEL up and onto the FLOOR PANEL next to the RIGHT SIDE WALL
PANEL and LEFT SIDE WALL PANEL. Use the buckles to latch the wall
panels together. (see Figure 4)
Figure 4
F. Installing the INNER ROOF PANEL
1. Locate the INNER ROOF PANEL. It will need to be lifted up and over the wall
panels and placed into position resting on the supports of the wall panels. Use
the provided screws and predrilled holes to screw down the INNER ROOF
PANEL to the FRONT WALL PANEL and REAR WALL PANEL. (see Figure 5)
Figure 5

20
G. Installing the BENCH SUPPORT, BENCH, BACKREST, and STEP
1. Locate the BENCH SUPPORT and slide it down the vertical channels on
the side wall panels. Use the provided screws to screw the BENCH SUPPORT
down to the vertical channels on the side wall panels. Next, the BENCH can
slide horizontally over the BENCH SUPPORT PANEL. Use the provided screws
to screw the BENCH down and BACKREST (if not already installed) to the REAR
WALL PANEL. The BACKREST should sit about 9 inches above the bench. For
installing the STEP, locate the lower horizontal wood slat on the side wall panels.
Next, the STEP can slide horizontally over the wood slats. Be sure the STEP is
all the way back when you screw it down as it will support the BENCH SUPPORT
so that it does not move. Use the provide screws to screw down the STEP to the
horizontal wood slats. Please note that the stove and stove wood guard will
be installed at a later time. (see Figure 6)
Figure 6
