GoldenDesigns GDI-6996-01 User manual

Model GDI-6996-01
6 Person Sauna
OWNER’S MANUAL
INFRARED CARBON MODEL SAUNA
FOR INDOOR USE ONLY
REQUIRES 2 SEPARATE DEDICATED 120V/20 AMP OUTLETS
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-6996-01 Visual Assembly Diagram
*The above assembly
diagram is a quick reference visual guide only . All sauna models
are not shown . Model types, parts, and accessories may vary.

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-6996-01 Visual Interior Diagram
*The above assembly diagram is a quick reference visual guide only . All sauna models
are not shown . Model types, parts, and accessories may vary.

1
WHAT ARE INFRARED RAYS?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we
can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared
segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process
is called conversion.

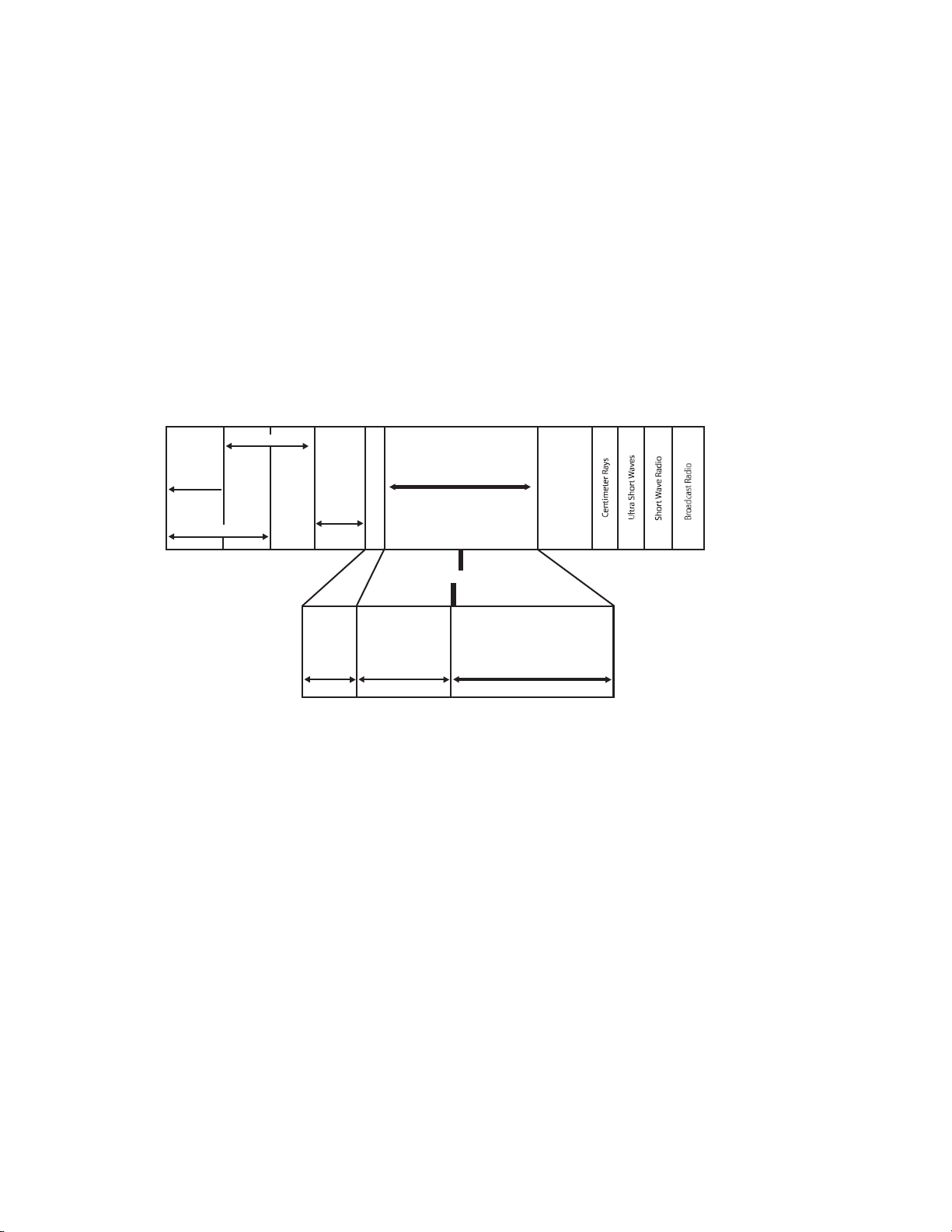

The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5
microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only
far infrared penetrates organic substances such as the human body two to three inches so that the
warming effect is very uniform.
X R a y s
Cosmic R a y s
Infrared R a y s
Gamma R a y s
UV R a y s
Wavelength (in microns )
0.76 1.5 5.6 1000
Near
Ir
M iddle
Ir
FarInfrared R a y s
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint
problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.

2
HOW IT WORKS

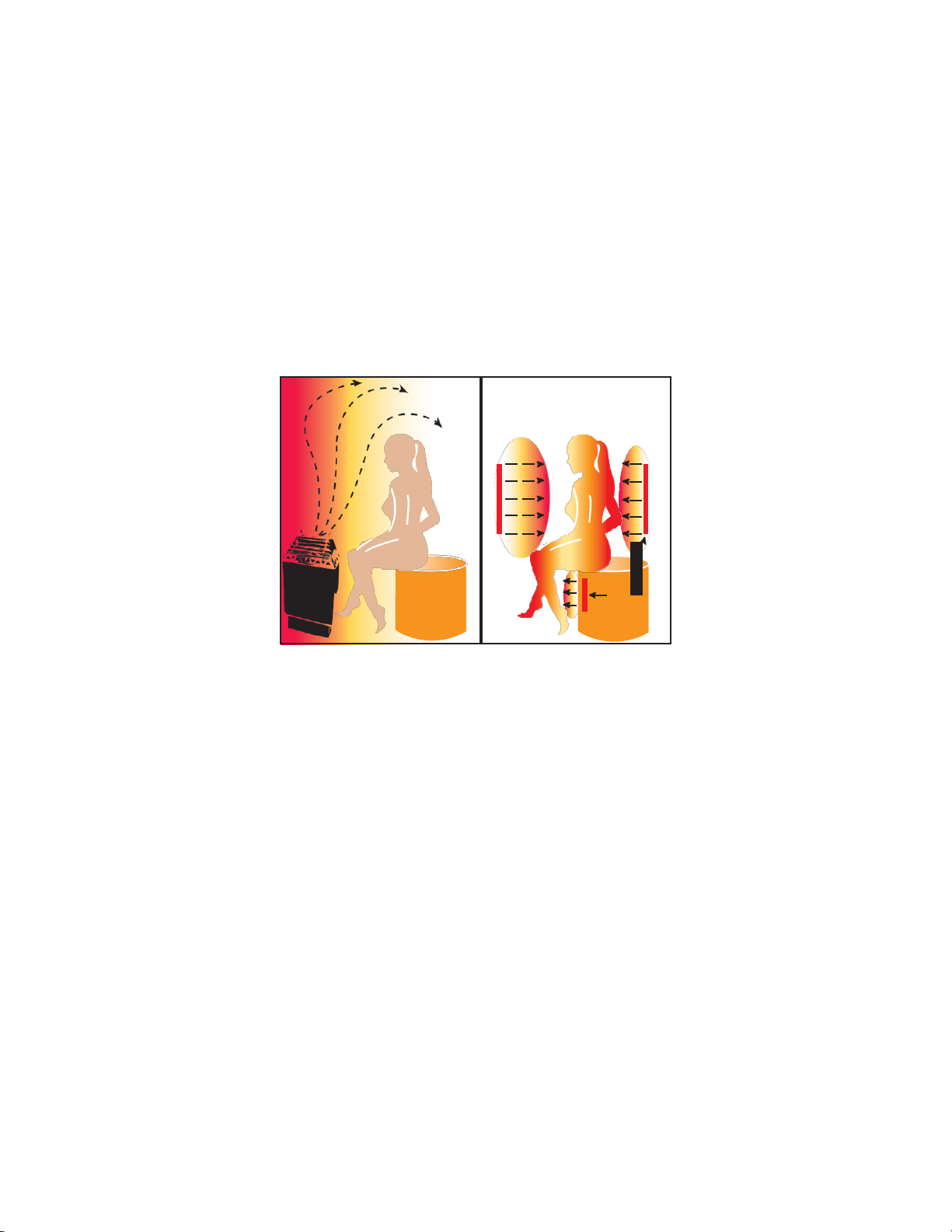

Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.
Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.
Traditional Infrared
BENEFITS
Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.

3
Benefits include, but are not limited to:
- Pain relief from Rheumatoid Arthritis
- Relaxing muscle spasms
- Increasing blood circulation
- Cardiovascular conditioning
- Clears rashes, acne
- Reduces cellulite
- Removes toxins and mineral waste
- Reduces stress and fatigue
- Enhances skin tone
SAUNA MAINTENANCE
Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning
chemicals as they can be absorbed into the wood and be released into your sauna during use.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.
CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.

4
TABLE OF CONTENTS
Product Introduction 4
Parts Description 5
Assembly Instructions 8
Operating the Sauna 21
Tips for Using Your Sauna 23
Safety Instructions 24
Safeguards for Your Sauna 25
Troubleshooting Guide 25
Warranty 27
Warranty Card 28
WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any
excessive vibrations during transport could cause damage to the heating elements. DO NOT START
the sauna if damage is detected! Contact your dealer or manufacturer for troubleshooting and
replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FRONT PANEL, LEFT SIDE PANEL, RIGHT SIDE PANEL, REAR PANEL,
BENCHES, BENCH EMITTER PANELS, FLOOR PANEL, ROOF PANEL, and ROOF COVER. The
infrared sauna comes with control panels, monitor, FM/CD/DVD player, chromotherapy/color therapy
lighting system, and infrared heat emitters.
NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model.
Actual model may vary.

5
PARTS DESCRIPTION
GDI-6996-01 Exploded Diagram
I. Power Supply
Both POWER SUPPLY BOXES are the control centers of the sauna room. They are installed on the ROOF
PANEL and have input/outputs connected to them. One of the two POWER SUPPLY BOXES can be seen
below. (see Figure 1)
Figure 1

6
MAIN POWER
main power of the sauna room
HT1, HT2, HT3, HT4 emitter power output cords LIGHT
reading lamp power output cord
CTRL control panel connection CD/SIG
signal cable group
II. FM/CD/DVD Player and Monitor (optional)
The FM/CD/DVD Player, 15” Monitor, and Speaker System allow you to listen to music and watch DVD’s
during your sauna session at your own leisure. (see Figure 2)
Figure 2
III. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector CTRL
Control panel connector
CD/SIG For CD/temperature sensor/buzzer/etc. connectors
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
TEMP SENSOR Temperature sensor
BUZZER Buzzer connector
MP3 AUX INPUT MP3 /radio connection

7
IV. Guide & Guide Inserts and Buckles
The guide and guide inserts are used to connect the FRONT PANEL to the LEFTSIDEPANELand
RIGHT SIDE PANEL. The buckles are used to connect the REAR WALL to the LEFT SIDE PANEL and
RIGHT SIDE PANEL. (see Figure 3a and 3b)
Figure 3a
Figure 3b
V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When the FLOOR PANEL faces upward, you will find (3) heat emitter panels in the center of
the FLOOR PANEL and a power cord at the rear. (see Figure 4)
Figure 4

8
B. Understanding The Difference Between The Top And Bottom Of The Wall Panels
The top of the wall panels will have heat emitter power cords and control panels coming from
them. The control panels will be at the top of the side wall panels. Also, the power outlets will be
at the bottom of the REAR WALL PANEL. (see Figure 5)
Control Panels
Power Outlets
Figure 5
Assembly Instructions
A. Choose a good location to install the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Rear Wall Panel Left Side Panel Right Side
Panel Lower Bench Heater Panel Wood Brace (fixed frame) Middle Level
Bench Heater Panel Center Bench Guides Benches (large) Bench Supports
Benches (small) Front Wall Panel Roof Roof Cover
5. Tools Required: Philips Screwdriver and Ladder

9
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Turn the FLOOR PANEL so that the heater power
cord is at the rear. (see Figure 6)
Figure 6
C. Installing the REAR PANEL and SIDE PANELS
1. Place the REAR PANEL up against the FLOOR PANEL. Attach the REAR PANEL to the SIDE
PANELS using the buckles as seen in Figure 7. Connect the floor heater cord into the rear wall
outlet.
Figure 7

10

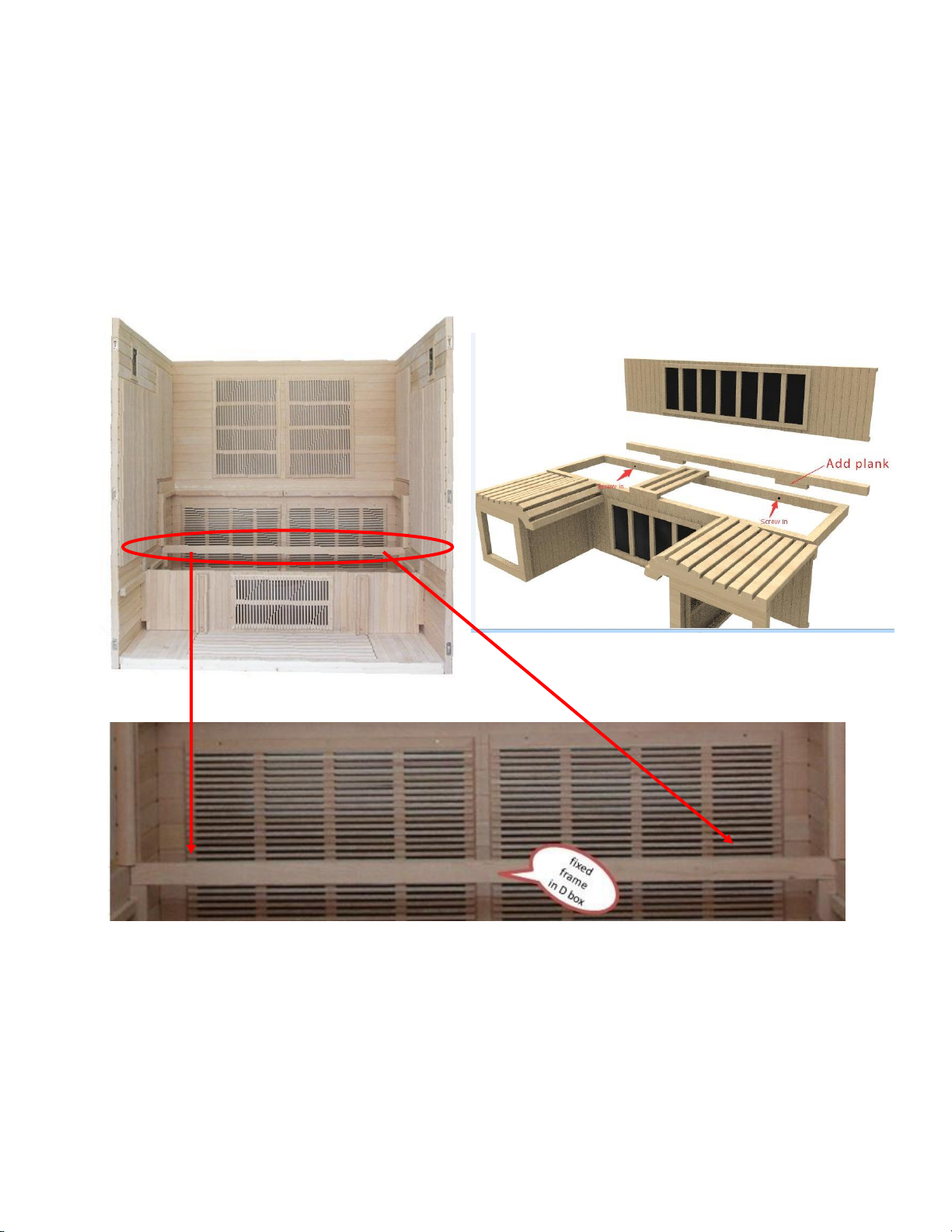

D. Installing the LOWER BENCH HEATER PANEL and WOOD BRACE (fixed frame)
1. Insert the correct LOWER BENCH HEATER PANEL. Please note that the LOWER BENCH
HEATER PANEL and MIDDLE LEVEL BENCH HEATER PANEL are not the same. Proceed
in inserting the WOOD BRACE (fixed frame). (see Figure 8 and 9) Connect LOWER
BENCH HEATER cord into the rear wall outlet.
Figure 8
Figure 9
E. Installing the MIDDLE LEVEL BENCH HEATER PANEL
1. Insert the MIDDLE BENCH HEATER PANEL and connect the MIDDLE LEVEL BENCH
HEATER into the rear wall outlet. (see Figure 10)

11
Figure 10
F. Installing the CENTER BENCH GUIDES and BENCHES (large)
1. Locate the (2) CENTER BENCH GUIDES. Place them in the correct positions as seen in
Figure 11.
2. Next, locate the BENCHES (large). Insert them into there correct positions. They can be
inserted facing upward which will allow you to lay down. They can also be inserted facing
downward which would allow more seating. (see Figures 12 and 13)
Figure 11

12
Figure 12
Figure 13
G. Installing the LOWER BENCH SUPPORTS and LOWER BENCHES
1. Place the LOWER BENCH SUPPORTS as seen in Figure 14. Do not screw in the LOWER
BENCH SUPPORTS until after the FRONT WALL PANEL is installed.
2. Next, place the LOWER BENCHES onto the top of the LOWER BENCH SUPPORTS. (see
Figure 15)

13
Figure 14
Figure 15

14
H. Installing the FRONT WALL PANEL
1. Place the FRONT WALL PANEL up against the FLOOR PANEL. Attach the FRONT WALL
PANEL to the SIDE PANELS using the guide and guide inserts as seen in Figure 16. After the
FRONT WALL PANEL is installed, the LOWER BENCH SUPPORTS can be screwed in.
Figure 16
I. Installing the ROOF PANEL
1. Carefully lift the roof panel up and over the sauna room. Gently sit the roof panel on top
of the sauna room. (see figure 17)
2. Connect the plugs according to the respective labels. (see Figure 18 and 19)
3. Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then
screw together. (see Figure 20)
4. Connect the buzzer connection. (see Figure 21)

15
Figure 17
Figure 18 Figure 19
Figure 20 Figure 21

16
J. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see Figure 22)
Figure 22
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the
TEMPERATURE SENSOR is damaged in transit. The manufacturer decides this according to
sauna models and packaging.
K. Installing the Radio (optional)
1. Locate the hole in the ceiling where the RADIO WOOD BOX HOUSING is going to be
placed. Use the provided screws to screw the RADIO WOOD BOX HOUSING into
place. (see Figure 23)
2. Next, remove the two TRANSPORT screws from the top of the CD player and discard.
One person will need to be on a ladder and above the roof and another person will need
to feed the radio wires through the RADIO WOOD BOX HOUSING and onto the roof.
3. Attach the radio bracket using the screw provided. This will hold the radio in place.

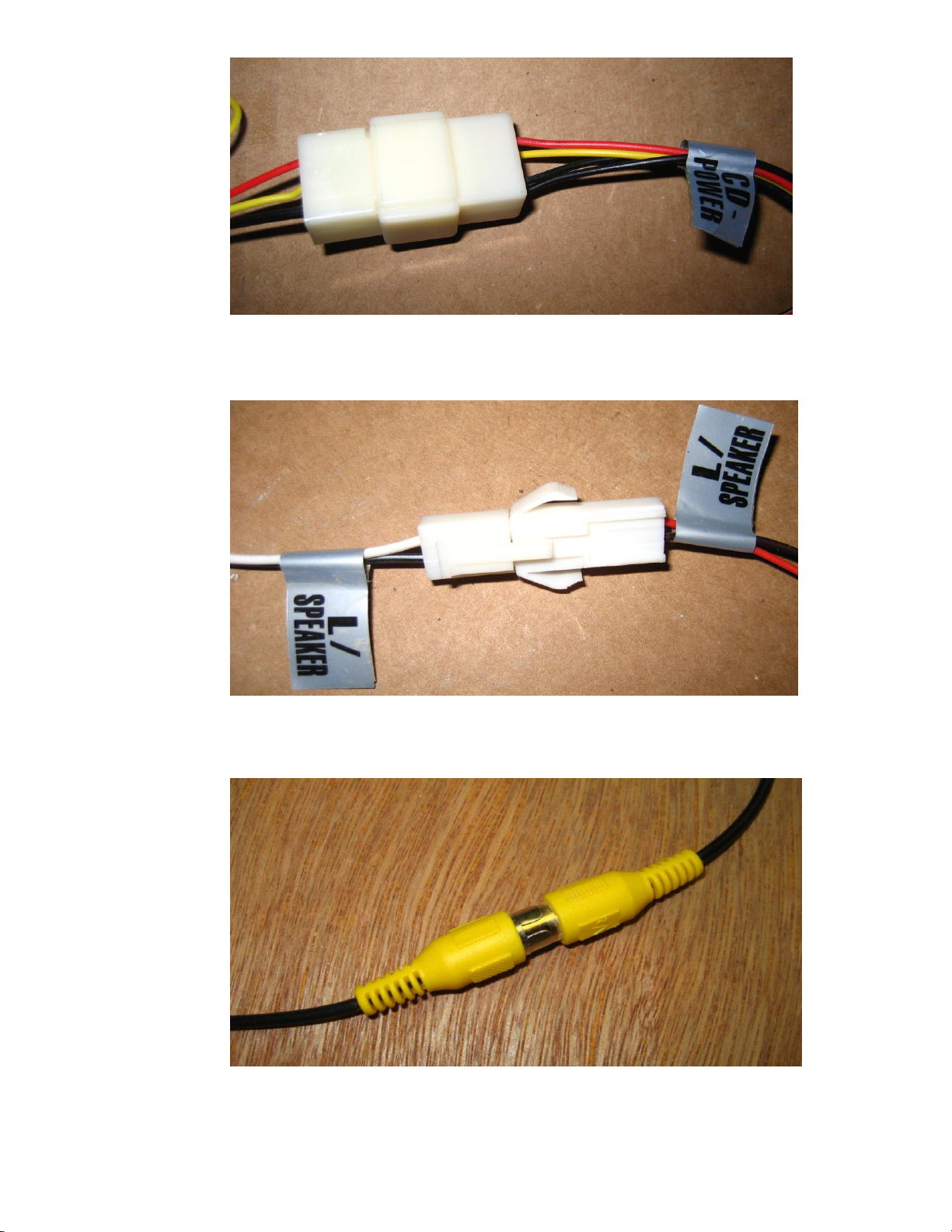

4. Plug in the CD/radio power. (see Figure 24)
5. Attach the L/speaker and R/speaker connections. (see Figure 25)
6. Plug in the CD/radio antenna connector.
7. Connect the (yellow) Video Out connection from the radio to one end of the extension which
is mounted on the roof. (see Figure 26)
Figure 23

17
Figure 24
Figure 25
Figure 26
