1
GDI-8030-02
3-Person Saunas
OWNER’S MANUAL
FOR CARBON MODEL SAUNAS
INDOOR USE ONLY
120VAC 20 AMP DEDICATED CIRCUIT REQUIRED
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and future
reference. Parts and accessories may vary and are subject to change.

2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 7
Assembly Instructions 11
Operating the Sauna 20
Tips for Using Your Sauna 23
Safety Instructions 23
Safeguards for Your Sauna 25
Troubleshooting Guide 26
Warranty 32
Warranty Card 35
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage
to the heating elements. DO NOT START the sauna if damage is detected!
Contact your dealer or manufacturer for troubleshooting and replacement
parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Left Side Panel
1pc Right Side Panel 1pc Roof Panel 1pc Roof Cover
1pc Bench 1pc Himalayan Salt Block Panel 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall
design. Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with
the naked eye, but we can feel this type of light in the form of heat. Our sun produces
most of its energy output in the infrared segment of the spectrum. Infrared rays heat
your body without having to heat the air in-between. This process is called conversion.

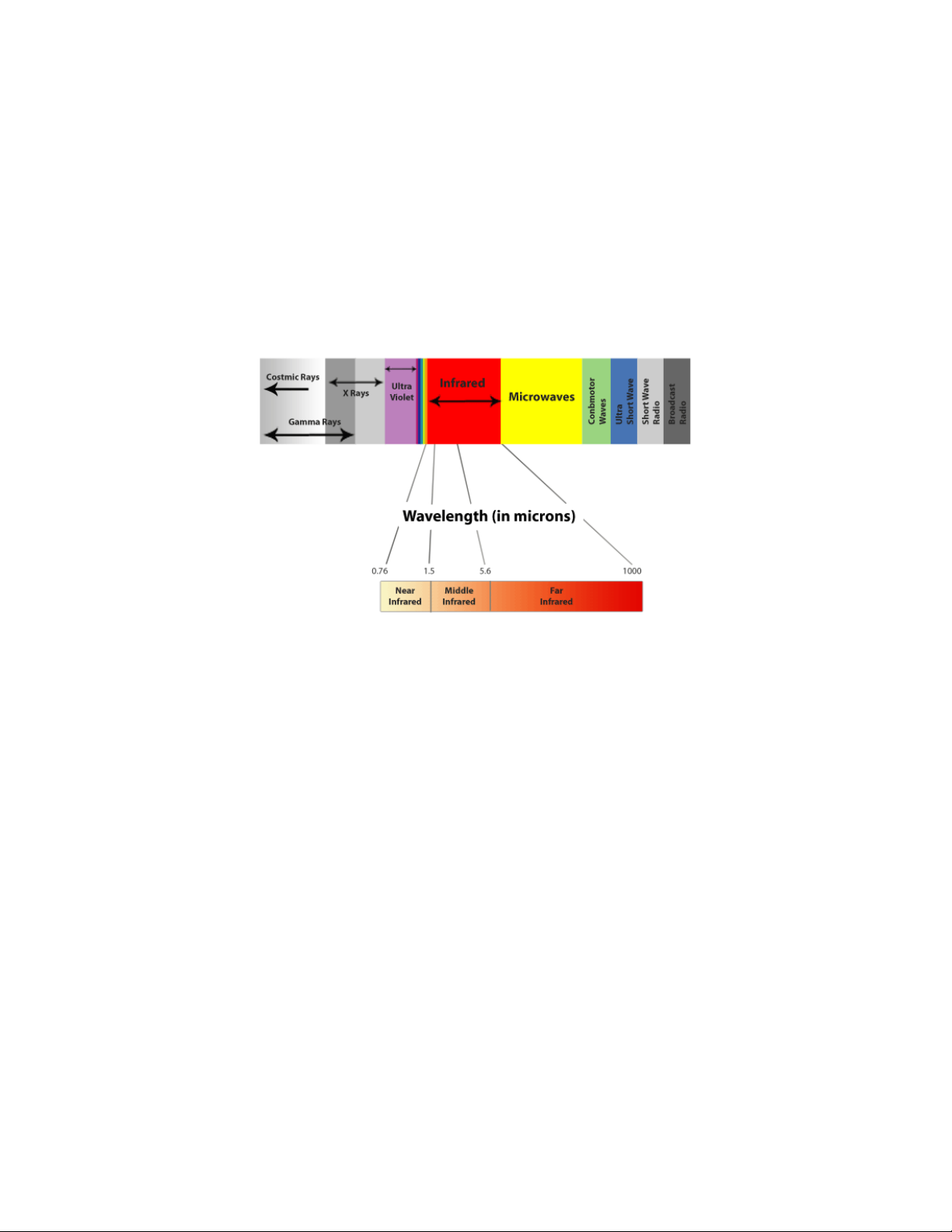

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-
1000 microns. Among these segments, Far Infrared penetrates organic substances
such as the human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly
beneficial to our bodies on a cellular level. Health professionals have used infrared
heat lamps for decades to treat muscle and joint problems. In hospital baby care
units, incubators are often equipped with infrared heating systems to keep newborn
babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It
is one of the fundamental forces of nature. The field can be viewed as the combination
of an electric field and a magnetic field. The electric field is produced by stationary
charges and the magnetic field by moving charges referred to as currents. The
magnetic field is measured in milligauss (mG). Our sauna products have been
developed to have low EMF. Our Low EMF carbon heater panels range between an
average of 5mG-10mG at about two inches from the heater panel, our Ultra Low EMF
sauna models range between 3mG-5mG, and our Near Zero EMF models range at less
than 3mG (NIR heaters range at about 5mG-7mG at the same approximate 2 inches).

4
EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body
including the Occupational Safety and Health Administration (OSHA) have established
permissible exposure limits (PEL). Currently, there is no consensus on the potential
health hazard from any exposure to EMF. The mainstream scientific evidence suggests
that low-power, low-frequency, electromagnetic radiation associated with household
currents like that of the infrared sauna does not constitute a short or long term health
hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication
of infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types
of surgical implants) typically do not experience any adverse effects, but should also
consult their medical physician or surgeon before using the sauna room.

5
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to
120 degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of
perspiring. Through the perspiration process, acid and waste residue like toxins,
sodium, alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are
removed from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our
skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be
absorbed into the wood and be released into your sauna during use.

6

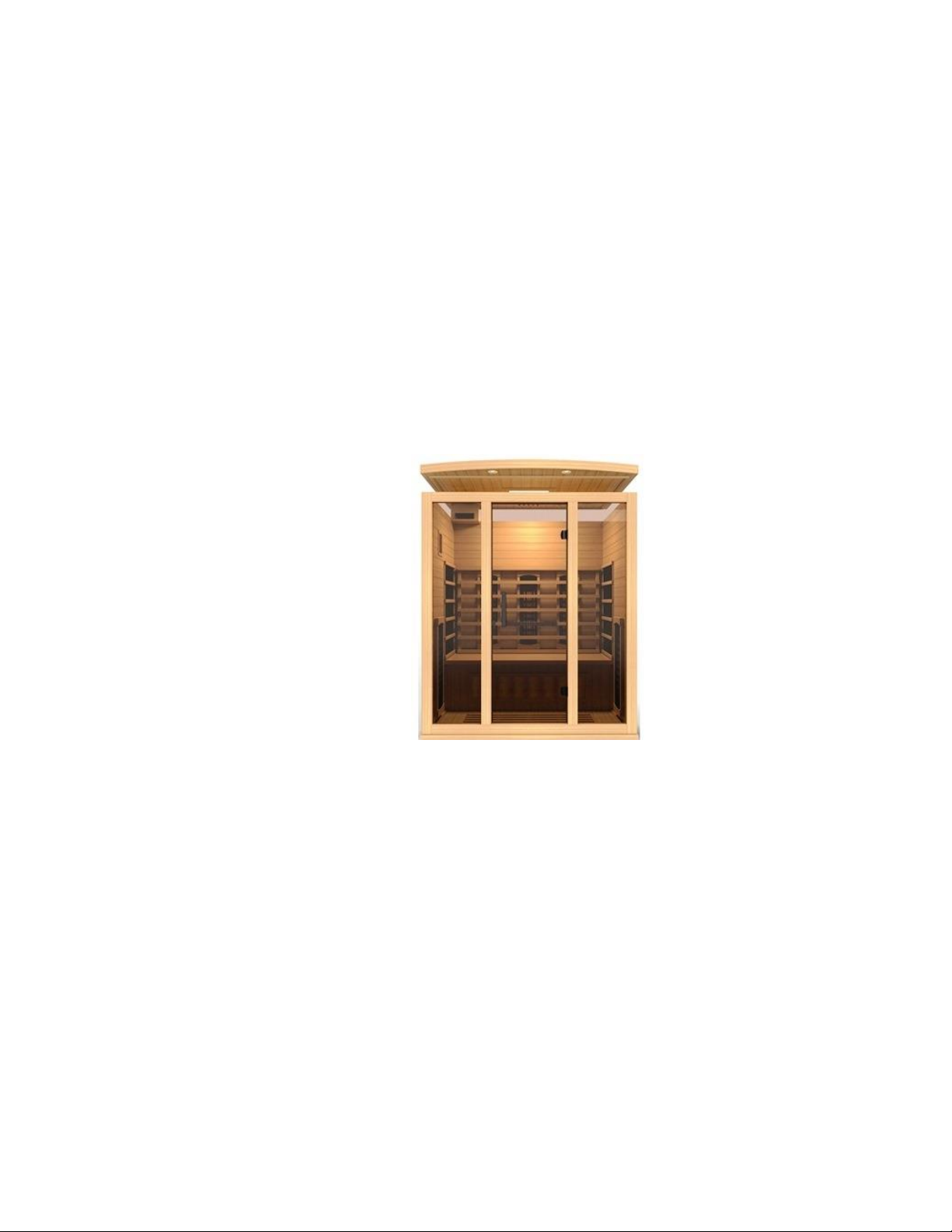

*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
GDI-8030-02
*The above assembly diagram i s for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are
subject to change. Near Infrared Heaters and backrests are sold separately.

7

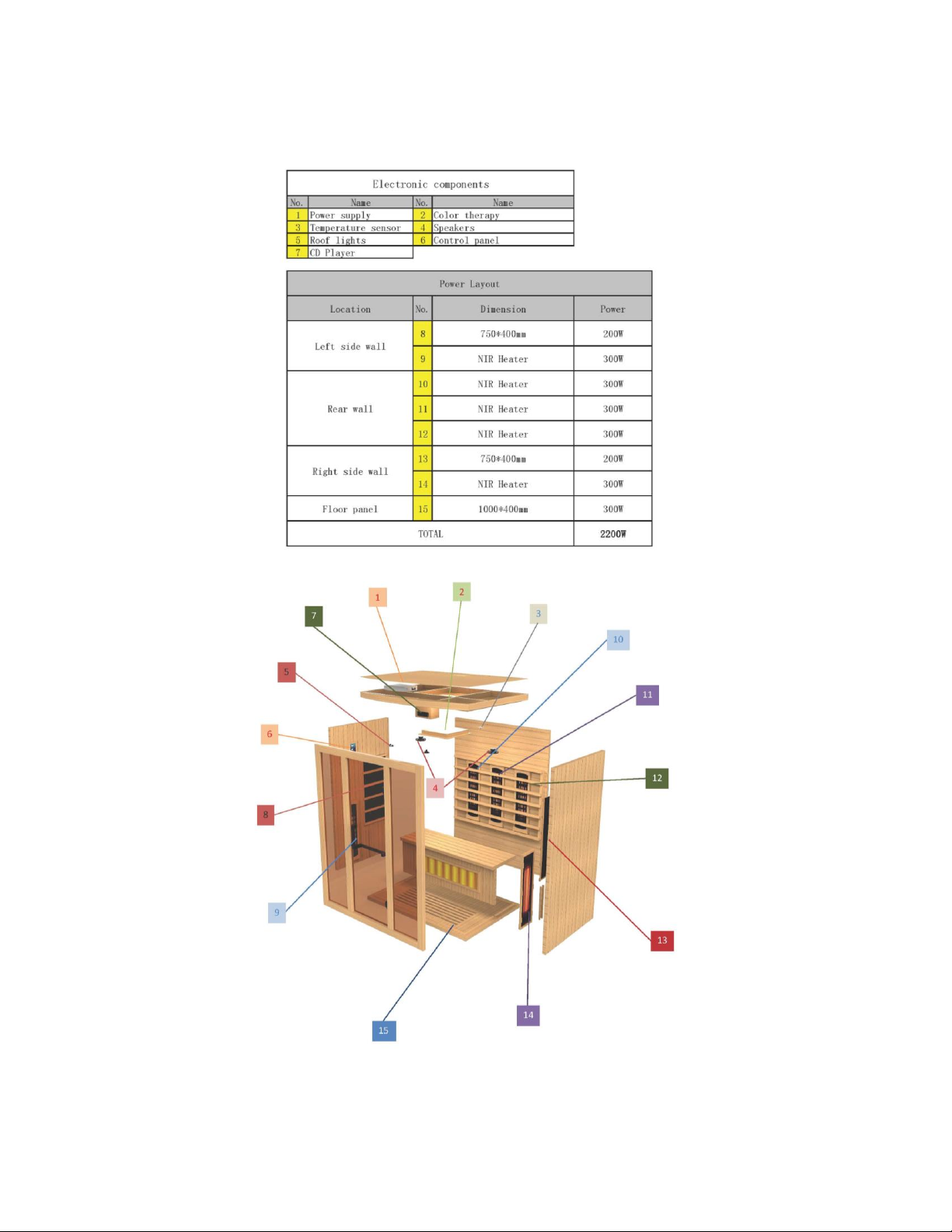

PARTS DESCRIPTION
GDI-8030-02
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.

8

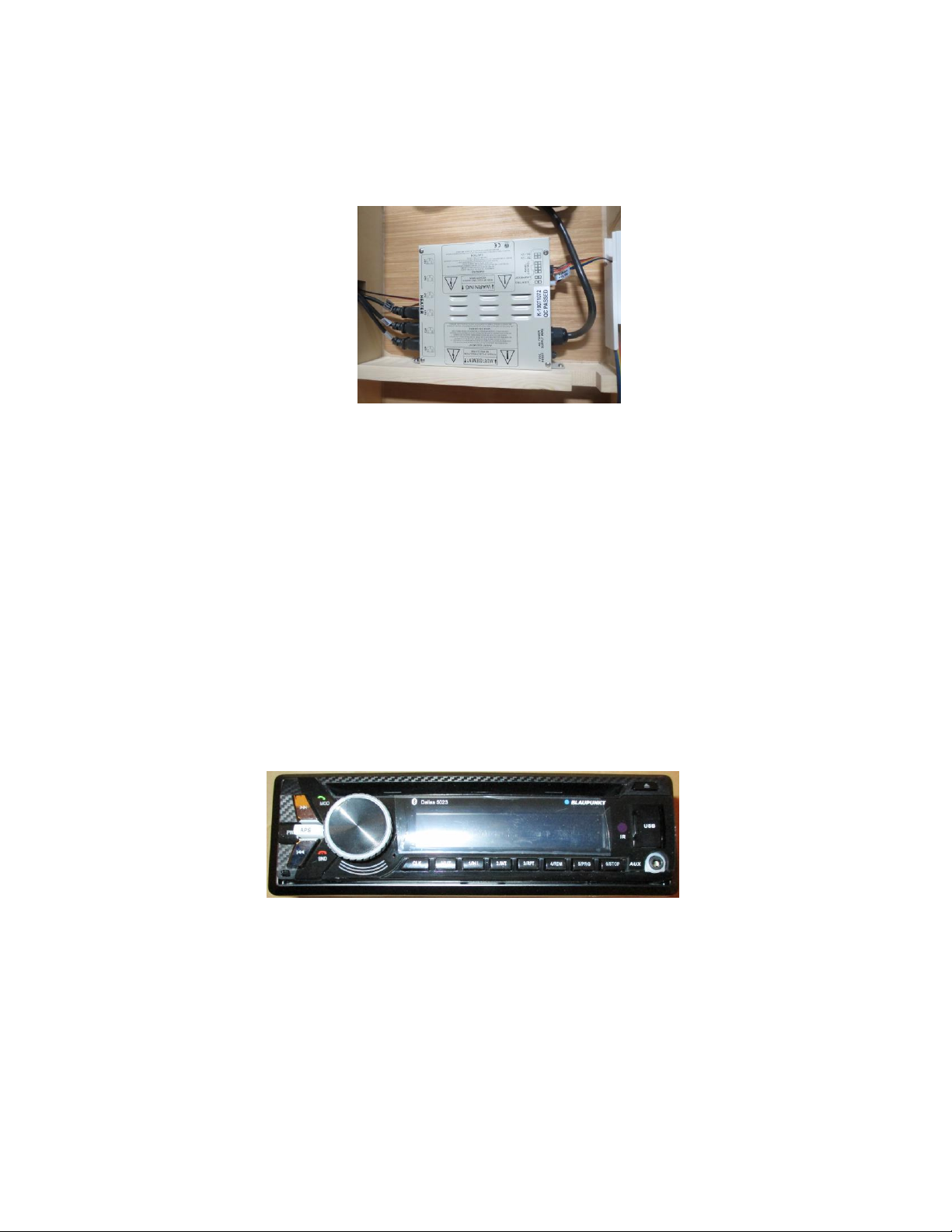

I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on
the topside of the ROOF PANEL and has inputs/outputs connected to it. (see
Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. CD/Radio
The multifunction stereo features an FM receiver, CD player, colorful and wide LCD
screen, volume/tone/balance controls, and an AUX input. (see Figure 2)
Figure 2 (Model Radio May Vary And Is Subject To Change)
III. Component Labeling

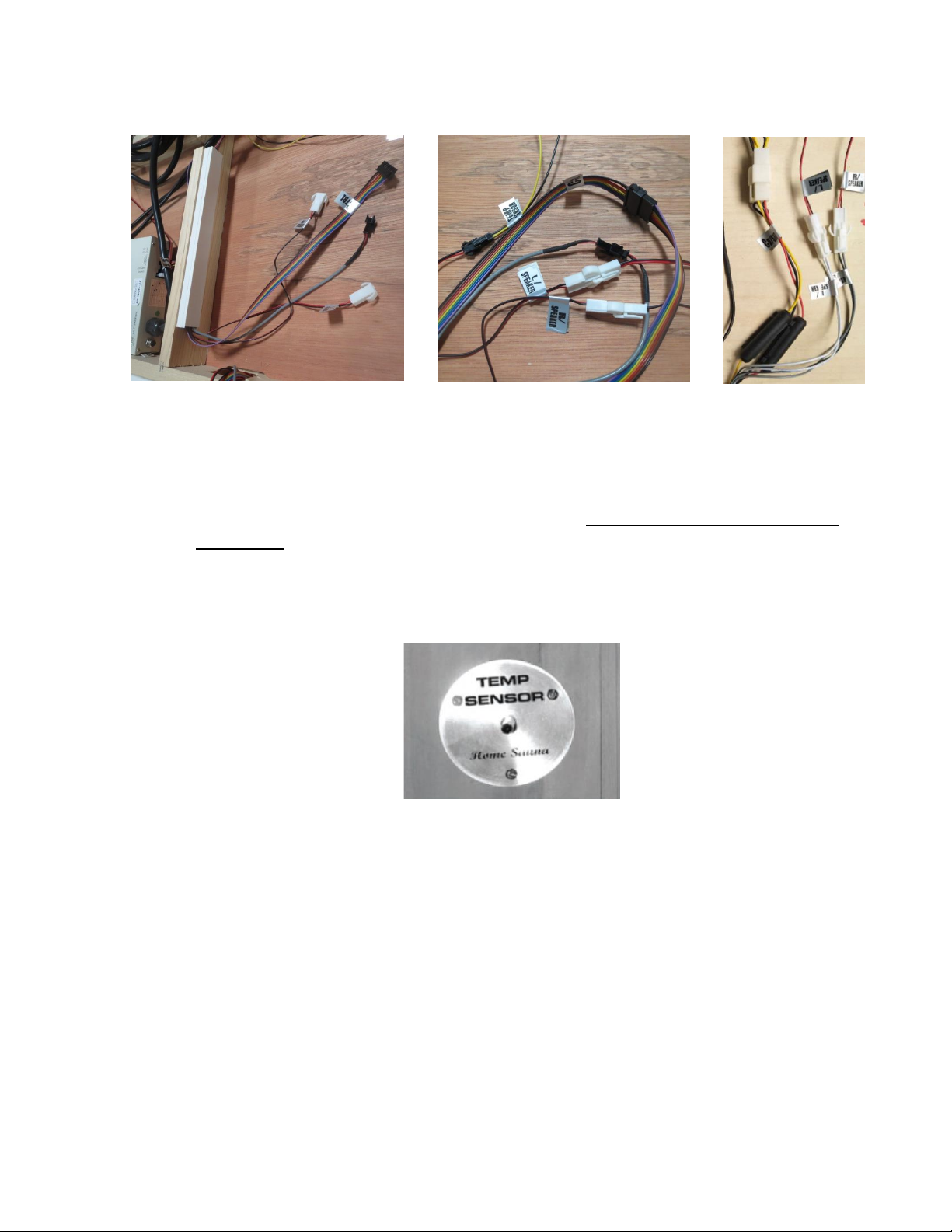

Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet

9
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters
to the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this
port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at
this port
Panel Control –Connects the Control Panel through the CTRL harness
to the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to
the Control Panel
IV. Buckles
A. External Buckles
The external buckles are used to connect the REAR WALL PANEL to the
LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. The Metal Guide
Insert Brackets connect the FRONT WALL PANEL to the LEFT SIDE WALL
PANEL and RIGHT SIDE WALL PANEL. (see Figure 3 and 3a)
Figure 3 Figure 3a

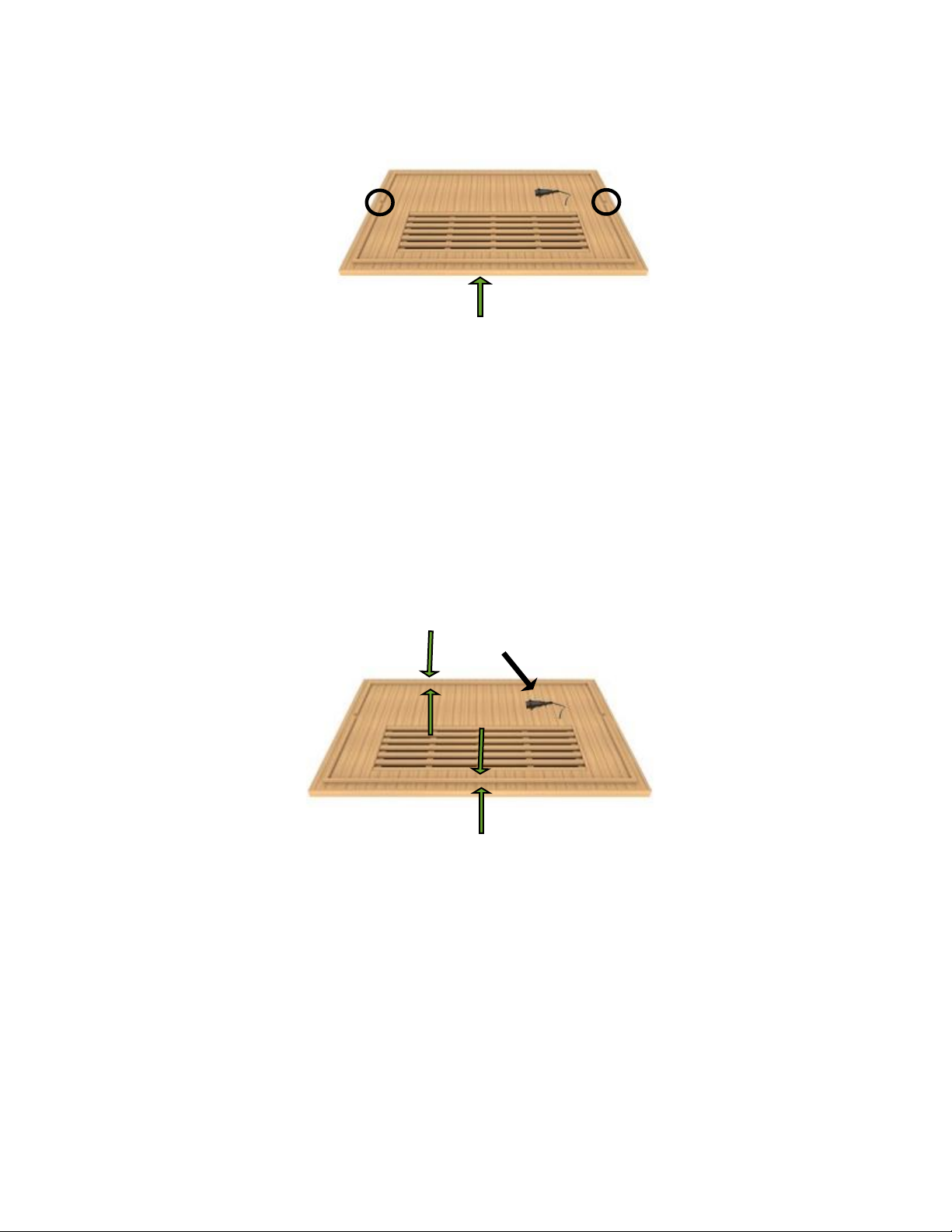

B. Wood Guide Inserts on the Floor Panel
The wood guide inserts are located on the FLOOR PANEL and allow the
FRONT WALL PANEL and REAR WALL PANEL to seat snugly into place on
the FLOOR PANEL. Please note that 3-person model saunas will have a
notch cutout on the side moldings for the BENCH HEAT EMITTER PANEL.

10
Side moldings may not be apparent on 2-person models. (see Figure 4)
Floor Heater Cord
Notch Cutouts
Figure 4 Front

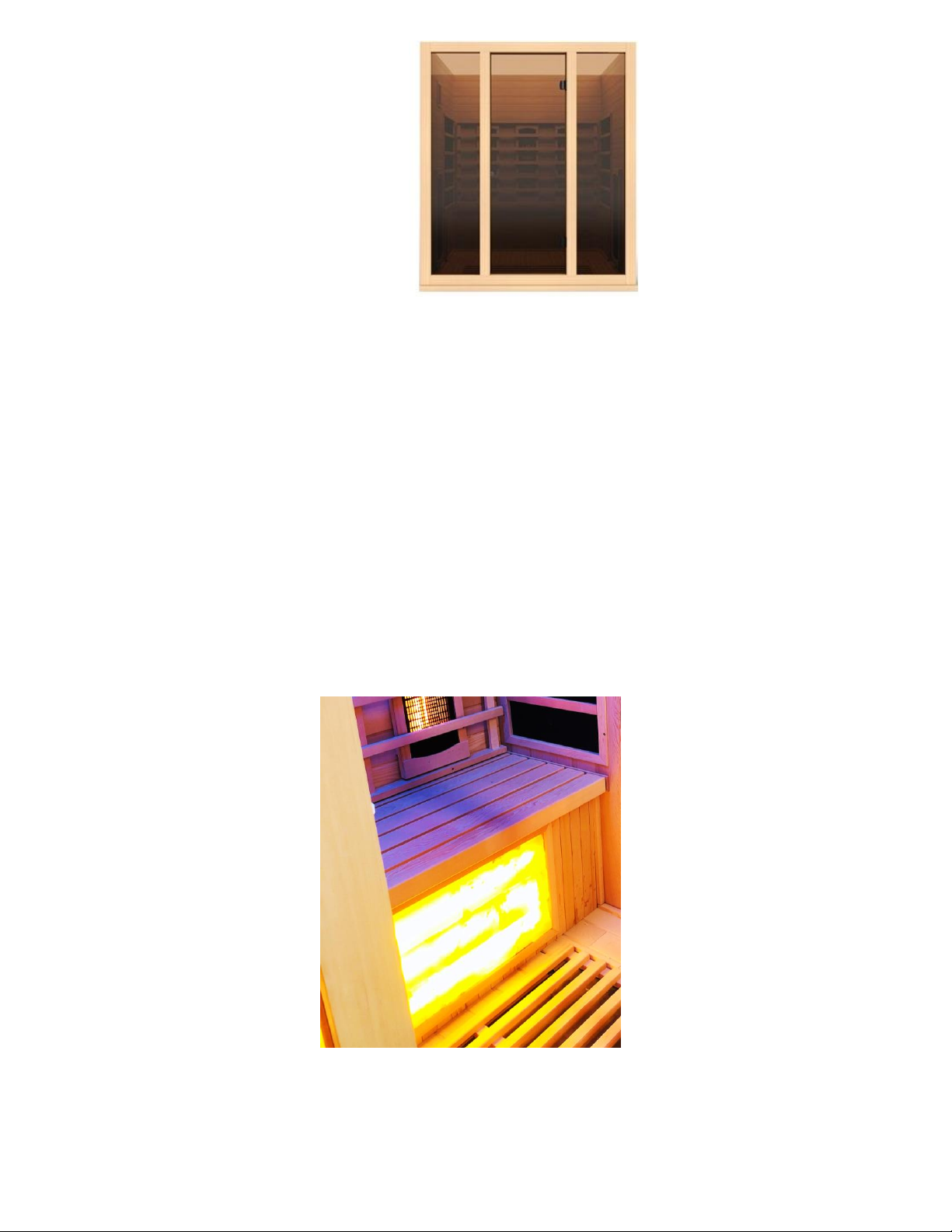

V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each
panel.
A. Floor Panel
When you place the FLOOR PANEL at its designated location, leave enough
space so that you are able to move around the FLOOR PANEL in order to
install the sauna wall panels. To identify the front of the FLOOR PANEL, see
the diagram below. The FLOOR HEATER black power cord will be situated
at the right rear as seen below. (see Figure 5)
Figure 5 Front of Sauna Room
B. Understanding The Wall Panels
The SIDE WALL PANELS will have (1) carbon FAR Infrared heater and (1)
NIR heater on each wall. There will be 3 NIR heaters on the rear wall. The
REAR WALL PANEL and SIDE WALL PANELS will have heater cords
coming from the top of each which will be connected on the roof once the
ROOF PANEL is placed on top. The buckles on the REAR WALL PANEL
will connect with the SIDE WALL PANELS. The FRONT WALL PANEL has

11
the front glass door and stationary glass panels. (see Figure 6 and Figure
6a)
Figure 6 Figure 6a
C. Roof Panel
The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and
reading lamp. Once installed, all the wiring harnesses, plugs, and connections will
sit on the exterior side of the roof panel.
Assembly Instructions
A. Choose a good location to assemble the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Front Wall Panel with Glass
Door Left Right Side Wall Panel Rear Wall Panel
Himalayan Salt Block Panel Bench
5. Tools Required: Philips Screwdriver and Ladder
PLEASE NOTE THAT SOME MODELS WILL VARY IN ASSEMBLY.

12
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Make sure the front side of the
FLOOR PANEL is facing the correct direction. Please note the heater
cord coming out of the topside of the floor panel at the rear right. (see
Panel Descriptions) (see Figure 7)
Figure 7
Front of Sauna Room
C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL, LEFT
SIDE WALL PANEL, and DOOR HANDLE
1. Place the FRONT WALL PANEL up onto the FLOOR PANEL. Align the
Metal Guide Insert Brackets on the FRONT WALL PANEL and the LEFT
SIDE WALL PANEL. The LEFT SIDE WALL PANEL will need to be lifted
in order to lock the Metal Guide Insert Brackets onto the FRONT WALL
PANEL. Secure into place by pulling downward on the LEFT SIDE WALL
PANEL. Make sure the Metal Guide Insert Brackets are locked into place
and the top of the FRONT WALL PANEL is flush with the LEFT SIDE
WALL PANEL. Do the same for the RIGHT SIDE WALL PANEL. (see
Figure 8 and Figure 9)
Figure 8 Figure 9

13
2. To install the DOOR HANDLE, first locate the DOOR HANDLE. It may
need to be dismantled in order to install. Next, place the long handle
section horizontally and install it on the glass door from the inside. You
will need to secure the side of the long horizontal handle closest to the
hinge side of the glass door by screwing it to the glass door. Now you can
locate the shorter handle and connect it on the exterior side of the glass
door to the long horizontal handle. It will need to attach to the long handle
and rotate clockwise. Finally, you can secure the other end of the vertical
handle by screwing it to the glass door. (see Figure 10)
Figure 10
D. Installing the REAR WALL PANEL
1. Remove the protection paper/tape (if present) from the buckles on the
REAR WALL PANEL. Place the REAR WALL PANEL up onto the FLOOR
PANEL. Next, attach the REAR WALL PANEL to the LEFT SIDE WALL
PANEL and use the buckles to latch together. Do the same for the RIGHT
SIDE WALL PANEL. (see Figure 11)

14
Figure 11
E. Installing the HIMALAYAN SALT BLOCK PANEL and BENCH
1. Installing the HIMALAYAN SALT BLOCK PANEL can be done by sliding it
downward between the two side wall panels. (see Figure 12)
2. Plug in the FLOOR HEATER cord and light connection (for the
HIMALAYAN SALT BLOCK illumination) into the corresponding wall
outlets.
3. Install the BENCH with the smooth and finished side facing upwards as
also seen in Figure 13. Be sure to slide the BENCH all the way in and
against the REAR WALL PANEL. If screws were provided, it is optional to
use them to screw down the bench.
Figure 12

15
F. Installing the ROOF PANEL
1. The side of the ROOF PANEL with the power supply (control box) is the
top of the roof panel.
2. The edge with the curve is the front of the ROOF PANEL. Be careful of
the wires coming from the SIDE and REAR PANELS when you set the
ROOF PANEL down onto the panels. Feed the wires through the holes in
the ROOF PANEL. Feed the control cable and buzzer plug up through the
ROOF PANEL.
3. Be careful not to force the ROOF PANEL into place. Make sure that the
wires are properly fed through the holes. Furthermore, make sure the
ROOF PANEL sits snugly into the RIGHT SIDE WALL PANEL and RIGHT
FRONT WALL PANEL. Pull down on the ROOF PANEL slightly to make
sure it is secured in place. (see Figure 13)
Figure 13
G. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to their respective labels. (see Figure 14)
2. You will need to connect the right and left speaker, the MP3, the CTRL
(Panel Control), and the CD/SIG (radio power). The CD/SIG will be
connected once the radio is installed in step 9 below. (see Figure 15 and
16)

16
Before Connecting After Connecting
Figure 14 Figure 15 Figure 16
H. Installing the TEMPERATURE SENSOR and optional accessories (varies
by model)
1. Enter the sauna and remove the protective covering (masking tape) from
the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR
so that it is vertical and pointing downward. (see Figure 17)
Figure 17
Note: Some sauna models and not all sauna models are shipped with a spare
TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged
during transit. The manufacturer decides this according to sauna models and
packaging.
2. If your sauna comes with the optional Magazine Rack, Shelf, Aroma
Therapy Shelf, and/or optional Towel Rack, use the screws provided to
mount these items where indicated within the sauna room. Please note
that these accessories are not available on all models and are subject to
change. (see Figure 18, 19, 20, 21, and 22)

17
Figure 18
Figure 19
Figure 20 Figure 21
Figure 22
I. Installing RADIO HOUSING BOX and RADIO (radio model subject to
change)
1. If your RADIO HOUSING BOX is already assembled, then proceed
to step 4. Locate the wood sides for the RADIO HOUSING BOX.
There is one for the front, side, and bottom. (see Figure 23, Figure 24,
Figure 24a, and Figure 26)
2. Attach “A” on the side panel with “A” on the bottom panel and attached
with the screws.
3. Attach “B” on the front with “B” on the side panel and “C” on the front
panel with “C” on the bottom panel and attached with the screws.
4. Screw the Radio Housing Box to the REAR PANELS. The back
opening (the larger opening) on the Radio Housing Box will face the

18
RIGHT REAR PANEL. The front opening (the small opening and
where the radio is inserted) on the Radio Housing Box will face the
LEFT SIDE PANEL
5. Locate the RADIO and remove it from any packaging. (see Figure 27)
Be sure to remove the transport screws from the top of the radio.
6. Connect the plug from the RADIO with the plug coming down from the
roof and the left/right speaker plugs. Note that the power for the radio
comes from the wire harness leading to the power supply at the “DC
12V” port. (see Figure 25 and 26)
7. Connect the antenna plug to the back of the radio. (see Figure 28)
8. Insert the RADIO into the RADIO HOUSING BOX. It is not necessary
to mount the RADIO once you slide it into the RADIO HOUSING BOX
because the RADIO will just sit in place. (see Figure 29)
Figure 23
Figure 24 Figure 24a
Figure 25 Figure 26

19
Figure 27
Figure 28 Antenna Connection Figure 29
J. Putting on the ROOF COVER (Optional)
1. Place the ROOF COVER over the top of the sauna. Be cautious when
pulling the power cord through the hole in the roof cover. Gently place the
ROOF COVER onto the ROOF PANEL. When the edges are aligned,
screw the ROOF COVER to the roof panel. (see Figure 27)
Figure 27
Assembly Completed

20
Operating the Sauna
NOTE: Before the sauna is turned on, remove plastic protective covering from
the CONTROL PANELS. Please check and confirm that the connections to the
POWER SUPPLY(includingthepowercord), HEAT EMITTERS, CD/RADIO, and
TEMPERATURE SENSOR are connected properlyandaresnugandtight. The
power supply voltage and frequency must match the requested voltage and
frequency of the sauna (120VAC 20AMP Dedicated Circuit). Please consult a
certified electrician for any electrical modifications or repairs.
Since many materials absorb the infrared rays, minimal clothing is
recommended for maximum effect. The infrared sauna emitters are designed to
heat you and not necessarily the air inside the sauna. It is not a hot box like a
traditional sauna. The temperature gauge is a guide for your safety. It is
recommended that you drink water before, during, and after sauna use to
prevent dehydration since body fluids will be lost through perspiration. It is not
recommended to shower immediately after use since the pores in your skin will
be open and could possibly absorb anything in the water.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.
Control Panel
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main
power
Work Start/Stop: Press to control the working functions of the
sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in
minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature
of the sauna room in
0
C/
0
F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between
0
C/
0
F
