Goodman G1EAC Series Installation instructions

PRODUCT SPECIFICATIONS
SS-G1EAC www.goodmanmfg.com 7/08
Supersedes 1/08
1” CHARGED MEDIA ELECTRONIC
AIR CLEANER
The Goodman®G1EAC Series electronic air cleaner
provides a 24-volt, polarized charge on the media
pads to capture and remove airborne particles.
G1EAC SERIES
Standard Features
Environmentally safe — does not produce
hazardous ozone or positive ions
Fits easily into any one-inch lter opening
Quiet operation
Fully electronic, reliable, high-eciency carbon-
graphite center screen removes small particles
Eciency increases as air cleaner operates
Designed to operate with constant power or with the
system’s fan to permit reliable, long-term performance
Easily removable, high-density, multi-layered
replacement media pads feature high dust-
holding capacities and low-static pressure curves
to provide optimum performance
Fits all central HVAC residential systems
Independently tested and certied
MERV 10 Rated Eciency (ASHRAE Standard 52.2)
Cabinet Features
Carbon graphite center charging screen
permanently mounted to the air cleaner frame
Corner insulators keep screen in place and help
prevent arcing, snapping, and loss of power
Notched, recessed, and insulated center charging
pin improves performance and quieter operation
Stainless steel latches provide durability
Corrosion-resistant construction is built for a thin,
easy t and trouble-free installation
Open-face design maintains low static pressure
One-piece, injection-molded power heads
“capped” and sealed to be water-tight
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
MERV 10 RATED EFFICIENCY
For full details on our warranties, visit www.goodmanmfg.com

2 www.goodmanmfg.com SS-G1EAC
PRODUCT SPECIFICATIONS
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
Copyright © 2008 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.

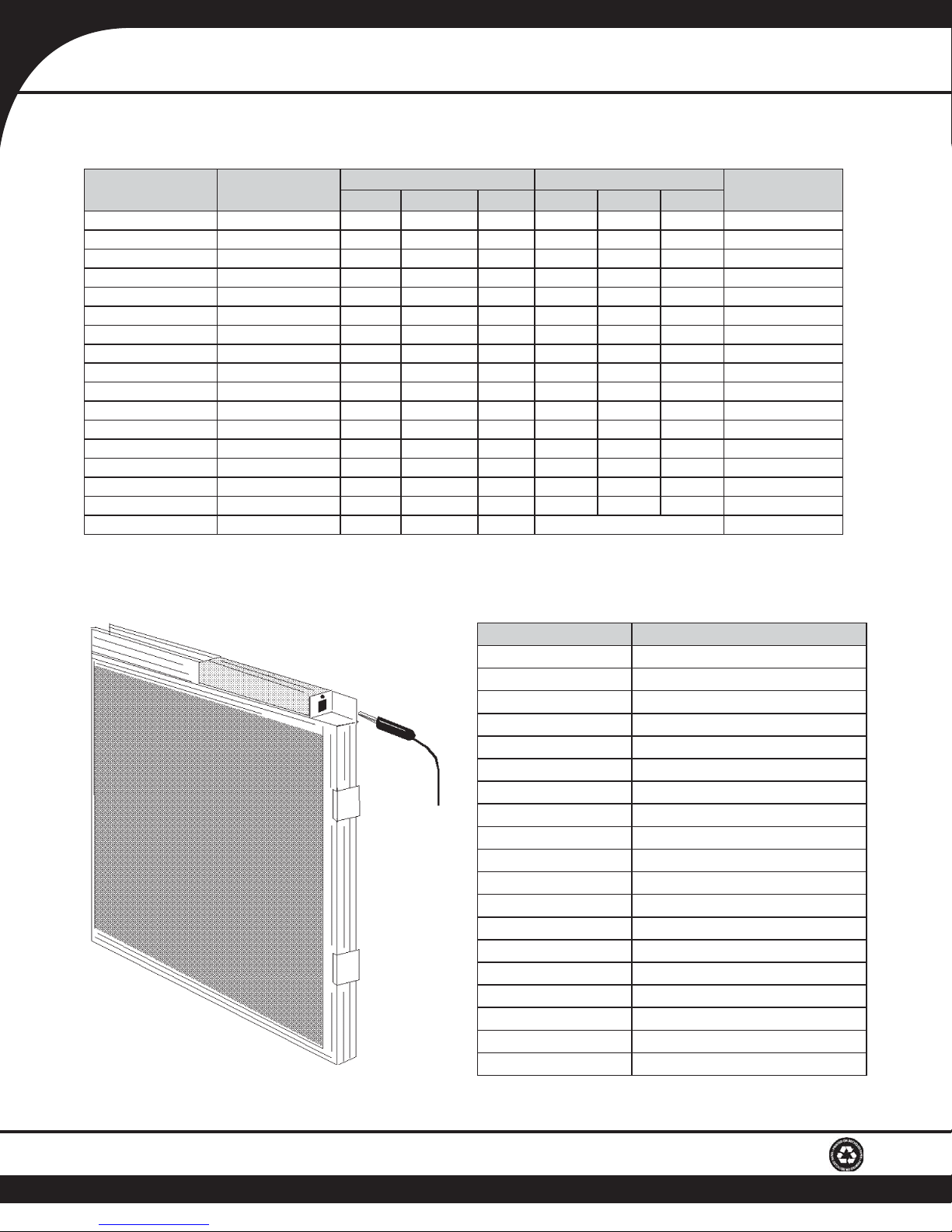

SPECIFICATIONS/DIMENSIONS
Model Pressure Drop @
300 FPM (W.G.) Power Dimensions Net / Ship Weight (lbs)
Voltage Ampacity Watts W D H
G1EAC-1224 .17” 24 .064 2 12” 1” 24” 2 / 3
G1EAC-1420 .17” 24 .064 2 14” 1” 20” 2 / 3
G1EAC-1424 .17” 24 .064 2 14” 1” 24” 2 / 3
G1EAC-1425 .17” 24 .064 2 14” 1” 25” 2 / 3
G1EAC-1430 .17” 24 .064 2 14” 1” 30” 2 / 3
G1EAC-1520 .17” 24 .064 2 15” 1” 20” 2 / 3
G1EAC-1620 .17” 24 .064 2 16” 1” 20” 2 / 3
G1EAC-1624 .17” 24 .064 2 16” 1” 24” 2 / 3
G1EAC-1625 .17” 24 .064 2 16” 1” 25” 2 / 3
G1EAC-1820 .17” 24 .064 2 18” 1” 20” 2 / 3
G1EAC-2020 .17” 24 .064 2 20” 1” 20” 2 / 3
G1EAC-2024 .17” 24 .064 2 20” 1” 24” 2 / 3
G1EAC-2025 .17” 24 .064 2 20” 1” 25” 2 / 3
G1EAC-2424 .17” 24 .064 2 24” 1” 24” 2 / 3
G1EAC-2030 .17” 24 .064 2 20” 1” 30” 2 / 3
G1EAC-2036 .17” 24 .064 2 20” 1” 36” 2 / 3
G1EAC-CUSTOM .17” 24 .064 2 All Sizes up to 700 Sq. In. 2 / 3
ACCESSORIES
Model Description
GA1MEDIA-1224 Replacement Media 12” x 24”
GA1MEDIA-1420 Replacement Media 14” x 20”
GA1MEDIA-1424 Replacement Media 14” x 24”
GA1MEDIA-1425 Replacement Media 14” x 25”
GA1MEDIA-1430 Replacement Media 14” x 30”
GA1MEDIA-1520 Replacement Media 15” x 20”
GA1MEDIA-1620 Replacement Media 16” x 20”
GA1MEDIA-1624 Replacement Media 16” x 24”
GA1MEDIA-1625 Replacement Media 16” x 25”
GA1MEDIA-1820 Replacement Media 18” x 20”
GA1MEDIA-2020 Replacement Media 20” x 20”
GA1MEDIA-2024 Replacement Media 20” x 24”
GA1MEDIA-2025 Replacement Media 20” x 25”
GA1MEDIA-2030 Replacement Media 20” x 30”
GA1MEDIA-2036 Replacement Media 20” x 36”
GA1MEDIA-CUSTOM All Sizes up to 700 Square Inches
GA1MEDIA-ROLL Media Roll (30” x 30”)
G1EAC-SALESKIT Sales Kit
GA1EAC-DEMO Smoke Demo
