PACKAGED AIR CONDITIONER
The PCC Commercial packaged air conditioner
features combination electric heat/electric cooling
with dual high-eciency scroll compressors. This unit
contains totally enclosed, permanently lubricated
outdoor fan motors and is designed for over/under or
downow applications.
Standard Features
• Dual high-eciency scroll compressors with internal
motor protection for 2-stage cooling
• Totally enclosed, permanently lubricated outdoor fan
motors
• Enhanced copper tube/aluminum n coils
• Fully charged R-22 systems
• Belt-driven, variable-pitch sheave permits multi-
speed adjustment
• Expansion valve evaporator coil
• Time delay for compressors sequence
• Compressor grommets for vibration isolation
• Two independent condenser coils for two-stage operation
• High- and low-pressure controls on all systems
• Mild ambient switch
• Centrifugal fan for quiet and ecient operation
Cabinet Features
• Heavy-gauge, zinc-coated steel cabinet with weather-
resistant powder-paint nish
• Fully insulated with blankets of insulation
• Vertical discharge with removable grilles
• Control box and compressors easily accessible from
side access panels
• Base rails with fork slots for convenience
of handling and added rigidity
• Galvanized steel, powder-coated drain pan with ¾” NPT
condensate connection
• Factory wiring conveniently arranged to install accessories
• Filters are provided with unit (2” disposable)
• When properly anchored, meets the 2001 Florida
Building Code unit integrity requirements for
hurricane-type winds
PCC COMMERCIAL
COOLING CAPACITY: 86,000 - 116,000 BTU/H
10.3 EER
* Full warranty details available at www.goodmanmfg.com.
7½ TO 10 TON

2 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
NOMENCLATURE
Unit Type Engineering
PCC Packaged Revisions
Air Conditioner
Nominal Capacity Electrical
090 90,000 BTU/h 3 208-230/3/60
120 120,000 BTU/h 4 460/3/60
3
5
A
6
PCC
1, 2, 3
120
4
ACCESSORIES
THERMOSTAT (CHT90-120)
Two-stage cool / two-stage heat thermostat with subbase,
manual changeover, fan-on or auto. Note: A variety of
thermostat congurations can be used on this equipment
based on the application needs. For example, our CHTS36-
60 can be used if two-stage cooling and single-stage
heating is desired.
ROOFTOP LIFT KIT (RLK90-120)
Kit consists of four ½” shackles that are used to lift the
equipment into position on a roof, etc. The shackles are
attached to the mounting holes in the base rails. Wire or strap
material along with field-supplied spreader bars are employed
to complete the lifting assembly (see rigging detail).
LOW AMBIENT CONTROL (LA-01)
Liquid temperature- (or pressure-) operated solid-state
control that varies the speed of one of the condenser fans.
Low ambient control reduces fan motor RPM as liquid
temperature (or pressure) decreases. Caution: If control
is used below 50 °F, accumulators should be added to the
equipment to avoid slugging of the compressors.
ROOF CURB (PGC-5)
Full perimeter curb for equipment in the down discharge
application. Curb includes provisions for duct attachment
prior to setting unit. Curb is shipped knocked down with all
necessary hardware and gasket material.
MANUAL AND MOTORIZED FRESH AIR DAMPERS (PGMD-5 & PGMDM-5)
Manual damper is fixed position type for 0% to 25% fresh air.
Motorized damper is a field-adjustable mechanical damper for
0% to 25% fresh air. Damper automatically closes when blower
stops.
ECONOMIZERS : (PGED090/102-5A & PGED120/180-5A,
PGEH090/102-5 & PGEH120/180-5)
Fully modulating, enthalpy-controlled economizers
shipped with major components pre-assembled. Plug
assembly on equipment and economizer provides easy
foolproof wiring.
HORIZONTAL DUCT KIT (PGHDK090/102-5A & PGHDK120/180-5A)
The unit is shipped in the downflow (vertical) duct con-
figuration. The horizontal duct kit must be installed in
the field for horizontal duct configuration.
PANEL LOUVER KIT (PLK090/102-5 & PLK120/180-5)
Louvered panels for condenser coil protection.
HEAT KIT ACCESSORY
Slide-in heat kit from 20kW, 30W and 40kW can be used
in 7½- to 10-ton models.

SS-GPCC www.goodmanmfg.com 3
PRODUCT SPECIFICATIONS
SPECIFICATIONS
PCC090-3A PCC090-4A PCC120-3A PCC120-4A
Cooling Capacity
Total BTU/h 86,000 86,000 116,000 116,000
Sensible BTU/h ¹ 63,600 63,600 85,000 85,000
EER ² 10.3 10.3 10.3 10.3
IPLV ³ 10.7 10.7 10.7 10.7
Indoor Blowers (2)
Type Belt Belt Belt Belt
Wheel (D x W) 12” x 12” 12” x 12” 12” x 15” 12” x 15”
Indoor Nominal CFM 3,000 3,000 3,800 3,800
Horsepower 1½ 1½ 3 3
Evaporator Coil (1)
Face Area (ft²) 11.2 11.2 14 14
Rows Deep/ Fins per Inch 3/ 16 3/ 16 3/ 16 3/ 16
Tube Diameter - Material ⅜” - Copper ⅜” - Copper ⅜” - Copper ⅜” - Copper
Filter Size (ft²) / Quantity –– –– 16 x 25 x 2 / 3 16 x 25 x 2 / 3
25 x 25 x 2 / 3 25 x 25 x 2 / 3 20 x 25 x 2 / 3 20 x 25 x 2 / 3
Condenser Fans (2) / Coil (1)
Horsepower ½½½½
Fan Diameter 24” 24” 24” 24”
Outdoor Nominal CFM 5,500 5,500 6,400 6,400
Face Area (ft²) 15.6 15.6 23.8 23.8
Rows Deep/ Fins per Inch 2/ 21 2/ 21 2/ 21 2/ 21
Tube Diameter - Material ⅜” - Copper ⅜” - Copper ⅜” - Copper ⅜” - Copper
Electrical Data
Voltage-Phase 208/230-3 460-3 208/230-3 460-3
Compressor RLA/ LRA 12.5/ 88 5.9/ 44 17.4/ 123 6.8/ 49.5
Indoor Blower FLA 4.2 2.0 8.4 4.2
Outdoor Blower FLA 2.6 1.3 2.6 1.3
Min. Circuit Ampacity 438.1 18.2 54.5 22.5
Max. Overcurrent Device 560 amps 30 amps 70 amps 35 amps
Operating Weight (lbs) 980 980 1,270 1,270
Ship Weight (lbs) 1,000 1,000 1,290 1,290
¹ Sensible capacity is gross, with no deduction for indoor motor heat
² BTU/Watt @ 80/ 67° F inside; 95° F outside air
³ IPLV = Integrated Part Load Valve
4Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
5HACR breakers may be used in place of fuses up to 60 amps

4 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
DIMENSIONS





 ! 
"!!
#
#
 



 
!
 "
 
#$#
%#&
$  %&$
%&#'%(#
%)#   $
#
 ! "!!
!
   "
& $  % &$
     $


Unit Size A
Height
B
Supply Air
C
Return Air
PCC090-X 36 12½ 176/16
PCC120-X 52 20¼ 2513/16
X = Electrical Designation

SS-GPCC www.goodmanmfg.com 5
PRODUCT SPECIFICATIONS
Model A B
PCC090-X 6⅛7⅞
PCC120-X 22⅛23⅞
X = Electrical Designation
DIMENSIONS—ELECTRICAL CONNECTIONS
1. Main power entrance location
2. Control wiring entrance location
3. Optional field installed internal disconnect switch
4. Knockout not used on electric heat units

6 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
Model CFM Wet Coil Electric
Heat Medium EFF. Filters Economizer Return Air Damper
PCC090-X
2,600 0.06 0.03 0.03 0.14
3,000 0.06 0.04 0.04 0.14
3,400 0.07 0.05 0.05 0.18
PCC120-X
3,600 0.05 0.05 0.03 0.14
4,000 0.05 0.06 0.04 0.14
4,400 0.05 0.08 0.04 0.14
AMB. ˚FEVAP.
EAT 75 ˚F DB 80 ˚F DB 85˚F DB 90 ˚F DB
KW MBHT MBHS KW MBHT MBHS KW MBHT MBHS KW MBHT MBHS
85
61 WB 7.6 83.8 72.1 7.6 85.7 84.8 7.7 90.6 90.6 7.7 95.5 95.5
64 WB 7.7 88.7 63.3 7.7 88.7 77.9 7.7 90.6 90.6 7.7 95.5 95.5
67 WB 7.7 94.5 54.6 7.7 94.5 69.2 7.7 94.5 82.8 7.8 95.5 95.5
70 WB 7.8 100.3 45.8 7.8 100.3 60.4 7.8 100.3 74.0 7.8 100.3 88.7
73 WB 7.8 106.2 37.0 7.8 106.2 51.6 7.8 106.2 65.3 7.9 106.2 79.9
90
61 WB 7.8 81.8 71.1 7.9 83.8 83.8 8.0 88.7 88.7 8.0 94.5 94.5
64 WB 8.0 86.7 62.4 8.0 87.7 77.0 8.0 88.7 88.7 8.0 94.5 94.5
67 WB 8.1 92.5 53.6 8.1 92.5 68.2 8.1 92.5 82.8 8.1 94.5 94.5
70 WB 8.1 97.4 44.8 8.1 97.4 59.4 8.1 98.4 74.0 8.2 98.4 87.7
73 WB 8.2 103.3 36.0 8.2 103.3 50.7 8.2 105.2 64.3 8.4 103.3 78.9
95
61 WB 8.2 80.9 71.1 8.3 82.8 82.8 8.3 87.7 87.7 8.4 93.5 93.5
64 WB 8.3 85.7 62.4 8.3 85.7 76.0 8.3 87.7 87.7 8.4 93.5 93.5
67 WB 8.4 90.6 53.6 8.4 90.6 68.2 8.4 90.6 81.8 8.4 93.5 93.5
70 WB 8.4 96.4 44.8 8.4 96.4 58.5 8.4 96.4 73.1 8.4 96.4 87.7
73 WB 8.5 101.3 35.1 8.5 101.3 49.7 8.5 101.3 64.3 8.6 101.3 78.9
100
61 WB 8.5 78.9 70.1 8.6 80.9 80.9 8.6 86.7 86.7 8.7 91.6 91.6
64 WB 8.6 83.8 61.4 8.6 83.8 76.0 8.6 86.7 86.7 8.7 91.6 91.6
67 WB 8.7 88.7 52.6 8.7 88.7 67.2 8.7 88.7 80.9 8.7 91.6 91.6
70 WB 8.8 94.5 43.8 8.8 94.5 58.5 8.8 94.5 72.1 8.8 94.5 85.7
73 WB 8.9 99.4 35.1 9.0 99.4 48.7 9.0 99.4 63.3 9.0 99.4 77.9
105
61 WB 8.9 77.0 69.2 8.9 79.9 79.9 9.0 84.8 84.8 9.1 89.6 89.6
64 WB 8.9 81.8 60.4 8.9 81.8 75.0 9.0 84.8 84.8 9.1 89.6 89.6
67 WB 9.1 86.7 51.6 9.1 86.7 66.3 9.1 86.7 79.9 9.1 89.6 89.6
70 WB 9.1 91.6 42.9 9.1 91.6 57.5 9.2 92.5 71.1 9.2 92.5 85.7
73 WB 9.4 98.4 34.1 9.4 98.4 48.7 9.4 98.4 62.4 9.4 98.4 77.0
COOLING CAPACITY DATA — PCC090-X @ 3,000 CFM
COMPONENT PRESSURE DROPS
NOTES:
1 Capacities are gross and are based on 230, 460 operation. 208-volt
operation must be derated by 0.98. Gross capacities do not include
evaporator motor heat.
AMB
EAT
DB
Ambient Air Temperature
Entering Air Temperature
Evaporator Dry Bulb EAT
2 kW is for entire unit WB Evaporator Wet Bulb EAT
3 See table for capacity correction factors at other than nominal CFM. CFM Evaporator Airflow Ft.³/min (Table 9a)
kW 1,000 Watts
SHADED AREA REPRESENTS 100% SENSIBLE COOLING MBHT 1,000 BTU/h Total Cooling
MBHS 00 BTU/h Sensible Cooling

SS-GPCC www.goodmanmfg.com 7
PRODUCT SPECIFICATIONS
AMB. ˚FEVAP.
EAT 75 ˚F DB 80 ˚F DB 85 ˚F DB 90 ˚F DB
KW MBHT MBHS KW MBHT MBHS KW MBHT MBHS KW MBHT MBHS
85
61 WB 10.2 115.9 99.7 10.2 118.6 117.2 10.3 125.3 125.3 10.3 132.0 132.0
64 WB 10.3 122.6 87.6 10.3 122.6 107.8 10.3 125.3 125.3 10.3 132.0 132.0
67 WB 10.3 130.7 75.4 10.3 130.7 95.6 10.3 130.7 114.5 10.5 132.0 132.0
70 WB 10.6 138.8 63.3 10.6 138.8 83.5 10.6 138.8 102.4 10.6 138.8 122.6
73 WB 10.6 146.9 51.2 10.6 146.9 71.4 10.6 146.9 90.3 10.7 146.9 110.5
90
61 WB 10.6 113.2 98.3 10.7 115.9 115.9 10.8 122.6 122.6 10.8 130.7 130.7
64 WB 10.8 119.9 86.2 10.8 121.3 106.4 10.8 122.6 122.6 10.8 130.7 130.7
67 WB 10.9 128.0 74.1 10.9 128.0 94.3 10.9 128.0 114.5 10.9 130.7 130.7
70 WB 10.9 134.7 62.0 10.9 134.7 82.2 10.9 136.1 102.4 11.0 136.1 121.2
73 WB 11.0 142.8 49.8 11.0 142.8 70.1 11.0 145.5 88.9 11.3 142.8 109.1
95
61 WB 11.0 111.8 98.3 11.1 114.5 114.5 11.1 121.3 121.2 11.3 129.3 129.3
64 WB 11.1 118.6 86.2 11.1 118.6 105.1 11.1 121.3 121.2 11.3 129.3 129.3
67 WB 11.3 125.3 74.1 11.3 125.3 94.3 11.3 125.3 113.2 11.4 129.3 129.3
70 WB 11.3 133.4 62.0 11.4 133.4 80.8 11.4 133.4 101.0 11.4 133.4 121.2
73 WB 11.5 140.1 48.5 11.5 140.1 68.7 11.5 140.1 88.9 11.6 140.1 109.1
100
61 WB 11.5 109.1 97.0 11.6 111.8 111.8 11.6 119.9 119.9 11.7 126.6 126.6
64 WB 11.6 115.9 84.9 11.6 115.9 105.1 11.6 119.9 119.9 11.7 126.6 126.6
67 WB 11.7 122.6 72.7 11.7 122.6 93.0 11.7 122.6 111.8 11.7 126.6 126.6
70 WB 11.8 130.7 60.6 11.8 130.7 80.8 11.8 130.7 99.7 11.8 130.7 118.5
73 WB 12.0 137.4 48.5 12.2 137.4 67.4 12.2 137.4 87.6 12.2 137.4 107.8
105
61 WB 12.0 106.4 95.6 12.0 110.5 110.5 12.2 117.2 117.2 12.3 124.0 123.9
64 WB 12.0 113.2 83.5 12.0 113.2 103.7 12.2 117.2 117.2 12.3 124.0 123.9
67 WB 12.3 119.9 71.4 12.3 119.9 91.6 12.3 119.9 110.5 12.3 124.0 123.9
70 WB 12.3 126.6 59.3 12.3 126.6 79.5 12.4 128.0 98.3 12.4 128.0 118.5
73 WB 12.6 136.1 47.2 12.6 136.1 67.4 12.6 136.1 86.2 12.6 136.1 106.4
COOLING CAPACITY CORRECTION FACTORS
CFM
-15% -10% -5% STD. +5% +10% +15%
Total MBH 0.971 0.985 0.991 0 1.006 1.012 1.019
Sensible MBH 0.925 0.952 0.974 0 1.024 1.048 1.070
kW 0.985 0.989 0.995 0 1.004 1.006 1.011
COOLING CAPACITY DATA (CONT.) — PCC120-X @ 4,000 CFM
NOTES:
1 Capacities are gross and are based on 230, 460 operation. 208-volt
operation must be derated by 0.98. Gross capacities do not include
evaporator motor heat.
AMB
EAT
DB
Ambient Air Temperature
Entering Air Temperature
Evaporator Dry Bulb EAT
2 kW is for entire unit WB Evaporator Wet Bulb EAT
3 See table for capacity correction factors at other than nominal CFM. CFM Evaporator Airflow Ft.³/min (Table 9a)
kW 1,000 Watts
SHADED AREA REPRESENTS 100% SENSIBLE COOLING MBHT 1,000 BTU/h Total Cooling
MBHS 00 BTU/h Sensible Cooling
EVAPORATOR MOTOR HEAT
Horse-
power BTU/h
1.5 4,650
3 9,300

8 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
Heater Model HKCB20 HKCB30 HKCB40
Number of Stages 2 2 2
Output (MBH) 67.9 135.8 135.8
CFM
2,600 24.2 36.2 -
2,800 22.5 33.6 -
3,000 21.0 31.4 -
3,200 19.7 29.4 39.3
3,400 18.5 27.7 37.0
3,600 17.5 26.2 34.9
3,800 16.5 24.8 33.1
4,000 15.7 23.5 31.4
4,200 15.0 22.4 29.9
4,400 14.3 21.4 28.6
4,600 13.7 20.5 27.3
4,800 13.1 19.6 26.2
5,000 12.6 18.8 25.2
5,200 12.1 18.1 24.2
5,400 11.6 17.4 23.3
5,600 11.2 16.8 22.5
5,800 10.8 16.2 21.7
6,000 10.5 15.7 21.0
ELECTRIC HEAT AIR TEMPERATURE RISE
HEAT KIT AVAILABILITY
Unit Size HKCB20 HKCB30 HKCB40
7½XXX
10XXX
X - Heat Kit Available
N/A - Heater Not Available
Notes
• Maximum air temperature rise of 40° must not be exceeded.
• See table for Electric Heat Kit Availability in various unit sizes.
• Air temperature rise is for total heating capacity. Temperature rises at other conditions may be
calculated by using the formula:
Temperature Rise = Output Capacity - BTU/h
1.08 x ft3/min. Airflow
• For altitudes over 2,000’, air temperature rise must be calculated using the formula:
Temperature Rise = Output Capacity - BTU/h
14.4 x ft3/Min. Airflow x Specific Weight of Air
• Operation at less than nominal voltages must be derated by the following factors:
460 volt-0.92; 230 volt-0.92; 208 volt-0.75.

SS-GPCC www.goodmanmfg.com 9
PRODUCT SPECIFICATIONS

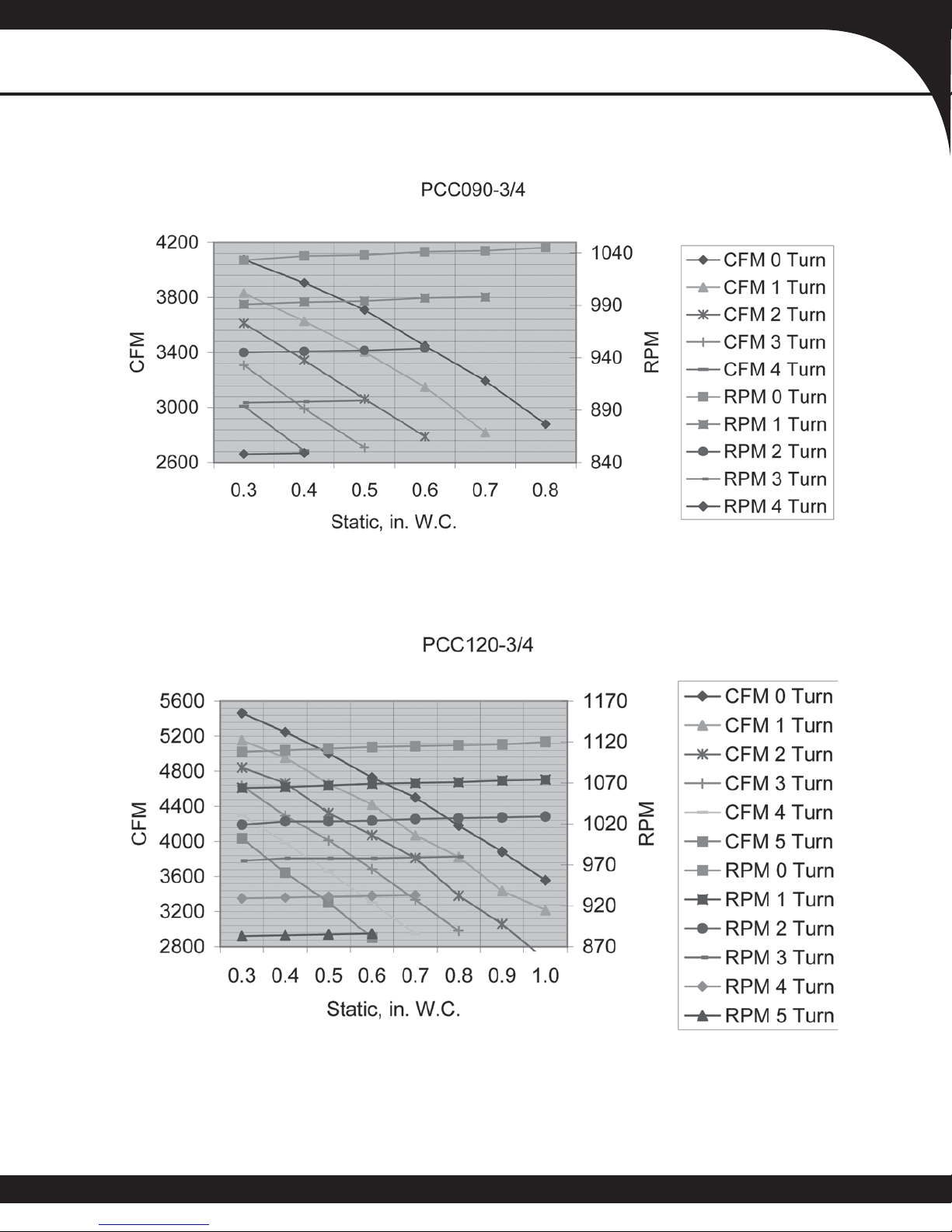

FAN PERFORMANCE DATA

10 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
WIRING DIAGRAM — PCC24-36***
FI ELD CONNECTION 208/ 230 VAC 1
Ø
USE COPPER
CONDUCTORS
ONLY-
75°C MIN
COMPRESSOR 1Ø WIRING
208/230 VAC 1Ø
XFMR-R R
XFMR-C
CG
NO NC
COM
WH-7
G
C
XFMR C
XFMR R
R
COM
NC
NO
HI VOLTAGE FIELD
R
CC
COIL
FOLLOWING CHANGE MUST BE MADE:
L2
HI
ELECTRIC HEAT BLOWER TAP
HEAT RELAY
LOW
USE COPPER CONDUCTORS ONLY - 75? C MIN
WARNI NG:DISCONNECT PO WE R BEFOR E SERV IC IN G.
HORIZ
NUMBER GN GREEN
PCC24C02*
MED-LOW
G
CAP
HERM
FAN
OD
COLOR CODE
YL YELLOW
PCC30C02*
Y
G
MED
HIGH
TO HEATER KIT
C
LOW
ACB
CONTACTOR
BK BLACK
230/208
LOW VOLTAGE FIELD
R
HORIZ
MED LOW HI VOLTAGE
HORIZ
T1
DOWN
ALTERNATE UNIT POWER REFRIGERANT
R
BLOWER
FOR PROPER OP ERATION ON 208 VOLT THE
W2
RD RED
KIT
T2
2
DOWN DOWN
LPS
PHCB20C1
W
RELAY
LOW
COOLING
RD
HEATER
PHCB05C1
RELAY
GN
CAP
RELAY
COM
L1
HORIZ
LOW VOLTAGE
C
ACCESSORY INSTALLATION INSTRUCTIONS.
OR ORANGE
TAP
HEAT
1
22303801 REV. 1
230 VOLT
4
FUSE
208 VOLT INSTALLATION
LEADS MAY BE USED WITH ELECTRIC
HEAT
LO
CAP
START
DOWN
PHCB10C1
5
COOLING
COMMON
PHCB15C1
COOLING
S
CAP
BU BLUE
24V
SPEED TAP
FAN
BR BROWN
MED HI
MOVE RD6 WIRE FROM TRANSFORMER
HEATER ACCESS ORIES. SEE HEATER
W
C
GY GRAY
BK
5
2
ELEC TRIC
START
ELECT RIC
W1
HIGH
230 TERMINAL TO 208 TERMINAL.
MODEL
E
COMP
VT VIOLET
FAN RELAY
SWITCH
WH WHITE
Y
COOLING
TAP
MED LOW HIGH HIGH
HIGHLOW LOW
MED
HIGH
MED
HIGH
MED
HIGH
MED
LOW MED
LOW
MED-HIGH
PCC36C02* MED
LOW HIGH HIGH
LOW LOW MED
HIGH
MED
HIGH
MED
LOW
MED LOW
RD-27
RD
RD-6
7
ELECTRIC
4
T2
FAN
YL-27
FAN
VT-14(COMMON )
C
BU-34
HERM
L2
C
TRANSFORMER
BU
BK-27
BR-21
GY-70
BU-34
VT-14
TERMINAL BOARD
BR
YL/BK
VT
TO
PIN 5
BR-11
HI
W
GND
LOW
Y
YL/BK
L1
S
3
VT-20
12
O
RD-13 BK-26
RD-11
PIN 8
HEATER
PIN 1 PIN 2
6
MED HI
6
PIN 7
BLOWER
2
5
RELAY
31
BU-1
RD
YL
RD-13
CAPACITOR
G
CIRCULATION2
BU-9
COMMON
RD
(ACB)
KITS
SWITCH
PIN 6
RD-10
BU-23
4
5
BK-26
2
RD-27
VIEW A-A
R
BU-23(HEAT)
10
33
GY-28
BR
1
CONTACTOR(CC)
CAPACITOR
1L2
A
MOTOR
LINE
LOAD
VT-18
RD-22
VT-7
VT-18
AIR
3
PIN 9
5
L1
1
RD
A
(CAP)
BU
HEAT
SWITCH(LPS) LOWPRES SURE
BU-9
RD-31
7RELAY
23
230
COOLING
3
GND
BU-9
COM
20
PIN 4
O.D.
208
R
T1
31
9 8
PIN 3
VT-16
RD-24(COOL)
COM
4MED LOW
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic.
WARNING High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.

SS-GPCC www.goodmanmfg.com 11
PRODUCT SPECIFICATIONS

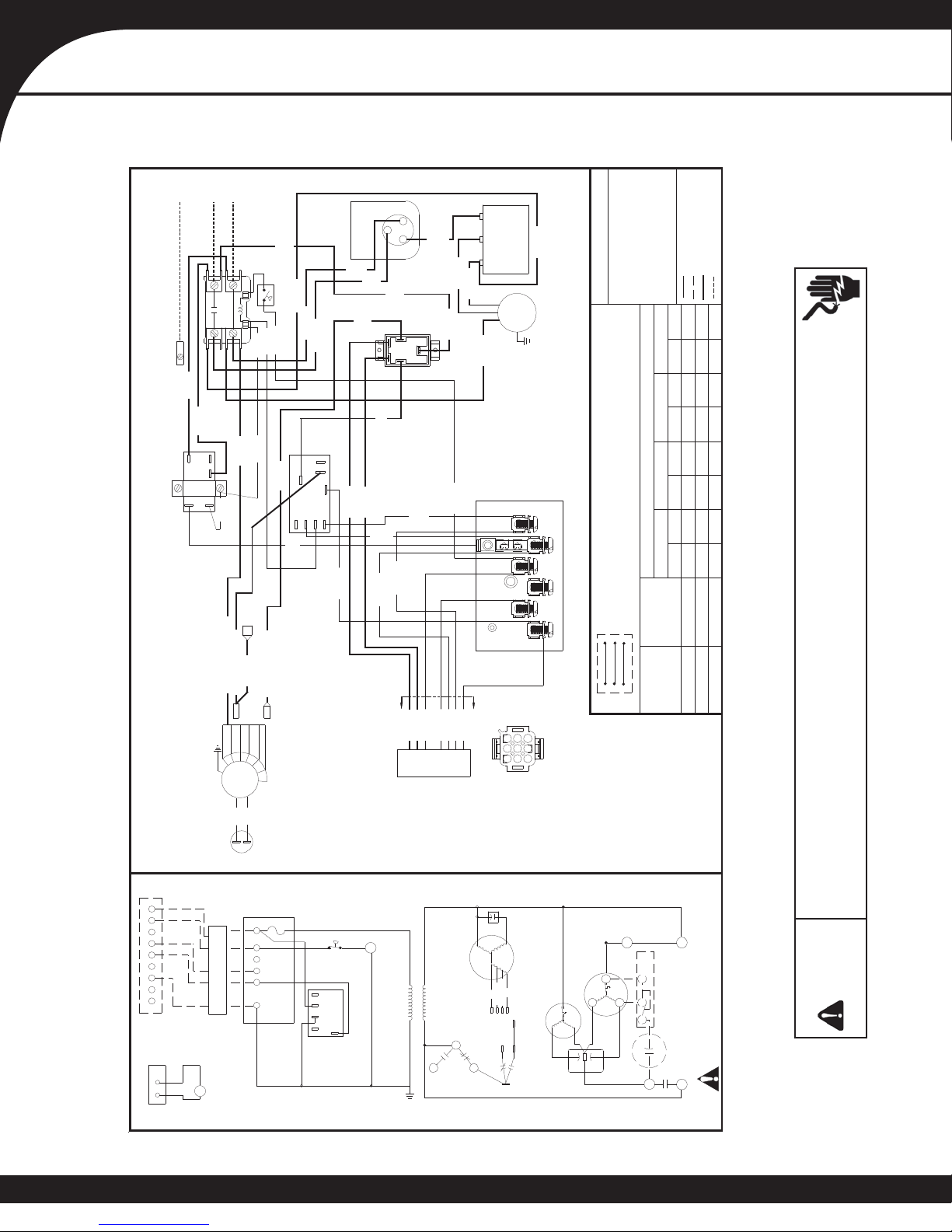

WIRING DIAGRAM — PCC42-48***
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic.
WARNING High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
75 °C MIN
1 Ø WIR ING
FI ELD CONNECTI ON
208/ 230 VAC1Ø
208/230 VAC 1Ø WARNING:DISCONNECT P OWER BEFORE SERVICING. USE COPPER CONDUCTORS ONLY - 75ºC MIN
XFMR-R R
XFMR-C
CG
NO NC
COM
WH-7
G
C
XFMR C
XFMR R
R
COM
NC
NO
HI VOLTAGE FIELD
R
CC
MED
COIL
FOLLOWING CHANGE MUST BE MADE:
L2
HI
ELECTRIC HEAT BLOWER TAP
HEAT RELAY
LOW
HORIZ
NUMBER GN GREEN
PCC42C02*
MED
G
CAP
HER M
FAN
OD
COLOR CODE
YL YELLOW
MED
PCC48C02*
Y
G
MED
TO HEATER KIT
C
LOW
ACB
CONTACTOR
LOW
BK BLACK
230/208
LOW VOLTAGE FIELD
MED
R
HORIZ
MED HI VOLTAGE
HORIZ
T1
DOWN
ALTERNATE UNIT POWER REFRIGERANT
R
BLOWER
FOR PROPER OPERATION ON 208 VOLT THE
W2
RD RED
KIT
T2
LOW
MED
2
DOWN DOWN
LPS
PHCB20C1
W
RELAY
LOW
COOLING
RD
HEATER
MED
PHCB05C1
RELAY
GN
CAP
RELAY
COM
L1
HORIZ
LOW VOLTAGE
C
ACCESSORY INSTALLATION INSTRUCTIONS.
OR ORANGE
TAP
HEAT
1
LOW
22303201 REV. 1
230 VOLT
4
FUSE
208 VOLT INSTALLATION
LEADS MAY BE USED WITH ELECTRIC
HEAT
LO
CAP
START
DOWN
PHCB10C1
5
COOLING
COMMON
PHCB15C1
COOLING
S
CAP
BU BLUE
HI
24V
SPEED TAP
FAN
BR BROWN
MED
MOVE RD6 WIRE FROM TRANSFORMER
HEATER ACCESSORIES. SEE HEATER
W
C
GY GRAY
LOW
BK
5
2
ELECTRIC
START
ELECTRIC
W1
HI
230 TERMINAL TO 208 TERMINAL.
MODEL
E
COMP
MED
VT VIOLET
FAN RELAY
SWITCH
WH WHITE
Y
COOLING
TAP
RD-27
USE C OPPER
RD
RD-6
7
ELECTRI C
4
T2
FAN
YL-27
FAN
VT-14(COMMON)
C
BU-34
HERM
L2
C
TRANSFORMER
BU
BK-27
BR-21
GY-70
BU-34
VT-14
TERMINAL BOARD
BR
YL/BK
VT
TO
PIN 5
BR-11
HI
W
GND
LOW
Y
YL/BK
L1
S
COMPRESSOR
3
VT-20
12
O
RD-13 BK-26
RD-11
PIN 8
HEATER
PIN 1 PIN 2
6
MED
6
PIN 7
BLOWER
2
5
RELAY
31
BU-1
RD
YL
RD-13
CAPACITOR
G
CIRCULATION2
BU-9
COMMON
RD
(ACB)
KITS
SWITCH
PIN 6
RD-10
BU-23
4
5
BK-26
2
RD-27
VIEW A-A
R
BU-23(HEAT)
10
33
GY-28
CONDUCTORS
BR
1
CONTACTOR(CC)
CAPACITOR
1L2
A
MOTOR
LINE
LOAD
VT-18
RD-22
VT-7
VT-18
AIR
3
PIN 9
5
L1
1
RD
A
(CAP)
BU
HEAT
SWI TCH ( L PS ) LOWPRESSURE
BU-9
RD-31
7RELAY
23
230
COOLING
3
GND
BU-9
COM
20
PIN 4
O.D.
208
R
T1
31
9 8
PIN 3
VT-16
ONLY-
RD-24(COOL)
COM
4

12 www.goodmanmfg.com SS-GPCC
PRODUCT SPECIFICATIONS
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice
or without incurring obligations. © 2008-2009 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.

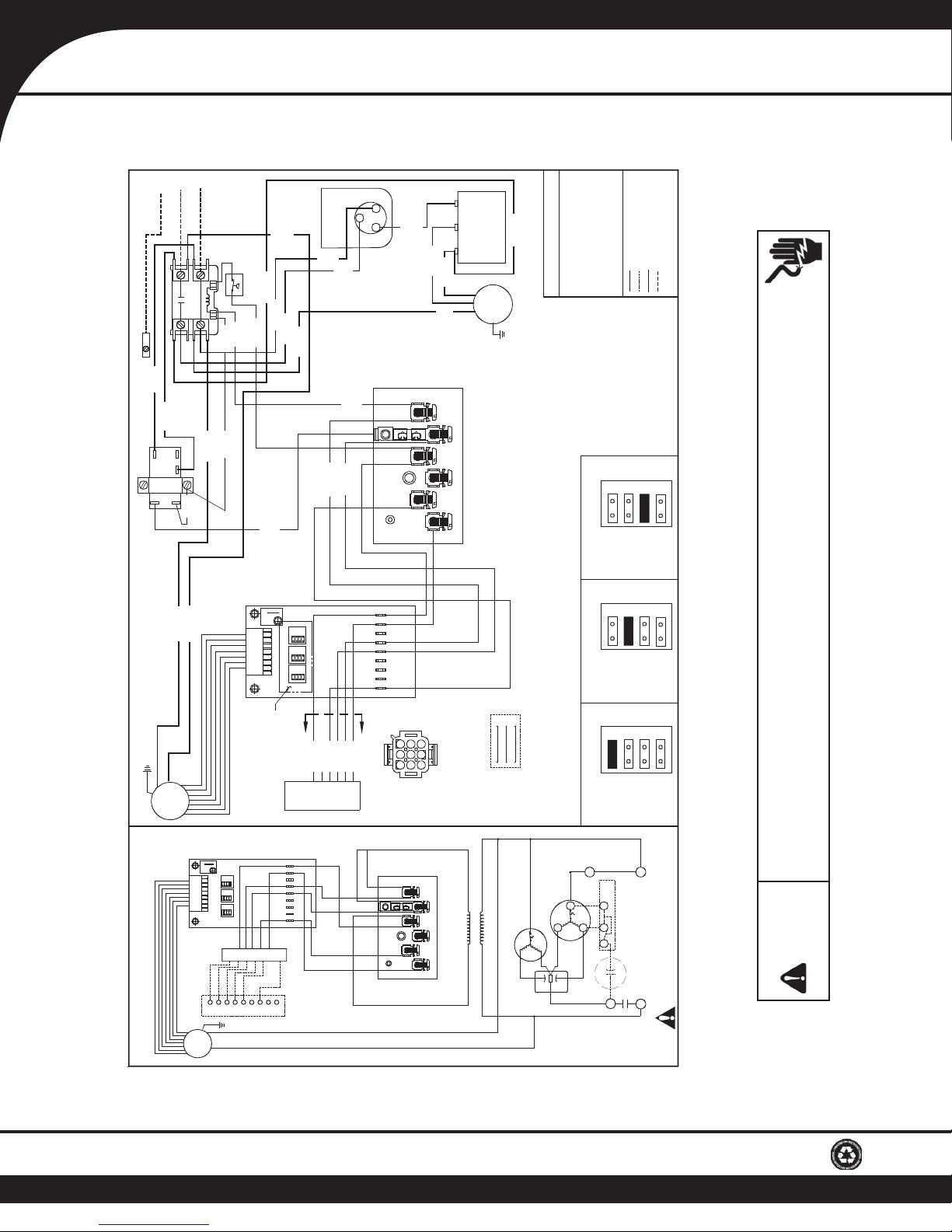

WIRING DIAGRAM — PCC60***
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date schematic.
WARNING High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
DISCONNECT UNIT POWER
WHEN CHANGING TAPS
CONTACTOR (CC)
YL YELLOW OR ORANGE VT VIOLET GN GREEN BK BLACK
BR BROWN WH WHITE BU BLUE GY GRAY RD RED
COLOR CODE
LOW VOLTAGE LOW VOLTAGE FIELD HI VOLTAGE HI VOLTAGE FIELD
20283201 REV. 0
R S
C
FAN
COM
HER M
CAP
T1
T2
COMP
OD
FAN
CC
WARNING: DISCONNECT POWER BEFORE SERVICING. USE COPPER CONDUCTORS ONLY
COMPRESSOR
1Ø WIRING
O.D.
FAN
MOTOR
COM
208
230
LOAD LI NE
TRANSFORMER
CS
R
FIELD CONNECTION 208/230 VAC 1Ø
L1
GND
L2
AIR
CIRCULATION
BLOWER
(ACB)
L1
208/230 VAC 1Ø
FOR PROPER OPERATION ON 208 VOLT THE FOLLOWING CHANGE MUST BE MADE:
208 VOLT INSTALLATION
MOVE RD6 WIRE FROM TRANSFORMER 230 TERMINAL TO 208 TERMINAL.
VT
20
RD
10
CONTACT OR (CC)
PIN 1 PIN 2 PIN 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN 8 PIN 9
GY-70
TO
HEATER
KIT
BU-34
RD-13
BR-21
YL-27
COM FAN HERM
CAPACITOR
YL
12
BK-27
BR-11
GND
L2
T2
L1
T1
W1
G
E C R W O Y
24V
COMMON
CAP
L2
START
CAP
521 START
RELA Y
VT-7
RD-6
BU-9
BU-9
RD-27
230/208
VT-14
BU-9
BU-7
VT-20
RD-10
TOHEATERKIT
W2
USE COPPER
CONDUCTORS
ONLY-
75°C MIN
HEATER
KIT
YL/BK
LOW PRESSURE SWITCH (LPS)
RD-27
RD
31
VT
16
RD
33
C2
C1
R3
O
ADJ US T
NORM
( )+ (-)
TEST
HEAT
A B C D
COOL
A B C D
R2
EM/W2
W1
Y/Y2
G
VT-14
RD-31
BLOWER INTERFACE
C2
C1
R3
O
ADJUS
T
NORM
()+
(-)
TEST
HEAT
A
B
C
D
COOL
A
B
C
D
CUTTO
ENABLE
DEHUMIDIFY
R2
EM/W2
W1
Y/Y2
G
BLOWER INTER FACE
(COOL)
A
B C
D
1700 1717 1734 1750
(HEAT)
A
B
C
D
525(7.5 KW) 700(10 KW) 1050(15 KW) 1400(20 KW)
CFM
ADJUST
NORM (+) (-) TEST
CFM
DETAIL 2
RD BK GN
321 65 987
4
VIEW A-A
ALTERNATE UNIT POWER REFRIGERANT LEADS MAY BE USED WITH ELECTRIC HEATER ACCESSORIES. SEE HEATER ACCESSORY INSTALLATION INSTRUCTIONS.
A
A
A
B
C
D
G
W
O
Y
R
C
TERMINAL BOARD
BU
7
BU-34
RD-13
VT-16
G
W
O
Y
R
C
TERMINAL BOARD
SEE DETAIL 2
AIR
CIRCULA TION
BLOWER
(ACB)
ENABLE
DEHUMIDIFY
CU T TO
