Goodman RT6100004R13 Operating instructions

This manual is to be used by qualified, professionally trained HVAC
technicians only. Goodman does not assume any responsibility for
property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
Split System Air Conditioners,
Split System Heat Pumps
with R-22 Refrigerant
Blowers, Coils, & Accessories
Service Instructions
Copyright © 2005 - 2009 Goodman Manufacturing Company, L.P.
RT6100004r13
May2009

IMPORTANT INFORMATION
Prideandworkmanshipgointoeveryproducttoprovideourcustomerswithqualityproducts. Itispossible,however,
thatduringitslifetimeaproductmayrequireservice. Productsshouldbeservicedonlybyaqualifiedservicetechnician
whoisfamiliarwiththesafetyproceduresrequiredintherepairandwhoisequippedwiththeproper tools,parts,testing
instrumentsandtheappropriateservicemanual. REVIEWALLSERVICEINFORMATIONINTHEAPPROPRIATE
SERVICEMANUALBEFOREBEGINNINGREPAIRS.
IMPORTANT NOTICES FOR CONSUMERS AND SERVICERS
RECOGNIZESAFETYSYMBOLS,WORDSANDLABELS
TABLE OF CONTENTS
2
To locate an authorized servicer, please consult your telephone book or the dealer from whom you purchased this
product. For further assistance, please contact:
WARNING
To prevent the risk of property damage, personal
injury, or death, do not store combustible materials or
use gasoline or other flammable liquids or vapors
in the vicinity of this appliance.
WARNING
Goodman will not beresponsible for any injury or property damage arising fromimproper service or service
procedures. If you perform service on your own product, you assume responsibility for any personal injury or property
damage which may result.
WARNING
This unit should not be connected to, or used in conjunction with, any devices that are not design certified for use with
this unit or have not been tested and approved by Goodman. Serious property damage or personal injury, reduced unit
performance and/or hazardous conditions may result from the use of devices that have not been approved or certified by
Goodman.
CONSUMERINFORMATIONLINE
GOODMAN®BRANDPRODUCTS
TOLL FREE 1-877-254-4729 (U.S. only)
email us at: [email protected]
fax us at: [phone]
(Not a technical assistance line for dealers.)
CONSUMERINFORMATIONLINE
AMANA®BRANDPRODUCTS
TOLL FREE 1-877-254-4729 (U.S. only)
email us at: hac.consumer[email protected]
fax us at: (931) 438- 4362
(Not a technical assistance line for dealers.)
Outside the U.S., call 1-931-433-6101. (Not a technical assistance
line for dealers.) Your telephone company will bill you for the call.
Outside the U.S., call 1-713-861-2500. (Not a technical assistance
line for dealers.) Your telephone company will bill you for the call.
IMPORTANTINFORMATION .........................2 - 3
MODELIDENTIFICATION............................4 - 15
AIRHANDLER/COILIDENTIFICATION ............15
ACCESSORIES.........................................16 - 20
PRODUCT DESIGN ................................. 21 - 22
SYSTEMOPERATION ..............................23 - 27
TROUBLESHOOTING CHART .........................28
SERVICING TABLE OF CONTENTS ................29
SERVICING .................................................30 - 60
ACCESSORIESWIRINGDIAGRAMS ........61 - 69

3
Thesuccessfuldevelopmentofhermeticallysealedrefrigera-
tioncompressorshascompletelysealedthecompressor's
movingpartsandelectric motorinsideacommonhousing,
minimizing refrigerant leaks and the hazards sometimes
associated with moving belts, pulleys or couplings.
Fundamental to the design of hermetic compressors is a
method whereby electrical current is transmitted to the
compressormotorthroughterminalconductorswhichpass
throughthecompressorhousingwall. Theseterminalsare
sealedinadielectricmaterialwhichinsulatesthemfromthe
housing and maintains the pressure tight integrity of the
hermetic compressor. The terminals and their dielectric
embedmentarestronglyconstructed,butarevulnerableto
careless compressor installation or maintenance proce-
dures and equally vulnerable to internal electrical short
circuits caused by excessive system contaminants.
WARNING
System contaminants, improper service procedure
and/or physical abuse affecting hermetic compressor
electrical terminals may cause dangerous system
venting.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
SAFE REFRIGERANT HANDLING
Whilethese items will not cover every conceivable situation, they should serve as a useful guide.
Ineither of these instances, an electrical short between the
terminalandthe compressor housing may result in theloss
of integrity between the terminal and its dielectric embed-
ment. This loss may cause the terminals to be expelled,
thereby venting the vaporous and liquid contents of the
compressor housing and system.
Aventingcompressorterminalnormallypresentsnodanger
toanyone,providingtheterminalprotectivecoverisproperly
in place.
If, however, the terminal protective cover is not properly in
place,aventingterminalmay discharge a combinationof
(a) hotlubricatingoilandrefrigerant
(b) flammable mixture (if system is contaminated
withair)
inastreamofspraywhichmaybedangeroustoanyoneinthe
vicinity. Death or serious bodily injury could occur.
Under no circumstances is a hermetic compressor to be
electrically energized and/or operated without having the
terminalprotectivecoverproperlyinplace.
SeeServiceSectionS-17forproperservicing.
IMPORTANT INFORMATION
Refrigerants are heavier than air. They can "push out"
the oxygen in your lungs or in any enclosed space.To
avoid possible difficulty in breathing or death:
• Never purge refrigerant into an enclosed room or
space. By law, all refrigerants must be reclaimed.
• If an indoor leak is suspected, thoroughly ventilate
the area before beginning work.
• Liquid refrigerant can be very cold. To avoid possible
frostbite orblindness, avoid contact withrefrigerant
and wear gloves and goggles. If liquid refrigerant
does contact your skin or eyes, seek medical help
immediately.
• Always follow EPA regulations. Never burn refrig-
erant, as poisonous gas will be produced.

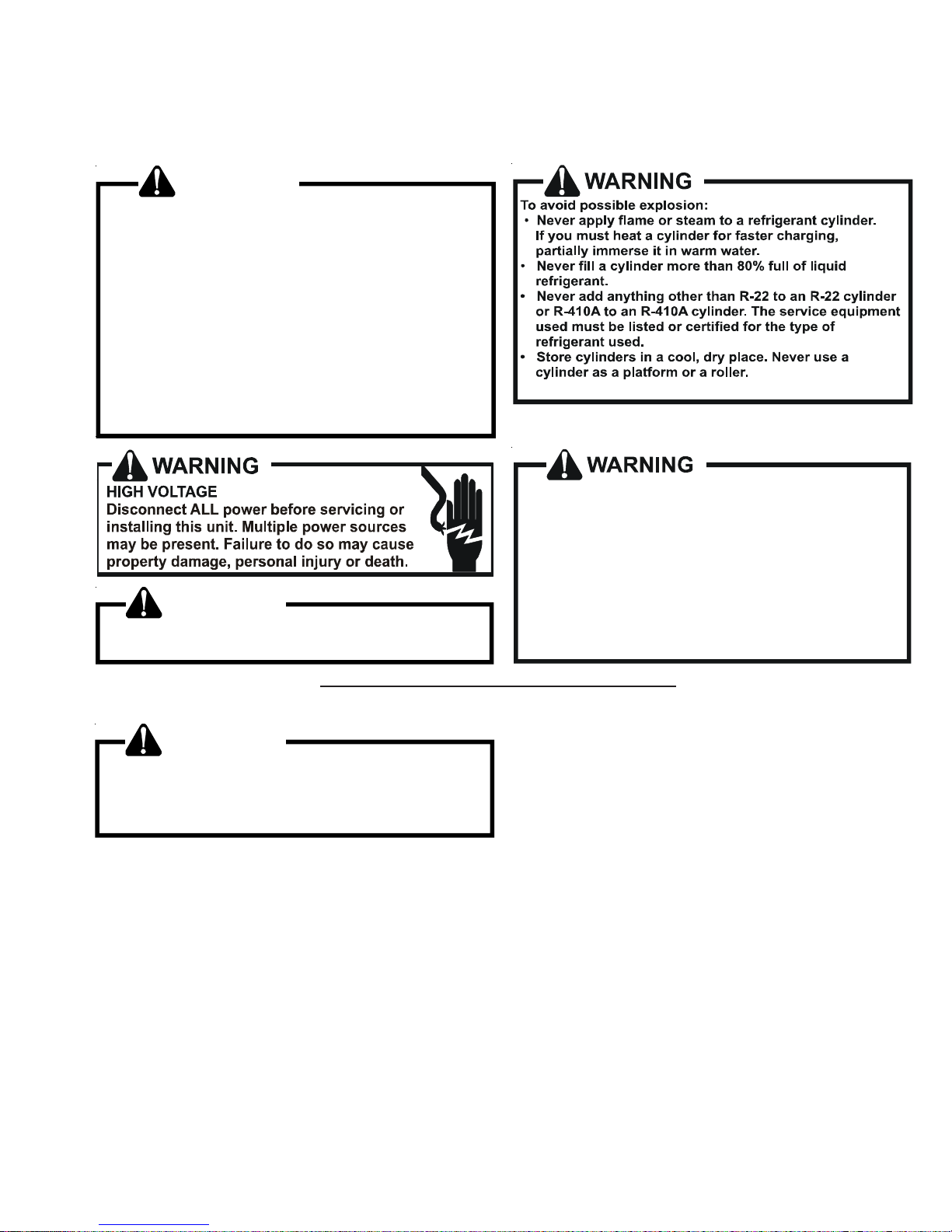

WARNING
To avoid possible explosion, use only returnable (not
disposable) service cylinders when removing refrig-
erant from a system.
• Ensure the cylinder is free of damage which could
lead to a leak or explosion.
• Ensure the hydrostatic test date does not exceed
5 years.
• Ensure the pressure rating meets or exceeds 400
lbs.
When in doubt, do not use cylinder.

PRODUCT IDENTIFICATION
4
Model # Description
GSC13018-241AA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 26" chassis
GSC13036-481AA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 29" chassis
GSC13036,48*AA Goodman® Brand SplitCondenser 13 Seer condensing units.
Introduces new 13 SEER AC 3 PH R-22 Goodman Models
GSC130**1AB Goodman® Brand SplitCondenser 13 Seer condensing units. Move location of screw
hole.
GSC13036,48*AB Goodman® Brand SplitCondenser 13 Seer condensing units. Introduces new models
due to the replacement of 8-pole fan motors with 6-pole.
GSC13048*AC Goodman® Brand SplitCondenser 13 Seer condensing units. Move location of screw
hole.
GSC13018-30AC Goodman® Brand SplitCondenser 13 Seer condensing units. Release Models
containing the broad ocean motor 0131M00060
GSC13018,24, 301AD
GSC1300421AC,484AC
GSC13018, 24, 301AE
GSC130481, 483AE/AF
GSC130363AE/AF
GSC130361DE/DD
Goodman® Brand SplitCondenser 13 Seer condensing units. Remove 1 hairpin from
coil.
GSC13048*AD Goodman® Brand SplitCondenser 13 Seer condensing units. Release Models contain
the broad ocean motor 0131M00061
GSC130481AG Goodman® Brand SplitCondenser 13 Seer condensing units. Introduces new models
with Bristol compressors.
GSC130181BA Goodman® Brand SplitCondenser 13 Seer condensing units. Conversion of existing
models using 3/8" diameter tube coils to 5 mm coils.
GSC130361BA Goodman® Brand SplitCondenser 13 Seer condensing units. Initial release. 35"
chassis.
GSC130361BA Goodman® Brand SplitCondenser 13 Seer condensing units. Release Model with
Copeland Scroll Compressor.
GSC130361BB Goodman® Brand SplitCondenser 13 Seer condensing units. Introduces new models
due to the replacement of 8-pole fan motors with 6-pole.
GSC130361DF Goodman® Brand SplitCondenser 13 Seer condensing units. Introduces new models
with Bristol compressors.
GSC13024-301CA Goodman® Brand SplitCondenser 13 Seer condensing units. Introduces models with
reduced chassis size from the current 29x32.5 to 26x32
GSC130241DA Goodman® Brand Split Condenser 13 Seer condensing units. Release of Goodman 13
SEER Condensers, with 5 mm coils; compressor change:CR18K7-PFV-230; reduced
refrigerant charge.
GSC130361FA
GSC130363BA
GSC130301DA
Goodman® Brand SplitCondenser 13 Seer condensing units. Converts from 3/8" to
5mm.2.5 & 3 ton units have newcoil slab height and new louver panels. 2.5 - small
chassis;3 ton medium chassis.
Split System Air Conditioners R-22

PRODUCT IDENTIFICATION
5
Model # Description
GSC140**1AA Goodman® Brand Split Condenser 14 Seer condensing units. Introduces Goodman®
Brand 14 Seer AC R-22 models.
GSC140**1AB Goodman® Brand Split Condenser 14 Seer condensing units. New revisions have screw
locations moved in the top panel, base pans, louvers, and control box covers.
GSC140**1AC Goodman® Brand Split Condenser 14 Seer condensing units. Release models
containing the Broad Ocean motor 0131M00060 and 0131M00061
GSC140**1AD Goodman® Brand Split Condenser 14 Seer condensing units. Revise condenser coils by
removing (1) hairpin. Reducing refrigerant quantities by 6 ounces.
GSC14018-421BA Goodman® Brand Split Condenser 14 Seer condensing units. Conversion of existing
models using 3/8" diameter tube coils to 5 mm coils.
Model # Description
ASC130**1AA Amana® Brand Split Condenser 13 Seer condensing units. Initial release new models of
Amana® Brand Deluxe 13 Seer AC R-22 conditioners.
ASC130**1AB Amana® Brand Split Condenser 13 Seercondensing units. Move location of screw hole.
ASC130**1AC Amana® Brand Split Condenser 13 Seer condensing units. Introduces horizontal style
louvers.
ASC1301**1AD Amana® Brand Split Condenser 13 Seer condensing units. Remove 1 hairpin from coil.
ASC130601BD Special High Feature Split XCondenser 14 Seer condensing units.. Remove 1
hairpin from coil. Reduce refrigerant quantities by 6 ounces.
Model # Description
VSC13018-601AA Value Split Condenser 13 Seercondensing units. IntroducesValue 13 Seer AC R-22
models. 2 year part & 5 year compressor warranty in Bahama Beige.
Split System Air Conditioners R-22
Split System Air Conditioners R-22
Split System Air Conditioners R-22

PRODUCT IDENTIFICATION
6
Model # Description
GSH10***AA Goodman® Brand Split Heat Pump 10 Seer heat pump units. Initialrelease.
GSH10***AB Goodman® Brand Split HeatPump 10 Seer heatpump units. Screw locations
moved in the top panel,base pans,louvers, and control box covers. .
GSH13***AA Goodman® Brand Split Heat Pump 13 Seer heat pump units. Initialrelease.
GSH13**1AB
Goodman® Brand Split HeatPump 13 Seer heatpump units. Revision
introduces the following new models due to the replacementof 8-pole fan motors
with 6-pole and screw locations moved in the top panel, base pans, louvers, and
control box covers.
GSH13**1AC Goodman® Brand Split HeatPump 13 Seer heatpump units. Contain Broad
Ocean motors Screw locations moved in the top panel,base pans, louvers, and
control box covers. .
GSH13036-48*AD Goodman® Brand Split HeatPump 13 Seer heat pump units. Introduces models
that contain the broad ocean motor
GSH13018-301BA Goodman® Brand Split HeatPump 13 Seer heatpump units. Reduction in
chassis size from mediumto small.
GSH130421AE Goodman® Brand Split Heat Pump 13 Seer heatpump units. ReplacesV10
reversing valve with V6 reversing valve.
GSH13048*AG Goodman® Brand Split HeatPump 13 Seer heatpump units. Introduces
model with Bristol Compressors.
GSH13036*BA/BB Goodman® Brand Split HeatPump 13 Seer heatpump units. Improvements to
increase MOP values on 3 ton units.
GSH140**1AA Goodman® Brand Split HeatPump 14 Seer heatpump units. Initial release.
GSH140**1AB Goodman® Brand Split HeatPump 14 Seer heatpump units. Screw locations
moved in the top panel,base pans,louvers, and control box covers.
GSH140**1AC Goodman® Brand Split HeatPump 14 Seer heatpump units. Releases
models with the Broad Ocean motor.
GSH140361AF,
GSH140421-48AD
GSH140601AE
Goodman® Brand Split HeatPump 14 Seer heat pump units. Releases
models that replace TXV & compensator with flowrator & accumulator.
Split System Heat Pumps R-22

PRODUCT IDENTIFICATION
7
Model # Description
ASH130**1AA Amana® Brand Split Heat Pump 13 Seer heat pump units. Initial release new
models of Amana® Brand Deluxe 13 Seer R-22 heatpumps.
ASH130**1AB Amana® Brand Split Heat Pump 13 Seer heat pump units. New revisions have
screw locations moved in the top panel, base pans, louvers, and control box
covers.
ASH130**1AC Amana® Brand Split Heat Pump 13 Seer heat pump units. New revisions have
horizontal style louvers.
Model # Description
VSH1318-601AA Value Split Heat Pump 13 Seer heat pump units. Introduces Value 13 Seer HP R-
22 models. 2 year parts & 5 year compressor warranty in Bahama Beige.
Split System Heat Pumps R-22
Split System Heat Pumps R-22

PRODUCT IDENTIFICATION
8
Model # Description
ARUF****16AA ASingle Piece R Multi-Position PSC Motor Unpainted Flowrater Introduction of new 13
SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A
ARUF364216AB ASingle Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the
current spot welded blower housing with the same cinched or crimped design used on
the 80% furnace line.
ARUF486016AB ASingle Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the
current spot welded blower housing with the same cinched or crimped design used on
the 80% furnace line.
ARUF364216AC ASingle Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the
current spot welded blower housing with the same cinched or crimped design used on
the 80% furnace line.
ARUF****16BA A Single Piece R Multi-Position PSC Motor Unpainted Flowrater. Revision replaces all
ARUFcoils using wavy fin with louver enhanced fin.
ARUF****1BA ASingle Piece R Multi-Position PSC Motor Unpainted Flowrater Introducation of R-22
Only Air Handlers.
ARPF****16AA ASingle Piece R Multi-Position PSC Motor Painted Flowrater Introducation of new 13
SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A
ARPF364216AB ASingle Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces the
current spot welded blower housing with the same cinched or crimped design used on
the 80% furnace line.
ARPF486016AB ASingle Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces the
current spot welded blower housing with the same cinched or crimped design used on
the 80% furnace line.
ARPF****16BA ASingle Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces all
ARPFcoils using wavy fin with louver enhanced fin.
ARPF****1BA ASingle Piece R Multi-Position PSC Motor Painted Flowrater. Introducation of R-22
Only Air Handlers.
ADPF****16AA ASingle Piece Downflow PSC Motor Unpainted Flowrater. Introducation of new 13
SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A
ADPF364216AB ASingle Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current
spot welded blower housing with the same cinched or crimped design used on the 80%
furnace line.
ADPF486016AB ASingle Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current
spot welded blower housing with the same cinched or crimped design used on the 80%
furnace line.
ADPF304216AC ASingle Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current
spot welded blower housing with the same cinched or crimped design used on the 80%
furnace line.
ADPF****1BA ASingle Piece Downflow PSC Motor Unpainted Flowrater Revision replaces all
ARPFcoils using wavy fin with louver enhanced fin.
Single Piece Air Handlers

PRODUCT IDENTIFICATION
9
Model # Description
AEPF****16AA ASingle Piece EMulti-Position Variable-Speed Painted Flowrator. Introducation of
new13 SEER Air HandlerModels. All Models will be suitable foruse with R-22 and
R-410A
AEPF****16BA ASingle Piece EMulti-Position Variable-Speed Painted Flowrator. Revision
introduces new models adding lower kwhit kits on the S&R plate
AEPF****16BB ASingle Piece EMulti-Position Variable-Speed Painted Flowrator. Revision
replaces the current spot welded blowerhousing with the same cinched or crimped
design used on the 80% furnace line.
AEPF****16CA ASingle Piece EMulti-Position Variable-Speed Painted Flowrator. Revision
replaces all ARPFcoils usingwavy fin with louverenhanced fin.
AEPF****1BA ASingle Piece EMulti-Position Variable-Speed Painted Flowrator Introduction of R
-
22 Only Air Handlers.
AEPF313716AA
ASPF313716AA
ASingle Piece EMulti-Position Variable-Speed Painted Flowrator (AEPF) and A
Single Piece SMulti-Position EEM motor Painted Flowrator (ASPF). Introduction of
3-Ton Air Handler units with 3-row coil.
ASPF****16AA ASingle Piece SMulti-Position EEM motor Painted Flowrator. Introduces new
ASPF Air Handlers
ASPF****16BA ASingle Piece SMulti-Position EEM motor Painted Flowrator. Revision introuces
modified ASPF control scheme, to ensure blower operation during and after call for
heat on units with heat kits and replacing wavyfin with louver enhanced fin on coil
AWUF****1AA A Single Piece Air Handler Wall Mount Unpainted Flowrator.Introduces 13 SEER
Dayton wall mount air handlers
AWUF****16AA A Single Piece Air Handler Wall Mount Unpainted Flowrator.Introduces 13 SEER
Dayton wall mount air handlers. All Models will be suitable for use with R-22 and R-
410A
AWUF3005-101AA A Single Piece Air Handler Wall Mount Unpainted Flowrator.Introduces 13 SEER
Dayton wall mount air handlers using a Burr Oak Louvered Fin coil.
AWUF****1BA A Single Piece Air Handler Wall Mount Unpainted Flowrator.Revision replaces
current wavey fin designwith new louvered fin design
AWUF370**16AA ASingle Piece Air Handler Wall Mount Unpainted Flowrator. Introduction of
AWUF37 Air Handlersfor use with R-22 andR410A.
AWUF****16BA A Single Piece Air Handler Ceiling Mount NUncased Flowrater.Revision has
louver fins & replaces copper tube hairpins with aluminum hairpins.
ACNF****1AA A Single Piece Air Handler Ceiling Mount NUncased Flowrater.Revision release
allmodels of 13 SEER Dayton uncased airhandlers.
ACNF****16AA A Single Piece Air Handler Ceiling Mount NUncased Flowrater.Revision release
allmodels of 13 SEER Dayton uncased airhandlers.All Models will be suitable for
use with R-22 and R-410A
ACNF****1BA A Single Piece Air Handler Ceiling Mount NUncased Flowrater.Revision replaces
current wavey fin designwith new louvered fin design
AH**-1* ASingle Piece Air Handler Hydronic Air Handler. Revision replaces the time delay
relay in the AH air handlers with the UTEC time delay control board.
Single Piece Air Handlers

PRODUCT IDENTIFICATION
10
Model # Description
MBR****AA-1AA Modular Blower RMulti-Position PSC Motor.Introduces moduleblower with PSC
blower motor.
MBE****AA-1AA Modular Blower EMulti-Position Variable-Speed. Introduces module blower with
variable speed blower motor.
MBE****AA-1BA Modular Blower EMulti-Position Variable-Speed.Revision introduces new models
adding lower kw hit kits on the S&R plate
Model # Description
CAUF*****6AA CIndoor CoilA Upflow/Downflow Uncased Flowrator. Introduces 13 SEER CAUF
Dayton Upflow/Downflow coils.
CAUF*****6BA CIndoor CoilA Upflow/Downflow Uncased Flowrator.Revision releases Burr Oak
Louvered Finin place ofthe Wavy Fin currentlyin production.
CAPF*****6AA CIndoor CoilA Upflow/Downflow Painted Flowrator. Introduces 13SEER CAPF
Dayton Upflow/Downflow coils.
CAPF*****6BA CIndoor CoilA Upflow/Downflow Painted Flowrator.Revision releases Burr Oak
Louvered Finin place ofthe Wavy Fin currently in production.
CAPF/CAUF36***CA CIndoor CoilA Upflow/Downflow [Painted or Uncased]Flowrator. Revision
redesigns for performance improvementfrom 2 row to 3 row.
CHPF*****6AA CIndoor CoilHorizontalA Coil Painted Flowrator. Release 13 SEER CHPF
horizontal A coil.
CHPF*****6BA
CIndoor CoilHorizontalA Coil Painted Flowrator. Release 13 SEER CHPF
horizontal A coil. Revision releases Burr Oak Louvered Fin in place of the Wavy
Fin currently in production. The rows change by one,(i.e. 4 row to 3 row;3 row to
2 row) where applicable.
CHPF1824A6CA
CHPF2430B6CA
CHPF3636B6CA
CHPF3642C6CA
CHPF3642D6CA
CHPF3743C6BA
CHPF3743D6BA
CHPF4860D6D
A
CIndoor CoilHorizontalA Coil Painted Flowrator. 13 SEER CHPFhorizontal A
coil, revision has louver fins & replaces copper tube hairpins with aluminum
hairpins.
CSCF*****6AA CIndoor CoilS Horizontal Slab Coil CUpainted Flowrator. Release 13 SEER
CSCFslab horizontal coil.
CSCF*****6BA CIndoor CoilS Horizontal Slab Coil CUpainted Flowrator. Revision releases Burr
Oak Louvered Fin in place of the Wavy Fin currently in production. The rows
change by one,(i.e. 4 row to 3 row;3 row to 2 row) where applicable.
MBR/MBE Air Handlers
Evaporator Coils
