GPC15 SEER Multi-Position
Package Air Conditioners
with R-410A
•RefertoServiceManualRS6300008forinstallation,operation,andtroubleshootinginformation.
•Allsafetyinformation must be followedasprovided in the ServiceManual.
•RefertotheappropriatePartsCatalog for part number information.
•Models listed on page 3.
•Modelsqualifyfor the 2009 and 2010FederalTax Credits for Energy Efficiency**
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
**Note that these tax credits are subject to specific requirements set forth in the American Recovery and
Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman recommends that consumers consult
a tax professional if they have questions about the applicability of these credits.

PRODUCT IDENTIFICATION
2
Themodeland manufacturing number are used for positiveidentificationofcomponentpartsusedinmanufacturing. Please
usethesenumberswhen requesting service or parts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by
individuals meeting the requirements of an "entry level
technician"asspecifiedbytheAir-Conditioning,Heating,
and Refrigeration Institute (AHRI). Attempting to install
or repair this unit without such background may result
in product damage, personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING
GPC1524M41 * *
PRODUCT
TYPE:
Package
Cooling/Heating
PRODUCT
FAMILY:
C: Cooling
H: Heat Pump
PRODUCT
SERIES:
15: 15 SEER
Rating
BRAND:
G: Goodman®
Brand or
Distinctions
NOMINAL
CAPACITY:
24: 24,000 BTUH
30: 30,000 BTUH
36: 36,000 BTUH
42: 42,000 BTUH
48: 48,000 BTUH
CONFIGURATION
H: Horizontal
M: Multi Position
REFRIGERANT:
2: R-22
4: R-410A
MAJOR
REVISION:
MINOR
REVISION:
VOLTAGE:
1: 208-230V/1ph/60Hz
3: 208-230v/3ph/60Hz
4: 460v/3ph/60Hz

PRODUCT IDENTIFICATION
3
GPC1524M41A*
GPC1530M41A*
GPC1536M41A*
GPC1542M41A*
GPC1548M41A*
Themodeland manufacturing number are used for positiveidentificationofcomponentpartsusedinmanufacturing. Please
usethesenumberswhen requesting service or parts information.
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by
Goodman for use with this unit.
Serious property damage, personal injury, reduced unit
performance and/or hazardous conditions may result
from the use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
Modelsqualifyforthe 2009 and 2010 FederalTaxCredits
forEnergyEfficiency**
**Note that these tax credits are subject to specific requirements set forth in the American
Recovery and Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman
recommends that consumers consult a tax professional if they have questions about the
applicability of these credits.

4
PRODUCT DESIGN
GPCPackageCoolingUnitsaredesignedforoutdoorinstal-
lations only in either residential or light commercial applica-
tions and are available in 2, 2-1/2, 3, 3-1/2 and 4 ton sizes.
Theyare designedfor208/230voltsinglephaseapplications.
The connecting ductwork (Supply and Return) can be con-
nected for either horizontal or vertical airflow. In the vertical
application, a matching Roof Curb is recommended and a
horizontalduct cover kit isrequired.
Areturnairfiltermustbeinstalled behindthereturnairgrille(s)
or provision must be made for a filter in an accessible loca-
tionwithinthereturnairduct.Theminimumfilterareashould
not be less than those sizes listed in the Specification Sec-
tion. Under no circumstances should the unit be operated
withoutreturnair filters.
A3/4”PVCpipeisprovidedforremovalofcondensatewater
from the indoor coil In order to provide proper condensate
flow, a drain trap is supplied and shipped loose inside the
unit for field installation. (Do not reduce the drain line size.)
Refrigerant flow control is achieved by use of restrictor ori-
fices. GPC units use the FasTest Access Fitting System
witha saddle that iseither soldered tothe suction and liquid
lines or is fastened with a locking nut to the access fitting
box (core) and then screwed into the saddle. Do not re-
move the core from the saddle until the refrigerant
charge has been removed. Failure to do so could re-
sult in property damage or personal injury.
Thesingle phase units use permanentsplit capacitor (PSC)
designcompressors. Startingcomponentsarethereforenot
required for these units. A low microfarad run capacitor as-
sists the compressor to start and remains in the circuit dur-
ingoperation.
Theoutdoorfan motors are single phasecapacitortypemo-
tors. GPC1524-48M41* units have X-13 indoor blower mo-
tors that are energized by a 24V signal from the thermostat
and are constant torque motors with very low power con-
sumption.TheX-13featuresanintegralcontrolmodule.
Airfor condensing (cooling cycle) is drawn through theout-
door coil by a propeller fan, and is discharged vertically out
the top of the unit. The outdoor coil is designed for .0 static.
Noadditionalrestriction (ductwork) shall beapplied.
Conditioned air is drawn through the filter(s), field installed,
across the coil and back into the conditioned space by the
indoorblower.
GPC15 models use Copeland Scroll Compressors. There
are a number of design characteristics which are different
fromthetraditionalreciprocating compressor.
- Due to their design Scroll Compressors are inherently
moretolerantofliquidrefrigerant.NOTE:Eventhough the
compressorsectionofaScrollcompressorismore toler-
ant of liquid refrigerant, continued floodback or flooded
start conditions may wash oil from the bearing surfaces
causingprematurebearing failure.
- Scroll Compressors use white oil which is compatible
with 3GS oil which may be used if additional oil is re-
quired.
- Operatingpressuresandampdrawsmaydifferfromstan-
dardreciprocating compressors. Thisinformationmaybe
foundinthe "Cooling Performance Data" section.

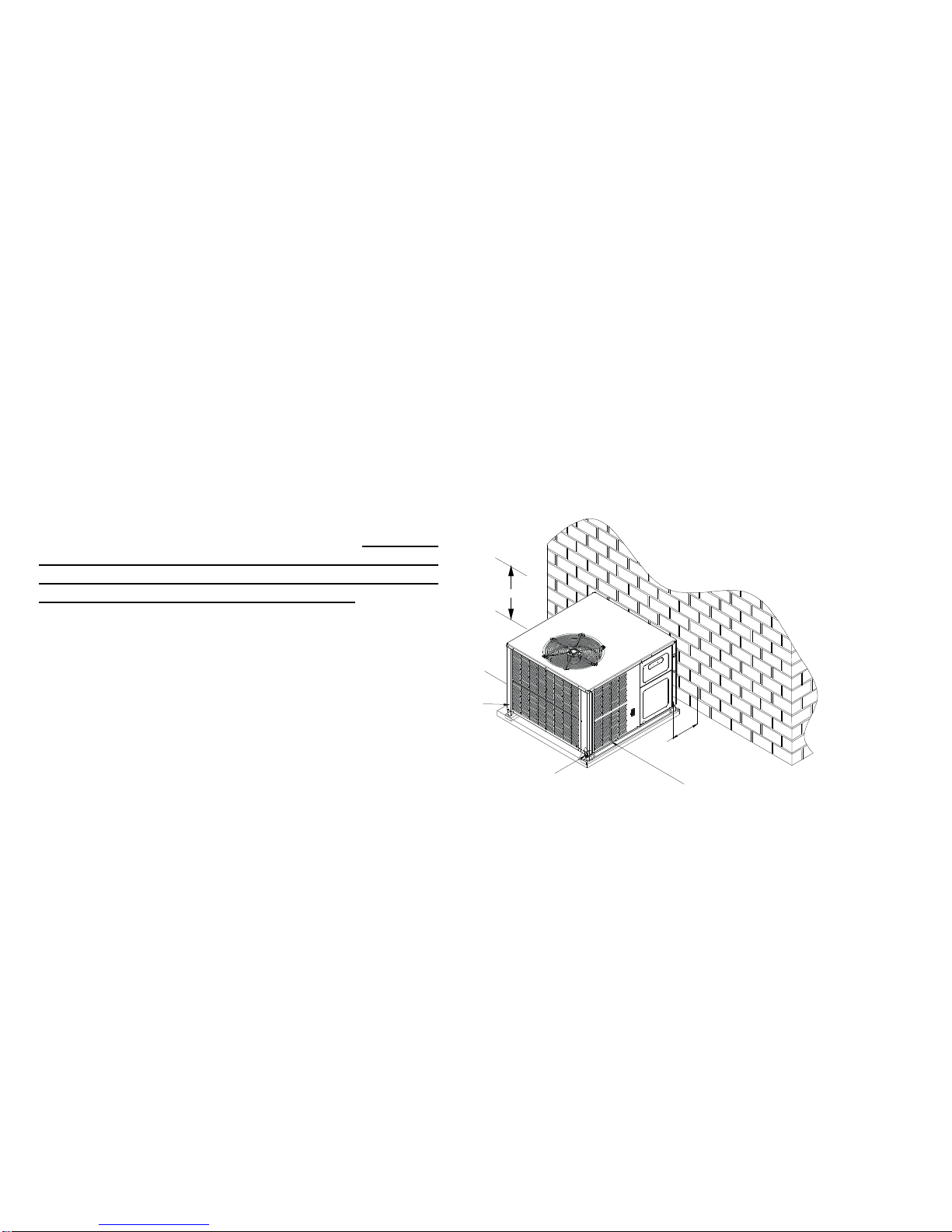

LocationandClearances
NOTE:To ensure proper condensate drainage, unit must be
installed in a level position.
3"
MIN
12" MIN 36" MIN
(FOR SERVICE)
.
48" MIN
12" MIN
36" MIN
(FOR
SERVICE)
OutsideSlabInstallation-Multi-positional(M)
NOTE: Roof overhang should be no more than 36" and
provisionsmadetodeflectthewarmdischargeairoutfromthe
overhang.
Minimumclearancesarerequiredtoavoidairrecirculationand
keep the unit operating at peak efficiency.

PRODUCT DESIGN
5
Roof Curb
RooftopInstallation-Multi-positional(M)
NOTE:To ensure proper condensate drainage, unit must be
installed in a level position.
Ininstallationswherethe unit is installed abovegroundlevel
andnotserviceablefrom the ground (Example: Roof Topin-
stallations),the installermustprovideservice platformforser-
vicepersonwithrailsorguardsinaccordancewithlocalcodes
orordinancesorintheirabsencewiththelatesteditionofthe
UniformMechanicalCodeSection305.
NOTE: Unitcanalso use roof curb(andplatformforleveling,
wherenecessary) to utilize bottom discharge.
WARNING
TOPREVENT POSSIBLEPROPERTY DAMAGE,THE
UNIT SHOULD REMAIN IN AN UPRIGHT POSITION
DURINGALL RIGGINGAND MOVING OPERATIONS.
TO FACILITATE LIFTING AND MOVING IF A CRANE
ISUSED,PLACETHE UNITINANADEQUATE CABLE
SLING.
IMPORTANT: If using bottom discharge with roof curb,
ductwork should be attached to the curb prior to installing
the unit.
Refer to Roof Curb Installation Instructions for proper curb
installation. Curbing must be installed in compliance with
theNationalRoofingContractors Association Manual.

6
PRODUCT DESIGN
HKR ELECTRICAL DATA
All wires and overcurrent protection devices are sized for use with electric heaters only and without
refrigeration. If heaters are not installed with above wire size, overheating and fire could occur. See
PACKAGE COOLING SPECIFICATIONS section for minimum circuit ampacity and maximum overcurrent
protection during refrigeration cycle.
IMPORTANT NOTE: A separate power supply is required for the HKR heater kit.
WARNING
WARNING
GPC15[24-48]M41*
Maximum Maximum
Overcurrent Overcurrent
Protection (amps) Protection (amps)
at 208 / 240V at 208 / 240V
GPC1524M41*
HKR05A,CA 24 / 27 30 / 30 ---- ---- 4.75 / 16,200
HKR08A,CA 33 / 28 40 / 40 ---- ---- 7.00 / 23,800
HKR10A,CA 45 / 51 60 / 60 ---- ---- 9.50 / 32,400
GPC1530M41*
HKR05A,CA 24 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08A,CA 34 / 39 40 / 40 -- -- 7.0 / 23,800
HKR10A,CA 45 / 52 60 / 60 -- -- 9.5 / 32,400
HKR15A,CA 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
GPC1536M41*
HKR05A,CA 24 / 27 30 / 30 ---- ---- 4.75 / 16,200
HKR08A,CA 34 / 39 40 / 40 ---- ---- 7.00 / 23,800
HKR10A,CA 45 / 52 60 / 60 ---- ---- 9.50 / 32,400
HKR15A,CA 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
GPC1542M41*
HKR05A,CA 24 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08A,CA 34 / 39 40 / 40 -- -- 7.0 / 23,800
HKR10A,CA 45 / 52 60 / 60 -- -- 9.5 / 32,400
HKR15A,CA 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
GPC1548M41*
HKR05A,CA 25 / 28 30 / 30 ---- ---- 4.75 / 16,200
HKR08A,CA 34 / 40 40 / 40 ---- ---- 7.00 / 23,800
HKR10A,CA 46 / 53 60 / 60 ---- ---- 9.50 / 32,400
HKR15A,CA 46 / 52 60 / 60 22 /25 30 / 30 14.25 /48,600
HKR20A,CA 46 / 52 60 / 60 43 / 49 60 / 60 19.50 / 66,500
Actual
kW & BTU
at 240V
MinimumCircuit
Ampacity
at 208 / 240V
Minimum Circuit
Ampacity
at 208 / 240V
Model and HeatKit Usage
Circuit #1 Circuit #2
Supply Votage 240 230 220 210 208
Correction Factor 1.0 0.93 0.85 0.78 0.76
Multiply rated kW by correction factor to get actual kW
Heating kW Correction Factor

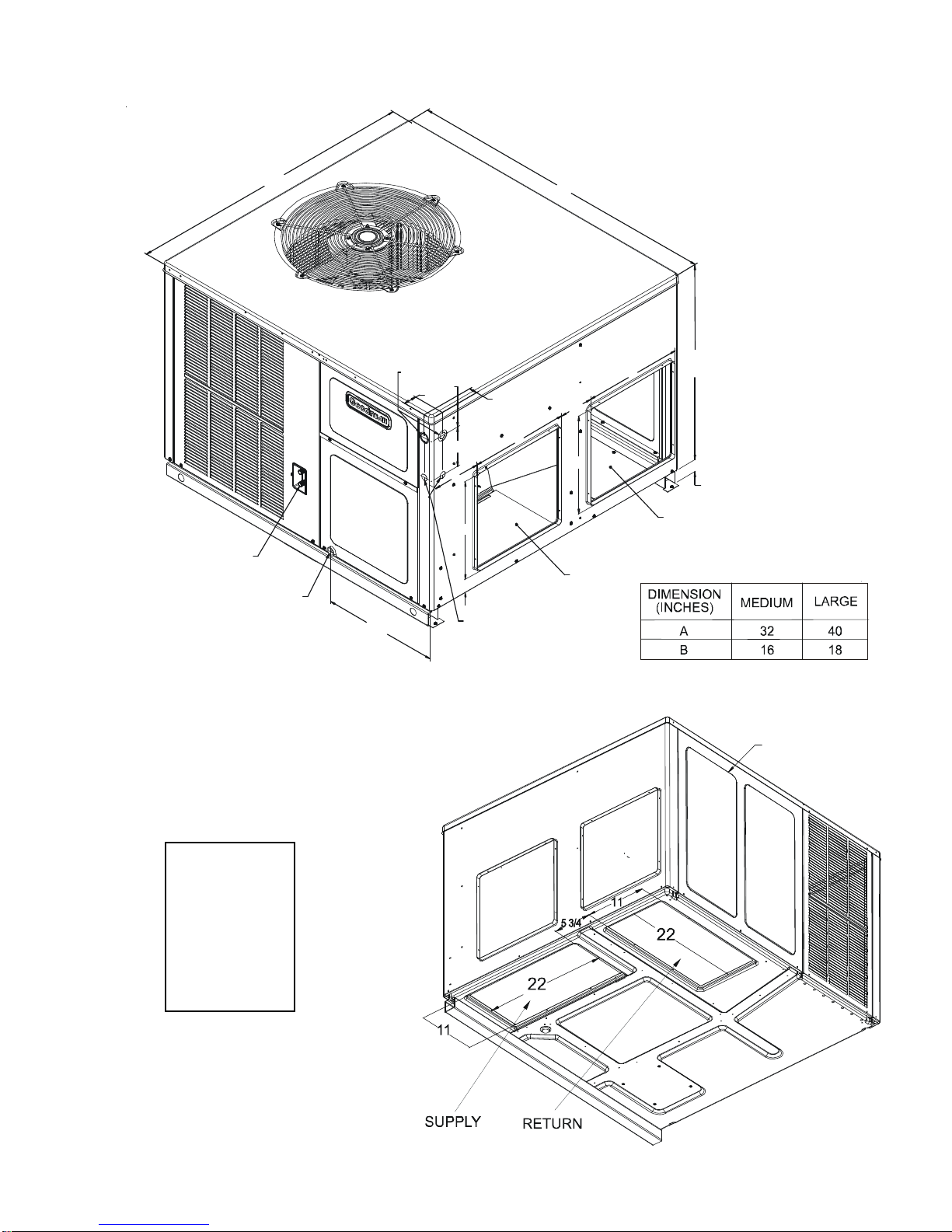

PRODUCT DIMENSIONS
7
BLOWER
ACCESS PANEL
?
?
2 34
51
47
SUPPLY
1 3/8
A
RETURN
POWER
WIRE
ENTRANCE
4 1/8
2 1/8
6 ½
16
16
5 ½
B
B
CONTROL
WIRE
ENTRANCE
CONDENSATE
DRAIN
CONNECTION
3/4” NPT FEMALE
18 7/8
SUCTION/LIQUID
PRESSURE PORT
3
8
MEDIUM CHASSIS
GPC1524M41*
GPC1530M41*
GPC1536M41*
LARGE CHASSIS
GPC1542M41*
GPC1548M41*
GPC15[24-48]M41*

PACKAGE COOLING SPECIFICATIONS
8
All wires and overcurrent protection devices are sized for use with electric heaters only and without
refrigeration. If heaters are not installed with above wire size, overheating and fire could occur. See
PACKAGE COOLING SPECIFICATIONS section for minimum circuit ampacity and maximum overcurrent
protection during refrigeration cycle.
WARNING
WARNING
IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers
in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.
(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
*Calculated external filter size based on air velocity of 300 ft/min.
Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.
GPC15[24-48]M41A*
GPC1524M41* GPC1530M41* GPC1536M41* GPC1542M41* GPC1548M41*
COOLING COOLING CAPACITY, BTUH 24,000 28,000 35,000 40,000 45,500
CAPACITY SEER / EER 14.5 / 12. 0 14.5 / 12. 0 14.5 / 12. 0 14.5 / 12. 0 15.0 / 12.0
UNIT VOLTAGE (NAMEPLATE) 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
ELECTRICAL AMPS 15.8 17.5 20.1 22.2 24.2
SPECIFICATION MIN CIRCUIT AMPACITY 19.0 21.0 24.2 26.7 29.2
MAX OVERCURRENT PROTECTION 30 35 40 40 45
COMPRESSOR TYPE SCROLL SCROLL SCROLL SCROLL SCROLL
RATED LOAD AMPS 12.8 14.1 16.7 17.9 19.9
LOCKED ROTOR AMPS 58.3 73.0 79.0 112.0 109.0
CONDENSER HORSEPOWER 1/6 1/4 1/4 1/4 1/4
FAN MOTOR RPM 815 837 837 1075 1075
FULL LOAD AMPS 1.1 1.5 1.5 1.4 1.4
LOCKED ROTOR AMPS 1.7 3.0 3.0 2.9 2.9
CONDENSER BLADE DIAMETER (INCHES) 22 22 22 22 22
FAN NUMBER OF BLADES 3 3 3 3 3
CONDENSER FACE AREA (SQ. FT.) 12.33 12.33 12.33 15.38 15.38
COIL NUMBEROFROWS 122 2 2
FINS PER INCH 24 16 16 16 16
EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5 1/2 - 5 3/4 - 5 3/4 - 5
BLOWER FULL LOAD AMPS 1.9 1.9 1.9 2.9 2.9
MOTOR LOCKED ROTOR AMPS --- --- --- --- ---
MOTOR SPEED TAP-COOLING X-13 T2 T2 T2 T2 T2
RPM 1,050 1,050 1,050 1,050 1,050
EVAPORATOR DIAMETER X WIDTH (INCHES) 10 x 9 10 x 9 10 x 9 10 x 9 10 x 9
BLOWER RATED SCFM COOLING 850 1,050 1,150 1,350 1,350
MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5 0.5 0.5 0.5
EVAPORATOR FACE AREA (SQ. FT.) 4.52 4.52 4.52 6.17 6.17
COIL NUMBEROFROWS 334 4 4
FINS PER INCH 16 16 14 14 14
GENERAL FILTER SIZE * 25 x 25 x 1 25 x 25 x 1 25 x 25 x 1 (2) 20 x 20 x 1 (2) 20 x20 x 1
INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4" 3/4" 3/4" 3/4"
EXPANSION DEVICE 0.057 0.065 0.068 0.072 0.076
REFRIGERANT CHARGE R410A (OZS.) 80 100 115 140 170
POWER SUPPLY
CONDUITKNOCKOUT SIZE (INCHES) 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4
LOW VOLTAGE
CONDUITKNOCKOUT SIZE (INCHES) 1/2 1/2 1/2 1/2 1/2
SHIPPING WEIGHT (LBS.) 375 384 416 459 459
OPERATING WEIGHT (LBS.) 354 363 395 438 438

ACCESSORIES
9
Part Number Description
OT18-60A Outdoor Thermostat Kit w/Lockout Stat
OT/EHR18-60 Emergency Heat Relay Kit
HKR Electric Heat Kit
PGC101/102/103 Roof Curb
PEHH101/102 Horizontal Economizer For Heat Pump, Small and Medium Chassis
PEHH103 Horizontal Economizer For Heat Pump, Large Chassis
PEHC101/102 Horizontal Economizer For A/C, Small and Medium Chassis
PEHC103 Horizontal Economizer For A/C, Large Chassis
PGMDD101/102 Manual 25% Fresh Air Damper Downflow Application, Small and Medium Chassis
PGMDD103 Manual 25% Fresh Air Damper Downflow Application, Large Chassis
PGMDH102 Manual 25% Fresh Air Damper Horizontal Application, Medium Chassis
PGMDH103 Manual 25% Fresh Air Damper Horizontal Application, Large Chassis
PGMDMD101/102 Motorized 25% Fresh Air Damper Downflow Application,Small and Medium Chassis
PGMDMD103 Motorized 25% Fresh Air Downflow Application, Large Chassis
PGMDMH102 Motorized 25% Fresh Air Damper Horizontal Application, Medium Chassis
PGMDMH103 Motorized 25% Fresh Air Damper Horizontal Application, Large Chassis
GPC13MED102 Downflow Economizer For A/C, Medium Chassis
GPC13MED103 Downflow Economizer For A/C, Large Chassis
GPH13MED102 Downflow Economizer For Heat Pump, Medium Chassis
GPH13MED103 Downflow Economizer For Heat Pump, Large Chassis
GPH13MFR102 Internal Filter Rack, Medium Chassis
GPH13MFR103 Internal Filter Rack, Large Chassis
GPGHFR101-103 External Horizontal Filter Rack for Goodman/Amana Gas/Electric and Multi-position Package Units All Chassis
SQRPG101/102 Square to Round Adapter w/ 16" Round Downflow Application, Medium Chassis
SQRPG103 Square to Round Adapter w/ 18" Round Downflow Application, Large Chassis
SQRPGH101/102 Square to Round Adapter w/ 16" Round Horizontal Application, Medium Chassis
SQRPGH103 Square to Round Adapter w/ 18" Round Horizontal Application, Large Chassis
CDK36 Flush Mount Concentric Duct Kit
CDK36515 Flush Mount Concentric Duct Kit w/ Filter
CDK36530 Step Down Concentric Duct Kit
CDK36535 Step Down Concentric Duct Kit w/ Filter
CDK4872 Flush Mount Concentric Duct Kit
CDK4872515 Flush Mount Concentric Duct Kit w/ Filter
CDK4872530 Step Down Concentric Duct Kit
CDK4872535 Step Down Concentric Duct Kit w/ Filter
ACCESSORIES - GPC/GPH****M MODELS

10
BLOWER PERFORMANCE DATA
Dry Coil Data
GPC15[24-48]M41A*
NOTES:
• Data shown is Dry Coil. Wet Coil Pressure Drop is approximate. 0.1" H2O, for 2 row indoor coil; 0.2” H2O, for 3 row indoor coil;
and 0.3” H2O, for 4 row indoor coil.
• Data shown does not include filter pressure drop, approx. 0.08” H2O.
• ALLMODELSSHOULD RUNNOLESS THAN350CFM/ TON.
• Reduce airflow by 2% for 208V operation.
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM 882 808 727 649 545 --- --- ---
WATTS 82 86 92 102 108 --- --- ---
CFM 933 873 810 733 637 584 --- ---
WATTS 93 103 109 120 126 135 --- ---
CFM 1058 1012 945 896 816 723 672 ---
WATTS 124 136 142 153 168 172 179 ---
CFM 893 824 752 665 575 --- --- ---
WATTS 87 95 101 111 115 --- --- ---
CFM 1132 1070 1011 959 889 827 733 669
WATTS 153 162 168 179 184 195 206 208
CFM 1287 1236 1165 1123 1066 1012 958 857
WATTS 211 217 228 239 244 255 265 272
CFM 852 764 711 592 545 --- --- ---
WATTS 80 82 85 95 99 --- --- ---
CFM 1232 1190 1131 1082 1023 966 889 819
WATTS 202 214 221 229 235 246 258 264
CFM 1267 1213 1162 1120 1058 1009 932 841
WATTS 218 226 236 245 247 260 272 275
CFM 1123 1070 1025 984 942 894 839 774
Watts 162 170 182 193 204 216 229 242
CFM 1437 1390 1354 1318 1281 1243 1204 1165
Watts 310 317 331 342 355 366 377 389
CFM 1528 1490 1450 1410 1383 1348 1312 1267
Watts 372 379 391 403 416 427 439 451
CFM 1199 1138 1085 1017 957 889 820 755
WATTS 162 173 185 193 211 219 232 245
CFM 1799 1745 1698 1658 1610 1560 1522 1450
WATTS 480 493 508 521 531 545 550 547
CFM 1921 1865 1818 1780 1719 1667 1579 1483
WATTS 582 585 602 625 627 621 595 569
GPC1542M41*
T1 (G) 230
T2 / T3 230
T4 / T5 230
230
230
230
GPC1548M41*
T1 (G)
T2 / T3
T4 / T5
230
Model Speed Volts
GPC1536M41*
T1 (G)
T2 / T3
T4 / T5
230
230
230
230
230
E.S.P (In. of H2O)
GPC1524M41*
T1 (G)
T2 / T3
T4 / T5
GPC1530M41*
T1 (G) 230
T2 / T3 230
T4 / T5 230

BLOWER PERFORMANCE DATA
11
30 40 50 60 70 80 90 110 120
100 130 140 150
100
90 80
70 60 50
40 30 20
10
OUTPUT BTU/HR x 1000

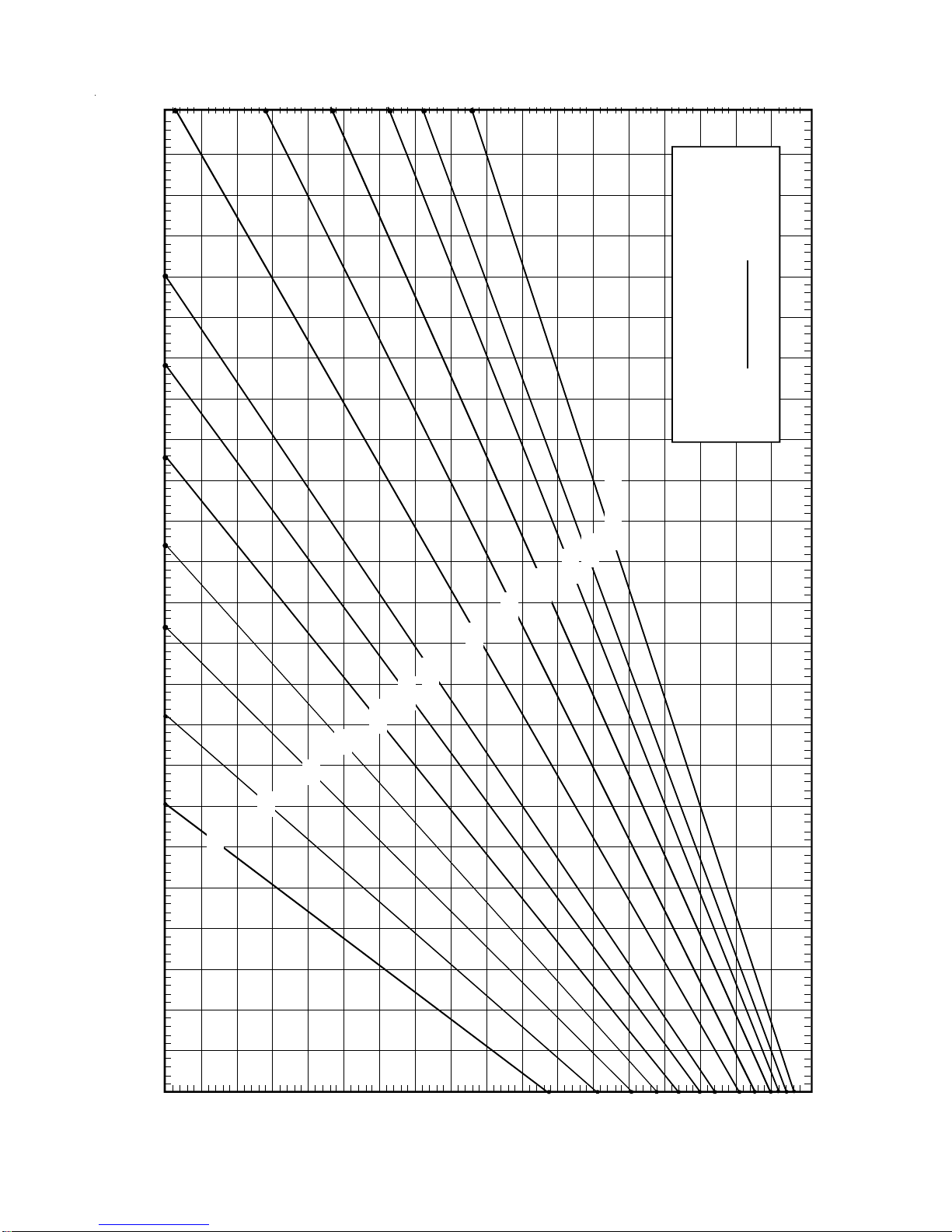

BTU OUTPUT vs TEMPERATURE RISE CHART
TEMPERATURE RISE
600 CFM
700
900
1000
1100
1200
1400
1600
1800
2000
2200
2400 CFM
FORMULAS
BTU OUTPUT = CFM x 1.08 x RISE
RISE = BTU OUTPUT
1.08 ÷ CFM
800

12
COOLING PERFORMANCE DATA GPC1524M41*
MODEL: GPC1524M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquidaccess fitting connection AHRI 95 test conditions. Design Superheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 24.3 25.1 27.5 - 23.7 24.6 26.9 - 23.1 24.0 26.3 - 22.6 23.4 25.6 - 21.4 22.2 24.3 - 19.9 20.6 22.5 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
DeltaT171511 - 171511 - 171511 - 17 15 11 - 171511 - 161410 -
956 KW 1.51 1.55 1.62 - 1.66 1.71 1.78 - 1.80 1.85 1.92 - 1.91 1.97 2.04 - 2.01 2.07 2.15 - 2.10 2.16 2.24 -
AMPS 7.4 7.6 7.8 - 7.9 8.1 8.3 - 8.5 8.7 8.9 - 9.0 9.2 9.5 - 9.5 9.7 10.0 - 10.0 10.3 10.6 - HI PR 249 268 283 - 279 301 317 - 318 342 361 - 362 389 411 - 407 438 463 - 450 484 511 -
LO PR 109 116 126 - 115 122 134 - 120 127 139 - 126 134 146 - 132 140 153 - 136 145 158 -
MBh 23.5 24.4 26.7 - 23.0 23.8 26.1 - 22.4 23.3 25.5 - 21.9 22.7 24.9 - 20.8 21.6 23.6 - 19.3 20.0 21.9 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.79 0.66 0.46 -
DeltaT181512 - 181512 - 181512 - 18 16 12 - 181512 - 171411 -
70 850 KW 1.50 1.54 1.60 - 1.65 1.69 1.76 - 1.78 1.83 1.90 - 1.89 1.95 2.02 - 1.99 2.05 2.13 - 2.08 2.13 2.22 -
AMPS 7.3 7.5 7.7 - 7.9 8.0 8.2 - 8.4 8.6 8.9 - 8.9 9.1 9.4 - 9.5 9.7 10.0 - 10.0 10.2 10.5 - HI PR 246 265 280 - 277 298 314 - 314 338 357 - 358 385 407 - 403 434 458 - 445 479 506 -
LO PR 108 115 125 - 114 121 132 - 118 126 138 - 124 132 144 - 130 139 151 - 135 143 157 -
MBh 21.7 22.5 24.7 - 21.2 22.0 24.1 - 20.7 21.5 23.5 - 20.2 21.0 23.0 - 19.2 19.9 21.8 - 17.8 18.4 20.2 -
S/T 0.67 0.56 0.39 - 0.69 0.58 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.76 0.64 0.44 -
DeltaT181512 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -
744 KW 1.45 1.49 1.55 - 1.60 1.64 1.71 - 1.72 1.77 1.84 - 1.84 1.89 1.96 - 1.93 1.98 2.06 - 2.01 2.07 2.15 -
AMPS 7.2 7.3 7.5 - 7.7 7.8 8.0 - 8.2 8.4 8.7 - 8.7 8.9 9.2 - 9.2 9.4 9.7 - 9.7 9.9 10.2 - HI PR 239 257 272 - 268 289 305 - 305 328 347 - 347 374 395 - 391 421 444 - 432 465 491 -
LO PR 105 111 121 - 111 118 128 - 115 122 133 - 121 128 140 - 126 135 147 - 131 139 152 -
MBh 24.7 25.4 27.5 29.5 24.1 24.8 26.8 28.8 23.5 24.2 26.2 28.1 22.9 23.6 25.6 27.4 21.8 22.4 24.3 26.1 20.2 20.8 22.5 24.1
S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.95 0.85 0.64 0.41
DeltaT20181510201815102018151020 18 15 10 20 18 15 10 18 17 14 10
956 KW 1.53 1.57 1.63 1.70 1.68 1.73 1.80 1.87 1.81 1.86 1.94 2.02 1.93 1.99 2.07 2.15 2.03 2.09 2.17 2.26 2.12 2.18 2.27 2.36
AMPS 7.57.67.88.18.08.18.48.78.68.89.09.39.1 9.3 9.6 9.9 9.6 9.8 10.1 10.5 10.1 10.4 10.7 11.0 HI PR 251 271 286 298 282 304 321 334 321 345 365 380 365 393 415 433 411 442 467 487 454 489 516 538
LO PR 110 117 128 136 116 124 135 144 121 129 140 149 127 135 147 157 133 141 154 164 138 146 160 170
MBh 23.9 24.7 26.7 28.6 23.4 24.1 26.1 28.0 22.8 23.5 25.4 27.3 22.3 22.9 24.8 26.6 21.2 21.8 23.6 25.3 19.6 20.2 21.8 23.4
S/T 0.79 0.70 0.53 0.34 0.81 0.73 0.55 0.35 0.83 0.75 0.56 0.36 0.86 0.77 0.58 0.38 0.89 0.80 0.61 0.39 0.90 0.81 0.61 0.39
DeltaT20191511211916112119161121 19 16 11 20 19 15 11 19 18 14 10
75 850 KW 1.51 1.56 1.62 1.68 1.66 1.71 1.78 1.85 1.80 1.85 1.92 2.00 1.91 1.97 2.04 2.13 2.01 2.07 2.15 2.24 2.10 2.16 2.24 2.33
AMPS 7.47.67.88.07.98.18.38.68.58.78.99.29.0 9.2 9.5 9.8 9.5 9.7 10.0 10.4 10.0 10.3 10.6 10.9 HI PR 249 268 283 295 279 301 317 331 318 342 361 377 362 389 411 429 407 438 463 482 450 484 511 533
LO PR 109 116 127 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168
MBh 22.1 22.8 24.6 26.4 21.6 22.2 24.1 25.8 21.1 21.7 23.5 25.2 20.6 21.2 22.9 24.6 19.5 20.1 21.8 23.4 18.1 18.6 20.2 21.6
S/T 0.76 0.68 0.51 0.33 0.78 0.70 0.53 0.34 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.38 0.87 0.78 0.59 0.38
DeltaT21191611211916112119161121 19 16 11 21 19 16 11 19 18 15 10
744 KW 1.47 1.51 1.57 1.63 1.61 1.66 1.72 1.79 1.74 1.79 1.86 1.94 1.86 1.91 1.98 2.06 1.95 2.00 2.09 2.17 2.04 2.09 2.17 2.26
AMPS 7.27.47.67.87.77.98.18.48.38.58.79.08.8 9.0 9.3 9.6 9.3 9.5 9.8 10.1 9.8 10.0 10.3 10.7 HI PR 241 260 274 286 271 292 308 321 308 332 350 365 351 378 399 416 395 425 449 468 436 470 496 517
LO PR 106 112 123 131 112 119 130 138 116 123 135 144 122 130 142 151 128 136 148 158 132 141 153 163
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.

13
COOLING PERFORMANCE DATA GPC1524M41*
MODEL: GPC1524M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F@ the liquidaccess fitting connection AHRI 95 test conditions. Design Superheat 5°F @the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 25.1 25.6 27.4 29.3 24.5 25.1 26.8 28.6 23.9 24.5 26.1 27.9 23.3 23.9 25.5 27.2 22.2 22.7 24.2 25.9 20.5 21.0 22.4 24.0
S/T 0.90 0.85 0.69 0.52 0.94 0.88 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.93 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.79 0.59
DeltaT22211815222118152221181522 21 19 152121181520201714
956 KW 1.54 1.59 1.65 1.72 1.70 1.74 1.82 1.89 1.83 1.88 1.96 2.04 1.95 2.01 2.09 2.17 2.05 2.11 2.20 2.28 2.14 2.20 2.29 2.38
AMPS 7.5 7.7 7.9 8.1 8.0 8.2 8.4 8.7 8.6 8.8 9.1 9.4 9.2 9.4 9.6 10.0 9.7 9.9 10.2 10.6 10.2 10.4 10.8 11.1 HI PR 254 273 289 301 285 307 324 338 324 349 368 384 369 397 420 438 415 447 472 492 459 494 521 544
LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172
MBh 24.4 24.9 26.6 28.4 23.8 24.3 26.0 27.8 23.2 23.7 25.4 27.1 22.7 23.2 24.7 26.5 21.5 22.0 23.5 25.1 19.9 20.4 21.8 23.3
S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.75 0.56
DeltaT23221915232219152322191523 22 19 15 23 22 19 15 21 20 18 14
80 850 KW 1.53 1.57 1.63 1.70 1.68 1.73 1.80 1.87 1.82 1.86 1.94 2.02 1.93 1.99 2.07 2.15 2.03 2.09 2.17 2.26 2.12 2.18 2.27 2.36
AMPS 7.57.67.88.18.08.18.48.78.68.89.09.39.1 9.3 9.6 9.9 9.6 9.8 10.1 10.5 10.1 10.4 10.7 11.0 HI PR 251 271 286 298 282 304 321 334 321 345 365 380 366 393 415 433 411 443 467 487 454 489 516 538
LO PR 110 117 128 136 116 124 135 144 121 129 140 149 127 135 147 157 133 141 154 165 138 146 160 170
MBh 22.5 23.0 24.6 26.3 22.0 22.4 24.0 25.6 21.4 21.9 23.4 25.0 20.9 21.4 22.8 24.4 19.9 20.3 21.7 23.2 18.4 18.8 20.1 21.5
S/T 0.83 0.78 0.63 0.47 0.86 0.81 0.66 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.70 0.52 0.95 0.89 0.72 0.54 0.95 0.89 0.73 0.54
DeltaT23221915232219162322191624 23 20 162322191522211814
744 KW 1.48 1.52 1.58 1.65 1.63 1.67 1.74 1.81 1.76 1.81 1.88 1.96 1.87 1.93 2.00 2.08 1.97 2.03 2.11 2.19 2.06 2.11 2.20 2.29
AMPS 7.37.47.67.97.88.08.28.48.48.58.89.18.9 9.1 9.3 9.69.49.69.910.29.910.110.410.8 HI PR 244 262 277 289 274 295 311 324 311 335 354 369 355 382 403 420 399 429 453 473 441 474 501 522
LO PR 107 114 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 160 133 142 155 165
NOTE: Shaded area reflects AHRI rating conditions
MBh 25.5 26.0 27.3 29.1 24.9 25.4 26.6 28.4 24.4 24.8 26.0 27.7 23.8 24.2 25.4 27.1 22.6 23.0 24.1 25.7 20.9 21.3 22.3 23.8
S/T 0.95 0.91 0.82 0.67 0.98 0.95 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77
DeltaT23232219242322192323221923 23 22 192222221920202018
956 KW 1.56 1.60 1.67 1.74 1.72 1.76 1.83 1.91 1.85 1.90 1.98 2.06 1.97 2.03 2.11 2.19 2.08 2.13 2.22 2.31 2.16 2.22 2.31 2.41
AMPS 7.6 7.7 7.9 8.2 8.1 8.3 8.5 8.8 8.7 8.9 9.2 9.5 9.2 9.4 9.7 10.1 9.8 10.0 10.3 10.6 10.3 10.5 10.8 11.2 HI PR 257 276 292 304 288 310 327 341 327 352 372 388 373 401 424 442 419 451 477 497 463 499 527 549
LO PR 112 119 130 139 119 126 138 147 123 131 143 152 129 138 150 160 136 144 158 168 140 149 163 174
MBh 24.8 25.3 26.5 28.2 24.2 24.7 25.9 27.6 23.6 24.1 25.2 26.9 23.1 23.5 24.6 26.3 21.9 22.3 23.4 25.0 20.3 20.7 21.7 23.1
S/T 0.90 0.87 0.79 0.64 0.94 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.90 0.73
DeltaT24242319252423202524232025 24 23 202424232022222118
85 850 KW 1.54 1.59 1.65 1.72 1.70 1.74 1.82 1.89 1.83 1.88 1.96 2.04 1.95 2.01 2.09 2.17 2.05 2.11 2.20 2.28 2.14 2.20 2.29 2.38
AMPS 7.5 7.7 7.9 8.1 8.0 8.2 8.4 8.7 8.6 8.8 9.1 9.4 9.2 9.4 9.6 10.0 9.7 9.9 10.2 10.6 10.2 10.4 10.8 11.1 HI PR 254 273 289 301 285 307 324 338 324 349 368 384 369 397 420 438 415 447 472 492 459 494 521 544
LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172
MBh 22.9 23.3 24.4 26.1 22.4 22.8 23.9 25.5 21.8 22.2 23.3 24.9 21.3 21.7 22.7 24.2 20.2 20.6 21.6 23.0 18.7 19.1 20.0 21.3
S/T 0.87 0.84 0.76 0.62 0.90 0.87 0.79 0.64 0.93 0.89 0.81 0.65 0.96 0.92 0.83 0.67 0.99 0.96 0.86 0.70 1.00 0.96 0.87 0.71
DeltaT25242320252523202525232025 25 23 202524232023232219
744 KW 1.50 1.54 1.60 1.67 1.65 1.69 1.76 1.83 1.78 1.83 1.90 1.98 1.89 1.94 2.02 2.11 1.99 2.05 2.13 2.22 2.08 2.13 2.22 2.31
AMPS 7.37.57.77.97.88.08.28.58.48.68.99.28.9 9.1 9.4 9.79.59.710.010.310.010.210.510.8 HI PR 246 265 280 292 276 297 314 328 314 338 357 373 358 385 407 424 403 434 458 477 445 479 506 528
LO PR 108 115 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 139 151 161 135 143 157 167
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is AHRI Rating Conditions KW = Total system power
High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

14
COOLING PERFORMANCE DATA GPC1530M41*
MODEL: GPC1530M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. DesignSuperheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 27.9 28.9 31.7 - 27.3 28.3 31.0 - 26.6 27.6 30.2 - 26.0 26.9 29.5 - 24.7 25.6 28.0 - 22.8 23.7 25.9 -
S/T 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.84 0.70 0.49 -
DeltaT161410 - 161411 - 161411 - 16 14 11 - 161410 - 151310 -
1181 KW 1.72 1.76 1.83 - 1.89 1.94 2.01 - 2.03 2.09 2.17 - 2.16 2.22 2.31 - 2.27 2.33 2.42 - 2.37 2.43 2.52 -
AMPS 8.5 8.7 8.9 - 9.1 9.3 9.5 - 9.7 9.9 10.2 - 10.3 10.5 10.8 - 10.9 11.1 11.4 - 11.4 11.6 12.0 - HI PR 232 249 263 - 260 280 296 - 296 318 336 - 337 363 383 - 379 408 431 - 419 451 476 -
LO PR 108 115 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 139 151 - 135 143 157 -
MBh 27.1 28.1 30.8 - 26.5 27.4 30.1 - 25.8 26.8 29.3 - 25.2 26.1 28.6 - 23.9 24.8 27.2 - 22.2 23.0 25.2 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
DeltaT171411 - 171411 - 171511 - 17 15 11 - 171411 - 161310 -
70 1050 KW 1.70 1.75 1.82 - 1.87 1.92 1.99 - 2.01 2.07 2.15 - 2.14 2.20 2.28 - 2.25 2.31 2.40 - 2.34 2.41 2.50 -
AMPS 8.5 8.6 8.9 - 9.0 9.2 9.5 - 9.7 9.9 10.1 - 10.2 10.4 10.7 - 10.8 11.0 11.3 - 11.3 11.6 11.9 - HI PR 230 247 261 - 258 277 293 - 293 315 333 - 334 359 379 - 375 404 426 - 415 446 471 -
LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 133 142 155 -
MBh 25.0 25.9 28.4 - 24.4 25.3 27.7 - 23.8 24.7 27.1 - 23.3 24.1 26.4 - 22.1 22.9 25.1 - 20.5 21.2 23.2 -
S/T 0.67 0.56 0.39 - 0.70 0.58 0.40 - 0.71 0.60 0.41 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.77 0.64 0.45 -
DeltaT171511 - 171511 - 171511 - 17 15 11 - 171511 - 161410 -
919 KW 1.65 1.70 1.76 - 1.81 1.86 1.93 - 1.95 2.00 2.08 - 2.08 2.13 2.22 - 2.18 2.24 2.33 - 2.27 2.33 2.43 -
AMPS 8.3 8.5 8.7 - 8.8 9.0 9.2 - 9.4 9.6 9.9 - 10.0 10.2 10.5 - 10.5 10.7 11.0 - 11.0 11.3 11.6 - HI PR 223 240 253 - 250 269 284 - 284 306 323 - 324 348 368 - 364 392 414 - 402 433 457 -
LO PR 104 110 120 - 109 116 127 - 114 121 132 - 119 127 139 - 125 133 145 - 129 138 150 -
MBh 28.4 29.2 31.6 33.9 27.7 28.5 30.9 33.2 27.1 27.9 30.2 32.4 26.4 27.2 29.4 31.6 25.1 25.8 28.0 30.0 23.2 23.9 25.9 27.8
S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.81 0.62 0.40 0.95 0.85 0.64 0.41 0.95 0.85 0.65 0.42
DeltaT18171410191714101917141019 17 14 10 18 17 14 10 17 16 13 9
1181 KW 1.74 1.78 1.85 1.93 1.90 1.96 2.03 2.11 2.05 2.11 2.19 2.28 2.18 2.24 2.33 2.42 2.29 2.36 2.45 2.55 2.39 2.45 2.55 2.65
AMPS 8.6 8.8 9.0 9.3 9.2 9.3 9.6 9.9 9.8 10.0 10.3 10.6 10.4 10.6 10.9 11.2 10.9 11.2 11.5 11.9 11.5 11.7 12.1 12.5 HI PR 234 252 266 278 263 283 299 311 299 322 340 354 340 366 387 403 383 412 435 454 423 455 481 501
LO PR 109 116 126 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168
MBh 27.6 28.4 30.7 33.0 26.9 27.7 30.0 32.2 26.3 27.0 29.3 31.4 25.6 26.4 28.6 30.7 24.3 25.1 27.1 29.1 22.6 23.2 25.1 27.0
S/T 0.79 0.71 0.54 0.35 0.82 0.73 0.56 0.36 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.81 0.62 0.40
DeltaT19181410191815101918151020 18 15 10 19 18 15 10 18 17 14 9
75 1050 KW 1.72 1.77 1.83 1.91 1.89 1.94 2.01 2.09 2.03 2.09 2.17 2.26 2.16 2.22 2.31 2.40 2.27 2.33 2.42 2.52 2.37 2.43 2.53 2.63
AMPS 8.5 8.7 8.9 9.2 9.1 9.3 9.5 9.8 9.7 9.9 10.2 10.5 10.3 10.5 10.8 11.2 10.9 11.1 11.4 11.8 11.4 11.6 12.0 12.4 HI PR 232 249 263 275 260 280 296 308 296 318 336 351 337 363 383 399 379 408 431 449 419 451 476 496
LO PR 108 115 125 133 114 121 132 141 118 126 138 146 124 132 144 154 130 139 151 161 135 143 157 167
MBh 25.4 26.2 28.3 30.4 24.8 25.6 27.7 29.7 24.2 25.0 27.0 29.0 23.7 24.4 26.4 28.3 22.5 23.1 25.0 26.9 20.8 21.4 23.2 24.9
S/T 0.76 0.68 0.52 0.33 0.79 0.71 0.54 0.34 0.81 0.73 0.55 0.35 0.84 0.75 0.57 0.36 0.87 0.78 0.59 0.38 0.88 0.78 0.59 0.38
DeltaT19181510201815102018151020 18 15 10 20 18 15 10 18 17 14 10
919 KW 1.67 1.71 1.78 1.85 1.83 1.88 1.95 2.03 1.97 2.02 2.10 2.19 2.10 2.15 2.24 2.33 2.20 2.26 2.35 2.45 2.30 2.36 2.45 2.55
AMPS 8.4 8.5 8.7 9.0 8.9 9.1 9.3 9.6 9.5 9.7 10.0 10.3 10.1 10.3 10.6 10.9 10.6 10.8 11.1 11.5 11.1 11.4 11.7 12.1 HI PR 225 242 256 267 252 272 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 462 482
LO PR 105 111 121 129 110 118 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162
* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.

15
COOLING PERFORMANCE DATA GPC1530M41*
MODEL: GPC1530M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5°F @the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 28.929.531.533.728.228.830.832.927.528.130.132.126.9 27.5 29.3 31.425.526.127.929.823.624.225.827.6
S/T 0.910.850.700.520.940.890.720.540.970.910.740.551.00 0.94 0.76 0.571.001.000.790.591.001.000.800.60
DeltaT20201714212017142120171421 20 17 142020171418191613
1181 KW 1.75 1.80 1.87 1.95 1.92 1.97 2.05 2.13 2.07 2.13 2.21 2.30 2.21 2.26 2.35 2.45 2.32 2.38 2.47 2.57 2.41 2.48 2.58 2.68
AMPS 8.7 8.8 9.1 9.3 9.2 9.4 9.7 10.0 9.9 10.1 10.4 10.7 10.5 10.7 11.0 11.3 11.0 11.3 11.6 12.0 11.6 11.8 12.2 12.6 HI PR 237 255 269 280 265 286 302 315 302 325 343 358 344 370 391 407 387 416 440 458 427 460 486 506
LO PR 110 117 128 136 116 124 135 144 121 129 140 149 127 135 147 157 133 141 154 164 138 146 160 170
MBh 28.028.730.632.727.428.029.932.026.727.329.231.226.1 26.7 28.5 30.424.825.327.128.923.023.525.126.8
S/T 0.870.810.660.500.900.840.690.510.920.870.700.530.95 0.89 0.73 0.54 0.99 0.93 0.76 0.56 1.00 0.94 0.76 0.57
DeltaT21201814222118142221181422 21 18 14 21 21 18 14 20 19 17 13
80 1050 KW 1.74 1.78 1.85 1.93 1.90 1.96 2.03 2.11 2.05 2.11 2.19 2.28 2.18 2.24 2.33 2.42 2.29 2.36 2.45 2.55 2.39 2.45 2.55 2.65
AMPS 8.6 8.8 9.0 9.3 9.2 9.3 9.6 9.9 9.8 10.0 10.3 10.6 10.4 10.6 10.9 11.210.911.211.511.911.511.712.112.5
HI PR 234 252 266 278 263 283 299 311 299 322 340 354 340 366 387 403 383 412 435 454 423 455 481 501
LO PR 109 116 126 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168
MBh 25.926.428.330.225.325.827.629.524.725.226.928.824.1 24.6 26.3 28.122.923.425.026.721.221.723.124.7
S/T 0.840.790.640.480.870.810.660.500.890.830.680.510.92 0.86 0.70 0.520.950.890.730.540.960.900.730.55
DeltaT22211814222118152221181522 21 18 152221181520201714
919 KW 1.68 1.73 1.80 1.87 1.85 1.90 1.97 2.05 1.99 2.04 2.12 2.21 2.12 2.17 2.26 2.35 2.23 2.29 2.38 2.47 2.32 2.38 2.47 2.57
AMPS 8.4 8.6 8.8 9.1 9.0 9.1 9.4 9.7 9.6 9.8 10.1 10.4 10.1 10.3 10.6 11.0 10.7 10.9 11.2 11.6 11.2 11.5 11.8 12.2 HI PR 227 244 258 269 255 274 290 302 290 312 329 344 330 355 375 391 371 400 422 440 410 442 466 486
LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 142 151 128 136 148 158 132 141 153 163
NOTE: Shaded area reflects AHRI rating conditions
MBh 29.430.031.433.528.729.330.632.728.028.629.931.927.3 27.9 29.2 31.126.026.527.729.624.124.525.727.4
S/T 0.960.920.830.670.990.960.860.701.000.980.880.721.00 1.00 0.91 0.741.001.000.950.771.001.000.950.77
DeltaT22212018222221182222211821 22 21 182021201819191917
1181 KW 1.77 1.82 1.89 1.97 1.94 1.99 2.07 2.16 2.09 2.15 2.23 2.32 2.23 2.29 2.38 2.47 2.34 2.40 2.50 2.60 2.44 2.50 2.60 2.71
AMPS 8.7 8.9 9.1 9.4 9.3 9.5 9.7 10.1 10.0 10.2 10.5 10.8 10.5 10.8 11.1 11.4 11.1 11.4 11.7 12.1 11.7 11.9 12.3 12.7 HI PR 239 257 271 283 268 288 305 318 305 328 346 361 347 374 395 412 391 420 444 463 432 464 490 512
LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172
MBh 28.529.130.532.527.928.429.831.727.227.729.031.026.5 27.1 28.3 30.225.225.726.928.723.423.824.926.6
S/T 0.910.880.790.640.940.910.820.670.970.930.840.681.00 0.96 0.87 0.711.001.000.900.731.001.000.910.74
DeltaT23222118232321192323211923 23 22 192223211820212017
85 1050 KW 1.75 1.80 1.87 1.95 1.92 1.97 2.05 2.13 2.07 2.13 2.21 2.30 2.21 2.26 2.35 2.45 2.32 2.38 2.47 2.57 2.41 2.48 2.58 2.68
AMPS 8.7 8.8 9.1 9.3 9.2 9.4 9.7 10.0 9.9 10.1 10.4 10.7 10.5 10.7 11.0 11.3 11.0 11.3 11.6 12.0 11.6 11.8 12.2 12.6 HI PR 237 255 269 280 265 286 302 315 302 325 343 358 344 370 391 407 387 416 440 458 427 460 486 506
LO PR 110 117 128 136 116 124 135 144 121 129 140 149 127 135 147 157 133 141 154 164 138 146 160 170
MBh 26.326.828.130.025.726.227.529.325.125.626.828.624.5 25.0 26.2 27.923.323.724.826.521.622.023.024.6
S/T 0.880.850.760.620.910.880.790.640.930.900.810.660.96 0.93 0.84 0.681.000.960.870.711.000.970.880.71
DeltaT23232219232322192323221924 23 22 192323221922212018
919 KW 1.70 1.75 1.82 1.89 1.87 1.92 1.99 2.07 2.01 2.06 2.15 2.23 2.14 2.20 2.28 2.37 2.25 2.31 2.40 2.49 2.34 2.40 2.50 2.60
AMPS 8.5 8.6 8.9 9.1 9.0 9.2 9.5 9.7 9.7 9.9 10.1 10.5 10.2 10.4 10.7 11.1 10.8 11.0 11.3 11.7 11.3 11.6 11.9 12.3 HI PR 229 247 261 272 257 277 293 305 293 315 333 347 333 359 379 395 375 404 426 445 415 446 471 491
LO PR 107 114 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 160 133 142 155 165
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is AHRI Rating Conditions KW = Total system power
High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

16
COOLING PERFORMANCE DATA GPC1536M41*
MODEL: GPC1536M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 35.6 36.9 40.4 - 34.8 36.0 39.5 - 33.9 35.2 38.5 - 33.1 34.3 37.6 - 31.5 32.6 35.7 - 29.1 30.2 33.1 -
S/T 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.45 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DeltaT181612 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -
1294 KW 2.20 2.26 2.35 - 2.41 2.48 2.57 - 2.60 2.67 2.77 - 2.76 2.83 2.95 - 2.90 2.98 3.09 - 3.02 3.10 3.22 -
AMPS 10.8 11.0 11.3 - 11.5 11.7 12.1 - 12.3 12.6 12.9 - 13.0 13.3 13.7 - 13.7 14.0 14.4 - 14.4 14.7 15.2 - HI PR 237 255 269 - 266 286 302 - 302 325 344 - 344 371 391 - 387 417 440 - 428 461 486 -
LO PR 109 116 127 - 115 123 134 - 120 128 139 - 126 134 146 - 132 141 153 - 137 145 159 -
MBh 34.6 35.8 39.2 - 33.8 35.0 38.3 - 33.0 34.2 37.4 - 32.1 33.3 36.5 - 30.5 31.7 34.7 - 28.3 29.3 32.1 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -
DeltaT191612 - 191713 - 191713 - 19 17 13 - 191612 - 181512 -
70 1150 KW 2.18 2.24 2.32 - 2.39 2.45 2.55 - 2.57 2.64 2.74 - 2.73 2.81 2.92 - 2.87 2.95 3.06 - 2.99 3.07 3.19 -
AMPS 10.7 10.9 11.2 - 11.4 11.6 12.0 - 12.2 12.5 12.8 - 12.9 13.2 13.6 - 13.6 13.9 14.3 - 14.3 14.6 15.1 - HI PR 235 252 267 - 263 283 299 - 299 322 340 - 341 367 387 - 384 413 436 - 424 456 482 -
LO PR 108 115 126 - 114 122 133 - 119 126 138 - 125 133 145 - 131 139 152 - 135 144 157 -
MBh 31.9 33.1 36.2 - 31.2 32.3 35.4 - 30.4 31.5 34.5 - 29.7 30.8 33.7 - 28.2 29.2 32.0 - 26.1 27.1 29.7 -
S/T 0.66 0.55 0.38 - 0.68 0.57 0.40 - 0.70 0.58 0.41 - 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.76 0.63 0.44 -
DeltaT191713 - 191713 - 191713 - 20 17 13 - 191713 - 181612 -
1006 KW 2.11 2.17 2.26 - 2.32 2.38 2.47 - 2.50 2.56 2.66 - 2.65 2.72 2.83 - 2.79 2.86 2.97 - 2.90 2.98 3.10 -
AMPS 10.5 10.7 11.0 - 11.2 11.4 11.7 - 12.0 12.2 12.5 - 12.6 12.9 13.3 - 13.3 13.6 14.0 - 14.0 14.3 14.7 - HI PR 228 245 259 - 255 275 290 - 290 312 330 - 331 356 376 - 372 400 423 - 411 442 467 -
LO PR 105 112 122 - 111 118 129 - 115 123 134 - 121 129 141 - 127 135 147 - 131 140 152 -
MBh 36.2 37.3 40.3 43.3 35.4 36.4 39.4 42.3 34.5 35.5 38.5 41.3 33.7 34.7 37.5 40.3 32.0 32.9 35.7 38.3 29.6 30.5 33.0 35.4
S/T 0.81 0.73 0.55 0.35 0.84 0.76 0.57 0.37 0.87 0.77 0.59 0.38 0.89 0.80 0.60 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
DeltaT21191611212016112120161121 20 16 11 21 19 16 11 20 18 15 10
1294 KW 2.22 2.28 2.37 2.46 2.44 2.50 2.60 2.70 2.62 2.69 2.80 2.91 2.79 2.86 2.98 3.09 2.93 3.01 3.13 3.25 3.05 3.13 3.26 3.39
AMPS 10.9 11.1 11.4 11.7 11.6 11.8 12.1 12.5 12.4 12.7 13.0 13.4 13.1 13.4 13.8 14.2 13.9 14.1 14.6 15.0 14.6 14.9 15.3 15.8 HI PR 239 258 272 284 269 289 305 318 305 329 347 362 348 374 395 412 391 421 445 464 432 465 491 512
LO PR 110 117 128 137 117 124 136 144 121 129 141 150 127 136 148 158 133 142 155 165 138 147 160 171
MBh 35.1 36.2 39.2 42.0 34.3 35.3 38.3 41.1 33.5 34.5 37.3 40.1 32.7 33.7 36.4 39.1 31.1 32.0 34.6 37.1 28.8 29.6 32.1 34.4
S/T 0.78 0.69 0.53 0.34 0.81 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39
DeltaT22201611222017122220171222 21 17 12 22 20 17 11 21 19 15 11
75 1150 KW 2.20 2.26 2.35 2.44 2.41 2.48 2.57 2.67 2.60 2.67 2.77 2.88 2.76 2.84 2.95 3.06 2.90 2.98 3.10 3.22 3.02 3.10 3.22 3.35
AMPS 10.8 11.0 11.3 11.6 11.5 11.7 12.1 12.4 12.3 12.6 12.9 13.3 13.0 13.3 13.7 14.1 13.7 14.0 14.4 14.9 14.4 14.7 15.2 15.7 HI PR 237 255 269 281 266 286 302 315 302 325 344 358 344 371 391 408 387 417 440 459 428 461 486 507
LO PR 109 116 127 135 116 123 134 143 120 128 139 149 126 134 146 156 132 141 154 163 137 145 159 169
MBh 32.4 33.4 36.2 38.8 31.7 32.6 35.3 37.9 30.9 31.8 34.5 37.0 30.2 31.1 33.6 36.1 28.7 29.5 31.9 34.3 26.6 27.3 29.6 31.8
S/T 0.75 0.67 0.51 0.33 0.78 0.69 0.53 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.56 0.36 0.85 0.76 0.58 0.37 0.86 0.77 0.58 0.37
DeltaT22201712222117122221171223 21 17 12 22 21 17 12 21 19 16 11
1006 KW 2.14 2.19 2.28 2.37 2.34 2.40 2.50 2.60 2.52 2.59 2.69 2.80 2.68 2.75 2.86 2.97 2.82 2.89 3.00 3.12 2.93 3.01 3.13 3.25
AMPS 10.6 10.8 11.1 11.4 11.2 11.5 11.8 12.1 12.0 12.3 12.6 13.0 12.7 13.0 13.4 13.8 13.4 13.7 14.1 14.5 14.1 14.4 14.8 15.3 HI PR 230 247 261 272 258 278 293 306 293 316 333 348 334 359 380 396 376 404 427 445 415 447 472 492
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
*IDB:Entering Indoor DryBulb Temperature NOTE: Shaded areaisACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.

17
COOLING PERFORMANCE DATA GPC1536M41*
MODEL: GPC1536M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F@ the liquidaccess fitting connection AHRI 95 test conditions. Design Superheat 5°F @the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 36.8 37.6 40.2 43.0 36.0 36.8 39.3 42.0 35.1 35.9 38.4 41.0 34.3 35.0 37.4 40.0 32.6 33.3 35.5 38.0 30.2 30.8 32.9 35.2
S/T 0.89 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 0.96 0.78 0.59
DeltaT23221916242320162423201624 23 20 162323201621211815
1294 KW 2.25 2.30 2.39 2.49 2.46 2.53 2.62 2.73 2.65 2.72 2.83 2.94 2.82 2.89 3.01 3.12 2.96 3.04 3.16 3.28 3.08 3.16 3.29 3.42
AMPS 11.0 11.2 11.5 11.8 11.7 11.9 12.2 12.6 12.5 12.8 13.1 13.5 13.2 13.5 13.9 14.3 14.0 14.3 14.7 15.1 14.7 15.0 15.4 15.9 HI PR 242 260 275 286 271 292 308 321 308 332 351 366 351 378 399 416 395 425 449 468 437 470 496 518
LO PR 112 119 130 138 118 125 137 146 122 130 142 152 129 137 149 159 135 143 157 167 139 148 162 173
MBh 35.8 36.6 39.0 41.7 34.9 35.7 38.1 40.8 34.1 34.9 37.2 39.8 33.3 34.0 36.3 38.8 31.6 32.3 34.5 36.9 29.3 29.9 32.0 34.2
S/T 0.85 0.80 0.65 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.75 0.56
DeltaT24232016252421162524211625 24 21 17 25 23 20 16 23 22 19 15
80 1150 KW 2.22 2.28 2.37 2.46 2.44 2.50 2.60 2.70 2.62 2.69 2.80 2.91 2.79 2.86 2.98 3.09 2.93 3.01 3.13 3.25 3.05 3.13 3.26 3.39
AMPS 10.9 11.1 11.4 11.7 11.6 11.8 12.1 12.5 12.4 12.7 13.0 13.4 13.1 13.4 13.8 14.2 13.9 14.1 14.6 15.0 14.6 14.9 15.3 15.8 HI PR 239 258 272 284 269 289 305 318 305 329 347 362 348 374 395 412 391 421 445 464 432 465 491 512
LO PR 110 117 128 137 117 124 136 144 121 129 141 150 127 136 148 158 133 142 155 165 138 147 160 171
MBh 33.0 33.7 36.0 38.5 32.2 33.0 35.2 37.6 31.5 32.2 34.4 36.7 30.7 31.4 33.5 35.8 29.2 29.8 31.9 34.0 27.0 27.6 29.5 31.5
S/T 0.82 0.77 0.63 0.47 0.85 0.80 0.65 0.49 0.87 0.82 0.67 0.50 0.90 0.85 0.69 0.51 0.94 0.88 0.71 0.53 0.94 0.88 0.72 0.54
DeltaT25242117252421172524211725 24 21 172524211723221916
1006 KW 2.16 2.21 2.30 2.39 2.36 2.43 2.52 2.62 2.55 2.61 2.72 2.82 2.71 2.78 2.89 3.00 2.84 2.92 3.03 3.15 2.96 3.04 3.16 3.28
AMPS 10.6 10.8 11.1 11.5 11.3 11.6 11.9 12.2 12.1 12.4 12.7 13.1 12.8 13.1 13.5 13.9 13.5 13.8 14.2 14.7 14.2 14.5 14.9 15.4 HI PR 232 250 264 275 260 280 296 309 296 319 337 351 337 363 383 400 380 409 431 450 419 451 477 497
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 129 138 150 160 134 142 156 166
NOTE: Shaded area reflects AHRI rating conditions
MBh 37.5 38.2 40.0 42.7 36.6 37.3 39.1 41.7 35.7 36.4 38.2 40.7 34.9 35.5 37.2 39.7 33.1 33.8 35.4 37.7 30.7 31.3 32.8 35.0
S/T 0.94 0.90 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.70 1.00 0.99 0.89 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.94 0.76
DeltaT25252320252523202525242025 25 24 202424232022222219
1294 KW 2.27 2.33 2.42 2.51 2.48 2.55 2.65 2.76 2.68 2.75 2.85 2.97 2.85 2.92 3.04 3.16 2.99 3.07 3.19 3.32 3.11 3.20 3.32 3.45
AMPS 11.0 11.3 11.6 11.9 11.8 12.0 12.3 12.7 12.6 12.9 13.2 13.7 13.3 13.6 14.0 14.5 14.1 14.4 14.8 15.3 14.8 15.1 15.6 16.1 HI PR 244 263 277 289 274 295 311 325 312 335 354 369 355 382 403 421 399 430 454 473 441 475 501 523
LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174
MBh 36.4 37.1 38.9 41.5 35.5 36.2 38.0 40.5 34.7 35.4 37.0 39.5 33.9 34.5 36.1 38.6 32.2 32.8 34.3 36.6 29.8 30.4 31.8 33.9
S/T 0.89 0.86 0.78 0.63 0.93 0.89 0.81 0.65 0.95 0.92 0.83 0.67 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 0.99 0.89 0.72
DeltaT26262421262624212626242127 26 25 212626242124242320
85 1150 KW 2.25 2.30 2.39 2.49 2.46 2.53 2.62 2.73 2.65 2.72 2.83 2.94 2.82 2.89 3.01 3.12 2.96 3.04 3.16 3.28 3.08 3.16 3.29 3.42
AMPS 11.0 11.2 11.5 11.8 11.7 11.9 12.2 12.6 12.5 12.8 13.1 13.5 13.2 13.5 13.9 14.3 14.0 14.3 14.7 15.1 14.7 15.0 15.4 15.9 HI PR 242 260 275 286 271 292 308 321 308 332 351 366 351 378 399 416 395 425 449 468 437 470 496 518
LO PR 112 119 130 138 118 125 137 146 122 130 142 152 129 137 149 159 135 143 157 167 139 148 162 173
MBh 33.6 34.2 35.9 38.3 32.8 33.4 35.0 37.4 32.0 32.6 34.2 36.5 31.2 31.9 33.4 35.6 29.7 30.3 31.7 33.8 27.5 28.0 29.4 31.3
S/T 0.86 0.83 0.75 0.61 0.89 0.86 0.78 0.63 0.92 0.88 0.80 0.65 0.94 0.91 0.82 0.67 0.98 0.95 0.85 0.69 0.99 0.95 0.86 0.70
DeltaT26262521272625222726252227 27 25 222726252125242320
1006 KW 2.18 2.24 2.32 2.42 2.39 2.45 2.55 2.65 2.57 2.64 2.74 2.85 2.73 2.81 2.92 3.03 2.87 2.95 3.06 3.19 2.99 3.07 3.19 3.32
AMPS 10.7 10.9 11.2 11.6 11.4 11.6 12.0 12.3 12.2 12.5 12.8 13.2 12.9 13.2 13.6 14.0 13.6 13.9 14.3 14.8 14.3 14.6 15.1 15.5 HI PR 234 252 266 278 263 283 299 312 299 322 340 355 341 367 387 404 383 413 436 454 424 456 481 502
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is AHRI Rating Conditions KW = Total system power
High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

18
COOLING PERFORMANCE DATA GPC1542M41*
MODEL: GPC1542M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 41.2 42.7 46.8 - 40.2 41.7 45.7 - 39.3 40.7 44.6 - 38.3 39.7 43.5 - 36.4 37.7 41.3 - 33.7 35.0 38.3 -
S/T 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.70 0.48 - 0.84 0.70 0.49 -
DeltaT181612 - 181612 - 191612 - 19 16 12 - 181612 - 171511 -
1519 KW 2.49 2.56 2.66 - 2.73 2.80 2.91 - 2.94 3.02 3.13 - 3.12 3.21 3.33 - 3.28 3.37 3.50 - 3.42 3.51 3.65 -
AMPS 12.1 12.4 12.7 - 12.9 13.2 13.6 - 13.9 14.2 14.6 - 14.7 15.0 15.4 - 15.5 15.8 16.3 - 16.3 16.7 17.1 - HI PR 239 257 271 - 268 288 305 - 305 328 346 - 347 374 394 - 390 420 444 - 431 464 490 -
LO PR 112 119 130 - 118 126 137 - 123 131 143 - 129 137 150 - 135 144 157 - 140 149 163 -
MBh 40.0 41.5 45.4 - 39.1 40.5 44.4 - 38.1 39.5 43.3 - 37.2 38.6 42.3 - 35.3 36.6 40.1 - 32.7 33.9 37.2 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.80 0.66 0.46 - 0.80 0.67 0.46 -
DeltaT191612 - 191713 - 191713 - 19 17 13 - 191713 - 181512 -
70 1350 KW 2.47 2.53 2.63 - 2.70 2.77 2.88 - 2.91 2.99 3.10 - 3.09 3.18 3.30 - 3.25 3.34 3.47 - 3.39 3.47 3.61 -
AMPS 12.0 12.3 12.6 - 12.8 13.1 13.5 - 13.8 14.1 14.5 - 14.6 14.9 15.3 - 15.4 15.7 16.2 - 16.2 16.5 17.0 - HI PR 236 254 269 - 265 286 301 - 302 325 343 - 344 370 391 - 387 416 439 - 427 460 485 -
LO PR 111 118 129 - 117 125 136 - 122 129 141 - 128 136 148 - 134 143 156 - 139 147 161 -
MBh 36.9 38.3 41.9 - 36.1 37.4 41.0 - 35.2 36.5 40.0 - 34.3 35.6 39.0 - 32.6 33.8 37.1 - 30.2 31.3 34.3 -
S/T 0.67 0.56 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.77 0.65 0.45 -
DeltaT191713 - 201713 - 201713 - 20 17 13 - 191713 - 181612 -
1181 KW 2.39 2.46 2.55 - 2.62 2.69 2.80 - 2.82 2.90 3.01 - 3.00 3.08 3.20 - 3.15 3.24 3.36 - 3.28 3.37 3.50 -
AMPS 11.8 12.0 12.3 - 12.5 12.8 13.2 - 13.4 13.7 14.1 - 14.2 14.5 14.9 - 15.0 15.3 15.8 - 15.8 16.1 16.6 - HI PR 229 247 261 - 257 277 292 - 293 315 333 - 333 359 379 - 375 404 426 - 414 446 471 -
LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 41.943.146.750.140.942.145.648.939.941.144.547.839.0 40.1 43.4 46.6 37.0 38.1 41.3 44.3 34.3 35.3 38.2 41.0
S/T 0.830.740.560.360.860.770.580.380.880.790.600.390.91 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.96 0.85 0.65 0.42
DeltaT21191611212016112120161122 20 16 11 21 20 16 11 20 18 15 10
1519 KW 2.512.582.682.792.762.832.943.062.973.053.173.293.16 3.24 3.37 3.50 3.32 3.40 3.54 3.68 3.45 3.54 3.68 3.83
AMPS 12.2 12.5 12.8 13.2 13.0 13.3 13.7 14.1 14.0 14.3 14.7 15.2 14.8 15.1 15.6 16.1 15.6 16.0 16.4 17.0 16.4 16.8 17.3 17.9
HI PR 241 260 274 286 271 291 308 321 308 331 350 365 351 377 398 416 394 425 448 468 436 469 495 517
LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 151 161 137 145 159 169 141 150 164 175
MBh 40.741.945.348.739.740.944.347.538.839.943.246.437.8 39.0 42.2 45.3 35.9 37.0 40.1 43.0 33.3 34.3 37.1 39.8
S/T 0.790.710.540.350.820.740.560.360.840.750.570.370.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.82 0.62 0.40
DeltaT22201711222117122221171222 21 17 12 22 20 17 12 21 19 16 11
75 1350 KW 2.492.562.662.762.732.802.913.032.943.023.143.263.13 3.21 3.33 3.47 3.28 3.37 3.50 3.64 3.42 3.51 3.65 3.79
AMPS 12.1 12.4 12.7 13.1 12.9 13.2 13.6 14.0 13.9 14.2 14.6 15.0 14.7 15.0 15.4 15.9 15.5 15.8 16.3 16.8 16.3 16.7 17.1 17.7
HI PR 239 257 271 283 268 288 305 318 305 328 346 361 347 374 395 411 391 420 444 463 432 464 490 511
LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173
MBh 37.538.741.844.936.737.840.943.935.836.939.942.834.9 36.0 38.9 41.8 33.2 34.2 37.0 39.7 30.7 31.6 34.3 36.8
S/T 0.770.680.520.330.790.710.540.350.810.730.550.350.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.88 0.79 0.59 0.38
DeltaT22211712232117122321171223 21 17 12 23 21 17 12 21 19 16 11
1181 KW 2.422.482.582.682.652.722.822.942.852.933.043.163.03 3.11 3.23 3.36 3.19 3.27 3.40 3.53 3.32 3.41 3.54 3.68
AMPS 11.9 12.1 12.4 12.8 12.6 12.9 13.3 13.7 13.6 13.8 14.2 14.7 14.3 14.6 15.1 15.6 15.1 15.4 15.9 16.4 15.9 16.2 16.7 17.3
HI PR 232 249 263 275 260 280 295 308 296 318 336 350 337 362 383 399 379 408 431 449 419 450 476 496
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 145 155 131 140 152 162 136 144 158 168
*IDB:Entering Indoor DryBulb Temperature NOTE: Shaded area isACCA(TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.

19
COOLING PERFORMANCE DATA GPC1542M41*
MODEL: GPC1542M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 42.643.646.649.841.742.645.548.640.741.544.447.539.7 40.5 43.3 46.337.738.541.144.034.935.738.140.7
S/T 0.910.860.700.520.950.890.720.540.970.910.740.551.00 0.94 0.76 0.571.001.000.790.591.001.000.800.60
DeltaT24232016242320162423201624 23 20 162323201621221815
1519 KW 2.54 2.61 2.71 2.82 2.78 2.86 2.97 3.09 3.00 3.08 3.20 3.32 3.19 3.27 3.40 3.54 3.35 3.44 3.57 3.71 3.49 3.58 3.72 3.87
AMPS 12.3 12.6 12.9 13.3 13.1 13.4 13.8 14.2 14.1 14.4 14.8 15.3 14.9 15.2 15.7 16.2 15.8 16.1 16.6 17.1 16.6 16.9 17.4 18.0 HI PR 244 262 277 289 273 294 311 324 311 335 353 369 354 381 402 420 398 429 453 472 440 474 500 522
LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177
MBh 41.442.345.248.340.441.344.147.239.540.343.146.138.5 39.4 42.0 44.9 36.6 37.4 39.9 42.7 33.9 34.6 37.0 39.6
S/T 0.870.820.660.500.900.850.690.510.930.870.710.530.96 0.90 0.73 0.54 0.99 0.93 0.76 0.57 1.00 0.94 0.76 0.57
DeltaT25242016252421172524211725 24 21 17 25 24 21 16 23 22 19 15
80 1350 KW 2.51 2.58 2.68 2.79 2.76 2.83 2.94 3.06 2.97 3.05 3.17 3.29 3.16 3.24 3.37 3.50 3.32 3.40 3.54 3.68 3.45 3.55 3.68 3.83
AMPS 12.2 12.5 12.8 13.2 13.0 13.3 13.7 14.1 14.0 14.3 14.7 15.2 14.8 15.1 15.6 16.1 15.6 16.0 16.4 17.0 16.4 16.8 17.3 17.9
HI PR 241 260 274 286 271 291 308 321 308 331 350 365 351 377 399 416 395 425 448 468 436 469 495 517
LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175
MBh 38.239.041.744.637.338.140.743.636.437.239.842.535.5 36.3 38.8 41.533.834.536.939.431.332.034.136.5
S/T 0.840.790.640.480.870.820.660.500.890.840.680.510.92 0.86 0.70 0.530.960.900.730.550.960.900.740.55
DeltaT25242117252421172524211725 24 21 172524211723222016
1181 KW 2.44 2.50 2.60 2.71 2.67 2.74 2.85 2.97 2.88 2.96 3.07 3.19 3.06 3.14 3.27 3.40 3.22 3.30 3.43 3.57 3.35 3.44 3.57 3.72
AMPS 11.9 12.2 12.5 12.9 12.7 13.0 13.4 13.8 13.7 13.9 14.3 14.8 14.5 14.8 15.2 15.7 15.3 15.6 16.0 16.6 16.0 16.4 16.9 17.4 HI PR 234 252 266 277 263 283 298 311 299 321 339 354 340 366 387 403 383 412 435 454 423 455 480 501
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
NOTE: Shaded area reflectsAHRI rating conditions
MBh 43.444.246.349.442.443.245.248.341.442.244.247.140.4 41.1 43.1 46.038.339.140.943.735.536.237.940.5
S/T 0.960.920.830.680.990.960.860.701.000.980.890.721.00 1.00 0.91 0.741.001.000.950.771.001.000.960.78
DeltaT25252320252524202525242024 25 24 212324242021222219
1519 KW 2.56 2.63 2.74 2.84 2.81 2.89 3.00 3.12 3.03 3.11 3.23 3.36 3.22 3.30 3.43 3.57 3.38 3.47 3.61 3.75 3.52 3.62 3.76 3.91
AMPS 12.4 12.6 13.0 13.4 13.2 13.5 13.9 14.3 14.2 14.5 14.9 15.4 15.0 15.4 15.8 16.3 15.9 16.2 16.7 17.3 16.7 17.1 17.6 18.2 HI PR 246 265 280 292 276 297 314 327 314 338 357 372 358 385 407 424 402 433 457 477 445 479 505 527
LO PR 115 123 134 143 122 130 142 151 127 135 147 157 133 142 155 165 139 148 162 172 144 153 168 178
MBh 42.142.945.048.041.141.943.946.940.240.942.945.739.2 39.9 41.8 44.637.237.939.742.434.535.136.839.3
S/T 0.910.880.790.640.950.910.820.670.970.940.840.691.00 0.97 0.87 0.711.001.000.900.731.001.000.910.74
DeltaT26262421272625212726252127 26 25 222526242123242320
85 1350 KW 2.54 2.61 2.71 2.82 2.78 2.86 2.97 3.09 3.00 3.08 3.20 3.32 3.19 3.27 3.40 3.54 3.35 3.44 3.57 3.71 3.49 3.58 3.72 3.87
AMPS 12.3 12.6 12.9 13.3 13.1 13.4 13.8 14.2 14.1 14.4 14.8 15.3 14.9 15.2 15.7 16.2 15.8 16.1 16.6 17.1 16.6 16.9 17.4 18.0 HI PR 244 262 277 289 273 294 311 324 311 335 353 369 354 381 402 420 398 429 453 472 440 474 500 522
LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177
MBh 38.939.641.544.338.038.740.543.337.137.839.642.236.2 36.9 38.6 41.234.435.036.739.131.832.434.036.3
S/T 0.880.850.770.620.910.880.790.640.940.900.810.660.97 0.93 0.84 0.681.000.970.870.711.000.980.880.71
DeltaT27262521272725222727252227 27 25 222726252225252320
1181 KW 2.46 2.53 2.63 2.73 2.70 2.77 2.88 2.99 2.91 2.99 3.10 3.23 3.09 3.17 3.30 3.43 3.25 3.34 3.47 3.60 3.38 3.47 3.61 3.75
AMPS 12.0 12.3 12.6 13.0 12.8 13.1 13.5 13.9 13.8 14.1 14.4 14.9 14.6 14.9 15.3 15.8 15.4 15.7 16.2 16.7 16.2 16.5 17.0 17.6 HI PR 236 254 269 280 265 285 301 314 302 325 343 358 344 370 390 407 387 416 439 458 427 460 485 506
LO PR 111 118 129 137 117 125 136 145 122 129 141 150 128 136 148 158 134 142 156 166 139 147 161 171
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is AHRI Rating Conditions KW = Total system power
High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fanmotors)

20
COOLING PERFORMANCE DATA GPC1548M41*
MODEL: GPC1548M41 EXPANDED PERFORMANCE DATA COOLING OPERATION Design Subcooling, 7 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5°F @ the compressor suction access fitting connection.
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor WetBulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 43.9 45.5 49.9 - 42.9 44.5 48.7 - 41.9 43.4 47.6 - 40.9 42.3 46.4 - 38.8 40.2 44.1 - 36.0 37.3 40.8 -
S/T 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.45 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DeltaT191613 - 191713 - 191713 - 19 17 13 - 191713 - 181512 -
1519 KW 2.76 2.83 2.94 - 3.02 3.10 3.22 - 3.26 3.34 3.48 - 3.46 3.56 3.70 - 3.64 3.74 3.89 - 3.79 3.89 4.05 -
AMPS 12.6 12.9 13.2 - 13.5 13.8 14.2 - 14.5 14.9 15.3 - 15.4 15.8 16.3 - 16.3 16.7 17.2 - 17.2 17.6 18.2 - HI PR 237 255 269 - 266 286 302 - 302 325 344 - 344 371 391 - 388 417 440 - 428 461 487 -
LO PR 109 116 127 - 115 122 134 - 120 127 139 - 126 134 146 - 132 140 153 - 136 145 158 -
MBh 42.6 44.2 48.4 - 41.6 43.2 47.3 - 40.7 42.1 46.2 - 39.7 41.1 45.0 - 37.7 39.1 42.8 - 34.9 36.2 39.6 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.65 0.45 -
DeltaT201713 - 201713 - 201713 - 20 18 13 - 201713 - 191612 -
70 1350 KW 2.73 2.80 2.91 - 2.99 3.07 3.19 - 3.22 3.31 3.44 - 3.43 3.52 3.66 - 3.60 3.70 3.85 - 3.76 3.86 4.01 -
AMPS 12.5 12.8 13.1 - 13.4 13.7 14.1 - 14.4 14.7 15.2 - 15.3 15.7 16.1 - 16.2 16.6 17.1 - 17.1 17.5 18.0 - HI PR 235 252 267 - 263 283 299 - 299 322 340 - 341 367 388 - 384 413 436 - 424 456 482 -
LO PR 108 115 125 - 114 121 132 - 118 126 138 - 124 132 145 - 130 139 151 - 135 143 157 -
MBh 39.4 40.8 44.7 - 38.4 39.8 43.7 - 37.5 38.9 42.6 - 36.6 37.9 41.6 - 34.8 36.1 39.5 - 32.2 33.4 36.6 -
S/T 0.66 0.55 0.38 - 0.68 0.57 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.76 0.63 0.44 -
DeltaT201713 - 201813 - 201813 - 21 18 14 - 201813 - 191612 -
1181 KW 2.65 2.72 2.82 - 2.90 2.98 3.10 - 3.13 3.21 3.34 - 3.33 3.42 3.55 - 3.50 3.59 3.73 - 3.64 3.74 3.89 -
AMPS 12.2 12.4 12.8 - 13.1 13.3 13.7 - 14.1 14.4 14.8 - 14.9 15.3 15.7 - 15.8 16.2 16.6 - 16.7 17.0 17.6 - HI PR 228 245 259 - 255 275 290 - 290 313 330 - 331 356 376 - 372 400 423 - 411 442 467 -
LO PR 105 111 122 - 111 118 128 - 115 122 133 - 121 128 140 - 126 135 147 - 131 139 152 -
MBh 44.7 46.0 49.8 53.4 43.6 44.9 48.6 52.2 42.6 43.8 47.5 50.9 41.5 42.8 46.3 49.7 39.5 40.6 44.0 47.2 36.6 37.6 40.7 43.7
S/T 0.81 0.73 0.55 0.35 0.84 0.75 0.57 0.37 0.87 0.77 0.59 0.38 0.89 0.80 0.60 0.39 0.93 0.83 0.63 0.40 0.93 0.84 0.63 0.41
DeltaT22201711222117122221171222 21 17 12 22 20 17 12 21 19 16 11
1519 KW 2.78 2.86 2.97 3.09 3.05 3.13 3.26 3.39 3.29 3.38 3.51 3.65 3.50 3.59 3.73 3.88 3.68 3.78 3.92 4.08 3.83 3.93 4.09 4.25
AMPS 12.7 13.0 13.3 13.8 13.6 13.9 14.3 14.8 14.7 15.0 15.4 16.0 15.6 15.9 16.4 17.0 16.5 16.9 17.4 18.0 17.4 17.8 18.3 19.0 HI PR 239 258 272 284 269 289 305 318 306 329 347 362 348 374 395 412 391 421 445 464 433 465 491 513
LO PR 110 117 128 136 116 124 135 144 121 129 140 149 127 135 147 157 133 142 155 165 138 146 160 170
MBh 43.4 44.6 48.3 51.9 42.4 43.6 47.2 50.7 41.3 42.6 46.1 49.5 40.3 41.5 45.0 48.2 38.3 39.5 42.7 45.8 35.5 36.5 39.6 42.5
S/T 0.78 0.69 0.53 0.34 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39
DeltaT23211712232118122321181223 22 18 12 23 21 17 12 22 20 16 11
75 1350 KW 2.76 2.83 2.94 3.06 3.02 3.10 3.23 3.35 3.26 3.34 3.48 3.62 3.47 3.56 3.70 3.85 3.64 3.74 3.89 4.04 3.79 3.89 4.05 4.21
AMPS 12.6 12.9 13.2 13.7 13.5 13.8 14.2 14.7 14.5 14.9 15.3 15.8 15.4 15.8 16.3 16.8 16.4 16.7 17.2 17.8 17.2 17.6 18.2 18.8 HI PR 237 255 269 281 266 286 302 315 302 326 344 359 345 371 391 408 388 417 440 459 428 461 487 508
LO PR 109 116 127 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 169
MBh 40.0 41.2 44.6 47.9 39.1 40.3 43.6 46.8 38.2 39.3 42.5 45.6 37.2 38.3 41.5 44.5 35.4 36.4 39.4 42.3 32.8 33.7 36.5 39.2
S/T 0.75 0.67 0.51 0.33 0.78 0.69 0.53 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.56 0.36 0.85 0.76 0.58 0.37 0.86 0.77 0.58 0.37
DeltaT23211812242218122422181224 22 18 12 23 22 18 12 22 20 17 11
1181 KW 2.67 2.75 2.85 2.97 2.93 3.01 3.13 3.25 3.16 3.24 3.37 3.51 3.36 3.45 3.59 3.73 3.53 3.63 3.77 3.92 3.68 3.78 3.93 4.08
AMPS 12.3 12.5 12.9 13.3 13.2 13.5 13.8 14.3 14.2 14.5 14.9 15.4 15.1 15.4 15.9 16.4 15.9 16.3 16.8 17.4 16.8 17.2 17.7 18.3 HI PR 230 247 261 273 258 278 293 306 293 316 333 348 334 360 380 396 376 405 427 446 415 447 472 492
LO PR 106 112 123 131 112 119 130 138 116 123 135 144 122 130 142 151 128 136 148 158 132 141 153 163
* Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.
