Goodmans GPS160R User manual

IMPORTANT SAFEGUARDS
PRE FITTED MAINS PLUGS
WARNING:
For your convenience a mains plug has been fitted to this appliance. For your safety please
observe the following information.
1. Should the fuse in the plug remove the plug from the wall socket and replace the fuse with a 3
Amp ASTAapproved to BS 1362 fuse.
2. Never use the plug without the fuse cover fitted. Replacement fuse covers are available from
your dealer or most electrical retail outlets.
3. If the mains plug is cut off the cable, rewire the replacement plug in accordance with
instruction given in this manual.
4. CAUTION: Under no circumstances should the discarded plug be inserted mains socket. To
prevent a shock hazard carefully dispose of the discarded plug. Do not leave the plug lying
around where children might see it.
To prevent fire or shock hazard do not expose this unit to rain or moisture.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT, DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. DISCONNECT FROM MAINS SUPPLY
WHEN NOT IN USE.

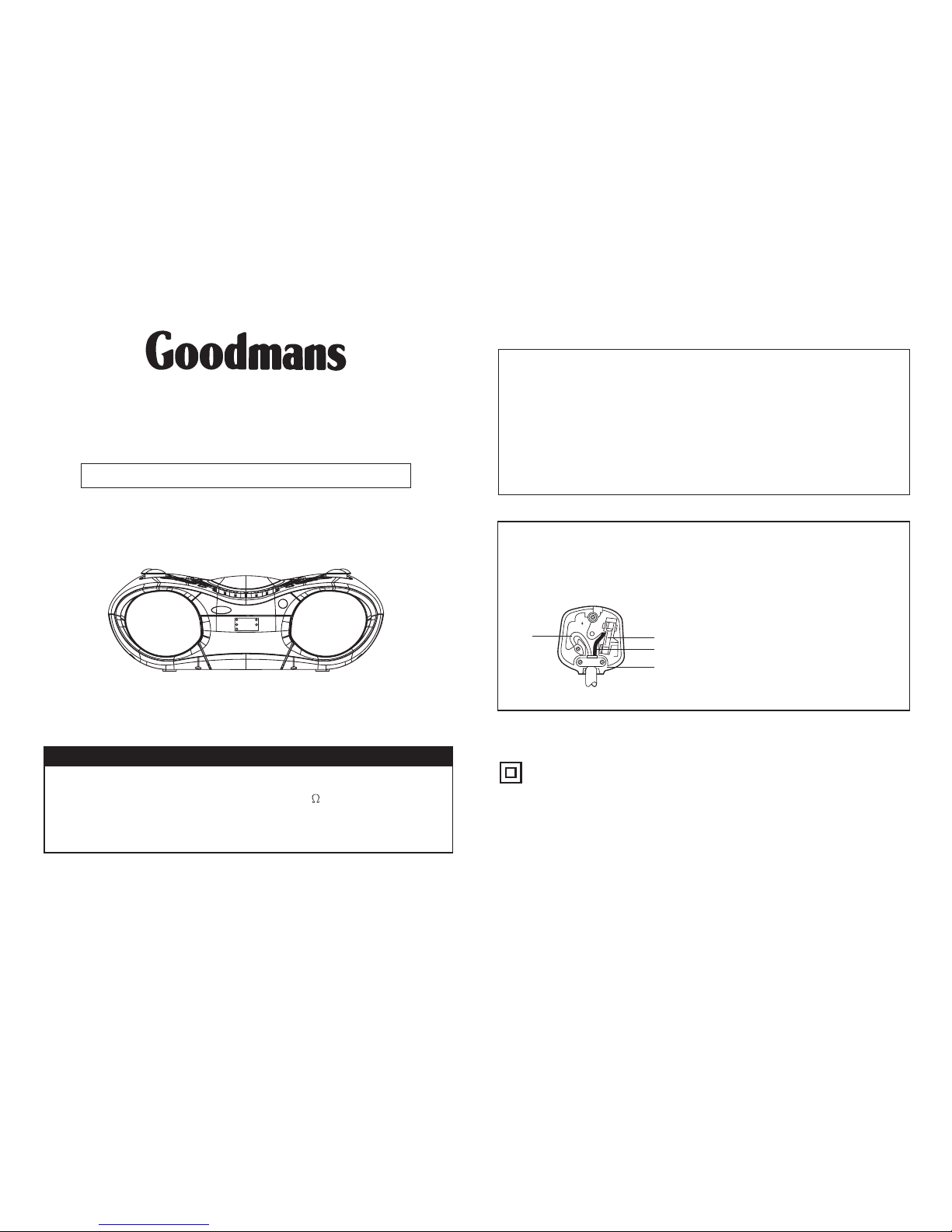

PLUG WIRING DETAILS The wires in this mains lead are coloured in
accordance with the following wiring codes:
Blue................................................. Neutral
Brown................................................... Live
The wires in this mains lead must be
connected to the terminals in the plugs as
follows:
Blue Wire..................................... N or Black
Brown Wire..................................... L or Red
Only a 3 Amp fuse should be fitted in the plug
ora5Ampfuse at the distribution board.
This symbol means that this unit is double insulated.
An earth connection is not required.
HELPLINE PHONE NUMBER 0870 873 0080
WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE
CONNECTED TO THE EARTH TERMINALIN A3-PIN MAINS PLUG.
FUSE
EL
NBROWN
CORD
GRIP
BLUE
Instruction Manual
For improvement purposes, specification and design are subject to change without notice.
Goodmans Product Information Helpline 0870 873 0080
GPS160R
STEREO RADIO CASSETTE RECORDER
COMPACT DISC PLAYER
Programme Play ............................................Up to 20 tracks
Earphone output ............................................
Power requirement ........................................AC 230V/50Hz
Dimension .....................................................
20mW x 2 (32 )
Approx. 446.5(L) X 240.5(W) X 163.0(H) mm
Weight ...........................................................Approx. 3.192Kg (not including batteries)
SPECIFICATIONS

IMPORTANT NOTES
Your hearing is very important to you and to us so please take care when operating
this equipment. The following guidelines are provided for your information.
Over time your hearing will adapt to continuous loud sounds and will give the
impression that the volume has in fact been reduced. What seems normal to
you may in fact be harmful. To guard against this
set the volume at a low level.
Slowly increase the level until you can hear comfortably and clearly and without
distortion.
Damage to your hearing is accumulative and is irreversible.
Any ringing or discomfort in the ears indicates that the volume is too loud.
Remember listening for prolonged period of time at high volume levels will
harm your hearing.
The following list of typical sound levels may assist you in recognizing just how
loud you have set the volume level.
30dB Quiet library, soft whisper.
40 Living room, fridge freezer bedroom away from traffic.
50 Normal conversation, quiet office, light traffic.
60 Electric sewing machine.
70 Vacuum cleaner, hair dryer, noisy restaurant.
80dB Average city traffic, alarm clock buzzer at 1 Metre, food mixer.
90 Motorcycle, heavy goods vehicle, petrol lawn mower.
100 Pneumatic drill, chain saw, garbage truck,
120 Rock band concert, thunderclap, fast train passing by.
ESTABLISH A SAFE SOUND LEVEL
BEFORE YOUR HEARING
ADAPTS
Once you have established a comfortable listening level, DO NOT INCREASE
THE SOUND LEVEL FURTHER.
DECIBEL
THE FOLLOWING NOISE CAN BE HARMFUL UNDER CONSTANT EXPOSURE





Level dB Example
discotec/night-club.
140 Gunshot, jet plane taking off.
180 Rocket Launching pad.
THRESHOLD OF PAIN
CAUTION
CLASS 1 LASER PRODUCT
Use of Controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
LASER SAFETY
This unit employs a laser, only qualified service personnel should attempt repair.
SOME DO'S AND DONT'S ON THE SAFE USE OF EQUIPMENT
Above all
WARNING:
This equipment has been designed and manufactured to meet European safety standards but
like any electrical equipment, care must be taken if you are to obtain the best results and safety is
to be assured.
Do read the operating instructions before you attempt to use the equipment.
Do ensure that all electrical connections (Including the mains plug, extension leads and
interconnections between pieces of equipment) are properly made in accordance with the
manufacturer's instructions. Switch off and withdraw the mains plug when making or changing
connections.
Do consult your dealer if you are ever in doubt of the installation, operating, or safety of your
equipment.
Don't continue to operate the equipment if you are in any doubt about it working normally, or if it is
damaged in any way- switch off, withdraw the mains plug and consult your dealer.
Don't remove any fixed covers as this may expose dangerous voltages.
Don't leave equipment switched on when it is unattended unless it is specifically stated that it is
designed for unattended operation or has a standby mode. Switch off using the switch on the
equipment and made sure that your family knows how to do this. Special arrangements may need
to be made for infirm or handicapped people.
Don't listen to headphones at high volume, as such use can permanently damage your hearing.
Don't obstruct the ventilation of the equiment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
Don't allow electrical equipment to be exposed to rain or moisture.
Never let anyone, especially children, push anything into holes, slots or any other opening as
this could result in a fatal electric shock.
Never guess or take chances with electrical equipment of any kind.
It is better to be safe than sorry!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE, DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNELONLY.
CAUTION
CLEANING: Always disconnect unit from mains supply before attempting to clean it. Use soft
cloth moistened with soapy water, wipe gently. Do not use solvents or abrasive
materials.
DANGER:
CAUTION:
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT
EXPOSURE TO BEAM.
HAZARDOUS LASER RADIATION WHEN OPEN AND
INTERLOCK DEFEATED.
HELPLINE PHONE NUMBER 0870 873 0080

Power Sources ................................................. 1
Player Maintenance............................................ 2
........... 3
Program play operation......................................7
Repeat play operation.........................................8
Random play operation........................................9
Cassettes..........................................................10
Recording from MIC/ ........................... 11
Disc Cleaning, Power failure.................
Location of Controls........................................... 4
Radio operation................................................. 5
Listening to a compact disc.................................. 6
Radio/ CD
Remote Control.................................................12
Product Specifications...................................... 13
TABLE OF CONTENTS
WARNING
SAFETY PRECAUTIONS
1. As the laser beam used in this compact
disc player is harmful to the eyes, do not
attempt to disassemble the casing.
2. Stop operation immediately if any liquid or
solid object should fall into the cabinet.
Unplug the unit and have it checked by
qualified personnel.
3. Do not touch the lens or poke at it. If you do,
you may damage the lens and the player
may not operate properly.
4. Do not put anything in the safety slot. If you
do, the laser diode will be ON when the lid
is still opened.
5. This unit employs a laser. The use of
controls or adjustments or performance of
procedures other then those specified
herein may result in exposure to
hazardous radiation.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
Player Operation
1. POWER SOURCES
2. PLAYER MAINTENANCE
CLEANING THE LENS
If the lens in the CD pick-up is dirty, dusty,
etc, it could degrade the sound or prevent
disc play. Open the disc holder and clean
the lens as shown.
Use a blower (available from camera
stores) to blow dust off the lens.
If there are fingerprints, etc., on the
lens, gently wipe clean with a cotton
swab.
h
h
CASSETTE DECK MAINTENANCE
When the heads, capstan and pinch roller
become dirty, this may result in muffled,
distorted or reduced sound during play back
and may even result in tape jams.
Clean the tape head with a head cleaning
tape.
AC MAINS OPERATION
1. Remove the AC cord which is packed
inside the box.
2. Connect the cord to the AC input
socket.
3. Connect the 3 pin mains plug to an AC
mains socket.
BATTERY OPERATION
1. Insert 8 LR14 (C Size) batteries (not
supplied) into the battery compartment
observing the correct polarity as
indicated.
2. Ensure compartment cover is securely
fitted.
3. Product will only function from
batteries once AC cord is removed
from the unit.
4. When replacing flat batteries, ensure
all batteries are replaced at the same
time with the same type.
5. If the product is not to be used for an
extended period of time the batteries
should be removed to prevent any
possible damage to the product.

Cleaning the Disc
1. To handle a disc use only one of the two
manners illustrated.
Do not touch the rainbow-colored
side.
2. To wipe a disc, use only a soft cloth. Do
not use benzene or thinner which will
damage the disc. The disc should always
be wiped in a straight line from the center
to the edge. It should never be wiped in a
circular motion.
3. Never place the disc on other equipment
or near any heat source. Avoid positions
where the disc would be subjected to
direct sunlight for long periods.
NOTE:
3. DISC CLEANING, POWER FAILURE
1. Electronic products should never be
subjected to extreme temperatures nor
high humidity to ensure good performance
and a long life-time. The player should not
be placed in bathing areas, or around
stoves and radiators, etc. Always leave
sufficient space around the unit for
ventilation.
2. If necessary, only clean the cabinet of the
unit with a soft dampened piece of cloth.
(be sure the AC power cord is unplugged
from the outlet) Never use a polish or a
strong detergent for cleaning since this
can damage the finish of the cabinet.
Maintenance and care
4. LOCATION OF CONTROLS
1234 5 6
7 9 11 13 15 17 19 21 23 25 27
810 12 14 16 18 20 22 24 26
37 38
41
43
42
39
40
29 30
31
32
33
34
35
36 29
28
LOCATION OF CONTROLS
1. PHONES SOCKET
2. FOLDING HANDLE
3. CD DOOR
4. FM TELESCOPIC ANTENNA
5. FM ST. INDICATOR
6. DIAL SCALE
7. VOLUME CONTROL
8. FUNCTION SWITCH
9. CD PROGRAM BUTTON
10. CD REPEAT BUTTON
11. CD RANDOM BUTTON
12. BASS BOOST BUTTON
13. INDICATOR FOR BBS
14. PAUSE BUTTON
15. STOP/EJECT BUTTON
16. FAST FORWARD BUTTON
17. REWIND BUTTON
18. PLAY BUTTON
19. RECORD BUTTON
20. CD DOOR OPEN AREA
21. CD STOP BUTTON
22. CD BACKWARD SKIP/SEARCH BUTTON
23. CD FORWARD SKIP/SEARCH BUTTON
24. CD PLAY/PAUSE BUTTON
25. BAND SWITCH
26. BUILT-IN CONDENSER MICROPHONE
27. TUNING CONTROL
28. LED DISPLAY
29. SPEAKERS
30. POWER INDICATOR
31. CD PLAY/PAUSE INDICATOR
32. CD RANDOM INDICATOR
33. CASSETTE DOOR
34. CD PROGRAM INDICATOR
35. CD REPEAT INDICATOR
36. REMOTE SENSOR
37. BATTERY COMPARTMENT
38. AC SOCKET
REMOTE CONTROL
39. CD BACKWARD SKIP/SEARCH BUTTON
40. BATTERY COMPARTMENT
41. CD PLAY PAUSE BUTTON
42. CD FORWARD SKIP/SEARCH BUTTON
43. CD STOP BUTTON

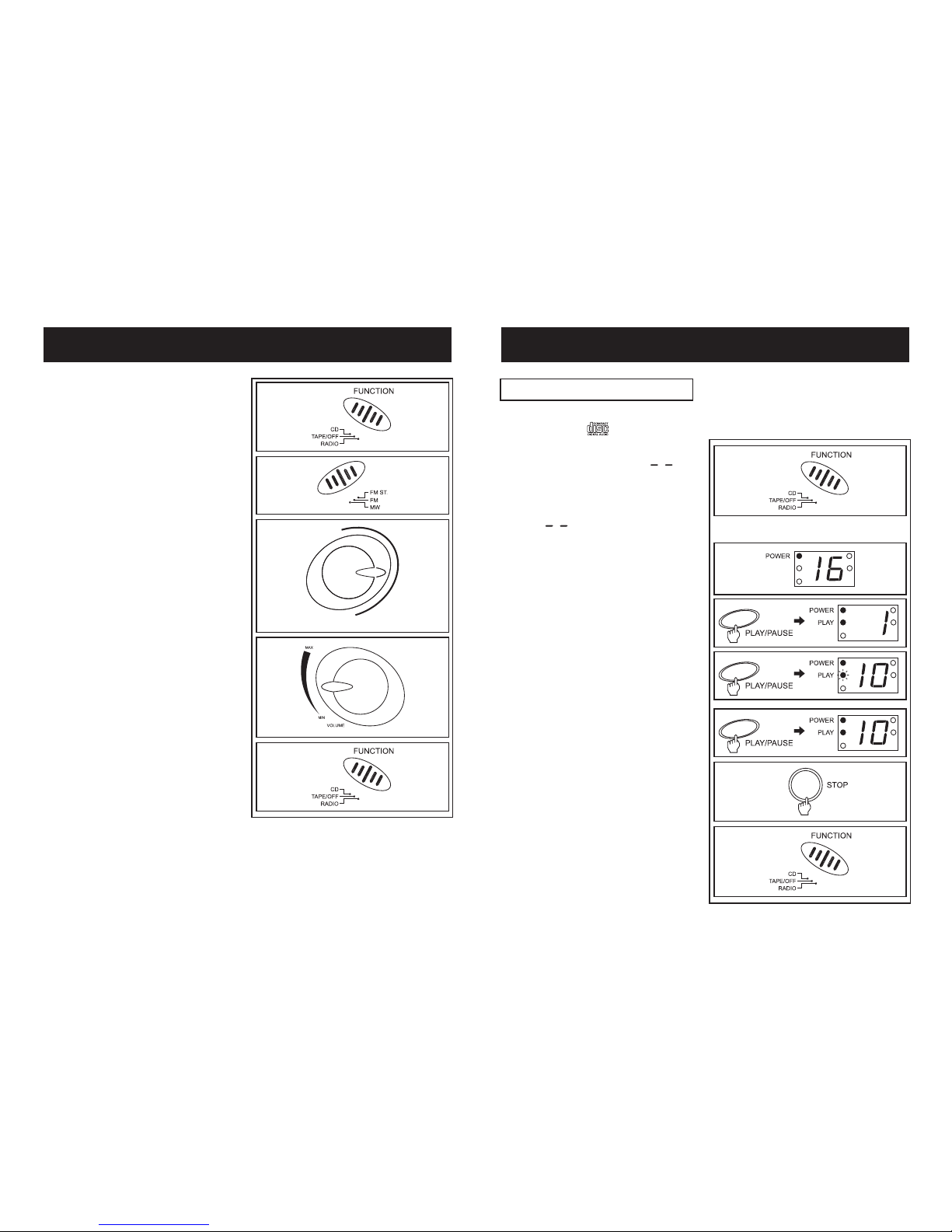

5. RADIO OPERATION
This set is designed to play only compact
discs bearing this identification logo
(logo must say DIGITAL AUDIO).
1. Set the Function Switch to the CD
position, the Display will show " ".
2. Lift and open the CD door by pressing
the CD door open button.
3. Insert a CD with the side If
the disc is upside down, the Display will
show " ").
4. Close the CD Door by pushing the Door
down with your finger.
5. The Display will show the total number
of tracks (songs) on the CD.
6. To start the music, press the CD
Play/Pause Button (wait a few seconds
for music to start). The first track
number "1" will appear in the Display,
the PLAY/PAUSE Indicator will light and
the disc will start playing.
7. To pause the music, press the
Play/Pause Button, the CD Play/Pause
indicator will flash to remind you that
you are in pause mode.
8. To resume the music from pause mode,
press the Play/Pause Button again. The
CD Play/Pause indicator will stop
flashing.
9. To stop playing music, press the CD
Stop Button.
10. To turn off the unit, set the Function
Switch to TAPE position and make
sure none of the tape keys are
pressed in.
Always stop the CD player by
using the CD Stop Button before you take
the disc out of the compartment.
If you hit or move the CD during
play, the music will stop for a second or
two and then start again. This is normal
for all portable CD players.
LABEL UP.
NOTE:
NOTE:
6. LISTENING TO A COMPACT DISC
PLAYING A COMPACT DISC
1. Set the FUNCTION switch to the RADIO
position, the POWER Indicator will light
up.
2. Select the desired band with the BAND
switch.
4. The built-in MW antenna and external
FM TELESCOPIC ANTENNA are
directional.
5. Adjust the volume level to a comfortable
listening level.
6. To turn off the radio, set the FUNCTION
switch to the TAPE or CD position.
NOTES:
3. Tune to the desired station by rotating
the TUNING control (rotate that control
back and forth until you get the
strongest and clearest reception).
When you are receiving an FM
broadcast, fully extend the
TELESCOPIC ANTENNA and
rotate it for the best reception.
For MW broadcast, rotate the whole
set until the best reception is heard.
If a particular FM (STEREO) station
is weak, or you hear too much
background noise, move the band
selector switch to the FM (MONO)
position.
When the band selector switch is
set to FM STEREO and a stereo
broadcast is on the air, the FM
STEREO indicator will be lit.
=
=
=
=
TUNING

SKIPPING TRACKS (SEARCH)
1. This function enables you to find the
beginning of any desired track during
play. If the CD Forward Search/Skip ( )
button is pressed once or repeatedly, the
NEXT TRACK or one of the subsequent
tracks will be selected. The Display will
show the track or song number.
2. If the CD Backward Search/Skip ( )
button is pressed twice or more in rapid
succession, the track before or previous
tracks will be selected.
3. When the unit is in the pause mode, it is
also possible to select the beginning of a
certain track by using the CD Forward
Search/Skip ( ) button and CD
Backward Search/Skip ( ) button to
reach the desired track. After selection,
press CD Play/Pause button.
4. Press and hold the CD Forward
Search/Skip ( ) button to search
forward at a high speed for a particular
section of a song. Press and HOLD the
CD Backward Search/Skip ( ) button
to search backward. Release the button
to resume normal play when the section
is found.
7. PROGRAM PLAY OPERATION
PROGRAMMED (MEMORY) PLAYBACK
(up to 20 tracks can be programmed)
8. REPEAT PLAY OPERATION
REPEAT PLAY SINGLE SONG
1. Press the CD Stop Button during
playback. The total tracks will appear in
the display.
2. Press the CD Pro
Indicator will flash.
3. Select the track to be programmed by
pressing Backward or Forward
Skip/Search Button .
gram Button, "0" and
Program
4. Press CD Program Button again to
store the track in memory
5. Repeat steps 3 and 4 (up to 20 tracks).
6. After the tracks have been programmed
in order, press the CD Play/Pause
Button to start the programmed play
from the first programmed track, and
the CD Play/Pause Indicator will
illuminate again, the Program Indicator
will continue flashing.
Tracks can only be programmed in
the CD stop mode.
.
NOTE:
1. Press the Search/Skip Button during
playback to select the song you want to
repeat.
2. Press the Repeat Button. The Repeat
Indicator will flash on and off.
3. The song selected will play over and
over, till you press the Stop button.
4. To stop the repeat function, press
Repeat Button twice more.
TO CLEAR PROGRAM
1. When the CD has stopped press CD
Program button and then the CD Stop
button.
2. After the disc has stopped, open the
CD compartment and the program will
be erased.
3. Turn off the power to the unit.
X1
X2

REPEAT PLAY ALL SONGS
To repeat ALL SONGS on a disc again
and again.
1. Press Repeat Button twice during
playback.
2. The Repeat Indicator will be steady on.
All the songs on the CD will play in
order and then start all over again.
3. To stop the repeat function, press
Repeat Button once more and the
Repeat Indicator will turn off.
10. CASSETTES
The quality and condition of the cassette tapes you use will have a direct effect on the
performance of this set.
Low quality tapes tend to break and stretch and a broken tape can easily become entangle
in the drive mechanism, causing major damage. Stretched tapes will run at uneven speeds
and will distort anything recorded on them.
Use only well-known brands of tapes.
Use of C-120 (120 minutes) cassette is not recommended. The extreme thinness of
this tape may result in breakage or other failures.
This set is not designed for CrO2, Fe-Cr or METAL tape use. Therefore, be sure to use
named brand normal cassette tapes.
h
h
h
CASSETTE TAPE SELECTION
TO PLAY A CASSETTE TAPE
AUTOMATIC LEVEL CONTROL (ALC)
This product utilizes the latest Automatic
Level Control circuitry, therefore, it is not
necessary to adjust the Volume Control
when recording. This circuit automatically
records at the correct level and prevents
over loading.
NOTE: While recording you may adjust
the Volume Control as desired
without affecting the recording
operation.
9. RANDOM PLAY OPERATION
Press Random button in CD stop mode,
the unit will play the tracks in a random
order.
X2
X1
1. Open the cassette door by pressing the
cassette STOP/EJECT button.
2. Insert a cassette with the exposed tape
facing upwards and the full reel on the
right (unit plays from right to left) into
the guides on the inside of the cassette
door.
3. Close the cassette door.
4. Set the function switch to the TAPE
playback.
5. Press the cassette PLAY button to start
the tape playing.
6. Adjust the VOLUME control to a
comfortable listening level.
7. To stop the tape playing, press the
STOP EJECT button. Press the button
again to open the cassette door and
eject the tape.
During play, when the end of the
tape is reached the PLAY button will pop up
and play will stop. To play the other side of
the tape, remove the cassette, turn the
cassette over so that the full reel is on the
right, replace the cassette and press the
PLAY button.
NOTE:
/

11. RECORDING FROM RADIO/MICROPHONE/CD
RECORDING FROM RADIO
RECORDING FROM THE BUILT-IN
MICROPHONE
RECORDING FROM A CD
1. Set the FUNCTION switch to the RADIO
positi n and tune to the desired station.
2. Load a cassette into the cassette
compartment, with the full reel on the
right.
3. Press the cassette RECORD button until
it locks in the down position PLAY button
is depressed at the same time) and
recording will start.
4. To end the recording press the
cassette STOP EJECT button. If this
button is not pressed the recording will
stop automatically when the end of the
tape is reached.
5. To listen to your recording, slide the
FUNCTION switch to TAPE position,
press the cassette REWIND button until
the start point of the recording is reached,
then press the STOP button and the
PLAY button. Use the VOLUME control
to adjust the playback level to your
personal taste.
On each end of the tape there is a
tape leader and no recording will take place
over this portion of the tape. If you wish
recording to take place as soon as the
RECORD button is pressed, ensure
that the leader is wound past the record
head.
NOTE:
o
(
please
/
TUNING
1. Set the FUNCTION switch to the TAPE
position.
2. Load the cassette which you wish to
record on into the guides on the
cassette door (Full reel on the right
hand side).
3. Press the cassette RECORD button
and speak into the built-in microphone
on the top left of the unit.
4. Press the STOP EJECT button to end
the recording.
5. Rewind the tape and then press the
PLAY button to listen to your recording.
/
1. Set the FUNCTION switch to the CD
position.
2. Load a cassette into the cassette
compartment with the full reel on the
right.
3. Insert the compact disc from which you
wish to record and close the CD door.
/
4. Press the cassette PAUSE button on the
tape deck.
5. Press the cassette RECORD and PLAY
buttons so they lock in the down position
(The unit is now in recording standby
mode).
6. Start the CD playing by pressing the CD
PLAY PAUSE button.

12. REMOTE CONTROL
By using the remote controller, you can
operate the system in almost the same
way as with the controls of the main unit.
REMOTE CONTROL RANGE
Use the remote control within an angle of
30 at the left and right horizontally and
over distances up to about 3 meters.
o
1. Open the battery compartment cover.
2. Install 2pcs UM-4 (size AAA) batteries
into the battery Compartment matching
the polarity as shown in the battery
compartment.
3. Close the battery compartment lid.
Always remove batteries if the
remote controller is not going to
be used for a month or more.
Batteries left in the unit may
leak and cause damage.
NOTE:
INSERTING BATTERIES
REMOTE OPERATION
7. Press the cassette PAUSE button again
and then recording begins.
8. To end the recording, press the cassette
STOP/EJECT button.
9. Press the CD STOP button and then
move the FUNCTION switch to the TAPE
position.
10.To listen to your recording, press the
REWIND button to return to the point
where the recording started and then
press the PLAY button.
MW 522-1620 KHz
FM 87.5 -108.0 MHz
13. PRODUCT SPECIFICATIONS
Net Weight
Dimension
Power consumption
Power requirements
Output level
Speakers Impedance
Frequency range
Receiving bands MW/FM
No. of channels
Wow and flutter
Frequency response
D/A conversion
Approx. 3.192Kg (not including batteries)
Approx. 446.5(L) X 240.5(W) X 163.0(H) mm
22W
AC 230V
DC 8* "C" size (or equivalents) batteries (not supplied)
Earphone: 20mW (32 )
2 channels (stereo)
4 2*3W
Below measurable limits
20-20,000Hz (+1/-3 dB)
1-bit DAC 8 times oversampling
AUDIO
RADIO
GENERAL
System
Cross-interleave Reed-solomon code
material: GaAIAs
Compact disc digital audio system
Error correction
Properties
Laser diode
PICK-UP
Wavelength: =780nm
Emission Duration: continuous
Laser output: <44.6 W
Please note: Due to the fact that we are continually trying to improve our products these
specifications are subject to change without notice.
