Goodmans GDVD171HD5B User manual

GDVD171HD5B
HDMI DVD PLAYER

Safety instructions --------------------------------------1
Features------------------------------------------------2
Disc Information------------------------------------------3
Remote Control View--------------------------------------4

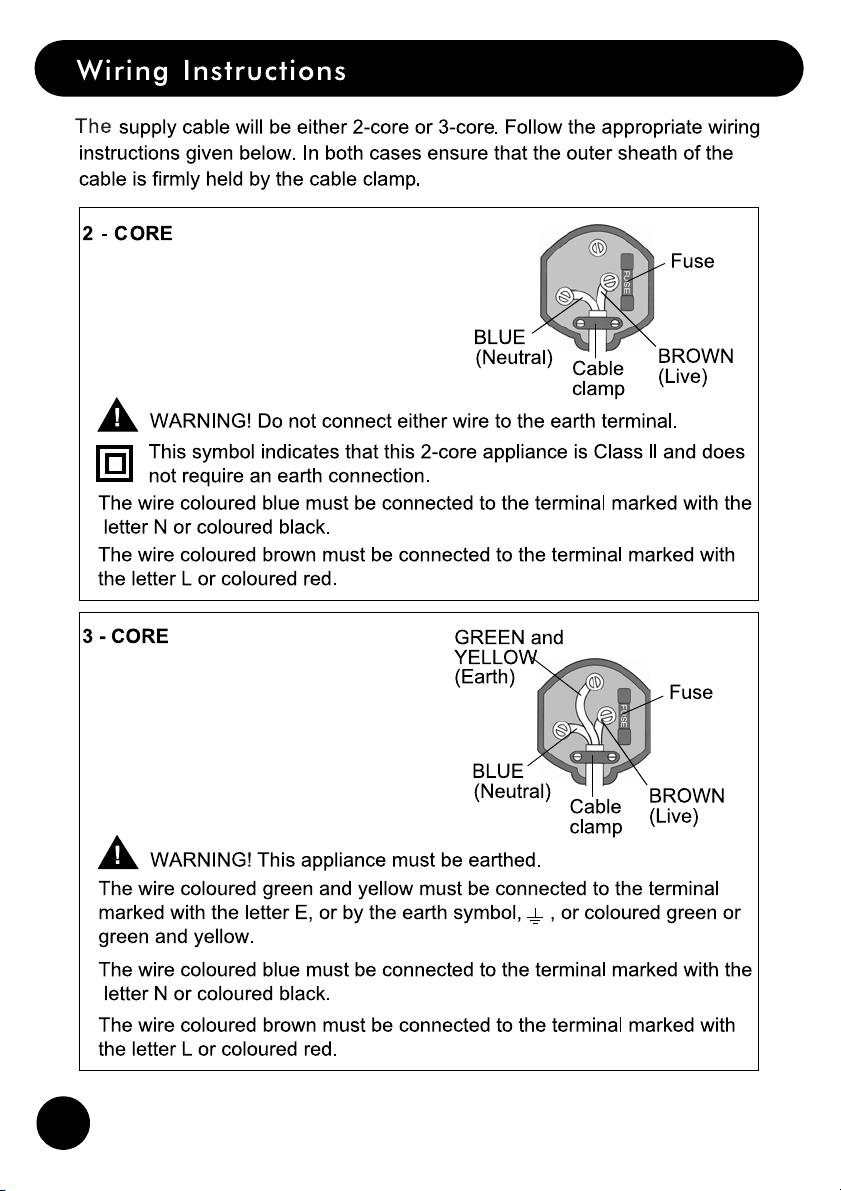

Wiring Instructions
Front and Rear Panel ------------------------------------6
Features Setup -----------------------------------------7-11
Remote Control operation------------------------------12-15
Playing MP3 and JPEG ---------------------------------16

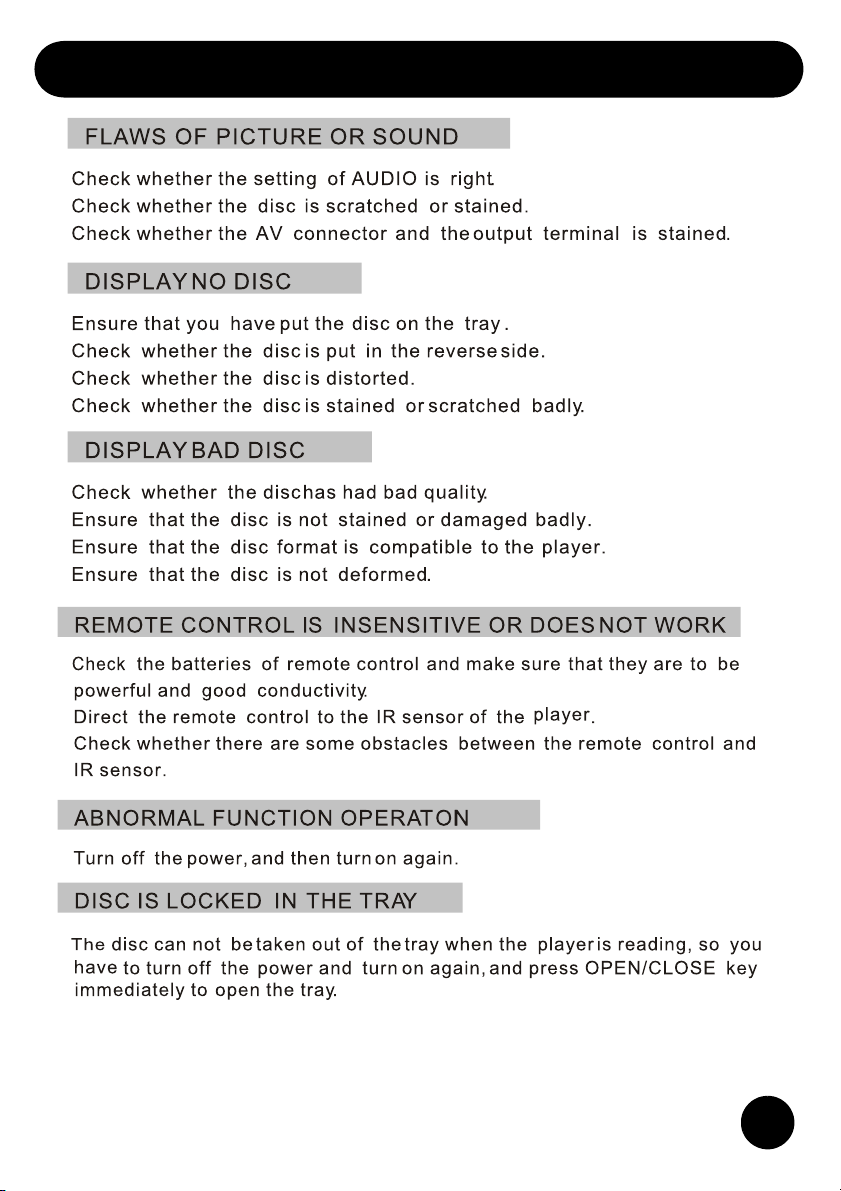

Trouble Shooting ------------------------------------17-18
Specification -------------------------------------------19
Guarantee
Warning
--------------------------------------5
-------------------------------------------20
Content

Warning:
The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids,such as vases,shall be
placed on the apparatus.
Where the mains plug is used as the disconnected device,the
disconnect device shall remain readily operable.
SAFETY INSTRUCTIONS
1
operate normally,or has been dropped.

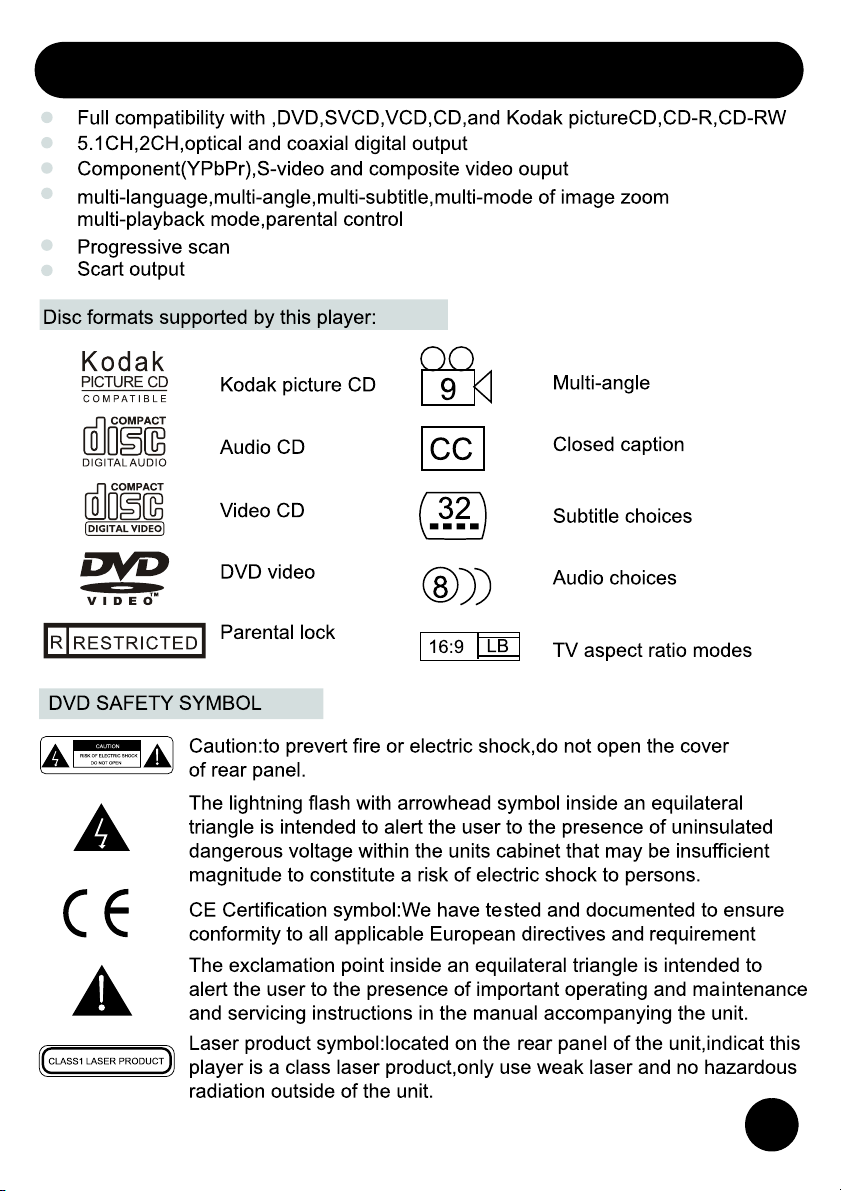

FEATURES
2

CD
Region code
DVD player and Disc are programed under the region code.
Please make sure the consistence of the disc and player.
Only under the region code consistency can the disc be played.
The unit can play the following discs:
Compatible Discs
DVD Information
3

Turn over the remote control and take down the cover of the remote.
Load two AAA batteries into the battery house in accordance with
polarities.
Close the cover of the battery house.
Do not use charging batteries.
Do not use new and old batteries of different type together.
Do not disassemble,burn or heat the batteries.
Unless stated other wise, the remote control can operate all the features
of the DVD player. Always point the remote control directly at the remote
sensor on the front of the DVD Player not the TV.
Remote Control View
Using the Remote Control
Loading Batteries into the Remote Control
Caution:
4

5

Front and Rear panel
6
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1.OPTICAL JACK
2.HDMI JACK
3.Cb/Pb JACK
4.COAXIAL JACK
5.Y Jack
6.Cr/Pr JACK
7.VIDEO JACK
8.S-VIDEO JACK
9.FL TRACK
BASIC CONNECTION
1.POWER
2.DOOR TRAY
3.OPEN/CLOSE
4.STOP
5.PLAY/PAUSE
13 24
5
17
10.SL TRACK
11.FR TRACK
12.SR TRACK
13.SW TRACK
14.CENTER TRACK
15.LEFT TRACK
16.RIGHT TRACK
17.SCART OUTPUT JACK

Setup Menus
The Setup Menu allow you to configure the Language,Video,Audio and
General Settings of the player.
Press the SETUP button to access to the Setup menus.
Use the UP,DOWN,LEFT and RIGHT arrow button to adjust a setting
The language Menu
The Language menu allows you to select the languages for the OSD,
DVD menu,Subtitle,DivX subtitle and Audio.
Press the SETUP button to display the Language menu as following:
The following options are available:
OSD Language
The OSD language function allow you to select the On-screen display
language.The available options are: English,French,Spanish,German
Subtitle
This function enables you to seletct the subtitle language. The available
options are: Enlish,French,Spanish,German,Off.
Audio
You can use this function to select the following languages:English,
French,Spanish, as the Audio language.
DVD menu
You can select from the following languages:English,French,Spanish
.as your DVD menu language.
NOTE: Available languages of the above menu are disc specified.
German
German
Language
Language
Video
Video
Audio
Rating
Rating
Misc
Misc
OSD language
OSD language
Subtitle
Subtitle
Audio
DVD menu
DVD menu
:English
:English
:English
:English
:English
:English
:English
:English
DivX Subtitle
DivX Subtitle
:Unicode(UTF-8)
:Unicode(UTF-8)
FEATURES SETUP
7

The following options are available:
Aspect Ratio
The Aspect Ratio function allows you to set the screen picture.
Options are:4:3PS,4:3PB,16:9.
View Mode
The function enables you to select the following: Fill,Original,Auto Fit,
Pan scan picture compression.
TV System
There are 3 options for you to select: PAL,NTSC,Multi.
Video Out
The function enables you to select the video output system.
options are: S-Video, Component,P-Scan,HD.
Brightness and
Use the LEFT and RIGHT button to increase and decrease the digit.
In order to enable the below function,first you need to set the Video
Out as HD selection first.
HD Resolution
The Resolution options are: Auto,480p/576p/720p/1080i
HD Jpeg Mode
You can enable and disable the function in the menu.
Sharpness
Language
Audi o
Rati ng
Misc
Video
:4:3
:4:3
:Aut o Fit
:Aut o Fit
:NTS C
:NTS C
Aspect Rati o
Aspect Rati o
View Mode
View Mode
TV Syst em
TV Syst em
4
3
Video Out
Brightness
Sharpness
HD Resolution
HD Jpeg Mode
Video Out
Brightness
Sharpness
HD Resolution
HD Jpeg Mode
:S-Video
:S-Video
:Aut o
:Aut o
:ON
:ON
The Video Menu
The video menu allows you to setup the display and video output
options.Use the UP and DOWN button to select the video setup menu.
Use the RIGHT and LEFT button to display the Video menu as below.
FEATURES SETUP
8

FEATURES SETUP
9
The audio menu allows you to setup the audio output.
Use the UP and DOWN button to select the Audio setup menu.
Use the RIGHT and LEFT button to display the Audio menu as below.
The following options are available:
Bass Management
To enable or disable the Bass Management during operation.
Front Speaker
To adjust the front speakers output to work in harmony with the audio
equipment.
Center Speaker
Selection the Large or Small mode of the Center Speaker. The speaker
will have no signal output if set to None.
Surround Speaker
Selection the Large or Small mode of the Surround Speaker. The
speaker will have no signal output if set to None.
Sub-woofer
To enable or disable the sub-woofer.Options are:
None: Sub-Woofer is set off.
Present: Sub-woofer is on.
Test Tone
Selecting the Test To n e setting allows the user to test the player's
audio output on each corresponding channel.
Center Delay
Selecting the Center Delay setting allows the user to enable/disable
the center output delay.
Language
Language
Rating
Rating
Misc
Video
Audio
Audio
Bass Ma nageme nt
Front Speakers
Center Speaker
Surround Speakers
Subwoofer
Test Tones
Center De lsy
Surr De lay
Digitaloutput
Bass Management
Front Speakers
Center Speaker
Surround Speakers
Subwoofer
Test Tones
Center Delsy
Surr De lay
Digitaloutput
:Off
:Large
:None
:None
:None
:Off
:No Delay
:No De lay
:PCM
:Off
:Large
:
:Off
:No Delay
:No De lay
:
None
None
None
PCM
:
:
The Audio Menu

Surround Delay
Selecting the Surround Delay setting allows the user to enable/disable
the center output delay.
Digital Output
The function enables you to select the digital audio output format.
The available options are Off,PCM and RAW.
Night mode
You could set the night mode On or Off.
Prologic
OFF: set Prologic decoding off.
ON: set Prologic decoding on.
Down Sampling
The function allows you to turn the audio down sampling on or off.
Smart Sound
The function enable you to select sound type, available options are:
Classic/Rock/Jazz/Pep.
You also can set the smart sound off.
Misc
Misc
Rat ing
Lang uage
Misc
Misc
Video
Audi o
Rat ing
Par ent al con trol :8.Adul t
Par ent al con trol :8.Adul t
Set Pass wor d
Set Pass wor d
You can change the password to prevent children adjusting the
Parantal Control settings.When selected, the following screren
will appear.
Use NUMERIC button to enter the password.The default password
is 8888.
The Rating Menu
The Rating Menu allows you to setup and control the Parantal control
options.Use the UP and DOWN buttons to display the Rating menu.
Set Password
FEATURES SETUP
10

12
Use default setting
The Use Default Setting resets the personal viewing settings saved
in the DVD setup menus to the factory default.
The Misc Menu
The Misc menu allows you to adjust general settings for the DVD
Player.
Lang uage
Video
Audi o
Audi o
Rat ing
Rat ing
Misc
Misc
Use Def aul t Set tings
Use Def aul t Set tings
FEATURES SETUP
11

STANDBY
During playback,press Standby to stop the player and return to
standby mode.Press again to resume normal operation.
PROG
The function can be used to play selected chapters and titles in
a pre-set sequence.Press the PROG button.The following menu
will appear:
Note:please refer to the DVD cover for the title and chapter listings.
Use the UP and DOWN buttons to highlight the desired title,
ENTER button to select.The selected title and chapter is listed in the
first available slot in the program list.
Repeat the steps until all the desired title and chapters are selected.
To remove selections from the program list,highlight and select Clear.
To remove all selections from the program list,selct Clear all.
Use LEFT and RIGHT ARROW buttons to select Play,enter to playback
mode.
ANGLE
During playback:press ANGLE to view scenes from different camera
angels.
Press ANGLE to repeatedly change from one angle to another.
Note: This function is disc specific.
SUBTITLE
During playback,press SUBTITLE repeatedly to select your desired
language.
Note: this function is disc specific(language will vary)
ZOOM
Press the ZOOM button repeatedly to cycle through the available
zoom levels until you reach the level you require.The zoom level and
zoom icon are displayed on screen.
Remote Control Operation
12

Enter the chapter or title time you want using the NUMERIC buttons in
an hours,minutes,and seconds format.
Press ENTER button,the player will automatically begin playing the title
or chapter from the selected point in time.When PBC is Off,During
playback,press the TIME button,there will appear the below meun:
Enter the chapter or title time or disc time you want using the
NUMERIC buttons in an hours,minutes,and seconds format.
Press ENTER button,the player will automatically begin playing the
title or chapter from the selected point in time.
Search
Search
Title
Title
Chapter
Chapter
Time
Time
Search
Search
Time
STOP
Press STOP once during playback to stop and hold playback.
Press PLAY tp resume playback from the point you have pressed STOP.
Press STOP twice to stop playback completely.
DISPLAY
During playback,press this button to display the current time counter
position.
GOTO
When PBC is ON,During playback,press the TIME button,there will
appear the below meun:
Remote Control Operation
PLAY/PAUSE
Press Play/pause during playback to pause.Press again to resume
normal mode.
13
REV and FWD
During playback,press the F.FWD or F.REV button.
There are 4 search speeds.Each press increases the screen speed.

MENU
During playback,press MENU to return to root menu.
AUDIO
During DVD/VCD playback,press the button repeatedly to select the
channel of audio-output:Left/Right/Mix/Stereo.
SLOW
Press this button to slow motion playback.
There are 4 options,press button reapeatedly to change the options.
PREV
Press this button to play the previous chapter,title or track.
NEXT
Press the button to play the next chapter,title or track.
REPEAT
Each press of the REPEAT button will change the repeat mode.
During VCD,CD playback,there are three modes: repeat single,
repeat all and off.During DVD playback, there are three modes:
repeat chapter,repeat title and off.
Note: During VCD playback,the PBC mode must be set off.
OPEN/CLOSE
Press the button to open and close the disc door.
WIDE
Press the button to select the screen system: PS 4:3,LB 4:3,16:9.
SETUP
Press button to enter and quit the system setup menu.
VIDEO
Press the button repeatedly to select the following video solution:
Interface Scan/Progressive Scan,HDMI.
Remote Control Operation
14

HDMI
Press the button to switch to HDMI video output resolution.
Note: this function only available under HDMI TV.And if you connect
to TV other than specified,may be image mistakes will appear. In this
case,press this button repeatedly to return to normal mode.
RETURN
Return to a previous menu screen on a VCD or return to VCD playback
from the VCD menu screen.
CLEAR
Press Clear to delete numbers you have entered. Press once to delete
one digit,press and hold will clear all digits.
STEP
Press the key,you can play the disc step by step,in this way,you can
catch any picture on the disc. The function is disc specifed.
RANDOM
Set the playback procedures follow the system.
NUMERIC BUTTONS
These buttons are used to input the time,as well as title,chapter and
rack numbers.When a numeric iteme is displayed on the screen,press
the NUMERIC buttons to select the desired entry, and press ENTER
confirm.
ENTER
Press the button to confirm your choice on screen.
TITLE
Press the button once return to the root menu,press again continue the
former playback.
Remote Control Operation
15

Load a Mp3 disc into tray.The player willl automatically play the first
file in the menu.
Press UP and DOWN to choose a folder form the folder list on the right
side of screen.
Press ENTER button to player the highlighter folder.
..M..o..,qi.
........
........
Filter
Rep ea t :off
:
Nor mal Mod e
Mus ic Play ing
1/3
/Track 01 .CDA
Playing Mp3
Filter
Rep ea t :off
:
Nor mal Mod e
JPEG Play ing
1/3
/Belle
Belle
FOL IAGE
GYM
Press UP and DOWN to choose a folder form the folder list on the right
side of screen.
Press ENTER button to player the highlighter folder.
Playing JPEG File
Load a JPEG disc into tray.The player willl automatically start to play.
(Maxium 500 files)
Playing Mp3 and JPEG
16

Trouble shooting
17

Trouble shooting
18
