GoPro 3D Hero SyStem User manual

3D HERO®SYSTEM
User ManUal + Warranty Info

reQUIreD free 3D eDItInG softWare:
GoPro CIneforM stUDIo™
Your 3D HERO System allows you to combine two 1080p HD
HERO cameras with a 3D HERO Sync Cable to record synchronized
videos and photos. The cameras record video and photos much
like your eyes see the world—with right and le lenses. While
recording, each camera independently saves 2D video or photos
to the respective SD card. In order to convert the saved 2D files
into a single 3D file, you will need to download a FREE copy of
GoPro CineForm Studio from: gopro.com/3D.
GoPro CineForm Studio makes creating 3D videos and photos
easy. Simply import the video or photo files you want to convert
to 3D, click a button and the soware automatically converts
your paired 2D files into a single, viewable 3D file. Using the
red/blue (anaglyph) glasses included with the 3D HERO System,
you can watch your 3D videos and photos on your computer,
online at video sharing sites like YouTube that support 3D videos ,
or on your 3D TV at home using active or passive shutter
glasses depending on your 3D TV.
To download and install your free copy of GoPro CineForm
Studio, visit gopro.com/3D.
fIrMWare UPDate
The 3D HERO System requires two 1080p HD HERO cameras.
You will need to make sure both of your HD HERO cameras have
the latest firmware installed before using the 3D HERO System.
To download the latest firmware, visit: gopro.com/firmware.
2

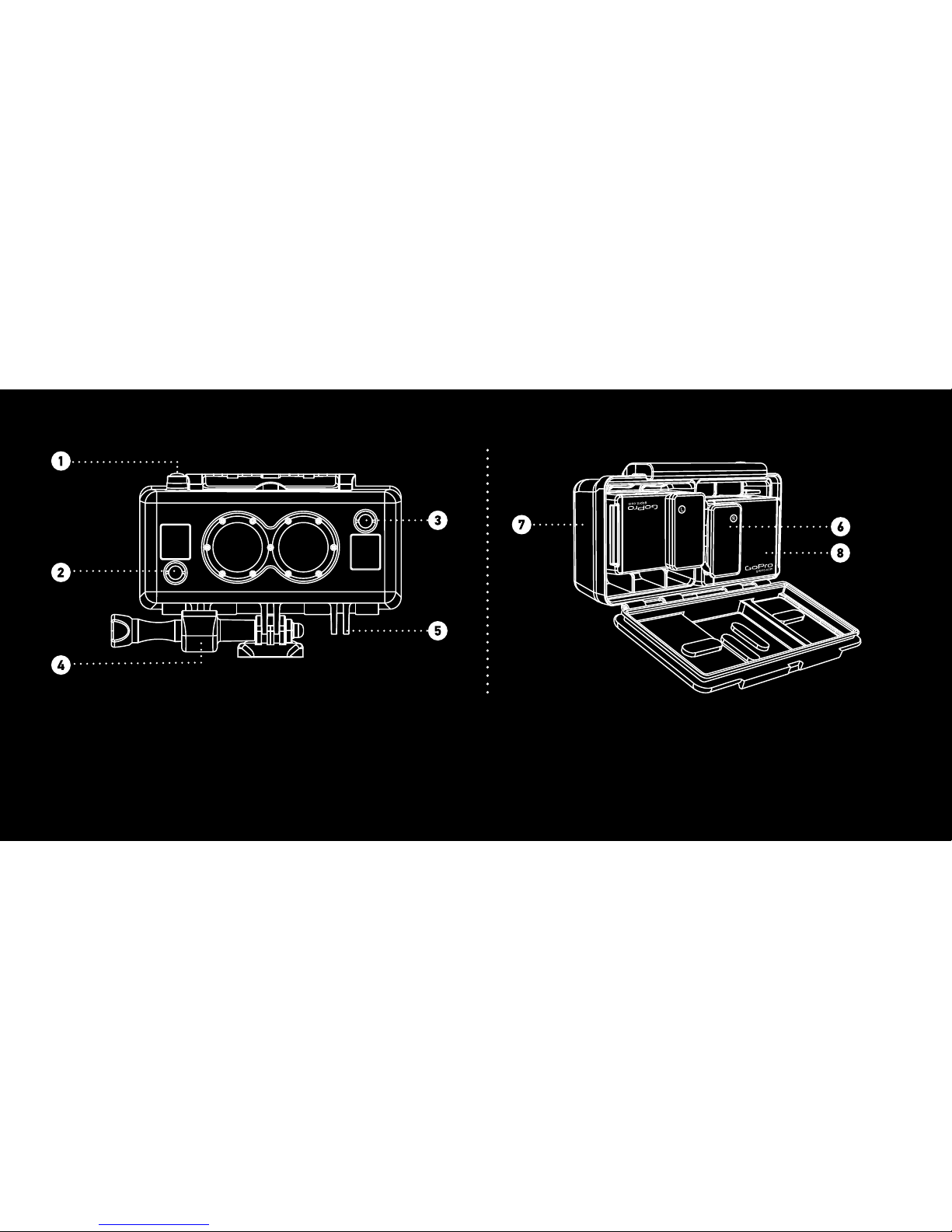

3D Hero systeM featUres
1. Master Shutter Button
Controls Both Cameras
2. Right Camera Power Button
3. Le Camera Power Button
4. Center Mount Adapter
5. Mounting Fingers
6. 3D HERO Sync Cable
7. Waterproof Housing
8. Requires Two 1080p
HD HERO Cameras
(not included)
3

asseMBlInG 3D Hero systeM
COMBINING TWO CAMERAS FOR 3D VIDEO AND PHOTO CAPTURE
NOTE: The 3D HERO System requires two 1080p HD HERO cameras. Each camera requires a fully charged battery
and SD card with sufficient memory for recording (GoPro recommends Class 4 or faster SD cards). Each camera’s settings
(e.g.: resolution, exposure, record mode, video format (PAL & NTSC)) must match for 3D synchronization to
work.
4

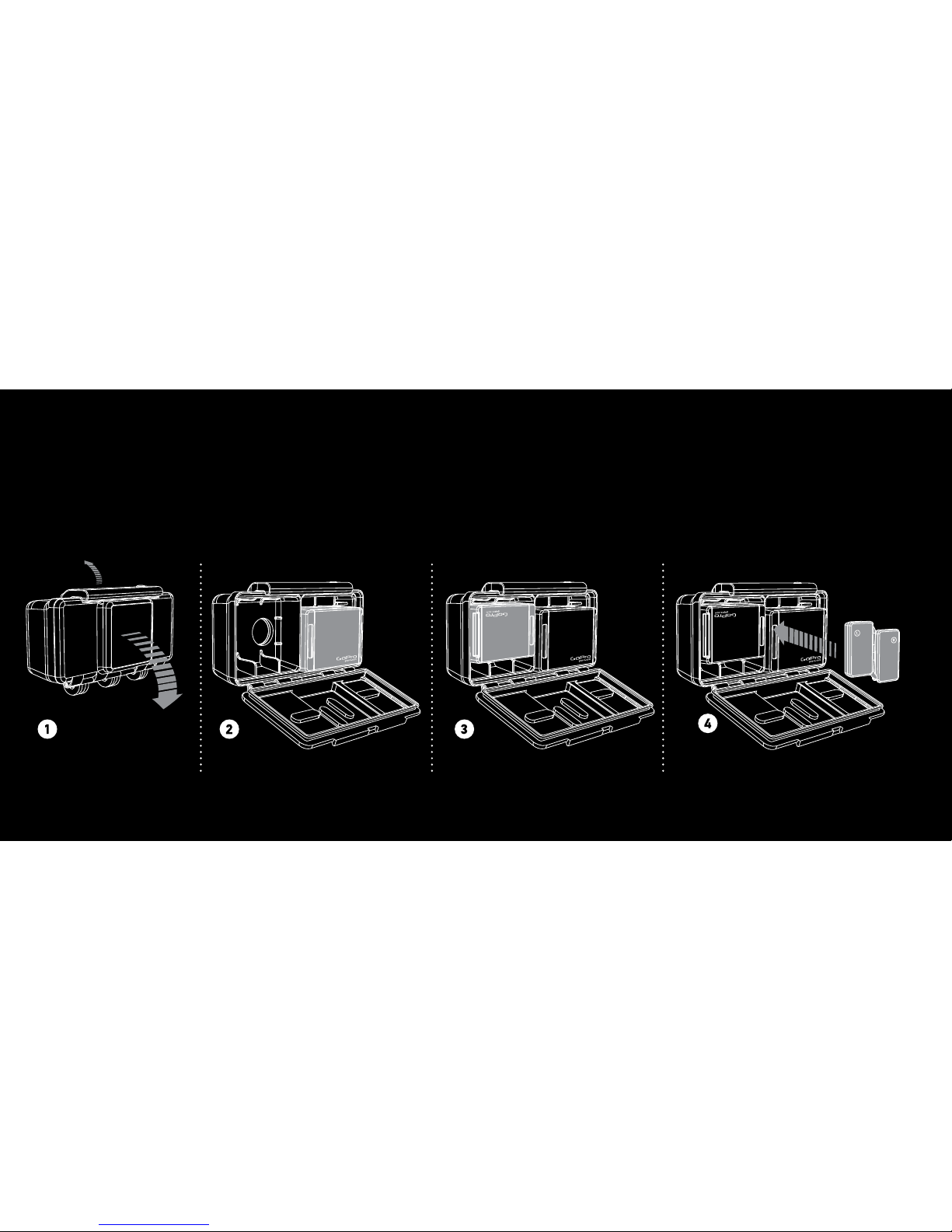

To combine cameras in 3D HERO System waterproof housing:
1. Open back door to the 3D housing.
2. Insert “right” camera right side up into housing.
3. Insert “le” camera upside down into housing.
4. I nsert the 3D HERO Sync Cable into the HERO Bus
Port on both cameras. The side that says “R” on the
sync cable attaches to the right camera while side that
says “L” on the sync cable attaches to the le camera.
Note: Upon insertion of the sync cable, the right
camera will automatically set itself to be in UP mode
and the le camera will automatically set itself to
be in UPd mode. This configuration is required for
capturing synchronized 3D videos and photos. If 3D
synchronization is not desired, you can manually
change each camera’s settings to be in a different
UP/UPd mode, different resolution, etc, but the
cameras will only record in a synchronized manner
allowing for 3D if BOTH cameras are set to shoot the
same resolution, record mode and frame rate.
5. Make sure the 3D Sync Cable is fully inserted
and is flush against the back of the cameras.
Close waterhousing.
If settings are changed and you wish to return each camera
to its default 3D setting, simply unplug the sync cable and
then plug the sync cable back in to both cameras. This will
reset the right camera to UP mode (right side up) and the le
camera to UPd mode (upside down), allowing for synchronized
3D video and photo capture.
REMOVING 3D SYNC CABLE FROM CAMERAS
To remove the sync cable from the HD HERO Bus Port, grasp
each 3D sync port connector firmly and remove by liing
device evenly away from the HERO Bus Port. Do NOT pull on
cable connecting the le and right HERO port connectors.
5

UsInG tHe 3D Hero systeM
IMPORTANT: To capture 3D video and photos, both cameras
must be set to identical resolution, record mode and frame
rate settings.
To begin recording video or photos:
1. Power on both cameras.
2. Verify that SD cards are present in both cameras,
that batteries are charged and that both cameras are
set to the same resolution, record mode and frame
rate. Upon insertion of the sync cable, right camera
will automatically set itself to UP and le camera will
automatically set
itself to UPd. This is necessary for
capturing synchro
nized 3D video and photos.
3.
Press master shutter button on top of 3D HERO
System
housing to initiate synchronized 3D video
or photo capture.
Additional Notes:
• Blinking front LCD screen and red LED record lights may
or may not blink in sync. This is OK and has no effect on
whether or not each camera is in sync with the other.
• Should the battery die or SD card become full on either
camera, both cameras will save the files and stop recording.
• Always use brand name SD cards with a Class 4 rating
or higher.
• The 3D HERO System can also capture 3D photos in time
lapse mode every 2, 5, 10, 30, or 60 seconds. Photo every
1 second mode is not possible when capturing 3D photos.
To capture 3D photos in 3D time-lapse mode, change the
mode on both cameras to Photo Every “X” mode and press
the shutter button to begin recording.
6

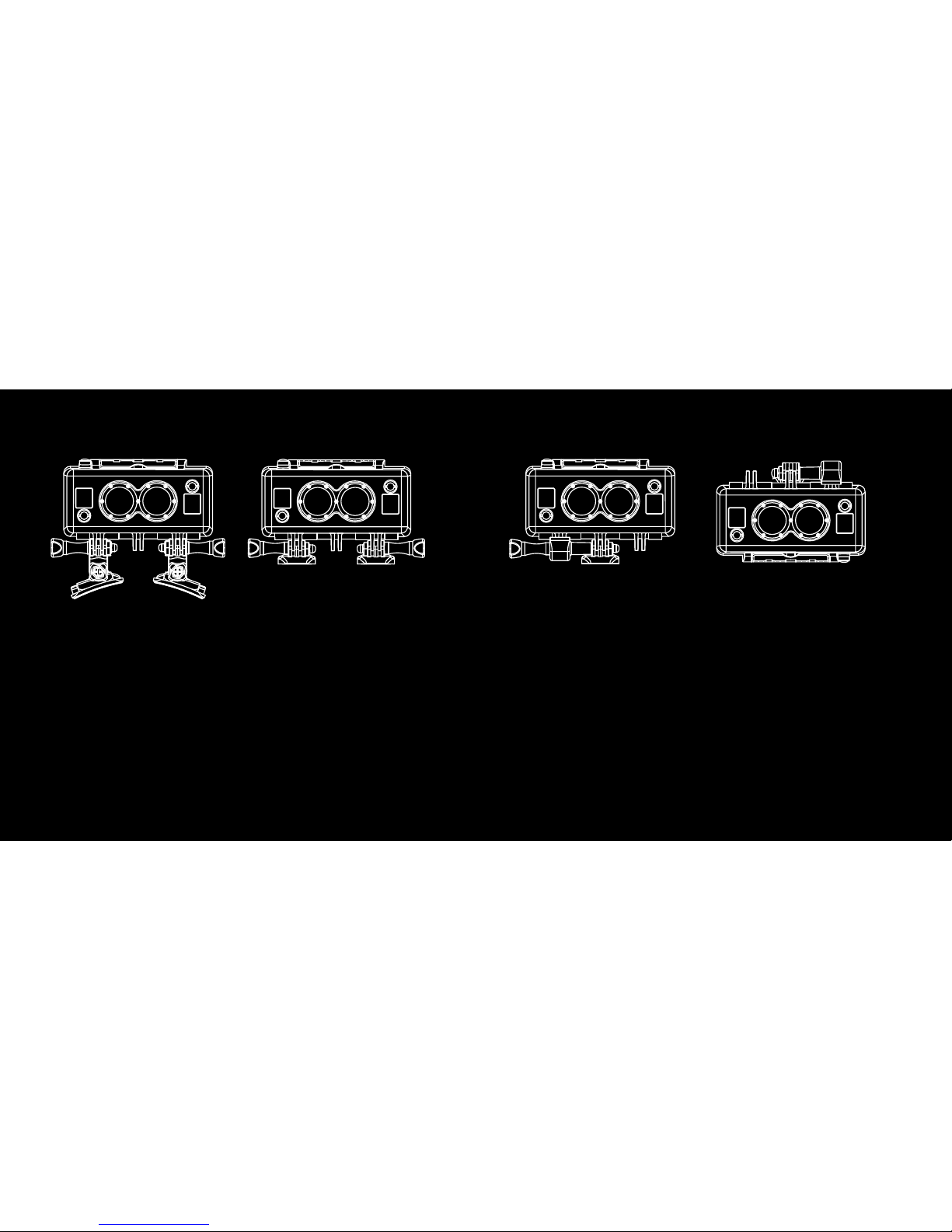

MoUntInG ConfIGUratIons
IMPORTANT: It is recommended to use dual quick-release buckles for mounting the 3D HERO System whenever possible for
maximum stability. Using a single center mounted quick-release buckle is only recommended for chest, helmet, suction cup,
and other body worn applications where high vibration or impact are less likely. Use of a single center quick-release buckle
in high vibration or high impact scenarios can result in less stable video compared to using two quick-release buckles.
More stable video with dual quick-release buckles Less stable video with single quick-release buckle
7

CURVED AND FLAT SURFACE MOUNTING
The extension arms and quick-release buckles can be
used in a number of different orientations depending on
what type of surface you are attaching the 3D HERO System
to. For example, attach included extension arms to the quick-
release buckles in order to achieve proper orientation when
attaching the waterhousing to curved surfaces.
Note: When removing the quick-release buckles from
the adhesive mounts, push both quick-release buckles
out evenly to avoid jamming the buckles.
FRONT HELMET AND CHEST MOUNTING
Front Helmet Mount:
Attach the Front Helmet Mount to the center fingers with
the center mount adapter and long thumb screw.
Chest Mount:
Attach the curved quick-release buckle (and straight arms
if necessary for proper angle adjustment) to the center
fingers on the waterhousing with the
center mount adapter
and long thumb screw.
WARNING: Single center mount configuration is not
recommended for high impact or high vibration use.
8

VIDeo reCorDInG tIPs
• For best results, keep your subject at least 3 feet away
from
camera when shooting in photo mode 720p and 960p
resolutions
. When shooting in 1080p, because of its less
wide angle perspective, it’s best to keep your subject at
least 5 feet away from the camera. Failure to do so will
result in an inability to properly align the two video files
for 3D and will cause your eyes to strain when viewing
the subject on screen.
WARNING: If images are shot closer than the
recommended
distances, the resulting 3D image will
cause eye strain when viewing during playback.
• For best 3D results, the right camera must be in UP and
the le camera must be in UPd recording modes. For
convenience, the sync cable automatically adjusts each
camera into the ideal UP / UPd mode each time you plug
the sync cable into each camera.
• Both lenses should be cleaned prior to and during use.
Discrepancies in images between cameras due to dust
particles, water drops, etc, will cause eye strain when
viewing in 3D.
• The 3D HERO System can record dierent video resolutions
simultaneously, but it will not be possible to create 3D video
files from the resulting video files as the resolutions will not
match. Additionally, synchronization will not occur when the
resolutions of each camera do not match.
• To prevent fogging when using the waterproof back
door, use GoPro’s anti-fog inserts with your 3D HERO
System housing.
9

transferrInG VIDeo anD PHotos
to yoUr CoMPUter
Plug the camera into your computer with the included USB
cable, turn on the camera, and locate the Removable Disk
(SD Card) icon. Once the icon is located:
1. Double click the “Removable Disk” icon.
2. Double click the “DCIM” folder icon.
3. Image files captured with the right camera will
be stored in a folder named 100G_3D_R.
4. Image files captured with the le camera will
be stored in a folder named 100G_3D_L.
5. Any file created during 3D sync recording will
start with 3D_L0001 or 3D_R0001.
CreatInG 3D VIDeo anD PHotos WItH
GoPro CIneforM stUDIo
To convert 2D video and photo files into 3D files, you will need
to use GoPro CineForm Studio soware. GoPro CineForm
Studio and associated instructions are available as a FREE
download from: gopro.com/3D.
10

IMPortant safety +
HanDlInG InforMatIon
WARNINGS
Failure to follow these safety instructions could result
in fire, electric shock, or other injury or damage to
the 3D HERO System or other property.
Improper alignment of your 3D images or misuse of the
GoPro CineForm Studio soware while viewing with 3D
glasses may cause eye strain or headaches.
HANDLING
The 3D HERO System contains sensitive components.
Do not drop, disassemble, open, crush, bend, deform,
puncture, shred, microwave, incinerate, paint, or insert
foreign objects into the cameras or 3D sync cable.
Do not use the 3D HERO System if it has been damaged.
AVOIDING WATER AND WET ENVIRONMENTS
WHEN NOT IN WATER HOUSING
Do not use the 3D sync cable in rain, near wash basins, or
in other wet locations when cameras are not inserted in the
water housing. Do not spill any food or liquid on the 3D sync
cable. If the 3D sync cable gets wet, unplug from camera and
allow it to dry thoroughly before using again. Do not attempt
to dry the 3D sync cable with an external heat source, such as
a microwave oven or hair dryer. Damage to the 3D sync cable
caused by contact with liquid is not covered under warranty.
USING CONNECTORS AND PORTS
Never force a connector into a port. Check for obstructions in
the port. Make sure that the connector matches the port and
that you have positioned the connector correctly in relation
to the port.
11

Warranty
This product is guaranteed against manufacturing defects for one (1) year from the original date of purchase. GoPro’s sole obligation
in the event of such defects during this period is to repair or replace the defective part or product with a comparable part or
product at GoPro’s sole discretion. Except for such replacement, the sale, or other handling of this product is without warranty,
condition or other liability even though the defect or loss is caused by negligence or other fault.
Damage resulting from use, accident, or normal wear and tear is not covered by this or any warranty. GoPro assumes no liability
for any accident, injury, death, loss, or other claim related to or resulting from the use of this product. In no event shall GoPro be
liable for incidental or consequential damages relating to or resulting from the use of this product or any of its parts. Because of
possible user resealing error, this product is not warranted against waterhousing leakage or any resulting damage.
Visit gopro.com for more information.
