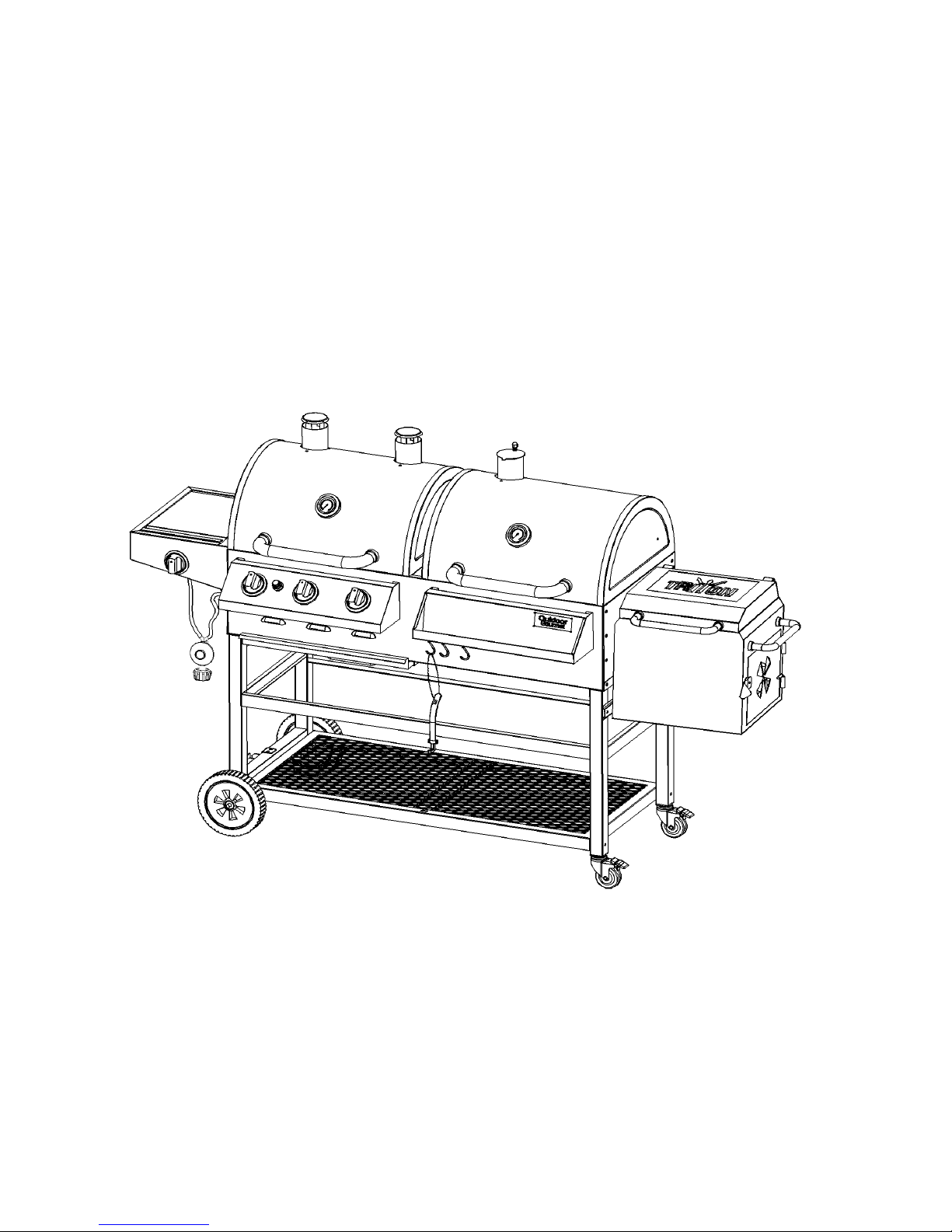

gourmetmaxx CG3023E User manual

LP Gas & Charcoal Grill LP Gas & Charcoal Grill LP Gas & Charcoal Grill LP Gas & Charcoal Grill
Model # CG3023 Model # Model # CG3023 Model # CG3023E
Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions

Warnings Warnings Warnings Warnings
FOR YOUR SAFETY: FOR YOUR SAFETY: FOR YOUR SAFETY: FOR YOUR SAFETY:
1.Read this Grill Guide before attempting to assemble or
operate your grill.
2.Follow all safety instructions.
3.Check for leaks according to directions in this Grill Guide
before operating your grill, even if you purchased this grill
assembled.
4.Keep this Grill Guide for future reference.
THIS GRILL IS FOR OUTDOOR USE ONLY. THIS GRILL IS FOR OUTDOOR USE ONLY. THIS GRILL IS FOR OUTDOOR USE ONLY. THIS GRILL IS FOR OUTDOOR USE ONLY.
If stored indoors, then detach and leave propane cylinder
outside.
TO THE INSTALLER OR PERSON ASSEMBLING THIS GRILL: TO THE INSTALLER OR PERSON ASSEMBLING THIS GRILL: TO THE INSTALLER OR PERSON ASSEMBLING THIS GRILL: TO THE INSTALLER OR PERSON ASSEMBLING THIS GRILL:
Leave this Grill Guide with the consumer.
TO THE CONSUMER: TO THE CONSUMER: TO THE CONSUMER: TO THE CONSUMER:
Retain this Grill Guide for future reference.
2

Warnings Warnings Warnings Warnings
Safety Precautions
Always read and follow all DANGER, WARNING, AND FOR YOUR SAFETY notices in this Grill
Guide. Failure to follow these notices may result in property damage, bodily injury, or death.
1. Grill installation must conform with local codes, or in their absence, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2.
2. This gas grill, when installed, must be electrically grounded in accordance with local codes, or, in
the absence of local codes, with the National Electrical Code, ANSI Z21.58-2007, or the Canadian
Electrical Code, CSA 1.6-2007.
3. This gas grill is intended for outdoor use only, and should not be used in a building, garage, or any
other enclosed area.
4. This gas grill is not intended to be installed in or on recreational vehicles and/or boats.
5. Never use any other type of fuel for this grill other than LP gas (propane).
6. Only use the pressure regulator with a type 1 connector that is supplied with this gas grill
7. Before each use, check the gas hose for excessive abrasion, cracking, fraying, wear, or cuts.
Replace a hose assembly showing those signs with the hose assembly specified in the parts list
before using the grill.
8. Always perform a Leak Test before operating your grill.
!
WARNING
1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
!
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from appliance and call your local fire department.
3

Table of Contents
•Tools and Parts
•Hardware
•Assembly Instructions
•Care and Maintenance
•Warranty Information
4

2
1
Description
Screwdriver
(not provided)
Description
Adjustable wrench
(not provided)
Tools Required Tools Required Tools Required Tools Required
5

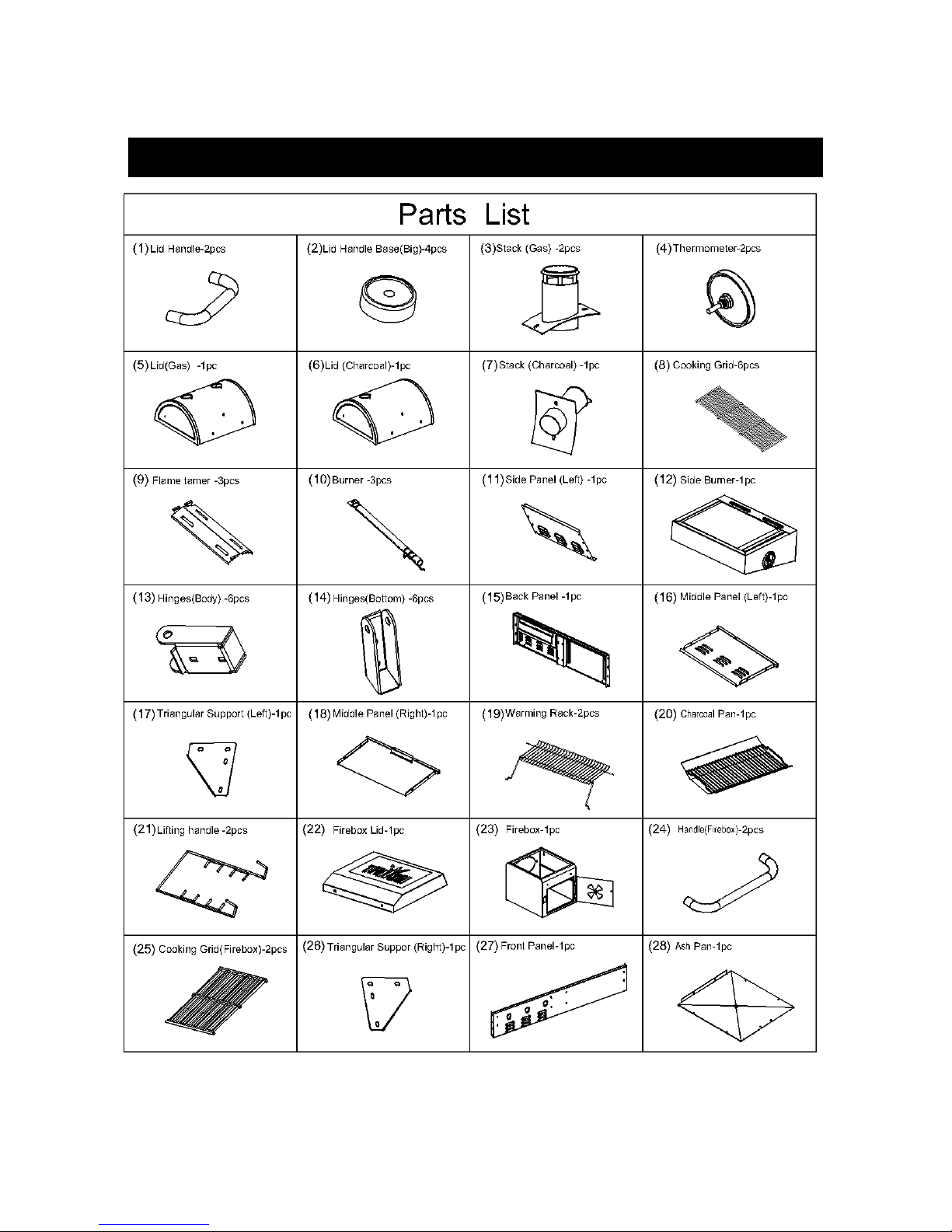

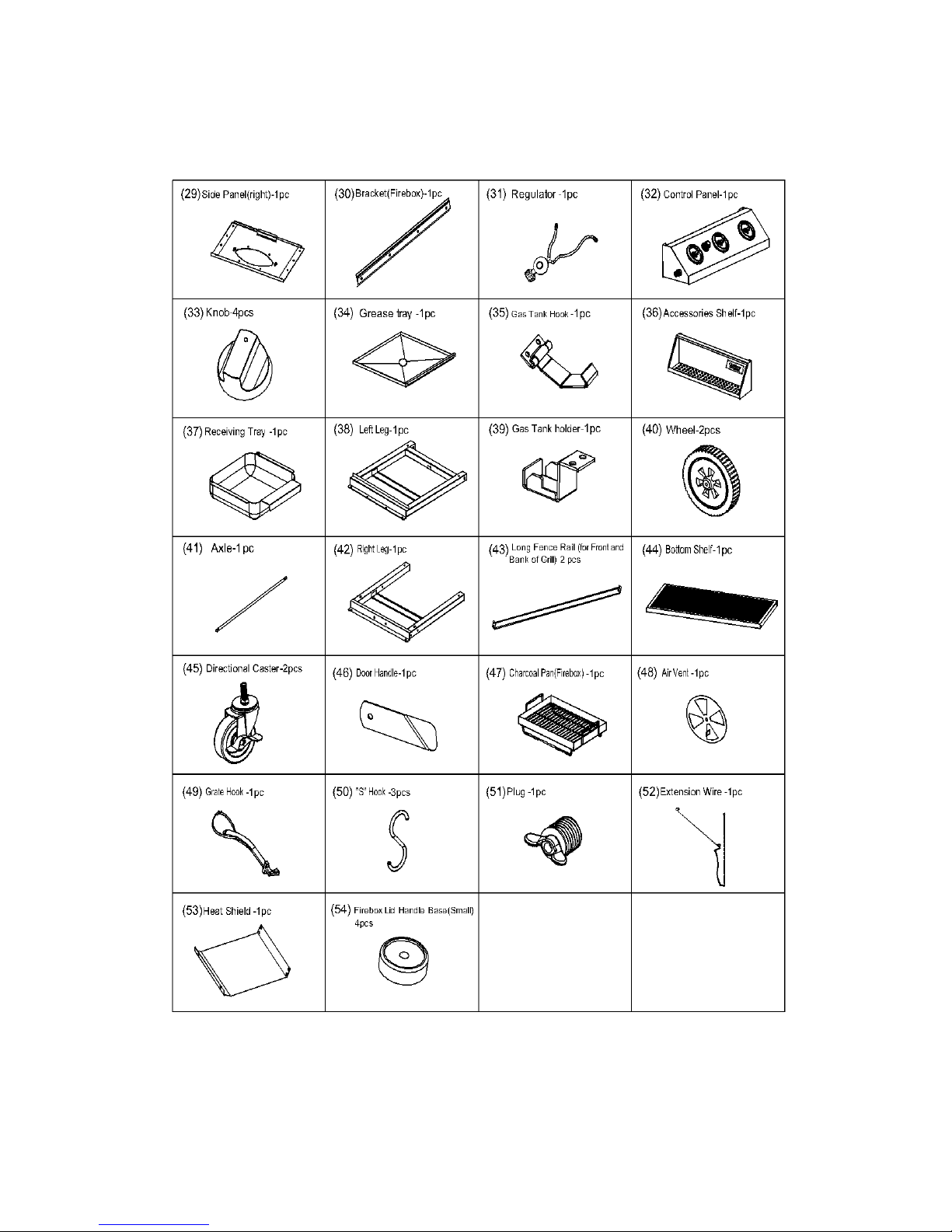

Parts List Parts List Parts List Parts List
Qty Picture Description H
Qty picture Description G
Qty Picture Description F
Qty Picture Description E
Qty Picture Description D
Qty Picture Description C
Qty Picture Description B
Qty Picture Description A
6

7

Hardware Hardware Hardware Hardware
8

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step 1: Step 1: Step 1: Step 1:
Assemble the two middle panels (16, 18)
and four side panels (11,15, 27, 29).
Make sure to assemble the two middle
panels (16, 18) first.
Assemble two middle panels using
8-M6x12 Bolts (B), and assemble side
panels using 11-M6x12 Bolts(B) and
11-FLANGE LOCK NUTS (H).
See the illustration below.
Step 2: Step 2: Step 2: Step 2:
Assemble the ash pan (28) use
BOLT M6x12 (B) fasten the ash pan and
right middle panel. Then assemble the plug
(51). See the illustration below.
9

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions

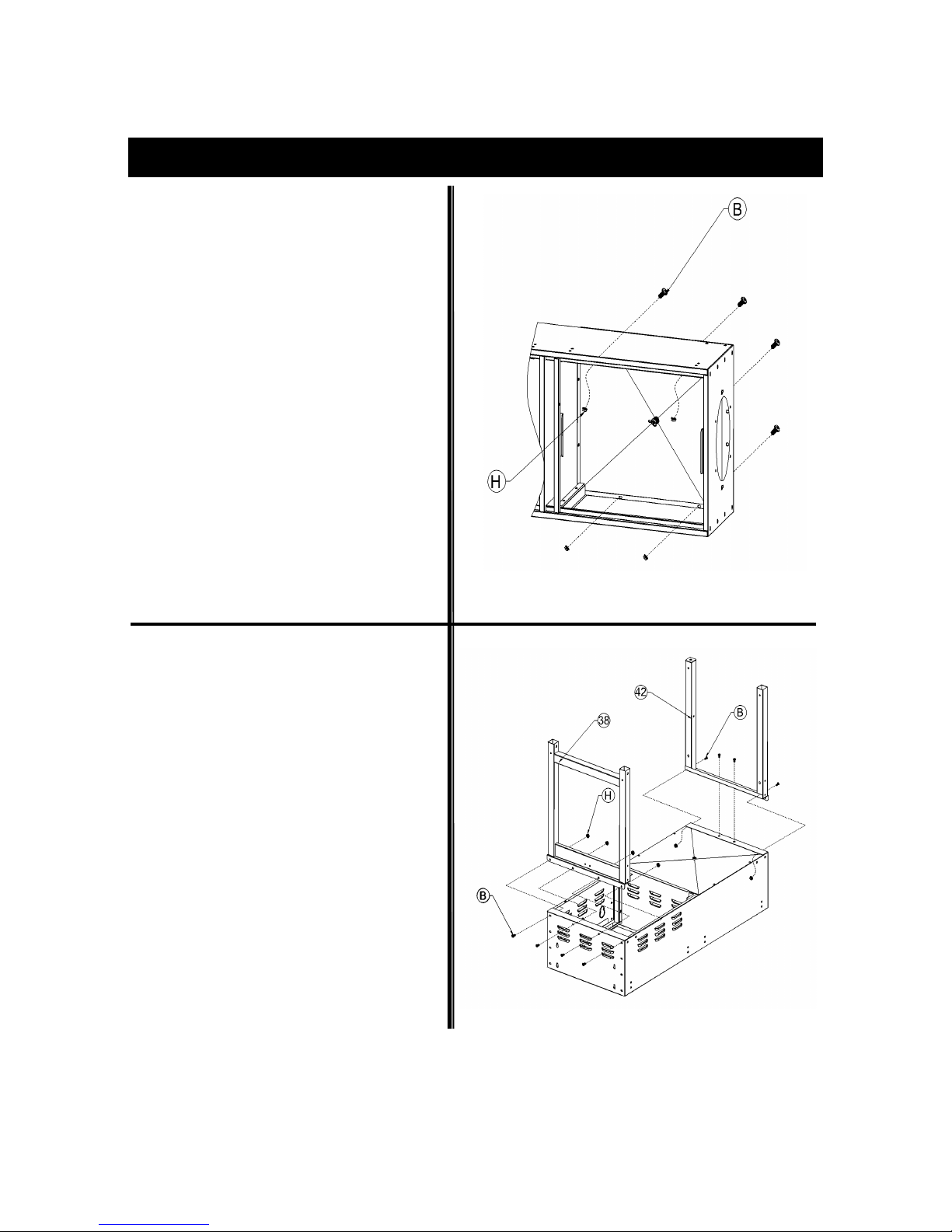

Step 3: Step 3: Step 3: Step 3:
Attach the ash pan to the front and back
panels using 4-BOLT M6x12 (B) and
4-M6 FLANGE LOCK NUTS (H).
See the illustration below.
Step 4: Step 4: Step 4: Step 4:
Turn over the grill body and assemble
the left leg (38) and right leg (42) onto
the body using 8-BOLT M6x12 (B) and
6-M6 FLANGE LOCK BUTS (H).
Please do not tighten the screws
at this time.
10

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step 5: Step 5: Step 5: Step 5:
Use BOLT M6x50 (F) to attach the
bottom shelf (44) to legs, attach the
highlighted in red legs first.
Assemble the cylinder hanger (35) to the
top of left leg (38) using 2-BOLT
M6x12 (B), as shown in the picture
below. Using 2-BOLT M6x50 (F) and
2-FLANGE LOCK NUTS (H) to
assemble the gas tank holder (39)
to the grill left leg (38) as shown below.
Step 6: Step 6: Step 6: Step 6:
Place the axle (41) through the left leg
(38) of the grill. Place the wheels (40)
on the axle on the outside of the legs,
attach the wheels with 2-washers (L)
and 2-pins (I) on the outside of the
wheels. Place the pins (I) through the
hole in the axle outside of the washers.
See illustration below.
Attach the 2 Directional casters (45) to
the bottom of the right leg (42).
DO NOT INSTALL THE
CYLINDER AT THIS
TIME
11

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 7 777: :::
Attach the two triangular support braces
(17, 26) connecting the legs to the back
panel of the body using 8-BOLTS
M6x12 (B).
Step Step Step Step 8 888: :::
Attach short fence rail 2pcs and long fence
rail 2pcs to the four legs, using 8-BOLTS
M6x12 (B) to fix.
12

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 9 999: :::
Assemble the accessories shelf (36) to
the charcoal section of the grill using
4-BOLTS M6x12 (B).
Step Step Step Step 10 10 10 10: :::
Attach the control panel (32) using
4-BOLT M6x12 (B), attach the knobs (33)
as shown below. Attach the firebox
bracket (30) to the right legs (42) using
2-BOLTS M6x60 (G) and 2-FLANGE
LOCK NUTS (H).
Tighten all connections at this time.
13

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 11 11 11 11: :::
Attach the knob (33) and 4-BOLTS
M6x12 (B) onto the body of side burner
(12).
Step Step Step Step 12 12 12 12: :::
Attach the side burner onto the body of
the grill as shown below.
14

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions

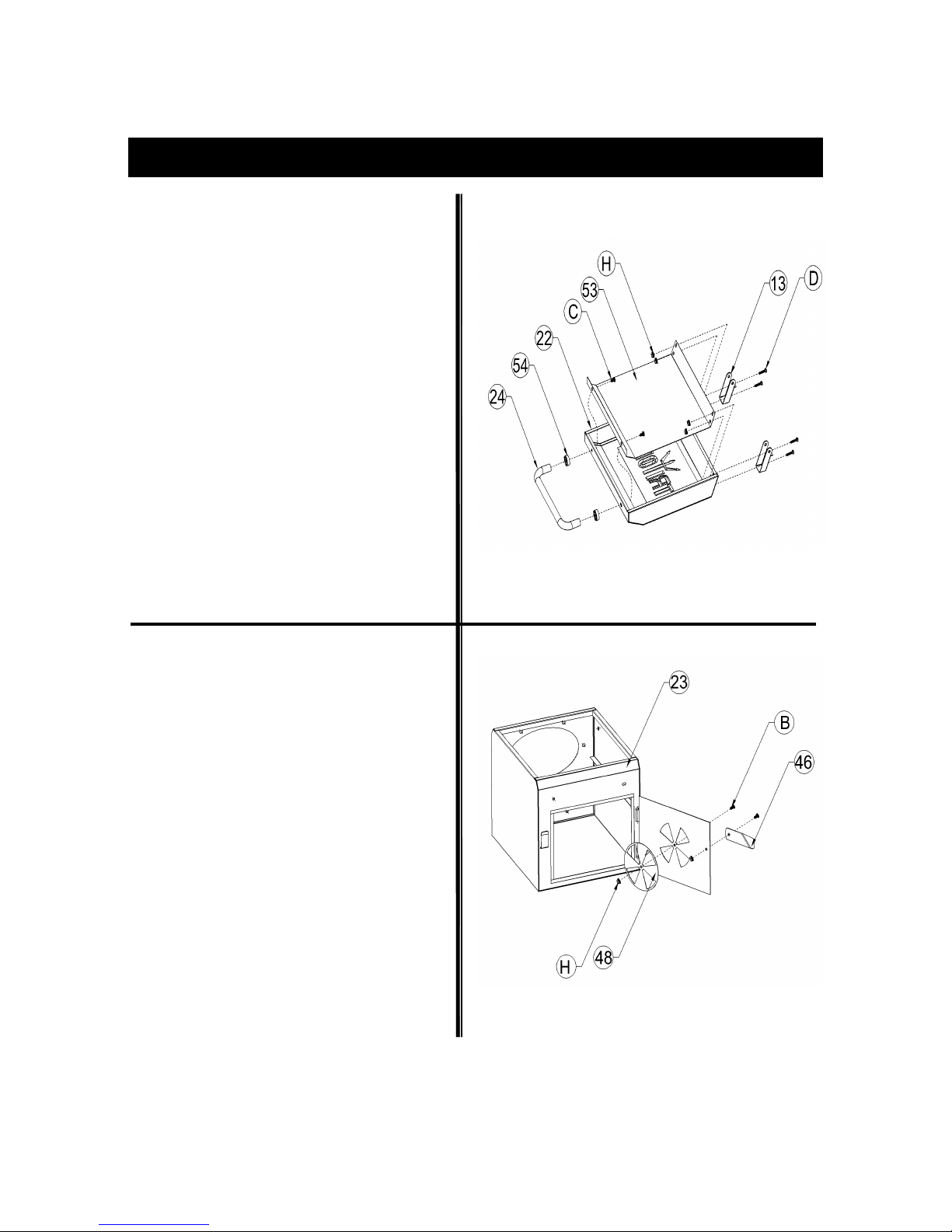

Step Step Step Step 13 13 13 13: :::
Take the Heat Shield (53) upon the
Firebox Lid (22). Then attach the
Handle(Firebox) (24),using Firebox Lid
Handle Base(small)-2pcs(54) and
2-BOLT M6X25(C) . Then attach the
Firebox Lid(22) upon the body of
firebox(23),using Hinges(Body)(13)
and 4-BOLT M6X35(D)and4-NUT M6
FLANGE LOCK(H) ,as shown below.
Step Step Step Step 14 14 14 14: :::
Attach the side door handle (46) and air
vent (48) onto the body of firebox using
2-BOLTS M6x12 (B) and 2-FLANGE
LOCK NUTS (H).
15

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions

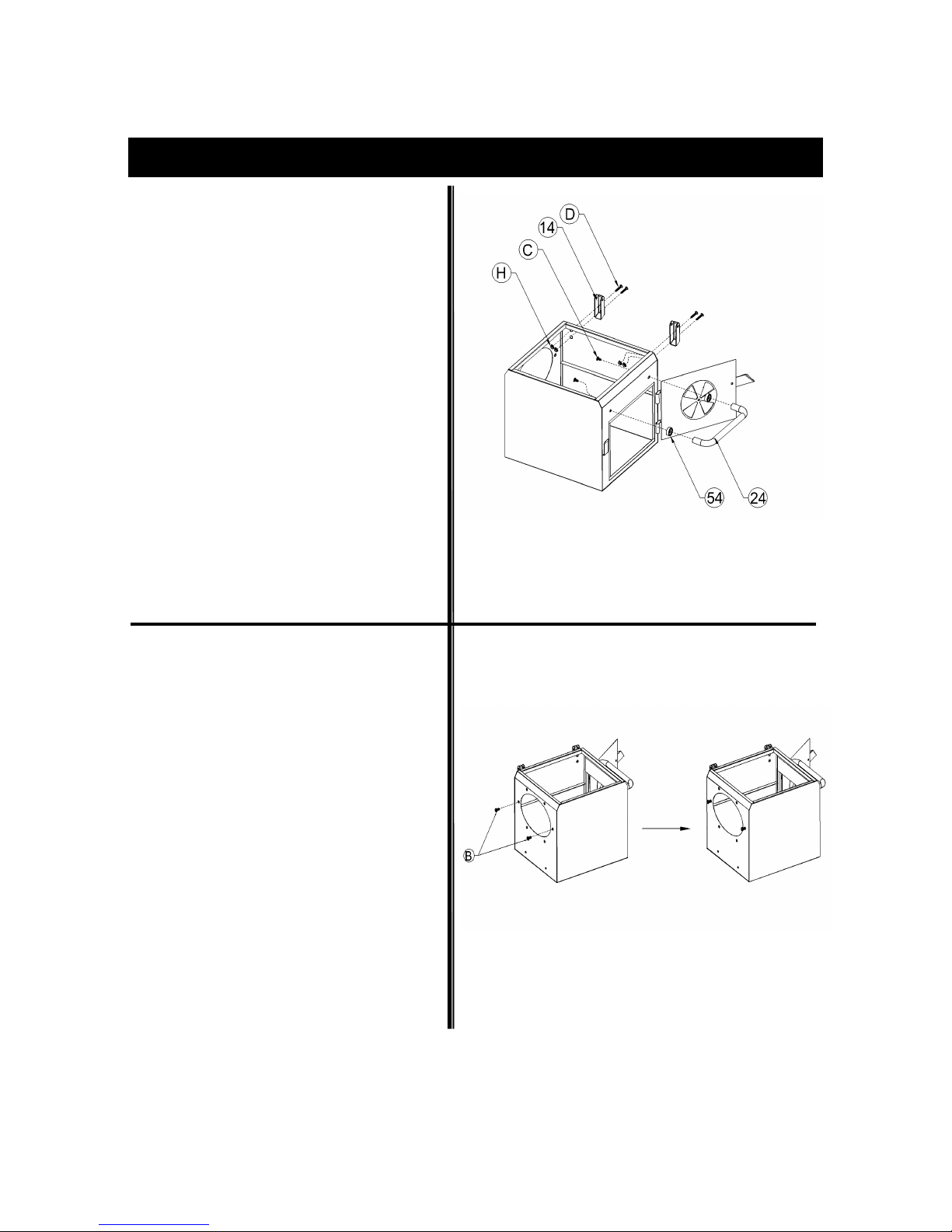

Step Step Step Step 15 15 15 15: :::
Attach the hinges bottom (14) onto the
back of the grill (total four pcs) using
4-BOLTS M6x40 (D). Attach the
Firebox Handle(24) onto the firebox
using Firebox lid handle base (54) and
Bolt M6X25(C).
See the illustration below.
Step Step Step Step 16 16 16 16: :::
Attach 2-BOLTS M6x12 (B) into the body
of firebox.
NOTE: PLEASE DO NOT TIGHTEN THE
BOLT NOW, AS SHOWN BELOW.
16

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 17 17 17 17: :::
Attach the firebox to the main body of
the grill, in the same manner that the
side burner was attached in step 12.
Using 4 additional BOLTS M6x12 (B),
connect the firebox to the grill body from
the inside of the grill body. Then use
2-NUT M6 FLANGE LOCK(H) to fixed.
Once all bolts are in place and assembly
of the firebox is complete, tighten all of
the nuts and bolts.
Step Step Step Step 18 18 18 18: :::
Place the cooking grid (25) and
charcoal pan (47) into the body of
the firebox.
As shown below.
17

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 19 19 19 19: :::
Using “R”PIN(I) and PIN Roll(K) to
fixed the Hinges body(13) and
bottom(14).
As showen below.
Step Step Step Step 20 20 20 20: :::
Attach 4-Hinges bottom to the grill body,
using 8-BOLT M6X40(E) to fix.
Then attach Extension Wire to the left
side of grill body,using 1-BOLT M6X12(B)
and 1-NUT M6 FLANGEL LOCK to fixed.
As showen below.
18

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 21 21 21 21: :::
Attach Hinges bottom(14) to the Lid
Gas(5),using4- BOLT M6X40(E) and
4-NUT M6 FLANGEL LOCK(H) to fixed.
Then attach 2-stack gas(3) to the lid
gas(5),using 4-BOLT M6X20(B) and
4-NUT M6 FLANGEL LOCK(H) to
fixed .Then attach the thermometer(4)
to the lid gas(5).Last attach the
lid handle (1) and lid handle base (2)
to lid gas(5) ,using 2- BOLT M6X25(C)
to fixed.
Step Step Step Step 22 22 22 22: :::
Attach handle (1) and lid handle base (2)
to lid gas(5) ,using 2- BOLT M6X25(C)
to fixed.
19

Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions
Step Step Step Step 23 23 23 23: :::
Put the lid gas(5) and lid charcoal(6)
upon the grill body . Using “R”PIN(I)
and PIN Roll(K) to fixed the Hinges
body(13) and bottom(14).
Step Step Step Step 24 24 24 24: :::
Put the 3-burner(10) into the left side of
grill body,then use BOLT M4X8 (A) to
fixed.
As showen below.
