GPX PDB1077 User manual
10.1" DVD Player with Wireless Headphones
User’s Guide for Model PDB1077 v2759-01
For the most up-to-date version of this User’s Guide, go to www.gpx.com
23
Important Safety Instructions
• ReadtheseInstructions.
• KeeptheseInstructions.
• HeedallWarnings.
• Followallinstructions.
• Donotusethisapparatusnearwater.
• Cleanonlywithadrycloth.
• Donotblockanyventilationopenings.Installinaccordance
withthemanufacturer’sinstructions.
• Donotinstallnearanyheatsourcessuchasradiators,heat
registers,stoves,orotherapparatus(includingampliers)
thatproduceheat.
• Donotdefeatthesafetypurposeofthepolarizedor
grounding-typeplug.Apolarizedplughastwobladeswith
onewiderthantheother.Agroundingtypeplughastwo
bladesandathirdgroundingprong.Thewidebladeorthe
thirdprongareprovidedforyoursafety.Whentheprovided
plugdoesnottintoyouroutlet,consultanelectricianfor
replacementoftheobsoleteoutlet.
• Protectthepowercordfrombeingwalkedonorpinched
particularlyatplugs,conveniencereceptacles,andthepoint
wheretheyexitfromtheapparatus.
• Onlyuseattachments/accessoriesspeciedbythe
manufacturer.
• Unplugthisapparatusduringlightningstormsorwhen
unusedforlongperiodsoftime.
• Referallservicingtoqualiedservicepersonnel.Servicing
isrequiredwhentheapparatushasbeendamagedinany
way,suchaspower-supplycordorplugisdamaged,liquid
hasbeenspilledorobjectshavefallenintotheapparatus,
theapparatushasbeenexposedtorainormoisture,doesnot
operatenormally,orhasbeendropped.
• Useonlywithacart,stand,tripod,bracket,
ortablespeciedbythemanufacturer,or
soldwiththeapparatus.Whenacartis
used,usecautionwhenmovingthecart/
apparatuscombinationtoavoidinjury
fromtip-over.
Safety Instructions & Warnings
Battery Warnings
• WARNING:Donotingestbattery,ChemicalBurnHazard.
• Iftheremotecontrolsuppliedwiththisproductcontainsa
coin/buttoncellbatteryandthecoin/buttoncellbatteryis
swallowed,itcancausesevereinternalburnsinjust2hours
andcanleadtodeath.
• Keepnewandusedbatteriesawayfromchildren.Ifthe
batterycompartmentdoesnotclosesecurely,stopusingthe
productandkeepitawayfromchildren.
• Ifyouthinkbatteriesmighthavebeenswallowedor
placedinsideanypartofthebody,seekimmediatemedical
attention.
• CAUTION:Dangerofexplosionifbatteryisincorrectly
replaced.Replaceonlywiththesameorequivalenttype.
• WARNING:Thereisadangerofexplosionifyouattempt
tochargestandardAlkalinebatteriesintheunit.Onlyuse
rechargeableNiMHbatteries.
• Batteryshallnotbeexposedtoexcessiveheatsuchas
sunshine,re,orthelike.
• Donotmixoldandnewbatteries.
• Completelyreplacealloldbatterieswithnewones.
• Donotmixalkaline,standard(carbon-zinc),orrechargeable
(ni-cad,ni-mh,etc)batteries.
• Batteriesshouldberecycledordisposedofasperstateand
localguidelines.
Additional Warnings and Precautions
• CAUTION:TOPREVENTELECTRICSHOCK,MATCH
WIDEBLADEOFPLUGTOWIDESLOT,FULLY
INSERT.
• Mainsplugisusedasdisconnectdeviceanditshouldremain
readilyoperableduringintendeduse.Inordertodisconnect
theapparatusfromthemainscompletely,themainsplug
shouldbedisconnectedfromthemainssocketoutlet
completely.
• CAUTION:Useofcontrolsoradjustmentsorperformance
ofproceduresotherthanthosespeciedmayresultin
hazardousradiationexposure.
• WARNING:Changesormodicationstothisunitnot
expresslyapprovedbythepartyresponsibleforcompliance
couldvoidtheuser’sauthoritytooperatetheequipment.
• WARNING:Useofthisunitnearuorescentlightingmay
causeinterferenceregardinguseoftheremote.Iftheunitis
displayingerraticbehaviormoveawayfromanyuorescent
lighting,asitmaybethecause.
• WARNING:Shockhazard-DoNotOpen.
• Cautionandmarkinginformationislocatedattherearor
bottomoftheapparatus.
• WARNING:Toreducetheriskofreorelectricshock,
donotexposethisapparatustorain,moisture,dripping,or
splashing.
• Objectslledwithliquids,suchasvases,shallnotbeplaced
ontheapparatus.
• To avoid hearing damage,makesurethatthevolumeon
yourmusicplayeristurneddownbeforeconnectingyour
headphones.Afterplacingheadphonesin/onyourears,
graduallyturnupthevolumeuntilyoureachacomfortable
listeninglevel.
• ThisproductmeetsandcomplieswithallFederalregulations.
WARNING:Toreducetheriskofelectric
shock,donotremovecover(orback).No
user-serviceablepartsinside.Referservicing
toqualiedservicepersonnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Theexclamationpointwithinanequilateral
triangleisintendedtoalerttheuserto
thepresenceofimportantoperatingand
maintenance(servicing)instructionsinthe
literatureaccompanyingtheappliance.
Thissymbolindicatesthatthisproduct
incorporatesdoubleinsulationbetween
hazardousmainsvoltageanduseraccessible
parts.
Thelightningashwitharrowheadsymbol,
withinanequilateraltriangle,isintendedto
alerttheusertothepresenceofun-insulated
“dangerousvoltage”withintheproduct’s
enclosurethatmaybeofsufcientmagnitude
toconstituteariskofelectricshocktopersons.
FCC Warnings
Warning:
Changes
or
modications
to
this
unit
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user’s
authority
to
operate
the
equipment.
NOTE:
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses,
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
•
Reorient
or
relocate
the
receiving
antenna.
•
Increase
the
separation
between
the
equipment
and
receiver.
•
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
•
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that
may cause undesired operation.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.
WARNING : Thisproductcanexposeyou
tochemicalsincludinglead,whichisknown
totheStateofCaliforniatocausecancerand
birthdefectsorotherreproductiveharm.For
moreinformationgotowww.P65Warnings.
ca.gov. This product meets and complies
with all Federal regulations.
ThisproductutilizesaClass1lasertoread
CompactDiscs.ThislaserCompactDisc
Playerisequippedwithsafetyswitchesto
avoidexposurewhentheCDdoorisopenand
thesafetyinterlocksaredefeated.Invisible
laserradiationispresentwhentheCDPlayer’s
lidisopenandthesystem’sinterlockhas
failedorbeendefeated.Itisveryimportant
thatyouavoiddirectexposuretothelaser
beamatalltimes.Pleasedonotattemptto
defeatorbypassthesafetyswitches.
45
Table of Contents Overview
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DVD Player Features
Wireless Headphone Features
Includes
Power & Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Portable DVD Player
Headphones
DVD Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls & Features
Loading and Playing a Disc
Programming a Loaded Disc

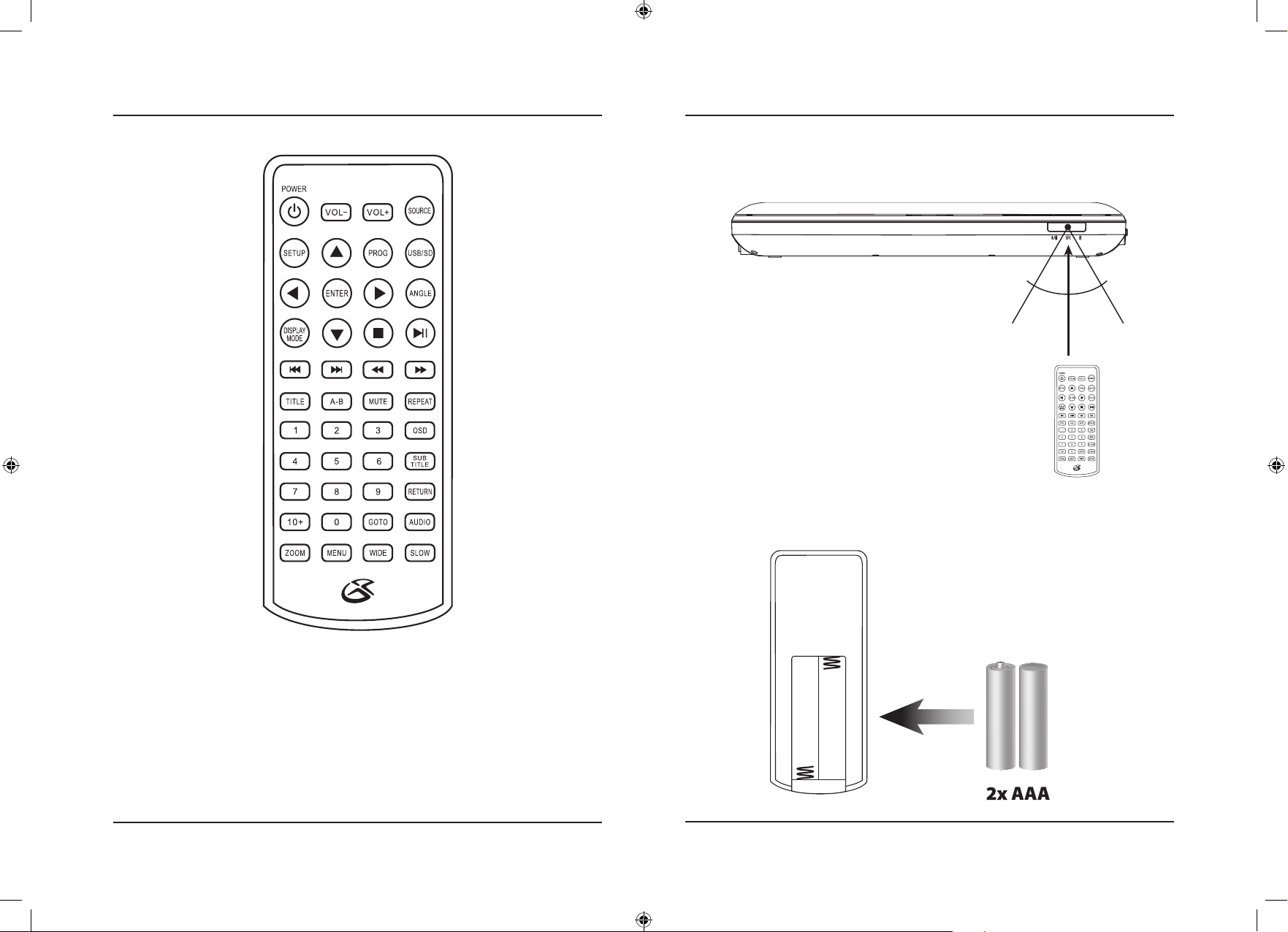

Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Functions
Distance & Angle
Batteries
Wireless Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Features & Controls
Connecting to Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pairing the Headphones and DVD Player
SD Memory Card
USB Storage Device
External Television or Screen
Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Contact Information
Warranty
International Support
DVD Player Features
• Bluetooth Wireless - 33 ft. range
• DVD/CD player
• 10.1" display
• 1024x600 native resolution
• 16:9 aspect ratio
• NTSC/PAL video system
• SD/MMC card slot and USB port
• 3.5mm audio/video output/input
• Stereo headphone jack
• Built-in stereo speakers
• Built-in rechargeable battery - USB wall adapter
(included)
Wireless Headphone Features
• Bluetooth Wireless - 33 ft. range
• Built-in microphone
• Adjustable headband
• On-ear controls
• Built-in rechargeable battery
Includes
• Remote control
• USB wall adapter
• DC car adapter
• Micro-USB to USB x 2
67
Headphones
The internal battery in the headphones requires a
Micro-USB to USB cable (included) to charge. Charge
fully before use. Initial charge time is approximately
2 hours. When battery is low, the LED indicator will
flash red for 3-5 minutes, then the headphones will
automatically power off.
Notes About Batteries & Charging
• Do not charge for longer than 24 hours.
• Do not leave devices unattended while charging.
• Do not plug the car adapter into the 12V power socket until after the car ignition is on.
• Disconnect the car adapter from the power socket after use.
• The batteries in these devices are not replaceable. Attempting to remove the batteries may cause damage or
personal injury, and will void your warranty.
• When not in use, recharge and store devices within a temperature range of 40°F - 95°F (5°C - 35°C).
• The battery life of all batteries naturally shortens over time.
Portable DVD Player
The DVD player requires an AC/DC power adapter or DC
car adapter (both included) to charge the battery.
For normal use, plug the AC/
DC adapter into the DC Power
Port on the DVD player and a
standard wall outlet.
Using a Micro-USB to USB
cable (included), connect the
headphones to the USB port of
a powered on computer or USB
power adapter (not included).
For use in a car, plug the
DC car adapter into the
DC Power Port and a 12V
power socket.
DVD Player Power Status Indicator Light
Power ON + Charging complete Green Light
Power OFF + Charging Red Light
Power OFF + Charging Complete Light OFF
Headphones Power Status Indicator Light
Battery Charging Red Light
Charging Complete Light OFF
Power & Charging
89
Controls & Features
DVD Player
1. Source / Setup
Press Source to switch between DVD, AV In, and
modes. Press OK to confirm selection.
Press Setup to access DVD player menus, settings,
and options.
2. Stop / Play
Press to stop playing a loaded disc.
Press to play or pause a loaded disc.
3. / OK /
Press to skip tracks or chapters.
Press to skip between chapters or tracks.
Press OK to confirm selections.
Press to search through an individual
chapter or track.
4. Disc Door Release
Press Open to open the disc door. Load CDs or
DVDs label side facing up.
5. Pair / USB/SD
Press and hold Pair to pair to the included
headphones (see pg. 13).
While in DVD mode, press USB/SD button to
switch sources between USB or SD modes.
6.
Press to adjust the volume level.
7. Stereo Headphone Jack
8. USB Port
9. SD Card Slot
10. 3.5mm AV Out
Use a 3.5mm to RCA audio/video cable (not
included) to connect to another device or screen
and play media through the AV Output.
11. 3.5mm AV IN
Use a 3.5mm to RCA audio/video cable (not
included) to connect to another device or screen
and play media from the connected device onto
the portable DVD player.
12. DC Power Port
Connect power adapter to charge battery and
power the unit.
13. Power Switch
Slide to power ON or OFF.
14. Remote Sensor / LED Indicators
Aim remote at this sensor (see pg. 11).
Power ON + Battery Charging - Solid green light.
Charging Battery - Solid red light (player OFF).
Charging Complete - No lights.
Bluetooth Unpaired - Flashing blue light.
Bluetooth Paired - Solid blue light.
1
3
7
8
9
2
4
10
13
12
14
11
5
Loading and Playing a Disc
1. Press Open to open the Disc Door.
2. Load a disc into the player, label side facing up, then close the disc door.
3. After a disc is loaded, it will begin playing automatically. If the disc does not begin playing automatically, press
the Play/Pause button. Use the controls on the player or the remote to play media, navigate settings menus, etc.
Programming a Loaded Disc
1. While the loaded disc is playing, press the Prog button on the remote.
2. Use the Arrow buttons to select a program slot.
3. Use the Number Keypad to enter in the chapter and title, or track.
4. Use the Arrow buttons to highlight the on-screen START button and press the OK button to begin playing.
6
10 11
Functions
Remote
Batteries
Requires 2 AAA batteries (not included).
Distance & Angle
30° angle
15 ft. (5M) range
Title
Press to access the title menu of a
loaded DVD.
A-B
Press to create a repeating loop
on a specied section of a loaded
DVD.
Mute
Repeat
Press to repeat the current track
or title.
Number keypad
OSD (On-Screen Display)
Displays current title and menu
information.
Subtitle
Toggle subtitles on or o.
Return
Press to return to a previous menu
option.
Go To
Press to access a specic chapter
or title.
Audio
Press to adjust the current audio
settings for the loaded DVD.
Zoom
Press to zoom in or out on a
loaded DVD.
Menu
Press to access DVD menu.
Wide
Press to switch screen aspect ratio.
Slow
Press to view the loaded DVD in
slow motion.
Power
Press to power ON/OFF.
Volume +/-
Source
Press to change sources between
DVD and AV In.
Setup
Press to access the setup menu.
Arrows/ENTER
Press to make selections in the
on screen
or disc menus.
Prog
Press to program a loaded disc to
play chapters
or tracks in a specied order.
USB/SD
While in DVD mode, press to
change source to USB or SD
modes.
Angle
On supported DVDs, press to view
alternate angles.
Display Mode
Press to edit display settings
(Brightness, Contrast, Hue,
Saturation).
Stop
Play/Pause
Skip Forward/Back
Fast Forward/Rewind
12 13
Wireless Headphones
Features & Controls
1. DC Power Port
Connect Micro-USB to USB power cable (included)
to charge battery.
2. Menu
Power ON + Pair Bluetooth - Press and hold until
blue/red flashing indicator and voice prompt.
Power ON - Press and hold for 5 seconds to power
ON or OFF.
Play/Pause - Press to play or pause audio.
Speakerphone - Press to answer incoming call.
3. Volume
Press or to adjust the volume level.
4. Skip forward/backward
Press to skip tracks or chapters.
5. LED Indicator Light
Power ON + Bluetooth Paired - Solid blue light.
Pairing Bluetooth - Flashing blue/red light.
Charging Battery - Solid red light.
Charging Complete - No lights.
6. Microphone
3
4
1
2
6
5
Pairing the Headphones and DVD Player
After initial pairing, the DVD player and the headphones will stay paired unless unpaired manually by the user, or
erased due to a reset of either device. If this occurs or you find either unit is unable to connect, repeat these steps.
1. On the headphones, press and hold the M button until the pairing indicator begins flashing red and blue and a
voice announces "Bluetooth is connecting." When pairing, remain within 3 feet of the unit.
2. On the DVD player, press and hold the Pair button until the LED indicator begins quickly flashing blue.
3. When successfully paired, the LED indicators on both the headphones and the DVD player will turn solid blue
and a voice will announce "Bluetooth connected" through the headphones. Media played from the DVD player
will now be heard through the headphones.
4. Use the controls on the DVD player to select and play media. Note: The volume controls on the DVD player and
remote will not adjust volume of the headphones.
5. After initial paring to the DVD player, press and hold the M button for approximately 5 seconds.
Connecting to Other Devices
14 15
Connecting to Other Devices
USB Storage Device
Supports USB drives up to 32GB.
Supports JPEG, AVI, VOB, MPEG 1 and MPEG 2 file formats.
1. Load a USB drive into the USB Port.
2. Press the USB/SD button to enter USB mode.
3. Use the Arrow/OK buttons to select and play content from the connected USB thumb drive.
SD Memory Card
Supports SD cards up to 32GB.
Supports JPEG, AVI, VOB, MPEG 1 and MPEG 2 file formats.
1. Load an SD card into the SD card slot.
2. Press the USB/SD button to enter SD mode.
3. Use the Arrow/OK buttons to select and play content from the connected SD card.
External Television or Screen
Requires 3.5mm to RCA Composite AV cable (red/white/yellow, not included).
1. Using a 3.5mm to RCA Composite cable, connect the AV Output/Input on the portable DVD player to the
corresponding AV Output/Input on a television or other external system.
2. Set the television/DVD player's input source to the connected output/input.
3. Use the controls on the portable DVD player and remote to select and play media. Use the controls on the
television to adjust volume.
NOTE: The portable DVD player's audio
output sends a fixed volume level to any
connected device.
To adjust the volume you must change it
from the connected device. Adjusting the
volume of the DVD player will have no effect.
Connect to TV Inputs
Video - Yellow
Audio Left Channel - White
Audio Right Channel - Red
AV OUT
AV IN
16
Contact Information
Website: www.gpx.com
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date version of this User’s
Guide, go to: www.gpx.com
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers
to frequently asked questions, visit the support section at:
www.gpx.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.gpx.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com
Copyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of
their respective owners. Specifications are subject to change without notice.
Customer Support
Protect for Today
Sustain for Tomorrow
Made
Green
Other manuals for PDB1077
1
Table of contents
Other GPX DVD Player manuals
