Graco ProCart 233449 Operation manual

309244
Rev. D
First choice when
quality counts.
TI0822
INSTRUCTIONS–PARTS LIST
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
HVLP Compressor/Carts
240V AC, 50/60 Hz
ProCart Model 233449, Series A
45 psi (3.1 bar, 310 kPa) Maximum Working Pressure
Cart with 21/2-gallon pressure pot,
material hose, and compressor air hose
ProCart Model 233452, Series A
15 psi (1.0 bar, 104 kPa) Maximum Working Pressure
Cart with 21/2-gallon pressure pot,
material hose, compressor air hose
Related Manuals
HVLP Turbine Sprayers 309243. . . . . . . . . . . . . . . . . . .
HVLP Turbine Gun 309205. . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 2001, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001

2 309244
Table of Contents
Warnings 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component Identification 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

309244 3
Notes

4 309244
Warnings
Know all hazards before operating sprayer!
Equipment Misuse Hazard: Equipment misuse
can cause the equipment to rupture or malfunction
and result in serious injury.
Before operating equipment, read all instruction
manuals, tags, and labels.
Check equipment daily. Repair or replace worn
or damaged parts immediately.
Do not exceed maximum working pressure (WPM) of the lowest–rated
system component: 45 psi (3.1 bar, 310 kPa).
Use fluids and solvents that are compatible with the equipment wetted
parts. See Specifications on page 24 for this information.
Wear hearing protection when operating this equipment.
Do not “blow back” fluid; this is not an air spray system
Follow Pressure Relief before cleaning, checking or servicing the
equipment.
TOXIC FLUID HAZARD: Hazardous fluid or toxic
fumes can cause serious injury or death if splashed
in eyes eyes or on skin, inhaled, or swallowed.
Know specific hazards of fluid you are
using and take protective measures as
recommended by the fluid and solvent
manufacturer.
Fire and explosion hazard: Solvent and paint
fumes can ignite or explode.
Sprayers generate sparks. Keep sprayer at least
20 feet (6 m) from explosive vapors.
Use in an extremely well ventilated area.
Eliminate all ignition sources; such as pilot lights,
cigarettes and static arcs from plastic drop cloths.
Do not plug or unplug power cords or turn lights
on or off in spray area.
Ground Sprayer, object being sprayed, paint and
solvent pails.
Do not use 1,1,1-trichloroethane, methylene chlo-
ride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized alu-
minum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.

309244 5

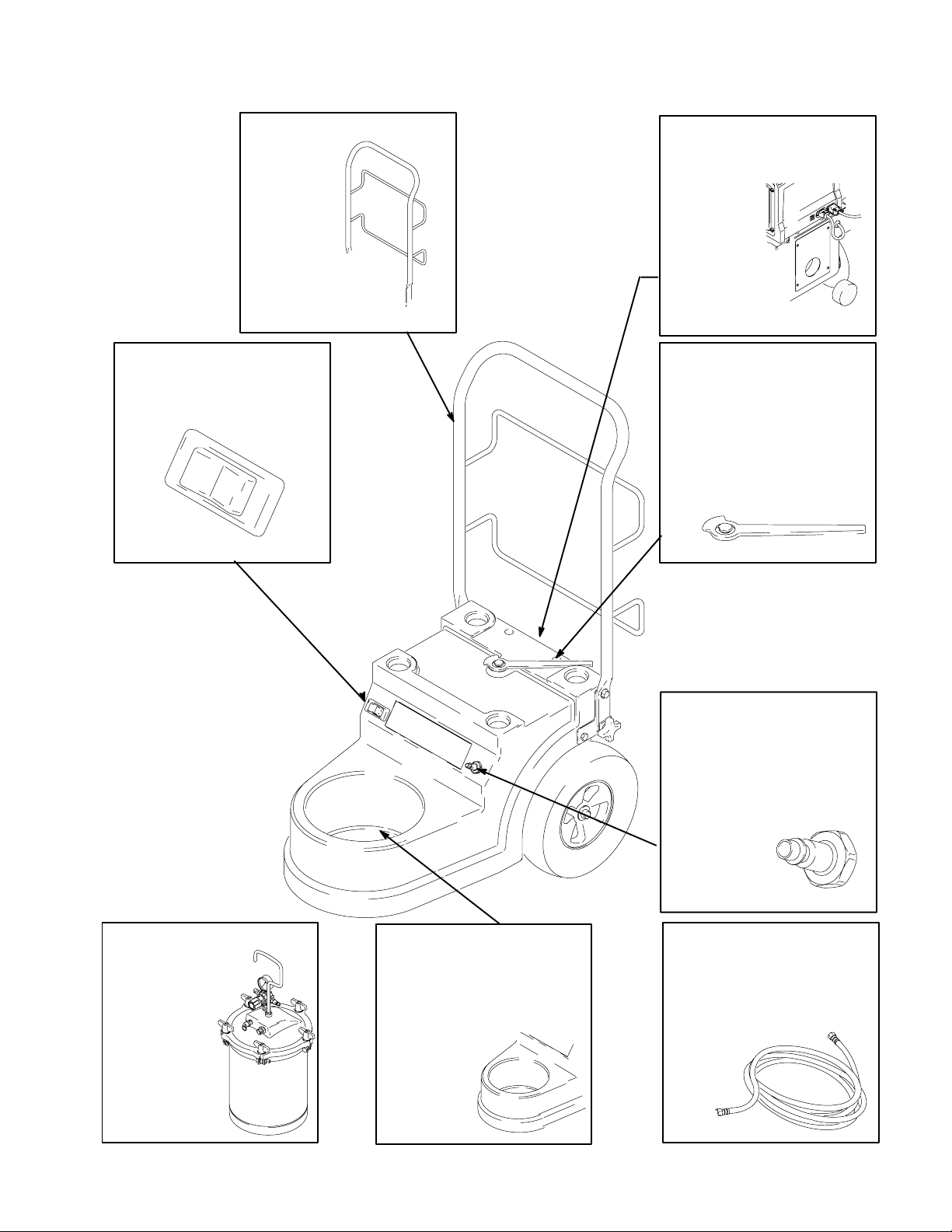

Component Identification
Handle/Hose holder
Air Outlet/Check Valve
Remote pressure pot Remote pressure pot holder Material hose
Turbine latch
Power switch
Filter

6 309244
General Information
You will need:
Cleaning fluids: a compatible solvent; water–based paint also requires soap and water.
Suggested proper clothing:
•Safety glasses •Sturdy boots or shoes
•Respirator •Gloves
Power Requirements:
•240V AC 50/60 Hz, 8A circuit with a grounded outlet
(models 233430, 233431 and 233433)
•Extension cord must be 3–wire, 1.5 mm2. no longer than 15 m.
NOTE: Maximum extension cord length used with model 233452 is 15 m.

309244 7
General Information
PRESSURE RELIEF –Follow this procedure when cleaning, repairing or shuting down sprayer
Turn off turbine. Unlatch cup
GROUNDING –Improper installation or alteration of grounding plug will increase risk of electrical shock,
fire or explosion.
8069A
02882A
1. Turn off air supply to the pot.
2. Open pressure relief (A) on
pot until pressure is completely
relieved. Close relief.
For Pressure Feed Guns
For Cup Guns
AA

8 309244
Setup
1. Place remote pressure pot in pressure pot
holder on cart.
2. Follow Connect Fluid and
Air Supply instructions. Page 10.
pressure pot
turbine sprayer
(manual 309243)
Remote 21/2-gallon pressure pot
7933A
Turbine Sprayer
1. Place turbine sprayer on cart.
2. Move latch on cart to right to lock turbine sprayer.
3. Plug compressor/cart power cord into auxiliary
electrical outlet on turbine sprayer or into a separate
grounded electrical outlet.
4. Plug turbine sprayer into grounded electrical outlet.
Power Requirements. Page 6.
7932A
turbine sprayer
latch
auxiliary electrical outlet
Model 233449 shown

309244 9
Setup
7931A
Storage Position for Cart Handle
1. Turn knob to free handle.
2. Fold handle down to store.
knob

10 309244
Setup
Connect Fluid and Air Supply
The HVLP compressor/cart provides the air supply
for remote pressure pots.
The circled letters (page 11) indicate hose line
connections.
1. Connect gun air supply hose (A) between turbine
air outlet (B) and gun air inlet (C). DO NOT use
wrench to tighten connections; hand tighten only.
NOTE: The 4900 turbine uses a quick connector
at the air outlet (B). A wrench is not required to
connect air hose (A).
2. If using spray gun cup (D):
Connect cup to gun fluid inlet (E).
If using accessory remote pressure pot (F):
Connect fluid supply hose (G) between remote
pressure pot fluid outlet (H) and gun fluid inlet (E).
Connect pressure pot air hose (J) between pres-
sure pot air regulator inlet (K) and cart compressor
air outlet (L).
Connect to Electric Supply
Turbine Sprayer. Page 8.

309244 11
Setup
7934A
C
D
D
21/2-gallon remote pressure pot
2-quart remote pressure pot
F
J
J
G
G
A
B
L
E
cup setup for spray gun
Z
Z
H
H
cup-over option
Manual 309205
F
K
K
Y
X
Y
Z
X
spray gun remote pressure pot
setup
A
GC
E
X
Y
HVLP Compressor/Cart

12 309244
Setup
1. Turn compressor on to warm up a few minutes
before you start spraying.
Turn compressor off when not used for an extended
period of time. The compressor does not shut off auto-
matically.
2. Be sure compressor filter (9) is clean before operating.
Page 13.
power switch
9

309244 13
Maintenance
Daily
Check cart daily for cleanliness.
Compressor system is lifetime lubricated. The only
maintenance required is filter cleaning and replace-
ment.
Compressor filter must be clean at all times to provide
sufficient air flow to cool motor and sufficient pressur-
ized air to remote pressure pot.
WARNING
To avoid damage to the compressor and possible
electric shock, never install a damp filter in the
compressor.
CAUTION
Dust and dirt can accumulate during use and cause
equipment damage. Do not operate the compressor
without the filter installed.

14 309244

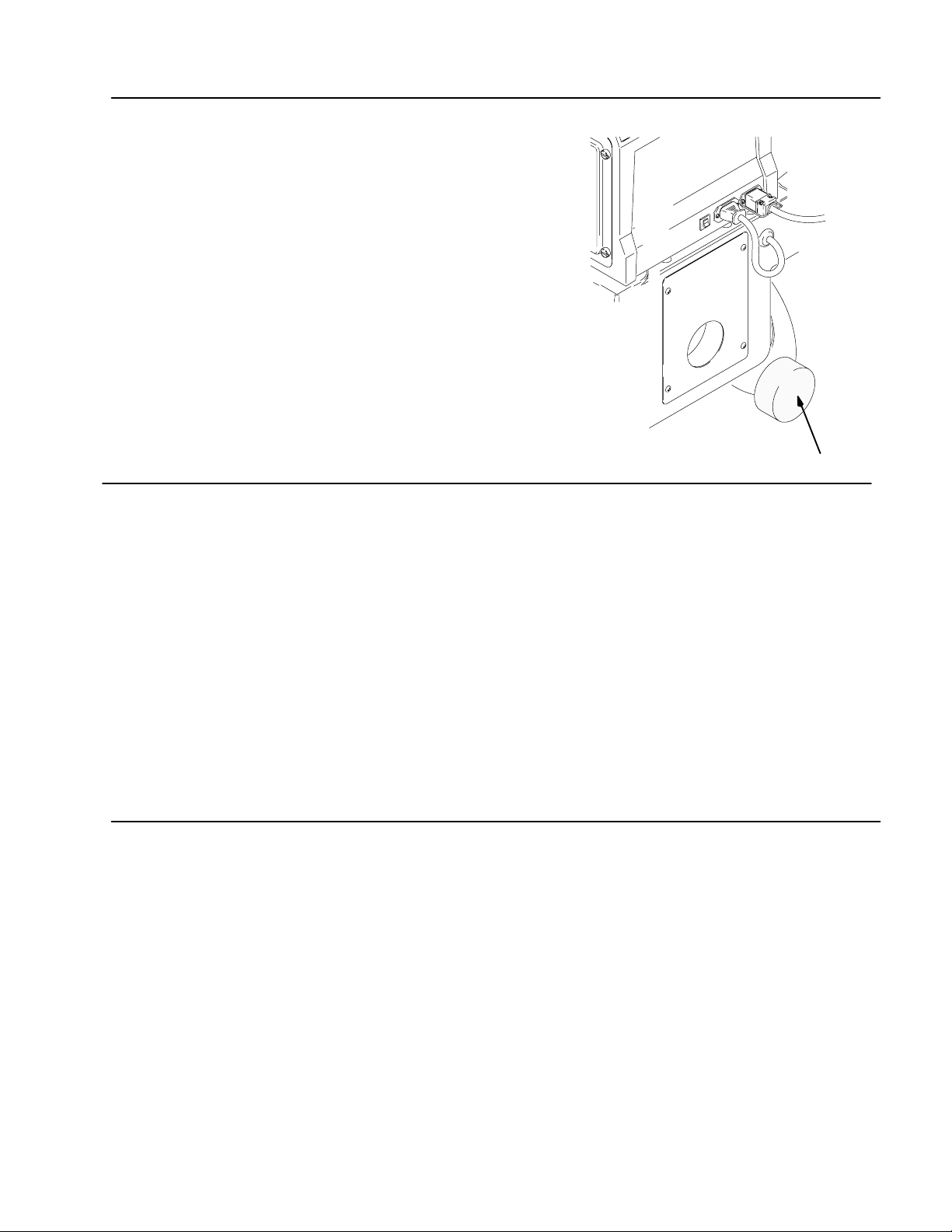

Maintenance
power switch:
1. Turn turbine and compressor OFF.
2. Unplug turbine from power source.
To service the compressor filter
turbine
compressor

309244 15
Maintenance
3. Pinch filter (9) and remove by hand.
9
4. Clean or replace filter as follows:
a. Brush accumulated paint and dirt from
surface of foam filter.
b. Rinse filter in water with mild detergent.
Blow dry.
c. Replace filter if paint is caked on.
Weekly
Check hoses for cracks, leaks, and holes.
Replace as necessary.

16 309244
Troubleshooting
PROBLEM CAUSE SOLUTION
No fluid delivery No material, no remote container
pressurization, hose or pickup tube
clogged
Check container for material.
Check for leaks at the container gasket
(2-quart pressure pot cover or
21/2-gallon pressure pot wing nuts).
Tighten wing nuts if loose.
Check for air flow from male quick
disconnect at compressor outlet
(approx. 1/4 CFM –233452; 1/2 CFM –
233449).
Turn pressure regulator clockwise.
Look for pressure on gauge. (If no
pressure on gauge, check air line and
fittings).
Check hole in 21/2-gallon pot cover
under regulator or in 2-quart pot cover
at needle valve.
Clean if necessary.
Check for obstructions or kinks in
hoses and fittings.
Check if fluid pickup tube is unplugged.
Tighten.
Blow out and clear material hose.

309244 17
Wiring Diagram
Compressor Wiring
Model 233449
4
L1
L2
G
56
12 3
CAPACITOR
POWER CORD
MOTOR
Compressor Wiring
Model 233452

18 309244

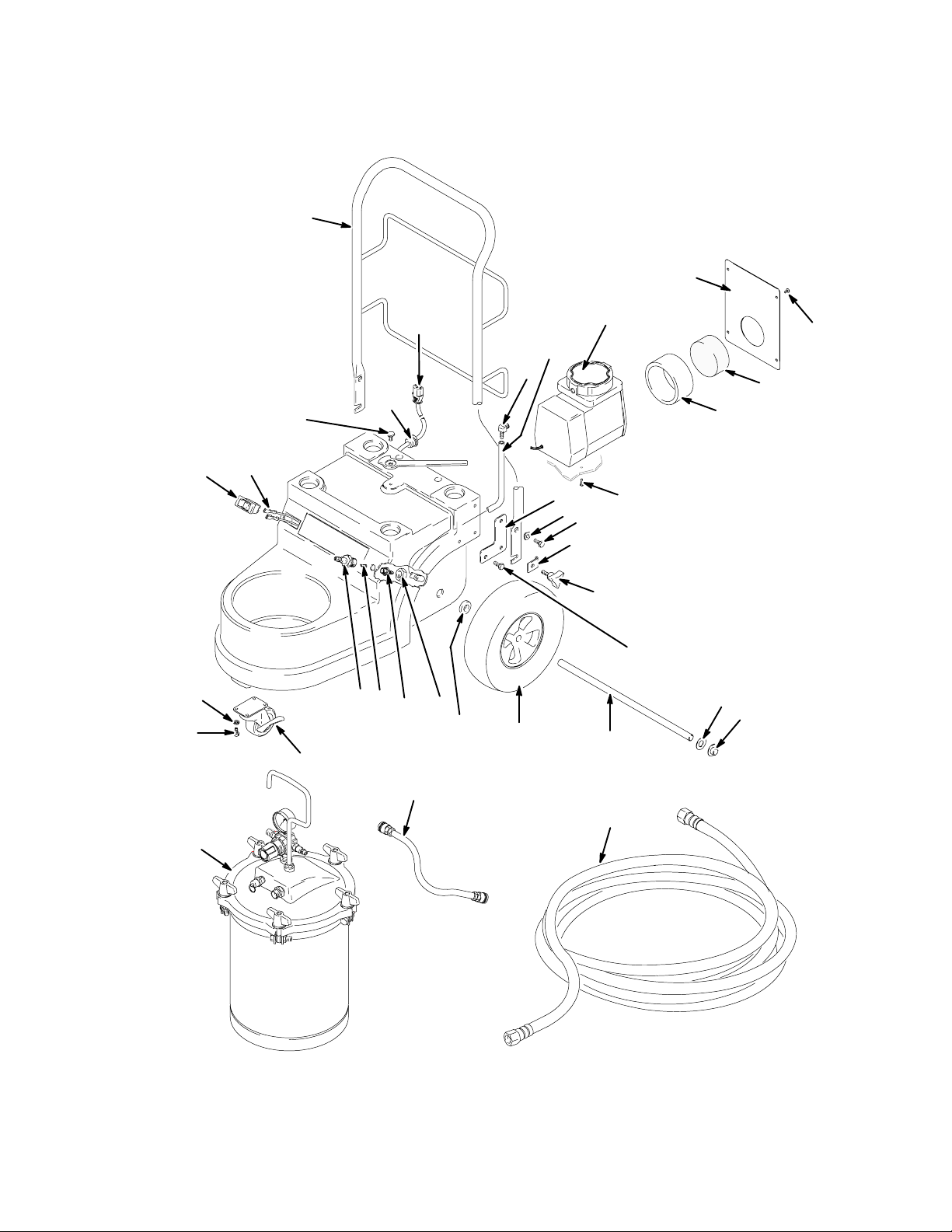

Parts Drawing
ProCart HVLP Compressor/Carts
Model 233449
TI0823a
2
26
24
29
25
28 27
20
14
15
36
37
34
41 42
1b 1d 1a
38
1e 1c
18
19
7
7
21
811
10
9
23
22
6
5
12

309244 19
Parts List
ProCart HVLP Compressor/Carts
Model 233449
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
1 244236 HOUSING ASSY, cart
1a 192805 . AXLE, cart 1
1b 191824 . WASHER, space 2
1c 113658 . NUT, crest, hat 2
1d 113647 . WHEEL 2
1e 111841 . WASHER, plain, 5/8”2
2 240000 HANDLE, cart 1
3 197152 FITTING, check valve 1
4 101936 NUT, hex 1
5 114428 FITTING, barbed 1
6 116581 COMPRESSOR, 240 V 1
7 105328 SCREW, cap, hx hd 4
8 192798 PLATE, handle 2
9 198115 FILTER, compressor 1
10 198114 DUCT, compressor 1
11 116610 SCREW, machine, pan hd 3
12 192810 HOSE, air, cart 1
14 105468 SCREW, cap, hex head 4
15 194103 CASTER, swivel, brake 1
18 114270 KNOB 2
19 192800 RETAINER, handle 2
20 100016 WASHER, lock, spring 4
21 192802 SPACER, handle 2
22 198091 PLATE, cart 1
23 106084 SCREW, mach, pan hd 4
24 114421 CONNECTOR, cord strain relief 1
25 192799 HANDLE, latch 1
26 192801 SCREW, shoulder 1
27 107262 TERMINAL, insulated, female 2
28 114293 SWITCH, rocker, red 1
29 114299 CORD SET, 0.4572 m (18 in.) 1
36 240045 TANK, paint, 2.5 gal 1
37 240075 HOSE, air, quick disconnect:
1/4 in. x 24 in. 1
38 240481 HOSE, material, black;
3/8 in. x 30 ft 1
40 103473 TIE WRAP (not shown) 10
41 244135 KIT, duckbill, check valve (5 Pack) 1
42 197153 FITTING check valve 1
43 M71635 CLAMP, hose (not shown) 2

29
7
3
6
5
4
9
10
19
25
24
26
28
8
11
12
15
18
21
22
23
7
1c
1e
1d
1f
27
36 38
37
TI0102A
Bottom View
41
43
2
47
42
1a
53
54
50
51
49
46
20

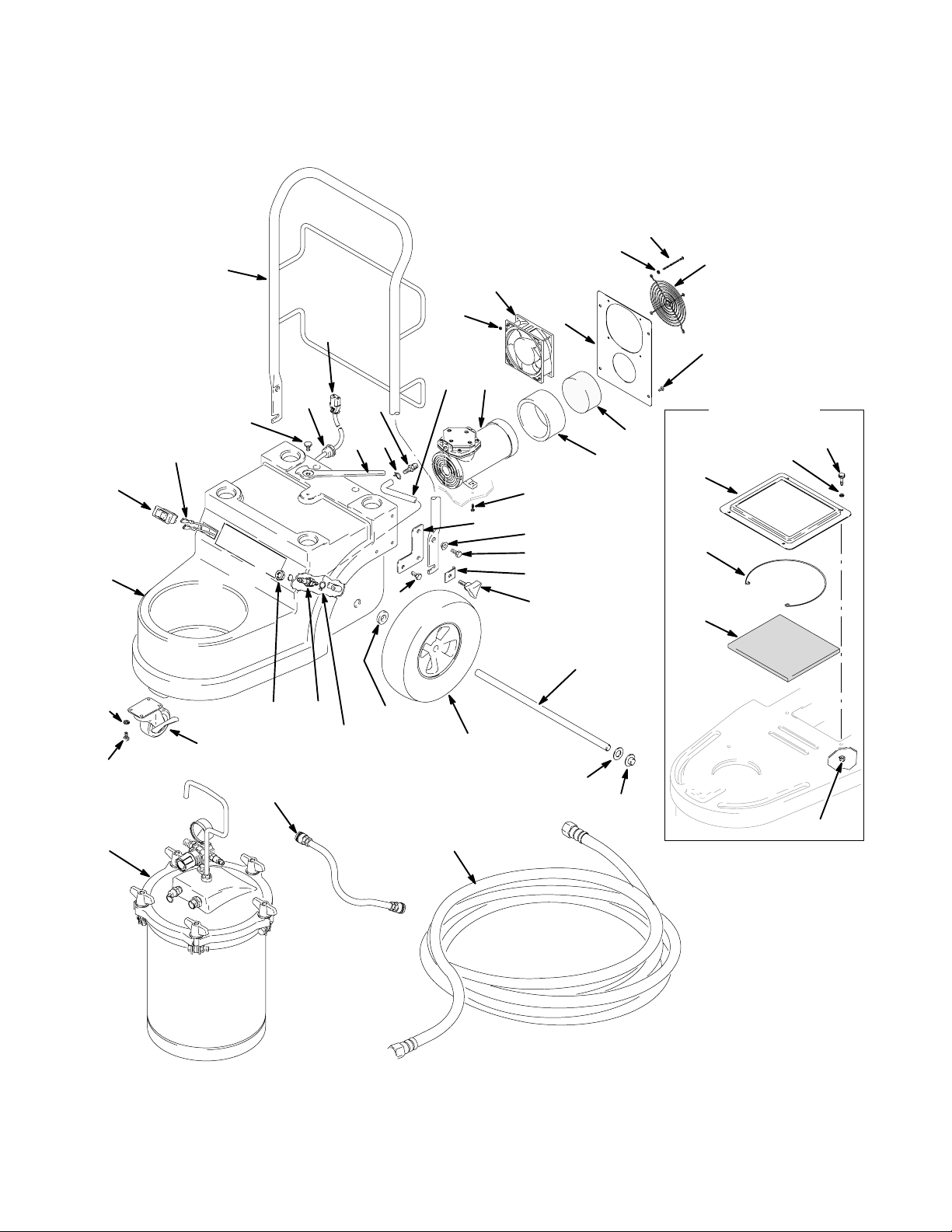

ProCart HVLP Compressor/Cart
Model 233452
bottom of cart
52
14
1b
55
55
20 309244
