Graco PD202326A User manual

READ THIS MANUAL.
Do not install or use this car seat until you read and
understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS CAR SEAT
INCREASES THE RISK OF SERIOUS INJURY
OR DEATH IN A SUDDEN STOP OR CRASH.
© 2012 Graco PD202326A 5/12 US
AFFIXTM
Booster Seat
Owner’s Manual

Registration Information............................... 3
For Recall Information.................................. 3
If You Need Help/Booster Seat Useful Life. 4
Parts List ....................................................... 5
Warnings to Parents and Other Users........6-9
Weight and Height Limits......................10-11
Vehicle Seat Location Requirements.......... 12
Vehicle Seat Belt Requirements ............13-14
SAFE Vehicle Belt Systems ....................... 13
UNSAFE Vehicle Belt Systems ................. 14
Assembling the Booster Seat .................15-16
Assembling the Back Support ...............17-22
Using your Graco Booster Seat ................. 23-25
Booster Seat Positions .......................................26
Attaching Booster to Vehicle Seat ............. 27-29
Securing your Child in Vehicle .............30-33
Adjusting the Head Support........................ 34
Removing the Back Support (on certain
models) to Use as Backless Booster......... 35
Securing Child in Vehicle with
Shoulder Belt Positioning Clip .............36-39
Airplane Use ............................................... 40
Cupholder and Storage Compartment......... 40
Instruction Sheet Storage ............................ 41
Care and Maintenance ...........................41-42
Replacement Parts....................................... 44
2
Table of Contents

Model Number:
Date of Manufacture:
Purchase Date:
Registration Information
Register Your Booster Seat
Call the U.S. Government¶s Vehicle Safety Hotline
at 1-888-327-4236 (TTY: 1-800-424-9153), or go
to http://www.NHTSA.gov
Graco: 1-800-345-4109 or www.gracobaby.com
For Recall Information
3
Please fill in the above information. The model
number and date of manufacture can be found
on a label underneath your booster seat. Fill out the
prepaid registration postcard attached to the seat
cover and mail it today.
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in a
recall. Send your name, address, and the restraint¶s
model number and date of manufacture to:
Graco Children¶s Products Inc.
Attn: Customer Service
3 Glenlake Parkway
Atlanta, GA 30328
or call 1-800-345-4109
or register online at
http://www.gracobaby.com/carseatregistration

4
If You Need Help
Please contact our Customer Service Department
with any questions you may have concerning parts,
use, or maintenance. When you contact us, please
have your product¶s model number ready so that
we may help you quickly. This number can be found
on a sticker on the underside of your booster seat.
1-800-345-4109 or www.gracobaby.com
www.cpsc.gov
www.NHTSA.gov
www.seatcheck.org
Booster Seat Useful Life
STOP using this booster seat and throw it away
10 years after the date of manufacture.
Look for this sticker on the bottom of the booster
seat:
MODEL
Date of Manufacture
GRACO CHILDREN'S PRODUCTS, INC.
ATLANTA, GA 30328 1-800-345-4109
Made in China
PD206938A
NAME
year month day

5

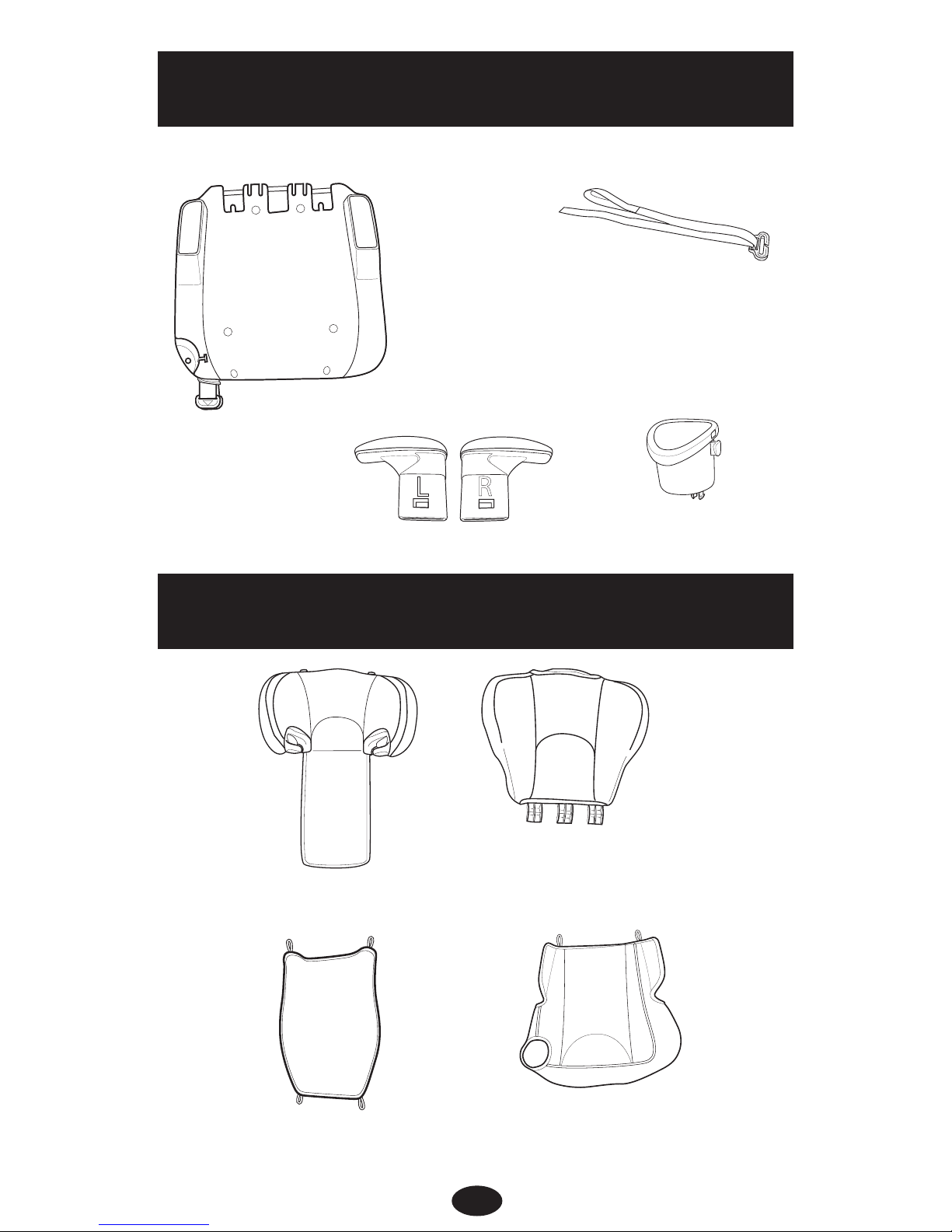

Parts List
Adult assembly required.
Base
Shoulder belt
positioning clip
On certain models
Seat pad
Cupholder
(in bottom of base)
Seat pad
Armrests
Head support
Lower back support

6
NEVER PLACE THIS BOOSTER SEAT IN
A VEHICLE SEATING
LOCATION THAT HAS AN
AIR BAG. If an air bag inflates, it
can hit the child and booster seat
with great force and cause serious
injury or death to your child. Refer
to your vehicle owner¶s manual for
information about air bags and booster seat
installation.
Warnings to Parents and
Other Users

7
NO BOOSTER SEAT CAN GUARANTEE
PROTECTION FROM INJURY. HOWEVER,
PROPER USE OF THIS BOOSTER SEAT
REDUCES THE RISK OF SERIOUS INJURY
OR DEATH TO YOUR CHILD.
DO NOT INSTALL OR USE THIS
BOOSTER SEAT UNTIL YOU READ AND
UNDERSTAND THE INSTRUCTIONS IN
THIS MANUAL AND IN YOUR VEHICLE
OWNER’S MANUAL. DO NOT let others
install or use the booster seat unless they
understand how to use it.
FAILURE TO PROPERLY USE THIS
BOOSTER SEAT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN A SHARP
TURN, SUDDEN STOP OR CRASH. Your
child can be injured in a vehicle even if you are
not in a crash. Sudden braking and sharp turns can
injure your child if the booster seat is not properly
installed or if your child is not properly secured in
the booster seat.

8
According to crash statistics, CHILDREN ARE
SAFER WHEN PROPERLY RESTRAINED
IN REAR VEHICLE
SEATING POSITIONS, RATHER THAN
FRONT SEATING POSITIONS. For a vehicle
with a front passenger air bag, refer to your
vehicle owner¶s manual as well as these
instructions for booster seat installation.
NEVER LEAVE YOUR CHILD
UNATTENDED.
NEVER LEAVE A BOOSTER SEAT
UNSECURED IN YOUR VEHICLE. An
unsecured booster seat can be thrown around and
may injure occupants in a sharp turn, sudden
stop or crash. Remove it or make sure that it is
securely belted in the vehicle.
IF AFFIXTM BOOSTER IS NOT CONNECTED
TO VEHICLE ANCHORS, secure the booster
seat with the lap/shoulder belt into the vehicle seat.
REPLACE THE BOOSTER SEAT AFTER
A CRASH OF ANY KIND. A crash can cause
damage to the booster seat that you
cannot see.

9
DO NOT MODIFY YOUR BOOSTER SEAT
or use any accessories or parts supplied by other
manufacturers.
NEVER USE BOOSTER SEAT IF IT HAS
DAMAGED OR MISSING PARTS. DO NOT
use a cut, frayed or damaged vehicle seat belt.
THE BOOSTER SEAT CAN BECOME VERY
HOT IF LEFT IN THE SUN. Contact with these
parts can burn your child¶s skin. Always touch the
surface of any metal or plastic parts before
putting your child in the booster seat.
THIS CHILD RESTRAINT CONFORMS
to all applicable Federal Motor Vehicle Safety
Standards and is certified for use in motor
vehicles. This restraint is NOT certified for use in
aircraft because there is no shoulder belt available.
NEVER GIVE THIS BOOSTER SEAT to
someone else without also giving them this
manual.
NEVER USE A SECOND-HAND BOOSTER
SEAT or a booster seat whose history you do not
know.
NEVER USE THIS BOOSTER SEAT without
the armrests attached to the base.

10
FAILURE TO USE booster seat in a manner
appropriate for your child¶s si]e may increase the
risk of serious injury or death.
Weight and Height Limits
To use this Graco booster seat, your child MUST
meet ALL of the following requirements:
With back support
(approximately 3 to 10 years old) :
weigh between 30 and 100 lbs.
(mass between 13.6 and 45 kg), and
are between 38 and 57 inches (96 and 145 cm)
in height, and
the shoulder belt MUST lie
across child¶s shoulders in red
]one as shown in and the
lap portion is positioned low
on the childs hips, and
the child¶s ears are below top
of booster seat. If tops of ears
are above top of seat, your
child is too large for the
booster seat
1
1

11
Without back support
(approximately 4 to 10 years old) :
weigh between 40 and 100 lbs.
(mass between 18 and 45 kg), and
are between 40 and 57 inches
(101 and 145 cm) in height, and
the shoulder belt MUST
lie across child¶s shoulders
in red ]one as shown in
and the lap portion is positioned
low on the childs hips, and
when sitting on the booster
seat, your child¶s ears are
below the top of the vehicle
seat cushion / head rest.
Your Graco booster seat can be
used with or without the back
support (on certain models) as
long as the above requirements are met.
2
2

12

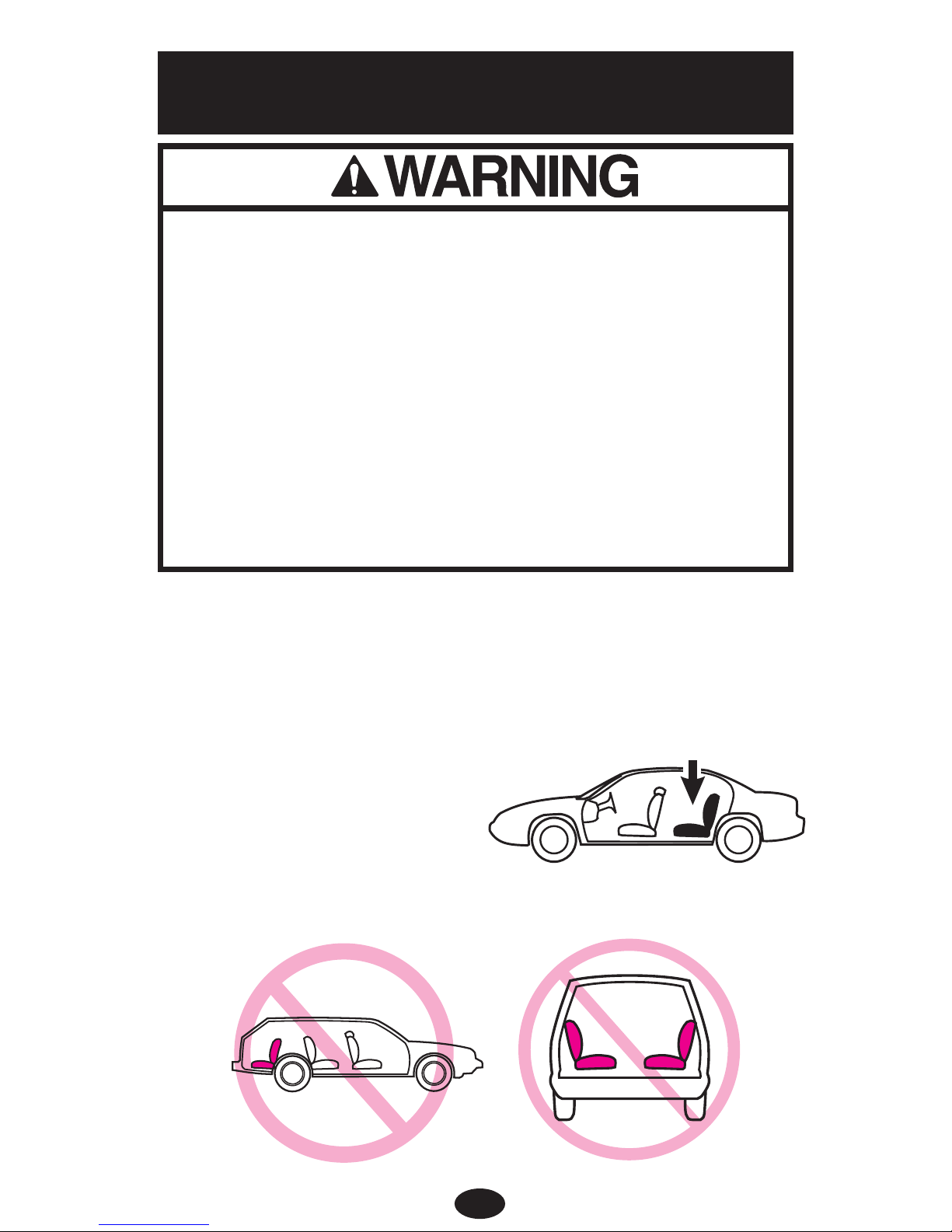

IMPROPER PLACEMENT OF THE
BOOSTER SEAT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH. Some seating
positions in your vehicle may NOT be safe for this
booster seat. Some vehicles do not have any seating
positions that can be used safely with the booster
seat. If you are not sure where to place the booster
seat in your vehicle, consult your vehicle owner¶s
manual or call Graco Children¶s Products Inc., at
1-800-345-4109.
Vehicle Seat Location Requirements
Children are safer when properly restrained in
rear vehicle seating positions. Whenever possible
secure the Graco booster seat in the center position
of the seat directly behind the front seats. However,
this position is often equipped with a lap belt only
and cannot be used.
The vehicle seat MUST face forward.

A FEW SEAT BELT SYSTEMS ARE NOT
SAFE TO USE WITH THE BOOSTER SEAT.
Pay careful attention to these systems; some of
the seat belts that are NOT safe to use look very
much like seat belts that are safe to use. If you
are unsure, consult your vehicle owner¶s manual
or call Graco Children¶s Products Inc.,
at 1-800-345-4109.

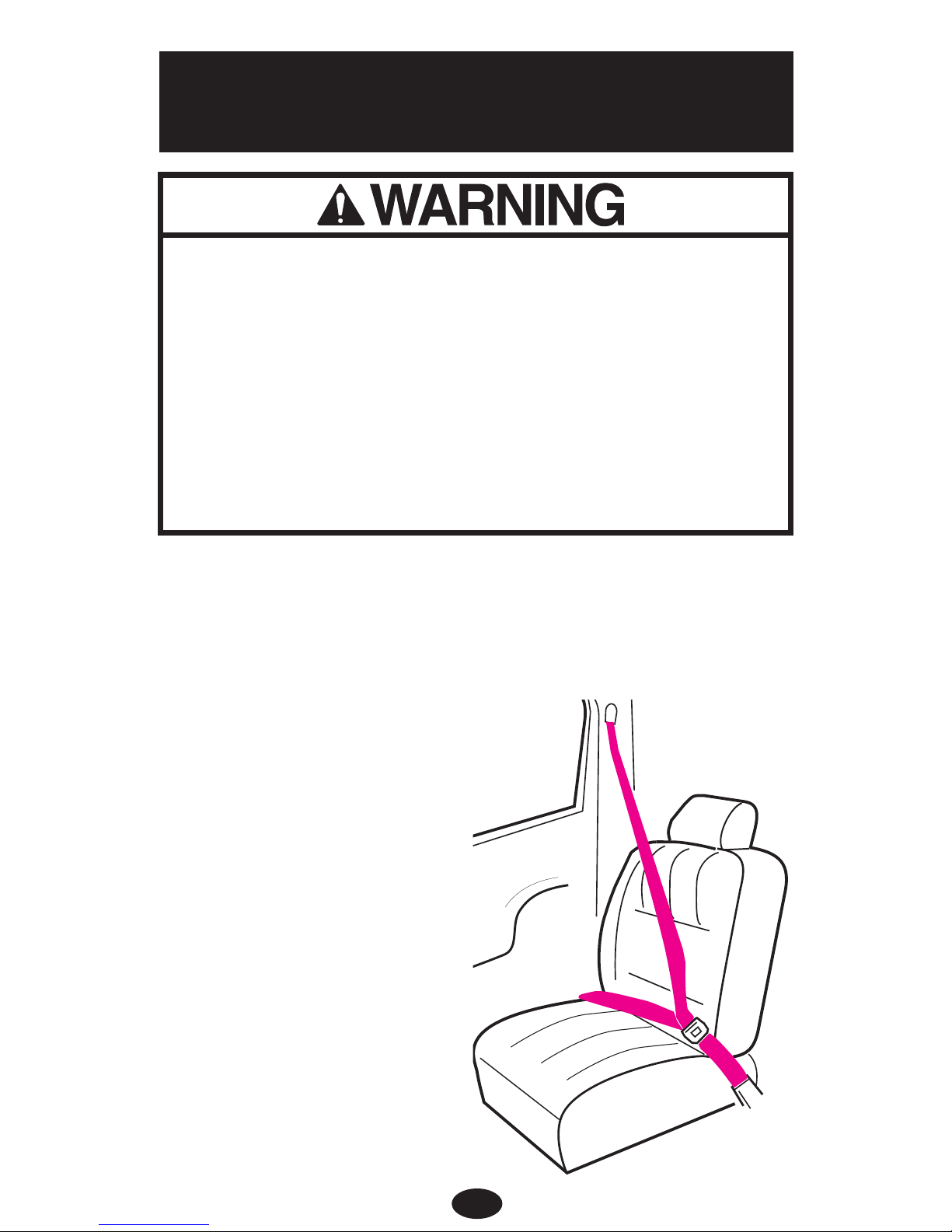

Vehicle Seat Belt Requirements
ONLY A LAP/SHOULDER
BELT SYSTEM CAN
BE USED WITH THIS
BOOSTER SEAT, IF
the seat location meets
all other requirements
of these instructions
and those in your vehicle
owner¶s manual.
SAFE Vehicle Seat Belt System
13

DO NOT USE ANY
OF THE FOLLOWING
VEHICLE BELT
SYSTEMS.
NEVER use a
lap-only belt.
UNSAFE Vehicle Seat Belt Systems
NEVER use a
Passive Restraint -
Lap or Shoulder Belt
Mounted on Door
NEVER use a
Passive Restraint -
Lap Belt with Motori]ed
Shoulder Belt
NEVER use vehicle
belts that are attached to
the door in any way or
that move along a track
to automatically
surround the passenger
when the door is closed.
14

15

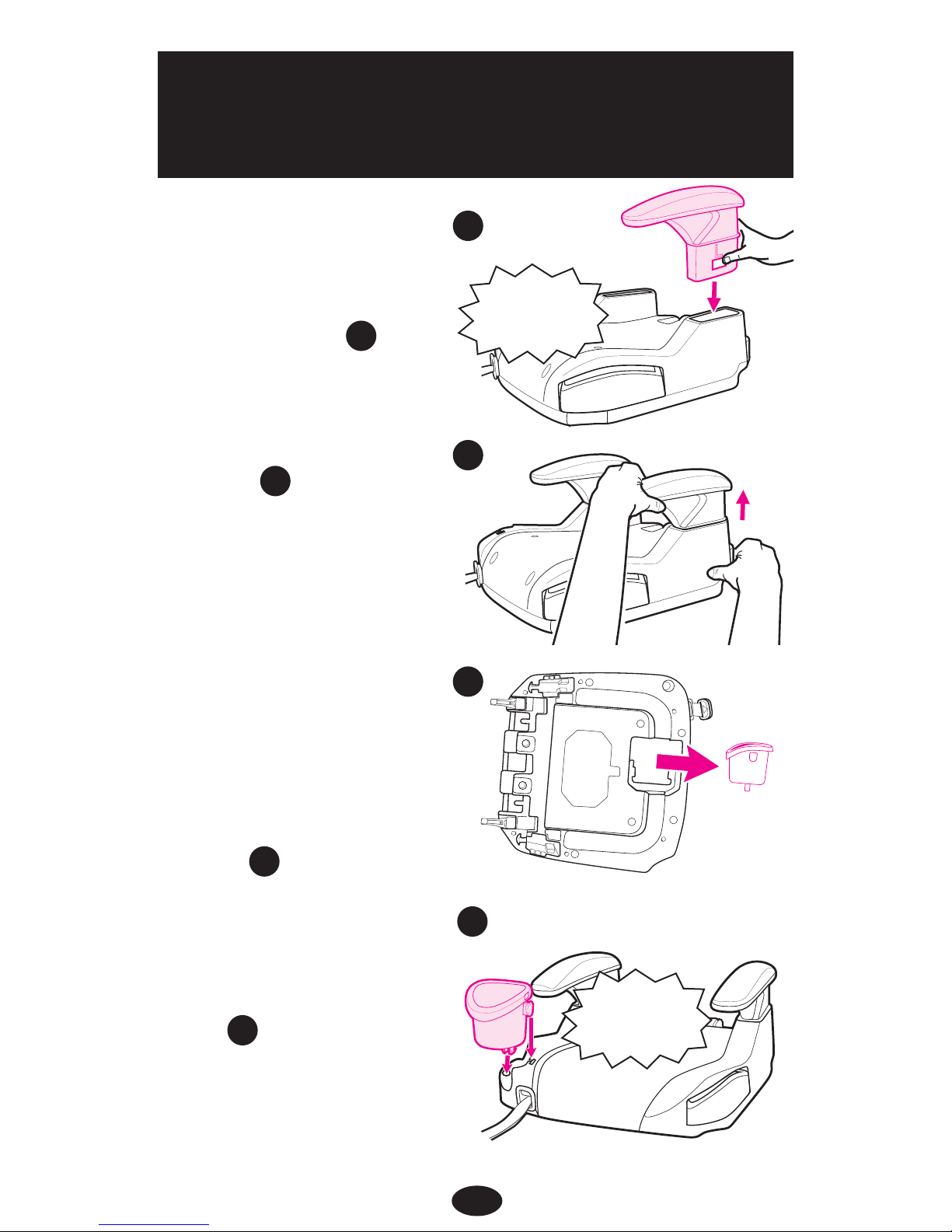

Assembling the Booster Seat
Step 1.
To attach armrests to
base, press armrests into
opening in base 1.
CHECK to make sure
armrests are securely
attached by pulling up
on them 2.
Step 2.
Remove cupholder from
compartment in bottom
of base 3. Align tabs
on side and bottom of
cupholder with their
slots in base and
press cupholder into
place 4.
DO NOT REMOVE
CUPHOLDER ONCE
IT IS ATTACHED.
SNAP!
1
2
3
4
SNAP!

16

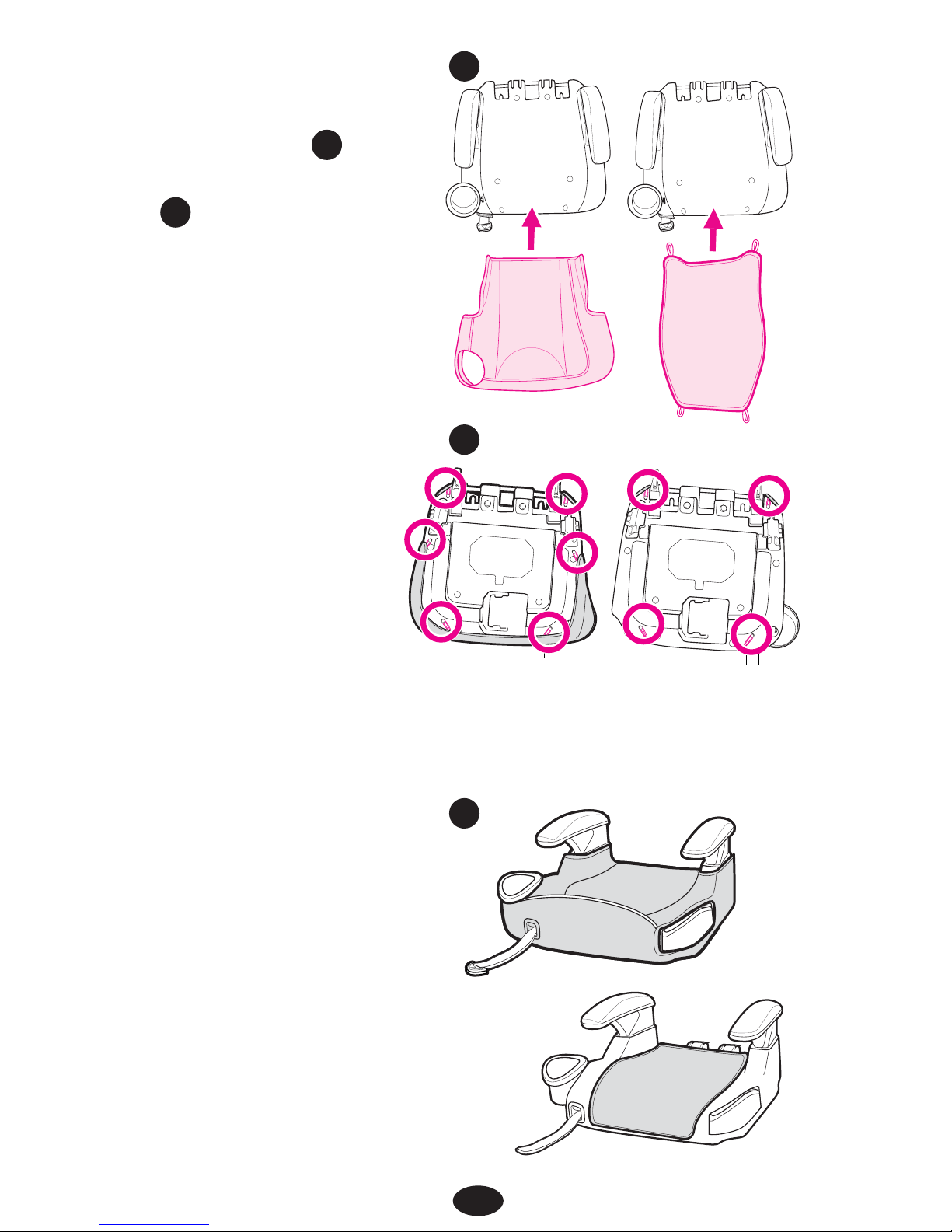

Step 3.
Wrap seat pad around
front of base 5and
attach with elastic straps
6as shown.
Step 4.
Your Graco booster seat
is now ready to use. See
page 27, “Attaching
Booster to Vehicle
Seat”.
FOR MODELS with a
back support continue
on to Step 5.
5
6
7
OR
OR
OR

17
Assembling the Back Support
(on certain models)
Step 5a.
Flip head support and lower back support over
as shown .
1
1
Step 5.
On certain models, your lower back support pad may
not be attached to the back support. Place lower back
support pad around edges of support as shown. Then
fasten lower elastic strap to the metal hook on the other
side of the seat pad. If your lower back support pad is
already attached go to Step 5a.

18

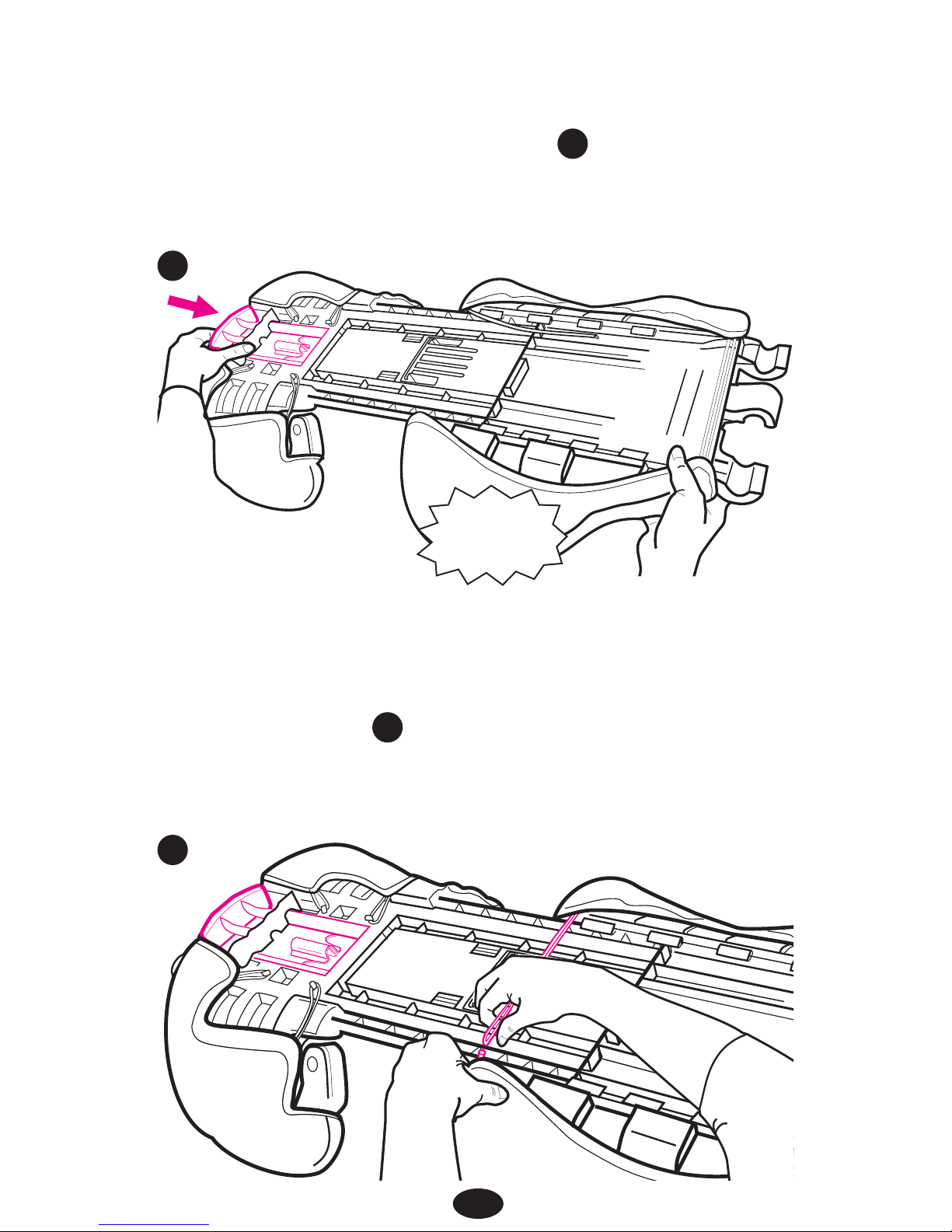

Step 7.
Attach elastic strap to metal hook on other side of
seat pad as shown . If your elastic strap is already
attached you can skip to Step 8.
3
3
Step 6.
Squee]e red adjustment button and slide two pieces
together until they snap into place .
CHECK to make sure two pieces are securely snapped
together by pulling on them.
SNAP!
2
2

19
Step 8.
Flip seat over and insert the fabric from the head
support underneath the fabric on the lower back support
as shown .
To make insertion of fabric easier, slide the upper and
lower back pieces apart by squee]ing the red adjustment
button.
4
4

20
Step 9.
Attach backrest to base. “U”-shaped hooks on bottom
of backrest will interlock with bars on base .
Make sure that no part of the seat covering interferes
when attaching backrest to the base.
5
5
