312350E
Instructions, Repair and Parts
Dyna-Star®
HYDRAULIC RECIPROCATOR AND PUMP
- For lubricating fluids only -
10:1 Ratio Universal Pump and Reciprocator
600 psi (4.1 MPa, 41 bar) Maximum Hydraulic Input Pressure
7500 psi (51 MPa, 517 bar) Maximum Fluid Outlet Pressure
Model 247540: Pump, 60 lb Automatic Lube Pump Module Length
Model 247443: Pump, 120 lb Drum Length
Model 247450: Pump, 400 lb Drum Length
Table of Contents
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Warnings 2
Installation 4
Operation 7
Troubleshooting 9
Service 10
Reciprocator Parts 18
Pump Parts 20
Technical Data 21
Graco Standard Warranty 23
Graco Information 23
ti10604a
Model 247443 Shown

Warnings
2312350E
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground all equipment in the work area.
• Use only grounded hoses.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispense valve at anyone or at any part of the body.
• Do not put your hand over the end of the dispense nozzle.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.

Warnings
312350E 3
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
WARNING

Installation
4312350E
Installation
Key:
A Follower plate
B Weep tube
C Fluid outlet line (to gun)
D Drain valve (required)
E Ground wire
F Hydraulic return line, minimum 3/4 inch I.D. (required)
G Hydraulic outlet, 3/4” npt (f)
H Return line shut-off valve, minimum 3/4 inch (required)
J Hydraulic inlet, 3/4” npt (m)
K Tee, 3/4” npt
L Supply line shut-off valve (required)
M *Pressure gauge
N *Pressure reducing valve (required in systems over 600
psi [4.1 MPa, 41 bar])
P Accumulator
Q *Flow control valve (required in systems over 3 gpm [11
lpm])
R Hydraulic supply line
SCheckvalve
T Variable volume pressure compensated pump
U Hydraulic power supply
V Drain line, accumulator
*Included in Hydraulic Fluid Control Kit 247538 or 247705, which can be ordered separately.
FIG. 1
Although the installation shown in FIG. 1 is only a guide
for selecting and installing system components and
accessories, some of the equipment is required, as
noted in the key. For assistance in designing a system to
suit your needs, contact your Graco distributor.
Mount pump to suit the type of installation planned.
ti0477a
Typical Installation of a
Suction Feed System
U
T
S
R
Q
P
N
M
L
K
J
H
G
F
D
C
B
A
E
CAUTION
Do not operate pump without it being securely
mounted to a drum cover or support.
Maximum Working Pressure of Accessories
To reduce the risk of serious injury including fluid
injection and splashing in the eyes or on the skin
which may be caused if component ruptures, all
accessories added to the reciprocator power supply
side must have at least 600 psi (4.1 MPa, 41 bar)
maximum working pressure.
All accessories added to the pump fluid outlet side
must have at least 7500 psi (51 MPa, 517 bar)
maximum working pressure.

Installation
312350E 5
Pump Accessories
Follower Plate (A): ensures a good prime. Place
follower plate on grease and rotate while pressing firmly
to level material. Order part number 247700 for 60# and
90# automatic lube pump modules; 247701 for 120#
refinery reservoir; or 247702 for 400# refinery reservoir.
Pump Outlet Drain Valve (D): helps relieve fluid
pressure in pump when pump is shut off. Install valve
close to pump fluid outlet. Order valve, Part No. 111229.
Hydraulic Power Supply
See FIG. 1.
The hydraulic power supply system (U) must have a
pressure reducing valve and a pressure-compensated
flow control. A flow control valve (Q) is required to limit
the incoming flow to the reciprocator to a maximum of 3
gpm (11 lpm).
Hydraulic Lines
Shut-off Valves (H, L): installed on the hydraulic supply
and return lines. Order Part No. 108537 and 112578.
Drain Line: Monitor the weepage of hydraulic fluid or
lubricant. If it seems excessive or increases suddenly,
the reciprocator/pump seals may need to be changed.
See FIG. 2.
FIG. 2
Hoses: Use a minimum 1/2 inch supply line (R) and
minimum 3/4 inch return line (F) on the reciprocator.
Contact your Graco representative for details of line
sizing.
Pressure Reducing Valve (N): circulates excess
hydraulic fluid pressure back to the hydraulic power
supply. Install this valve (N) in the hydraulic supply line
with a drain hose (W) teed into the hydraulic return line
(F). Limit supply pressure to a maximum 600 psi (4.1
MPa, 41 bar).
Accumulator (P): reduces hammering effect caused by
the motor when it reverses direction.
Fluid-filled Pressure Gauge (M), Part No. 112567:
monitors hydraulic pressure to the reciprocator during
startup. See FIG. 1. Use the gauge for initial adjustment
of the reciprocator. It can be removed after adjustment.
Pump Outlet Drain Valve
• A pump outlet drain (D) is required in your system.
This valve helps relieve pressure in the displace-
ment pump and hose when shutting down system
and in case of a clogged outlet hose. Install valve
close to pump outlet.
• Mount pump securely so it cannot move around
during operation. Failure to do so could result in
personal injury and/or equipment damage.
Limit Fluid Flow to Reciprocator
To reduce the risk of overpressurizing the hydraulic
reciprocator which could cause a rupture and serious
injury, including fluid injection, a hydraulic system
must have a means to limit the incoming fluid flow to
the reciprocator to a maximum of 3 gpm (11 lpm) and
600 psi (4.1 MPa, 41 bar). See description below.
Pressure gauge (M), pressure reducing valve (N)
and a flow control valve (Q) are included in the
Hydraulic Fluid Control Kit 247538 or 247705,
which can be ordered separately.
ti10602a

Installation
6312350E
Grounding
To reduce the risk of static sparking, ground pump.
Check your local electrical code for detailed grounding
instructions for your area and type of equipment.
•Pump: Use ground wire and clamp as shown in
FIG. 3. Order Grounding Wire and Clamp Kit,
Part No. 222011.
•Hydraulic Hoses and Fluid Outlet Hoses:
Use electrically conductive hoses only.
•Hydraulic Power Supply: Follow manufac-
turer’s recommendations.
•Flushing Pails: When flushing, only use metal,
grounded pails. Make firm, metal-to-metal con-
tact between the metal part of the dispense
valve and the pail. Use lowest possible pres-
sure.
Grounding the Pump
To ground pump (See FIG. 3):
1. Remove ground screw (Z) and insert through eye of
ring terminal at end of ground wire.
2. Fasten ground screw back onto pump and tighten
securely.
3. Connect other end of wire to a true earth ground.
FIG. 3
Z
ti10603a

Operation
312350E 7
Operation
Pressure Relief Procedure
The system pressure must be manually relieved to
prevent the system from starting or dispensing
accidentally. Follow this pressure relief procedure
whenever you are instructed to:
• relieve pressure.
• check or service any system equipment.
• install or clean nozzle.
For the following instructions, see FIG. 1.
1. Shut off hydraulic power supply.
2. Close supply line shut-off valve (L).
3. Open dispensing valve to relieve pressure.
4. Open pump outlet drain valve. Have a container
ready to catch drainage.
5. Close return line shut-off valve (H).
If you suspect the nozzle or hose is completely clogged
or that pressure has not been fully relieved after
following steps 1-5 above, very slowly loosen the hose
end coupling to relieve pressure, then clear obstruction.
Before Starting Pump
• Check hydraulic fluid level in hydraulic power supply
before each use. Add fluid as necessary to fill the
lines.
• Flush pump before using it for the first time to
remove the light oil that was left in after factory test-
ing to protect pump from corrosion. Be sure solvent
used is compatible with the fluid to be pumped and
the pump’s wetted parts. See Technical Data, page
20. Flush until clean solvent comes out of hose.
Leave drain valve open until you are ready to
dispense again.
COMPONENT RUPTURE HAZARD
Overpressurizing any component can result in
serious injury or property damage as a result of
rupture, fire, and/or explosion.The maximum working
pressure of each component in the system may not
be the same. To reduce the risk of overpressurizing
any component in the system:
• Be sure you know the maximum working
pressure of each component.
•Never exceed the maximum working pressure of
the lowest rated component in the system.
• Do not exceed the maximum pump cycle rate.
• The pump has a rated ratio of 10:1. However, it is
capable of reaching stall pressures equal to 12.5
times the hydraulic input pressure. To calculate
the fluid output pressure, multiply the hydraulic
pressure shown on the hydraulic control module
gauge by 12.5.
For example:
600 psi hydraulic x 12.5 = 7500 psi fluid output
4.14 MPa hydraulic x 12.5 = 51.8 MPa fluid
output
41.4 bar hydraulic x 12.5 = 5.18 bar fluid output
• Regulate hydraulic pressure to the pump so that
no fluid line component or accessory is
overpressurized.

Operation
8312350E
Starting Pump
1. Turn on hydraulic power supply.
2. Open return line shut-off valve (H) first, then slowly
open the hydraulic supply shut-off valve (L).
3. Adjust flow control valve (Q) to limit the hydraulic
flow to no more than 3 gpm (11 lpm), which is
approximately 60 cycles per minute.
4. Adjust pressure reducing valve (N) to increase
hydraulic inlet pressure from 50 to 600 psi (0.34 to
4.1 MPa, 3.4 to 41 bar).
• Increasing inlet pressure, increases outlet pres-
sure.
• Decreasing inlet pressure, decreases outlet
pressure.
5. Open drain valve while priming pump.
6. When pump is primed, close drain valve.
Always use lowest pressure possible to obtain desired
results. This reduces pump wear.

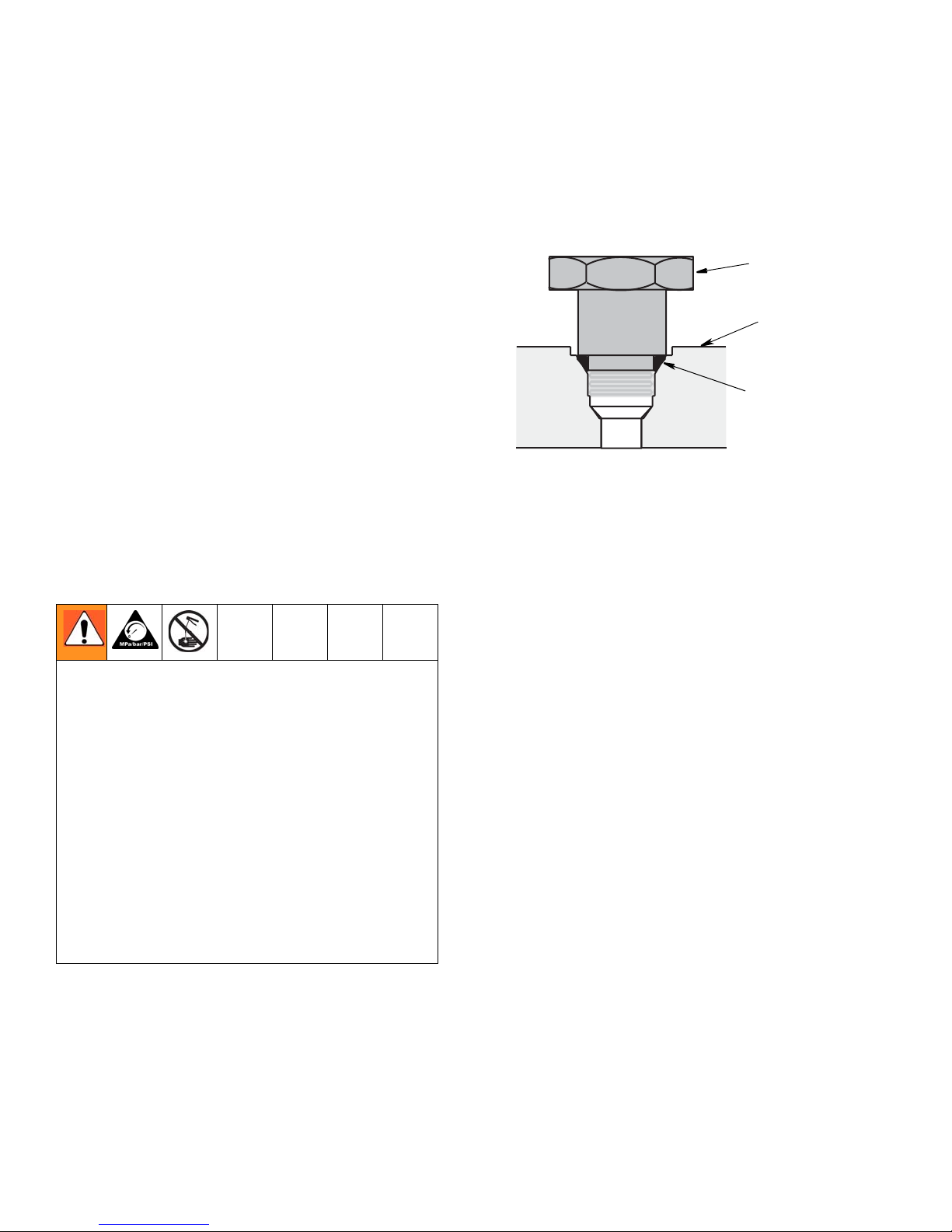

If the Pump Leaks at the Fluid
Fittings
Tighten fittings (1, 5, 60) which are self-sealing and
have replaceable o-rings. If leaking persists, change
o-rings.
FIG. 4
Shutdown
Relieve pressure, page 7, whenever you shutdown.
Maximum Working Pressures
To reduce the risk of serious injury, including fluid
injection and splashing in the eyes or on the skin,
which may be caused if a component ruptures:
• Never exceed 600 psi (4.1 MPa, 41 bar) Maxi-
mum Hydraulic Pressure to the reciprocator.
• Never exceed 7500 psi (51 MPa, 517 bar) Maxi-
mum Outlet Pressure from the displacement
pump.
• Accessories added to the pump fluid outlet side
should have at least a 7500 psi (51 MPa, 517
bar) Maximum Working Pressure.
• Read and understand COMPONENT RUP-
TURE HAZARD instructions, page 7.
sealing
fitting (1, 5, 60)
reciprocator
o-ring
(1a, 5a,60a)
ti04478

Troubleshooting
312350E 9
Troubleshooting
Problem Cause Solution
Pump does not run. Closed dispense valve. Pump only runs with valve open.
Pressure too low. Increase supply pressure using a
pressure adjusting valve.
Insufficient hydraulic fluid supply. Check hydraulic supply. Adjust to a
maximum of 3 gpm (11 lpm) flow.
Clogged fluid outlet line, intake valve,
dispense valve, suction line.
Relieve pressure, page 7. Check.
Clear obstructions.
Reciprocator damaged. Repair.
Pump speeds up or runs erratically. Pump piston and/or intake valve
worn.
Relieve pressure, page 7. Check
and repair.
Empty supply container. Refill and repair. Do not allow pump
to run dry. Monitor closely or use a
low-level cutoff valve.
Pump runs but output low on up
and/or down stroke.
Pump piston and/or intake valve
worn.
Relieve pressure, page 7. Check
and repair.
Pump run but output low on both up
and down strokes.
Insufficient hydraulic fluid supply. Check hydraulic supply. Adjust to
maximum 3 gpm (11 lpm) flow.
Pressure too low. Increase supply pressure using a
pressure adjusting valve.
Clogged fluid outlet line, intake valve,
dispense valve, suction line.
Relieve pressure, page 7. Check.
Clear obstructions.
Excessive weepage from weep tube
(B), page 4.
Worn throat packings. Repair.
Worn displacement seal. Repair.
Hydraulic oil leaks from fittings in the
upper or lower reciprocator blocks
(31, 32) [Parts page 18].
Fittings 1, 5, 58, (Parts, page 18), are
loose, or their o-rings are worn or
damaged.
Tighten the self-sealing fittings. If
leaking persists, change o-rings.

Service
10 312350E
Service
Replacing Throat Seals
See FIG. 5.
1. Relieve pressure, page 7.
2. Disconnect reciprocator from pump.
3. Remove four capscrews (15) from bottom of adapter
(43). Tap adapter to loosen it and pull it off the bot-
tom cap (32).
4. Remove seal (44, included in Reciprocator Repair
Kit 247455) from top of adapter (43).
5. Install seal (16) in adapter (43) in the order shown in
FIG. 5.
6. Reassemble. Torque the capscrews (15) to 28-32
ft-lb (38 to 43 N.m). Install displacement pump, see
Step 23 on page 15.
FIG. 5
Use of a hydraulic power supply with fluid tempera-
tures above 154°F (68°C) can create hot surfaces
which can burn if touched.
• Do not touch pump, motor, or if hydraulic system
fluid is above 154°F (68°C).
• Allow sufficient time for pump and motor to cool
before attempting any service or repair.
Replace throat seals if fluid leaks excessively
through the weep tube (B), page 4. This procedure
can be done without disassembling entire
reciprocator.
32
44
8
3
35
15
19
11
Torque to 170 - 180 in-lbs (19-20 N.m)
4
ti10463a
1
1Lips face down.
Torque to 54-56 ft-lbs (73-76 N.m).
3
4
27
10

Service
312350E 11
Disconnecting Reciprocator and Displacement Pump
See FIG. 6 and Displacement Pump Parts, page 18.
FIG. 6
1. Flush pump if possible and stop it with displacement
rod in lowest position.
2. Relieve pressure, page 7.
3. Disconnect outlet hose from displacement pump.
4. Slowly loosen hydraulic supply (60) and return (5)
fittings to relieve any pressure. Then remove hoses.
5. Install plugs on tube fittings and in hose ends.
6. Check o-rings (5a and 60a) on fittings and replace
them if they are worn or damaged.
See FIG. 4 and Reciprocator parts drawing,
page 18.
7. Using a strap wrench on displacement cylinder
(109) screw it out of motor housing (43) and slide it
down as far as it will go.
8. Pull connecting rod (35) down as far as it will go.
Remove pin (204).
9. Unscrew connecting rod (107) to remove pump.
336, 37
32
43
46
(hidden
from view)
204
35
5
60
ti10602a ti10610a
107

Reciprocator Repair
12 312350E
Reciprocator Repair
See FIG. 7 and FIG. 9 and Reciprocator Parts, page 18. Drain Oil Out of Reciprocator
Before you begin, drain oil out of reciprocator.
1. Relieve pressure, page 7.
2. Place reciprocator in a drain pan.
FIG. 7
See FIG. 7 for steps 1-3, except where noted.
1. Place adapter (43) in a vise. Remove four cap-
screws (46). Pull bottom cap (32) off adapter (43). If
needed, replace seals as described on page 10.
2. Loosen both nuts on fluid tube (45). Use a wrench to
rotate tube fittings (1, 60) to the side and then
remove tube (45). Check o-rings (1a, 60a) on fittings
and replace them if they are worn or damaged.
Install plugs in fittings to prevent contamination. See
FIG. 4 and Reciprocator Parts drawing, page 18.
3. Remove capscrew (3), nuts (36) and lockwashers
(37) on top of reciprocator.
• Clean and inspect all parts for wear or damage.
Replace worn parts as needed. For best
results, always replace all the o-rings and seals
when you disassemble the pump. Repair Kit
247455 is available. Parts included in the kit
are marked with an asterisk, for example (23*),
in the text and drawings. Always replace seals
(23* and 24*) and seals (16* and 44*) together.
• Assembly tool 189305 is required for reassem-
bling the reciprocator.
•Loctite
®242 thread sealant and Loctite®
Primer T or Perma-Loc®115 thread sealant
and Perma-Bond®Surface Conditioner I are
required. Be sure their shelf life is within the
manufacturer’s recommendations.
• Use Loctite®609 on yoke (9) and rod (12) on
page 13, step 9 only. Use Loctite®242 or
Perma-Loc®115 on other threaded surfaces as
required.
3, 39, 2
36, 37
32
43
46 (hidden from view)
ti10602a

Reciprocator Repair
312350E 13
FIG. 8
See FIG. 8 and Reciprocator Parts page 18 for steps
4-20, except where noted.
4. Tap bottom of displacement rod (34) with a plastic
mallet to loosen cylinder (25).
5. Grasp valve spool (31) and pull it off cylinder and tie
rods (38). Pull cylinder and piston off bottom cap
(32). It is not necessary to remove tie rods from bot-
tom cap.
6. Lay assembly on its side. Place a clean rag around
yoke (9) to prevent losing detent balls. Slide yoke (9)
sideways off valve sleeve (29) while holding the
balls (7) and spring (6) in place.
7. Slide cylinder (25) off displacement rod (34). Hold
hex end of displacement rod in a vise and use a
spanner wrench in pin holes of the piston (22) to
screw it off the rod.
FIG. 9
8. (FIG. 9) Visually inspect the spring (21). If there is
wear or damage, remove nut (18), spring (21) and
retainers (20) from trip rod (12). Reassemble with a
retainer (20) on each end of the new spring (21).
You must thread nut onto rod until it runs out of
thread, so that it bottoms out on rod’s shoulder.
9. Apply fresh Loctite®609 thread sealant to first two
or three internal threads of yoke (9). Apply primer to
external threads of rod (12). Let primer dry for 3-4
minutes. Assemble, torquing screw to 54-56 in-lbs
(6.1 to 6.3 N.m). Remove excess sealant.
Allow 24 hours to cure before operating
reciprocator.
3, 39, 2
36, 37
30
31 13*
29
26
6, 7
9
51
12
22
25
24*
23*, 49*
20
21
32
18
20
13*
34
45
17
1
2
2
1Torque to 40 to 48 ft-lbs (54 to 65 N.m)
Torque to 54 to 56 in-lbs (6.1 to 6.3 N.m)
ti10605a
38
• If you are re-using or reassembling any parts,
use a surface cleaner such as chlorinated sol-
vent on the threads and blow with compressed
air. A 1/4-28 UNF-2A tap can be used to
remove adhesive from internal threads of yoke
(9).
• Thread sealant and primer are required. See
Reciprocator Repair Notes, page 12 for specifi-
cations. Loctite®609 is used only in Step 9.
12
20
21
20
18
ti10605a

Reciprocator Repair
14 312350E
10. Clean all sealant from threads of any part you are
reusing. Apply Loctite®242 or Perma-Loc®115
thread sealant to first two or three internal threads of
valve assembly (31).
If you removed capscrew (51) apply thread sealant
to first two or three internal threads of valve stop
(26). Apply primer to external threads of valve
sleeve (29). Let dry for three or four minutes.
Assemble. Remove excess sealant.
11. Remove o-ring (13*) from bottom of spool valve (31)
and replace it with a new o-ring.
12. Use a spanner wrench to screw piston (22) onto
displacement rod (34). Torque to 40 to 48 ft-lb (54 to
65 N.m).
See FIG. 10 for steps 13-16.
13. Lay Assembly A and Assembly B on work bench.
14. Slide Assembly B in into center of tool (D), Part No.
189305. Align upper detent holes (C) of yoke (9)
with center line of tool (D).
15. Insert spring (6) and one ball (7) into valve stop (26)
of Assembly A. Tilt valve stop and start guiding it
into tool (D), making sure ball is sliding into rounded
slot in tool (D). Place other ball at the other end of
spring and push it in with your thumb while rotating
valve stop (26) until spring is horizontal and balls
are in place. Continue holding this assembly
together.
16. Slide valve stop assembly down into tool. Make sure
balls (7) snap into upper set of holes (C) in yoke (9)
and curved ends of guide clamp have engaged
valve sleeve (29) groove. Slide tool (D) back over
rod (12) to remove it.
FIG. 10
Allow 24 hours to cure before operating
reciprocator.
9
ti10606a
12
D
C
7
6
Assembly A
Assembly B
31
26
51
29

Reciprocator Repair
312350E 15
FIG. 11
See FIG. 11 for steps 17- 24 except where noted.
17. Place adapter (43) in a vise. Install seals as
described on page 10. Install cylinder cap (32).
18. If tie rods (38) were removed, reinstall them with
short threaded end up. The other end should be
screwed about 9/16” into bottom cylinder cap (32).
19. Place cylinder (25) on cylinder cap (32). Install pis-
ton (22) and valve assembly (31).
20. Install o-ring (49*) in deep, lower groove of piston
(22). Install seal (23*) over o-ring. Install piston
bearing (24*) around upper groove of piston. Hold-
ing piston bearing in place to avoid damage, slide
cylinder over piston and press it down.
21. Install capscrew (3), o-ring (39) and washer (2).
Install lockwashers (37) and nuts (36). Torque nuts
to 28 to 32 ft-lb (38 to 43 N.m).
22. Reinstall fluid tube (45) and fittings (1). Torque fit-
tings to 28 to 32 ft-lb (38 to 43 N.m). See Reciproca-
tor Parts drawing, page 18.
.
FIG. 12
23. To reconnect reciprocator and pump, install o-ring
(17). Screw connecting rod (35) into displacement
rod (34). Install cotter pin (204). Install a new gasket
(202*). Push cylinder up into adapter and engage
the threads. Screw in pump using a strap wrench for
the final tightening (See FIG. 12 and Pump Parts,
page 20).
24. Connect hydraulic supply and return hoses to fit-
tings (5, 60).
3, 39, 2
36, 37
31 13*
25
32
18
20
13*
17
38
43
35
ti10605a
When reinstalling cylinder (25), Step 19, be sure
port in valve spool (31) and port in the bottom
cylinder cap (32) are in line with each other. Be
sure o-rings (13*) are in place in valve spool and
cylinder cap.
Make sure the displacement rod (35) on the
assembled reciprocator is exposed so the pump
can be connected to it.
To reduce risk of static sparking, be sure to recon-
nect ground wire before operating pump.
35
204
ti10610a

Displacement Pump Repair
16 312350E
Displacement Pump Repair
Disassembly
See FIG. 13 for steps 1-10, except where noted.
1. If possible, flush pump. Relieve pressure, page 7.
2. Follow instruction for Disconnecting the Recipro-
cator and Displacement Pump, page 11.
3. Clamp pump in vise.
4. Use strap wrench to screw shovel tube (117) off
pump cylinder (109).
5. Use wrench to screw shovel (116) off of shovel rod
(108).
6. Use strap wrench on pump cylinder (109) to screw it
out of extension tube (114). Screw tube connector
(113) out of pump cylinder. Remove bearing (111†)
and seal (112†).
7. Screw the shovel rod (108) out of the piston (101).
Remove lower ball (106†). Screw piston out of
extension rod (107). Remove upper ball (106†),
retaining washer (103) and seal (104†).
8. Clean all the parts in a compatible solvent and
inspect them for wear or damage. Use all parts in
the repair kit, replace other parts as necessary.
9. Generously lubricate all parts with light, water-resis-
tant grease and reassemble pump. See provided
notes on FIG. 13 for torque values.
• Be sure you have all necessary parts on hand
before you start. If using a repair kit, use all
parts in the kit for the best results.
• Displacement Pump Repair Kit 241623 is avail-
able. Parts included in the kit are marked with a
dagger (†) symbol in the parts drawing and list,
page 20.
CAUTION
To avoid damaging shovel tube, do not use slots in
tube to tighten or loosen tube. To reduce risk of static sparking, be sure to recon-
nect ground wire before operating pump.

Displacement Pump Repair
312350E 17
FIG. 13
117
116
108
113
111†
112†
109
102
106†
104†
103
110†
106†
114
107
Assembled / Cutaway View
Using nut (113), torque the pump cylinder 109 to the extension tube (114) at 45 to 55 ft-lb (61 to 75 N.m).
1
Torque the shovel rod (108) to the piston (102) at 25 to 30 ft-lb (34 to 41 N.m).
3
Torque the piston (102) to the extension rod (107) at 25 to 30 ft-lb (34 to 41 N.m).
4
1
4
7
3
7
Assemble with lips facing up.
7
ti10608a
ti10609a

Reciprocator Parts
18 312350E
Reciprocator Parts
36
37
3
39
2
30
60
4
5
61
66
60a
5a
45
29 9
76
51
12
1
13
25
40
13
14
32
34
38
18
20
21
20
23
17
49
22
24
58
26
1a
43
16
35
44
8
28
27
15
46
52
11
19
31
4
5
3
6
5
5
1
6
6
2
Torque to 170-180 in-lbs (19-20 N.m)
1
Torque to 42-45 in-lbs (4-5 N.m).
2
Torque to 54-56 ft-lbs (73-76 N.m).
3
Torque to 54-56 in-lbs (6.0-6.5 N.m).
4
Torque to 40-48 ft-lbs (54-65 N.m)
5
Torque to 28-32 ft-lbs (38-43 N.m).
6
Assemble with lips facing up.
7
Assemble with lips facing down.
8
7
8
4
17
10
ti10462a
71

Reciprocator Parts
312350E 19
Reciprocator Parts
▲Replacement Danger and Warning labels, tags, and cards
are available at no cost.
* These parts and items 202 on page 20 are included in Kit
247455 (purchase separately).
† These parts are included in Kit 241623 (purchase sepa-
rately).
Assembly Tool 189305 required for repairing the
reciprocator.
Displacement Pump Parts
See FIG. 13, page 17.
Model 247540, 60# Automatic Lube Pump
Module Length
Model 247443, 120# Drum Length
Model 247450, 400# Drum Length
† These parts are included in Kit 241623 (purchase sepa-
rately).
Ref.
No. Part No. Description Qty.
1 106470 ELBOW, straight thread, 3/4-16
unf-2a x 3/4-16 unf-2a, 37° flare
includes item 1a
1
1a 110987 O-RING 1
2 178179 WASHER, sealing 1
3 160276 CAPSCREW, hex hd, 3/8-24 x 5/8” 1
4* 104093 O-RING 1
5 112568 ADAPTER, pip, 3/4 unf (m) 1/2 npt
(f), steel, includes item 5a
1
5a 110987 O-RING 1
6 108437 SPRING, compression, steel 1
7 100069 BALL, 1/4” dia. steel 2
8 ADAPTER, pump 1
9 189077 YOKE, valve 1
10* GASKET, seal 1
11 192537 NUT, retainer 1
12 ROD, trip 1
13* 106274 O-RING, buna-N 2
14 116343 SCREW, grounding 1
15 113194 SCREW, cap, socket hd 2
16* 108952 PACKING, v-block 1
17 105765 O-RING 2
18 114231 LOCKNUT, hex, 1/4-28 unf-3b steel
and nylon
1
19 193757 BEARING 1
20 RETAINER, spring 2
21 178189 SPRING, compression, steel 1
22 192656 PISTON, cs 1
23* 178226 SEAL, piston, glass-filled PTFE 1
24* 178207 BEARING, piston, bronze-filled
PTFE
1
25 178229 CYLINDER, motor, cs 1
26 192654 STOP, valve, cs 1
27 105510 WASHER, lock, spring 1
28 100139 PLUG, pipe 1
29 189072 SLEEVE, valve, steel 1
30 178181 PLATE, cap 1
31 187176 CAP, cylinder, top 1
32 186225 CAP, cylinder, bottom 1
34 188078 ROD, displacement 1
35 ROD, displacement 1
36 100307 NUT, full, hex; 3/8-16 unc-2b 4
37 100133 LOCKWASHER, 3/8” 4
38 187405 ROD, tie, 8.5” shoulder to shoulder,
3/8-16 unc-2a, cs
4
39 155685 O-RING 1
40▲179885 LABEL, Warning 1
43 HOUSING, motor 1
44*† 114179 PACKING, u-cup 1
45 217221 TUBE, inlet 1
46 120557 CAPSCREW, sch, 3/18-16
unc-2a x 4.5”
4
49* 108014 PACKING, o-ring 1
51 104092 CAPSCREW, sch; 10-24,
unrc-3a x 5/8”
2
52 106115 LOCKWASHER, spring, 3/8” 4
58 110064 PLUG, pipe, vented, 1/8-27 npt (f) 1
60 107197 TEE, includes item 60a 1
60a 110987 O-RING 1
61 192653 VALVE, spool 1
66 103147 PLUG, pipe 1
71▲189285 LABEL, hot surface 1
Ref
No. Part No. Description Qty
102 196184 PISTON, 50:1 1
103 196185 WASHER, retainer 1
104† 114171 PACKING, u-cup 1
106† 100065 BALL 1
107 15R104 ROD, connecting, model 247540 1
15M382 ROD, connecting, model 247443 1
15M445 ROD, connecting, model 247450 1
108 192540 ROD, shovel, 50:1 1
109 192538 CYLINDER, pump, 50:1 1
110† 192533 GASKET, seal 1
111† 192534 BEARING 1
112† 114178 PACKING, u-cup 1
113 192531 RETAINER, seal 1
114 15R103 TUBE, spacer, model 247540 1
15M381 TUBE, spacer, model 247443 1
15M444 TUBE, spacer, model 247450 1
116 192660 PISTON, shovel, 50:1 1
117 192539 TUBE, shovel 1
Ref.
No. Part No. Description Qty.

Pump Parts
20 312350E
Pump Parts
Model 247540
60# Automatic Lube Pump Module Length
Model 247443
120# Drum Length
Model 247450
400# Drum Length
▲Replacement Danger and Warning labels, tags, and
cards are available at no cost.
* These parts are included in Kit 247455 (purchase
separately). See page 18 for other parts included in
this kit.
Coupling joint should have free play after pin (204) is installed
3
201
206
202*
204
205
ti10461a
2
3
Apply thread lubricant, Part No. 070268 to threads and torque to
45-55 ft. lbs (61.0 to 74.5 N.m)
2
Ref
No. Part No. Description Qty
201 RECIPROCATOR, page 18 1
202* 192533 SEAL, gasket 1
204 112154 PIN 1
205 DISPLACEMENT PUMP 1
206▲183741 LABEL, identification 1
Ref
No. Part No. Description Qty
201 RECIPROCATOR, page 18 1
202* 192533 SEAL, gasket 1
204 112154 PIN 1
205 DISPLACEMENT PUMP 1
206▲183741 LABEL, identification 1
Ref
No. Part No. Description Qty
201 RECIPROCATOR, page 18 1
202* 192533 SEAL, gasket 1
204 112154 PIN 1
205 DISPLACEMENT PUMP 1
206▲183741 LABEL, identification 1
