Instructions-Parts List
ACETAL®
Husky™ 515 Air-Operated Dual Inlet
Diaphragm Pump
Used to evacuate and transfer fluids. For professional use only.
100 psi (0.7 MPa, 7 bar) Maximum Fluid Working Pressure
100 psi (0.7 MPa, 7 bar) Maximum Air Input Pressure
Part No.243669, Series C
II 2 GD
Ex h IIC 66°...135°C Gb
Ex h IIIC T135°C Db
ATEX T-code rating is dependent on the temperature
of the fluid being pumped. Fluid temperature is limited
by the materials of the pump interior wetted parts. See
Technical Data for the maximum fluid operating
temperature for your specific pump model.
TI0476
309204L
EN
Important Safety Instructions
Read all warnings and instructions in the manual.
Save these instructions.
Patents Pending
GracoHusky.ir
GracoHusky.ir

2 309204
Table of Contents
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 18
Torque Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Husky 515 Performance Charts . . . . . . . . . . . . . . . . . 23
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . 26
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Symbols
Warning Symbol
Caution Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
EQUIPMENT MISUSE HAZARD
• Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
• This equipment is for professional use only.
• Read all instruction manuals, tags, and labels before operating the equipment.
• Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
• Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not exceed the maximum working pressure of the lowest rated component in your system. This
equipment has a 100 psi (0.7 MPa, 7 bar) maximum working pressure at 100 psi (0.7 MPa, 7 bar)
maximum incoming air pressure.
• Use fluids and solvents that are compatible with the equipment wetted parts. Refer to the Technical
Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
• Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82°C (180°F) or below –40°C (–40°F).
• Wear hearing protection when operating this equipment.
• Do not lift pressurized equipment.
• Comply with all applicable local, state, and national fire, electrical, and safety regulations.
• Do not use 1.1.1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.
INSTRUCTIONS
GracoHusky.ir
GracoHusky.ir

309204 3
WARNING
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
• Know the specific hazards of the fluid you are using.
• Do not lift a pump under pressure. If dropped, the fluid section may rupture. Always follow the Pressure
Relief Procedure on page 10 before lifting the pump.
• Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state
and national guidelines.
• Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
• Pipe and dispose of the exhaust air safely, away from people, animals, and food handling areas. If the
diaphragm fails, the fluid is exhausted along with the air. Read Air Exhaust Ventilation on page 6.
•Never use an acetal pump to pump acids. Take precautions to avoid acid or acid fumes from contacting
the pump housing exterior. Stainless steel parts will be damaged by exposure to acid spills and fumes.
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result
in a fire or explosion and serious injury.
• Ground the equipment. Refer to Grounding on page 8.
• Never use a polypropylene or PVDF pump with non-conductive flammable fluids as specified by your
local fire protection code. Refer to Grounding on page 8 for additional information. Consult your fluid
supplier to determine the conductivity or resistivity of your fluid.
• If there is any static sparking or you feel an electric shock while using this equipment, stop pumping
immediately. Do not use the equipment until you identify and correct the problem.
• Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid being
pumped.
• Pipe and dispose of the exhaust air safely, away from all sources of ignition. If the diaphragm fails,
the fluid is exhausted along with the air. Read Air Exhaust Ventilation on page 6.
• Keep the work area free of debris, including solvent, rags, and gasoline.
• Electrically disconnect all equipment in the work area.
• Extinguish all open flames or pilot lights in the work area.
• Do not smoke in the work area.
• Do not turn on or off any light switch in the work area while operating or if fumes are present.
• Do not operate a gasoline engine in the work area.
GracoHusky.ir
GracoHusky.ir

4 309204
Installation
General Information

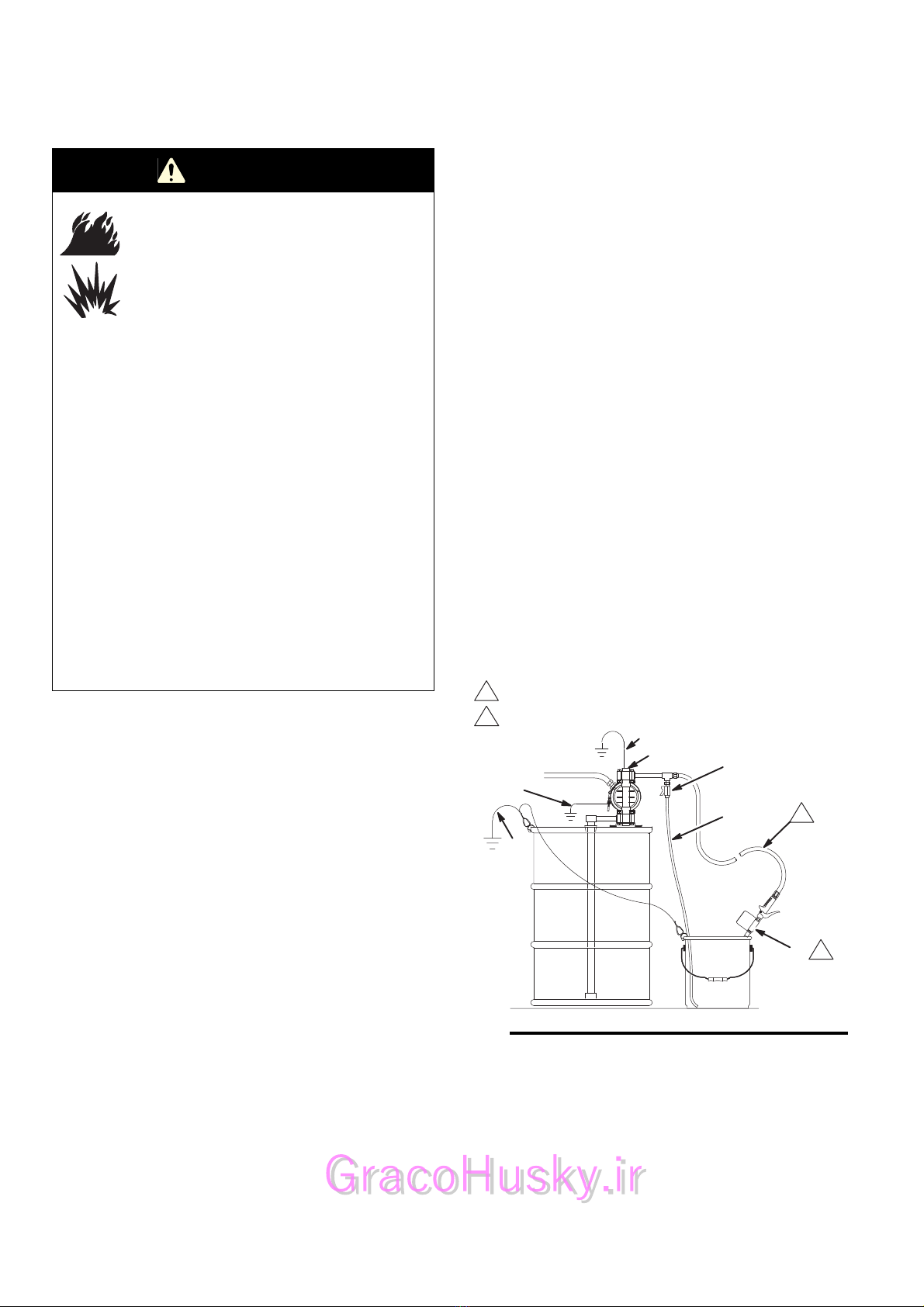

• The Typical Installations in Fig. 2 are only guides for
selecting and installing system components.
Contact your Graco distributor for assistance in
planning a system to suit your needs.
• Always use Genuine Graco Parts and Accessories.
• Use a compatible, liquid thread sealant on all male
threads. Tighten all connections firmly to avoid air or
fluid leaks.
Tightening Threaded Fasteners Before First
Use
Before using the pump for the first time, check and
retorque all external fasteners. See Torque Sequence
on page 20. After the first day of operation, retorque the
fasteners. Although pump use varies, a general
guideline is to retorque fasteners every two months.
Toxic Fluid Hazard
Use fluids and solvents that are compatible with the
equipment wetted parts. Refer to the Technical Data
section of all equipment manuals. Read the fluid and
solvent manufacturer’s warnings.
Mountings
• Be sure the mounting surface can support the
weight of the pump, hoses, and accessories, as well
as the stress caused during operation.
• Fig. 2 shows a typical installation. Mount the pump
using screws and nuts.
• Prolonged exposure to UV radiation will degrade
natural polypropylene components of the pumps. To
prevent potential injury or equipment damage, do
not expose pump or the plastic components to direct
sunlight for prolonged periods.
CAUTION
Safe Operating Temperatures
Minimum: 40°F (4°C)
Maximum: 180° F (82°C)
These temperatures are based upon mechanical stress only
and may be significantly altered by pumping certain chemicals.
Consult engineering guides for chemical compatibilities and
temperature limits, or contact your Graco distributor.
Read Toxic Fluid Hazard on
page 3.
GracoHusky.ir
GracoHusky.ir

309204 5
Installation
Air Line
1. Install the air line accessories as shown in Fig. 2.
Mount these accessories on the wall or on a
bracket. Be sure the air line supplying the
accessories is electrically conductive.
a. The fluid pressure can be controlled by installing
an air regulator (G).
b. Locate one bleed-type master air valve (B) close
to the pump and use it to relieve trapped air.
Read the WARNING above. Locate the other
master air valves upstream from all air line
accessories and use it to isolate them during
cleaning and repair.
c. The air line filter (F) removes harmful dirt and
moisture from the compressed air supply.
2. Install an electrically conductive, flexible air hose (C)
between the accessories and the 1/4 npt(f) pump air
inlet. Use a minimum 1/4” (6.3 mm) ID air hose.
Screw an air line quick disconnect coupler (D) onto
the end of the air hose (C), and screw the mating
fitting into the pump air inlet snugly. Do not connect
the coupler (D) to the fitting yet.
Fluid Suction Line
• If using a conductive (acetal) pump, use conductive
hoses. If using a non-conductive pump, ground the
fluid system. Read Grounding on page 8. The fluid
inlet ports are 3/4 in.
• At inlet fluid pressures greater than 15 psi (0.1 MPa,
1 bar), diaphragm life will be shortened.
1. Use electrically conductive fluid hoses (K). The
pump fluid outlet is 1/2 in. or 3/4 in. Screw the fluid
fitting into the pump outlet snugly. Do not
overtighten.
2. The fluid pressure can be controlled by installing an
air regulator (G).
3. Install a fluid drain valve (H) near the fluid outlet.
Read the WARNING above.
WARNING
A bleed-type master air valve (B) is required in your
system to relieve air trapped between this valve and the
pump. See Fig. 2. Trapped air can cause the pump to
cycle unexpectedly, which could result in serious injury,
including splashing in the eyes or on the skin, injury from
moving parts, or contamination from hazardous fluids.
CAUTION
The pump exhaust air may contain contaminants.
Ventilate to a remote area if the contaminants could
affect your fluid supply. Read Air Exhaust Ventilation
on page 6. WARNING
A fluid drain valve (H) is required in your system to
relieve pressure in the hose if it is plugged. See Fig. 2.
The drain valve reduces the risk of serious injury,
including splashing in the eyes or on the skin, or
contamination from hazardous fluids when relieving
pressure. Install the valve close to the pump fluid outlet.
GracoHusky.ir
GracoHusky.ir

6 309204
Installation
Fluid Pressure Relief Valve Air Exhaust Ventilation
The air exhaust port is 3/8 npt(f). Do not restrict the air
exhaust port. Excessive exhaust restriction can cause
erratic pump operation.
See Venting Exhaust Air in Fig. 2. Exhaust to a remote
location as follows:
1. Remove the muffler (W) from the pump air exhaust
port.
2. Install an electrically conductive air exhaust hose
(X) and connect the muffler to the other end of the
hose. The minimum size for the air exhaust hose is
3/8 in. (10 mm) ID. If a hose longer than 15 ft (4.57
m) is required, use a larger diameter hose. Avoid
sharp bends or kinks in the hose.
3. Place a container (Z) at the end of the air exhaust
line to catch fluid in case a diaphragm ruptures. See
Fig. 2.
CAUTION
Some systems may require installation of a pressure
relief valve at the pump outlet to prevent
overpressurization and rupture of the pump or hose.
See Fig. 1. Thermal expansion of fluid in the outlet
line can cause overpressurization. This can occur
when using long fluid lines exposed to sunlight or
ambient heat, or when pumping from a cool to a warm
area (for example, from an underground tank).
Overpressurization can also occur if the Husky pump
is being used to feed fluid to a piston pump, and the
intake valve of the piston pump does not close,
causing fluid to back up in the outlet line.
1
2
1
2
3
3
9073A
Fig.1
Install valve between fluid inlet and outlet ports.
Connect fluid inlet line here.
Connect fluid outlet line here.
Be sure the system is properly ventilated for your type
of installation. You must vent the exhaust to a safe
place, away from people, animals, food handling
areas, and all sources of ignition when pumping
flammable or hazardous fluids. Diaphragm failure will
cause the fluid being pumped to exhaust with the air.
Place an appropriate container at the end of the air
exhaust line to catch the fluid. See Fig. 2 .
Read Toxic Fluid Hazard on
page 3.
Read Fire and Explosion
Hazard on page3.
GracoHusky.ir
GracoHusky.ir

309204 7
Installation
A
B
D
Y
WX
Z
TI0478
Y
K
H
L
C
TI0477B
G
F
Fig.2
TYPICAL PUMP INSTALLATION
KEY
A Pump
B Bleed--type master air valve (required for
pump)
C Electrically conductive air supply line
D Air line quick disconnect
F Air line filter
G Pump air regulator
H Fluid drain valve (required)
K Electrically conductive fluid supply hose
L Fluid suction lines
Y Ground wire (required; see page 8
for installation instructions)
KEY
W Muffler
X Electrically Conductive Air Exhaust Hose
Z Container for Remote Air Exhaust
All wetted and non-wetted pump parts must be
compatible with the fluid being pumped.
VENTING EXHAUST AIR
GracoHusky.ir
GracoHusky.ir

8 309204
Installation
Grounding
To reduce the risk of static sparking, ground the pump
and all other equipment used or located in the pumping
area. Check your local electrical code for detailed
grounding instructions for your area and type of
equipment.
NOTE: When pumping conductive flammable fluids,
always ground the fluid system. See the WARNING
above. Fig. 3 shows a recommended method of grounding
flammable fluid containers during filling.
Ground all of this equipment:
•Pump: The acetal pump has a grounding screw on
the top manifold. Connect the non-clamp end of the
ground wire to the grounding strip or grounding
screw, and connect the clamp end of the ground
wire to a true earth ground. To order a ground wire
and clamp, order Part No. 222011.
•Air and fluid hoses: Use only electrically conductive
hoses.
•Air compressor: Follow the manufacturer’s
recommendations.
•Solvent pails used when flushing: Follow the local
code. Use only grounded metal pails, which are
conductive. Do not place the pail on a non-
conductive surface, such as paper or cardboard,
which interrupts the grounding continuity.
•Fluid supply container: Follow the local code.
WARNING
The acetal Husky 515 pump contains stainless steel
fibers, which makes the wetted parts conductive.
Attaching the ground wire to the grounding screw
(106) grounds the wetted parts. See grounding
screw on page 18.
When pumping conductive flammable fluids, always
ground the entire fluid system by making sure the fluid
system has an electrical path to a true earth ground
(see Fig. 3). Never use a polypropylene or PVDF
pump with non-conductive flammable fluids as
specified by your local fire protection code.
US Code (NFPA 77 Static Electricity) recommends a
conductivity greater than 50 x 10 -12 Siemans/meter
(mhos/meter) over your operating temperature range
to reduce the hazard of fire. Consult your fluid supplier
to determine the conductivity or resistivity of your fluid.
The resistivity must be less than 2 x 1012 ohm-
centimeters.
9079A
2
A
H
S
T
Z
1
2
1
Y
Y
Fig.3
GROUNDING A PUMP
KEY
A Pump
H Fluid drain valve (required)
S Dispense valve
T Fluid drain line
Y Fluid section grounding via grounding strip or grounding
screw (required for metal and acetal pumps)
Z Container ground wire (required)
Hose must be conductive.
Dispense valve nozzle must be in contact with container.
FIRE AND EXPLOSION HAZARD
This pump must be grounded. Before
operating the pump, ground the system
as explained below. Also read the section
FIRE AND EXPLOSION HAZARD on
page 3.
GracoHusky.ir
GracoHusky.ir

309204 9
Installation
Changing the Orientation of the Fluid Outlet
Port
You can change the orientation of the fluid outlet port by
repositioning the manifold. See Fig. 4.
1.
2. Remove the four manifold nuts (109).
3. Turn the manifold to the desired position, reinstall
the nuts, and torque to 80 to 90 in-lb (9 to 10 N•m).
See Torque Sequence on page 20.
NOTE: Make sure all manifold o-rings are positioned
correctly before you fasten the manifold. Manifold o-
rings (139) are shown in Fig. 6 and Fig. 8.
Relieve the pressure. See
Pressure Relief Procedure on
page 10.
1
1
109
TI0476
Fig.4
Torque to 80 to 90 in-lb (9–10N•m). See Torque
Sequence, page 20.
inlet
inlet
outlet
GracoHusky.ir
GracoHusky.ir

10 309204
Operation
Pressure Relief Procedure
1. Shut off the air to the pump.
2. Open the dispensing valve, if used.
3. Open the fluid drain valve to relieve all fluid
pressure, and have a container ready to catch the
drainage.
Flush Pump Before First Use
The pump was tested in water. If water could
contaminate the fluid you are pumping, flush the pump
thoroughly with a compatible solvent. Follow the steps
under Starting and Adjusting Pump.
Starting and Adjusting Pump
1.
2.
3.
4. Check all fittings to be sure they are tight. Use a
compatible liquid thread sealant on all male threads.
Tighten the fluid inlet and outlet fittings snugly. Do
not overtighten the fittings into the pump.
5. Place the suction tube (if used) in the fluid to be
pumped.
NOTE: If the inlet fluid pressure to the pump is more
than 25% of the outlet working pressure, the ball check
valves will not close fast enough, resulting in inefficient
pump operation.
6. Close the fluid drain valve (H).
7. With the pump air regulator (G) closed, open all
bleed-type master air valves (B).
8. If the fluid hose has a dispensing device, hold it open
while continuing with the following step. Slowly open
the air regulator (G) until the pump starts to cycle.
Allow the pump to cycle slowly until all air is pushed
out of the lines and the pump is primed.
If you are flushing, run the pump long enough to
thoroughly clean the pump and hoses. Close the air
regulator. Remove the suction tube from the solvent
and place it in the fluid to be pumped.
WARNING
PRESSURIZED EQUIPMENT HAZARD
The equipment stays pressurized until pressure is
manually relieved. To reduce the risk of serious injury
from pressurized fluid, accidental spray, or splashing
fluid, follow this procedure whenever you:
• Are instructed to relieve pressure
• Stop pumping
• Check, clean, or service any system equipment
• Install or clean fluid nozzles
Read Toxic Fluid Hazard
on page 3.
If lifting the pump, follow the
Pressure Relief Procedure above.
Be sure the pump is
properly grounded.
Read Fire and
Explosion Hazard on
page 3.
At the end of the work shift, relieve
the pressure as described in
Pressure Relief Procedure at left.
GracoHusky.ir
GracoHusky.ir

309204 11
Maintenance
Lubrication
The air valve is lubricated at the factory to operate
without additional lubrication. If you want to provide
additional lubrication, remove the hose from the pump
air inlet and add two drops of machine oil to the air inlet
every 500 hours of operation or every month.
Flusing and Storage
Flush the pump to prevent the fluid you are pumping
from drying or freezing in the pump and damaging it.
Use a compatible solvent.
Always flush the pump and relieve the pressure before
you store it for any length of time.
Tightening Threaded Connections
Before each use, check all hoses for wear or damage and
replace as necessary. Check to be sure all threaded
connections are tight and leak-free. Check fasteners.
Tighten or retorque as necessary.
Although pump use varies, a general guideline is to
retorque fasteners every two months. See Torque
Sequence on page 20.
Preventative Maintenance Schedule
Establish a preventive maintenance schedule, based on
the pump’s service history. This is especially important
for prevention of spills or leakage due to diaphragm
failure.
CAUTION
Do not over-lubricate the pump. Oil is exhausted through
the muffler, which could contaminate your fluid supply or
other equipment. Excessive lubrication can also cause
the pump to malfunction.
Read Pressure Relief Procedure
on page 10.
GracoHusky.ir
GracoHusky.ir

12 309204
Troubleshooting
PROBLEM CAUSE SOLUTION
Pump will not cycle, or cycles
once and stops.
Air valve is stuck or dirty. Use filtered air.
Pump cycles at stall or fails to
hold pressure at stall.
Leaky check valves or o-rings. Replace.
Worn check balls or duckbill valves or guides. Replace.
Check ball wedged in guide. Repair or replace.
Worn diaphragm shaft seals. Replace.
Pump operates erratically. Clogged suction line. Inspect; clear.
Sticky or leaking check valve balls. Clean or replace.
Diaphragm ruptured. Replace.
Air bubbles in fluid. Suction line is loose. Tighten.
Diaphragm ruptured. Replace.
Loose manifolds or damaged manifold
o-rings.
Tighten manifold bolts or nuts;
replace o-rings.
Loose fluid side diaphragm plates. Tighten.
Fluid in exhaust air. Diaphragm ruptured. Replace.
Loose fluid side diaphragm plates. Tighten.
Worn diaphragm shaft seals. Replace.
Pump leaks fluid from check
valves.
Worn or damaged check valve o-rings. Inspect; replace.
Read Pressure Relief Procedure on page 10, and relieve the pressure before you check or service
the equipment. Check all possible problems and causes before disassembling the pump.
GracoHusky.ir
GracoHusky.ir

309204 13
Service
Air Valve
NOTE: Air Valve Repair Kit 241657 is available. Order repair kit separately. Parts included in the kit are marked with
a dagger () in Fig. 5 and in the Parts Drawings and Lists. A tube of general purpose grease 111920 is supplied in the
kit. Service the air valve as follows. See Fig. 5.
2. Remove the cover (10) and the o-ring (4).
3. Remove the carriage plungers (7), carriages (8),
carriage pins (9), and valve plate (14) from the
center housing (11).
4. Clean all the parts, and inspect them for wear or
damage.
NOTE: If you are installing the new Air Valve Repair Kit
241657, use all the parts in the kit.
5. Grease the lapped surface of the valve plate (14),
and install the valve plate with the lapped surface
facing up.
6. Grease the bores of the center housing (11), install
the u-cup packings (2) on the carriage plungers (7),
and slide the carriage plungers into the carriage
plunger bores. See the following important
installation notes:
NOTES:
• When you install each u-cup packing (2) on each
carriage plunger (7), make sure the lips of the u-cup
packing face toward the clip end (the smaller end) of
the carriage plunger.
• When you slide the carriage plungers (7) into the
bores, slide them in with the clip ends (the smaller
ends) facing toward the center of the center housing
(11).
7. Grease the carriage pins (9), and slide the carriage
pins into the carriage pin bores.
8. Install the carriages (8). Make sure the carriages
engage the clip ends of the carriage plungers (7)
and carriage pins (9).
9. Grease the o-ring (4), and seat it in the groove
around the cover opening of the center housing
(11).
10. Screw the cover (10) into the center housing, and
torque the cover to 80 to 100 in-lb (9.0 to 13.6 N-m).
1. Relieve the pressure. See
Pressure Relief Procedure on
page 10.
1
2
9
14
2
8
7
9
8
2
7
4
10
1
3
3
4
4
4
2
11
2
2
5
5
5
6
9069A
4 6
4 6
Fig.5
NOTE: Center housing (11) is shown
separated from the air covers, but it is
not necessary to remove the air covers
for this service. Leave the center
housing and air covers assembled for
this service.
Included in Air Valve Repair Kit 241657
Torque to 80 to 100 in-lb (9.0 to 13.6 N-m).
Apply grease.
Apply grease to lapped face.
Apply grease to bores of center housing (11) before installing.
Seal lips face clip end (the smaller end) of carriage plunger (7).
Install with the clip ends (the smaller ends) facing toward center of center
housing (11).
GracoHusky.ir
GracoHusky.ir

14 309204
Service
103
139
202
201
301
139
201
301
202
109
109
1
1
1
102
139
139
TI0479
Fig.6
Torque to 80 to 90 in-lb (9 to 10 N-m). See
Torque Sequence, page 20.
GracoHusky.ir
GracoHusky.ir

309204 15
Service
Diaphragms
NOTE: Fluid Section Repair Kit D05277 is available. Order repair kit separately. Parts included in the kit are marked
with a double dagger (‡) in Fig. 7 and in the Parts Drawings and Lists. General purpose grease 111920 and Adhesive
113500 are supplied in the kit. Service the diaphragms as follows. See Fig. 7.
Disassembly
2. Remove manifolds (102 and 103) and fluid covers
(101).
NOTE: Make sure all the check valve parts stay in
place. See Fig. 6 on page 14.
3. Remove one of the fluid-side diaphragm plates
(105) (whichever one comes loose first when you
use a wrench on the hex of each), and pull the
diaphragm shaft (15) out of the center housing (11).
4. Use a wrench on the flats of the diaphragm shaft
(15) to remove the other fluid-side diaphragm plate
(105) from the diaphragm shaft.
5. Remove the screws (106), remove the left (114) and
right (113) air covers, and remove all old gasket (12)
material from the ends of the center housing (11)
and the surfaces of the air covers.
6. Remove the diaphragm shaft u-cups (16) and pilot
pin o-rings (1).
7. Inspect all parts for wear or damage, and replaceas
necessary.
Reassembly
1. Insert a diaphragm shaft u-cup (16) and a pilot pin o-
ring (1) into the bores of the center housing (11).
NOTE: Make sure the lips of the u-cup face out of
the center housing.
2. Line up the holes in the gasket (12) with the holes in
the end of the center housing (11), and use six screws
(106) to fasten an air cover (113 or 114) to the end of
the center housing (11). Torque the screws to 35 to 45
in-lb (4.0 to 5.1 N-m).
3. Position the exhaust cover (13) and o-ring (4) on the
center housing (11).
4. Repeat steps 1 and 2 for the other end of the center
housing and the remaining air cover.
5. Apply medium-strength (blue) thread sealent to the
threads of the fluid-side diaphragm plates (105).
Install on one end of the diaphragm shaft (15) the
following parts (see proper order in Fig. 7): air-side
diaphragm plate (6) diaphragm (401), and fluid-side
diaphragm plate (105).
NOTE: The words “AIR SIDE” on the diaphragm
(401) and the flat side of the air-side diaphragm
plate (6) must face toward the diaphragm shaft (15).
6. Put grease on the diaphragm shaft (15), and
carefully (do not damage the shaft u-cups) run the
diaphragm shaft (15) through the center housing
(11) bore.
7. Repeat step 5 for the other end of the diaphragm
shaft (15), and torque the fluid-side diaphragm
plates (105) to 80 to 90 in-lb (9 to 10 N-m) at 100
rpm maximum.
8. Install the muffler (3).
9. Make sure all the check valve parts are in place.
See Fig. 6 on page 14.
10. Reinstall the fluid covers (101) and manifolds (102
and 103), and torque the fluid cover and manifold
nuts (109) to 80 to 90 in-lb (9 to 10 N-m). See
Torque Sequence on page 20.
1. Relieve the pressure. See
Pressure Relief Procedure on
page 10.
GracoHusky.ir
GracoHusky.ir

16 309204
Service
6
12
16
109
105 401
102
109
101
15
11
114
106
103
1
2
3
4
1
1
2
3
4
5
5
6
6
7
7
7
7
109
4
13
3
TI0481
Fig.5
Included in Fluid Section Repair Kit
D05277
Install with lips facing out of center
housing (11).
Torque to 35 to 45 in-lb (4.0 to 5.1 N-m).
Apply grease.
The words “AIR SIDE” on diaphragm
must face toward diaphragm shaft (15).
Flat side of air-side diaphragm plate
must face toward diaphragm shaft (15).
Apply medium-strength (blue) thread
sealant to threads, and torque to 80 to
90 in-lb (9 to 10 N-m) at 100 rpm
maximum.
Torque to 80 to 90 in-lb (9 to 10 N-m).
See Torque Sequence, page 20.
GracoHusky.ir
GracoHusky.ir

309204 17
Notes
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
GracoHusky.ir
GracoHusky.ir

18 309204
Parts
6
12
9
11
1
4
13
3
14
4
8
72
10
15
16
106
111
109
139
202
201
301
139
201
301
202
115
101
109
105 401
103
114
106
113
101
116
139
139
TI0481
104
102
109
117
9
82
7
Included in Air Valve Repair Kit 241657
Included in Fluid Section Repair Kit
D05277
grounding screw
(acetal pump only)
GracoHusky.ir
GracoHusky.ir

309204 19
Parts
† Included in Air Valve Repair Kit 241657
‡Included in Fluid Section Repair Kit D05277.
Ref.
No. Part No. Description Qty
1‡ 114866 PACKING, o-ring 2
2† 108808 PACKING, u-cup 2
3112933 MUFFLER 1
4t 162942 PACKING, o-ring 2
6195025 PLATE, diaphragm, air side 2
7† 15Y825 PLUNGER, carriage 2
8† 192595 CARRIAGE 2
9† 192596 PIN, carriage 2
10 192597 COVER, valve chamber 1
11 192602 HOUSING, center 1
12† 192765 GASKET 2
13 194247 COVER, exhaust 1
14† 194269 PLATE, valve 1
15 192601 SHAFT, diaphragm 1
16‡ 108808 PACKING, u-cup 2
101 192559 COVER, fluid; acetal 2
102 194347 MANIFOLD, inlet; acetal; NPT 2
103 192562 MANIFOLD, outlet; acetal; NPT 1
104 194362 PLUG; acetal; 3/4 NPT 2
Ref.
No. Part No. Description Qty
105 187711 PLATE, diaphragm, fluid; acetal 2
106 114882 SCREW, torx 13
109 114850 NUT, hex, large flng 24
111 187732 LABEL, warngin 1
113 192599 COVER, air, right 1
114 192600 COVER, air, left 1
115 194352 LABEL, identification 2
116 290045 PLATE, designation 1
117 194359 PLUG; acetal; 1/2 NPT 1
119 111183 RIVET (not shown for plate 116) 2
139‡ 114849 PACKING, o-ring; encapsulated 8
201‡ 186691 GUIDE; acetal 4
202‡ 186692 STOP; acetal 4
301‡ 108944 BALL; buna-N 4
401‡ 190148 DIAPHRAGM; buna-N 2
GracoHusky.ir
GracoHusky.ir

20 309204
Torque Sequence
Always follow torque sequence when instructed to torque fasteners.
1. Left/Right Fluid Covers
Torque bolts to 80–90 in–lb (9–10 N
•
m)
2. Inlet Manifold
Torque bolts to 80–90 in–lb (9–10 N
•
m)
3. Outlet Manifold
Torque bolts to 80–90 in–lb (9–10 N
•
m)
1111
5
7
2
3
88
6
4
SIDE VIEW
11
9
10
12
BOTTOM VIEW
13
15
16
14
TOP VIEW
GracoHusky.ir
GracoHusky.ir
