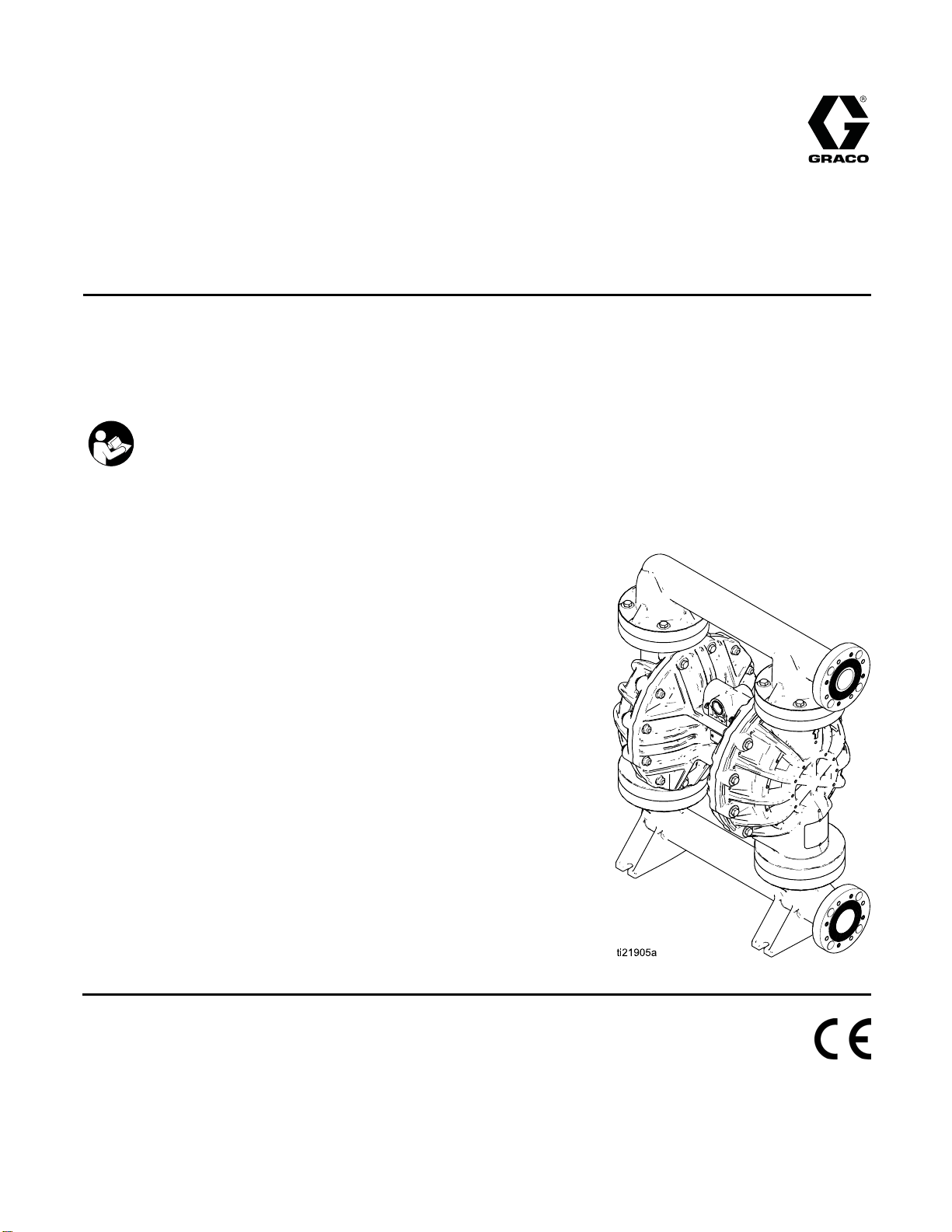

Graco Husky 2200 Instruction Manual

Operation
Husky™ 2200 Air-Operated
Diaphragm Pump3A2578B
EN
Polypropylene and PVDF pumps for fluid transfer applications, including high viscosity materials. For
professional use only.
Not for use in European explosive atmosphere locations.
Important Safety Instructions
Read all warnings and instructions in this manual and in your
Repair/Parts manual.
Save these instructions.
Maximum Working Pressure: 125 psi
(0.86 MPa, 8.6 bar)
PROVEN QUALITY. LEADING TECHNOLOGY.

Contents
Warnings ........................................................... 3
Ordering Information........................................... 6
Related Manuals ................................................ 6
Configuration Number Matrix............................... 7
Installation.......................................................... 8
General Information ..................................... 8
Tighten Fasteners ........................................ 8
Tips to Reduce Cavitation............................. 8
Mount The Pump ......................................... 8
Ground The System ..................................... 10
Air Lines...................................................... 10
Air Exhaust Ventilation ................................. 11
Fluid Supply Line ......................................... 12
Fluid Outlet Line........................................... 12

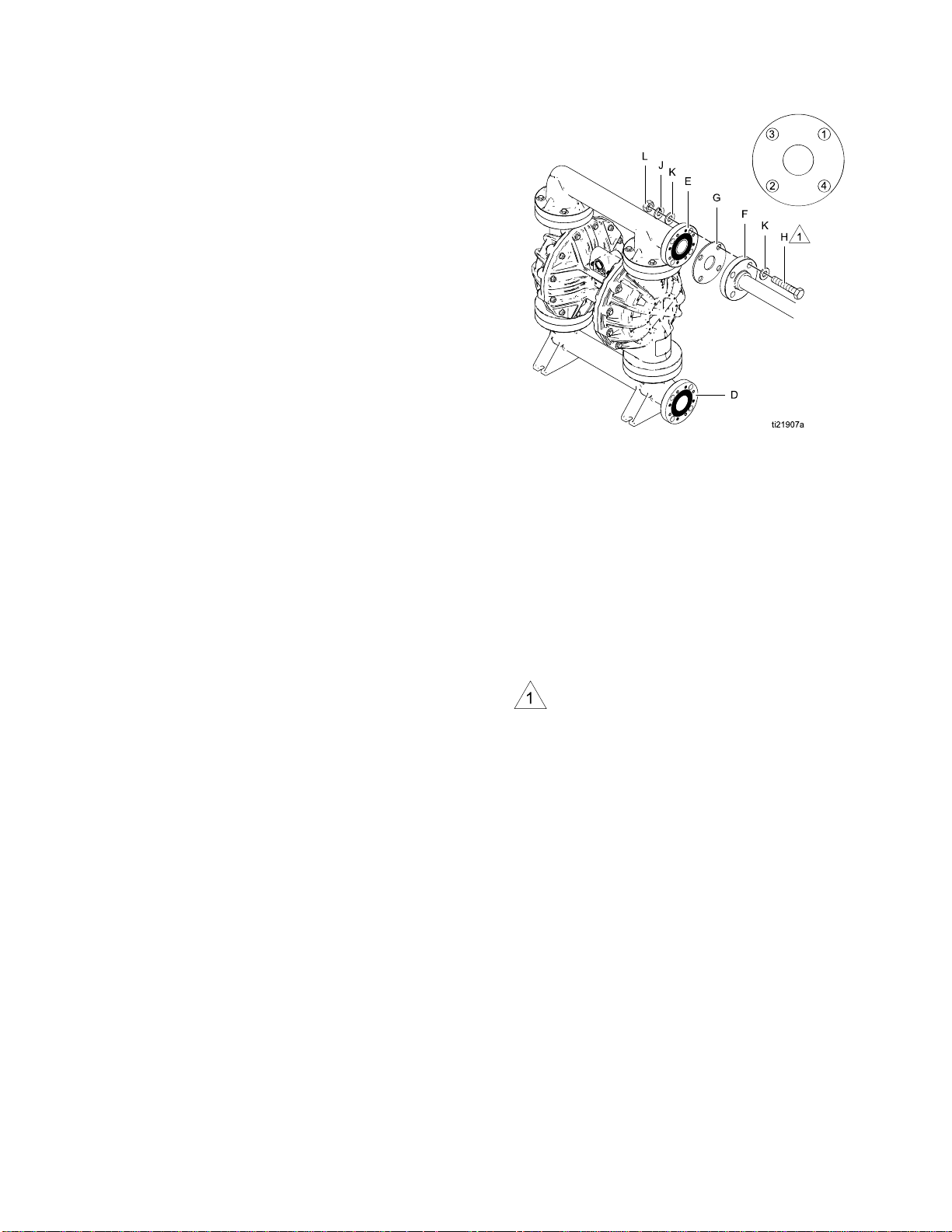

Flange Connections ..................................... 13
Operation........................................................... 14
Pressure Relief Procedure............................ 14
Tighten Fasteners ........................................ 14
Flush the Pump Before First Use .................. 14
Start and Adjust the Pump............................ 14
Pump Shutdown .......................................... 14
Maintenance ...................................................... 15
Maintenance Schedule ................................. 15
Lubrication................................................... 15
Tighten Threaded Connections ..................... 15
Flushing and Storage ................................... 15
Torque Instructions ............................................. 16
Notes................................................................. 17
Dimensions ........................................................ 18
Performance Charts............................................ 20
Technical Data ...................................................22
Graco Standard Husky Pump Warranty................ 24
23A2578B

Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer backtothese
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
•Grounda
ll equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock.Do not use
equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
• Route exhaust away from all ignition sources. If diaphragm ruptures, fluid may be exhausted
with air.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• Clean plastic parts only in well ventilated area.
• Do not clean with a dry cloth.
• Do not operate electrostatic guns in equipment work area.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
•Fol
low the Pressure Relief Procedure when you stop spraying/dispensing and before
cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
3A2578B 3

Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
•Turnoffal
l equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
•Makesure
all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
THERMAL EXPANSION HAZARD
Fluids subjected to heat in confined spaces, including hoses, can create a rapid rise in pressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.
• Open a valve to relieve the fluid expansion during heating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See
Technical Data in this and all other equipment instruction manuals. Read fluid and
solvent manufacturer’s MSDSs and recommendations.
43A2578B

Warnings
WARNING
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Route exhaust away from work area. If diaphragm ruptures, fluid may be exhausted into
the air.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
•Protect
ive eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
3A2578B 5

Ordering Information
Ordering Information
To Find Your Nearest Distributor
1. Visit www.graco.com.
2. Click on Where to Buy and use the Distributor
Locator.
To Specify the Configuration of a New
Pump
Please call your distributor.
OR
Use the Online Husky Selector Tool on the Process
Equipmentpage at www.graco.com.
To Order Replacement Parts
Please call your distributor.
Distributor Note
1. To find part numbers for new pumps or kits, use
the Online Husky Selector Tool.
2. To find part numbers for replacement parts:
a. Use the 20–digit number from the ID plate on
the pump. If you only have the Graco 6–digit
part number, use the selector tool to find the
corresponding 20–digit number.
b. Use the Configuration Number Matrix on the
next page to understand which parts are
described by each digit.
c. Use the Repair/Parts Manual 3A2714. Refer
to the main Parts illustration and to the
Parts/Kits Quick Reference. Follow the page
references on these two pages for further
ordering information, as needed.
3. Please call Graco Customer Service to order.
Related Manuals
Manual
Number
Title
3A2714 Husky 2200 Air-Operated Diaphragm
Pump, Repair/Parts
63A2578B

Configuration Number Matrix
Configuration Number Matrix
Check the identification plate (ID) for the Configuration Number of your pump. Use the following matrix to
define the components of your pump.
CONFIGURATION NO.PART NO. SERIAL NO.
SERIESDATE CODE MAX WPR PSI-bar
Graco Inc., P.O. Box 1441
Mpls, MN 55440 USA
MADE IN
Sample Configuration Number: 2200P-P01AP1PPPTFKPT
2200P P01A P1 PP PT FK PT
Pump Model Center Section and Air
Valve
Fluid Covers and
Manifolds
Seats Balls Diaphragms Manifold and Seat
Seals
Pump Center Section and Air
Valve Material
For Use With Fluid Covers and Manifolds
2200P
Polypropylene
P01A Polypropylene Standard
Diaphragms
P1 Polypropylene, Center Flange,
ANSI/DIN
2200F
PVDF
P01G Polypropylene Overmolded
Diaphragms
P2 Polypropylene, End Flange,
ANSI/DIN
F2 PVDF, End Flange, ANSI/DIN
Seat Material Ball Material Diaphragm Material Manifold and Seat
Seal Material
PP Polypropylene FK FKM FK FKM PT PTFE
PV PVDF PT PTFE PO PTFE/EPDM Overmolded
SP Santoprene SP Santoprene PT PTFE/Santoprene 2–Piece
SS Stainless Steel SP Santoprene
3A2578B 7

Installation
Installation
General Information

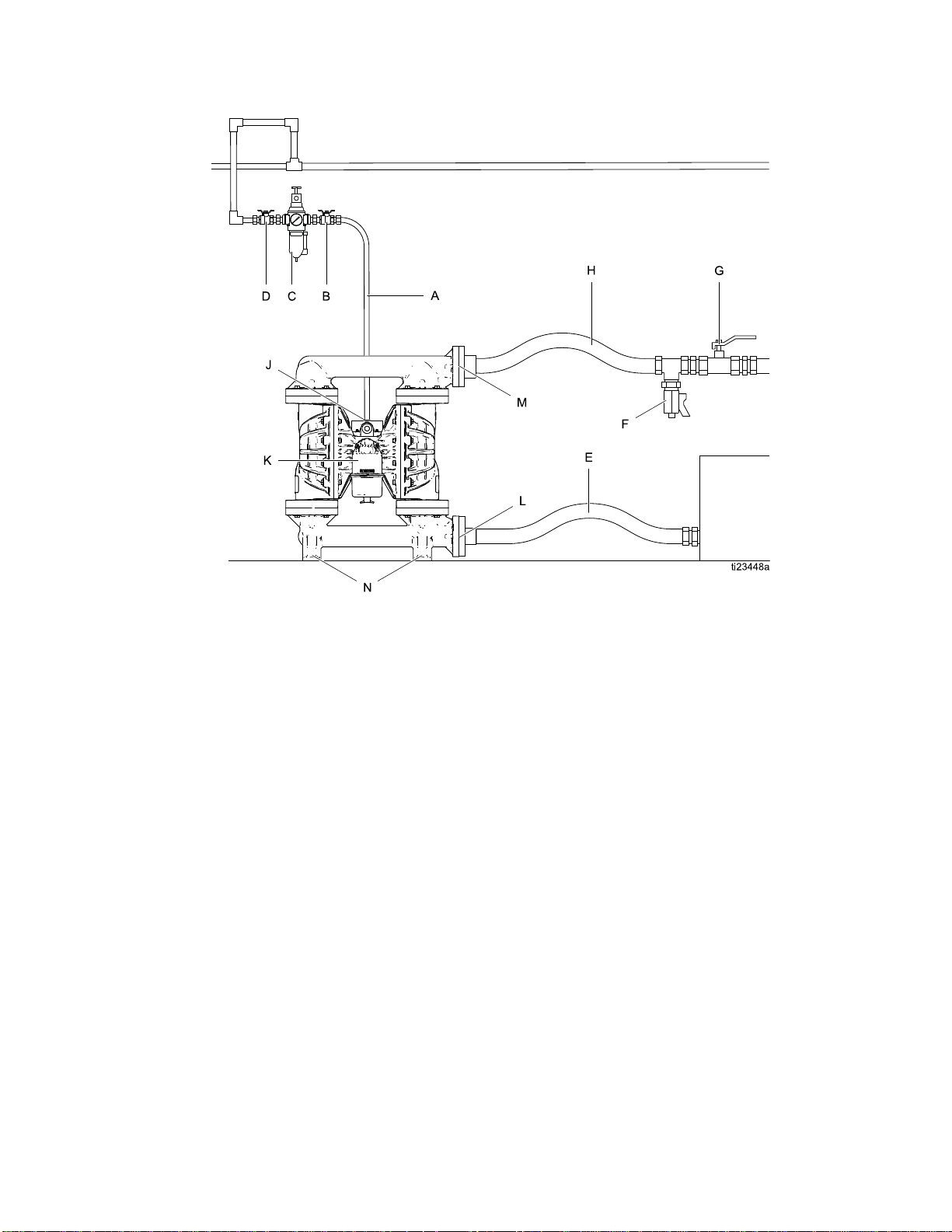

The Typical Installation shown is only a guide for
selecting and installing system components. Contact
your Graco distributor for assistance in planning a
system to suit your needs. Always use Genuine
Graco Parts and accessories. Be sure all accessories
are adequately sized and pressure rated to meet the
system’s requirements.
Reference letters in the text, for example (A), refer to
the callouts in the figures.
Variations in color between the plastic components
of this pump are normal. Color variation does not
affect the performance of the pump.
Tighten Fasteners
Before mounting and using the pump for the first time,
check and retorque all external fasteners. Follow
Torque Instructions, page 16, or see the torque
tag on your pump. After the first day of operation,
retorque the fasteners.
Tips to Reduce Cavitation
Cavitation in an AODD pump is the formation and
collapse of bubbles in the pumped liquid. Frequent
or excessive cavitation can cause serious damage,
including pitting and early wear of fluid chambers,
balls, and seats. It may result in reduced efficiency of
the pump. Cavitation damage and reduced efficiency
both result in increased operating costs.
Cavitation depends on the vapor pressure of the
pumped liquid, the system suction pressure, and the
velocity pressure. It can be reduced by changing any
of these factors.
1. Reduce vapor pressure: Decrease the
temperature of the pumped liquid.
2. Increase suction pressure:
a. Lower the installed position of the pump
relative to the liquid level in the supply.
b. Reduce the friction length of the suction
piping. Remember that fittings add friction
length to the piping. Reduce the number of
fittings to reduce the friction length.
c. Increase the size of the suction piping.
NOTE: Be sure the inlet fluid pressure does not
exceed 25 % of the outlet working pressure.
3. Reduce liquid velocity: Slow the cyclic rate of
the pump.
Pumped liquid viscosity is also very important but
normally is controlled by factors that are process
dependent and cannot be changed to reduce
cavitation. Viscous liquids are more difficult to pump
and more prone to cavitation.
Graco recommends taking all the above factors
into account in system design. To maintain pump
efficiency, supply only enough air pressure to the
pump to achieve the required flow.
Graco distributors can supply site specific
suggestions to improve pump performance and
reduce operating costs.
Mount The Pump
To avoid serious injury or death from toxic fluid or
fumes:
•Venti
late to a remote area. The pump
exhaust air may contain contaminants. See
Air Exhaust Ventilation, page 11.
• Never move or lift a pump under pressure. If
dropped, the fluid section may rupture. Always
follow the Pressure Relief Procedure, page 14,
before moving or lifting the pump.
1. Be sure the mounting surface can support the
weight of the pump, hoses, and accessories, as
well as the stress caused during operation.
2. For all mountings, be sure the pump is secured
with screws through the mounting feet.
3. Make sure the surface is flat and that the pump
doesn’t wobble.
4. For ease of operation and service, mount the
pump so air valve, air inlet, fluid inlet and fluid
outlet ports are easily accessible.
83A2578B

Installation
Accessories/Components Not Supplied System Components
A Air supply line J Air inlet port (not visible)
BBleed-type master air valve (may be
required for your pump)
KAir exhaust port and muffler
C Air filter/regulator assembly L Fluid inlet port
DMaster air valve (to isolate the
filter/regulator for service)
M Fluid outlet port
EGrounded flexible fluid supply line NMounting feet
FFluid drain valve (may be required for
your pump)
G Fluid shutoff valve
HGrounded, flexible fluid outlet line
3A2578B 9

Installation
Ground The System
The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Grounding provides an
escape wire for the electrical current.
•Always ground the entire fluid system as
described below.
• Polypropylene and PVDF pumps are not
conductive and are not for use with flammable
fluids.
• Follow your local fire codes.
Before operating the pump, ground the system as
explained below.
•Pump: Always ground the entire fluid system by
making sure the fluid has an electrical path to a
true earth ground.
•Air and fluid hoses: Use only grounded hoses
with a maximum of 500 ft (150 m) combined hose
length to ensure grounding continuity.
•Air compressor: Follow manufacturer’s
recommendations.
•Fluid supply container: Follow local code.
•Solvent pails used when flushing: Follow local
code. Use only conductive metal pails, placed
on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or
cardboard, which interrupts grounding continuity.
Check your system electrical continuity after the
initial installation, and then set up a regular schedule
for checking continuity to be sure proper grounding
is maintained.
Air Lines
1. Install an air regulator and gauge (C) to control
the fluid pressure. The fluid stall pressure will be
thesameasthesetting of the air regulator.
2. Locate a bleed-typemasterairvalve(B)closeto
the pump and use it to relieve trapped air. Be
sure the valve is easily accessible from the pump
and located downstream from the regulator.
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury from splashing.
3. Locate another master air valve (D) upstream
from all air line accessories and use it to isolate
them during cleaning and repair.
4. An air line filter (C) removes harmful dirt and
moisture from the compressed air supply.
5. Install a grounded, flexible air hose (A) between
the accessories and the 3/4 npt(f) pump air inlet.
10 3A2578B

Installation
Air Exhaust Ventilation
If pumping toxic fluids, you must vent the exhaust
away from people, animals, food handling areas,
and all sources of ignition. Follow all applicable
codes.
NOTICE
The air exhaust port is 1 in. npt(f). Do not restrict
the air exhaust port. Excessive exhaust restriction
can cause erratic pump operation.
To provide a remote exhaust:
1. Removethemuffler(U)fromthepumpair
exhaust port (K).
2. Install a grounded air exhaust hose (S) and
connect the muffler to the other end of the hose.
The minimum size for the air exhaust hose is 1
in. (26 mm) ID. If a hose longer than 15 ft (4.57
m) is required, use a larger diameter hose. Avoid
sharp bends or kinks in the hose.
3. Place a container (T) at the end of the air exhaust
line to catch fluid in case a diaphragm ruptures.
If the diaphragm ruptures, the fluid being pumped
will exhaust with the air.
AAirs
upply line KAire xhaust port
BBleed-type master air valve (may be
required for your pump installation)
S Grounded air exhaust hose
C Air filter/regulator assembly TContainer for remote air exhaust
DMaster air valve (for accessories) UMuffler
JAir inlet port (not visible)
3A2578B 11

Installation
Fluid Supply Line
1. Use grounded, flexible fluid hoses (E). See
Ground The System, page 10.
2. If the inlet fluid pressure to the pump is more
than 25% of the outlet working pressure, the
ball check valves will not close fast enough,
resulting in inefficient pump operation. Excessive
inlet fluid pressure also will shorten diaphragm
life. Approximately 3–5 psi (0.02–0.03 MPa,
0.21–0.34 bar) should be adequate for most
materials.
3. For maximum suction lift (wet and dry), see
Technical Data, page 22. For best results, always
install the pump as close as possible to the
material source. Minimize suction requirements
to maximize pump performance.
Fluid Outlet Line
1. Use grounded, flexible fluid hoses. See
Ground The System, page 10,
2. Install a fluid drain valve (F) near the fluid outlet.
3. Install a shutoff valve (G) in the fluid outlet line.
123A2578B

Installation
Flange Connections
The fluid inlet and outlet ports are 2 in. (50 mm)
raised face, ANSI/DIN PN 10 flanges. Connect 2 in.
(50 mm) plastic pipe flange to the pump as follows.
You will need:
• Torque wrench
• Adjustable wrench
• 6 in. (152 mm) diameter, 1/8 in (32 mm) thick
PTFE gasket,withfour0.75in(19mm).diameter
holes on a 4.75 in. (121 mmm) diameter bolt circle,
anda2in. (
50 mm) diameter center
• Four 5/8 in (17 mm) x 3 in (76 mm) long bolts
• Four 5/8 in.(17 mm) spring lock washers
• Eight 5/8 in. (17 mm) flat washers
• Four 5/8 in. (17 mm) nuts
1. Place a flat washer (K) on each bolt (H).
2. Align the holes in the gasket (G) and the pipe
flange (F) with the holes in the pump outlet flange
(E).
3. Lubricate the threads of the four bolts. Install
the bolts through the holes and secure with the
washers (K), lock washers (J), and nuts (L).
4. Holdthenutswithawrench. Refertothe
tightening sequence in the figure and torque
theboltsto20to30ft-lb(27to41Nm). Do not
overtorque.
5. Repeat for the pump inlet flange.
Figure 1
D2 in. (50 mm) fluid inlet flange
E2 in. (50 mm) fluid outlet flange
FPlastic pipe flange
GPTFE gasket
HBolt
J Lock washer
K Flat washer
LNut
Lubricate threads. torque to 20 to 30 ft-lb
(27to41Nm). Do not overtorque.
3A2578B 13

Operation
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
This equipment stays pressurized until pressure
is relieved manually. To help prevent serious
injury from pressurized fluid, such as splashing
in the eyes or on skin, follow the Pressure Relief
Procedure when you stop pumping and before you
clean, check, or service the equipment.
1. Shut off the air supply to the pump.
2. Open the dispensing valve, if used.
3. Open the fluid drain valve to relieve fluid
pressure. Have a container ready to catch the
drainage.
Tighten Fasteners
Before mounting and using the pump for the first time,
check and retorque all external fasteners. Follow
Torque Instructions, page 16, or see the torque
tag on your pump. After the first day of operation,
retorque the fasteners.
Flush the Pump Before First Use
The pump was tested in water. If water could
contaminate the fluid you are pumping, flush the
pump thoroughly with a compatible solvent. See
Flushing and Storage, page 15.
Start and Adjust the Pump
1. Be sure the pump is properly grounded. See
Ground The System, page 10.
2.Checkfittingstobesuretheyaretight. Usea
compatible liquid thread sealant on male threads.
Tighten fluid inlet and outlet fittings securely
3. Place the suction tube (if used) in fluid to be
pumped.
NOTE: If fluid inlet pressure to the pump is more
than 25% of outlet working pressure, the ball
check valves will not close fast enough, resulting
in inefficient pump operation.
NOTICE
Excessive fluid inlet pressure can reduce
diaphragm life.
4. Place the end of the fluid hose into an appropriate
container.
5. Close the fluid drain valve.
6. Turn the air regulator knob to 0. Open all
bleed-type master air valves.
7. If the fluid hose has a dispensing device, hold
it open.
8. Slowly increase air pressure with the air regulator
until the pump just starts to cycle. Allow the
pump to cycle slowly until all air is pushed out of
the lines and the pump is primed.
NOTE: Use lowest possible air pressure to prime,
just enough to cycle the pump. If the pump does
not prime as expected, turn air pressure DOWN.
9. If you are flushing, run the pump long enough to
thoroughly clean the pump and hoses.
10. Close the bleed-type master air valve.
Pump Shutdown
At the end of the work shift and before you check,
adjust, clean, or repair the system, follow the
Pressure Relief Procedure, page 14.
143A2578B

Maintenance
Maintenance
Maintenance Schedule
Establish a preventive maintenance schedule
based on the pump’s service history. Scheduled
maintenance is especially important to prevent spills
or leakage due to diaphragm failure.
Lubrication
The pump is lubricated at the factory. It is designed
to require no further lubrication for the life of the
packings. There is no need to add an inline lubricator
under normal operating conditions.
Tighten Threaded Connections
Before each use, check all hoses for wear or damage
and replace as necessary. Check to be sure all
threaded connections are tight and leak-free. Check
mounting bolts. Check fasteners. Tighten or retorque
as necessary. Although pump use varies, a general
guideline is to retorque fasteners every two months.
See Torque Instructions, page 16.
Flushing and Storage
• Flush before fluid can dry in the equipment, at the
end of the day, before storing, and before repairing
equipment.
• Flush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• Use solvent that is compatible with the equipment
wetted parts and the material being dispensed.
• Always flush the pump and relieve the pressure
before storing it for any length of time.
NOTICE
Flush the pump often enough to prevent the fluid
you are pumping from drying or freezing in the
pump and damaging it.
3A2578B 15

Torque Instructions
Torque Instructions
If fluid cover or manifold fasteners have been
loosened, it is important to torque them using the
following procedure to improve sealing.
NOTE: Fluid cover and manifold fasteners have a
thread-locking adhesive patch applied to the threads.
If this patch is excessively worn, the fasteners may
loosen during operation. Replace screws with new
ones or apply medium-strength (blue) Loctite or
equivalent to the threads.
NOTE: Always completely torque fluid covers before
torquing manifolds.
1. Start all fluid cover screws a few turns. Then, turn
down each screw just until head contacts cover.
2. Turn each screw by 1/2 turn or less working in a
crisscross pattern to specified torque.
3. Repeat for manifolds.
Fluid cover and manifold fasteners: 190to220
in-lb (21 to 25 Nm)
4. Retorque the air valve fasteners in a crisscross
pattern to the specified torque.
Air valve fasteners: 45to55in-lb(5to6Nm)
5. Retorque the pilot valves to the specified torque.
Do not overtorque.
Pilot valves: 20to25in-lb(2to3Nm)
Fluid Cover Screws
Inlet and Outlet Manifold Screws
Air Valve Screws and Pilot Valves
16 3A2578B

Notes
Notes
3A2578B 17

Dimensions
Dimensions
End Flange Models, Polypropylene
and PVDF
Polypropylene PVDF
A25.1 in. 63.8 cm 25.2 in. 64.0 cm
B28.7 in. 72.9 cm 28.8 in. 73.2 cm
C31.7 in. 80.5 cm 31.8 in. 80.8 cm
D3.6 in. 9.1 cm 3.6 in. 9.1 cm
E12.0 in. 30.5 cm 11.7 in. 29.7 cm
F25.6 in. 65.0 cm 25.3 in. 64.3 cm
Polypropylene PVDF
G19.8 in. 50.3 cm 19.8 in. 50.3 cm
H7.0 in. 17.8 cm 7.0 in. 17.8 cm
J13.9 in. 35.3 cm 13.9 in. 35.3 cm
K16.3 in. 41.4 cm 16.3 in. 41.4 cm
L8.2 in. 20.8 cm 8.2 in. 20.8 cm
18 3A2578B

Dimensions
Center Flange Models, Polypropylene
Only
Polypropylene
A24.1 in. 61.2 cm
B27.2 in. 69.1 cm
C30.3 in. 77.0 cm
D3.1 in. 7.9 cm
E12.8 in. 32.5 cm
F26.3 in. 66.8 cm
Polypropylene
G18.5 in. 47.0 cm
H7.0 in. 17.8 cm
J13.9 in. 35.3 cm
K16.3 in. 41.4 cm
L8.2 in. 20.8 cm
3A2578B 19

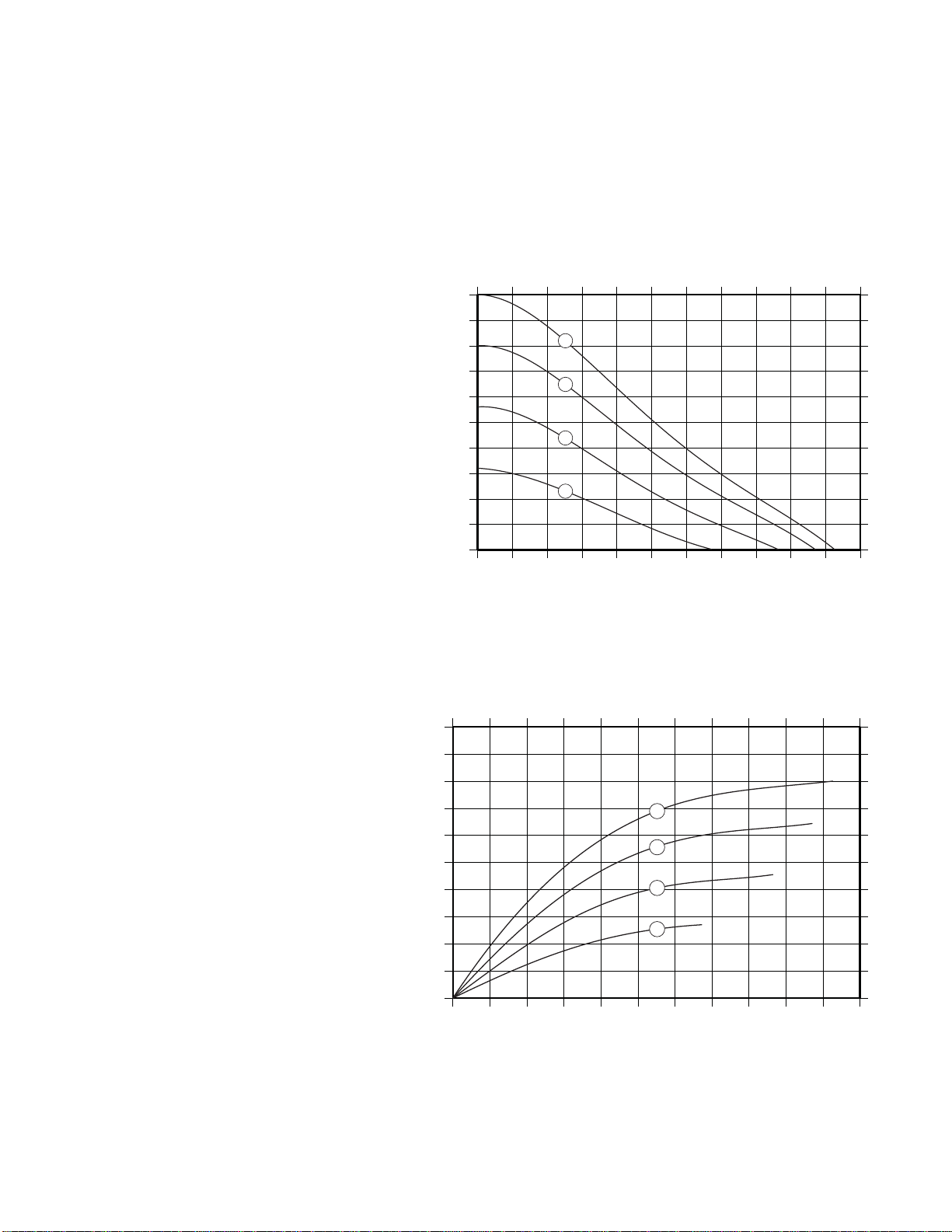

Performance Charts
Performance Charts
Bolt-through Diaphragms
Fluid Pressure
Approximate Cycles per Minute
PSI
(MPa, bar)
040
(151) 80 (303) 120 (454) 160 (606) 200 (757)
25 50 75 100 125
0
25
(0.17, 1.7)
50
(0.34, 3.4)
75
(0.52, 5.2)
100
(0.70, 7.0)
125
(0.86, 8.6)
A
B
C
D
Fluid Flow — gpm (lpm)
Operating Air Pressure
A
125 psi (0.86 MPa, 8.6 bar)
B
100 psi (0.7 MPa, 7.0 bar)
C
70 psi (0.48 MPa, 4.8 bar)
D
40 psi (0.28 MPa, 2.8 bar)
Air Consumption
Approximate Cycles per Minute
HowtoReadtheCharts
1. Locate fluid flow rate along
bottom of chart.
2. Follow vertical line up to
intersection with selected
operating air pressure
curve.
3. Follow left to scale to read
fluid outlet pressure (top
chart) or air consumption
(bottom chart) scfm
(Nm3/min.)
0
35
(1.0)
70
(2.0)
105
(3.0)
140
(4.0)
175
(5.0)
A
B
C
D
040
(151) 80 (303) 120 (454) 160 (606) 200 (757)
25 50 75 100 125
Fluid Flow — gpm (lpm)
20 3A2578B
