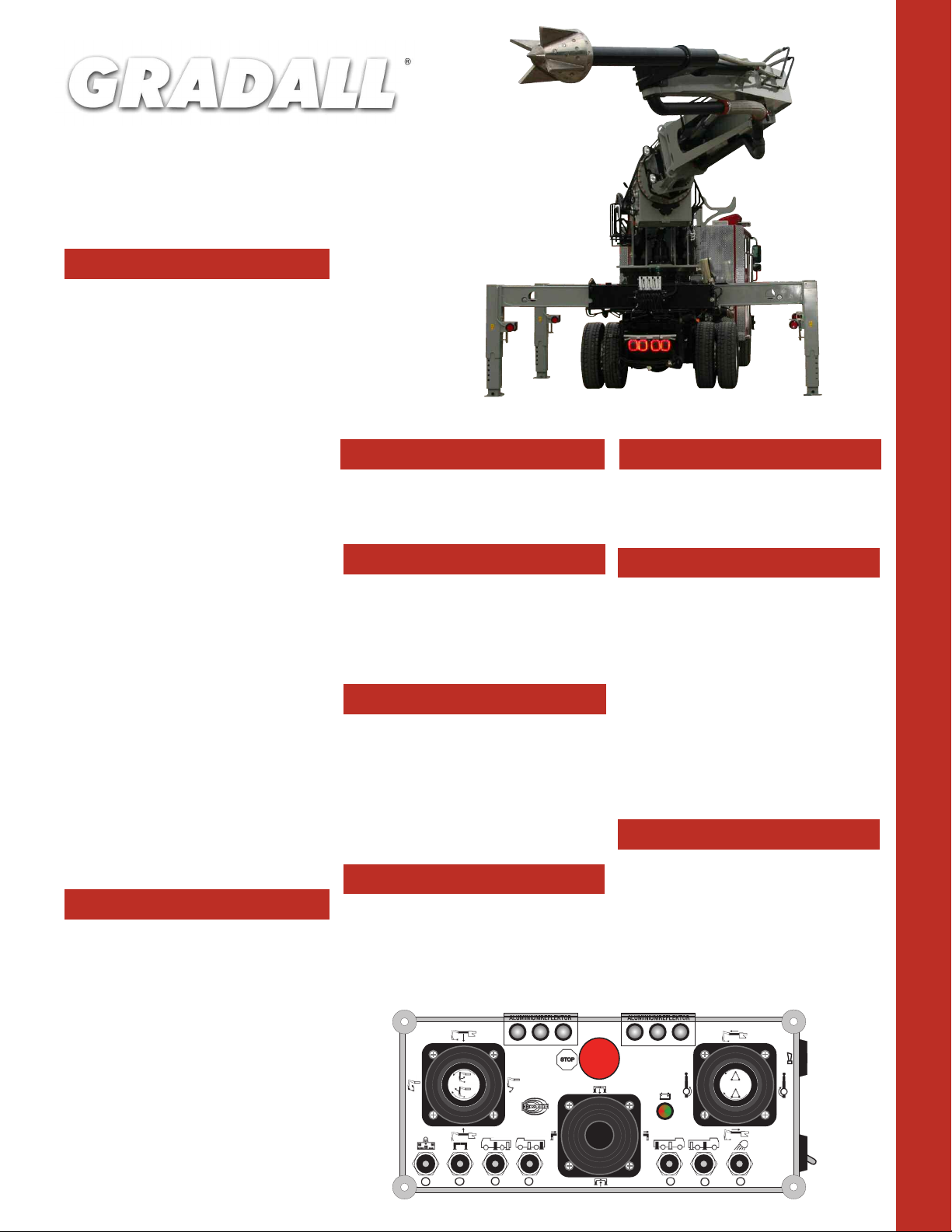

Gradall FA50 User manual
Electrical Sy tem
Planetary transmission.
Swing speed: 1.0 rpm.
Swing Brake
Automatic spring-set/hydraulic release
wet disc parking brake. Dynamic braking
is provided by the hydraulic system.
FA50
A 12 volt electrical system is supplied by the
main power supply of the chassis. A 24 volt
system is optional on international chassis
Swing
Hydraulic Sy tem
SPECIFICATIONS
FA50
FIRE APPARATUS
Radio Remote Control Pack
All upperstructure functions and outrigger
functions are controlled by a radio remote
control pack. The operator can control the
FA50 from up to 300’ (92 m).
Thirteen cylin ers
• 1 tool: 4.75" ID, 3.0" rod (120 mm x 76 mm),
18.75" (476 mm) stroke.
• 2 hoist: 4.75" ID, 3.0" rod (120 mm x 76 mm),
18.75" (476 mm) stroke.
• 1 telescope: 3.5" ID, 2.559" rod
(89 mm x 65 mm), 11’ (3.35 m) stroke.
• 1 jib: 4.75" ID, 3.0" rod (120 mm x 76 mm),
4’8” (1.42 m) stroke.
• 4 outriggers extend and retract: 2.0" ID, 1.25"
rod (51 mm x 32 mm), 4’6” (1.37 m) stroke.
• 4 outriggers up and down: 3.5" ID, 2.559"
rod (89 mm x 65 mm), 24” (610 mm) stroke.
Two hy raulic motors
Swing, 20hp (15 kW); tilt, 20 hp (15 kW);
Operating pressures:
Hoist ............................................4,000 psi (276 BAR)
Tilt....................................................2,600 psi (179 BAR)
Swing..........................................0,000 psi (000 BAR)
Tool................................................4,000 psi (276 BAR)
Telescope..............................4,000 psi (276 BAR)
Jib ..................................................4,000 psi (276 BAR)
Outriggers extend......2,600 psi (179 BAR)
Outriggers retract........4,000 psi (276 BAR)
Outriggers up ..................4,000 psi (276 BAR)
Outriggers down..........4,000 psi (2769 BAR)
Oil Capacity
Reservoir and hydraulic system capacity
is 55 gallons (208 ). Pressurized reservoir
with visual oil level gauges.
Filtration System
10 micron return filter in tank
Pressure-compensated, load-sensing valves
with circuit reliefs in all circuits.
Outrigger
Four independently operated or simultaneously
operated outriggers. The outrigger legs extend
and retract and move up and down for
precise placement. Marker lights and flood
lights are supplied for night operation.
Sy tem Specification
Work Light
Four high intensity work lights, two mounted
on top of the main boom and two mounted
on the bottom of the main boom.
Waterway
The 4’ anodized
aluminum waterway routes
through the center pin, cradle and boom
and connects
to the adaptor for the Fifth Man piercing
water cannon.
Fifth Man piercing water cannon capable of
flowing water 1500 GPM and 120 psi . The
Fifth Man cannon can also flow Class “A” and
Class “B” foam.
Approximate working weight with attachment.
Weight 23,000 lb (10,433 kg)
ifting Eye for Fifth Man
Water Cannon for Fifth Man
U Stage One Certification (Not the entire truck)
Hydraulic Pump (Depending on chassis spec)
PTO (Depending on chassis spec)
Optional Equipment
0 to 42 GPM (160 /Min) up to 4000 psi
PUMPS
Variable displace pressure compensating
piston pump; Oil flow 0-42 GPM (0-160 /min)
Overload indicator strobe light & audio system
Emergency pump and motor powered by
chassis electrical system (12 volt or 24volt)
Manual control levers on the main hydraulic
control valve assembly for upperstructure
control and manual control levers on the
outrigger valve assembly for outrigger controls.
Fin and tube-type oil cooler with thermal
by-pass and relief valves.
Gradall Industr es Inc.
406 M ll Ave. SW, New Ph ladelph a, Oh o 44663
Phone: 330-339-2211 Fax: 330-339-8468
www.gradall.com
Cert f ed ISO 9001
Form No. 10927 12/09
Printed in USA
It is Gradall Policy to continually improve its products. Therefore designs, materials and
specifications are subject to change without notice and without incurring any liability on
units already sold. Units shown may have optional equipment.
The machine must be on a firm, level surface
with outriggers completely extended and lowered
when making a lift.
The shorter the load radius, the greater the lift
capacity. Position the unit to minimize boom
extension and swing while keeping adequate
distance from obstructions.
Po itioning Machine for a Lift
Rated Lift Capacity Chart
Note: Values in lift chart above are with the outriggers in ‘long-jack’ configuration.
The values are not valid for lifting with outriggers in ‘short-jack’ configuration.
BOOM CONFIGURATION NOZZLE PIERCING ADAPTER TELESCOPE BOOM
LIFT EYE LIFT EYE LIFT EYE
BOOM AT ANY 730 lbs 820 lbs 1490 lbs
ANGLE/CONFIGURATION (331 kg) (372 kg) (676 kg)
TELESCOPE BOOM FULLY
RETRACTED
BOOM AT ANY ANGLE 1838 lbs 2225 lbs 5400 lbs
(834 kg) (1009 kg) (2449 kg)
STICK AND ADAPTER IN
ANY CONFIGURATION
TELESCOPE BOOM FULLY
RETRACTED
BOOM AT ANY ANGLE 2750 lbs 2750 lbs 6100 lbs
(1247 kg) (1247 kg) (2767 kg)
STICK AT 90 DEGREES TO
TELESCOPE BOOM
ADAPTER FULLY CLOSED
(cylin er fully exten e )
