Graham Field Grafco 1697-2M Parts list manual

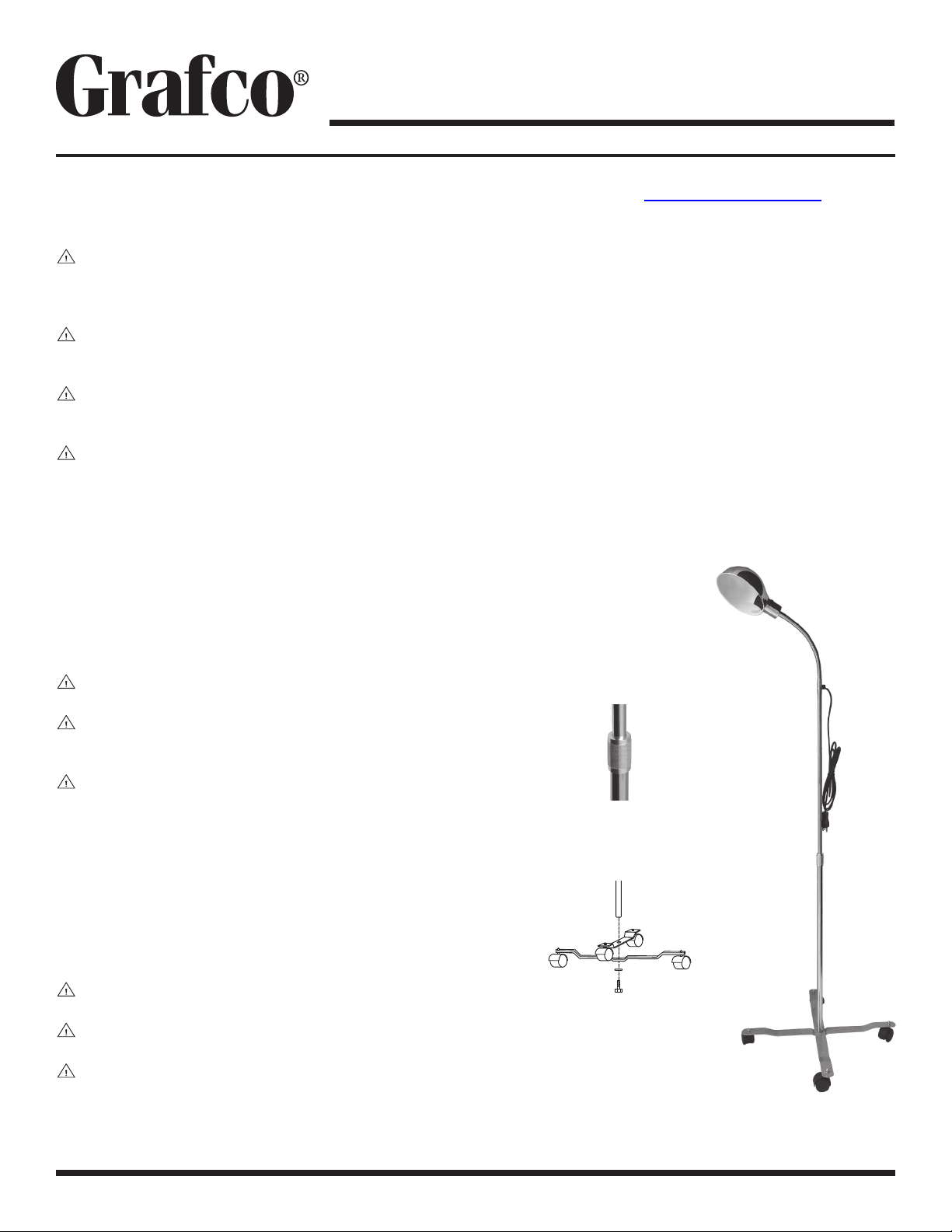

1697-2M Exam Lamp
with Mobile Base,
SOK-IT-GUARD Lock,
and Hospital Grade Plug
Flex Arm
Assembly
SOK-IT-GUARD Lock
SOK-IT-GUARD
Lock
Upper Pole
Lock
Lower Pole
Pole Set
Hospital
Grade
Plug
Power
Cord
Shade
Base
Lower Pole
Upper Base Bar
Lower Base Bar
Caster
Base
1697-2M-INS-LAB-RevA15 1
1697-2M EXAM LAMP WITH MOBILE BASE,
SOK-IT-GUARD
®
LOCK, AND HOSPITAL GRADE PLUG:
ASSEMBLY AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
Tools required: M17 or 11/16 wrench
Info: The most current version of these instructions can be found online at www.grahamfield.com.
Info: For use with incandescent light bulbs up to 60 watts, LED equivalent bulbs up to 10 watts, or
CFL equivalent bulbs up to 13 watts.
WARNING: Important! Read and understand these instructions before assembling or using the
1697-2M Exam Lamp. If you do not understand any part of these instructions, contact a healthcare
professional for direction in the use of this product. If the Exam Lamp is not properly assembled and
operated, personal injury and / or damage to the Exam Lamp could result.
WARNING: If components are damaged or missing, contact your dealer immediately. DO NOT use
substitute parts. Use only Grafco replacement parts. Non-Grafco replacement parts could cause
personal injury and / or damage to the Exam Lamp.
WARNING: Notice for California Customers- California Proposition 65 WARNING: This product
contains a chemical known to the State of California to cause cancer and reproductive or
developmental harm.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by
improper installation or use of this product.
ASSEMBLY INSTRUCTIONS (SEE PICTURES AT RIGHT)
1. Place upper base bar on top of lower base bar with
center holes aligned.
2. Install locking washer on bolt. Install bolt through
base bar center holes into bottom of lower pole.
3. Screw lower pole onto base.
4. Use wrench to tighten bolt securely.
5. Screw ex arm assembly onto upper pole until secure.
OPERATION
WARNING: Ensure Exam Lamp is securely
assembled as instructed above before use.
WARNING: DO NOT use an extension cord or
adapter. To make alterations, contact a
qualied electrician.
WARNING: To reduce the risk of re, use:
maximum 60W type A bulb, or
maximum 10W type LED bulb, or
maximum 13W type CFL bulb.
Height Adjustment
Exam Lamp height is adjustable from 34 1/2" to 53 1/2".
1. Unscrew lock to loosen upper pole.
2. Move upper pole to desired height.
3. Screw lock to tighten.
MAINTENANCE / CLEANING
WARNING: Before cleaning lamp or replacing bulb,
disconnect the power and allow the unit to cool.
WARNING: There are no serviceable components
inside the Exam Lamp. DO NOT open the casing.
WARNING: DO NOT submerge or immerse unit in
water or other liquid.
Clean Exam Lamp weekly or whenever soiled with a
low-level hospital grade disinfectant. Ensure Exam
Lamp is securely assembled before each use.

1697-2M-INS-LAB-RevA15 2
www.grahamfield.com
GF Health Products, Inc. is not responsible for typographical errors. For the most updated and current information on packaging, warranties,
products and specications, including the most current version of these instructions, please visit our website at www.grahameld.com.
Graham-Field, Grafco, and SOK-IT-GUARD are registered trademarks of GF Health Products, Inc.
© 2005 GF Health Products, Inc. • 2935 Northeast Parkway, Atlanta, GA 30360 • tel [phone] • fax [phone] • Made in China
