Grandstream Networks WP820 Instruction Manual

Grandstream Networks, Inc.

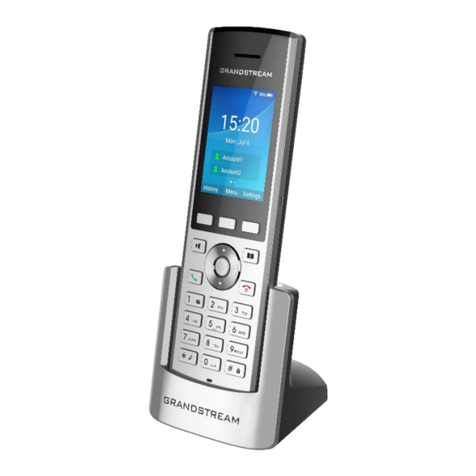

WP820
Enterprise Portable Wi-Fi Phone
Administration Guide
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 2
WP820 Administration Guide
Version 1.0.1.15
COPYRIGHT
©2018 Grandstream Networks, Inc. http://www.grandstream.com
All rights reserved. Information in this document is subject to change without notice. Reproduction or
transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose
without the express written permission of Grandstream Networks, Inc. is not permitted.
The latest electronic version of this guide is available for download here:
http://www.grandstream.com/support
Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc.
in the United States, Europe and other countries.
CAUTION
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this guide, could void your manufacturer warranty.
WARNING
Please do not use a different power adaptor with devices as it may cause damage to the products and void
the manufacturer warranty.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 3
WP820 Administration Guide
Version 1.0.1.15
FCC warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) The device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. This equipment has been tested and found to comply with limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
RF Radiation Exposure Statement (SAR)
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CE Authentication
Hereby, Grandstream Networks, Inc. declares that the radio equipment WP820 is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.grandstream.com/support/resources/
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 4
WP820 Administration Guide
Version 1.0.1.15
SPECIFICATION
Operating Frequency Band(RF):
BT: 2402-2480MHz(TX&RX)
BLE: 2402-2480MHz(TX&RX)
2.4GHz WIFI: 2412-2472MHz(TX&RX)
5GHz WIFI: 5150-5250MHz,5250-5350MHz,5470-5725MHz(TX&RX)
Max. Of Transmit Power:
BT: 9.55dBm
BLE: 2.45dBm
2.4GHz WIFI:
802.11b:19.78dBm;802.11g:18.12dBm;
802.11n20:18.91dBm;802.11n40:18.39dBm;
5GHz WIFI:
5150-5250MHz:
802.11a:16.93dBm;802.11n20:17.49dBm;802.11n40:16.40dBm
5250-5350MHz:
802.11a:15.69dBm;802.11n20:15.53dBm;802.11n40:15.46dBm
5470-5725MHz:
802.11a:16.42dBm;802.11n20:16.63dBm;802.11n40:15.82dBm
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 5
WP820 Administration Guide
Version 1.0.1.15
GNU GPL INFORMATION
WP820 firmware contains third-party software licensed under the GNU General Public License (GPL).
Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public
License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/support/faq/gnu-general-public-license/gnu-gpl-information-download
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 6
WP820 Administration Guide
Version 1.0.1.15
Table of Contents
DOCUMENT PURPOSE ...............................................................................................10
CHANGE LOG.............................................................................................................. 11
Firmware Version 1.0.1.15 ................................................................................................................... 11
Firmware Version 1.0.1.12 ................................................................................................................... 11
GUI INTERFACE EXAMPLES......................................................................................12
WELCOME ...................................................................................................................13
PRODUCT OVERVIEW ................................................................................................14
Feature Highlights................................................................................................................................14
Technical Specifications.......................................................................................................................14
GETTING STARTED.....................................................................................................16
Equipment Packaging ..........................................................................................................................16
Setting up the WP820 ..........................................................................................................................17
Charging Station ...........................................................................................................................17
Handset ........................................................................................................................................17
Battery Information .......................................................................................................................18
WP820 Handset Keys Description.......................................................................................................18
WP820 Icons Description ....................................................................................................................20
WP820 Handset Menu.........................................................................................................................21
Connecting WP820 to Wi-Fi Network ..................................................................................................24
Obtain WP820 IP Address ...................................................................................................................25
WP820 WEB GUI ACCESS CONFIGURATION ........................................................... 26
Configuration via Web Browser ...........................................................................................................26
Accessing the Web UI ..................................................................................................................26
Web GUI Languages ....................................................................................................................27
Saving the Configuration Changes...............................................................................................27
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 7
WP820 Administration Guide
Version 1.0.1.15
Web UI Access Level Management.....................................................................................................27
Changing User Level Password ...................................................................................................27
Changing Admin Level Password.................................................................................................28
Changing HTTP / HTTPS Web Access Port.................................................................................29
WP820 WEB GUI SETTINGS.......................................................................................31
Status Page Definitions........................................................................................................................31
Status/Account Status ..................................................................................................................31
Status/Network Status ..................................................................................................................31
Status/System Info........................................................................................................................32
Account Page Definitions.....................................................................................................................33
Account/General Settings .............................................................................................................33
Account/SIP Settings ....................................................................................................................35
Account/Codec Settings ...............................................................................................................39
Account/Call Settings....................................................................................................................41
Account/Advanced Settings..........................................................................................................46
Phone Settings Page Definitions .........................................................................................................48
Phone Settings/General Settings .................................................................................................48
Phone Settings/Call Settings ........................................................................................................49
Phone Settings/Ring Tone ............................................................................................................51
Phone Settings/PTT/Multicast Settings ........................................................................................51
Network Settings Page Definitions ......................................................................................................54
Network Settings/Wi-Fi Settings ...................................................................................................54
Network Settings/OpenVPN® Settings ........................................................................................54
Network Settings/Advanced Network Settings .............................................................................55
System Settings Page Definitions........................................................................................................56
System Settings/Time and Language...........................................................................................56
System Settings/Security Settings................................................................................................57
System Settings/Preferences .......................................................................................................59
System Settings/TR-069...............................................................................................................59
Maintenance Page Definitions .............................................................................................................60
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 8
WP820 Administration Guide
Version 1.0.1.15
Maintenance/Upgrade ..................................................................................................................60
Maintenance/System Diagnosis ...................................................................................................63
Maintenance/Event Notification ....................................................................................................65
Application Page Definitions ................................................................................................................67
Application/Contacts .....................................................................................................................67
Application/Recording...................................................................................................................71
Value-added Service Page Definitions ................................................................................................71
Value-added Service/GDS Settings .............................................................................................71
UPGRADING AND PROVISIONING ............................................................................72
Upgrade and Provisioning Configuration .............................................................................................72
Configure via keypad Menu ..........................................................................................................72
Configure via Web GUI.................................................................................................................73
Upload Firmware Locally .....................................................................................................................73
No Local Firmware Servers .................................................................................................................74
Firmware Upgrade via USB .................................................................................................................74
Provisioning and Configuration File Download ....................................................................................75
FACTORY RESET ........................................................................................................76
Restore to Factory Default via LCD Menu ...........................................................................................76
Restore to Factory Default via the Web GUI .......................................................................................76
Restore to Factory Default Using Hard Keys.......................................................................................77
EXPERIENCING WP820 ENTERPRISE PORTABLE WI-FI PHONE...........................78
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 9
WP820 Administration Guide
Version 1.0.1.15
Table of Tables
Table 1: WP820 Features at a Glance ........................................................................................................14
Table 2: WP820 Technical Specifications ...................................................................................................14
Table 3: Equipment Packaging ...................................................................................................................16
Table 4: WP820 Description........................................................................................................................19
Table 5: WP820 Icons Description ..............................................................................................................20
Table of Figures
Figure 1: WP820 Package Content ............................................................................................................16
Figure 2: Charging Station ..........................................................................................................................17
Figure 3: WP820 Handset Setup ................................................................................................................17
Figure 4: WP820 Description ......................................................................................................................19
Figure 5: WP820 Menu Structure ...............................................................................................................22
Figure 6 : Wi-Fi Settings..............................................................................................................................24
Figure 7: Obtaining IP Address ...................................................................................................................25
Figure 8: WP820 Web GUI Language ........................................................................................................27
Figure 9: User Level Password ...................................................................................................................28
Figure 10: Admin Level Password ..............................................................................................................29
Figure 11: Web Access Port ........................................................................................................................30
Figure 12: WP820 Upgrade Configuration via Keypad Menu.....................................................................72
Figure 13: WP820 Upgrade Configuration via Web GUI ............................................................................73
Figure 14: Upload Firmware File to Update ................................................................................................74
Figure 15: New Firmware Detected ............................................................................................................75
Figure 16: WP820 LCD - Confirm Factory Reset........................................................................................76
Figure 17: WP820 Web GUI - Factory Reset..............................................................................................76
Figure 18: WP820 Web GUI - Confirm Factory Reset ................................................................................77
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 10
WP820 Administration Guide
Version 1.0.1.15
DOCUMENT PURPOSE
This document describes how to configure WP820 Enterprise Portable Wi-Fi phone features via the LCD
menu and Web GUI menu. The intended audiences of this document are VoIP administrators. To learn the
basic functions of WP820, please visit http://www.grandstream.com/support to download the latest
“WP820 User Guide”.
This guide covers following topics:
•Product Overview
•Getting Started
•Web GUI Access Configuration
•Web GUI Settings
•Upgrading and provisioning
•Restore factory default settings.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 11
WP820 Administration Guide
Version 1.0.1.15
CHANGE LOG
This section documents significant changes from previous firmware versions. Only major new features or
major document updates are listed here. Minor updates for corrections or editing are not documented
here.
Firmware Version 1.0.1.15
•No major changes.
Firmware Version 1.0.1.12
•This is the initial version for WP820.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 12
WP820 Administration Guide
Version 1.0.1.15
GUI INTERFACE EXAMPLES
http://www.grandstream.com/sites/default/files/Resources/WP820_web_gui.zip
1. Screenshot of Login page
2. Screenshots of Status pages
3. Screenshots of Account pages
4. Screenshots of Phone Settings pages
5. Screenshots of System Settings pages
6. Screenshots of Maintenance pages
7. Screenshots of Application pages
8. Screenshots of Value-added Service pages
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 13
WP820 Administration Guide
Version 1.0.1.15
WELCOME
Thank you for purchasing Grandstream WP820. This powerful Enterprise Portable Wi-Fi Phone features
dual-band 802.11a/b/g/n Wi-Fi, supports Wi-Fi roaming, and integrated Bluetooth. The combination of
advanced telephony features and durability make it ideal for mobilizing your VoIP network in residences,
warehouses, retail stores, hotels and many more environments. Due to a durable design, this sleek phone
is drop safe from 1.2 meters, with 150 hours standby time and 7.5 hours talk time making it an ideal
addition for homes and businesses alike.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 14
WP820 Administration Guide
Version 1.0.1.15
PRODUCT OVERVIEW
Feature Highlights
The following table contain the major features of the WP820:
Table 1: WP820 Features at a Glance
Technical Specifications
The following table resumes all the technical specifications including the protocols/standards supported,
voice codecs, telephony features, languages and upgrade/provisioning settings for the Base station
WP820.
Table 2: WP820 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, TR-069, 802.1x,
TLS, SRTP, IPv6
Voice Codecs and
Capabilities
Support for G.711μ/a, G.729A/B, G.722 (wide-band), iLBC, Opus, in-band and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,
AGC, ANS
Graphic Display
2.4-inch (240x320) TFT color LCD
Peripherals
3 soft keys, 3 function keys: Volume up, volume down, Push to Talk key,
navigation keys, dial, hang-up, speakerphone, phonebook, backlit keypad,
proximity sensor, accelerator, vibration motor
Push-to-Talk
Customizable button for push-to-talk, panic call and other related functions
Bluetooth
Yes, Bluetooth v4.2
Auxiliary Ports
3.5 mm headset jack, Micro-USB port for charging, dual-MIC, dual-color LED.
WP820
2 SIP accounts and 2 lines.
3-way audio conference calls.
Dual-band 802.11a/b/g/n Wi-Fi.
Wi-Fi roaming and integrated Bluetooth.
150 hours standby time.
7.5 hours talk time.
300m range outdoor / 50m range indoor.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 15
WP820 Administration Guide
Version 1.0.1.15
Telephony Features
Hold, transfer, forward, 3-way audio conference, downloadable phonebook (XML,
up to 500 items), call waiting, call log (up to 100 records), off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones
and music on hold, server redundancy and fail-over, push to talk
Security
User and administrator level passwords, MD5 and MD5-sess based
authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x
media access control
HD Audio
Yes, both on handset and speakerphone with support for wideband audio, HAC
supported
QoS
Layer 2 (802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
Multi-language
English, Arabic, Chinese, Czech, Dutch, German, French, Hebrew, Italian,
Japanese, Polish, Portuguese, Russian, Spanish, Turkish and more
Upgrade/
Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, manual upload, mass provisioning
using TR-069 or encrypted XML configuration file, manual upload, USB upgrade
Power & Green
Energy Efficiency
Universal power adapter included
Input: 100-240VAC; Output: +5VDC, 1A (5W)
1500mA Li-ion battery, 150h standby time and 7.5h talk time
Physical
Handset Dimensions: 168.5 x 52.5 x 21.8mm
Charger cradle dimensions : 76 x 73 x 81mm
Handset weight: 161g
Handset package weight (not including QIG): 456g
Temperature and
Humidity
Operating Temperature: 0~45°C; Operating Humidity: 10~90%(non-condensing)
Storage Temperature: -20~60°C; Storage Temperature:10~90%(non-condensing
Package Contents
Handset unit, universal power supply, charger cradle, belt clip, 1 Li-ion battery,
Quick Installation Guide.
Durability
Drop-safe from 1.2 meters height
Compliance
FCC, CE, RCM
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 16
WP820 Administration Guide
Version 1.0.1.15
GETTING STARTED
This chapter provides basic installation instructions including the list of the packaging contents and also
information for obtaining best performance with the WP820.
Equipment Packaging
Table 3: Equipment Packaging
Figure 1: WP820 Package Content
Note: Check the package before installation. If you find anything missing, contact your system
administrator.
WP820
•1x Handset unit
•1x Universal power supply 5V
•1x Charger cradle
•1x Belt clip
•1x Rechargeable battery
•1x Quick Installation Guide
•1x GPL Statement
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 17
WP820 Administration Guide
Version 1.0.1.15
Setting up the WP820
Charging Station
Plug the power adapter into a power source socket to start using the charging station.
Figure 2: Charging Station
Handset
Please refer to the following steps in order to setup your WP820:
1. Open the battery cover.
2. Insert the battery with the electrodes in the bottom left corner.
3. Close the battery cover.
Note: Please charge the battery fully before using the handset for the first time. (For more information
about the battery, please refer to Battery Information.
Figure 3: WP820 Handset Setup
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 18
WP820 Administration Guide
Version 1.0.1.15
Battery Information
•Technology: Rechargeable Li-ion Battery
•Voltage: 3.8V (Nominal Voltage 3.8V / Limited charge Voltage: 4.35V)
•Capacity: 1500mAh
•Standby time: up to 150 hours
•Talk time: up to 7.5 hours’ active talk time
In order to get the best performance of your WP820, we recommend using original battery provided in the
package. The specifications may differ depending on the age and capacity of the battery used.
Important Note: Be careful when inserting the battery into your handset to avoid any risk of short-circuit,
which lead to damage your battery and/or the handset itself. Do not use damaged batteries which can
increase the risk of serious harm.
WP820 Handset Keys Description
The WP820 enhances communication and combines usability and scalability in industries such as
warehousing, catering and retail as well as in factory settings. The following screenshot describe the
WP820 LCD screen and the main hardware components.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 19
WP820 Administration Guide
Version 1.0.1.15
Figure 4: WP820 Description
The following table describe the WP820 keypad keys.
Table 4: WP820 Description
Key
Description
1.
Proximity sensor
The proximity senor can detect and measure gravitational
acceleration, tilt, vibration, altitude changes, and static position.
2.
Earphone
Delivers audio output.
3,4
Volume up / Down Keys
Configure the handset and ringtone volume.
5.
PTT Key
PTT (Push-to-Talk) button, to initiate PTT call.
6.
Hands-free / Speaker
key
Switches between Handset and Hands-free / Speaker modes.
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820

P a g e | 20
WP820 Administration Guide
Version 1.0.1.15
7.
Arrow key combination
(Up, Down, Left, Right)
Allows navigation of the cursor through the displayed menu options.
8.
Off-hook / Dial key
Enters dialing mode, or dials number entered.
9.
Alphanumeric Keypad
Provides the digits, letters, and special characters in
context-sensitive applications. For + sign, press and hold key 0.
10.
* / Mute key
Activates or deactivates the mute feature when keep pressing on * in
idle screen.
11.
LED indicator
1dual-color LED indicator indicating: power, call, battery, message
waiting…
12.
3.5 mm headset jack
Phone connector for the headphones/headsets.
13.
Color LCD Screen
2.4-inch (240x320) TFT color LCD
14.
Softkeys
Correspond to functions displayed on the LCD. These functions
change depending on the current context.
15.
Contacts
Access to contacts list.
16.
Menu/OK key
Selects the option chosen by the cursor or enters the main menu
from the home screen.
17.
On-hook or Power key
Terminates calls or turns the handset on / off.
18.
# / Lock key
Locks keypad against unintentional entries when keep pressing #.
•Press and hold # key for approximately 2 seconds to lock the keys.
•Press Unlock softkey and then # to unlock the keys.
19.
Microphone
Picks up audio earpiece and hands-free calls.
WP820 Icons Description
Following table contains description of each icon that might be displayed on the screen of the WP820.
Table 5: WP820 Icons Description
Battery status
Charging
Wi-Fi not enabled/configured
Wi-Fi signal status
Speaker enabled icon
Ringtone status
Outgoing Call notification
https://arttel.ru/
https://arttel.ru/shop/ip-telefony/grandstream-wp820
