Granit GA1501 User manual

User manual (english version)
Packing unit:
1 battery energizer GA1501
1 set fence and grounding cable
1 warning plate
1 user manual and warranty card
86063E_BAL_A1501_Tiefentladeschutz_Granit_ENGLISCH.p65
Battery Energizer GA1501
Order No. 580580104
Warranty Card
Terms of Warranty
To your energizer
Granit GA1501
we issue warranty for a period of
3 years
at following conditions:
We issue warranty to your energizer GA1501 for a period of 3 years from
date of selling at following conditions:
The selling date has to be proved by this certificate of guarantee, which has to
be accurately completed by your dealer.
All deficiencies or damages during this period that can be traced back to
faults of material or faults of fabrication, will be repaired costless, when the
device is returned to us prepaid.
This warranty cannot be issued when the device is being connected to wrong
power supply or when it was damaged due to an Act of God (e. g. lightning
stroke or water damage). It also cannot be issued in any case of unauthorized
intervention or maloperation.
Device: Battery Energizer Granit GA1501
Selling date: Serial number:
Dealer stamp/signature of dealer:
To execute repair works please contact your local GRANIT dealer:

Mounting
Mount the energizer GA1501 upright at a grounding rod, at a wall or in an appropriate
housing or case. Protect the energizer from water.
Hit the grounding rod deeply into the ground at a humid place directly nearby your
fence. Place your GA1501 onto the grounding rod. Connect the grounding rod with
the blue earthing cable to the ground connector of your energizer. Connect your
fence and the fence connector of your energizer using the red fencing cable. Connect
the energizer to the 12V battery in the right connection order of the battery clamps
(red clamp +, black clamp -).
Using the battery, deep-discharging protection
The energizer GA1501 protects the battery with an in-built deep-discharging
protection. If the battery voltage sinks below 10,8V the deep-discharging protection
turns off the energizer and the green control LED blinks. Please note:
❍12V lead-acid-batteries must be charged approx. every 6 months, even when
they are not in use.
Power-saving and controls
The energizer GA1501 is also fitted with an in-built power-saving circuitry: connected
to a good fence (without faults and without arc-overs) and to a good grounding the
power consumption is being reduced to a minimum. The multi-color control LED
informs you about the condition of your energizer and your battery:
❍green/orange: Your 12V battery is charged well. The longer the control LED
lights orange, the higher is the consumption of battery energy. The better your
fence is isolated the fewer is the consumption of battery energy.
❍green/red: Your 12V battery must be charged.
❍green shortly blinking: The deep-discharging protection is activated. The
energizer has turned off as the tension of the battery is too low. The battery is
now being protected against deep-discharge. Charge your battery immediately.
Technical data
operating voltage: 12VDC
current consumption: 45-80mA
off-load voltage: approx. 8200V
tension with animal touching fence: approx. 7100V
tension with load 500 Ohm: approx. 3500V
impulse energy: approx. 0,7J
max. length of fence (CEE): approx. 4-10km
operating duration of battery 44Ah: approx. 30-45 days, depending on fence

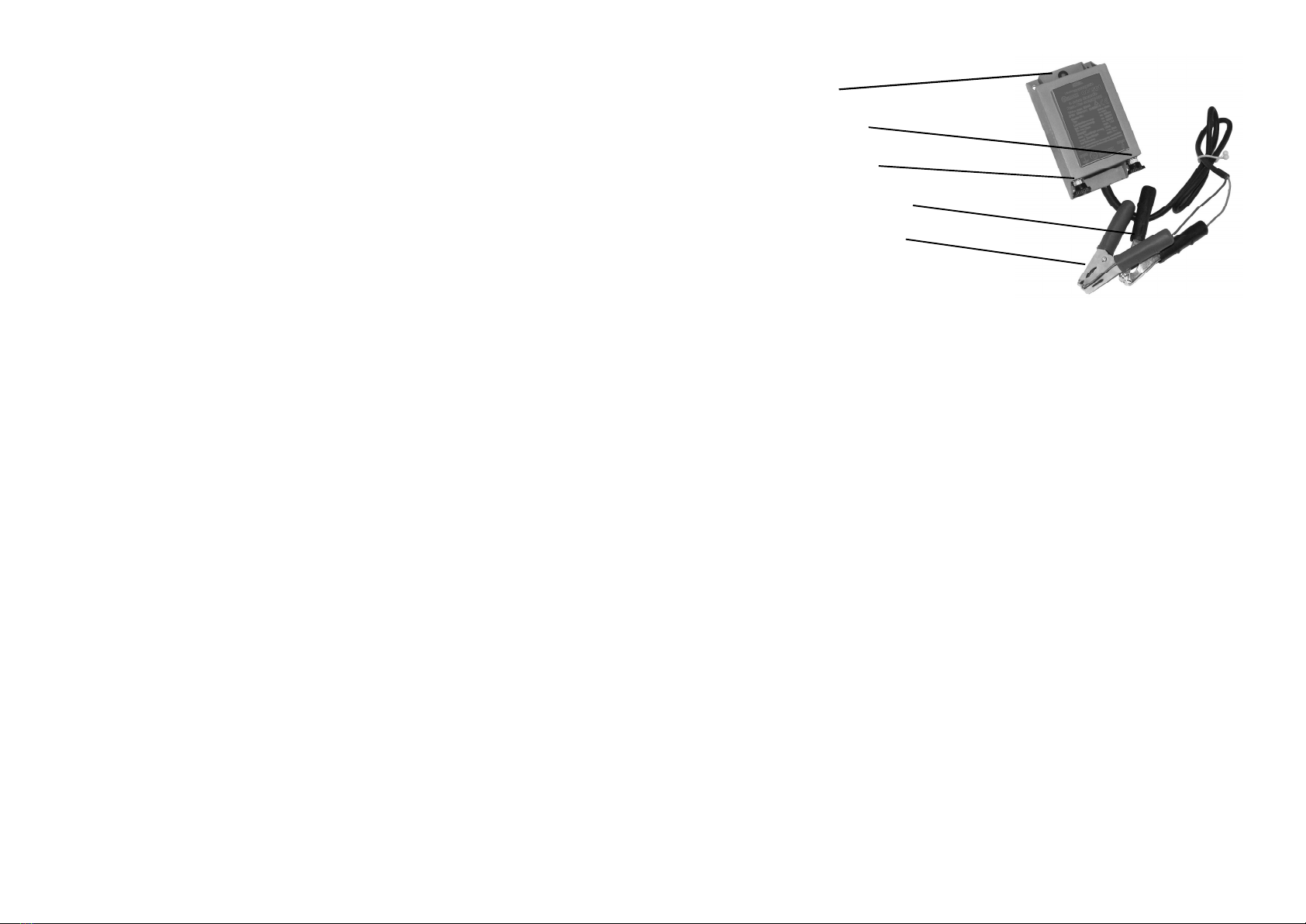

control LED
fence connector
ground connector
battery clamp - (black)
battery clamp + (red)
Safety informations
Not following the safety instructions and an incorrect energizer setup could
lead to hazard and may cause technical malfunction of the energizer. Please
observe strictly following items:
❍Connect your energizer GA1501 only to a 12V battery
❍Always use proper fencing material when using flexible fencing wire.
Wire of low quality is not recommended.
❍Your energizer GA1501 can also be used for tending sensitive animals.
❍Build up your fence solidly. Avoid your animals from getting tangled in
your electric fence.
❍Check the condition of your fence and your energizer daily.
❍Full performance of your energizer GA1501 is achieved by using good
isolated fences without fouling.
❍Take care of a good grounding condition!
❍Check the condition of your 12V battery daily and charge it if required.
Avoid deep-discharging! Consider that a 12V lead-acid battery discharges
slowly by itself even if they are not used.
