Granite STASH Quick start guide

INSTALLATION AND USE
STASH MULTI-TOOL
WWW.GRANITE-DESIGN.COM
STASH MULTI-TOOL 2020.08.30 / REV. 1
Approximately 3mm Approximately 3mm
80mm
110mm
120mm
150mm - 200mm
180mm - 230mm
230mm - 240mm
MEASURED VALUEBOLT LENGTH
Thank you for purchasing the STASH MULTI-TOOL.
Please read these instructions thoroughly before attempting to install this item.
Proper installation is required for safe riding. Contact us or a bike mechanic if you are not sure with certain steps.
．Hex key 5mm (included in the package)
．Multi-tool
．Spoke key tool
．Tool housing
．Top cap
1 SET
1 PCS
1 PCS
1 PCS
TOOLS REQUIRED
CONTENTS
MULTI-TOOL INSTALLATION
．Lower assembly
．M6 socket bolts
(80mm, 110mm, 120mm)
．Hex key 5mm
1 PCS
1 SET
1 PCS

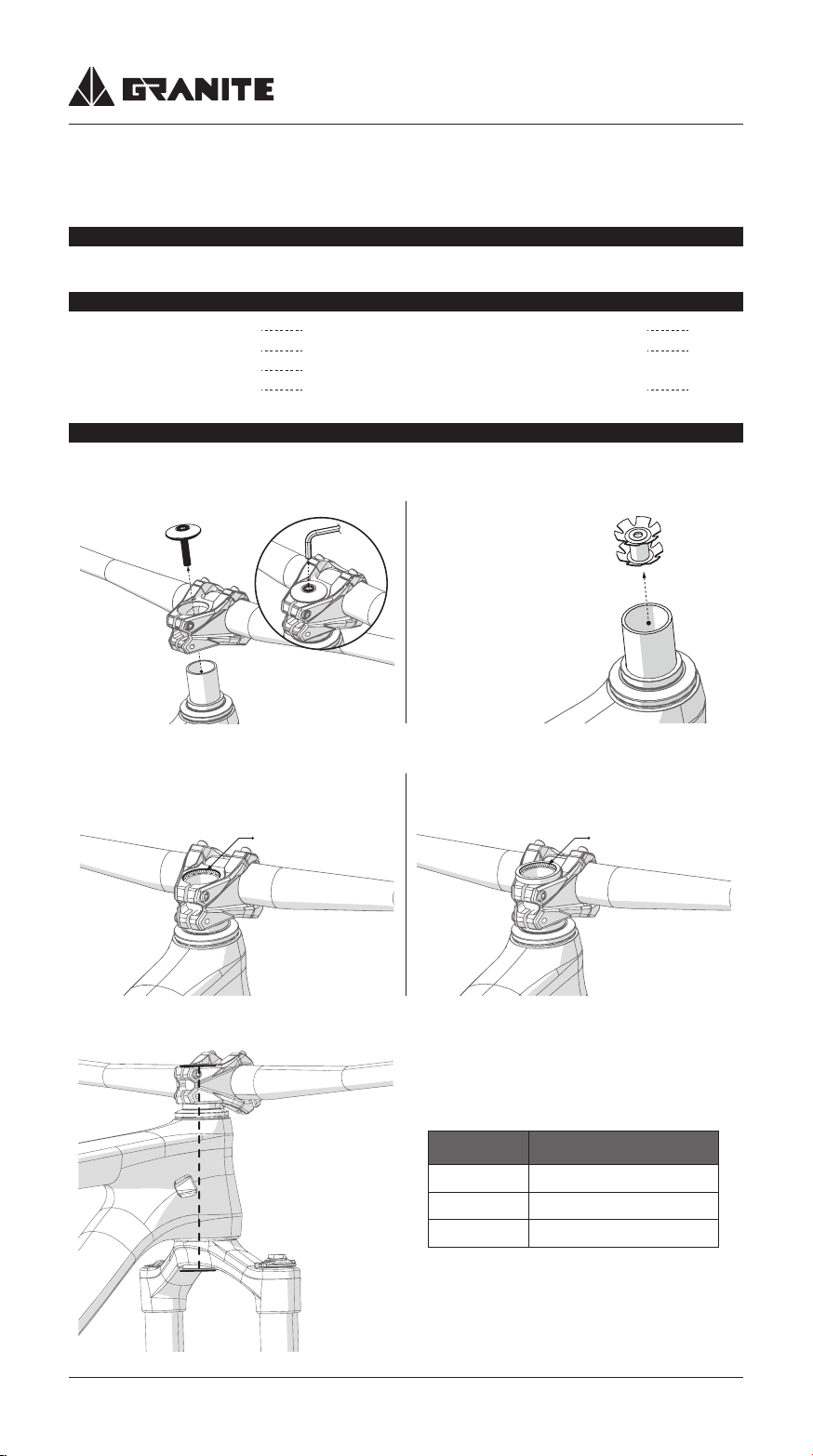

4. Measure the stack height between the top of stem to bottom of fork crown. Choose the proper M6 bolt according to the table below.
1. Remove the stem cap and stem to access the star nut inside
the steerer tube.
2. Remove the star nut and clean the inside of the steerer tube.
3. Put the stem and spacers onto the steerer tube. Make sure the steerer tube is lower than the top of stem or spacer by about 3mm.

INSTALLATION AND USE
STASH MULTI-TOOL
Multi-tool Spoke key tool
WWW.GRANITE-DESIGN.COM
5. Insert the tool housing into the steerer tube. Insert the M6 bolt with spacer through the bottom hole of the tool housing.
6. Insert the lower assembly through the fork crown. Tighten the M6 bolt to compress the headset assembly with the proper torque.
There should be no gap within the stem and headset stack and the headset should turn smoothly.
7. Align the stem to the front wheel and then tighten the stem bolts. Make sure the stem bolts are tightened before riding.
Riding with a loose stem can result in serious accidents.
8. Insert the tool set with top cap into the tool housing. Press firmly until the top cap flange touches the tool housing. Enjoy the ride!
USAGE AND MAINTENANCE
You should clean the tool regularly between uses. We suggest to apply a thin layer of oil onto the tool bits to prevent rust
in humid condition.
STASH MULTI-TOOL 2020.08.30 / REV. 1
