GRASS VALLEY STORM 3G - User manual

www.grassvalley.com
PRODUCT DATA SHEET
KEY FEATURES
STORM 3G
3G-SDI EDITING WITH HDMI
MONITORING OUTPUT
3G-SDI input and output with•
embedded audio and timecode
HDMI output for full-resolution, real-•
time monitoring from the included
EDIUS NLE software
Embedded HDMI audio output for•
high-quality audio monitoring
Video and audio output stays•
perfectly in sync, with editing
windows for accurate editing and
trimming
Reference input supports bi-level or•
tri-level sync
RS-422 master or slave machine-•
control support*
Edit any mix of SD and HD resolution•
video content together in real time
Works with many different native•
video formats, including AVCHD,
AVC-Intra, MPEG-2, uncompressed,
and more
Supports newer file-based formats,•
including Infinity™JPEG 2000,
XDCAM HD and XDCAM EX, P2
(DVCPRO and AVC-Intra), and GFCam
Compatible with Windows 7 (32/64-•
bit) and Windows Vista (32/64-bit)
and Windows XP (32-bit) operating
systems
* Slave functions require the EDIUS VTR Emulation
option, available separately
STORM 3G™is designed for video
professionals who want one solution
for both SDI-based editing and tapeless
workflows, with the capability to preview
their projects on affordable HDMI
monitors.
Based on the PCI Express form factor,
the STORM 3G solution includes EDIUS®
nonlinear editing software, 3G HD-SDI
inputs and outputs, and an HDMI output
for full-resolution, real-time preview
monitoring. Embedded HDMI audio
provides high-quality audio monitoring.
It’s a premium, high-powered solution for
multi-format editing.
Timecode input and output is supported
via the RS-422 port for accurate editing
from field logs. The reference input
supports both analog blackburst and
tri-level sync. External VTR ingest can be
controlled via the RS-422 port and the
optional VTR emulation software may
be used to control the EDIUS software
like a VTR for direct playout from the
workstation.
The STORM 3G board can handle any
mix of high- and standard-definition (HD
and SD) video content; unlimited video,
audio, title, and graphics layers; and any
combination of real-time effects. It also
offers real-time, full-resolution, full-quality
HD and SD video outputs.
An optional timecode in/reference out
board takes a linear timecode source via
the BNC connector and provides two
reference outputs-blackburst or tri-level
sync-providing a means to synchronize
both the STORM 3G and an external
device, such as a source deck, from a
single timecode source.
3G HD/SD SDI-based, multi-format
editing with HDMI monitoring.
PRODUCT DATA SHEET
To find your local reseller or dealer for Grass Valley professional audio
video products, please visit http://www.grassvalley.com/sales/.
dEAlERS/RESEllERS
Twelve-month limited warranty with service provided through local
resellers. Additional support available on a contractual basis.
SERvicE & SUppORT
pAcKAGE cOnTEnTS
SpEciFicATiOnS
Bus Interface
PCI Express Rev. 1.1 x4 lane
Video Formats (Input/Output)
(3G-SDI)
1920x1080p50/59.94•
1920x1080i50/59.94•
1920x1080psF23.98/24/25/29.97•
1280x720p50/59.94•
720x486i59.94•
720x576i50•
Video Formats (Output) (mini HDMI)
1920x1080p50/59.94•
1920x1080i50/59.94•
1280x720p50/59.94•
720x480i59.94•
720x576i50•
720x480p59.94•
720x576p50•
Video Output Connector
3G-SDI:
Video: SMPTE-292M, SMPTE-259M-C•
Audio: SMPTE-299M, SMPTE-272M-A•
Timecode : LTC/VITC Packet (HD),•
D-VITC (SD)
Mini HDMI 1 port (HDCP not
supported):
Video: YCbCr 4:2:2 or RGB 4:4:4•
(8-bit/10-bit)
Audio: LPCM 8-channel (24-•
bit/48 kHz)
Video Input Connector
3G-SDI:
Video: SMPTE-292M, SMPTE-259M-C•
Audio: SMPTE-299M, SMPTE-272M-A•
Timecode: VITC Packet (HD), D-VITC•
(SD)
Audio Formats
LPCM 48 kHz/24-bit
Audio Output Connectors
Mini HDMI LPCM 8-channel•
3G-SDI embedded audio•
Reference Input
BNC: Black Burst or Tri-Level Sync
Machine Control
9-pin D-Sub: RS-422A (Master/Slave*)
Power Requirements
+12V: 1.6A, +3.3V: 0.5A
Physical Dimensions
111.15 x 167.65 mm (4.375 x 6.600 in.)
(HxW)
Regulatory Compliance
CE, FCC CLASS B, C-Tick
Minimum System Requirements
Any Intel Core 2 or Core iX CPU. Intel•
or AMD single core CPU with a 3 GHz
processor speed or faster (multiple
CPUs and/or multi-core CPUs are
recommended). SSE2 and SSE3
instruction set supported
1 GB RAM (2 GB or more•
recommended)
One free PCI Express x1 bus slot•
800 MB or more space required for•
software installation
Drive with ATA100/7,200 rpm or•
faster capable of sustaining at least
20 MB/s data transfer:
Available hard disk space should—
be twice the size of the file to
be edited
A RAID stripe set of two or more—
hard disk drives is required for
multiple HD stream output
A graphics card with at least•
256 MB of graphics memory (512
MB recommended) with support
for Direct3D 9.0c or later, and
PixelShader Model 3.0 or later is
required (PixelShader Model 4.0 or
later recommended)
Sound card with WDM driver support•
required
DVD-ROM drive is required for•
software installation. For writing onto
DVD or Blu-ray disc, a compatible
drive is required
Free USB port (1.1 or higher) is•
required for security key
Windows XP (SP3 or later, 32-bit)•
Windows Vista (SP1 or later, 32-bit•
or 64-bit)
Windows 7 (32-bit or 64-bit)•
* Slave functions require the EDIUS VTR
Emulation option, available separately
STORM 3G PCI Express x4 bus card•
EDIUS 6 software installation disc set (DVD-ROM)•
EDIUS USB dongle•
Hardware setup manual•
Optional timecode in/reference out board (pictured)•
© Copyright 2011 Grass Valley USA, LLC. All rights reserved. EDIUS is a registered trademark and Grass Valley, Infinity, and STORM 3G are trademarks of
GVBB Holdings S.a.r.l. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Specifications
subject to change without notice. PRV-4096D-2

Other GRASS VALLEY Computer Hardware manuals

GRASS VALLEY STORM 3G - SETUP GUIDE 09-2010 User manual

GRASS VALLEY

GRASS VALLEY STORM 3G - SETUP GUIDE 09-2010 User manual

GRASS VALLEY Intuition XG User manual

GRASS VALLEY

GRASS VALLEY Intuition XG User manual

GRASS VALLEY M848-9005-491 Datasheet

GRASS VALLEY

GRASS VALLEY M848-9005-491 Datasheet

GRASS VALLEY VX-Vertigo-XG21-e Datasheet

GRASS VALLEY

GRASS VALLEY VX-Vertigo-XG21-e Datasheet

GRASS VALLEY 8900GEN-SM GeckoFlex User manual

GRASS VALLEY

GRASS VALLEY 8900GEN-SM GeckoFlex User manual

GRASS VALLEY IQUCP25 User manual

GRASS VALLEY

GRASS VALLEY IQUCP25 User manual

GRASS VALLEY 8977AP-4B User manual

GRASS VALLEY

GRASS VALLEY 8977AP-4B User manual

GRASS VALLEY HDSPARK User manual

GRASS VALLEY

GRASS VALLEY HDSPARK User manual

GRASS VALLEY K-FRM-X-UPG-LX-KIT User manual

GRASS VALLEY

GRASS VALLEY K-FRM-X-UPG-LX-KIT User manual

GRASS VALLEY 8977AP-4U User manual

GRASS VALLEY

GRASS VALLEY 8977AP-4U User manual

GRASS VALLEY FIRECODER BLU User manual

GRASS VALLEY

GRASS VALLEY FIRECODER BLU User manual

GRASS VALLEY HDSPARK PRO User manual

GRASS VALLEY

GRASS VALLEY HDSPARK PRO User manual

GRASS VALLEY HDSPARK PRO User manual

GRASS VALLEY

GRASS VALLEY HDSPARK PRO User manual

Popular Computer Hardware manuals by other brands

SilverStone SST-TD02 manual

SilverStone

SilverStone SST-TD02 manual

CANNY 7 quick start guide

CANNY

CANNY 7 quick start guide

Atmel AT86RF211 user guide

Atmel

Atmel AT86RF211 user guide

Aritech 2X-LB Installation sheet

Aritech

Aritech 2X-LB Installation sheet

Portwell PCOM-B630VG user manual

Portwell

Portwell PCOM-B630VG user manual

HP 4440B manual

HP

HP 4440B manual

Portwell ROBO-598 user guide

Portwell

Portwell ROBO-598 user guide

Omron CJ - REFERENCE  07-2009 Reference manual

Omron

Omron CJ - REFERENCE 07-2009 Reference manual

Noctua NH-D15 installation manual

Noctua

Noctua NH-D15 installation manual

DFI WM343-KD330 Quick installation guide

DFI

DFI WM343-KD330 Quick installation guide

Advantech VEGA-3311 Quick start manual

Advantech

Advantech VEGA-3311 Quick start manual

ESD CAN-PCIeMini/402-2 Hardware manual

ESD

ESD CAN-PCIeMini/402-2 Hardware manual

Keithley 7038 instruction manual

Keithley

Keithley 7038 instruction manual

IRIS EAGLE SDK quick start guide

IRIS

IRIS EAGLE SDK quick start guide

Sony BKPF-291 Operation manual

Sony

Sony BKPF-291 Operation manual

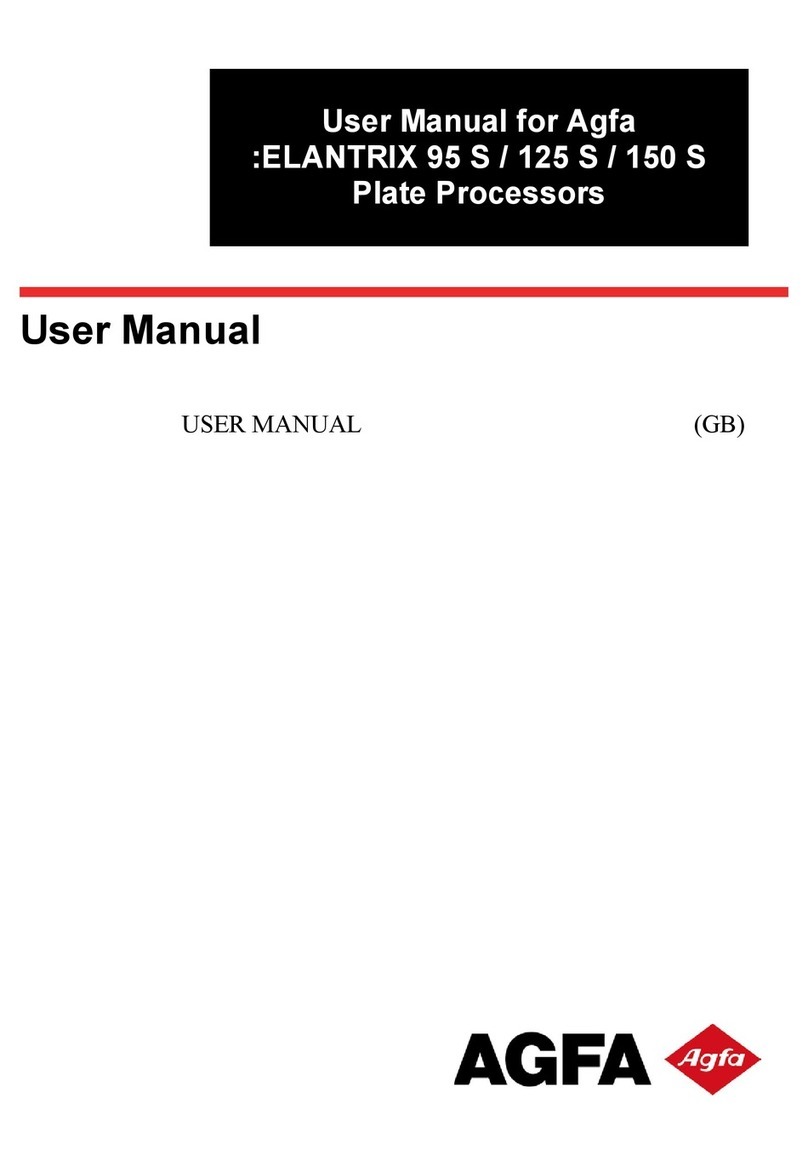

AGFA ELANTRIX 95 S user manual
