GRASS VALLEY Thomson EDIUS SP User guide

Hardware Setup Manual
EDIUS SP / EDIUS SP-SDI / EDIUS SD / EDIUS HD
F095807233

Cautions
(1) It is prohibited to copy a part or all of this product without prior permission.
(2) The contents or specifications of this product may be changed without prior notice.
(3) We have prepared the contents of this product to the best of our ability; however if you have any questions
about the contents, or if there are any errors or missing items, please contact Thomson Grass Valley.
(4) However we do not take any responsibility for malfunctions arising from use, irrespective of the points
outlined in (3).
(5) Irrespective of whether it was due to a usage error, Thomson Grass Valley takes no responsibility for
extraordinary, incidental or derivative claims, including those for lost earnings generated by the application of
this product.
(6) It is prohibited to analyze, reverse engineer, decompile or disassemble any of the items included with this
product, including the software, hardware and manual.
(7) Microsoft and Windows are registered trademarks of the Microsoft Corporation, USA.
(8) QuickTime is the registered trademark of the Apple Computer, Inc., USA.
(9) Adobe, Adobe logo, Adobe Photoshop, Premiere and After Effects are registered trademarks of Adobe Systems
Incorporated.
(10) Intel, Pentium and Xeon are the trademarks or registered trademarks of Intel Corporation or its subsidiaries in
the United States of America and other countries.
(11) HDV and HDV logos are the trademarks of Sony Corporation and Victor Company of Japan, Limited (JVC).
(12) Dolby, Dolby and the Double D symbol are registered trademarks of Dolby Laboratories.
They are manufactured based on their own license.
(13) Other product names or related brand names are trademarks or registered trademarks of their respective
companies.
Manual Explanation
■Information not described in this manual may be displayed in some cases. Make sure to read the text file attached
to the disc.
■If there are any variations between the explanation in this manual and the actual application method, priority is
given to the actual application method.
■The screens used as examples in this manual are those of the development stage, so they may vary from those in
the final product.
■This manual is written for people who have a basic knowledge of how to use a computer. If there are no special
instructions, perform the same operation as a normal computer operation.
■In this manual, EDIUS 5 and EDIUS series are called 'EDIUS'.
■In this manual, Microsoft®Windows®XP Professional operating system is called Windows XP Professional or
Windows XP. Microsoft®Windows®XP Home Edition operating system is called Windows XP Home Edition or
Windows XP.
■In this manual, Windows Vista™ Home Basic, Windows Vista™ Home Premium, Windows Vista™ Business,
Windows Vista™ Ultimate is called Windows Vista Home Basic, Windows Vista Home Premium, Windows
Vista Business, Windows Vista Ultimate or Windows Vista.
■In this manual, Adobe Photoshop is called Photoshop, and Adobe After Effects is called After Effects.
■Information in this manual is subject to change without notice, due to the change in product specifications etc.
Hardware Setup Manual
July 23, 2008
Copyright © 2008 Thomson
All rights reserved.

Table of Contents
1 Before Using
Notices&Warranties ....................................... 3
Notices&Warranties ...............................................3
DANGER.........................................................4
CAUTION ........................................................4
FCCNotice.......................................................5
DeclarationofConformity............................................5
Operationenvironment..............................................6
Limitations........................................................9
Support................................................. 10
CustomerSupport.................................................10
Web-site ........................................................10
OnlineUserRegistration............................................10
2 Hardware Setting

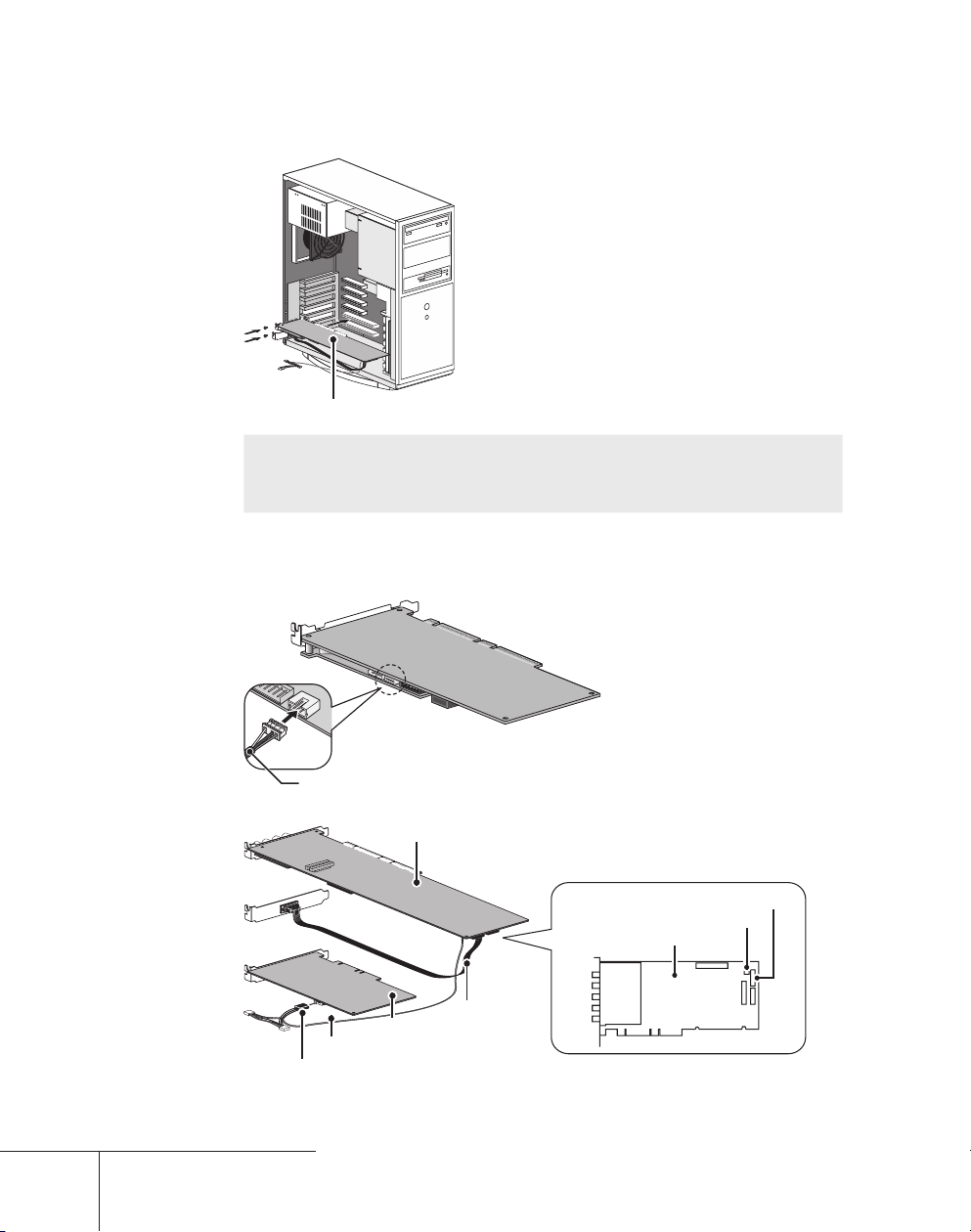

SettingtheMainBoard......................................11

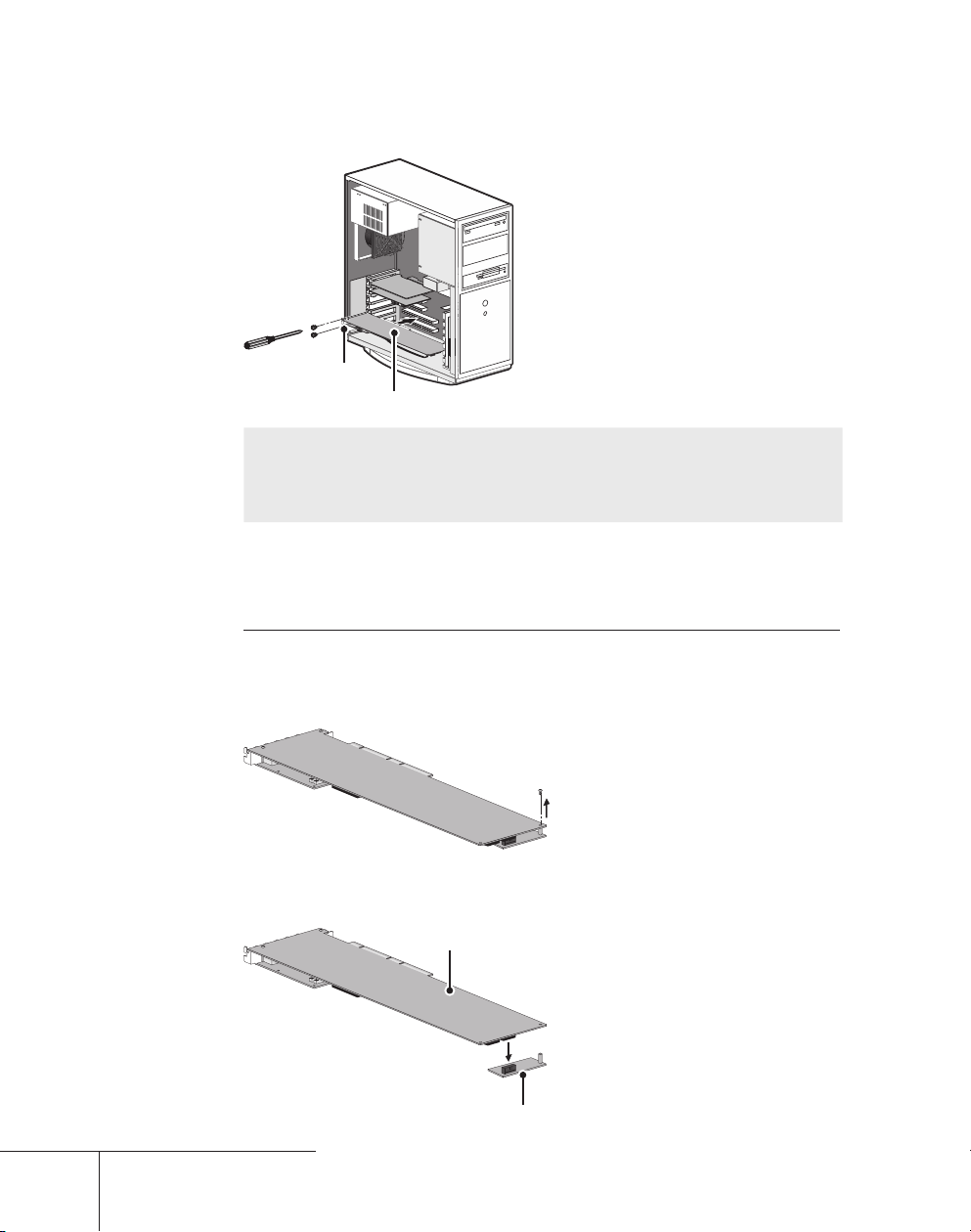

SettingtheSDIbracket..................................... 13

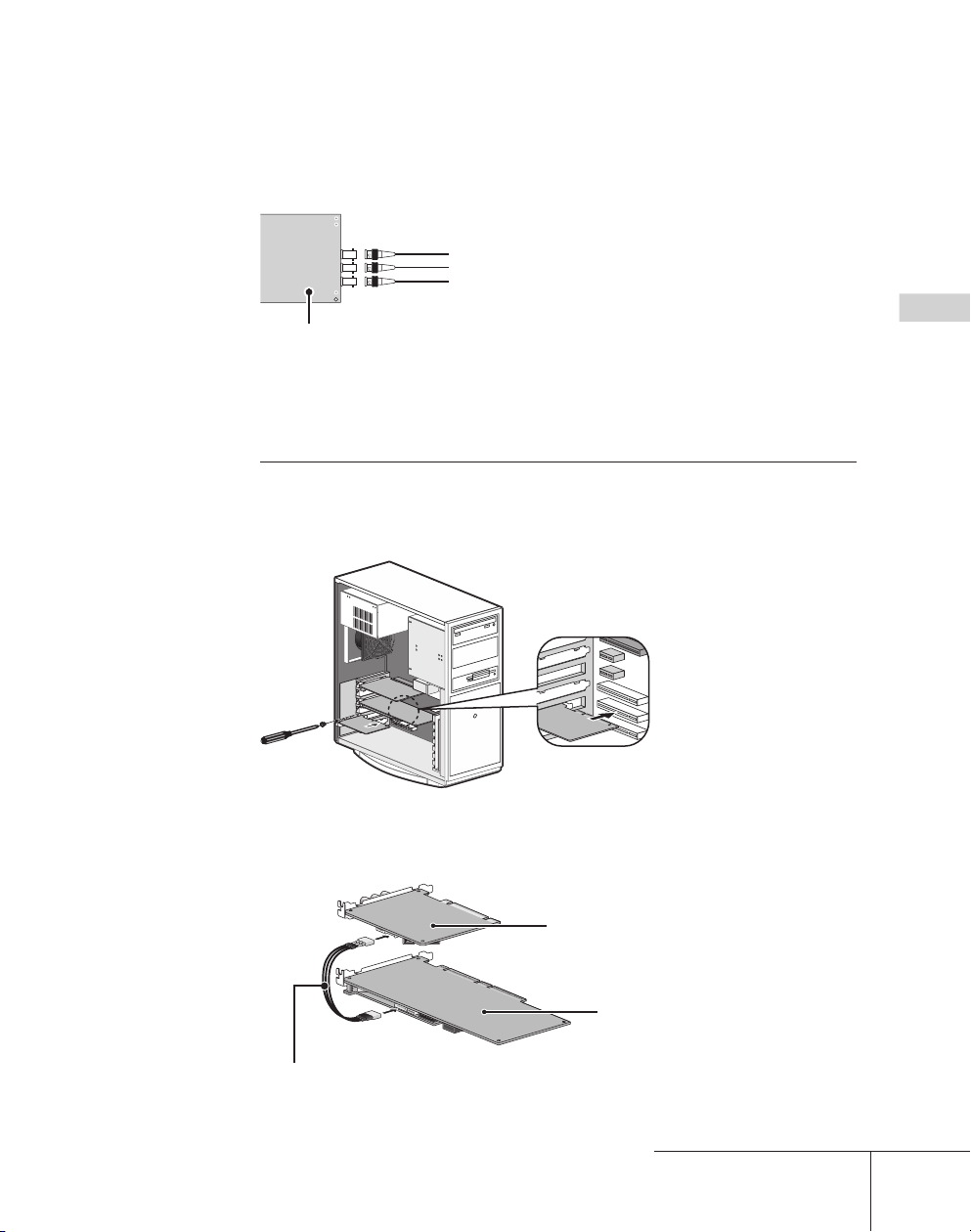

SettingtheSubBoard...................................... 13
Expansionboard(HX-HD1) .........................................13
Audiooutput .....................................................15
ConnectingtoHDBX....................................... 16
SettingHDBXconnectingterminal....................................16
EDIUS HD + HDBX-1000H or HDUP-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
UpgradingHDBX..................................................20
ConnectingHDBX.................................................21
Partnames.............................................. 24
EDIUS SP Main board (SHX-E1 / E2) rear panel . . . . . . . . . . . . . . . . . . . . . . . . . 24
EDIUSHD/SD(RX-E1)Rearpanel ..................................25
Expansionboard(HX-HD1)rearpanel.................................26
SDIbracketrearpanel .............................................26
HDBXfrontpanel .................................................27
HDBXrearpanel..................................................28
EDIUSSPBreakoutBox............................................33



3 Software Installation / Uninstallation
InstallingEDIUS.......................................... 35
Installing Attached Application Software . . . . . . . . . . . . . . . . . . . . . . . 40
InstallingTitleMotionPro ...........................................40
ToolsFoldercontents..............................................41
InstallingDVCapture ..............................................43
Conrmation after installation ................................ 46
Conrming resource (in Windows Vista)................................46
Conrming resource (in Windows XP) .................................47
Uninstallation ............................................ 50
Uninstalling driver and application software from Windows Vista ............50
Uninstalling driver and application software from Windows XP ..............51
4 License Transfer
Transferringlicense........................................ 52
UsingLicenseTransfertool .........................................52
Transfer between a USB key and a local disk of a PC . . . . . . . . . . . . . . . . . . . . . 53
Transfer between a USB key and another USB key . . . . . . . . . . . . . . . . . . . . . . . 54
5 Hardware Specications
MainBoard.............................................. 55
EDIUS SP (SHX-E1) ...............................................55
EDIUS SP-SDI (SHX-E2) ...........................................56
EDIUS SD (RX-E1) ................................................57
EDIUS HD (RX-E1) ................................................58
Expansion board (HX-HD1) ................................. 61
Unbalancedoutput........................................ 61


Before Using
1Before Using
Notices & Warranties
Notices & Warranties
Copyright Regulations
It is illegal for anyone to violate any of the rights provided by the copyright laws to
the owner of copyright, except for fair use (mainly private noncommercial use). Also,
in certain cases copying is prohibited with no exceptions. In no event shall Thomson
Grass Valley be liable for any direct or indirect damages whatsoever arising from the
use of captured materials.
Warranty
This product is covered by a limited warranty when you register your Thomson Grass
Valley product. This warranty is for a period of one year from the date of purchase from
Thomson Grass Valley or an authorized Thomson Grass Valley agent. This warranty
applies only to the original purchaser of the Thomson Grass Valley product and is not
transferable, Thomson Grass Valley warrants that for this period the product will be
in good working order. Should our product fail to be in good working order, Thomson
Grass Valley will, at its option, repair or replace it at no additional charge, provided
that the product has not been subjected to misuse, abuse or non-Thomson Grass Valley
authorized alternations, modications and/or repair. Proof of purchase is required to
validate your warranty.
Thomson Grass Valley is not responsible for any lost prots, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, this
product. This includes damage to property and, to the extent permitted by law, damages
for personal injury. This warranty is in lieu of all other warranties of merchantability
and tness for a particular purpose.


DANGER
The following conditions indicate the potential for serious bodily injury or loss of life.
Health precautions
In rare cases, ashing lights or stimulation from the bright light of a computer display
or TV monitor may trigger temporary epileptic seizures or loss of consciousness. It is
believed that even individuals whom have never experienced such symptoms may be
susceptible. If you or close relatives have experienced any of these symptoms, consult a
doctor before using this product.
Do not use in environments requiring a high degree of reliability
and safety
This product is not to be used in medical devices or life support systems. The
characteristics of this product are not suited for use with such systems.
Protect against static electricity
An electrostatic discharge may damage components of this product. Do not directly
touch any of the connectors or component surfaces.
Static electricity can be generated on clothing and on people. Before handling the
product, discharge static electricity from your body by touching a grounded metal
surface.
Do not disassemble
Do not remove the cover or modify the Product. Fire, electric shock or malfunction
may result. For internal inspection or repair, please contact your system integrator or
Thomson Grass Valley directly.
CAUTION
The following conditions indicate the potential for bodily harm, damage to hardware or
loss of data.
Do not setup in areas subject to heat
Do not setup in an area exposed to direct sunlight or near a heating apparatus. The heat
can accumulate, causing burns, re or damage. Also, the unit may become deformed or
change color.
Only setup using the prescribed method
Do not setup in a manner other than prescribed. Do not use while wrapped in cloth or
plastic. Heat can accumulate, causing burns, re or damage.


Before Using
FCC Notice
This equipment has been tested and found to comply with the limits for the class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed,
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,the
user is encouraged to try and correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certied to comply with the limits for a class B computing
device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations,
shielded cables must be used with this equipment. Operation with non-approved
equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modications made to the equipment
without the approval of manufacturer could void the user's authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Declaration of Conformity
According to FCC Part 15
Responsible party Name: Grass Valley, Inc
Address: 400 Providence Mine Road, Nevada City, CA 95959
Telephone: [phone]


Operation environment
Notes EDIUS operation is not necessarily guaranteed even in the environments
satisfying all conditions below.
•
EDIUS SP
PC
CPU: Intel Pentium 4 2.8GHz or higher
(Xeon 2.8GHz Dual Processor (hyper-threading) recommended.)
* EDIUS complies with multi-processor and hyper threading technology.
* CPU supporting SSE2 instructions is necessary in operating EDIUS.
PCI bus
The below PCI slots are required:
64bit / 66MHz PCI (PCI Spec. Revision 2.2) x1
32bit / 33MHz PCI (PCI Spec. Revision 2.2) x1
* You can also use two 32bit / 33MHz PCI (PCI Spec. Revision 2.2) slots, if you are
editing in SD resolutions only.
Memory
Memory space with 1GB or larger required, larger than 2GB recommended.
Hard disk drive
800MB or larger space required for software installation.
Drive with ATA100 / 5400rpm or faster is necessary for video storage.
* Ultra SCSI160 or faster is necessary to playback two or more streams in SD
uncompressed.
* RAID 0 is recommended for HD resolution editing.
Graphics
Direct3D 9.0c or later, PixelShader 3.0 or later
SD 128 MB or larger required, 256 MB or larger recommended
HD 256 MB or larger required, 512 MB or larger recommended
Sound system
Support for WDM driver is required.
DVD-ROM drive
Required for software installation.
DVD-R / RW or DVD+R / RW drive is required when creating DVD-Video with
Canopus DVD Creator.
►
►
►
►
►
►
►


Before Using
OS
Windows XP SP2 or later (32bit)
Windows Vista SP1 or later (32bit)*
Windows Vista SP1 or later (64bit)*
* Windows Vista SP1 includes the following operation systems.
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Ultimate
Windows Vista Business
EDIUS SP-SDI
PC
CPU: Intel Pentium 4 2.4GHz or higher
* EDIUS complies with multi-processor and hyper threading technology.
* CPU supporting SSE2 instructions is necessary in operating EDIUS.
PCI bus
The below PCI slots are required:
Main board : PCI Express x 1 (PCI Express Spec. Revision 1.0a)
Expansion board : 32bit / 33MHz PCI (PCI Spec. Revision 2.2)
Memory
Memory space with 1GB or larger required, larger than 2GB recommended.
Hard disk drive
800MB or larger space required for software installation.
Drive with ATA100 / 5400rpm or faster is necessary for video storage.
* Ultra 160 SCSI or faster is necessary to playback two or more streams in SD
uncompressed.
* RAID0 is recommended for HD resolution editing.
Graphics
Direct3D 9.0c or later, PixelShader 3.0 or later
SD 128 MB or larger required, 256 MB or larger recommended
HD 256 MB or larger required, 512 MB or larger recommended
Sound system
Support for WDM driver is required.
DVD-ROM drive
Required for software installation.
DVD-R / RW or DVD+R / RW drive is required when creating DVD-Video with
Canopus DVD Creator.
►
►
►
►
►
►
►
►


OS
Windows XP SP2 or later (32bit)
Windows Vista SP1 or later (32bit)*
Windows Vista SP1 or later (64bit)*
* Windows Vista SP1 includes the following operation systems.
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Ultimate
Windows Vista Business
EDIUS SD / EDIUS HD
PC
CPU: Intel Xeon 3.06GHz (3.2GHz recommended) Dual Processor
Chipset
Intel E7505 Chipset based M/B
(with PCI 64bit / 66MHz or PCI-X one slot)
(Recommend M/B Intel SE7505VB2)
Memory
2GB Main Memory
Hard disk drive
System HDD and Data HDD should be separate drives.
* System HDD
System HDD: Windows XP Professional / EDIUS 5 software installed
One Ultra-ATA drive or Ultra 160 SCSI drive
* Data HDD
Data HDD: Digitized video data, EDIUS 5 project data.
HDD speed : Read 70MB/s Write 60MB/s required for 2 streams video and audio +
1title realtime playback(Test tool: Storm test)
(Ex)
Serial ATA RAID set
Two or four S-ATA drive and RAID0 set
Card Silicon image SII13112(4) chip based RAID Card
SCSI drive RAID set
More then 2 drive Ultra160 or 320 RAID0 set
Card: Adaptec AHA29160 SCSI controller
Graphics
Nvidia GeForce 5700 or higher class video card
Direct3D 9.0c or later, PixelShader 3.0 or later
SD 128 MB or larger required, 256 MB or larger recommended
HD 256 MB or larger required, 512 MB or larger recommended
Nvidia Quadra series Not supported
►
►
►
►
►
►


Before Using
Sound system
Support for WDM driver is required.
DVD-ROM drive
Required for software installation.
DVD-R / RW or DVD+R / RW drive is required when creating DVD-Video with
Canopus DVD Creator.
IEEE1394 card
TI or NEC chip based PCI IEEE1394 card
(For DV data capture)
Recommend PCI slot
RX-E1 Card should not share with other PCI devices in the same PCI bridge, i.e. RX-E1
should go to one of the two PCI slots that do not share the PCI bridge with the Gigabit
LAN, and the other PCI slot next to it should be left open.
The Intel SE7505VB2 motherboard has two PCI-X slots and one PCI64bit/66MHz
slot. The PCI 64bit / 66MHz slot is not recommended because it shares the Gigabit
controller.
We recommend using Intel 7505 Chipset when you install RX-E1 board.
When you have 2 or 3 route bridges, we recommend RX-E1 board should be installed
in PCI64bit / 66MHz slot that does not have any other branch, or in PCI-X slot.
BIOS setting
Enable Hyper Thread technology
OS
Windows XP SP2 or later (32bit)
Windows Vista SP1 or later (32bit)*
Windows Vista SP1 or later (64bit)*
* Windows Vista SP1 includes the following operation systems.
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Ultimate
Windows Vista Business
Limitations
Following are limitations to use EDIUS SP / SD / HD. Please also see the Readme text
included in the installation DVD-ROM for the latest information.
Stand-by mode
Set stand-by mode for screen saver and monitor power supply to "OFF" when using this
product.
►
►
►
►
•
•
►
►

0
Support
Customer Support
For questions regarding hardware setup and usage, please contact your local Thomson
Grass Valley ofce, distributor or the store where you have purchased this product.
Web-site
Including EDIUS, the latest company information is announced at our web-site:
http://desktop.grassvalley.com/
The latest drivers utilities, product manuals, FAQs, etc. are also available at our web-
site.
Online User Registration
You can register your EDIUS here.
http://desktop.grassvalley.com/support/


Hardware Setting
2Hardware Setting
Setting the Main Board
Before board setting, be sure that your work area is dust-free and dry. Prepare a Philips
screwdriver and an empty box for removed screws in advance.
Also, be sure that your PC is turned off and that the cables (including power) are
removed from the PC.
* The product components vary depending on the product of your purchase.
POINT See the instruction manual for your PC (motherboard) for the PCI (PCI
Express) slot type.
The slot to set your EDIUS SP / SD / HD varies depending on the
product of your purchase.
See the instruction manual for your PC (motherboard) for the PCI slot type.
<EDIUS SP>
- Set the main board (SHX-E1) in the normal PCI slot (64bit / 66MHz PCI).
- 32bit / 33MHz PCI can be used when you edit only SD format videos.
<EDIUS SP-SDI>
- Set the main board (SHX-E2) in the PCI Express slot (PCI EXpress x1).
- When PCI Express x1 is not available, either PCI Express x4 or x8 can
be used.
<EDIUS HD/SD>
- Set the main board (RX-E1) in the normal PCI slot (64bit / 66MHz PCI).
POINT EDIUS SP-SDI main board (SHX-E2) has a PCI retainer equipped. If
your PC has a slot which supports the full-sized PCI board, set the PCI
retainer to it so that it can retain the EDIUS SP-SDI board. If the board
does not seem to t to a PCI Express slot of your PC because of the
PCI retainer, or if your PC does not have a hook to set the PCI retainer,
remove the PCI retainer from the main board without fail.
How to remove the PCI retainer
Remove three screws xing PCI retainer with driver.
Mainboard
PCIretainer

12
1Tightly set the main board in PCI (PCI Express) slot.
Main board
POINT The main board should t in the PCI (PCI Express) slot without using
any force. If the board cannot be inserted fully, please do not force in or
bend any parts of the board.
•
2Set the audio cable (4pin-4pin) to the main board.
<EDIUS SP>
Audio cable (unbranched end)
<EDIUS HD / SD>
RX-E1 board
Remote cable
Sound card
Audio card cable
Connector
RX-E1 board
Audio card cable
Remote cable

13
Hardware Setting
Setting the SDI bracket
1Connect main board and SDI bracket.
SDI-IN
SDI-OUT1
SDI-OUT2
Mainboard
Setting the Sub Board
Expansion board (HX-HD1)
1 Tightlyslideexpansionboard(HX-HD1)inPCIslotandx
the bracket temporarily.
2Connect main and expansion boards with the board
connection cable (6pin-6pin).
Main board
Expansion board (HX-HD1)
Board connection cable (6pin-6pin)

14
3Connect main and expansion boards with the audio cable
(4pin-4pin).
A
udio Cable
(4pin-4pin)
* Do not use these two connectors when connecting the expansion board.
POINT For more details on audio output, see "Audio output" on page 15.•
4Connect main and expansion boards with the DV cable.
* You can use either of the two DV connectors on the expansion board.
DV cable

15
Hardware Setting
Audio output
Specication of audio cable (4pin-4pin) is:
Red : Right channel (R)
White : Left channel (L)
Black : Ground (G)
Audio cable (4pin-4pin)
For audio output, use the attached audio cable (4pin-4pin) to connect sound device in
output destination and the main board.
* Attached audio cable (4pin-4pin) branches off connectors with different type and
wiring specication. Connect the side without branch to main board, and the side
with branch to sound device in output destination. Use a connector that complies with
the connector type and wiring specication for connecting destination. If you cannot
use the attached audio cable (4pin-4pin), prepare another cable separately.
Output from sound device on board
Connect the audio cable to the terminal of motherboard.
* Note that onboard sound device (sound device installed in motherboard: for details,
see the instruction manual for your PC or motherboard) might interfere with the
board installed in slot depending on connector position of the device.
Output from sound board
Connect the audio cable to the terminal of sound board.


Connecting to HDBX
For EDIUS SD / HD only.
POINT See the following sections for the combination of EDIUS HD + HDBX-
1000H and EDIUS SD + HDBX-1000S.
"Setting HDBX connecting terminal" P16
"Connecting HDBX" P21
See the following sections for the combination of EDIUS SD + HDBX-
1000S + HDBX-UG.
"Setting HDBX connecting terminal" P16
"Upgrading HDBX" P20
"Connecting HDBX" P21
•
•
Setting HDBX connecting terminal
To connect HDBX to the RX-E1 board, you need to replace the SDI terminal of the RX-
E1 board with the HDBX connecting terminal. This section explains how to remove the
RX-E1 board already set in PC and how to replace the terminal. When the RX-E1 board
is not set in PC, see from step 4.
Notes Static electricity can damage electronic components. Take care not to
touch connectors or cards directly. When installing or working on your
PC, rst touch a grounded metal surface. This will discharge any static
electricity on your body.
•
1Shut down Windows and unplug the power cable of your PC
before installation.
2Remove the cover of your PC.
3Remove the RX-E1 board and the remote terminal.
Remote terminal
RX-E1 board
►


Hardware Setting
4Remove the SDI terminal and the remote cable from the RX-E1
board.
The removed SDI terminal and remote terminal will not be used.
The SDI terminal and remote cable may not be attached to some products.
SDI terminal
Remote cable
5Set the HDBX connecting terminal and cable in the RX-E1
board.
Please pay attention to the cable direction when setting.
HDBX conecting terminal
cable
RX-E1 board

18
6Set the RX-E1 board in PC. Set covers in empty slots.
RX-E1 board
Cover
Notes Insert the RX-E1 board to the PCI 64bit / 66MHz slot. The optimal
performance of the device will not be expected if you insert it to the
different slot. The PCI 64bit / 66MHz slot is longer than the normal PCI
slot.
•
7Mount the PC cover.
EDIUS HD + HDBX-1000H or HDUP-1000
Removing the Dongle (to the RX-E1 board)
1Remove the screw.
2Remove the Dongle (included in the HDUP-1000) from the
RX-E1 board.
RX-E1 board
Dongle
