Gravely Tratch-O-Matic Owner's manual

Owner/Operator Manual
Manuel Du Propriétaire/Utilisateur
Model
995028 – Flail Reel
995045 – Tine Reel
Thatch-O-Matic®
04283700A 10/11
Printed in USA
ENGLISH
FRANÇAIS
Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is
acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.
Il est possible d’utiliser de l’essence contenant jusqu’à 10% d’éthanol (E10) ou 10% de MTBE (éther
méthyl-tertiobutylique) sur cette machine.
L’utilisation d’une essence contenant plus de 10% d’éthanol (E10) ou de 10% de MTBE annulent la
garantie.

GB - 2
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . 8
CONTROLS and FEATURES . . . . . . . . 10
OPERATION . . . . . . . . . . . . . . . . . . . . . 11
MAINTENANCE . . . . . . . . . . . . . . . . . . 13
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 14
TROUBLESHOOTING . . . . . . . . . . . . . 14
ACCESSORIES. . . . . . . . . . . . . . . . . . . 14
WARRANTY . . . . . . . . . . . . . . . . . . . . . 15
NON-ENGLISH MANUALS
Manuals in languages other than English may
be obtained from your Dealer. Visit your
dealer or www.gravely.com for a list of
languages available for your equipment.
Manuals printed in languages other than
English are also available as a free download
on our website:
http://www.gravely.com
MANUALES EN IDIOMAS
DIFERENTES DEL INGLES
Puede obtener manuales en idiomas
diferentes del inglés en su distribuidor. Visite
a su distribuidor o vaya a www.gravely.com
para obtener una lista de idiomas disponibles
para su equipo.
También puede imprimir manuales en
idiomas diferentes del inglés descargándolos
gratuitamente de nuestra página Web:
http://www.gravely.com
MANUELS NON ANGLAIS
Des manuels dans différentes langues sont
disponibles chez votre revendeur. Rendez-
vous chez votre revendeur ou allez sur le site
www.gravely.com pour consulter la liste des
langues disponibles pour votre équipement.
Les manuels imprimés dans des langues
différentes de l'anglais sont également
disponibles en téléchargement gratuit sur
notre site Web:
http://www.gravely.com
MANUALS
Before operation of unit, carefully and
completely read your manuals. If used
improperly, this unit could be dangerous and
cause personal injury or property damage.
The contents will provide you with safety
instructions for the safe use of your unit
during normal operation and maintenance.
All reference to left, right, front, or rear are
given from operator standing in operation
position and facing the direction of forward
travel.
ENGINE MANUAL
The engine on this unit is covered by a
separate manual specific to the engine. This
manual is included in the literature package
that shipped with the unit. Refer to this
manual for engine service recommendations.
If the engine manual is not available, contact
the engine manufacturer for a replacement
manual.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit and engine.
Numbers are located on the product
registration form in the unit literature
package. They are printed on a serial number
label, located on the frame of your unit.
TABLE OF CONTENTS
INTRODUCTION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.

GB - 3
• Record Unit Model and Serial
numbers here.
• Record Engine Model and Serial
numbers here.
PRODUCT REGISTRATION
The dealer must register the product at the
time of purchase. Registering the product will
help the company process warranty claims or
contact you with the latest service
information. All claims meeting requirements
during the limited warranty period will be
honored, whether or not the product
registration card is returned. Keep a proof of
purchase if you do not register your unit.
Customer Note: If the dealer does not
register your product, please fill out, sign, and
return the product registration card to Ariens
or go to www.gravely.com.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Gravely replacement parts. The
replacement of any part on this vehicle with
anything other than a Gravely authorized
replacement part may adversely affect the
performance, durability, or safety of this unit
and may void the warranty. Gravely disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts. To locate your nearest
Gravely Dealer, go to www.gravely.com on
the internet.
DISCLAIMER
Gravely reserves the right to discontinue,
make changes to, and add improvements
upon its products at any time without public
notice or obligation. The descriptions and
specifications contained in this manual were
in effect at printing. Equipment described
within this manual may be optional. Some
illustrations may not be applicable to your
unit.
DELIVERY
Customer Note: If you have purchased this
product without complete assembly and
instruction by your retailer, it is your
responsibility to:
1. Read and understand all assembly
instructions in this manual. If you do not
understand or have difficulty following
the instructions, contact your nearest
Gravely Dealer for assistance. Make
sure all assembly has been properly
completed.
NOTE: To locate your nearest Gravely
Dealer, go to www.gravely.com on the
Internet.
2. Understand all Safety Precautions
provided in the manuals.
3. Review control functions and operation
of the unit. Do not operate the unit
unless all controls function as described
in this manual.
4. Review recommended lubrication,
maintenance and adjustments.
5. Review Limited Warranty Policy.
NOTE: This machine comes with a one-year
limited warranty. The selling dealer is
responsible for explaining the terms and
limitations of the warranty coverage offered in
the country of sale.
6. Fill out a Product Registration Card and
return the card to the Ariens Company or
go to www.gravely.com.
Serial Number Label
Figure 1
WARNING: Improper assembly or
adjustments can cause serious
injury.

GB - 4
SAFETY ALERTS
Look for these symbols to point
outimportantsafetyprecautions.
They mean:
Attention!
Personal Safety Is
Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
NOTATIONS
NOTE: General reference information for
proper operation and maintenance practices.
IMPORTANT: Specific procedures or
information required to prevent damage to
unit or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and
others. Understand and follow all safety
messages. Be alert to unsafe conditions and
the possibility of minor, moderate, or serious
injury or death. Learn applicable rules and
laws in your area. Always follow the practices
set forth in this manual.
REQUIRED OPERATOR
TRAINING
Original purchaser of this unit was instructed
by the seller on safe and proper operation. If
unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.

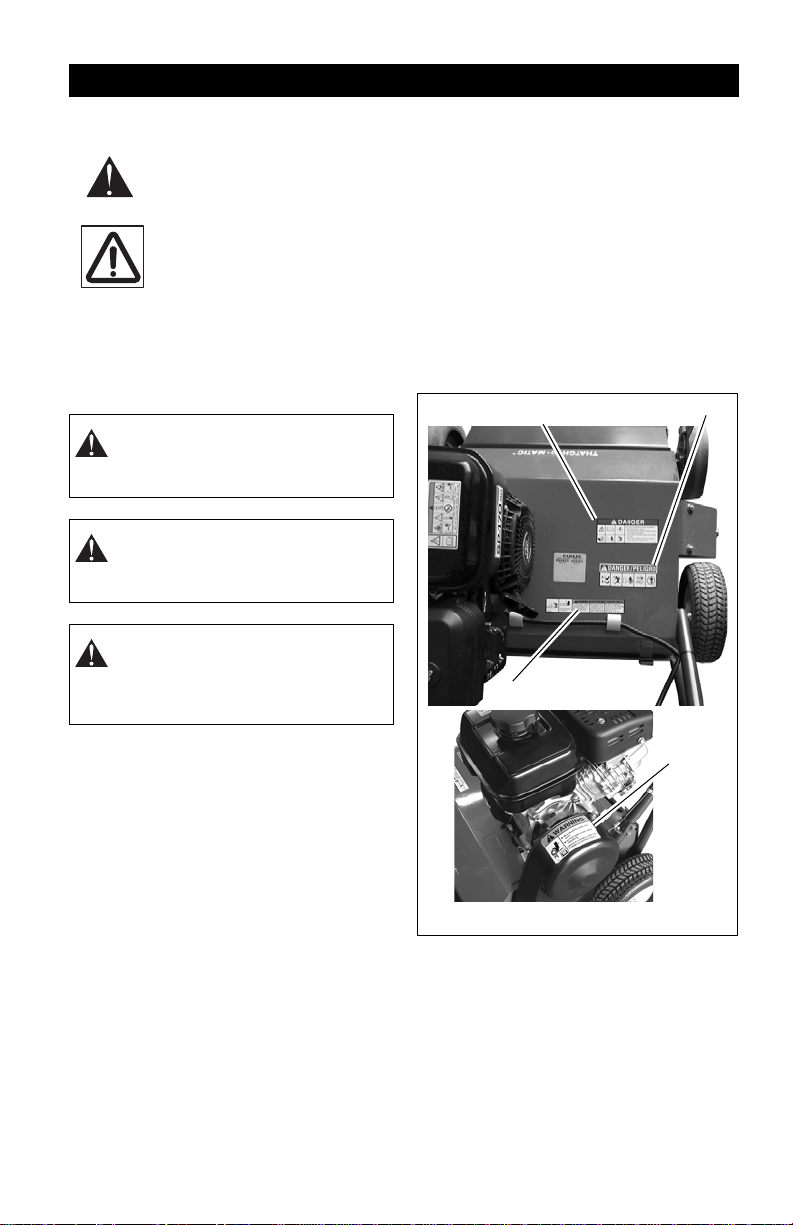

SAFETY DECALS AND
LOCATIONS
ALWAYS replace missing or damaged Safety
Decals. Refer to figure below for Safety Decal
locations.
SAFETY
DANGER: IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death or
serious injury.
WARNING: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in death or
serious injury.
CAUTION: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor or
moderate injury. It may also be used
to alert against unsafe practices.
Figure 2
12
3
4

GB - 5
1. WARNING!
2. DANGER!
3. WARNING!
4. WARNING!
5. Important Safety Instructions
• Use on grass surfaces only.
• Drag strip and guards must be in
place.
• Keep hands and feet clear of lower
housing during operation.
• To back up or to make turns push
down on handle to maneuver
accordingly. Keep feet away from unit.
• Wear approved safety glasses, work
gloves and hearing protection when
operating this unit.
• The operation of any powered
machine can result in foreign objects
being thrown by high speed rotating
parts.
• Keep the area of operation clear of all
persons, particularly small children
and pets. Keep by-standersat least 25
feet away from area of operation.
• Never leave equipment unattended
when engine is running. Shut off
engine and disconnect spark plug
before leaving equipment.
6. Wear Hearing Protection
Read Operator’s Manual.
Wear hearing protection.
AVOID INJURY. Stay clear of
rotating parts.
Keep children and others away
from unit while operating.
Never direct discharge toward
other people. Thrown objects
can cause injury.
Always keep feet and hands
away from rotating parts.
Always stand clear of discharge
area. Do not direct discharge
toward other people.
Keep people away from unit
while operating.
Remove key, disconnect
batteries and read manual
before you adjust or repair unit.
NO STEP! Always keep feet
away from rotating parts.
OL1809
OL1810
OL18111
OL1812
OL1813
Always stand clear of discharge
area.
Do not operate unless guards
are in operating position or
bagger is attached.
Moving parts under this cover.
Do not remove cover while
operating. Failure to comply
could result in death or serious
injury.
OL4430
OL3320

GB - 6
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental Protection Agency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with
emission controls and components by
unauthorized personnel may result in severe
fines or penalties. Emission controls and
components can only be adjusted by an
Ariens Company dealer or an authorized
engine manufacturer's service center.
Contact your Ariens Company Equipment
Retailer concerning emission controls and
component questions.
SAFETY RULES
Operation
To prevent personal injury or property
damage, do not attempt to start engine until
all assembly steps are complete and you
have read and understand the safety and
operating instructions in this manual.
If unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them. Only the user can prevent
and is responsible for accidents or injuries
occurring to themselves, other people or
property.
This product is equipped with an internal
combustion engine. DO NOT use on or near
any unimproved, forest or brush covered land
unless the exhaust system is equipped with a
spark arrestor meeting applicable local, state
or federal laws. A spark arrestor, if used,
must be maintained in effective working order
by the operator. See your Gravely Dealer or
engine manufacturer’s service center.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use only an
approved gasoline container with an
appropriately sized dispensing spout.
Wear approved safety glasses when
operating this equipment. The operation of
any powered machine can result in foreign
objects being thrown by high-speed rotating
parts.
Wear work gloves, sturdy footwear, and
hearing protection when operating this
equipment.
Remove hearing protection and watch for
traffic when operating near, or when crossing
roadways.
Before inspecting or servicing any part of
equipment, shut off engine, disconnect spark
plug wire from spark plug, and make sure that
all moving parts have come to a complete
stop. Be aware that rotating blades slow
down gradually after engine is shut off.
Exercise extreme caution on slopes and
avoid excessively steep slopes.
Never leave equipment unattended when
engine is running. Shut off engine and
disconnect spark plug wire from spark plug
before leaving equipment. Turn off fuel shut-
off if equipped.
Never pick up or carry equipment while the
engine is running.
Walk, never run.
ALWAYS be sure of your footing. Use caution
to avoid slipping and falling.
Operate machine only in daylight or good
artificial light.
NEVER operate after or during the use of
medication, drugs or alcohol. Unit requires
complete and unimpaired attention.
If the machine should start to vibrate
abnormally, stop the engine (motor) and
check for the cause immediately. Vibration is
generally a warning of trouble.
Never allow children or untrained adults to
operate this equipment.
Keep the area of operation clear of all
persons, particularly small children, and pets.
Keep bystanders at least 25 feet away from
the area of operation.
Do not run engine in an enclosed area.
Engine exhaust contains carbon monoxide
gas, a deadly poison that is odorless,
colorless, and tasteless.
Do not start engine or operate this equipment
with any safety guards or housing removed.
If equipment jams or becomes clogged,
immediately shut off engine, disconnect spark
plug wire from spark plug, and allow all
moving parts to come to a complete stop. Use
only a wooden stick to clear away debris.
See manufacturer’s instructions for proper
operation and installation of accessories.
Only use accessories approved by the
manufacturer.
Fuel is highly flammable and its vapors can
explode. ONLY use approved fuel containers.
•NOSmoking!
•NOSparks!
•NOFlames!
• Allow engine to cool before filling fuel
tank.
Never fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.
When practical, remove gas-powered
equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then
refuel such equipment on a trailer with a
portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-
open device.
Check fuel supply before starting engine.

GB - 7
DO NOT fill gasoline tank indoors, when
engine is running, or while engine is hot.
Allow engine to cool several minutes before
removing fuel cap.
Do not mix oil with gasoline.
DO NOT overfill. Allow about 1/2” (12 mm) of
tank space for fuel expansion.
Replace gasoline tank cap securely and
clean any spilled fuel before starting engine.
If fuel is spilled on clothing, change clothing
immediately.
Properly remove fuel before tipping unit.
NEVER store fuel inside where there is an
open flame, such as a water heater.
ALWAYS drain fuel outdoors away from
ignition sources.
ALWAYS shut off engine, and remove key,
and close fuel shutoff valve when transporting
unit on a truck or trailer.
MAINTENANCE AND STORAGE
Keep all nuts, bolts, and screws tight to be
sure the equipment is in safe working
condition.
Never store equipment with fuel in the tank
inside a building where fumes may reach an
open flame or spark.
Allow engine to cool before storing in any
enclosure.
To reduce the fire hazard, keep the engine,
silencer, battery compartment, and fuel
storage area free of grass, leaves, or
excessive grease.
Replace worn or damaged parts for safety.

GB - 8
The Power Rake covered in this owner's
guide is shipped complete in one box. Follow
all instructions on assembly very carefully.
Carton Contents
•Unit
• Literature Pack
ASSEMBLY
1. Remove all items from carton.
2. Tip box over so wheels are toward floor.
Pull unit out of box and stand upright.
IMPORTANT: DO NOT discard the carton or
any of the inserts until the unit is completely
assembled.
3. All hardware is on the unit in its proper
location. If something is missing, notify
the dealer/distributor where unit was
purchased. If unable to purchase parts
locally, contact Gravely.
NOTE: Left or right side of the machine is
determined when standing behind the unit
and in the operator’s position.
HANDLE ASSEMBLY
Figure 3
1. Remove four hex nuts, lock washers and
contour head bolts from lower end of
upper handle.
2. Place upper handle down over small
diameter end of lower handles.
3. Align lower holes in upper handle and
lower handle. Insert contour head bolt
through each hole.
4. Lift handle back brace on each side so it
is assembled to contour head bolt.
Assemble one lock washer and hex nut
to each bolt. Do not tighten.
5. Insert remaining contour head bolts
through upper holes of upper and lower
handles.
6. Assemble lock washers and hex nuts to
upper contour head bolts and tighten all
nuts.
Safety Bail Assembly
Figure 4
1. Remove hex bolt and hex lock nut from
curved bracket on the upper handle
assembly.
2. Straighten the cable and route it up left
hand side of handle.
3. Attach cable to curved bracket center
hole using hex bolt and lock nut.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
Figure 3
Upper Handle
Contour
Head Bolts
Lock
Washers
Hex Nut
Hex
Nut
Lower Handle
Figure 4
Cable Hex Bolt & Hex
Nut

GB - 9
Connect Engine Switch
Figure 5
1. Route engine switch wire (B) through
two guides (A) on rear of deck.
2. Route engine switch under recoil starter
housing to front of engine.
3. Connect lead from wire harness (B) to
wire lead at front of engine (C).
Fill Fuel Tank
Fill fuel tank. DO NOT OVERFILL! See
FILLING FUEL TANK on page 13.
Figure 5
A
B
C

GB - 10
1. Upper Handle and Safety Bail Assembly
2. Recoil Starter
3. Engine Switch
4. Fuel Tank and Cap
5. Oil Fill/Dipstick
6. Choke
7. Throttle
8. Fuel Shut-Off Valve
9. Oil Drain Plug
10. Height Adjuster
CONTROLS AND FEATURES
Figure 6
1
5
4
96
7
8
2
10
3

GB - 11

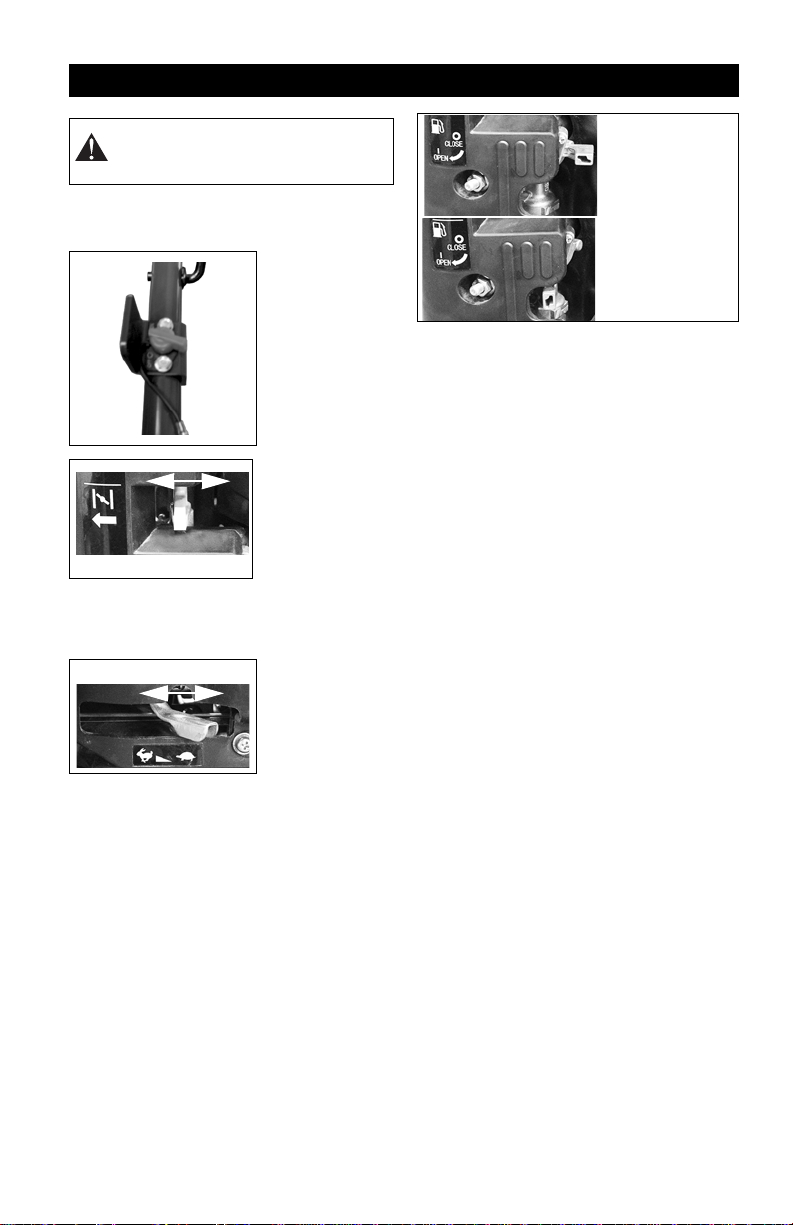

ENGINE
Engine Switch The engine
switch has two
positions:
1. OFF – Engine
will not start or
run.
2. ON – Engine
will start and run.
Choke
Control Lever
1.Choke Closed
position: chokes
off air to engine
for easier start.
2.Choke Open
position: allows
for normal
operation.
IMPORTANT: Gradually open choke after
engine starts.
Throttle Control Lever The throttle
controls the
enginespeed.To
increase or
decrease the
engine speed,
adjust to:
1. Fast (normal or warm starts)
2. Part-Throttle
3. Slow (cold weather starts)
Fuel Shut-Off Valve
IMPORTANT: The fuel shut-off valve MUST
be in the closed position prior to transporting
the unit.
The fuel shut-off valve has two positions:
Recoil Starter Handle
When pulled, handle will turn engine over.
IMPORTANT: DO NOT let handle snap back
against starter.
USING THE POWER RAKE
The Tine Reel assembly is not intended to
dig, but only to comb the turf, remove dead
thatch and help to control creeping weeds in
the turf.
It improves fertilizer and seed response,
gives grass room to grow and reduces the
likelihood of insects, fungus infestation or dry
grass spots. The tines are designed for
removing thatch, and if allowed to penetrate
the soil for prolonged period of time, will
cause premature fatiguing, bending and
breakage.
Should it be desirable to depopulate and
aerate, the Knife Reel should be used. If
complete renovation and soil penetration is
desirable, use the Flail Reel.
The Flail Reel assembly should be used if
complete turf renovation and soil penetration
is desirable to aid in fertilizing and seeding
programs. This helps to limit water run-off
and retain soil moisture.
The Knife Reel should be used to eliminate
hard surface soil. It slices, thins and aerates
all types of turf, and allows moisture and
fertilizer to reach grass roots. The knife reel is
especially effective for thinning running stem
grasses, cutting slits in soil prior to
overseeding and aerating soil.
OPERATION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
1
2
2
1
3
2
1
Open Position:
Use this position
to run the unit.
Closed Position:
Use this position
to service,
transport, or
store the unit.

GB - 12
Reel Height Adjustment
NOTE: The Tine Reel assembly is not
designed for digging or renovating and
should not be set lower than contact with flat
(hard) surface such as sidewalk or driveway.
This means you should touch, not scratch or
dig into the surface.
1. Slide lock up on lever.
2. Pull lever (in front axle weldment) out of
the hole setting on the adjusting bracket,
and move to the desired setting
(Figure 7).
3. Slide lock down over adjustment pin.
IMPORTANT: Do not operate the unit without
the drag strip in place (Figure 8).
Clutch Operation
The clutch is engaged when the safety bail is
pulled back toward the operator’s position
(Figure 9) and disengaged when fully moved
forward.
This is a spring loaded self-adjusting clutch.
No adjustment is required.
Before Starting The Engine
IMPORTANT: Read the Engine Manual
CAREFULLY before operating the Power
Rake. Before starting the engine read and
understands the following:
Be sure the engine crankcase is filled with the
proper type and amount of oil.
GASOLINE
IMPORTANT: ALWAYS use gasoline that
meets the following guidelines:
• Clean, fresh gasoline.
• A minimum of 87 octane/87 AKI (91
RON). High altitude use may require a
different octane. Consult your engine
manual.
• Gasoline with up to 10% ethanol
(gasohol) or up to 10% MTBE (methyl
tertiary butyl ether) is acceptable.
• Use of any gasoline other than those
approved above will void the engine
warranty. If the pumps are not marked
for the content of alcohol or ethers,
check ethanol and MTBE levels with
the fuel supplier.
• Do not modify the fuel system to use
different fuels.
• Never mix oil and gasoline.
NOTE: All gasoline is not the same. If the
engine experiences starting or performance
problems after using a new gasoline, switch
to a different fuel provider or fuel brand.
IMPORTANT: Excessively oxygenated or
reformulated fuels (fuels blended with
alcohols or ethers) can damage the fuel
system or cause performance problems. If
any undesirable operating problems occur,
use a gasoline with a lower percentage of
alcohol or ether.
Fuel Stabilizer
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
Figure 7
Lock
Lever
Figure 8
Drag Strip
Figure 9
Engaged Disengaged

GB - 13
FILLING FUEL TANK
To add fuel to the fuel tank:
1. Clean fuel caps and surrounding area to
prevent dust, dirt, and debris from
entering fuel tanks.
2. Remove fuel caps.
IMPORTANT: Refer to Engine Manual for
correct type and grade of fuel.
Fill fuel tank to the bottom of filler neck.
NOTE: Tank capacity is 0.9 gallon (3.4 liters).
IMPORTANT: DO NOT OVERFILL! This
equipment and/or its engine may include
evaporative emissions control system
components, required to meet EPA and/or
CARB regulations, that will only function
properly when the fuel tank has been filled to
the recommended level. Overfilling may
cause permanent damage to evaporative
emissions control system components. Filling
to the recommended level ensures a vapor
gap required to allow for fuel expansion. Pay
close attention while filling the fuel tank to
ensure that the recommended fuel level
inside the tank is not exceeded. Use a
portable gasoline container with an
appropriately sized dispensing spout when
filling the tank. Do not use a funnel or other
device that obstructs the view of the tank
filling process.
3. Replace fuel cap and tighten.
4. ALWAYS clean up spilled fuel.
Start Engine
1. Be sure spark plug wire is attached to
the spark plug and not grounded to the
engine.
2. Place engine switch to ON position.
3. Open the throttle about halfway, close
the choke and pull the starter rope.
4. After the engine starts, open the choke
or the engine will stall.
5. Engage the safety bail to start the reel.
Stop Engine
1. Disengage the clutch by releasing the
safety bail.
2. Allow reel to fully stop before leaving
operator’s position.
3. Move throttle to the slow position.
4. Move engine switch to the OFF position.

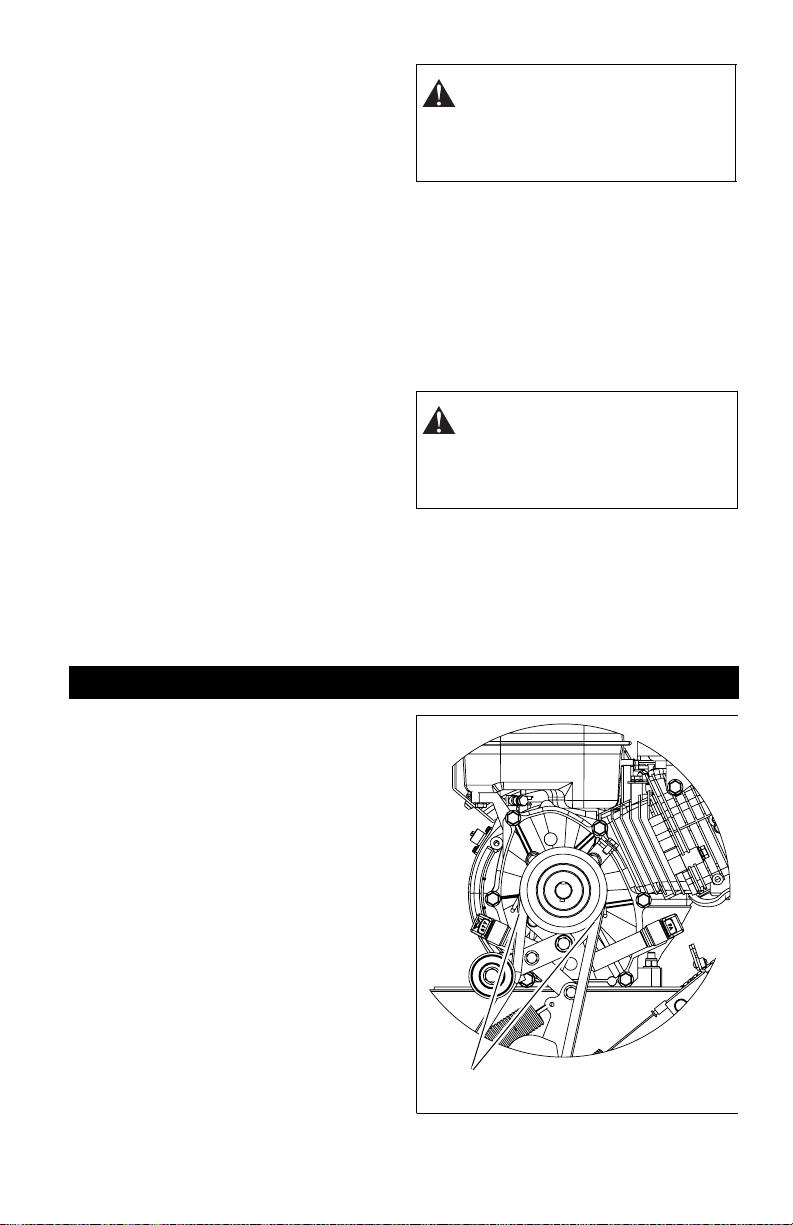

Removing and Installing Drive Belt
Figure 10
1. Remove hardware securing belt guard
to engine and housing.Retain hardware.
2. Loosen belt finger hex bolts and rotate
belt fingers away from pulley.
3. Remove belt from pulleys.
4. Install new belt on pulleys.
5. Rotate belt fingers back into position and
adjust:
A. Engage the clutch by pulling safety
bail back towards operator.
B. With safety bail engaged, ensure that
gap between belt and belt fingers is
1/16 – 1/8" (1.6 – 3 mm). See
Figure 10.
C. Tighten belt finger hex bolts.
6. Install belt guard.
WARNING: AVOID INJURY. Allow
the engine to cool 2 or 3 minutes
before refueling. Fuel spilled on a hot
engine could ignite, resulting in
serious damage to the unit and
possible injury to the operator.
CAUTION: Be sure clutch is
disengaged and the reel has come to
a complete stop before making any
change in the direction of the unit.
This will eliminate the risk of over
travel.
MAINTENANCE
Figure 10
1/16 – 1/8"
(1.6 – 3 mm)

GB - 14
Engine Maintenance
1. Be sure to keep the engine oil at the
proper level. Check the oil level each
time you fill the fuel tank.
2. Change the oil after the first five hours of
operation. Thereafter, change oil every
25 hours of operation.
3. The engine is air cooled and must be
kept clean. Do not allow dirt and debris
to cover the engine and clog the cooling
fans.
LUBRICATION
1. Refer to engine manual for proper
lubrication of the engine.
2. Add a few drops of oil to wheel axles
between spacers and wheels to keep
wheels properly lubricated.
3. Occasionally add a few drops of oil to
the reel brake linkage.
STORAGE
IMPORTANT: NEVER spray unit with high-
pressure water or store unit outdoors. Store
unit in a cool, dry, protected location.
Cleaning
NOTE: Allow unit to cool before cleaning.
Clean unit thoroughly with mild soap and low
pressure water. Brush off dirt and debris from
all surfaces. Touch up all scratched surfaces
to prevent rust. Matching touch-up paint is
available from your Dealer. Do not use
abrasives, solvents, or harsh cleaners.
Inspection
Inspect unit and repair or replace worn or
damaged parts to avoid delays when
beginning use again.
Regularly check all hardware and keep
fasteners tight. Know unit is in safe working
condition.
Engine
When storing unit for extended periods of
time, remove all fuel from tank and carburetor
(run dry). Refer to engine manual.
Fuel System
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
To treat the fuel system for storage:
1. Add fuel stabilizer according to
manufacturer’s instructions.
2. Run engine for at least 10 minutes after
adding stabilizer to allow it to reach the
carburetor.
NEVER store the engine with fuel in the fuel
tank inside of a building with potential
sources of ignition.
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
CAUTION: Do not operate the power
rake without the air cleaner installed
properly on the engine. Dust particles
in the engine will cause rapid wear of
the cylinder walls and piston rings,
and will result in a rapid loss of power.
CAUTION: Do not work on the
Thatch-O-Matic with engine running
or idling. Bring unit to a DEAD STOP.
Remove spark plug wire from the
plug.
CAUTION: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Engine will not
start. 1. No gas in the fuel tank.
2. Fuel shut-off valve closed.
3. Engine switch is in the
OFF position.
4. Build up of dirt and
residue around
governor/carburetor.
1. Fill tank with clean, fresh gasoline.
Fill fuel tank (see FILLING FUEL
TANK on page 13).
2. Open fuel shut-off valve.
3. Turn the engine switch to ON
position.
4. Clean area around
governor/carburetor.
Engine runs briefly
and stops. 1. Fuel shut-off valve closed.
2. Contaminated fuel supply. 1. Open fuel shut-off valve. 2. Replace with clean fuel.

GB - 15

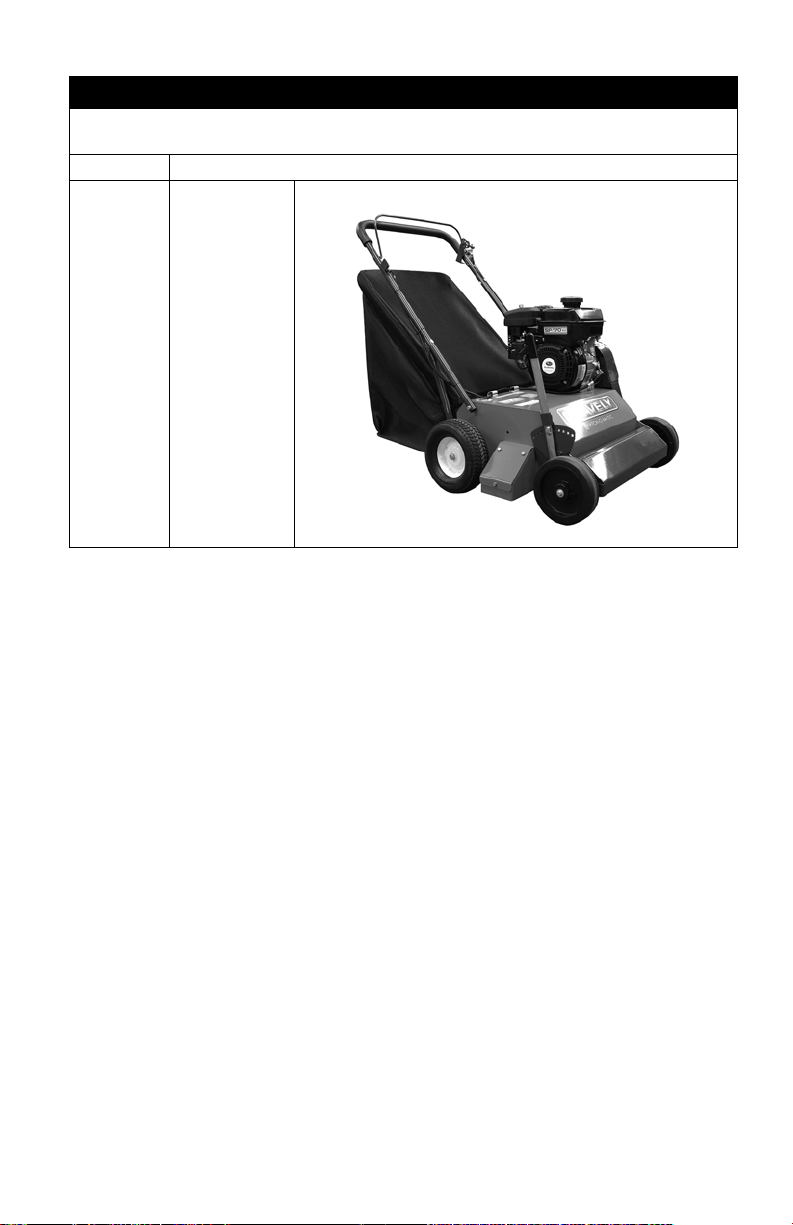

ACCESSORIES
See your authorized Gravely dealer to add the additional accessories available to your
model.
Part No. Description
79585200 Bagger

Sno-Chore_2011.B
16
Sno-Thro®, Sno-Tek®and
Chore Performing Equipment
Limited Warranty
Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely, Parker, and Countax
brand chore performing equipment (including Sno-Thro®and Sno-Tek®equipment) purchased on or after
1/1/2011 will be free from defects in material and workmanship for the time period noted in the chart below.
Equipment put to personal use around a single household or residence is considered “Consumer Use”;
equipment put to any business use (agricultural, commercial, or industrial) or used at multiple locations is
considered “Commercial Use.” If any product is rented or leased, then the duration of these warranties shall
be 90 days after the date of purchase.
An authorized Ariens dealer (Ariens brand products), Gravely dealer (Gravely brand products), Parker dealer
(Parker brand products), or Countax dealer (Countax brand products) will repair any defect in material or
workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions
set forth herein. Such repair or replacement will be free of charge (labor and parts) to the original purchaser
except as noted below.
Special Extensions
The chart below details special extensions to this warranty:
Warranty
Code Product Group Warranty Period Consumer Use Warranty Period Commercial Use
PA Log Splitters, Brushes, String Trimmers, Edgers 3 Years 90 Days
PB Professional Powered Brushes 3 Years 1 Year
PC Tillers 2 Years 90 Days
PD Vacuums, Blowers, Sweepers, Truck Loaders,
Lawn Rakes, Sprayers, Aerators, etc. 1 Year 1 Year
SA Professional Sno-Thro®3 Years 1 Year
SB Compact, Deluxe, Platinum, AMP™ Sno-Thro®3 Years 90 Days
SC Sno-Tek®2 Years 90 Days
UA Utility Vehicles 1 Year 1 Year
N/A Service (Replacement) Parts 90 Days (no labor) 90 Days (no labor)
Warranty
Code Warranty Exception Warranty Period Use Detail
SA Cast Iron Auger
Gear Case 5 Years All 5 Years for all users including Commercial
SB Cast Iron Auger
Gear Case 5 Years Consumer 5 Years for Consumer use; 1 Year for Commercial Use
SB Batteries for AMP™
Sno-Thro®2 Years Consumer 100% first year; prorated second year.

Sno-Chore_2011.B
17
Exceptions and Limitations
The chart below details special exceptions to this warranty:
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to the Ariens
Company, or register the unit online at www.ariens.com, www.gravely.com, www.countax.com,
www.parkersweeper.com.
To obtain warranty service, the original purchaser must:
• Perform the maintenance and adjustments explained in the owner's manual.
• Promptly notify Ariens or an authorized Ariens, Gravely, Parker or Countax service representative of
the need for warranty service.
• Transport the product to and from the place of warranty service at owner's expense.
• Have the warranty service performed by an authorized Ariens, Gravely, Parker or Countax service
representative.
To Find an Authorized Service Representative:
Warranty
Code Warranty Exception Warranty Period Use Detail
All Batteries 1 Year All Prorated
All Belts, Muffler, Tires None Commercial These components are not covered
when used commercially.
All Cloth, Plastic, and
Rubber Components
(Including Belts and
Cables)
Maximum
2 Years All
Warranty is limited to 2 years for
consumer use. (1 year for warranty
code "PD".) Except as noted above,
these components are covered for
defect, not for wear.
SA, SB,
SC Idlers Maximum
2 Years All Warranty is limited on idlers to
2 years for consumer use.
All Engines See Engine Manufacturer’s
Warranty All Engines are covered by engine
manufacturer’s warranty. Refer to
engine manufacturer’s warranty
statement.
In the U.S. and Canada:
Use the dealer locator on our websites: www.ariens.com • www.gravely.com
Or contact us by mail or by phone:
In the U.S., Canada, Mexico, Caribbean,
Central and South America: In Europe, Asia, Africa or the Middle East: In Australia or New Zealand:
Ariens Company
655 W. Ryan Street
Brillion, WI 54110
Phone: (920) 756 - 4688
www.ariens.com
Countax Ltd, Countax House
Great Haseley, Oxfordshire,
OX44 7PF
Phone: [phone]
www.countax.com
109-111 Abbot House
Hallam, Victoria 3803 Australia
Phone: [phone]
1800 335 489
www.bynorm.com.au

Sno-Chore_2011.B
18
Exclusions - Items Not Covered by This Warranty
• Parts that are not genuine Ariens, Gravely, Parker or Countax service parts are not covered by this
warranty and may void the warranty.
• Damages resulting from the installation or use of any part, accessory, or attachment which is not
approved by the Ariens Company for use with product(s) identified herein are not covered by this
warranty.
• The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel
filters, brake linings, brake arms, brake shoes, skid shoes, scraper blades, shear bolts, mower
blades, mower vanes, brushes, headlights, light bulbs, knives, cutters.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which
requires repair is not covered by this warranty.
• Use of gasoline blends exceeding 10% ethanol voids any and all warranties.
• Products are designed to the specifications in the area that the product was originally distributed.
Different areas may have significantly different legal and design requirements. This warranty is lim-
ited to the requirements in the area in which the unit was originally distributed. Ariens Company
does not warrant this product to the requirements of any other area. Warranty service is limited to
service within the area originally distributed.
• In countries other than the United States and Canada, contact the Ariens Company dealer for war-
ranty policies that govern within your country. Rights may vary from country to country and within
any one country.
Special Exclusions on Utility Vehicles
The following uses void the warranty terms on Utility Vehicles (Warranty Code UA):
• Renting or leasing the utility vehicle.
• Using the utility vehicle to tow or carry loads in excess of the limits specified in the owner/operator
manual.
• Modifying the utility vehicle with parts and accessories that are not genuine or authorized Ariens or
Gravely parts or accessories.
• Modifying the utility vehicle without express written authorization from the Ariens Company.
• Operating the utility vehicle when it has not been completely and properly assembled and
pre-delivered by an authorized Gravely dealer.
Disclaimer
Ariens Company may from time to time change the design of its products. Nothing contained in this warranty
shall be construed as obligating the Ariens Company to incorporate such design changes into previously
manufactured products, nor shall such changes be construed as an admission that previous designs were
defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens Company shall
not be liable for incidental, special, or consequential damages (including lost profits). Some states do not
allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from region to region.

CARB_EPA_2011
19
CALIFORNIA AND EPA (UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY) EVAPORATIVE EMISSION CONTROL
WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The CARB (California Air Resources Board), the EPA, and Ariens Company are pleased to explain the
evaporative emission control system's warranty on your 2011 model year small off-road equipment. In
California, new equipment that uses small off-road engines must be designed, built, and equipped to
meet the State's stringent anti-smog standards. Ariens Company must warrant the evaporative
emission control system on your small off-road equipment for the period listed below provided there
has been no abuse, neglect or improper maintenance of your equipment.
Your evaporative emission control system may include parts such as: fuel tanks, fuel lines, fuel caps,
valves, canisters, filters, vapor hoses, clamps, connectors, and other associated components.
MANUFACTURER'S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative
emission-related part on your equipment is defective, the part will be repaired or replaced by Ariens
Company.
OWNER'S WARRANTY RESPONSIBILITIES:
• As the small off-road equipment owner, you are responsible for the performance of the required
maintenance listed in your Owner's Manual. Ariens Company recommends that you retain all
receipts covering maintenance on your small off-road equipment, but Ariens Company cannot deny
warranty solely for the lack of receipts.
• As the small off-road equipment owner, you should however be aware that the Ariens Company may
deny you warranty coverage if your evaporative emission control system part has failed due to
abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road equipment to an authorized Ariens, Gravely,
or Parker service representative as soon as the problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding
your warranty coverage, you should contact Ariens Company Technical Service Center at
1-920-756-2141.
DEFECTS WARRANTY REQUIREMENTS:
(a.) The warranty period begins on the date the small off-road equipment is delivered to an ultimate
purchaser.
(b.) General Evaporative Emissions Warranty Coverage. Ariens Company warrants to the ultimate
purchaser and any subsequent owner that the evaporative emission control system when
installed was:
(1.) Designed, built, and equipped so as to conform with all applicable EPA and CARB
regulations; and
(2.) Free from defects in materials and workmanship that causes the failure of a warranted part
for a period of two years.
(c.) The warranty on evaporative emissions-related parts will be interpreted as follows:
(1.) Any warranted part that is not scheduled for replacement as required maintenance in the
written instructions must be warranted for the warranty period defined in subsection (b)(2).
If any such part fails during the period of warranty coverage, it must be repaired or replaced
by the Ariens Company. Any such part repaired or replaced under the warranty must be
warranted for a time not less than the remaining warranty period.
(2.) Any warranted part that is scheduled only for regular inspection in the written instructions
must be warranted for the warranty period defined in subsection (b)(2). A statement in such
written instructions to the effect of "repair or replace as necessary" will not reduce the
period of warranty coverage. Any such part repaired or replaced under warranty must be
warranted for a time not less than the remaining warranty period.
(3.) Any warranted part that is scheduled for replacement as required maintenance in the
written instructions must be warranted for the period of time prior to the first scheduled
replacement point for that part. If the part fails prior to the first scheduled replacement, the
part must be repaired or replaced by the Ariens Company. Any such part repaired or
replaced under warranty must be warranted for a time not less than the remainder of the
period prior to the first scheduled replacement point for the part.

CARB_EPA_2011
20
(4.) Repair or replacement of any warranted part under the warranty provisions of this article
must be performed at no charge to the owner at an authorized Ariens, Gravely, or Parker
service representative.
(5.) Notwithstanding the provisions of subsection (4) above, warranty services or repairs must
be provided at authorized Ariens, Gravely, or Parker service representatives that are
franchised to service the subject small off-road equipment.
(6.) The owner must not be charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is performed at an
authorized Ariens, Gravely, or Parker service representative.
(7.) Throughout the evaporative emission control system's warranty period set out in subsection
(b)(2), the Ariens Company must maintain a supply of warranted parts sufficient to meet the
expected demand for such parts.
(8.) Manufacturer-approved replacement parts must be used in the performance of any
warranty maintenance or repairs and must be provided without charge to the owner. Such
use will not reduce the warranty obligations of the manufacturer issuing the warranty.
(9.) The use of any add-on or modified parts will be grounds for disallowing a warranty claim
made in accordance with this article. The manufacturer issuing the warranty will not be
liable under this Article to warrant failures of warranted parts caused by the use of an
add-on or modified part.
Evaporative Emission Warranty Parts List
The following parts are considered emission-related components for evaporative emissions:
• Fuel Tank, Fuel Cap and Tether
• Fuel Line, Fuel Line Fittings, Clamps*
• Pressure Relief Valves, Control Valves*
• Control Solenoids*, Electronic Controls*
• Vacuum Control Diaphragms*
• Control Cables*, Control Linkages*
• Purge Valves
• Vapor Hoses, Liquid/Vapor Separator
• Carbon Canister, Canister Mounting Brackets
• Carburetor Purge Port Connector
* As related to the evaporative emission control system
Disclaimer
New equipment sold in the state of California that uses small off-road engines must be exclusively
certified and appropriately labeled for sale in California. Some equipment covered by this Owner's
Manual my not be certified for sale in California and the presence of the preceding CARB and EPA
Warranty Statement does not by its existence indicate which, if any, of the equipment covered by this
Owner's Manual may be sold in California.
Some equipment covered by this Owner's Manual may have been manufactured prior to certain
affectivity dates requiring the inclusion of evaporative emission control systems. Therefore some
equipment covered by this Owner's Manual may not include the evaporative emission control systems
referred to in the preceding CARB and EPA Warranty Statement.
