Gravely 885914 User manual

Operator’s Manual
Manuel de I’utilisateur
36” Finish Mower
Attachment
05087200B •5/17
Printed in USA
Model
885914 – 36” Finish MowerAttachment
(SN 000101 +)
E10
ENGLISH
FRANÇAIS

WELCOME . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . 2
Practices & Laws . . . . . . . . . . . . . . . . . . 2
Emission Control System. . . . . . . . . . . . 2
Required Operator Training. . . . . . . . . . 2
Safety Alert Symbol . . . . . . . . . . . . . . . . 2
Signal Words . . . . . . . . . . . . . . . . . . . . . 2
Safety Decals. . . . . . . . . . . . . . . . . . . . . 3
Safety Rules. . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . 10

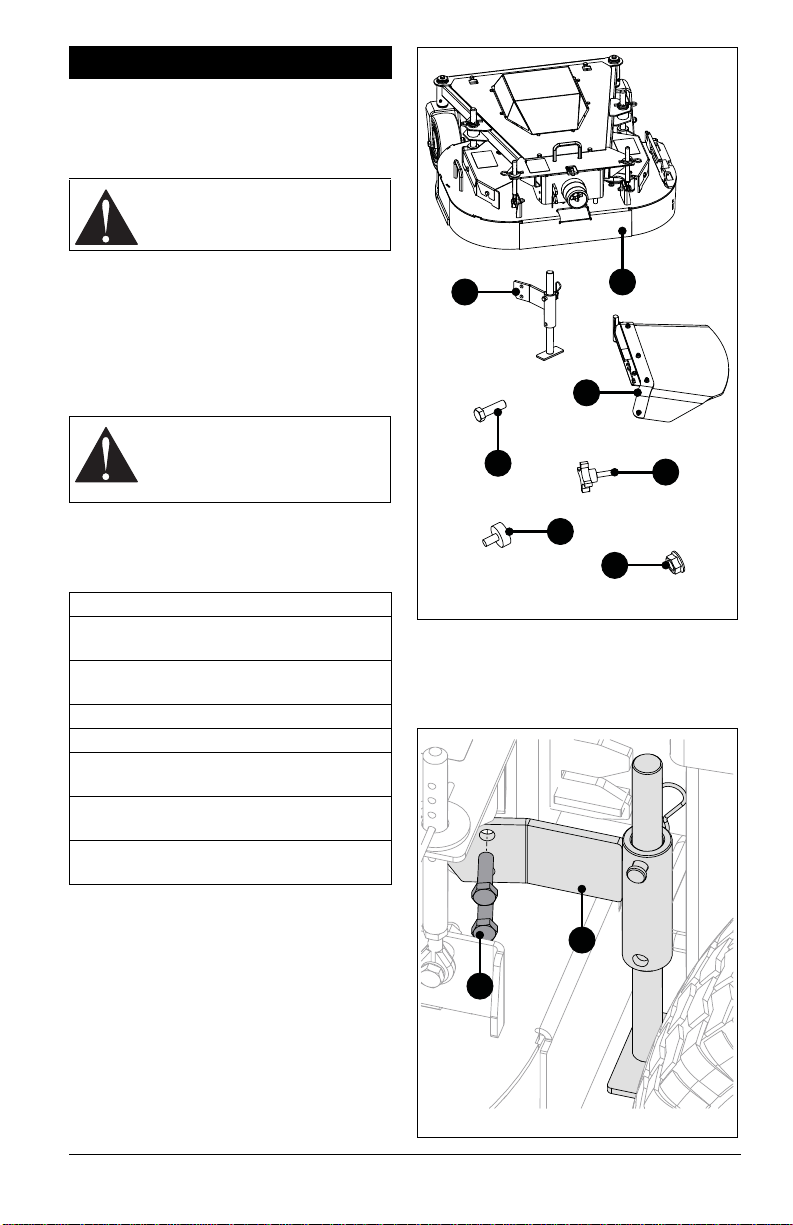

Unpack Unit . . . . . . . . . . . . . . . . . . . . . . 10
Package Contents . . . . . . . . . . . . . . . . . 10
Attach Deck Stand. . . . . . . . . . . . . . . . . 10
Install Discharge Chute Bumper . . . . . . 11
Install Mower Attachment. . . . . . . . . . . . 11
CONTROLS & FEATURES. . . . . . . . . . 13
Attachment Lever. . . . . . . . . . . . . . . . . . 14
Bow Latch . . . . . . . . . . . . . . . . . . . . . . . 14
Operator Presence Lever. . . . . . . . . . . . 14
Power Take-Off (PTO) Switch . . . . . . . . 14
Safety Interlock System. . . . . . . . . . . . . 14
OPERATION . . . . . . . . . . . . . . . . . . . . . 15
Operate Unit. . . . . . . . . . . . . . . . . . . . . . 15
Stop Unit . . . . . . . . . . . . . . . . . . . . . . . . 15
Install Mower Attachment. . . . . . . . . . . . 15
Remove Mower Attachment. . . . . . . . . . 16
MAINTENANCE . . . . . . . . . . . . . . . . . . 17
Maintenance Schedule . . . . . . . . . . . . . 17
Service Parts . . . . . . . . . . . . . . . . . . . . . 17
Check gearcase Oil . . . . . . . . . . . . . . . . 17
Change Gearcase Oil . . . . . . . . . . . . . . 18
Check Fasteners . . . . . . . . . . . . . . . . . . 18
Lubricate unit . . . . . . . . . . . . . . . . . . . . . 18
Check Mower Blades. . . . . . . . . . . . . . . 20
ADJUSTMENTS . . . . . . . . . . . . . . . . . . 20
Adjust cutting Height . . . . . . . . . . . . . . . 20
Additional Cutting Height . . . . . . . . . . . . 22
Remove and Install Mower Deck
Drive Belt . . . . . . . . . . . . . . . . . . . . . . . 22
Level and Pitch Mower Deck . . . . . . . . . 26
Mower Blades . . . . . . . . . . . . . . . . . . . . 26
Replace Mower Spindle Bearings . . . . . 28
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 29
Short Term. . . . . . . . . . . . . . . . . . . . . . . 29
Long Term . . . . . . . . . . . . . . . . . . . . . . . 29
ACCESSORIES. . . . . . . . . . . . . . . . . . . 29
TROUBLESHOOTING . . . . . . . . . . . . . 30
SPECIFICATIONS. . . . . . . . . . . . . . . . . 30
WARRANTY . . . . . . . . . . . . . . . . . . . . . 31
TABLE OF CONTENTS

EN - 1
WELCOME
Congratulations on your purchase and welcome to the Gravely family! Every product in the
Gravely lineup is designed for long-lasting and unsurpassed performance. We are confident
your attachment will be part of your family for many years to come.
Have Questions or Need Assistance?
gravelymower.com • gravely.custhelp.com
A parts manual for your attachment is available for free download
or purchase at gravely.com.
Manual del operador español está disponible para su descarga gratuita o
compra en gravely.com.

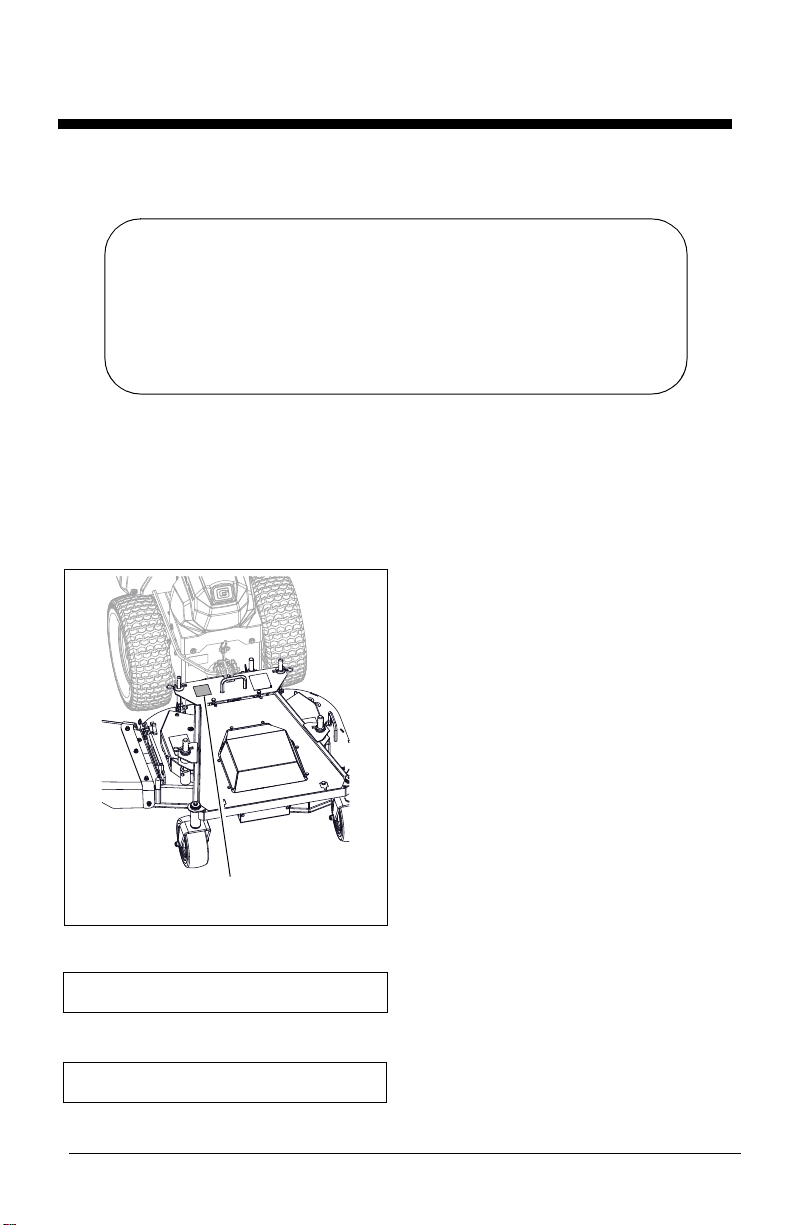

PRODUCT REGISTRATION
You or the dealer you purchased the unit from
must register the product at the time of
purchase. Know the model and serial
numbers of your unit and register online at
gravely.com or return the registration card to
Ariens Company. See Figure 1 for label
location.
Record model number here.
Record serial number here.
Figure 1
Model & Serial Number Label
1
MANUALS
Before operating or servicing the attachment,
carefully and completely read the manuals
provided with the attachment. They contain
safety instructions and important information
about attachment controls.
Your dealer must review important information
in this manual with you before or upon delivery
of the attachment. It is your responsibility to
read and understand all safetyprecautions and
instructions in the manuals. If you do not
understand or have difficulty following the
instructions, contact your Gravely dealer for
assistance. To locate your nearest Gravely
dealer, go to gravelymower.com.
DISCLAIMER
Gravely reserves the right to discontinue, make
changes to, and add improvements upon its
products at any time without public notice or
obligation. The descriptions and specifications
contained in this manual were in effect at
printing. Equipment described in this manual
may be optional. Some illustrations may not be
applicable to your attachment.

EN - 2
Read these safety rules and follow them
closely. Failure to follow these rules could
lead to loss of control of unit, severe personal
injury or death to you or bystanders, or result
in damage to property or the unit.
PRACTICES & LAWS
Practice usual and customary safe working
precautions. Learn applicable rules and laws
in your area.ALWAYS follow the practices set
forth in this manual.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system components required to meet U.S.
Environmental ProtectionAgency (EPA)
and/or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens Company
dealer or an authorized engine
manufacturer's service center. Contact your
Ariens Company Equipment Retailer
concerning emission controls and component
questions.
REQUIRED OPERATOR
TRAINING Read and understand the
Operator's Manual and decals
on the unit. This information is
for your safety and the proper
use of your equipment.
Failure to follow these
instructions and warnings may cause death
or serious injury. If you have purchased this
product from a Gravely dealer, the dealer can
provide you with training.
Familiarize yourself and any other operators
with all controls and the safe use of the
features of this unit. If you loan, rent or sell
this product to others, provide them with all
manuals.
If you have any questions, please call our
customer support line at 920-756-4688 or
contact us at www.gravely.com. Do not use
this equipment if, after reading the Operator's
Manual and the on-board decals, you have
any questions about the safe use of this
product.
SAFETY ALERT SYMBOL
SIGNAL WORDS
The safety alert symbol above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
1. Danger
2. Warning
3. Caution
SAFETY WARNING: AVOID INJURY.
This cutting machine is capable
of amputating body parts and
throwing objects. Failure to
observe the safety instructions in
the manuals and on decals
could result in serious injury or
death.
ALWAYS disengage blades,
stop unit and engine, remove
key, set parking brake and allow
moving parts to stop before
leaving operator’s position.
This is the safety alert symbol. It
means:
• ATTENTION!
• YOUR SAFETY IS
INVOLVED!
When you see this symbol:
• BECOME ALERT!
• OBEY THE MESSAGE!
DANGER: Indicates an
IMMINENTLY HAZARDOUS
SITUATION! If not avoided,
WILL RESULT in death or
serious injury.
WARNING: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided,
COULD RESULT in death or
serious injury.
CAUTION: Indicates a
POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY
RESULT in minor or moderate
injury. It may also be used to
alert against unsafe practices.

EN - 3
4. Notice
NOTICE: Indicates information or procedures
that are considered important but not hazard
related. If not followed, property damage
could result.
5. Important
IMPORTANT: Indicates general reference
information worthy of special attention.
SAFETY DECALS
The safety decals on your unit are visual
reminders of the important safety information
in this manual. All messages on your unit
must be fully understood and carefully
followed. Safety decals on the unit are
explained below.
ALWAYS replace missing or damaged safety
decals. Replacement decal information is in
the parts manual for your unit. Decals can be
ordered from your dealer.
See Figure 2 for safety decal locations.
Safety Decal Locations
Figure 2
1
1
2
3
3
2

EN - 4

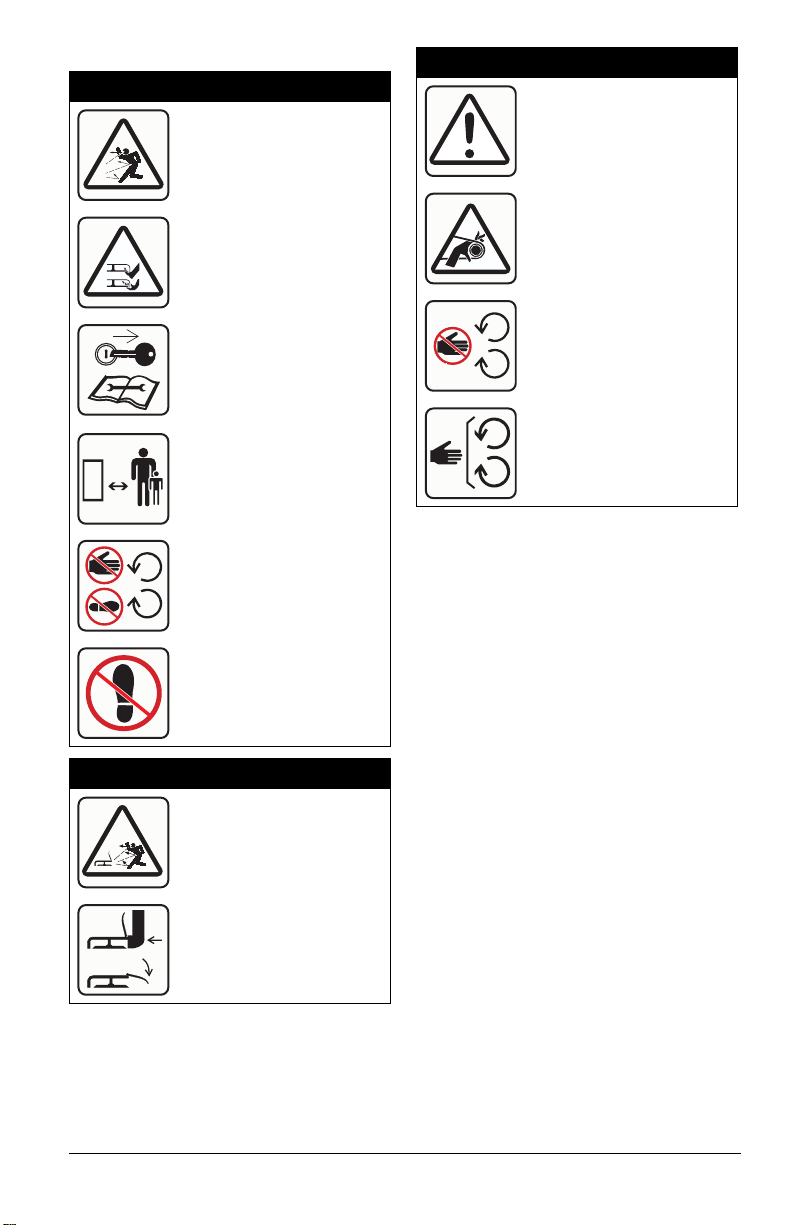

Safety Decal Descriptions
1. DANGER!
Discharge Hazard – NEVER
direct discharge toward
people, pets or property.
Thrown objects can cause
injury or damage.
Amputation Hazard –
NEVER stick hands or feet
under deck or shielded
areas.
Stop engine, remove key,
and read manual before
servicing or making
adjustments to unit.
Keep children and others
away from unit while unit is
in operation.
Keep hands and away from
all rotating or moving parts.
DO NOT step or stand in
this area.
2. DANGER!
Discharge Hazard – NEVER
operate unit without
discharge chute in operating
position.Thrownobjectscan
cause injury or damage.
DO NOT operate mower
unless all guards are in
operating position or bagger
is attached.
3. DANGER!
DO NOT operate without
guards in place.
To avoid amputation hazard
DO NOT put hands near
moving belts.
Keep hands away from all
rotating or moving parts.
Keep all guards and shields
in place.

EN - 5
SAFETY RULES
The following safety instructions are based
on the B71.4 specifications of the American
National Standards Institute and ISO 5395 in
effect at the time of production.
Training
Read, understand, and follow all instructions
on the machine and in the manuals before
starting.
Be sure the area is clear of bystanders and
pets before operating. Stop machine if
anyone enters the area.
Improper use of power equipment can cause
serious permanent injury or death to the
operator or a bystander.
Understand:
• How to operate all controls
• The functions of all controls
• How to STOP in an Emergency
• Braking and steering characteristics
• Turning radius and clearances
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them.
Always train any inexperienced operators
and require them to read and understand all
manuals and decals.
Only allow responsible adults, who are
familiar with the instructions, to operate this
machine.
Only the user can prevent and is responsible
for accidents or injuries occurring to
themselves, other people or property.
Operator Age
Do not allow children under the age of 18 to
operate any outdoor power equipment.
Local regulations may restrict the age of the
operator.
Data indicates operators age 60 years and
above are involved in a large percentage of
riding mower-related injuries.
These operators should evaluate their ability
to operate the mower safely enough to
protect themselves and others
from serious injury.
Children
Tragic accidents can occur if the operator is
not alert to the presence of children.
Children are often attracted to the machine
and the mowing activity. Never assume that
children will remain where you last saw
them.
Be alert and turn machine off if a child enters
the area.
Before and while backing, look behind and
down for small children.
Never carry children, even with the blade(s)
shut off. They may fall off and be seriously
injured or interfere with safe machine
operation. Children who have been given
rides in the past may suddenly appear in the
mowing area for another ride and be run
over or backed over by the machine.
Never allow children to operate the machine.
Use extreme care when approaching blind
corners, shrubs, trees, or other objects that
may block your view of a child.
Keep children out of the mowing area and in
the watchful care of a responsible adult
other than the operator.
Personal Protection
DO NOT wear loose clothing or jewelry and
tie back hair that may get caught in rotating
parts.
Wear adequate outer garments.
NEVER wear open sandals or canvas shoes
during operation. Wear adequate safety
gear, protective gloves and footwear.
Wear proper footwear to improve footing on
slippery surfaces
Always wear eye and ear protection when
operating machine.

EN - 6
Before Operating
Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
Maintain the machine to be in compliance
with the maintenance schedule.
Clean grass and debris from unit, especially
from around muffler and engine, to help
prevent fires.
Check parking brake operation frequently.
Adjust and service as required.
Inspect unit before each use for missing or
damaged decals and shields, correctly
operating safety interlock system, and
deterioration of grass catchers. Replace or
repair as needed.
Ensure Safety Interlock System is
functioning properly. DO NOT operate unit if
safety interlock is damaged or disabled.
Start and operate unit only when in the
operator’s position. Steering control levers
must be in neutral, PTO disengaged and
parking brake set when starting engine.
Never tamper with safety devices. Check
their proper operation regularly.
Keep machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage
and remove any fuel-soaked debris.
Operation
Be sure the area is clear of bystanders
before operating. Stop machine if anyone
enters the area.
Never operate machine in a closed or poorly
ventilated area.
ALWAYS maintain unit in safe operating
condition. Damaged or worn out muffler can
cause fire or explosion.
This product is equipped with an internal
combustion type engine. DO NOT use unit
on or near any unimproved, forest-covered
or brush covered land unless exhaust
system is equipped with a spark arrester
meeting applicable local, state or federal
laws. A spark arrester, if it is used, must be
maintained in effective working order by
operator.
Do not operate machine while under the
influence of alcohol or drugs.
Do not put hands or feet near rotating parts
or under the machine. Keep clear of the
discharge opening at all times.
DO NOT touch parts which are hot. Allow
parts to cool.
Do not operate machine without the entire
grass catcher, discharge guard, or other
safety devices in place and working.
Always keep hands and feet away from all
pinch points.
Avoid slippery surfaces. Always be sure of
your footing.
Never carry passengers.
Never direct discharged material toward
anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet
back toward the operator. Stop the blade(s)
when crossing gravel surfaces.
Never engage PTO when attachment,
including mower blades, is not in use.
Always turn off power to attachment when
not in active use such as traveling or
crossing driveways.
Always disengage PTO, stop unit and
engine, remove key, engage parking brake
and allow moving parts to stop before
leaving operator’s position.
Never engage PTO while raising the
attachment, including mower blades, or
when attachment is in the raised position.
Keep safety devices or guards in place and
functioning properly. Never modify or
remove safety devices.
Do not mow in reverse unless absolutely
necessary. Always look down and behind
before and while backing.
Stop engine before removing grass catcher
or unclogging chute.
Slow down before turning.
If you strike a foreign object, stop and
inspect the machine. Repair, if necessary,
before restarting.
Never leave a running machine unattended.
Always turn off blade(s), set parking brake,
stop engine and remove key.
Disengage blade(s) when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging
the discharge guard.
Know the weight of loads. Limit loads to
those you can safely control and the unit can
safely handle.

EN - 7
Operating Conditions
Always check overhead and side clearances
carefully before operation.
Watch for traffic when operating near or
crossing roadways.
Clear the area of objects such as rocks,
wire, toys, etc., which could be thrown by the
blades.
Check for weak spots on docks, ramps or
floors. Avoid uneven work areas and rough
terrain. Stay alert for hidden hazards or
traffic.
Use care when approaching blind corners,
shrubs, trees or other objects that may
obscure vision.
Dust, smoke, fog, etc. can reduce vision and
cause an accident.
Operate machine only in daylight or good
artificial light.
Slope Operation
Slopes are a major factor related to loss of
control and tip-over accidents, which can
result in severe injury or death. Operation on
all slopes requires extra caution. If you
cannot back up the slope or if you feel
uneasy on it, do not mow it.
DO NOT operate on slopes of more than
15°.
Mow up and down slopes, not across.
Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could
overturn the machine. Tall grass can hide
obstacles.
Do not mow on moist or wet grass. Tires
may lose traction causing a loss of control.
Use extra care while operating machine with
grass catchers or other attachments; they
can affect the stability of the machine. Do
not use on steep slopes.
Keep all movements on the slope slow and
gradual. Do not make sudden changes in
speed or direction, which could cause the
machine to roll over.
Avoid starting, stopping, or turning on a
slope. If the tires lose traction, disengage
the blade(s) and proceed slowly straight
down the slope.
Operation on slopes may lead to loss of
steering control. When operating on slopes
be prepared to react to an emergency
situation:
• Return steering levers to neutral
position.
• Immediately set parking brake.
• Turn off PTO and engine.
DO NOT try to stabilize the machine by
putting your foot on the ground.
DO NOT park on slopes unless necessary.
When parking on slope always chock or
block wheels. Always set parking brake.
Choose a low ground speed so you will not
have to stop or shift while on a slope.
DO NOT operate near drop-offs, ditches, or
embankments. Unit can suddenly turn over if
a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
Do not bypass transmission or allow
transmission to free-wheel when on a slope.
Fuel
To avoid personal injury or property damage,
use extreme care in handling gasoline.
Gasoline is extremely flammable and the
vapors are explosive.
Ethanol blends must not exceed E10. Higher
ethanol content may cause your
machine to run hotter and damage your
engine.
Replace fuel cap securely and clean up
spilled fuel before starting engine.
Extinguish all cigarettes, cigars, pipes, and
other sources of ignition.
Use only an approved gasoline container.
Never store the machine or fuel container
where there is an open flame, spark, or pilot
light such as on a water or space heater or
other appliances.
Never fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner.
Always place containers on the ground away
from your vehicle before filling.
Never fuel the machine indoors.
Never remove gas cap or add fuel with the
engine running. Allow engine to cool before
fueling.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use only an
approved gasoline container with an
appropriately sized dispensing spout.
NO smoking, NO sparks, NO flames.

EN - 8
Remove gas-powered equipment from the
trailer and refuel it on the ground. If this is
not possible, then refuel such equipment
with a portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until the fueling is complete. Do not
use a nozzle lock-open device.
Never overfill fuel tank. Replace gas cap
and tighten securely.
If fuel is spilled on clothing, change clothing
immediately.
Accessories
Follow the manufacturer’s recommendation
for wheel weights or counterweights
Check grass catcher components and the
discharge guard frequently and replace with
the manufacturer’s recommended parts,
when necessary.
Use only Ariens Company-recommended
attachments that are appropriate to your use
and can be used safely in your application.
Batteries
Avoid Electric Shock. Objects contacting
both battery terminals at the same time may
result in injury and unit damage. DO NOT
reverse battery connections.
Reverse connections may result in sparks
which can cause serious injury. Always
connect positive (+) lead of charger to
positive (+) terminal, and negative (-) lead to
negative (-) terminal.
ALWAYS disconnect negative (-) cable
FIRST and positive (+) cable SECOND.
ALWAYS connect positive (+) cable FIRST,
and negative (-) cable SECOND.
Explosive Gases from battery can cause
death or serious injury. Poisonous battery
fluid contains sulfuric acid and its contact
with skin, eyes or clothing can cause severe
chemical burns.
No flames, No sparks, No smoking near
battery.
ALWAYS wear safety glasses and protective
gear near battery. Use insulated tools.
ALWAYS keep batteries out of reach of
children.
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and reproductive
harm. Wash hands after handling.
Service
Maintain or replace safety and instruction
labels, as necessary.
Keep unit free of debris. Clean up oil or fuel
spills.
ALWAYS block wheels and know all jack
stands are strong and secure and will hold
weight of unit during maintenance.
Release any pneumatic or hydraulic
pressure from components slowly.
NEVER attempt to make any adjustments to
unit while engine is running (except where
specifically recommended). Stop engine,
remove key or spark plug wire and wait for
all moving parts to stop before servicing or
cleaning.
Lower cutting deck unless a positive
mechanical lock is used.
Allow engine to cool before servicing.
Moving parts can cut or amputate fingers or
a hand. On multiblade mowers, rotation of
one blade will cause all blades to rotate.
Never weld or straighten mower blades.
Never make adjustments or repairs with the
engine running.
Mower blades are sharp. Wrap the blade or
wear gloves, and use extra caution when
servicing them.
ALWAYS keep body and hands away from
pin holes or nozzles which eject hydraulic
fluid under pressure.
Transporting Unit
Use extra care when loading or unloading
the machine into a trailer.
Secure unit chassis to transport vehicle.
Never secure from rods or linkages that
could be damaged.
Do not transport machine while engine is
running.
ALWAYS turn off power to attachment and
shut off fuel when transporting unit.

EN - 9
Storage
NEVER store unit with fuel in fuel tank,
inside a building where any ignition sources
are present.
Keep machine free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage
and remove any fuel-soaked debris. Allow
machine to cool before storing.
For extended storage, shut off fuel and
clean unit thoroughly. See engine manual for
proper storage.

EN - 10
Refer to Pro-QXT Tractor Operator’s Manual
for tractor-specific information.
UNPACK UNIT
1. Remove packaging material and ties from
attachment.
2. Remove all hardware from container.
3. Remove and discard hardware securing
discharge chute to crate base.
4. Remove and discard hardware securing
deck stand bracket to crate base.
PACKAGE CONTENTS
Check the contents of your package for the
parts listed below.Also see Figure 3.
ATTACH DECK STAND
1. Attach deck stand assembly (item 7) to
deck using two 3/8" x 1 1/4” hex bolts
(item 6). See Figure 4.
ASSEMBLY
WARNING: Read and
understand the Safety section
before proceeding.
WARNING: Dropping or tipping
over boxed unit could result in
personal injury or damage to
unit.
Item Description Qty Part Number
136"FinishMower
Assembly 1N/A
2 Discharge
Assembly 1N/A
3 Wing Knob 1 03820400
4 Rubber Bumper 1 07533600
5 5/16"-18 Spin
Lock Flange Nut 1 06530400
6 3/8"-16 x1 1/4”
Hex Bolt 2 05958000
7 Deck Stand
Assembly 1N/A
Figure 3
2
3
1
4
5
6
7
Figure 4
7
6

EN - 11

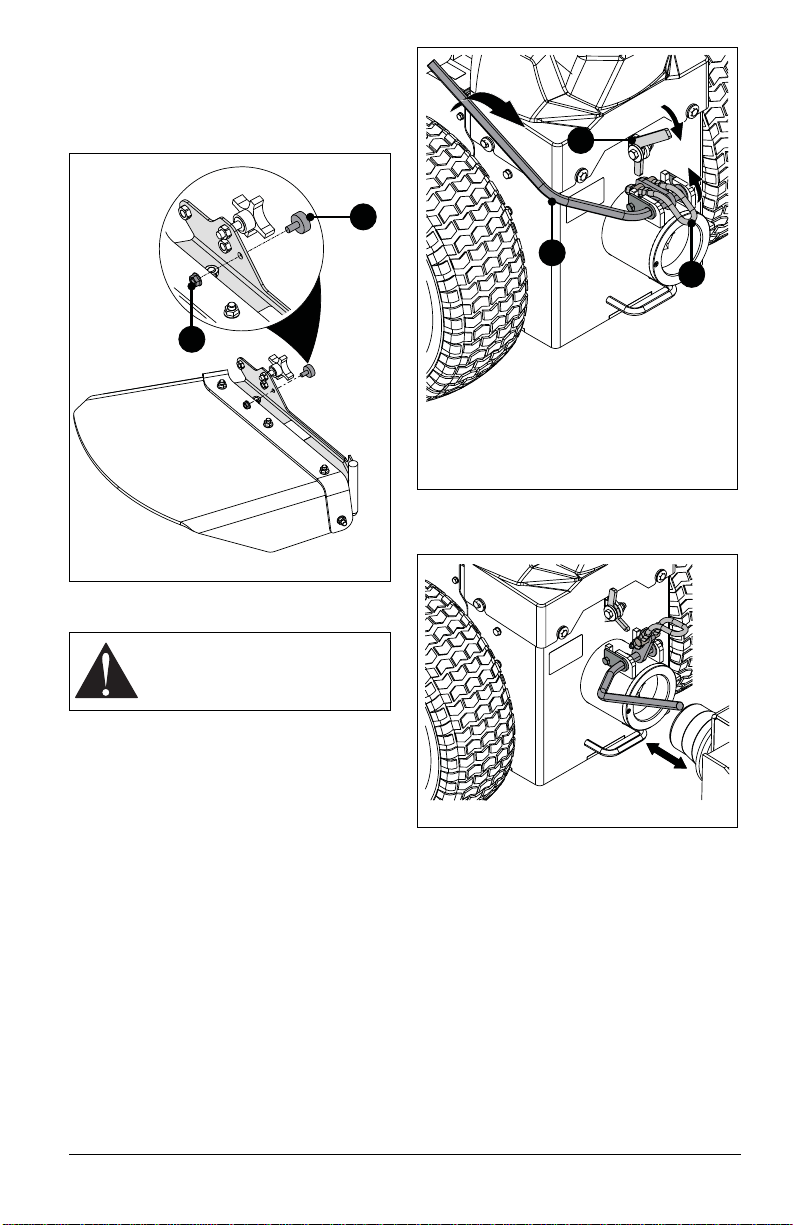

INSTALL DISCHARGE CHUTE
BUMPER
1. Secure rubber bumper (item 4) to
discharge chute with one spin lock flange
nut (item 5). See Figure 5.
INSTALL MOWER ATTACHMENT
See Figure 6.
1. Stop engine, engage parking brake and
disengage PTO.
2. Place tractor support stand in down
position.
3. Press and hold attachment lever lock
against tractor frame.
4. Move attachment lever forward.
5. Release attachment lever lock and rotate
bow latch toward the tractor.
6. Insert mower attachment receiver into the
tractor driveshaft. See Figure 7.
WARNING: AVOID INJURY.
Keep body parts away from
pinch points when installing and
removing attachments.
Figure 5
5
4
Figure 6
1. Attachment Lever
2. Attachment Lever Lock
3. Bow Latch
1
2
3
Figure 7

EN - 12

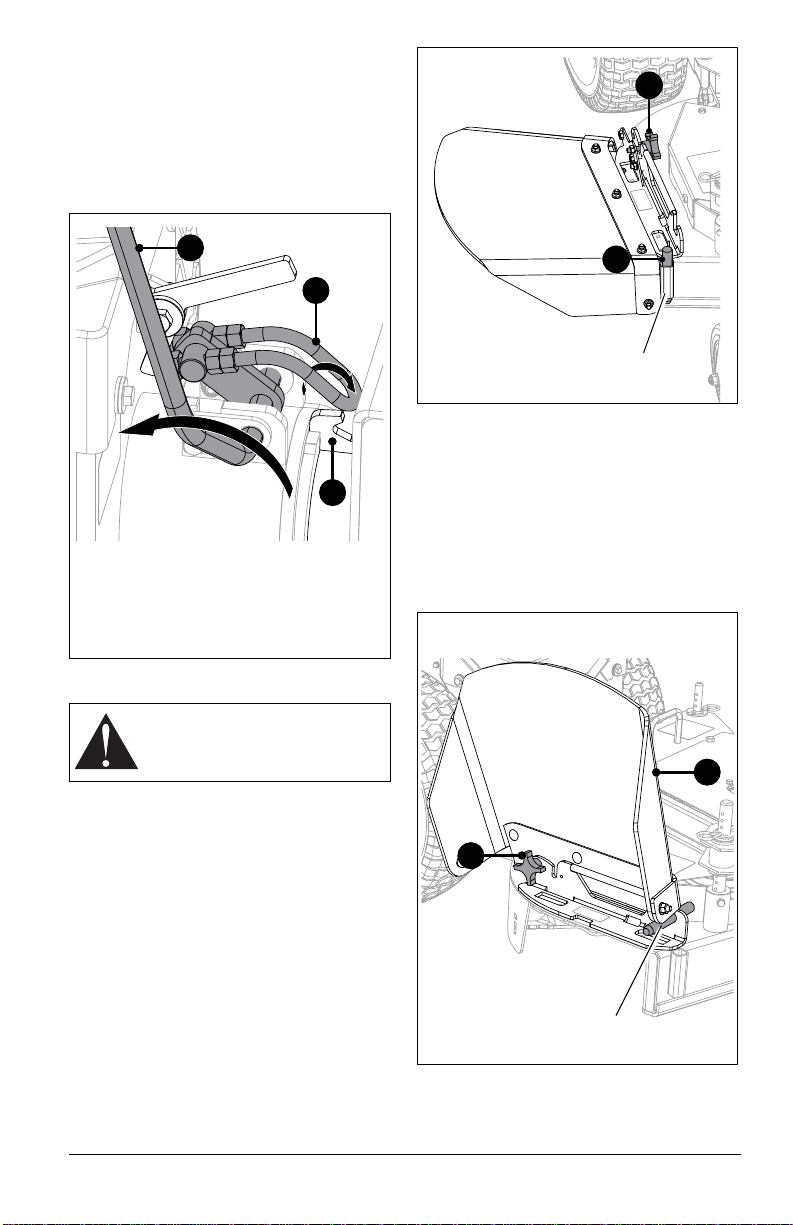

See Figure 8.
7. Rotate bow latch forward and position
around latch hook on mower attachment.
8. Rotate attachment lever backward to
secure attachment to tractor.
IMPORTANT: Bow latch is adjustable. Refer
to Pro-QXT Operator’s Manual for adjustment
procedure.
INSTALL DISCHARGE CHUTE
Operating Position
See Figure 9.
1. Place the discharge chute (item 2) in the
operating position.
2. Secure discharge chute to bracket with
wing knob (item 3).
Transport Position
See Figure 10.
1. Remove the wing knob (item 3) from the
discharge chute (item 2). Retain for
reinstallation.
2. Place the discharge chute in the transport
position.
3. Secure discharge chute to bracket with
wing knob.
WARNING: AVOID INJURY. DO
NOT operate unit without
discharge chute in operating
position.
Figure 8
1. Attachment Lever
2. Latch Hook
3. Bow Latch
1
2
3
Figure 9
Operating
Position 3
Mounting Pin
2
Transport
Position
Figure 10
3
Mounting Pin
2

EN - 13
1. Attachment Lever
2. Driveshaft
3. Bow Latch
4. Attachment Lever Lock
5. Power Take-Off (PTO) Switch
6. Operator Presence Control (OPC)
7. Discharge Chute
8. Receiver
9. Height of Cut (HOC) Rods (4)
10. Deck Stand
11. Height of Cut (HOC) Spacers
CONTROLS & FEATURES
3
4
1
2
9
8
7
10
6
5
11
Figure 11
8

EN - 14
See Figure 11 for all controls and features
locations.
Safety Interlock System
ATTACHMENT LEVER
Locks attachments onto front of tractor.
BOW LATCH
Secures attachment to tractor when
attachment lever is engaged.
OPERATOR PRESENCE LEVER

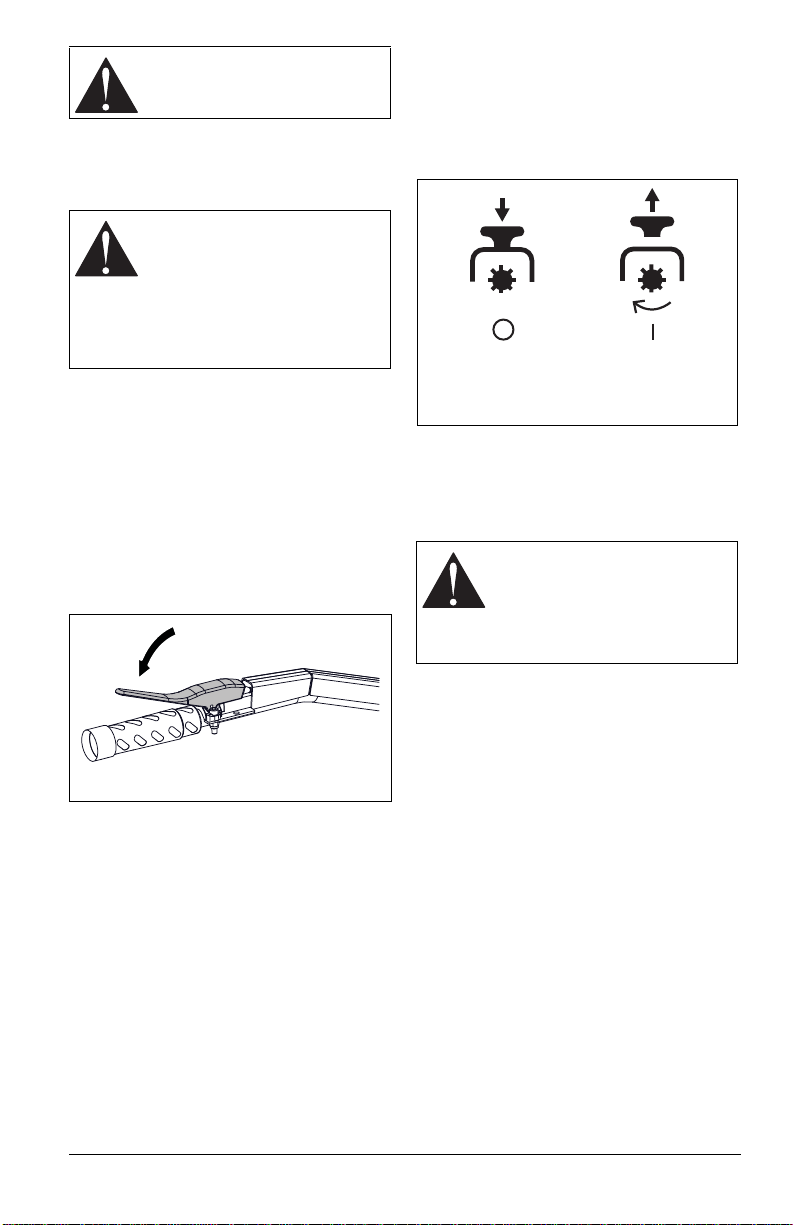

See Figure 12.
Operator presence lever must be engaged to
operate drive control grip or PTO.
POWER TAKE-OFF (PTO)
SWITCH
See Figure 13.
Engages and disengages mower attachment.
The engine will not start with the PTO switch
in the on position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
1. Release parking brake.
2. Move throttle control lever one-third of the
way toward the fast position.
3. Pull the PTO switch to on position to
engage attachment.
4. Set throttle speed based on attachment
being operated and working conditions.
5. Engage operator presence lever.
6. Rotate drive control grip.
WARNING: Read and
understand the Safety section
before proceeding.
WARNING: Safety interlock
system failure and improper
operation of unit can result in
death or serious injury. Test this
system each time the unit is
operated. If this system does not
function as described, do not
operate until repairs are made.
Figure 12
WARNING: AVOID INJURY.
Move the drive control grip
slowly and keep the throttle at
slow speed until you learn how
to operate the unit and how the
attachment affects handling.
Figure 13
Attachment
On
Attachment
Off

EN - 15
OPERATE UNIT
1. Start the engine.
2. Engage operator presence lever.
3. Pull the PTO switch to on position to
engage attachment.
4. Set throttle speed based on attachment
being operated and working conditions.
5. Rotate drive control grip to drive unit.
STOP UNIT
1. Push PTO knob down to off position.
2. Release operator presence lever.
3. Turn key to off position.
INSTALL MOWER ATTACHMENT
1. Stop engine, engage parking brake and
disengage PTO.
2. Place tractor support stand in down
position.
See Figure 14.
3. Press and hold attachment lever lock
against tractor frame.
4. Move attachment lever forward.
5. Release attachment lever lock and rotate
bow latch toward the tractor.
6. Insert mower attachment receiver into
tractor driveshaft. See Figure 15.
OPERATION
WARNING: AVOID INJURY.
Keep body parts away from
pinch points when installing and
removing attachments.
Figure 14
1. Attachment Lever
2. Attachment Lever Lock
3. Bow Latch
1
2
3
Figure 15

EN - 16
See Figure 16.
7. Rotate bow latch forward and position
around latch hook on mower attachment.
8. Rotate attachment lever backward to
secure attachment to tractor.
IMPORTANT: Bow latch is adjustable. Refer
to Pro-QXT Operator’s Manual for adjustment
procedure.
REMOVE MOWER ATTACHMENT
1. Stop engine, engage parking brake and
turn PTO off.
2. Remove hair pin and clevis pin securing
deck stand rod to deck stand bracket.
See Figure 17.
3. Align hole in deck stand rod to the lower
hole in deck stand bracket. Insert clevis
pin and secure with hair pin. See
Figure 18.
WARNING: AVOID INJURY.
Failure to set deck stand in lower
position prior to mower removal
may result in tractor tipping
forward.
Figure 16
1. Attachment Lever
2. Latch Hook
3. Bow Latch
1
2
3
Figure 17
1. Deck Stand Rod
2. Hair Pin
3. Clevis Pin
2
1
3
Figure 18
1. Deck Stand Rod
2. Deck Stand Bracket
1
2

EN - 17

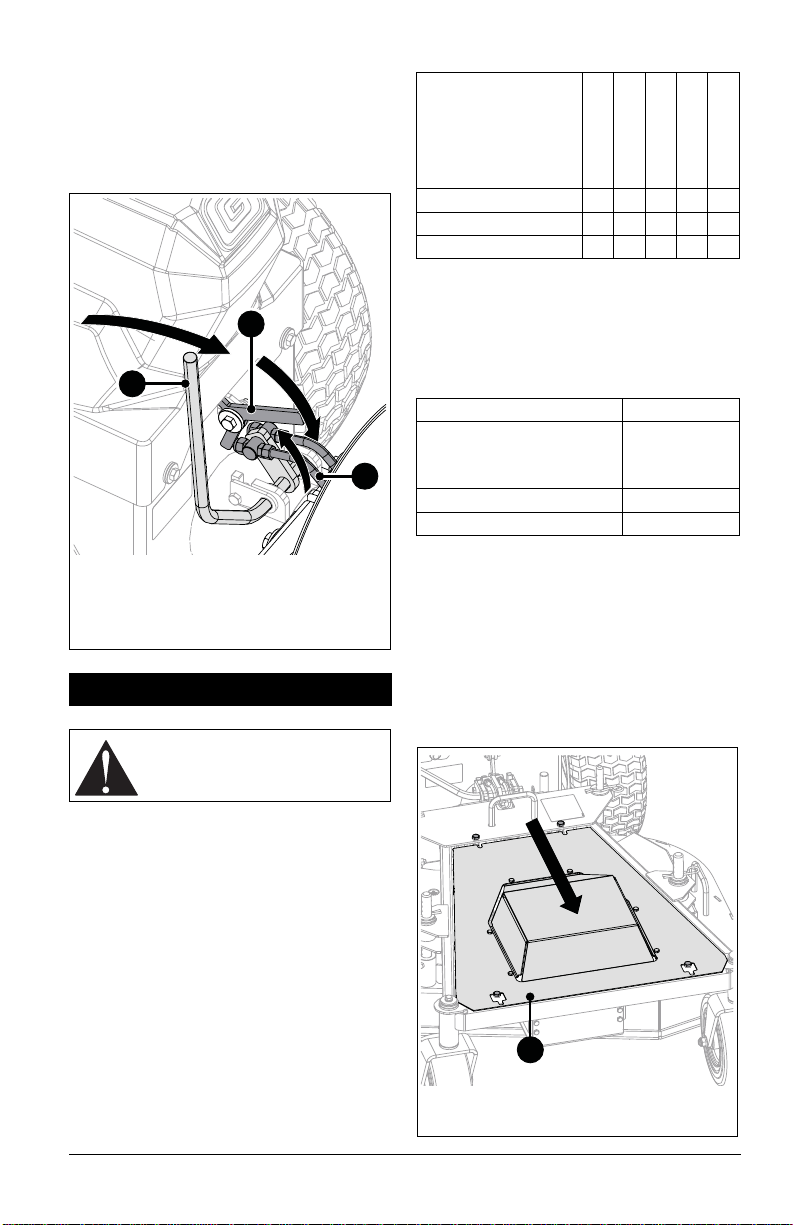

See Figure 19.
4. Rotate attachment lever lock forward to
release.
5. Rotate attachment lever forward.
6. Release attachment lever lock and rotate
bow latch toward tractor.
7. Remove mower attachment.
Proper maintenance can prolong the life of
unit. The following chart shows the
recommended service schedule.
Your Gravely dealer can provide service and
adjustments to keep your unit operating at
peak efficiency. Contact an authorized engine
manufacturer’s service center for engine
service.
More frequent service may be required due to
working conditions (heavy loads, high
ambient temperatures, dusty conditions, or
airborne debris).
See the maintenance instructions in the
Engine Manual for additional information.
IMPORTANT: Refer to Pro-QXT Tractor
Operator’s Manual for tractor-specific
maintenance information and procedures.
MAINTENANCE SCHEDULE
*Change gearcase oil after first 25 hours and
every 400 hours thereafter.
SERVICE PARTS
See your Gravely dealer to purchase service
parts for your unit.
CHECK GEARCASE OIL
See Figure 20.
1. Place unit on a flat, level surface.
2. Loosen but DO NOT remove hex bolts
securing mower deck shield to frame.
3. Slide shield forward until front hex bolt
heads are positioned in square slots.
4. Remove mower deck shield and retain for
reinstallation.
MAINTENANCE
WARNING: Read and
understand the Safety section
before proceeding.
Figure 19
3
2
1
1. Attachment Lever Lock
2. Bow Latch
3. Attachment Lever
Service Performed
Each Use Every 5 hrs. Every 25 hrs. Every 400 hrs. Annually
Check Fasteners •
Change Gearcase Oil •* •
Lubricate Unit • •
Description Part No.
Gravely Hi-Temp Grease
• 3 oz. cartridges (3)
• 14 oz. cartridge (1) 00036800 00036700
Mower Drive Belt 07237700
Mower Blades 00450300
1
1
Figure 20
1. Mower Deck Shield

EN - 18

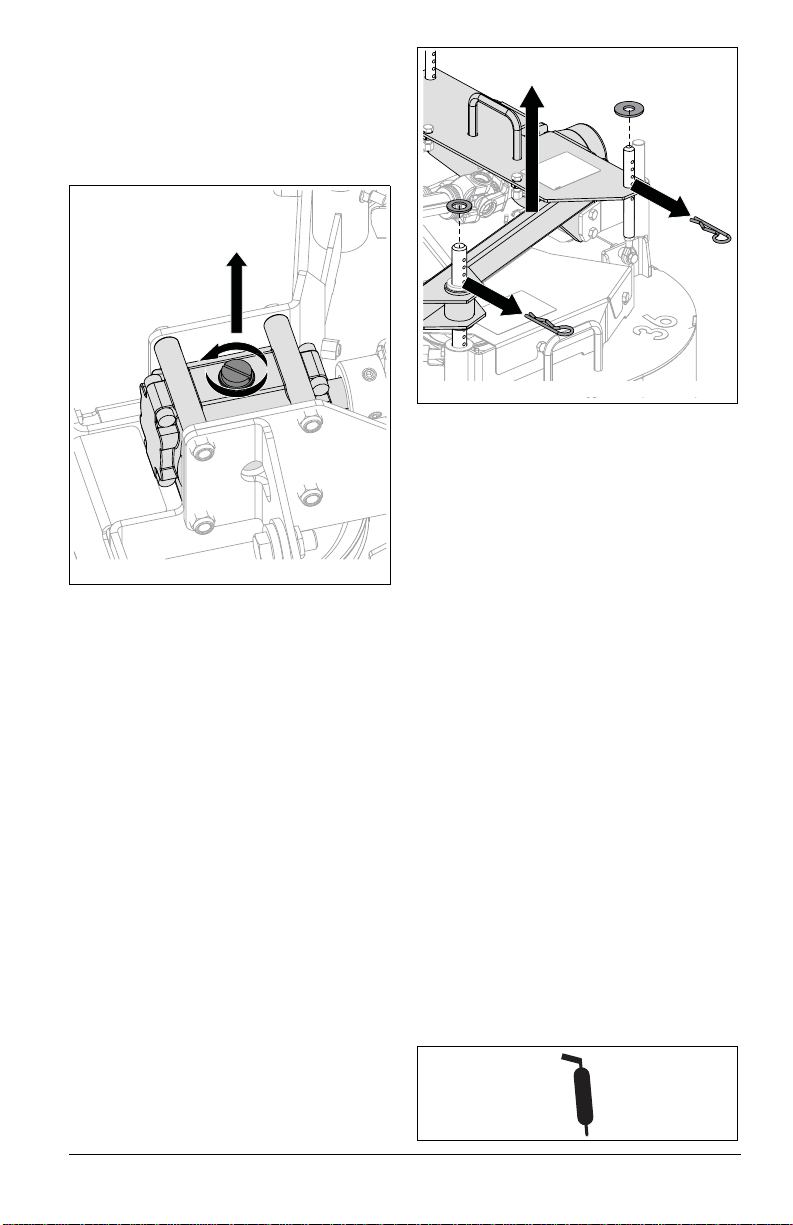

See Figure 21.
5. Remove oil fill/drain plug and seal
washer.
6. Check oil level and add oil if needed. See
Change Gearcase Oil on page 18. Oil
level MUST reach the bottom edge of fill
opening.
7. Reinstall oil fill/drain plug and seal
washer.
8. Reinstall mower deck shield and tighten
hex bolts.
CHANGE GEARCASE OIL
1. Place unit on a flat, level surface.
2. Remove mower attachment. See
Remove Mower Attachment on page 16.
3. Loosen but DO NOT remove hex bolts
securing mower deck shield to frame.
4. Slide shield forward until front hex bolt
heads are positioned in square slots.
5. Remove mower deck shield and retain for
reinstallation.
See Figure 22.
6. Remove pins and washers from height of
cut rods. Retain for reinstallation.
7. Remove carrier frame from deck and
retain for reinstallation.
8. Remove oil fill/drain plug and seal
washer. See Figure 21.
9. Tip the deck over. Completely drain oil
and dispose of properly. Return deck to
operating position.
10. Add oil. Oil level MUST reach the bottom
edge of fill opening.
IMPORTANT: Refill with a fully synthetic
80W-90 gear oil meeting anAPI GL-5 rating.
11. Reinstall oil fill/drain plug and seal
washer.
12. Reinstall carrier frame onto the height of
cut rods using original washers and pins.
13. Reinstall mower deck shield and tighten
hex bolts.
14. Reinstall attachment to tractor. See Install
Mower Attachment on page 11.
CHECK FASTENERS
Check for loose or missing hardware.
LUBRICATE UNIT
Gravely recommends using Gravely Hi-Temp
Grease or equivalent (see Service Parts on
page 17) to lubricate fittings. Lubricate each
season or every 25 hours of operation.
IMPORTANT: Wipe each fitting clean before
and after lubrication.
Use the following key for all lubrication
procedures. Apply grease at the grease
zerks.
Figure 21
Figure 22
Grease
