Great American Recreation Power Hockey Overhead User manual

Power Hockey Overhead
Setup & Assembly Instructions
20 Providence Pike
North Smithfield, RI 02896
800-831-2011 • (f) 401-463-6673
www.GreatAmericanRec.com
[e-mail]

Parts List
The following parts should be included with the Power Hockey Table:
4 Legs with attached levelers (In a separate box)
16 1 1/2” x 3/8” #16 bolts (Inside cash box)
10 keys (8 taped to outside of coin mechanism and 2 inside)
2 mallets (Inside leg box)
2 pucks (Inside leg box)
The following parts should be included with the Light Bar:
1 Light Bar with wires
1 Light Bar
1 Score Panel
1 Light Fixture
1 Large Light Bar mount cover
1 Small Light Bar mount cover
12 1 1/2” x 1/4” #20 bolts
4 1/2” x 1/4” #20 bolts
4 1/4” nuts
16 1/4” locking washers
4 1/4” washers
8 5/8” #8 pan head screws
Table Maintenance
This is a commercial table and meant for heavy-duty use so very little table maintenance
is required. One thing that should be done every now & then (depending on the use of
your table) is to wipe down the playing surface with a laminate polish. We use a product
called “Countertop Magic” and can be purchased at any Home Depot or comparable
hardware store. Simply turn on the blower motor, spray the laminate polish onto a cloth
and wipe the playing surface

Setup Instructions
1. Locate keys taped to coin mechanism (or inside puck drop if non coin).
2. Remove 4 legs with levelers, and a bag of (16) bolts.
3. Attach legs to bottom of table using (16) 1 1/4” x 3/8” #16 bolts. (See figure 1)
4. Stand table upright.
5. Attach Light Bar as instructed in the next section.
Front View of Power Hockey Table
Figure 1
5/8” #8 pan head screw
Small Light Bar
Mount Cover
Locks
Puck Drop Access Door
Legs
1 1/4” x 3/8” #16 Bolt
Light Bar
Light Bar w/wires
Wires from table
(3 Harnesses)
Wires from Light
Bar (3 Harnesses)
Connects to Score Panel
Wires for Light
Trap door for legs
(on bottom of table)

Light Bar Assembly
1. Locate string taped to the side of the Power Hockey table.
2. Remove tape and pull out wire harnesses attached to the string.
3. Attach Light Bar with wire to the side on the table with exposed wire harnesses, using
(6) 1 1/2” x 1/4” #20 bolts and 6 locking washers.
4. Attach remaining Light Bar to the other side of the table in the same way.
5. Attach Light Fixture to the Light Bars using: (4) 1/4” x 1/4” #20 bolts, (8) 1/4” washers,
(4) 1/4” locking washers, and (4) 1/4” nuts. (See figure 2)
6. Connect wires from Light Fixture (2 pin connector) to matching connector in Light Bar.
7. Attach 25 pin harness from light bar to the Score Panel at connector marked
“INTERFACE”. NOTE: Make sure the notches on the harness face center of the
circuit board when you attach it to the board.
8. Screw score panel to the light assembly with (4) 5/8” #8 pan head screws.
9. Connect three wire harnesses to their mates at the base of the light bar.
10.Attach Large Light Bar Mount Cover at the base of the Light Bar with the wires using
(2) 5/8” #8 pan head screws.
11.Attach the Small Light Bar Mount Cover on the opposite side.

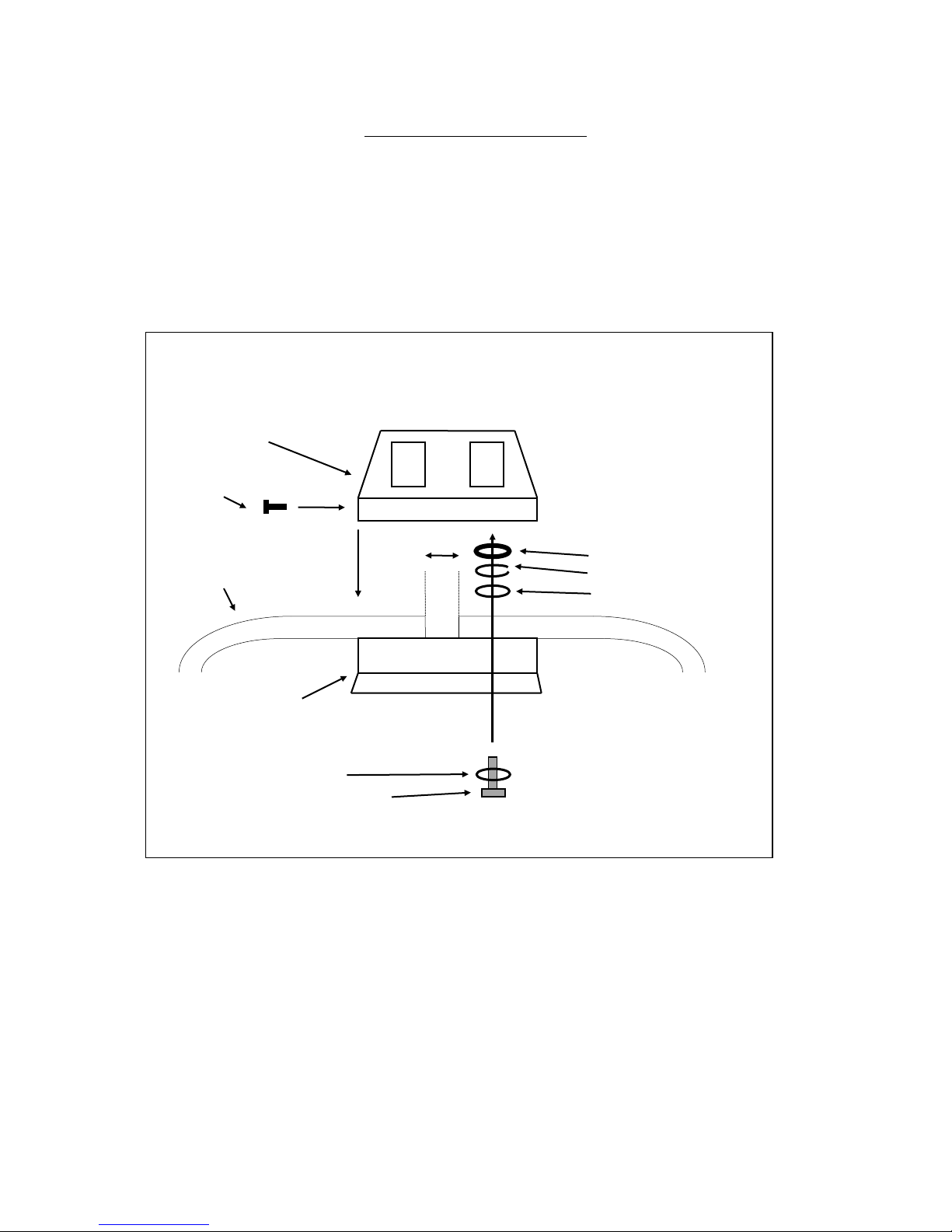

FIGURE 2
Score Panel
5/8” pan head screw
1/4” nut
Light Bar 1” 1/4” locking washer
1/4” washer
Light Fixture
1/4” washer
1/2” x 1/4” #20 bolt

Setting up the game options
The Power Hockey game has the following factory set defaults:
1 coin mechanism throw allows 1 game with a maximum game time of 5 minutes.
To change these settings, refer the DIP switch setting sheet attached to the inside of the
power supply access door (see figure 3). In order to change the coins required per game
play, please refer to the enclosed instructions for the coin mechanism.

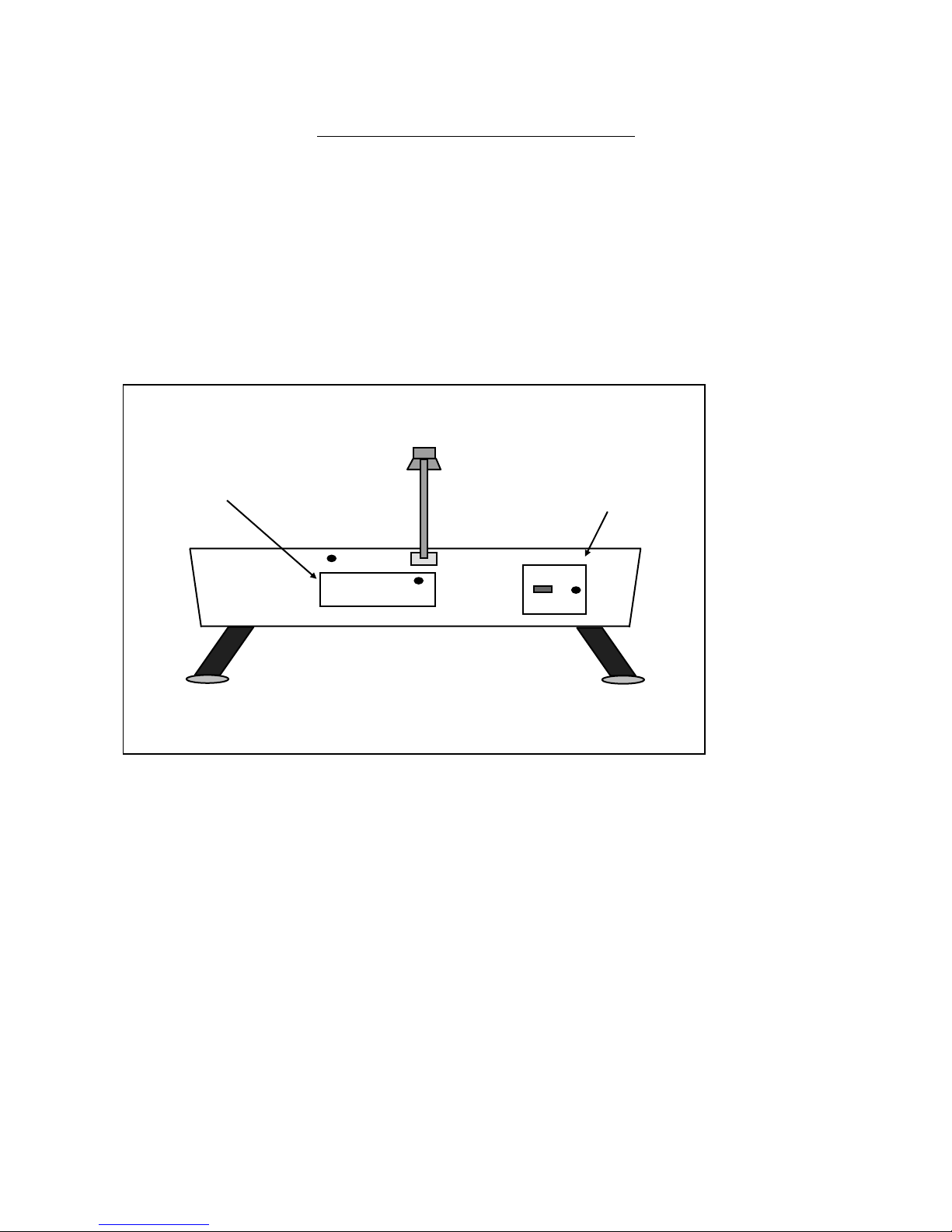

FIGURE 3
Coin Mechanism
Power Supply Access Panel
Side View of Power Hockey table

L E F T S C O R E S W IT C H
C O IN S W IT C H R IG H T
S C O R E S W IT C H

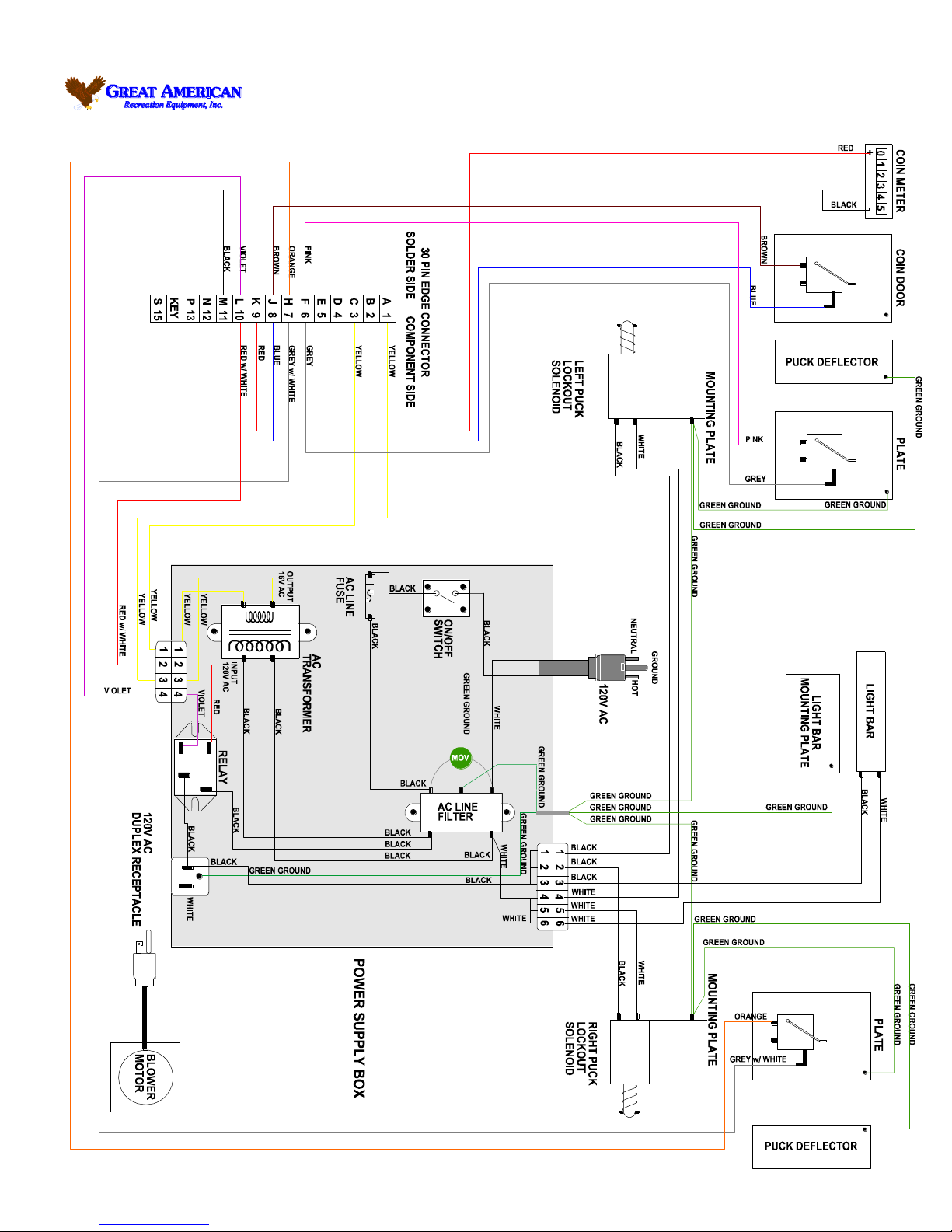

Power Hockey Wiring Diagram
Rev. 11/4/ 98

GA
REAT MERICANRECREATIONEQUIPMENT, INC.
110POWERSUPPLYBOXDIAGRAM

DIP Switch Settings
(If Your Hockey has a GREEN LOGIC BOARD)
TIME OPTIONS COINS PER CREDIT
DIP SWITCH SETTINGS MAX. GAME DIP SWITCH SETTINGS
1 2 3 4 TIME (min.) 5 6 7 8
ON ON ON ON 16 ON ON ON ON 1 COIN 1 CREDIT
ON ON ON OFF 15 ON ON ON OFF 1 COIN 1 CREDIT
ON ON OFF ON 14 ON ON OFF ON 1 COIN 1 CREDIT
ON ON OFF OFF 13 ON ON OFF OFF 1 COIN 1 CREDIT
ON OFF ON ON 12 ON OFF ON ON 1 COIN 1 CREDIT
ON OFF ON OFF 11 ON OFF ON OFF 1 COIN 1 CREDIT
ON OFF OFF ON 10 ON OFF OFF ON 1 COIN 1 CREDIT
ON OFF OFF OFF 09 ON OFF OFF OFF 2 COINS 1 CREDIT
OFF ON ON ON 08 OFF ON ON ON 2 COINS 1 CREDIT
OFF ON ON OFF 07 OFF ON ON OFF 2 COINS 1 CREDIT
OFF ON OFF ON 06 OFF ON OFF ON 2 COINS 1 CREDIT
OFF ON OFF OFF 05 OFF ON OFF OFF 2 COINS 1 CREDIT
OFF OFF ON ON 04 OFF OFF ON ON 3 COINS 1 CREDIT
OFF OFF ON OFF 03 OFF OFF ON OFF 3 COINS 1 CREDIT
OFF OFF OFF ON 02 OFF OFF OFF ON 4 COINS 1 CREDIT
OFF OFF OFF OFF 01 OFF OFF OFF OFF 4 COINS 1 CREDIT
EX. “OFF ON ON ON” ALLOWS A
MAXIMUM 8 MINUTE GAME

DIP Switch Settings
(If Your Hockey has a YELLOW LOGIC BOARD)
AH2004(V1.05)
Description
Value
DIPSwitch Number1
1
2
3
4
5
6
7
8
End
Of Play
Score
6
0
0
7*
1
0
8
0
1
9
1
1
End
Of Play
Timer
(Minutes)
6
0
0
9*
1
0
12
0
1
15
1
1
Coins
Per
Play
If using a slide
mech this is set
to one and the slide
determines the
pricing.
1*
0
0
0
2
1
0
0
3
0
1
0
4
1
1
0
5
0
0
1
6
1
0
1
7
0
1
1
8
1
1
1
Coin Slide
or
Drop Mech
CoinSlide*
0
DropMech
1

* Denotes factory Setting
AH2004(V1.05)
Description
Value
DIP SW 2
1
2
3
4
DBA
Factor
What should the pulses
out of the DBA be
divided or
multiplied by
to equal one
coin.
1*
0
0
0
2
1
0
0
3
0
1
0
4
1
1
0
5
0
0
1
6
1
0
1
7
0
1
1
8
1
1
1
Multiply or Divide
Pulses
MULTIPLY*
0
DIVIDE
1
* Denotes Factory Setting
Connector Pin Outs Pin
#1 is left hand pin facing connector and has square solder pad.
Connector
Pin#
Function
J2
1
+12VDC to DBA
(DBA Port)
2
GND to DBA
3
N/C (Key)
4
Coin 2 Input from DBA
5
+5VDC for DBA EN+
6
GND for DBA EN-

J3
1
+12VDC to Sound Board
(Sound Port)
2
TXD to Sound Board
3
GND to Sound Board
4
RXD from Sound Board
Jl Edge Connector Pin Out
Top (Parts Side)
Bottom (Solder Side)
AC IN 1
1
2
N/C
AC IN 1
3
4
Coin 2 Switch
AC IN 2
5
6
DC Ground
AC IN 2
7
8
DC Ground
N/C
9
10
Start Switch(N/U)
DC Ground
11
12
Left Puck Switch
DC Ground
13
14
Right Puck Switch
DC Ground
15
16
Coin 1 Switch
+12VDC
17
18
Credit Lamp(N/U)
+12VDC
19
20
Motor Relay
+12VDC
21
22
Counter 1
+12VDC
23
24
N/C
Counter 2(N/U)
25
26
+5VDC
KEY
27
28
KEY
DC Ground
29
30
N/C

Puck Lockout Soleniod Installation
1. Remove the side covers from the overhead score unit by removing two phillip screws on
each end cap.
2. Disconnect the 3 wire connections for the overhead score unit.
3. Remove overhead score unit by removing 4 bolts in the side mounting bracket.
4. Open the side door and unplug the black blower cord (very important) which is located
on the side of the power supply unit.
5. Remove all screws around the top outside edge of the table (located below the top rails)
and remove top rails and play field.
6. At each goal end, inside the table, are the puck lock out solenoids. Remove the 2 bolts
and 3 wires (black, white & green). Before removing wires, please note the position of
each wire for reassembley
6. Then install new solenoids and reassemble table using the steps above as a guide.

COIN-OP TABLES ONLY

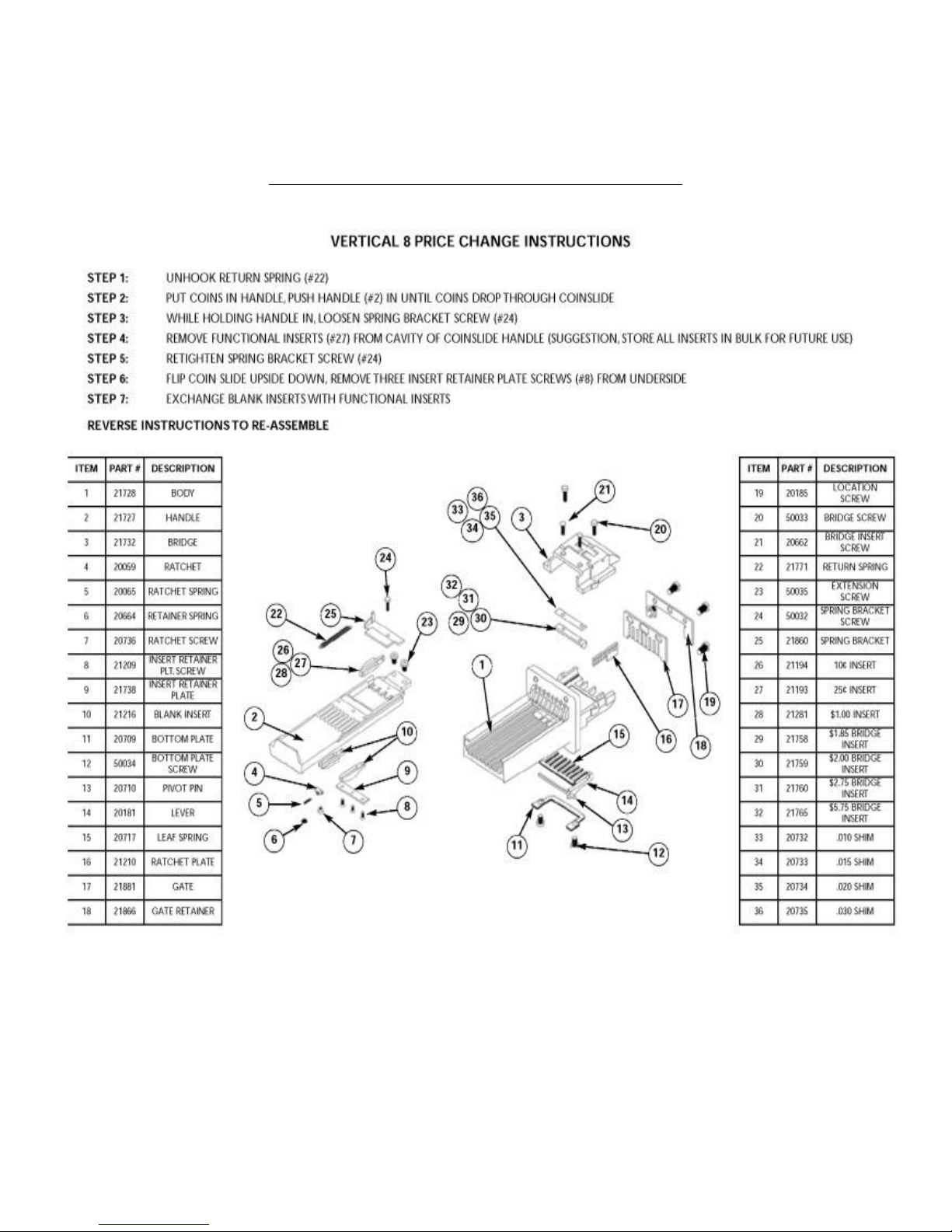

ESD COIN MECH PRICE CHANGE SHEET
