Gree GPC07AK-K3NNA1A User manual

I
ModelPC08AH-A3NNC4D
Local air conditioner
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully .
Models: GPC07AK-K3NNA1A
GPC07AK-K3NNA2A
GPC08AK-K3NNA1A
GPC08AK-K3NNA2A
GPC08AK-K3NNA3A
If you have lost the Owner’s Manual, please contact the local agent or visit
www.greeproducts.es or sent email to [e-mail] for electronic version.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Content
Operation Notices
Operation Environment...........................................................................................1
Safety Warning........................................................................................................2
Part's Name.............................................................................................................3
Operation Guide
Operation Introduction for Control Panel .................................................................4
Buttons on Remote Controller ..................................................................................6
Introduction for Icons on Display Screen .................................................................6
Introduction for Buttons on RemoteController..........................................................7
Function Introduction for Combination Buttons........................................................9
Operation Guide.................................................................................................... 10

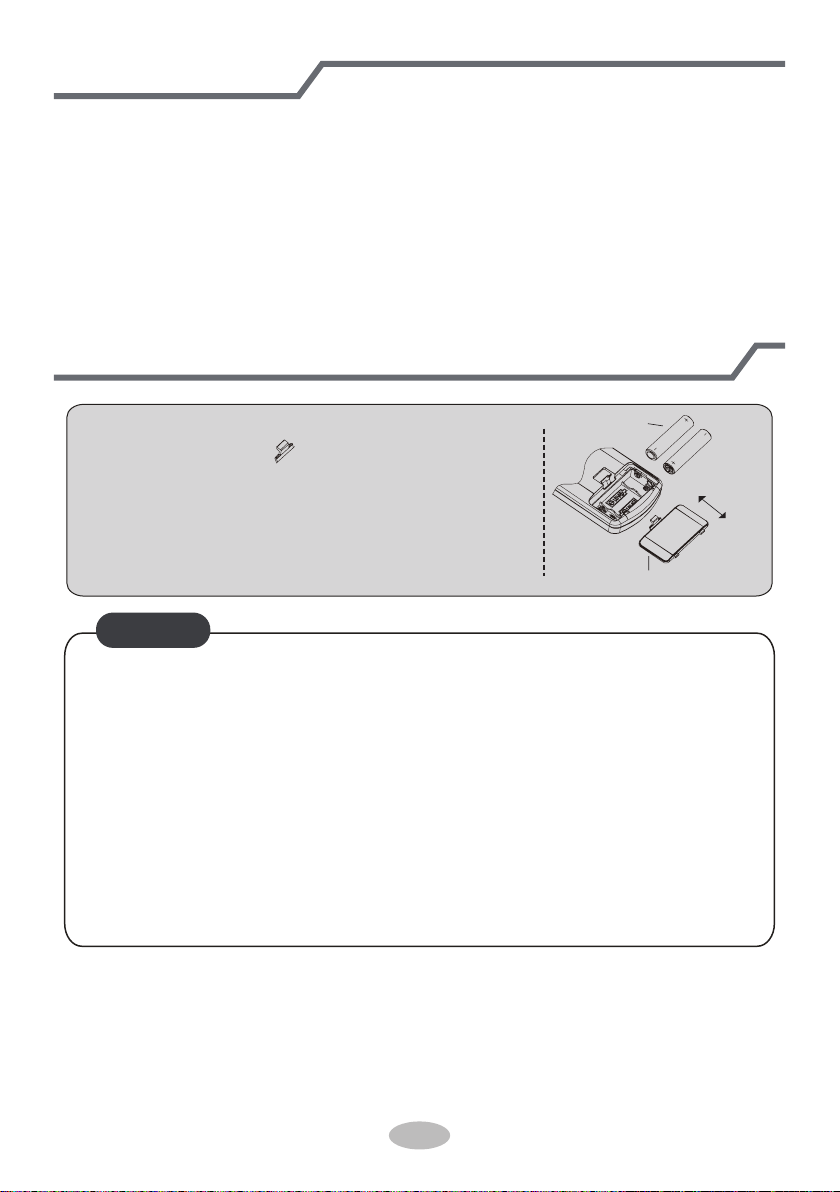

Replacement of Batteries in Remote Controller.....................................................10
Maintenance
Clean and Maintenance...........................................................................................11
Malfunction
Malfunction Analysis ...............................................................................................13
Installation Notice
Installation Precaution ............................................................................................16
Preparation before Installation................................................................................17
Installation
Removing Collected Water ....................................................................................19
Install Wire Hook ....................................................................................................18
Operation Test.......................................................................................................25
Installation and Disassembly of Heat Discharge Pipe ...........................................22
Attached Sheet
Electric Schematic Diagram...................................................................................25
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R410A(R32/125: 50/50): 2087.5
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
WARNING
CAUTION
DANGER
N OT IC E
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

1
Operation Environment
● This air conditioner can only be used for family, not for
commercial industry.
● The appliance is for indoor use only.
● The air conditioner must be operated within the temperature range:
16°C ~ 35°C.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 12″(30cm)
at least.
● Do not operate the air conditioner at humid environment.
● During operation, close doors and windows to improve cooling effect.
● Please keep air inlet and air outlet clean, no obstacles.
to avoid noise and vibration.
● Please put the air conditioner at smooth and flat ground for operation
● This air conditioner is equipped with castors. Castors should slide
at smooth and flat ground.
● Prohibit inclining or turning over the air conditioner. If there’s abnor-
mity,please disconnect power immediately and contact dealer.
● Avoid direct sunshine.
30cm 30cm
30cm
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

2
Safety Warning
● Before operation, please confirm whether power specification
● Before cleaning or maintaining the air conditioner, please turn off
air conditioner and pull out the power plug.
in order to avoid a hazard.
manufacturer or professional person.
complies with that on nameplate.
● Please use the grounded power. Make sure the gounding is reliable.
● If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
● Do not insert or pull out the power plug with wet hands.
disconnect power at once and then contact local dealer.
● If abnormal condition occurs (e.g. burned smell), please
● If the power cord is damaged, it must be replaced by
● When nobody is taking care of the unit, please turn it off and
remove the power plug or disconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may
cause short circuit or damage to air conditioner.
unit without supervision.
●
If drainage hose is used, ambient temperature can't be lower than
0℃.Otherwise, it will cause water leakage to air conditioner.
● Prohibit inserting any objects into the air conditioner.
● Do not repair or disassemble the air conditioner by yourself.
● Do not put or hang dripping objects above the air conditioner.
● Keep children from playing or climbing on the air conditioner.
● Children and disabled people are not allowed to use the
● Far away from fire source, inflammable and explosive objects.
● Prohibit operating heating equipment around the air conditioner.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or
move the air conditioner.
● This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
nerdlihc yb edam eb ton llahs ecnanetniam resu dna gninaelC
without supervision.Children shall not play with the appliance.
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

3
1Controller panel
2
Swing louver
3
Guide louver
4Castor
5
Plug of power cord
7Gastor
8Air inlet
9Joint A
10 Heat discharge pipe
11 Joint B+C
6

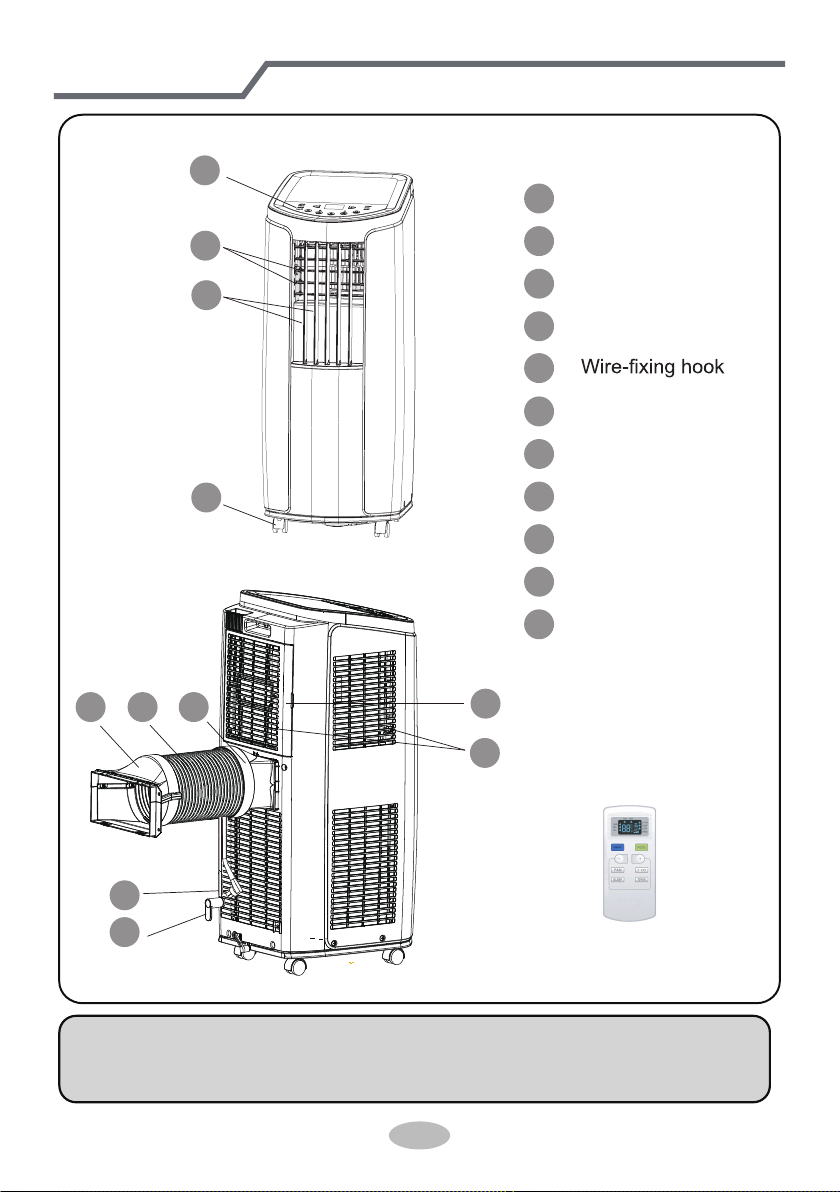

Part's Name
1
1
2
3
4
Remote controller
11 10 9
6
7
8
Heat discharge pipe and other installation accessories can't be discarded.
NOTICE:
5
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

4
Name of control panel
ON/OFF button
Mode button
+ / - button
Fan speed indicator
Dual-8 nixie tube
Fan mode indicator
Cool mode indicator
Dry mode indicator
Sleep button
Fan button
Timer button
Operation of control panel
Note:
● After putting through the power, the air conditioner will give out a sound. After
that, you can operate the air conditioner by the control panel.
● Under ON status, after each pressing of the button on control panel, the air
conditioner will give out a sound. Meanwhile, corresponding indicator on control
panel will be bright.
● Under OFF status, dual-8 nixie tube on control panel won’t display.
Under ON status, dual-8 nixie tube on control panel will display set temperature
under cooling mode, while it won’t display under other modes.
Pressing this button can turn on or turn off the air conditioner.
Under cooling mode, press “+” or “-” button to increase or decrease set temperature by
1°C(°F). Set temperature range is 16°C(61°F)~30°C(86°F). Under auto, drying
or fan mode, this button is invalid.
ON/OFF button
+ / - button
1
2
Operation Introduction for Control Panel
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

5
Press this button and the mode will circulate according to below sequence:
COOL→DRY→FAN
COOL: Under this mode, cooling mode indicator is bright. Dual-8 nix syalpsidebutei
set temperature. Temperature setting range is 16
°C ~30 °C .
DRY: Under this mode, drying mode indicator is bright. Dual-8 nixie tube won’t
display.
FAN: Under this mode, the air conditioner only blow fan. Fan indicator is bright.
Dual-8 nixie tube won’t display.
Mode button
3
Press this button and the fan speed will circulate as “low speed→ medium speed →
high speed→ auto fan→ low speed”.
Fan button
4
Timer
5
Press timer button to enter into timer setting mode. Under this mode, press " "
or " " button to adjust the timer setting. Timer setting will increase or decrease
0.5 hour by pressing " " or " " button within 10 hours, while timer setting will
increase or decrease 1 hour by pressing " " or " " button beyond 10 hours.
After timer setting is finished, the unit will display temperature if there’s no
operation for 5s. If timer function is started up, the upper indicator will keep the
display status. Others, it won’t be displayed. Under timer mode, press timer button
again to cancel timer mode.
++
+
-
-
-
Sleep
6
Press sleep button to enter into sleep mode. If the controller operates at cooling
mode, after sleep mode is started up, preset temperature will increase by 1°C
within 1 hour ;preset temperature will increase by 2°C within 2 hours and then the
unit will operate at this temperature all the time; Sleep function is notavailable for
fan mode, drying mode and auto mode. If sleep function is started up, the upper
indicator will keep the display status. Others, it won’t be displayed.
Operation Introduction for Control Panel
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

6

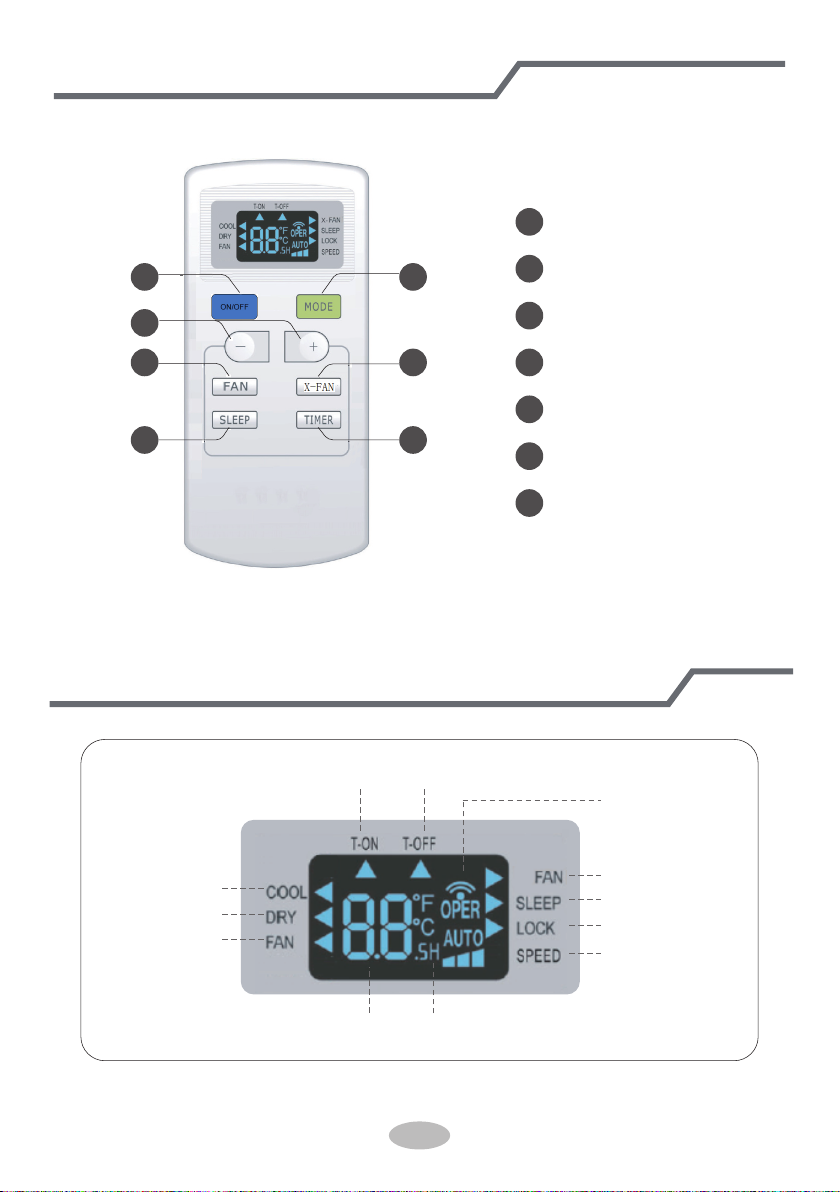

Buttons on Remote Controller
Introduction for Icons on Display Screen
21
3
4 5
6 7
1
3
5
2
4
6
7
ON/OFF button
MODE button
+/- button
FAN button
X-FAN button
SLEEP button
TIMER button
Timer on Timer off Sending signal
X-fan operation
Sleep operation
Lock
Set speed
Set timeSet temperature
Fan operation
Dry operation
Cool operation X-
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.

7
+ / - button
3
Introduction for Buttons on Remote Controller
Note:
●After putting through the power, the air conditioner will give out a sound.
Operation indictor " " is ON (red indicator). After that, you can operate the air
conditioner by using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon " "
on the display of remote controller will blink once and the air conditioner will give
out a “de” sound, which means the signal has been sent to the air conditioner.
● Under off status, set temperature and clock icon will be displayed on the display
of remote controller (If timer on, timer off and light functions are set, the corre-
sponding icons will be displayed on the display of remote controller at the same
time); Under on status, the display will show the corresponding set function icons.
MODE button
2
● Pressing + or - button once will increase or decrease set temperature by 1°C(°F).
Holding
+ or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
● When setting Timer On or Timer Off, press + or - button to adjust the time. (See
TIMER Button for setting details)
Press this button to turn unit on/off.
ON/OFF button
1
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
● When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press FAN button to adjust fan speed.
● When selecting dry mode, air conditioner will operate at low fan speed under dry
mode. In dry mode, fan speed can't be adjusted.
● When selecting fan mode, air conditioner will operate in fan mode only. Then
press FAN button to adjust fan speed.
COOL DRY FAN
This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
●
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.
