Gree FP-51XD/A-K User manual

CASSETTE TYP FAN COIL UNIT

Contens
ⅠPRODUCT................................................................................................. 1
1. MODELS LIST.................................................................................................................2
2. NOMENCLATURE OF THE UNIT...................................................................................3
3. FUNCTION ......................................................................................................................4
4. PRODUCT DATA............................................................................................................4
ⅡCONTROL............................................................................................... 15

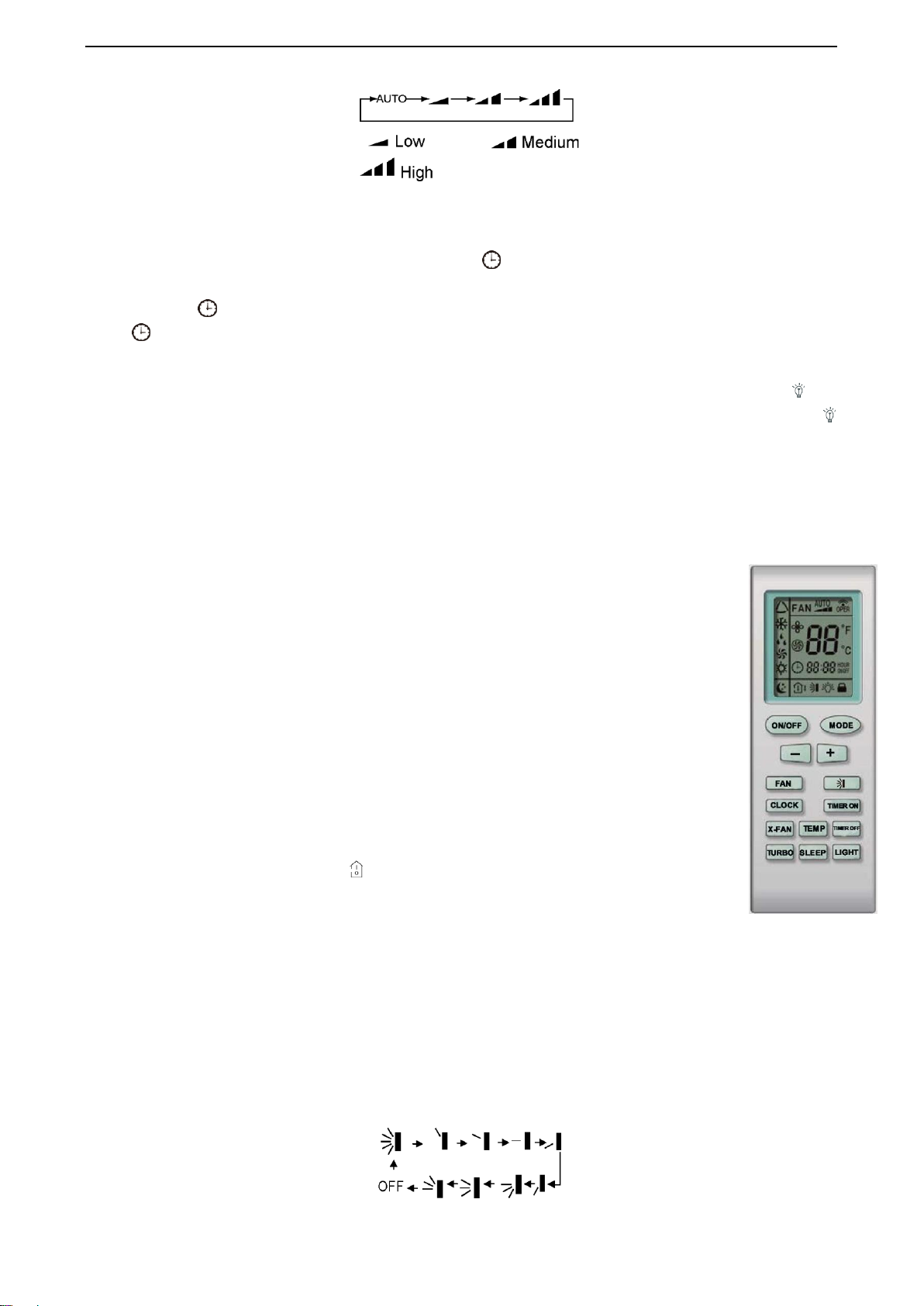

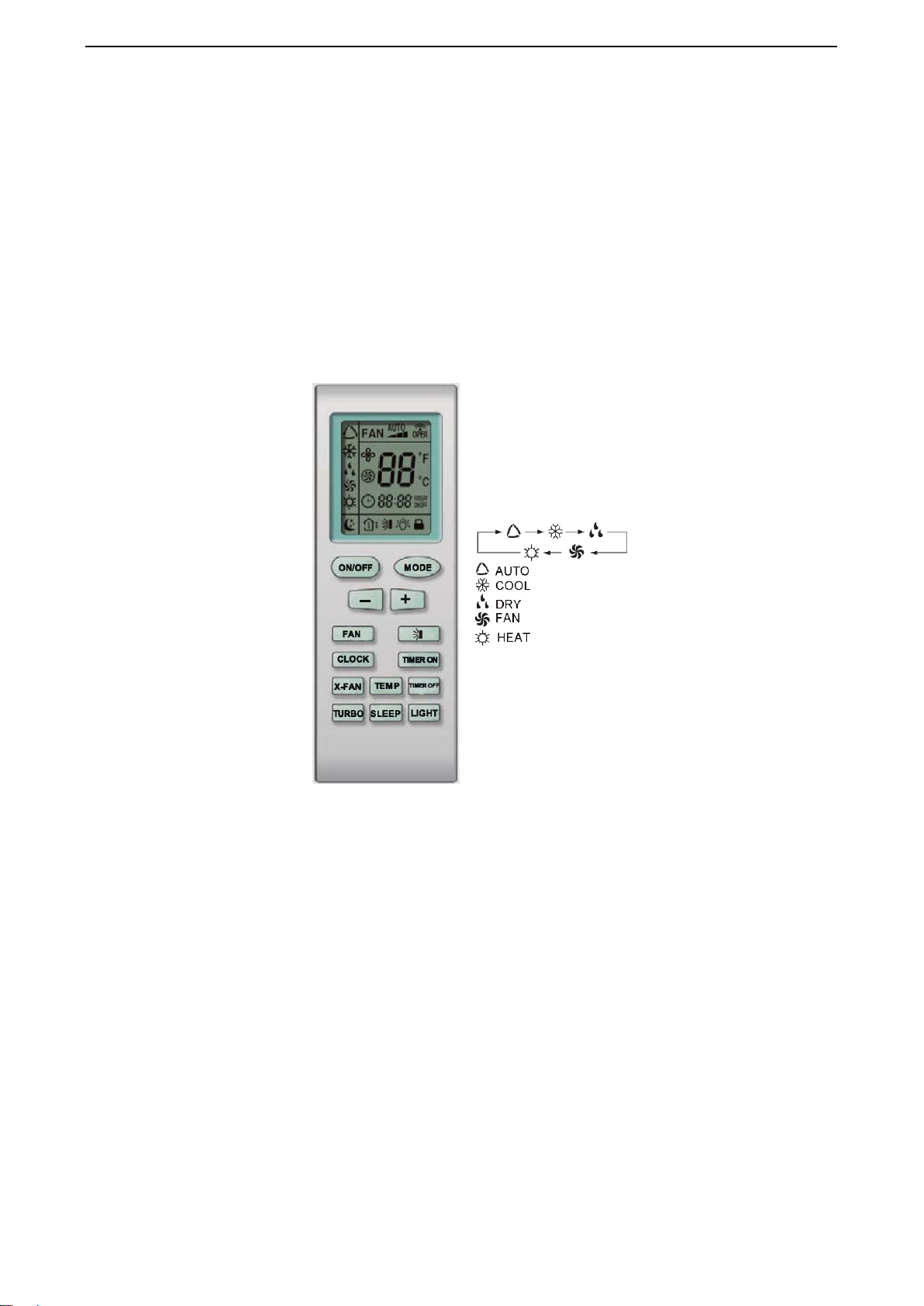

1. WIRELESS REMOTE CONTROLLER..........................................................................16
1.1 YB1FA(X-FAN)........................................................................................................................... 16
1.1.1 Operation of wireless remote control ............................................................................................ 18
1.1.2 Changing batteries and notices. ..................................................................................................... 19
2. WIRED REMOTE CONTROLLER.................................................................................20
2.1 Introduction to Z4E351B (optional)......................................................................................... 20
2.1.1 Symbols on the LCD ........................................................................................................................ 20
2.1.2 Introduction to the Functions of the Press Keys............................................................................. 22
ⅢUNIT INSTALLATION............................................................................ 24
1. SELECTION THE MOUNTING POSITION....................................................................25
2. DRAINAGE PIPE...........................................................................................................26
3. PRECAUTIONS FOR DRAINAGE RAISING PIPE.......................................................27
3.1 Instruction.................................................................................................................................. 27
4. ELECTRIC WIRING.......................................................................................................29
4.1 Wiring of unit and the controller............................................................................................. 29
4.1.1 Wiring of the unit............................................................................................................................ 29
5. INSTALLATION OF PANEL .........................................................................................31
5.1 Precautions................................................................................................................................ 32
5.2 After fixing be sure no gap left between the ceiling and the panel..................................... 32
ⅣUnit MAINTENANCE............................................................................. 33
1.TROUBLESHOOTING ...................................................................................................34
2.CARE AND MAINTENANCE .........................................................................................34
3. WIRING DIAGRAM .......................................................................................................37
4. DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS ..........................39
5. EXPLODED VIEWS AND SPARE PART LISTS...........................................................42

PRODUCT
1
ⅠPRODUCT

PRODUCT
2

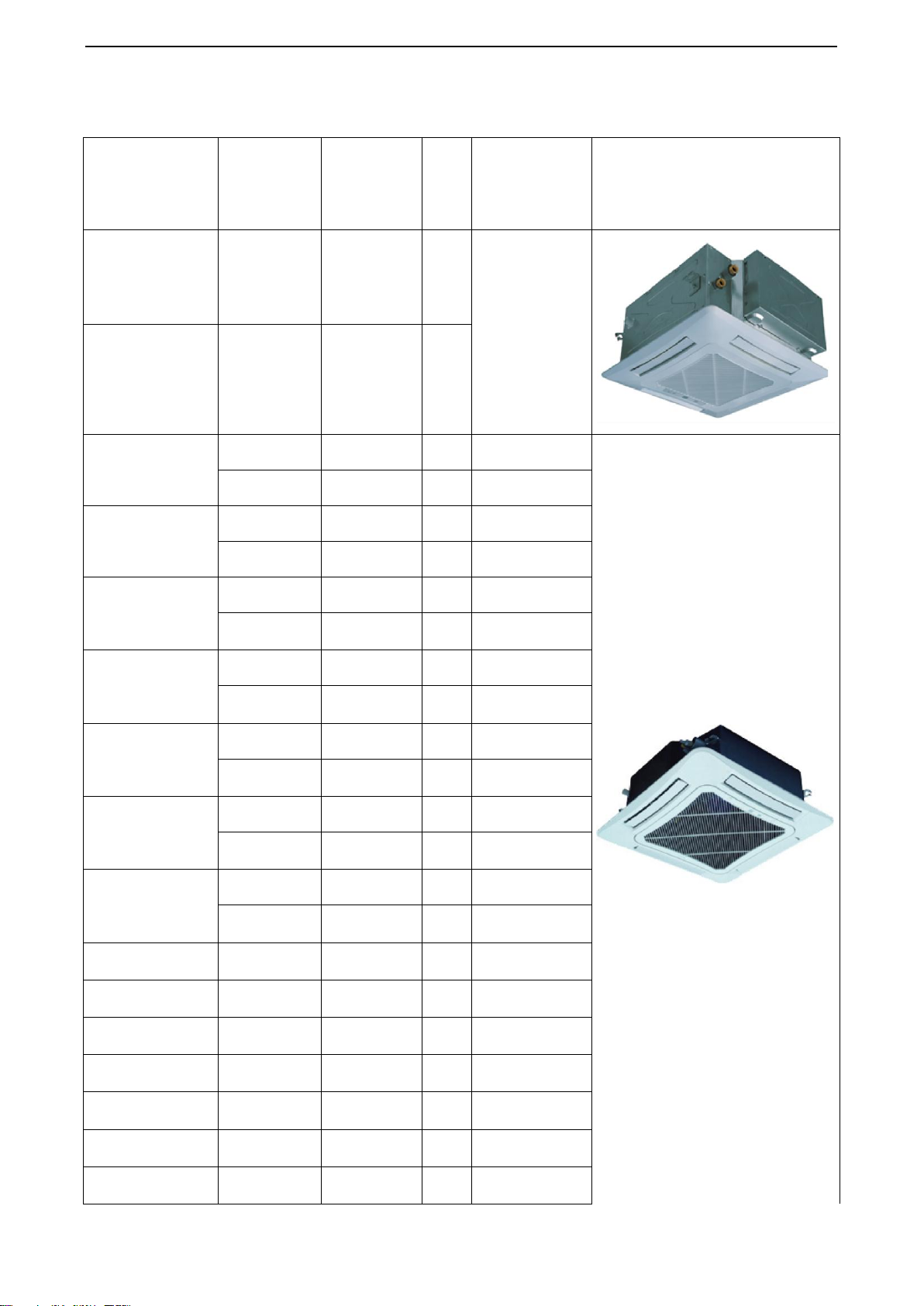

1. MODELS LIST
Model Name
Product Code
Cooling/Heating
Capacity
(W)
Air flow
Volume
(m3/h)
Power Supply
(V, Ph, Hz)
Remarks
FP-51XD/A-K
EM520N1170
2750/3400
510
220-240V~ 50Hz
FP-68XD/A-K
EM520N1160
3300/3800
660
FP-85XD/B-T
EM520N0930
4150/5600
800
220-240V~ 50Hz
EM520N0940
4160/7800
780
208-230V~ 60Hz
FP-102XD/B-T
EM520N0910
500/6500
1020
220-240V~ 50Hz
EM520N0920
540/9000
1020
208-230V~ 60Hz
FP-125XD/B-T
EM520N0890
6000/7800
1180
220-240V~ 50Hz
EM520N0900
6300/10000
1130
208-230V~ 60Hz
FP-140XD/B-T
EM520N0870
8000/9000
1400
220-240V~ 50Hz
EM520N0880
8000/12000
1350
208-230V~ 60Hz
FP-160XD/B-T
EM520N0850
8700/10000
1550
220-240V~ 50Hz
EM520N0860
9000/14000
1550
208-230V~ 60Hz
FP-180XD/B-T
EM520N0830
9500/11000
1800
220-240V~ 50Hz
EM520N0840
10000/16000
1800
208-230V~ 60Hz
FP-200XD/B-T
EM520N0810
13000/14600
2000
220-240V~ 50Hz
EM520N0820
13000/19000
2000
208-230V~ 60Hz
FP-200XD/D-K
EM520N1210
12000/14200
2000
220-240V~ 50Hz
FP-68XDT/B-K
EM520N0990
3500/6000
680
220-240V~ 50Hz
FP-85XDT/B-K
EM520N0960
4100/6800
850
220-240V~ 50Hz
FP-125XDT/B-K
EM520N0970
6000/9500
1250
220-240V~ 50Hz
FP-180XDT/B-K
EM520N0980
8000/13000
1800
220-240V~ 50Hz
FP-85XD/B-T(E)
EM520N1300
4500/5400
800
220-240V~ 50Hz
FP-102XD/B-T(E)
EM520N1310
5000/6100
940
220-240V~ 50Hz

PRODUCT
3
Model Name
Product Code
Cooling/Heating
Capacity
(W)
Air flow
Volume
(m3/h)
Power Supply
(V, Ph, Hz)
Remarks
FP-125XD/B-T(E)
EM520N1320
6000/6900
1090
220-240V~ 50Hz
FP-140XD/B-T(E)
EM520N1330
7400/8400
1400
220-240V~ 50Hz
FP-160XD/B-T(E)
EM520N1340
8400/9000
1500
220-240V~ 50Hz
FP-180XD/B-T(E)
EM520N1350
9500/10500
1640
220-240V~ 50Hz
FP-200XD/D-K(E)
EM520N1360
11100/11700
1700
220-240V~ 50Hz
FP-68XDT/B-K(E)
EM520N1260
3500/5800
680
220-240V~ 50Hz
FP-85XDT/B-K(E)
EM520N1270
4500/6800
850
220-240V~ 50Hz
FP-125XDT/B-K(E)
EM520N1280
6000/9200
1250
220-240V~ 50Hz
FP-180XDT/B-K(E)
EM520N1290
8000/12000
1700
220-240V~ 50Hz
2. NOMENCLATURE OF THE UNIT
FP
-
□
□
□
/
□
-
□
（E）
1
2
3
4
5
6
7
NO.
Description
Options
1
Fan coil
Fan coil unit
2
Air flow volume
Number×10m3/h(FP-51XD-E;FP-68XD-E)
3
Structure type
XD-Cassette Type
4
Pipes type
Default- 2 pipes; T-4 pipes
5
Design Sequence
Arranged by A, B,C…
6
Power code
E-220-240V~ 50Hz;T-220-240V~ 50Hz, 208-230V~ 60Hz; K-220-240V~ 50Hz
7
Sales territory
（E）Models applicable to EU

PRODUCT
4
3. FUNCTION
(1) Novel pattern: the exposed skin plates of unit looks so elegant and luxurious that they can be
taken as the indoor decorations.
(2) Compact design: A large number of non-metallic materials have been used, so that the body of
the unit is quite light-weight and thin, which makes the unit looks sensuous.
(3) Low noise: Dynamic principles have been adopted for the design of the fan blades so as to make
sure the air volume is enough and running noise is considerably low.
(4) Durable filter screen: The durable filter screen shares a cleaning cycle 20 times longer than that
of the conventional filter screen, needless to clean it frequently.
(5) Microcomputer control: The unit is able to automatically adjust the fan speed in accordance with
the indoor ambient temperature to meet a wide range of users’ requirements.
(6) Small height of the unit, saving much installation space
(7) Large cooling (heating) capacity, low noise, three-speed motor which can adjust the air volume
and meet a wide range of users’ requirements.
(8) Excellent material, stringent process control, which guarantee the hi-quality and long life of the
unit.
(9) Die-formed drain pan, entirely bonded insulating material, carefree about the condensate water.
4. PRODUCT DATA
Model
FP-85XD/B-T
FP-85XD/B-T
FP-102XD/B-T
FP-102XD/B-T
Code
EM520N0940
EM520N0930
EM520N0920
EM520N0910
Power
system
Type
V-Ph-Hz
208-230V~ 60Hz
220-240V~ 50Hz
208-230V~ 60Hz
220-240V~ 50Hz
Input
W
70
75
130
110
Air flow
volume
High
CFM
459
471
600
600
m3/h
780
800
1020
1020
Medium
CFM
371
382
599
599
m3/h
630
650
950
950
Low
CFM
324
324
529
529
m3/h
550
550
900
900
Capacity
Cooling
W
4600
4500
5400
5000
Heating
W
7800
5600
9000
6500
Electric heater rated power
W
-
-
-
-
Water
system
Cooling water flow
volume
l/s
0.22
0.21
0.26
0.24
Heating water flow
volume
l/s
0.22
0.13
0.26
0.17
Cooling pressure
drop
kPa
27
24
48
36
Heating pressure
drop
kPa
24
8
47
13
Sound pressure level
dB(A)
39
39
49
49

PRODUCT
5
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35D-2
FN35D-2
FN35D-2
FN35D-2
Capacitor
µF
2
2
3.5
3.5
Connectio
n pipe size
Water inlet &outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing water
drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×190
840×840×190
840×840×190
840×840×190
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
963×963×272
963×963×272
963×963×272
963×963×272
Panel TB03
mm
1033×1038×133
1033×1038×133
1033×1038×133
1033×1038×133
Net weight
Body
kg
25.0
25.0
25.0
25.0
Panel TB03
kg
7
7
7
7
Gross
weight
Body
kg
33.0
33.0
33.0
33.0
Panel TB03
kg
11
11
11
11
20'GP (with panel TB03)
56
56
56
56
40'GP (with panel TB03)
131
131
131
131
40'HQ (with panel TB03)
147
147
147
147
Wired remote controller
Z4E351B
Z4E351B
Z4E351B
Z4E351B
Wireless remote controller
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)
Model
FP-125XD/B-T
FP-125XD/B-T
FP-140XD/B-T
FP-140XD/B-T
Code
EM520N0900
EM520N0890
EM520N0880
EM520N0870
Power
system
Type
V-Ph-Hz
208-230V~ 60Hz
220-240V~ 50Hz
208-230V~ 60Hz
220-240V~ 50Hz
Input
W
130
82
140
143
Air flow
volume
High
CFM
665
694
794
824
m3/h
1130
1180
1350
1400
Medium
CFM
529
588
647
735
m3/h
900
1000
1100
1250
Low
CFM
441
529
588
676
m3/h
750
900
1000
1150
Capacity
Cooling
W
6300
6000
8000
8000
Heating
W
10000
7800
12000
9000
Electric heater rated power
W
-
-
-
-
Water
system
Cooling water flow
volume
l/s
0.3
0.29
0.38
0.38
Heating water flow
volume
l/s
0.3
0.18
0.38
0.21
Cooling pressure
drop
kPa
27
24
33
30

PRODUCT
6
Heating pressure
drop
kPa
28
9
29
10
Sound pressure level
dB(A)
43
43
48
50
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35B-1
FN35B-1
FN35C
FN35C
Capacitor
µF
2.00
2.00
4.00
4.00
Connection
pipe size
Water inlet &outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing water
drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×240
840×840×240
840×840×240
840×840×240
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
963×963×325
963×963×325
963×963×325
963×963×325
Panel TB03
mm
1033×1038×133
1033×1038×133
1033×1038×133
1033×1038×133
Net weight
Body
kg
27.0
27.0
27.0
27.0
Panel TB03
kg
7
7
7
7
Gross
weight
Body
kg
34.0
34.0
35.0
35.0
Panel TB03
kg
11
11
11
11
20'GP (with panel TB03)
50
50
50
50
40'GP (with panel TB03)
117
117
117
117
40'HQ (with panel TB03)
133
133
133
133
Wired remote controller
Z4E351B
Z4E351B
Z4E351B
Z4E351B
Wireless remote controller
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)
Model
FP-160XD/B-T
FP-160XD/B-T
FP-180XD/B-T
FP-180XD/B-T
Code
EM520N0860
EM520N0850
EM520N0840
EM520N0830
Power
system
Type
V-Ph-Hz
208-230V~ 60Hz
220-240V~ 50Hz
208-230V~ 60Hz
220-240V~ 50Hz
Input
W
140
152
160
160
Air flow
volume
High
CFM
912
912
1059
1059
m3/h
1550
1550
1800
1800
Medium
CFM
765
824
824
853
m3/h
1300
1400
1400
1450
Low
CFM
676
765
765
794
m3/h
1150
1300
1300
1350
Capacity
Cooling
W
9000
8700
10000
9500
Heating
W
14000
10000
16000
11000
Electric heater rated power
W
-
-
-
-
Water
Cooling water flow
volume
l/s
0.43
0.42
0.48
0.45

PRODUCT
7
system
Heating water flow
volume
l/s
0.43
0.23
0.48
0.27
Cooling pressure
drop
kPa
34
30
42
34
Heating pressure
drop
kPa
34
11
43
12
Sound pressure level
dB(A)
51
51
50
50
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35C
FN35C
FN50K-2
FN50K-2
Capacitor
µF
6.00
4.50
3.50
3.50
Connection
pipe size
Water inlet &outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing water
drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×240
840×840×240
840×840×320
840×840×320
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
963×963×325
963×963×325
963×963×409
963×963×409
Panel TB03
mm
1033×1038×133
1033×1038×133
1033×1038×133
1033×1038×133
Net weight
Body
kg
27.0
27.0
32.0
32.0
Panel TB03
kg
7
7
7
7
Gross
weight
Body
kg
35.0
35.0
41.0
41.0
Panel TB03
kg
11
11
11
11
20'GP (with panel TB03)
50
50
42
42
40'GP (with panel TB03)
117
117
98
98
40'HQ (with panel TB03)
133
133
112
112
Wired remote controller
Z4E351B
Z4E351B
Z4E351B
Z4E351B
Wireless remote controller
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)
YB1FA(X-FAN)

PRODUCT
8
Model
FP-200XD/B-T
FP-200XD/B-T
Code
EM520N0820
EM520N0810
Power
system
Type
V-Ph-Hz
208-230V~ 60Hz
220-240V~ 50Hz
Input
W
230
210
Air flow
volume
High
CFM
1176
1176
m3/h
2000
2000
Medium
CFM
912
1000
m3/h
1550
1700
Low
CFM
735
853
m3/h
1250
1450
Capacity
Cooling
W
13000
13000
Heating
W
19000
14600
Electric heater rated power
W
-
-
Water
system
Cooling water flow volume
l/s
0.62
0.62
Heating water flow volume
l/s
0.62
0.25
Cooling pressure drop
kPa
35
34
Heating pressure drop
kPa
35
30
Sound pressure level
dB(A)
55
55
Coil
Type
-
Aluminum fin-copper tube
Aluminum fin-copper tube
Operating pressure
MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN50K-2
FN50K-2
Capacitor
µF
5.00
5.00
Connection
pipe size
Water inlet &outlet
inch
G3/4
G3/4
Condensing water drain
mm
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×320
840×840×320
Panel TB03
mm
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
963×963×409
963×963×409
Panel TB03
mm
1033×1038×133
1033×1038×133
Net weight
Body
kg
33.0
33.0
Panel TB03
kg
7
7
Gross
weight
Body
kg
42.0
42.0
Panel TB03
kg
11
11
20'GP (with panel TB03)
42
42
40'GP (with panel TB03)
98
98
40'HQ (with panel TB03)
112
112
Wired remote controller
Z4E351B
Z4E351B
Wireless remote controller
YB1FA(X-FAN)
YB1FA(X-FAN)

PRODUCT
9
Model
FP-200XD/D-K
Code
EM520N1210
Power system
Type
V-Ph-Hz
220-240V~ 50Hz
Input
W
140
Air flow volume
High
CFM
1177
m3/h
2000
Medium
CFM
1000
m3/h
1700
Low
CFM
853
m3/h
1450
Capacity
Cooling
W
12000
Heating
W
14200
Electric heater rated power
W
-
Water system
Cooling water flow volume
l/s
0.62
Heating water flow volume
l/s
0.4
Cooling pressure drop
kPa
34
Heating pressure drop
kPa
30
Sound pressure level
dB(A)
55
Coil
Type
-
Aluminum fin-copper tube
Operating pressure
MPa
≤1.6MPa
Motor
Type
-
FN60C-ZL
Capacitor
µF
/
Connection pipe size
Water inlet &outlet
inch
G3/4
Condensing water drain
mm
25
Outline dimension (W×D×H)
Body
mm
840×840×320
Panel TB03
mm
950×950×85
Package dimension
(W×D×H)
Body
mm
963×963×409
Panel TB03
mm
1033×1038×133
Net weight
Body
kg
32.0
Panel TB03
kg
7
Gross weight
Body
kg
41.0
Panel TB03
kg
11
20'GP (with panel TB03)
42
40'GP (with panel TB03)
98
40'HQ (with panel TB03)
112
Wired remote controller
Z4E351B
Wireless remote controller
YB1FA(MOTO)

PRODUCT
10
Model
FP-68XDT/B-K
FP-85XDT/B-K
FP-125XDT/B-K
FP-180XDT/B-K
Code
EM520N0990
EM520N0960
EM520N0970
EM520N0980
Power
system
Type
V-Ph-Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
Input
W
82
82
135
191
Air flow
volume
High
CFM
400
500
736
1059
m3/h
680
850
1250
1800
Medium
CFM
364
450
652
897
m3/h
618
764
1108
1525
Low
CFM
336
410
597
836
m3/h
571
697
1014
1421
Capacity
Cooling
W
3500
4100
6000
8000
Heating
W
6000
6800
9500
13000
Electric heater rated power
W
-
-
-
-
Water
system
Cooling water
flow volume
l/s
0.21
0.24
0.29
0.44
Heating water
flow volume
l/s
0.17
0.19
0.27
0.36
Cooling
pressure drop
kPa
34.14
56.71
43.07
39.65
Heating
pressure drop
kPa
76.44
86.08
91.94
102.21
Sound pressure level
dB(A)
39
40
43
50
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating
pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35D-2
FN35D-2
FN35B-1
FN50K-1
Capacitor
µF
2.0
3.0
4.0
4.5
Connection
pipe size
Water inlet
&outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing
water drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×190
840×840×190
840×840×240
840×840×320
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
960×960×257
960×960×257
960×960×310
960×960×394
Panel TB03
mm
1033×1038×133
1033×1038×133
1033×1038×133
1033×1038×133
Net weight
Body
kg
25.0
25.0
27.0
32.0
Panel TB03
kg
7
7
7
7
Gross
weight
Body
kg
33.0
33.0
34.0
41.0
Panel TB03
kg
11
11
11
11
Loading
quantity
20'GP (with panel TB03)
56
56
50
42
40'GP (with panel TB03)
131
131
121
98
40'HQ (with panel TB03)
147
147
134
112

PRODUCT
11
2 pipes
Model
FP-51XD/A-K
FP-68XD/A-K
FP-85XD/B-T（E）
FP-102XD/B-T（E）
Power
system
Type
V-Ph-Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
Input
W
73
78
81
110
Air flow
volume
High
CFM
300
388
471
470
m3/h
510
660
800
940
Medium
CFM
235
330
385
453
m3/h
400
560
665
770
Low
CFM
176
270
347
394
m3/h
300
460
590
670
Capacity
Cooling
W
2750
3400
4500
5000
Heating
W
3400
3800
5400
6100
Electric heater rated power
W
-
-
-
-
Water
system
Cooling water
flow volume
l/s
0.13
0.18
0.22
0.24
Heating water
flow volume
l/s
0.16
0.20
0.27
0.29
Cooling
pressure drop
kPa
30
38
27
34
Heating
pressure drop
kPa
30
38
37
46
Sound pressure level
dB(A)
46
46
39
49
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating
pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN30L
FN30L
FN35D-2
FN35D-2
Capacitor
µF
2.0
2.0
2.0
3.5
Connection
pipe size
Water inlet
&outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing
water drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
664x594x292
670x670x60
670x670x60
840×840×190
Panel
mm
670x670x60
670x670x60
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
778x733x300
775x730x285
963×963×272
963×963×272
Panel
mm
673x673x85
778x733x300
1033×1038×133
1033×1038×133
Net weight
Body
kg
20
20
25.0
25.0
Panel
kg
3.5
3.5
7
7
Gross
weight
Body
kg
24
24
33.0
33.0
Panel
kg
5
5
11
11
Loading
quantity
20'GP (with panel )
147
147
56
56
40'GP (with panel )
315
315
131
131
40'HQ (with panel)
360
360
147
147

PRODUCT
12
Model
FP-125XD/B
-T（E）
FP-140XD/B
-T（E）
FP-160XD/B
-T（E）
FP-180XD/B
-T（E）
FP-200XD/
D-K（E）
Power
system
Type
V-Ph-Hz
220-240V~
50Hz
220-240V~
50Hz
220-240V~
50Hz
220-240V~
50Hz
208-230V~
60Hz
Input
W
100
143
152
160
140
Air flow
volume
High
CFM
641
823
882
964
1000
m3/h
1090
1400
1500
1640
1700
Medium
CFM
506
682
706
800
841
m3/h
860
1160
1200
1360
1430
Low
CFM
447
588
588
706
676
m3/h
760
1000
1000
1200
1150
Capacity
Cooling
W
6000
7400
8400
9500
11100
Heating
W
6900
8400
9000
10500
11700
Electric heater rated power
W
-
-
-
-
-
Water
system
Cooling water
flow volume
l/s
0.29
0.35
0.4
0.45
0.53
Heating water
flow volume
l/s
0.33
0.4
0.43
0.49
0.56
Cooling
pressure drop
kPa
21
30
30
33
21
Heating
pressure drop
kPa
32
38
36
41
25
Sound pressure level
dB(A)
43
50
51
50
55
Coil
Type
-
Aluminum
fin-copper
tube
Aluminum
fin-copper
tube
Aluminum
fin-copper
tube
Aluminum
fin-copper
tube
Aluminum
fin-copper
tube
Operating
pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35B-1
FN35C
FN35C
FN50K-2
FN60C-ZL
Capacitor
µF
2
4
4.5
3.5
-
Connectio
n pipe
size
Water inlet
&outlet
inch
G3/4
G3/4
G3/4
G3/4
G3/4
Condensing
water drain
mm
25
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×
240
840×840×
240
840×840×
240
840×840×
320
840×840×
320
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
963×963×
325
963×963×
325
963×963×
325
963×963×
409
963×963×
409
Panel TB03
mm
1033×1038×
133
1033×1038×
133
1033×1038×
133
1033×1038×
133
1033×1038×
133
Net
weight
Body
kg
27
27
27
32
33
Panel TB03
kg
7
7
7
7
7

PRODUCT
13
Gross
weight
Body
kg
34
35
35
41
42
Panel TB03
kg
11
11
11
11
11
20'GP (with panel TB03)
50
50
50
42
42
40'GP (with panel TB03)
117
117
117
98
98
40'HQ (with panel TB03)
133
133
133
112
112
4 pipes
Model
FP-68XDT/B-K
（E）
FP-85XDT/B-K
（E）
FP-125XDT/B-K
（E）
FP-180XDT/B-K
（E）
Power system
Type
V-Ph-Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
220-240V~ 50Hz
Input
W
82
90
135
191
Air flow volume
High
CFM
400
500
736
1000
m3/h
680
850
1250
1700
Medium
CFM
364
450
652
897
m3/h
618
764
1108
1525
Low
CFM
336
410
597
836
m3/h
571
697
1014
1421
Capacity
Cooling
W
3500
4500
6000
8000
Heating
W
5800
6800
9200
12000
Electric heater rated power
W
-
-
-
-
Water system
Cooling water
flow volume
l/s
0.21
0.24
0.29
0.44
Heating water
flow volume
l/s
0.17
0.19
0.27
0.36
Cooling
pressure drop
kPa
44
53
41
48
Heating
pressure drop
kPa
76
83
84
97
Sound pressure level
dB(A)
39
40
43
50
Coil
Type
-
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Aluminum
fin-copper tube
Operating
pressure
MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
≤1.6MPa
Motor
Type
-
FN35D-2
FN35D-2
FN35B-1
FN50K-2
Capacitor
µF
2.0
3.0
4.0
4.5
Connection
pipe size
Water inlet
&outlet
inch
G3/4
G3/4
G3/4
G3/4
Condensing
water drain
mm
25
25
25
25
Outline
dimension
(W×D×H)
Body
mm
840×840×190
840×840×190
840×840×240
840×840×320
Panel TB03
mm
950×950×85
950×950×85
950×950×85
950×950×85
Package
dimension
(W×D×H)
Body
mm
960×960×257
960×960×257
960×960×310
960×960×394
Panel TB03
mm
1033×1038×133
1033×1038×133
1033×1038×133
1033×1038×133

PRODUCT
14
Net weight
Body
kg
25.0
25.0
27.0
32.0
Panel TB03
kg
7
7
7
7
Gross weight
Body
kg
33.0
33.0
34.0
41.0
Panel TB03
kg
11
11
11
11
Loading quantity
20'GP (with panel TB03)
56
56
50
42
40'GP (with panel TB03)
131
131
121
98
40'HQ (with panel TB03)
147
147
134
112
Testing condition:
For 60Hz :
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 60°C.
The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing
conditions as below:
(a) Cooling capacity: air 27°C DB, 19.5°C WB, water temperature: intake 7°C, outlet12°C.
(b) Heating capacity: air 21°C DB, Water temperature intake 60°C, the water-flow volume is same as
Cooling capacity .
(c) Freeze-up : air 27°C DB,24°C WB, water temperature intake 6°C, outlet 9°C.
(d) Sound power level according to ISO 5151. Sound pressure level are calculated at the below of
air-outlet 1m and 1m distance. The noise are tested before leaving factory.
For 50 Hz :
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 60°C.
The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing
conditions as below:
(a) Cooling capacity: air 27°C DB , 19°C WB, water temperature intake 7°C, outlet 12°C.
(b) Heating capacity: air 20°C DB , Water temperature intake 50°C, outlet 40°C.
For the tow-row coils applicable to EU, the entering/leaving water temperature is 45°C and 40°C .
(c) Freeze-up : air 27°C DB, 24°C WB , water temperature 6°C intake , 10°C outlet .
(d) Sound power level according to ISO 5151. Sound pressure level are calculated at the below of
air-outlet 1m and 1m distance. The noise are tested before leaving factory.
For 4 pipes:
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 70°C.
The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing
conditions as below:
(a) Cooling capacity: air 27°C DB , 19°C WB, water temperature intake 7°C, outlet 12°C.
(b) Heating capacity: air 20°C DB , Water temperature intake 70°C, outlet 60°C.
and for the four-row coils, the entering/leaving water temperature is 65°C /55°C .
(c) Freeze-up : air 27°C DB, 24°C WB , water temperature 6°C intake , 10°C outlet .
(d) Sound power level according to ISO 5151. Sound pressure level are calculated at the below of
air-outlet 1m and 1m distance. The noise are tested before leaving factory.

CONTROL
15
ⅡCONTROL

CONTROL
16
1. WIRELESS REMOTE CONTROLLER
1.1 YB1FA(X-FAN)
Note:
(a) Be sure that there are no obstructions between receiver and remote control; Donot drop or throw
the remote control; Don't let any liquid drop into the remote control or leave the remote control
under the sunlight or place where is very hot.
(b) This is a general remote control, it could be used for multiple types (functions) of air conditioners.
For some models without the functions specified here, we preserve the right to not to inform
exclusively.
(1) ON/OFF button
Press ON/OFF button to turn on/off the unit. When the unit is turned off, the Timer, Sleep function will
not be retained in memory, but the time will be retained and is still displaying.
(2) MODE button
Press this button, Auto, Cool, Dry, Fan Heat mode can be selected circularly.
Auto mode is not available in this mode.
(3) SLEEP button
Press this button to select Sleep On/Sleep Off. If power is on, Sleep Off is default. If the unit is turned
off, the Sleep function setting will be not retained in memory. If Sleep function is on, the mark of Sleep
will display. In this mode, the time of timer can be adjusted. Under Fan and Auto modes, this function is
not available.
(4) FAN button
Press this button, Auto, Low, Medium, High-speed can be circularly selected. After powered on, Auto
fan speed is default. Under Dehumidify mode, Low fan speed is default.

CONTROL
17
Note: Under the Dry mode, the fan speed isn't adjustable, low fan speed is default.
(5) CLOCK button
Press Clock button to set the time of clock. When blinks and displays, you can set the time by
pressing + or - button. If no button is pressed within 10 seconds the remote will revert back to the normal
display. Press again to accept the setting. If it is set the first time, 12:00 is the initial value. Note: If
mark displays on the LCD, it means it is the time of clock, if not, it is the time of timer.
(6) LIGHT button
Press this button to select LIGHT On/Off in the displayer. When the LIGHT On is set,the mark will
be displayed and the indicator light in the displayer will be on. When the LIGHT Off is set, the mark
will disappear and the indicator light will be off.The function is not available for this mode.
(7) X-FAN button
Press this button to turn on/off the X-FAN function.
The function is not available for this mode.
(8) - button
Presetting temperature can be decrease the temperature by 1 degree Celsius once.
press and hold for more than two seconds so that we can change the temperature
continuously. The minimum and maximum setting range of the temperature is 16 to 30
degree Celsius.
(9) + button
Press this button increase the temperature by 1 degree Celsius once. Press and hold for
more than two seconds so that we can change the temperature continuously. The
minimum and maximum setting range of the temperature is 16 to 30 degree.
(10) TEMP button
Press this button to select the display of either indoor setting temperature or indoor
ambient temperature. When the indoor unit powered on firstly, setting temperature
display is default. Change status to to display the ambient temperature. If not received
control signal in 5 seconds, the display temp.will revert back to setting temperature. When
unit is off, indoor setting temperature display is default. Note: This function is only
available for certain models.
(11) TURBO button
In Cool or Heat mode, press this button to turn on/off the Turbo function.
Note: This is a general remote control, it could be used for multiple types (functions) of air conditioners.
For some models without the functions specified here, we preserve the right to not to inform exclusively.
(12) SWING UP AND DOWN button
Press this button to adjust swing angle, which circularly changes as below:

CONTROL
18
This is a universal wireless remote controller; however, the unit covered in this manual is
only of the simplified SWING function. As a result, when the wireless remote controller is
energized initially with the unit under the OFF status, this simplified function should be set
by pressing the + button and the SWING button simultaneously, with the symbol
blinking twice. Then, after the unit is turned on, this function can be activated or deactivated
simply by pressing the SWING button, with the displayed symbol indicating this function
is on and without this displayed symbol indicating this function is off.
(13) TIMER ON button
Press the TIMER ON button to set the timed On. Press +/- once to increase or decrease
the minute by 1 minute. If pressed and held for 2 seconds, the minute will increase or
decrease constantly by 1 minute. If held constantly for more than 5 seconds, the minute will
begin to change in every 10 minutes. Press TIMER ON again to accept the setting and ON
will show besides the time of clock meaning the setting succeeds. Press the TIMER ON
again to cancel the setting.
(14) TIMER OFF button
Press the TIMER OFF button to set the timed off. The procedures are similar as above.
1.1.1 Operation of wireless remote control
(1) Guide for operation –General operation
Press SLEEP button to set the sleep state.
Press TIME ON and TIME OFF button to scheduled the unit ON/OFF.
Press LIGHT button to control on and off the indicator board.(This function
maybe not available for some units.)
(2) Guide for operation-Optional operation
After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered off ,
the guide louver of main unit will close automatically.)
Press MODE button, select desired running mode ,or press COOL or HEAT mode to enter the
corresponding operation directly.
Press + or-button to set the desired temperature.
Press FAN button to set fan speed from AUTOFAN , LOW , MID and HIGH.
Press button to select SWING mode.
Press +and - buttons simultaneously to lock or unlock the wireless remote control. If it is locked, the
mark will display; when pressing any button, the mark will blink for three times but the air
conditioner has no respondence. If unlocked, the mark will disappear.
Switch between Fahrenheit and Centigrade.
When unit is under Off state, press MODE and –button simultaneously to switch between ºC and ºF.
