Owner's Manual
Original Instructions
Local air conditioner
Model: GPC07AM-K5NNA2B
GPC07AM-K5NNA2C
GPC09AM-K5NNA2B
Thank you for choosing our product.
Please read this Owner’s Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to [e-mail] for
the electronic version.

Specialist’s Manual .................................................................................................32
Content
Operation Notices
The Refrigerant .........................................................................................................1
Operation Environment ............................................................................................3
Safety Warning.........................................................................................................2
Part's Name..............................................................................................................4
Operation Guide
Operation Introduction for Control Panel .................................................................5
Buttons on Remote Controller .................................................................................7
Introduction for Buttons on Remote Controller....................................................... ..8
Function Introduction for Combination Buttons......................................................10
Replacement of Batteries in Remote Controller.....................................................10
Maintenance
Clean and Maintenance..........................................................................................11
Malfunction
Malfunction Analysis ..............................................................................................13
Installation Notice
Installation Precaution ...........................................................................................16
Preparation before Installation...............................................................................18
Installation
Removing Collected Water ....................................................................................20
Install Wire Hook ...................................................................................................19
Operation Test .......................................................................................................31
Installation in a double-hung sash window(Optional) ............................................22
Installation in a sliding sash window(Optional) ......................................................25
Installation and Disassembly of Heat Discharge Pipe ...........................................28
Attached Sheet
Electric Schematic Diagram...................................................................................31
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R290: 3
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Introduction for icons on display screen ..................................................................7

Explanation of Symbols
Exception Clauses
Indicates a hazardous situation that, if not avoided, will
Manufacturer will bear no responsibilities when personal injury or
1.Damage the product due to improper use or misuse of the product;
2.Alter, change, maintain or use the product with other equipment without abiding
by the instruction manual of manufacturer;
product;
4.After verification, defects are due to improper operation during transportation of
regulations;
5.Operate, repair, maintain the unit without abiding by instruction manual or related
performance of parts and components that produced by other manufacturers;
6.After verification, the problem or dispute is caused by the quality specification or
majeure.
7.The damage is caused by natural calamities, bad using environment or force
3.After verification, the defect of product is directly caused by corrosive gas;
property loss is caused by the following reasons.
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
DANGER
WARNING
CAUTION
N OT IC E

GPC07AM-K5NNA2B
11
1
Appliance filled with flammable gas R290.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
The Refrigerant
Before install and use the appliance, read the owner’s manual first.
GPC07AM-K5NNA2C
11GPC09AM-K5NNA2B
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R290, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions.
Compared to common refrigerants, R290 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R290
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Please refer to the nameplate for the charging quantity of R290.
Model Min. floor area (m )
4
WARNING
Appliance filled with flammable gas R290.
Applia
nce shall be installed, operated and stored in a room with a floor area:
The appliance shall be stored in a room without continuously operating ignition sources .
(for example: open flames, an operating gas appliance or an operating electric heater.)
The appliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specified for operation.
The appliance shall be stored so as to prevent mechanical damage from occurring.
Ducts connected to an appliance shall not contain an ignition source.
Keep any required ventilation openings clear of obstruction.
Do not pierce or burn.
Be aware that refrigerants may not containan odour.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
Servicing shall be performed only as recommended by the manufacturer.
Should repair be necessary, contact your nearest authorized Service
Centre. Any repairs carried out by unqualified personnel may be
dangerous.
Compliance with national gas regulations shall be observed.
Read specialist’s manual.

2
Safety Warning
● Before operation, please confirm whether power specification
● Before cleaning or maintaining the air conditioner, please turn off
air conditioner and pull out the power plug.
complies with that on nameplate.
● Please use the grounded power. Make sure the grounding is reliable.
● Do not insert or pull out the power plug with wet hands.
disconnect power at once and then contact local dealer.
● If abnormal condition occurs (e.g. burned smell), please
● When nobody is taking care of the unit, please turn it off and
remove the power plug or disconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may
cause short circuit or damage to air conditioner.
portable room air conditioner without supervision.
●
If drainage hose is used, ambient temperature can't be lower than
0Otherwise, it will cause water leakage to air conditioner.
● Prohibit inserting any objects into the air conditioner.
● Do not repair or disassemble the air conditioner by yourself.
● Do not put or hang dripping objects above the air conditioner.
● Keep children from playing or climbing on the air conditioner.
● Children and disabled people are not allowed to use the
● Far away from fire source, inflammable and explosive objects.
● Prohibit operating heating equipment around the air conditioner.
● Prohibit operating the unit in the bathroom or laundry room.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or
move the air conditioner.
● Cleaning and user maintenance shall not be made by children
without supervision.
● This appliance can be used by children aged from 8 years and
● Children shall not play with the appliance.
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
in order to avoid a hazard.
● If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person

Note:
Graphics in this manual are only for reference. Please refer to actual products
for specific details.
Safety Warning
Operation Environment
● This air conditioner can only be used for family, not for
commercial industry.
● The appliance is for indoor use only.
● The air conditioner must be operated within the temperature range:
16°C ~ 35°C.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 12″(30cm)
at least.
● Do not operate the air conditioner at humid environment.
● During operation, close doors and windows to improve cooling effect.
● Please keep air inlet and air outlet clean, no obstacles.
to avoid noise and vibration.
● Please put the air conditioner at smooth and flat ground for operation
● This air conditioner is equipped with castors. Castors should slide
at smooth and flat ground.
● Prohibit inclining or turning over the air conditioner. If there’s abnor-
mity,please disconnect power immediately and contact dealer.
● Avoid direct sunshine.
30cm 30cm
30cm
3
● Do not use an extension cord.
●
Do not through sundries into the air duct. If there are sundries get
into the air duct, please contact the professionals to deal with it.

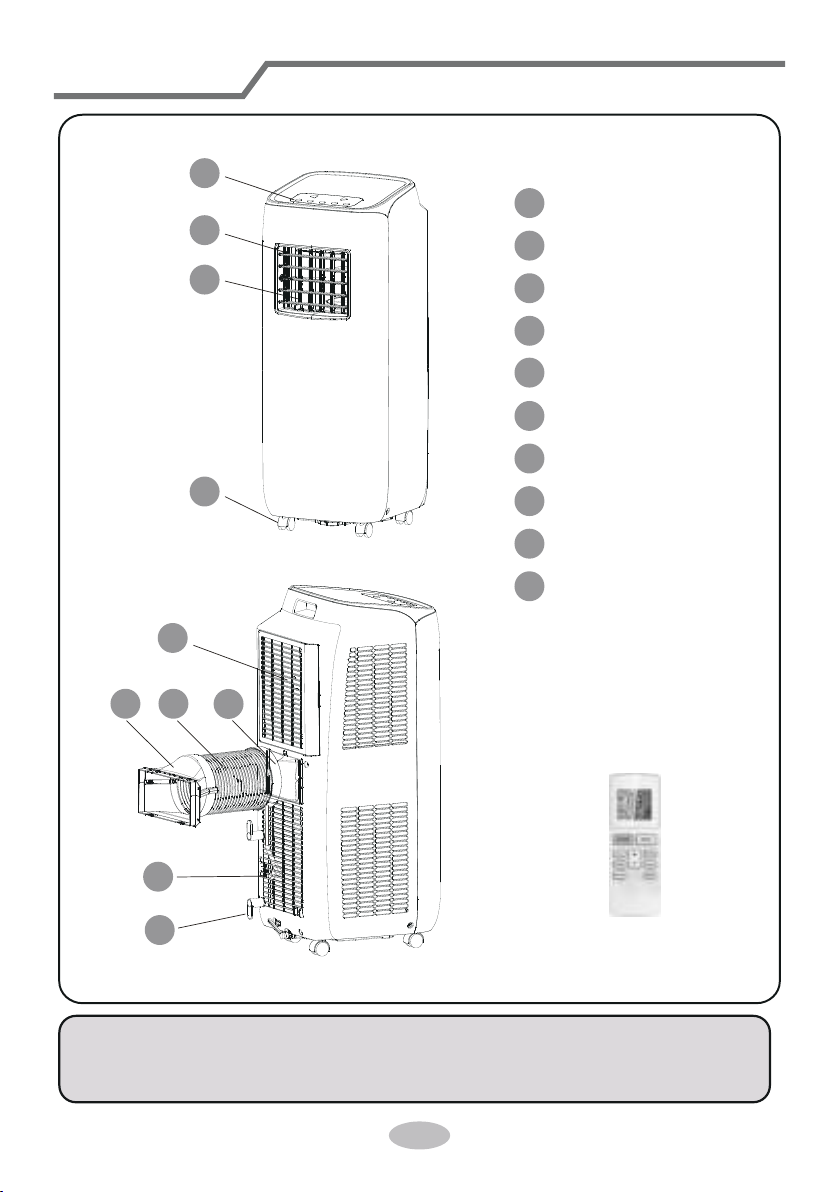

Part's Name
1
22
3
6
4
5
876
9
10 Remote controller
NOTICE:
Heat discharge pipe and other installation accessories can't be discarded.
4
1Controller panel
Guide louver
3Swing louver
4Castor
5Filter
Joint
7Heat discharge pipe
8Window adapter
9Plug of power cord
10 Wire-fixing hook

5
Name of control panel
Operation of control panel
Note:
●After putting through the power, the air conditioner will give out a sound. After
that, you can operate the air conditioner by the control panel.
●Under ON status, after each pressing of the button on control panel, the air
conditioner will give out a sound. Meanwhile, corresponding indicator on control
panel will be bright.
●Under OFF status, dual-8 nixie tube on control panel won’t display.
Under ON status, dual-8 nixie tube on control panel will display set temperature
under cooling mode, while it won’t display under other modes.
Pressing this button can turn on or turn off the air conditioner.
Under cooling mode, press “+” or “-” button to increase or decrease set temperature by
1°C. Set temperature range is 16°C~30°C. Under auto, drying or fan mode, this
button is invalid.
ON/OFF button
+ / - button
1
2
Operation Introduction for Control Panel
ON/OFF button
Fan mode indicator
Mode button
Fan speed indicator
+ / - button Dual-8 nixie tube Cool mode indicator
Dry mode indicator
Sleep button
Fan button
Wifi button

6

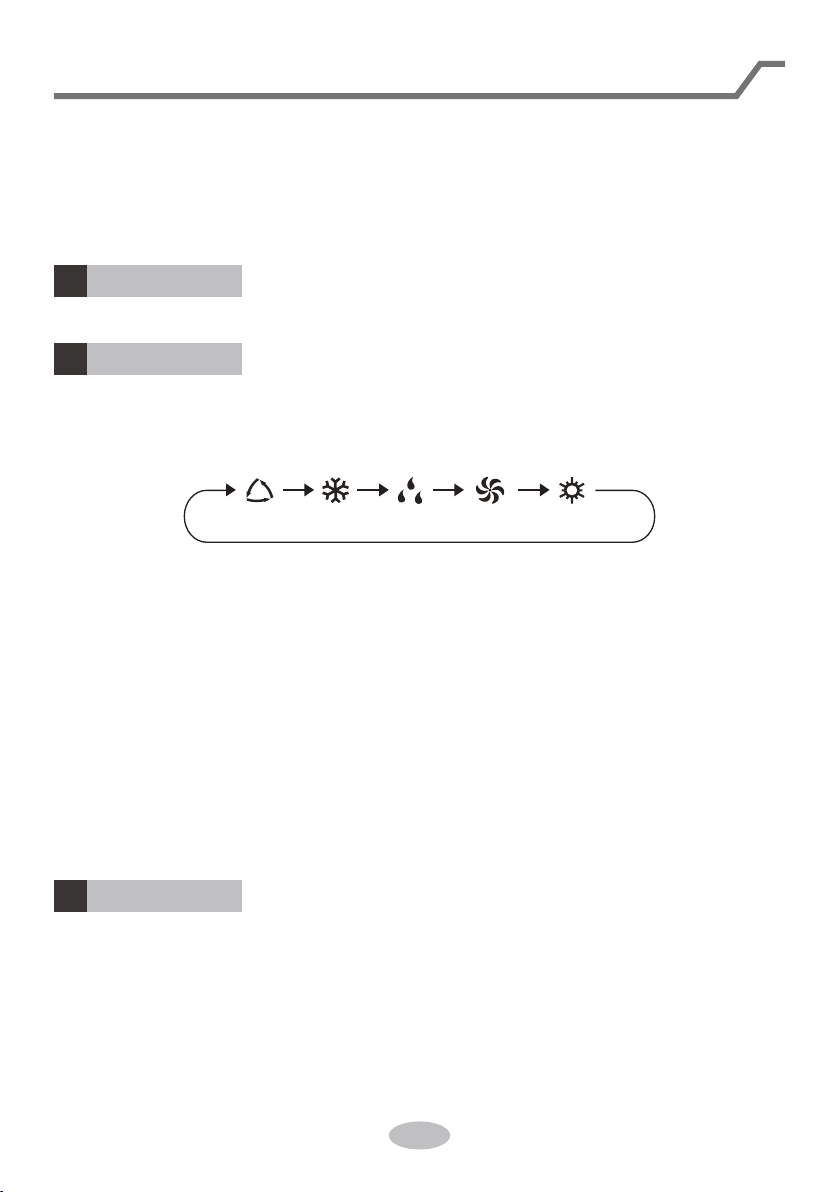

Press this button and the mode will circulate according to below sequence:
COOL →DRY
FAN
→
→
COOL: Under this mode, cooling mode indicator is bright. Dual-8 nix syalpsidebutei
set temperature. Temperature setting range is 16
°C ~30 °C .
DRY: Under this mode, drying mode indicator is bright. Dual-8 nixie tube won’t
display.
FAN: Under this mode, the air conditioner only blow fan. Fan indicator is bright.
Dual-8 nixie tube won’t display.
Mode button
3
Press this button and the fan speed will circulate as “low speed→ medium speed →
high speed→ auto fan→ low speed”.
Fan button
4
Operation Introduction for Control Panel
6Sleep button
Press sleep button to enter into sleep mode. If the controller operates at cooling
mode, after sleep mode is started up, preset temperature will increase by 2°F(1°C)
within 1 hour ;preset temperature will increase by 4°F(2°C) within 2 hours and then
the unit will operate at this temperature all the time; Sleep function is not available
for fan mode, drying mode. If sleep function is started up, the upper indicator will
keep the display status. Others, it won’t be displayed.
5Wifi button
After the unit is powered up, press WIFI button to turn on or off WIFI function.
Press and hold the button for 10s to reset WIFI function.

Buttons on remote controller
3
12
34
57
69
8
Introduction for icons on display screen
Set fan speed
Sleep mode
Set time
NOTICE: “
do not. Please refer to the actual models.
7
Send signal
Child lock
health function
ventilation operation
8℃heating function
Set temperature
Operation mode
Auto mode
Cool mode
Dry mode
Fan mode
Heat mode
TIMER ON /TIMER OFF
1On/Off button
2Mode button
+ / - button
4Swing button
5Fan button
6Sleep button
7Timer button
8Health button
9 WiFi button
Light function
I feel function
X-fan mode
Up & down swing
” This is a general remote controller. Some models have this function while some
Temp. display type
:Indoor ambient temp.
:Set temp.
:Outdoor ambient temp.
Turbo mode

Auto Cool Dry Heat
●
●
●
●
●
●
8
1ON/OFF button
Press this button to turn on the unit. Press this button again to turn off the unit.
2MODE button
Press this button can your required operation mode in turn. Corresponding indicator
will be on.
Fan
Only
Auto:Under this mode, the unit will operate automatically according to ex-factory
setting. In this case, set temperature cannot be adjusted.
Cool:Under this mode, air conditioner operates under cooling mode. Cooling
indicator will be on. Press “Fan Speed” button can adjust the fan speed.
Dry: Under this mode, the unit runs in low fan speed for dehumidification and the
corresponding indicator is on; under dry mode, the fan speed cannot be adjusted.
Fan Only:Under this mode, air conditioner will not cool or heat, only blow wind.
Fan indicator will be on. Press “Fan Speed” button can adjust the fan speed.
Heat:Under this mode, air conditioner operates under heating mode. Press “Fan
Speed” button can adjust the fan speed.(Cooling only unit won’t receive heating
mode signal. If setting heat mode with remote controller, press ON/OFF button
can’t start up the unit.)
Pressing “+” or “-” button once will increase or decrease set temperature by 1°F(°C).
Hold “+” or “-” button for 2s, set temperature on remote controller will change
quickly. Release the button after your required set temperature is reached.
Under timer setting status, after each pressing of “+” or “-” button, time will increase
or decrease 0.5h. Hold “ + ” or “-” button, 2s later, time displayed on dual-8 nixie
tube will change quickly. Loosen the button until the time is reached to your set
time.
This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
Introduction for buttons on remote controller
Note:
●
3+ / - button
●

Speed 2 Speed 3
This function is applicable to partial of models.
9
Introduction for buttons on remote controller
4Swing button
Press this button to turn “ON” & “OFF” swing.
Auto
Speed 1
NOTE: There are 3 speeds for the Fan Speed of this model.
7Timer button
Under ON status, press this button to set timer OFF; Under OFF status, press
this button to set timer ON.
Press this button once and the characters of HOUR ON (OFF) will flash to be
displayed. Meanwhile, press “+” button or “-” button to adjust timer setting (time
will change quickly if holding “+” or “-” button). Time setting range is 0.5~24hours.
Press this button again to confirm timer setting and the characters of HOUR ON
(OFF)will stop flashing.
If the characters are flashing but you haven’t press timer button,timer setting status
will be quit after 5s.If timer is confirmer, press this button again to cancel timer.
8 Health button
Press this button to achieve the on and off of health and scavenging functions in
LCD displays " ". Press the button for the second time to start health and
scavenging functions simultaneously; LCD displays " " and " ". Press this
button for the third time to quit health and scavenging functions simultaneously.
Press the button for the fourth time to start health function; LCD display " ".
Press this button again to repeat the operation above.
●
6Sleep button
Press this button to go into the Sleep operation mode. Press it again to cancel this
function. This function is available in COOL, HEAT (Only for models with heating
function) mode to maintain the most comfortable temperature for you.
5Fan button
This button is used for setting Fan Speed in the sequence that goes from AUTO,
, , to then back to Auto.

Introduction for buttons on remote controller
Function introduction for combination buttons
Replacement of batteries in remote controller
9WiFi button
10
This function is only available for some models.●
Press " WiFi " button to turn on or turn off WiFi function. When WiFi function is
turned on, the " WiFi " icon will be displayed on remote controller; Under status of
unit off, press "Mode" and " WiFi " buttons simultaneously for 1s, WiFi module will
restore to factory default setting.
Temperature display switchover function
Under OFF status, press "-" and "Mode" buttons simultaneously to switch temp-
erature display between °C and °F
Light function
Under switch-on or switch-off state, you may hold "+"and "FAN" buttons
simultaneously to set the lamp on or off and send the code. After being energized
the lamp is defaulted on.
1. Press the back side of remote controller marked
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.
Reinstall the cover of battery box.3.
signal sender battery
Cover of battery box
remove
reinstall
●As the signal will be interfered in the room with electronic fluorescent lamp,
●The distance between signal sender and receiving window should be no
●
●
Replace new batteries of the same model when replacement is required.
When you don’t use remote controller for a long time, please take out the
batteries.
more than 8m, and there should be no obstacles between them.
conversion fluorescent lamp or wireless phone, please get closer to the air
conditioner when using the remote controller.
NOTICE

11
Clean and Maintenance
● Before cleaning the air conditioner, please turn off the unit and disconnect
power. Otherwise, it may cause electric shock.
● Do not wash air conditioner with water. Otherwise, it may cause electric
shock.
● Do not use volatile liquid (such as thinner or gas) to clean the air conditioner.
Otherwise, it may damage the appearance of air conditioner.
Clean outer case:
If there's dust on the surface of outer case, please use soft towel
to wipe it. If the outer case is very dirty (such as grease), please
use neutral abluent to wipe it.
Clean outer case and grille
Clean grille: Use cleaner or soft brush to clean it.
2
dried, reinstall it well.
After the filter is cleaned and
1
3
Use cleaner or water to clean the
as grease), use warm water 40°C
melted with neutral abluent to
clean it and then put at shady
place to dry it.
dust in the operation environment, you can increase clean frequency.
NOTICE
WARNING

Clean and Maintenance
Clean heat discharge pipe
Remove the heat discharge pipe from air conditioner, clean and dry it , and then
reinstall it. (For the method of installation and removal , please refer to the
instruction for "Installation and disassembly of heat discharge pipe").
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether batteries are installed in remote controller.
5. Check whether joint, window bracket and heat discharge pipe are installed tightly.
6. Check whether heat discharge pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean lter and outer case.
3. Remove dust and sundries on the air conditioner.
4. Eliminate accumulated water in chassis (refer to the section of "Drainage way"
for details).
5. Check whether window bracket is damaged or not. If yes, please contact dealer.
Long-time storage
If you don't use the air conditioner for a long time, please maintain it by following
steps for good performance:
● Make sure there's no accumulated water in chassis and the heat discharge pipe is
disassembled.
● Pull out the plug and wrap the power cord.
● Clean the air conditioner and pack it well to prevent dust.
Notice for recovery
● Many packing materials are recyclable materials. Please deal with them through
local recycle bin.
● If you want to throw away the air conditioner, please contact local division or
consultant service center for the correct disposal method.
12

Malfunction Analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualied professionals.
Phenomenon Troubleshooting Solution
Air conditioner
can't operate
Air conditioner
can't receive
signal from
remote contr-
oller or remote
controller is
not sensible.
Poor cooling
(heating)
● Power failure?
● Whether the unit is interfered
seriously (such as static pres-
sure, unstable voltage)?
● Whether remote controller is
within the receiving range?
● Whether it's blocked by obst-
acles?
● Is sensitivity of remote contr-
oller low?
● Whether there’s uorescence
lamp in the room?
● Is the power too low?
●
Whether the air lter is too dirty?
● Whether the set temperature is
proper?
● Whether door and window are
closed?
● Is plug loose?
● Whether the air switch is trip-
ped off or fuse is burnt?
● Is there's malfunction for the
circuit?
● Whether the unit is restarted up
after stopping immediately?
● Wait after power recovery.
● Please pull out the plug. Ins-
ert the plug after about 3min,
and then turn on the unit.
●
The receiving range of remote
controller is 8m. Do not exce-
ed this range.
● Remove the obstacles.
● Check the batteries of remote
controller. If the power is low,
please replace the batteries.
● Move the remote controller
close to air conditioner.
●
Turn off the uorescence lamp
and try it again.
●
Wait after voltage is resumed.
● Clean the air lter.
● Adjust the temperature.
● Close door and window.
● Reinsert the plug.
● Ask professional person to
replace air switch or fuse.
● Ask professional person to
replace circuit.
● Wait for 3min, and then turn
on the unit again.
13

Phenomenon Troubleshooting Solution
Set tempera-
ture can't be
adjusted.
● Whether the unit operates un-
der auto mode?
● Whether the required temper-
ature exceeds the temperature
setting range?
●Temperature can't be adjus-
ted under auto mode.
●Temperature set-
ting range: 16°C-30°C .
Malfunction Analysis
● Whether air outlet or air inlet is
blocked?
● Under heating mode, whether
indoor temperature is reached
to set temperature?
● Whether heating mode is sta-
rted up just now?
● Whether evaporator is defros-
ted? (observe it by pulling out
● Eliminate the obstacles.
● The unit will stop blowing
fan after reaching set
temperature.
● In order to prevent cold air,
air conditioner will delay for a
while to be started up, which
is the normal phenomenon.
● It's the normal phenomenon.
Air conditioner is defrosting.
will resume operation.
No air blowed
out from air
conditioner
There's off the room, such as furniture,
cigarette etc.
source.
There's abnor-
mal sound du-
ring operation
● Whether the unit is interfered
by thunder, radio, etc?
● Disconnect power, put thro-
ugh the power again, and
then turn on the unit again.
You can heard
sound
● Whether the unit is turned on
or turned off just now?
rigerant inside the air condit-
ioner, which is the normal
phenomenon.
You can heard
the sound of
"PAPA"
● Whether the unit is turned on
or turned off just now?
●Heat expansion or shrinkage
for the panel due to change
of temperature, which cause
friction sound.
14

Troubleshooting
F0
Please contact qualified professionals for service.
F1 Please contact qualified professionals for service.
F2
Please contact qualified professionals for service.
F4
Please contact qualified professionals for service.
1.Check if the unit is under high-temperature
E8
2. Check if the evaporator and condenser are
H3
3. If the malfunction still occur, please contact
1. Pour out the water inside chassis.
H8
2. If "H8" still exits, please contact professional
person to maintain the unit.
ERROR
CODE
and high-humidity environment; if ambient
temperature is too high, power off the unit and
then energize it for operation after the ambient
temperature drops to 35 below.
blocked by some objects; if yes, take away the
objects, power off the unit and then energize
it for operation.
our after-sales service center.
15
Malfunction code
● If there're following phenomenon, please turn off the air conditioner and discon-
nect the power immediately, and then contact dealer immediately.
●If operate the air conditioner under abnormal condition, it may cause malfunc-
→ Power cord is overheating or damaged.
→Abnormal sound during operation.
→ Water leakage
WARNING
Malfunction analysis

Installation Precaution
● Observe all governing codes and ordinances.
● Do not use damaged or non-standard power cord.
● Be caution during installation and maintenance. Prohibit incorrect operation
to prevent electric shock, casualty and other accidents.
WARNING
Selection of installation location
Basic requirement
Installing the unit in the following places may cause malfunction. If it is unavoidable, please
consult the local dealer:
objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
Requirement of air conditioner
1. Air inlet should be far away from obstacles and do not put any objects near air outlet.
Otherwise, it will affect the radiation of heat discharge pipe.
2. Select a location where the noise and outflow air emitted by the outdoor unit will not affect
neighborhood.
3. Please try your best to keep far away from fluorescent lamp.
4.The appliance shall not be installed in the laundry.
16

Installation Precaution
Requirements for electric connection
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit.
3. For appliances with type Y attachment,the instructions shall contain the substance of
the following.If the supply cord is damaged,it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.
6. Do not put through the power before finishing installation.
7. The air conditioner is first class electric appliance. It must be properly grounding with
specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
8. The yellow-green wire or green wire in air conditioner is grounding wire, which can't be
used for other purposes.
9. The grounding resistance should comply with national electric safety regulations.
10. The appliance shall be installed in accordance with national wiring regulations.
17
WARNING:
