GREEN SERIES FITNESS CIR-RB6000-G1 User manual

www.GreenSeriesFitness.com ©April 2017 Call Toll free [phone]
CIR-RB6000-G1 Revision 1.3
Owner's Manual
CIR-RB6000-G1
Light Commercial Recumbent Bike
Install Date: _________________________ Serial Number: ________________________
Light Commercial

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
1
TABLE OF CONTENTS
SAFETY PRECAUTIONS …………………………………………………………………..2-3
Important voltage information, grounding instructions, how often you exercise,
how hard you exercise, how long you exercise, beginner treadmill program,
target heart rate zone.
TECHNICAL SPECIFICATIONS …………………………………………………………….4
UNPACKING & ASSEMBLY ……………………………………………………………..5-20
Parts, hardware kit and assembly drawing
WARM UP & COOL DOWN ……………………………………………………….….….…21
PANEL CONTROL & PROGRAM ………………………………………………….…..22-29
Control panel function and programs
EQUIPMENT
ADJUSTMENTS……………………………………………………………………………....30
CARE & MAINTENANCE …………………………………………………………..............31
PARTS LIST……………………………………………………………………………….32-33
EXPLODED DRAWINGS………………………………………………………………..34-35
WARRANTY ……………………………………………………………………………....36-38

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
2
SAFETY PRECAUTIONS
Dear Customer,
Thank you for your purchasing our products. This product has been designed and manufactured for full
commercial use, even though we go to great efforts to ensure the quality of each product, occasional
error, and/or omissions do occur. In any event should you find this product to be defective or missing
parts please contact us.
IMPORTANT: Read all instructions and warnings before assembly and operation.
‧Only one person at a time should use this equipment. If dizziness, nausea, chest pains, or any
other abnormal symptoms are experienced while using this elliptical, stop the workout at once.
‧Warning: Incorrect/ excessive training can cause health injuries. Stop using the elliptical when
feeling uncomfortable.
‧Consult your physician before starting a workout or training program. Have your doctor review your
training and diet programs to advise you of a workout routine you should adopt.
‧Always use this equipment on a clear and level surface. Do not use outdoors or near water.
‧Don't insert any object into any openings.
‧Before using this equipment to exercise, always do stretching exercises to properly warm up.
‧Replace defective components immediately and keep the equipment out of use until repair.
‧This product is designed for adults. Please ensure that children only use it under the supervision of
an adult.
‧Make sure that all bolts and nuts are tightened when equipment is in use. Periodic maintenance is
required on all exercise equipment to keep it in good condition.
‧Close supervision is necessary when this appliance is used by, on, or near children,
invalids, or disabled persons.
‧Use this appliance only for its intended use as described in this manual. Do not use attachments,
not recommended by the manufacture.
‧Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair,
and the like.
‧Never drop or insert any object into any opening.
‧Do not use outdoors.
‧The appliance is intended for commercial use.
‧Maximum user weight: 500Ibs (227 kg).

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
3
SAFETY PRECAUTIONS
CONSULT A PHYSICIAN IMMEDIATELY
Warning: Before starting any exercise program consult your physician. This is especially
important for individuals over the age of 35 or persons with preexisting health problems. Read
all instructions before using any fitness equipment. We assume no responsibility for personal
injury damage sustained by or through the use of this equipmentl.
UHow often you exercise:
You should exercise three to four times a week to improve your cardiovascular and muscle fitness.
UHow hard you exercise:
Intensity of exercise is reflected in your heart rate. Exercise must be sufficiently rigorous to strengthen
your heart muscle and condition your cardiovascular system.
Only your doctor can prescribe the target training heart range for you. Before starting any exercise
program consult your physician.
UHow long you exercise:
Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain
exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3
minutes of steady, rhythmic exercise, then check your heart rate.

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
4

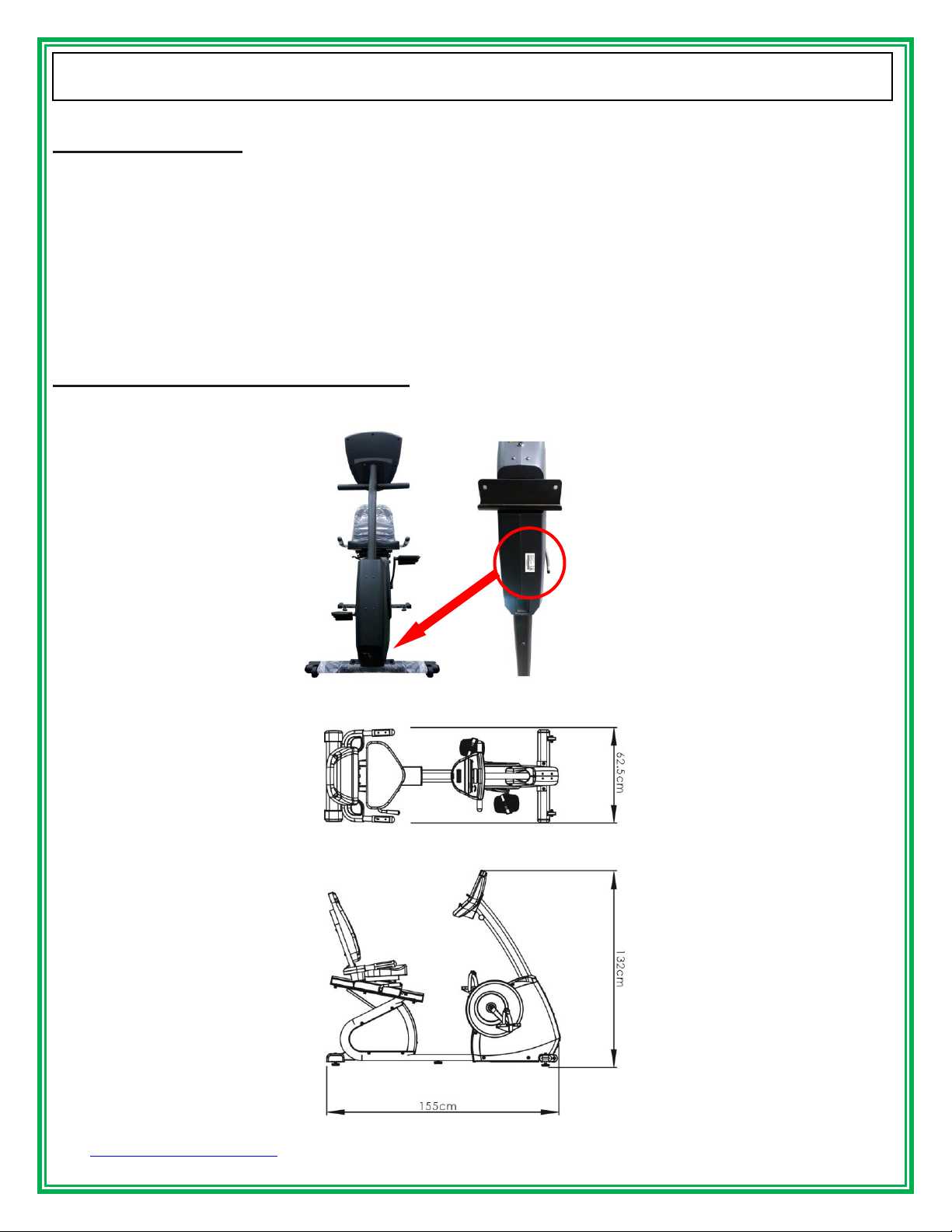

SPECIFICATIONS:
Length: 61” (155 cm)
Width: 24” (62.5cm)
Height: 52” (132cm)
Weight of product: 150.7lbs (68.5kg)
Program：Manual, 6 preset programs, Fitness Test，HRCx4
Standard features: 8x16 dot matrix HR receive
Resistance System：PMS(Perment Magnet System)
Power source：Built-in generator & rechargeable battery 12V-1.2AH
The Serial Number of the products
The serial number contains of ten values. The location of the serial number shows as the figure.
TECHNICAL SPECIFICATIONS

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
5
Parts (Main frame)
Main frame X 1pc
Rear stabilizer X 1pc
Front stabilizer X 1pc
Console set X 1pc
Front cover X 1 set
Pedal set X 1set
#4-1
#4-2
#4-32
#4-7
#4-8
#4-5
#4-6
#1
Handle bar post X 1pc
#4-9
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
6

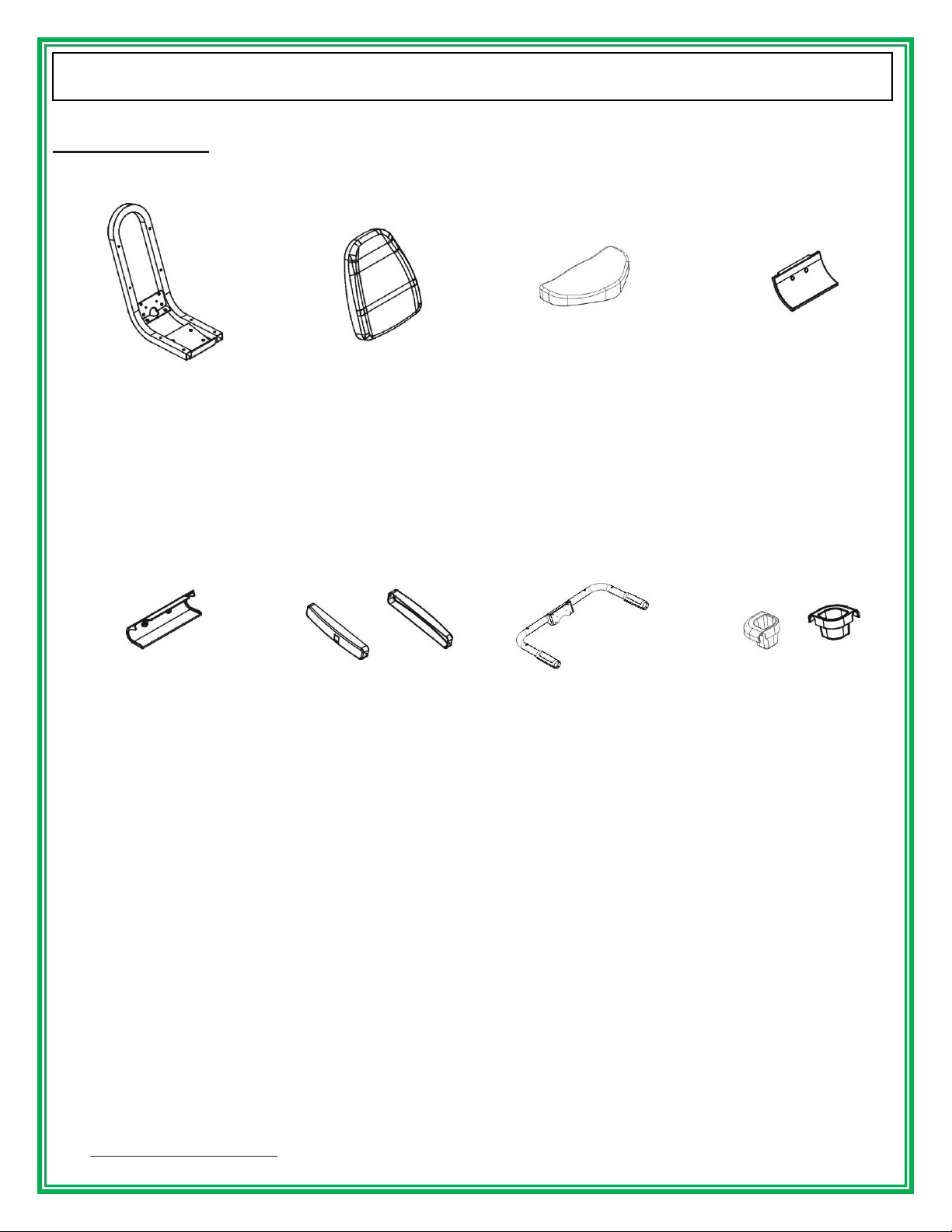

Parts (seat set)
Backrest frame X
1pc
Seat, Backrest
X 1pc
Seat X 1pc
Backrest frame front
cover X 1pc
Backrest frame rear
cover X 1pc
Left/ Right track cover
X 1pc
Lower hand pulse X
1pc
#4-19
#4-16
#4-25
#4-26
#4-28
#4-27
#4-20
#4-13
Water bottle holder
X 1set
#4-22
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
7

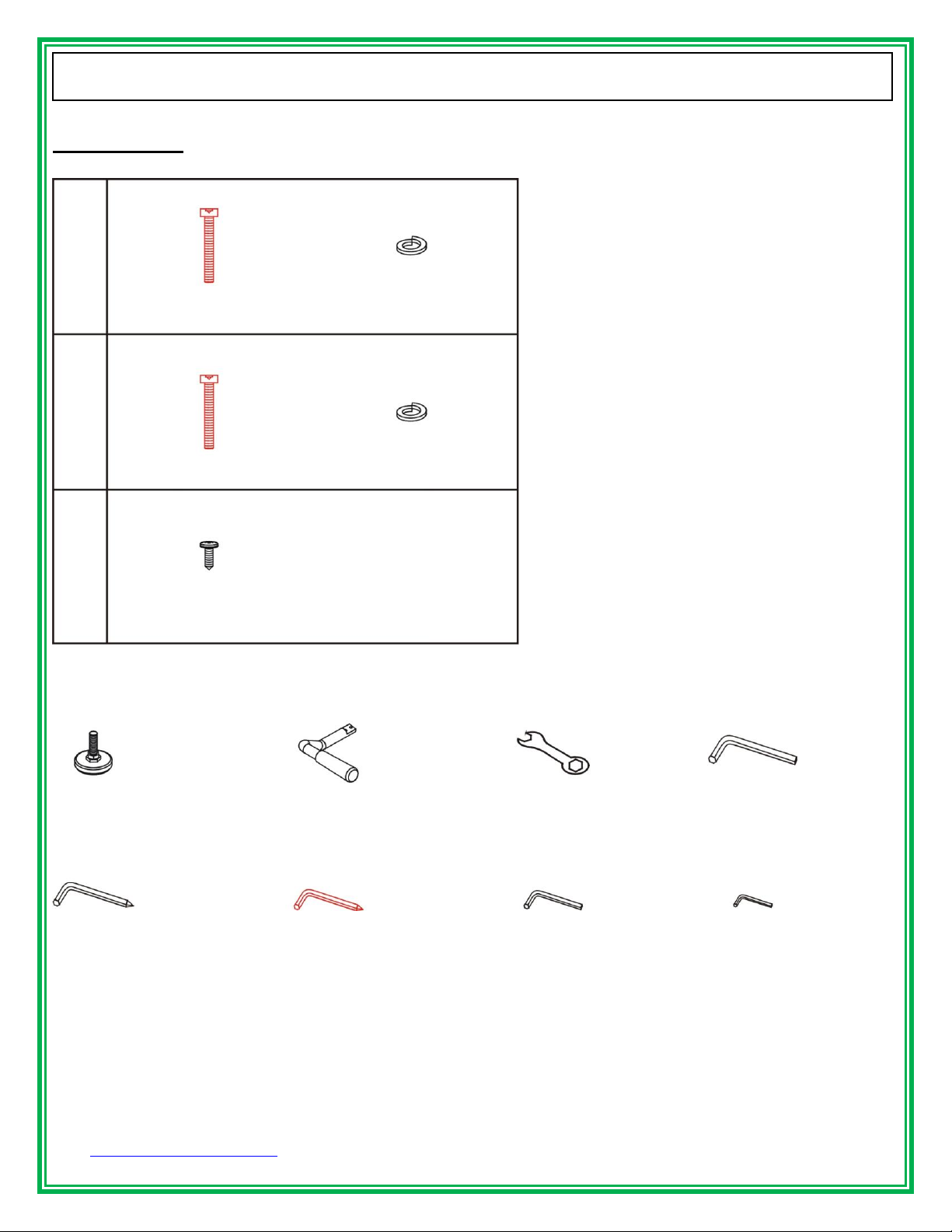

Hardware kit
X 4
(seat/ backrest)
M6x40mm
X 4
(seat/ backrest)
#4-17
X 1
(adjust pad)
X 1
M15/M15
X 1
Allen wrench (8mm)
Allen wrench (6mm)
Allen wrench (4mm)
#4-18
#1-7
Allen wrench (3mm)
X 1
(Adjust lever, seat)
#4-29
#4-30
X 4
(water bottle holder)
M6 S washer
UNPACKING & ASSEMBLY
Step7
Step8
Step9
M4x12mm
#4-24
X 4
(seat/ backrest)
X 4
(seat/ backrest)
#4-18
M6x45mm
M6x45mm
Allen wrench (5mm)
X 1
X 1
X 1
X 1

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
8
Unpack your recumbent bike where will be using it. Be careful not to damage individual pieces. Place
your recumbent bike on a level flat surface. It is recommended that you place a protective covering on
your floor.
*Notice: Due to the heavy weight, please assemble this recumbent bike more than two people.
1
Step1: Assembly Front/Rear Stabilizer to the Main Frame.
1). Using (2) M8x20mm screw and washer, attach the front stabilizer to the main frame.
2). Using (2) M8x20mm screw and (2) washer, attach the rear stabilizer to the main frame.
X1
X1
X 4
M8x20mm
X 4
M8 washer
#4-1
#4-2
#4-3
#4-10
UNPACKING & ASSEMBLY
M8 S washer
#4-4

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
9
2

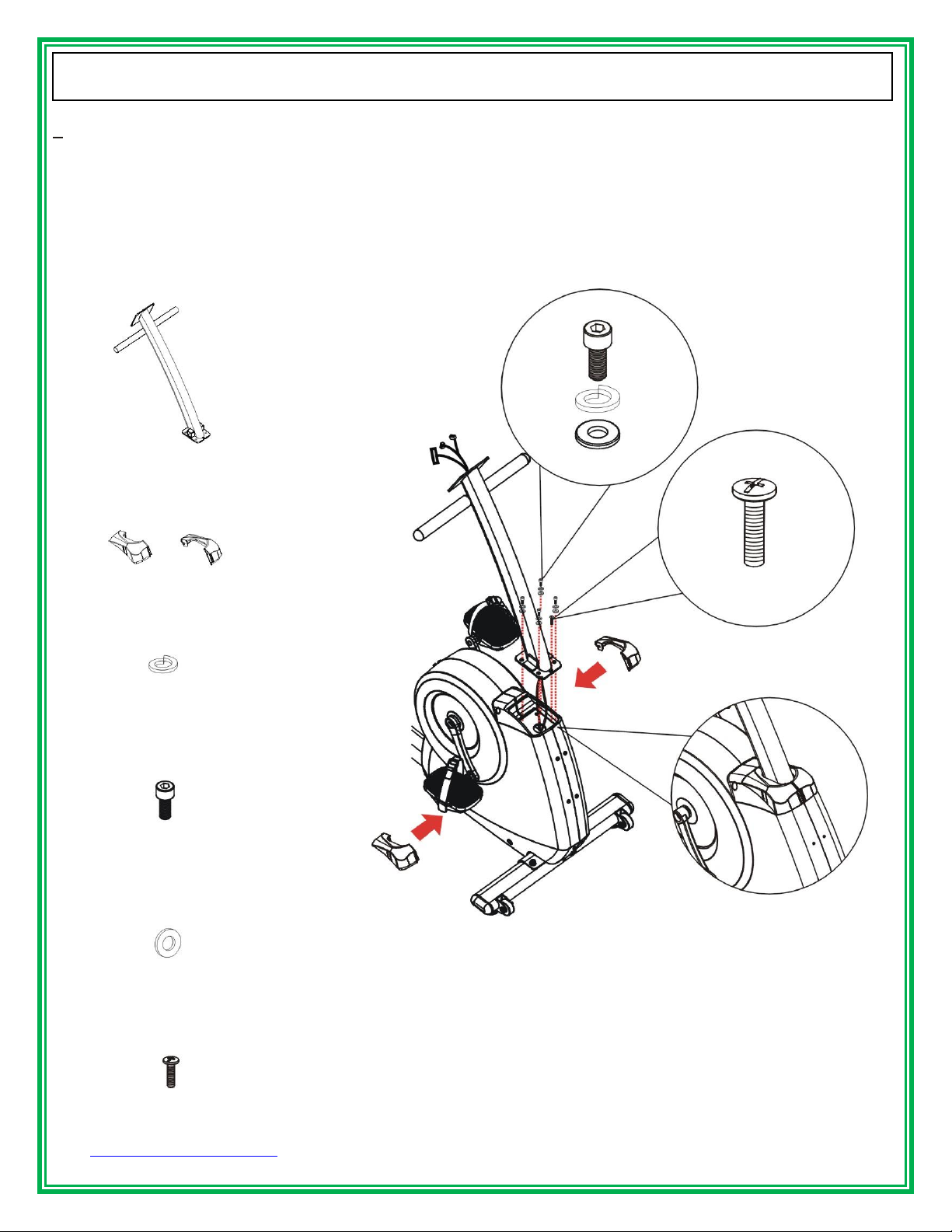

Step2: Assemble upright tube cover, right / left with handle bar post
1) Using wrench, fixing pedal set with crank set.
X1
#4-5
#4-6
X1
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
10
3
Step3: Assemble main frame and handle bar post.
1). Take the console wire and heart rate wire through handle bar post.
2). Put handle bar post into main frame and fasten (4) M8x20mm screws, (4) M8 Spring washers,
(4) M8 flat washers and (1) M4x10mm screw on handle bar post.
3). Take front cover joint into handle bar post.
X1
#4-7
#4-8
X4
#4-39
M8x20mm
M8 S washer
#4-9
X1
X1
#4-3
X4
#4-4
X4
M8 washer
#4-11
M4x10mm
X1
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
11
4

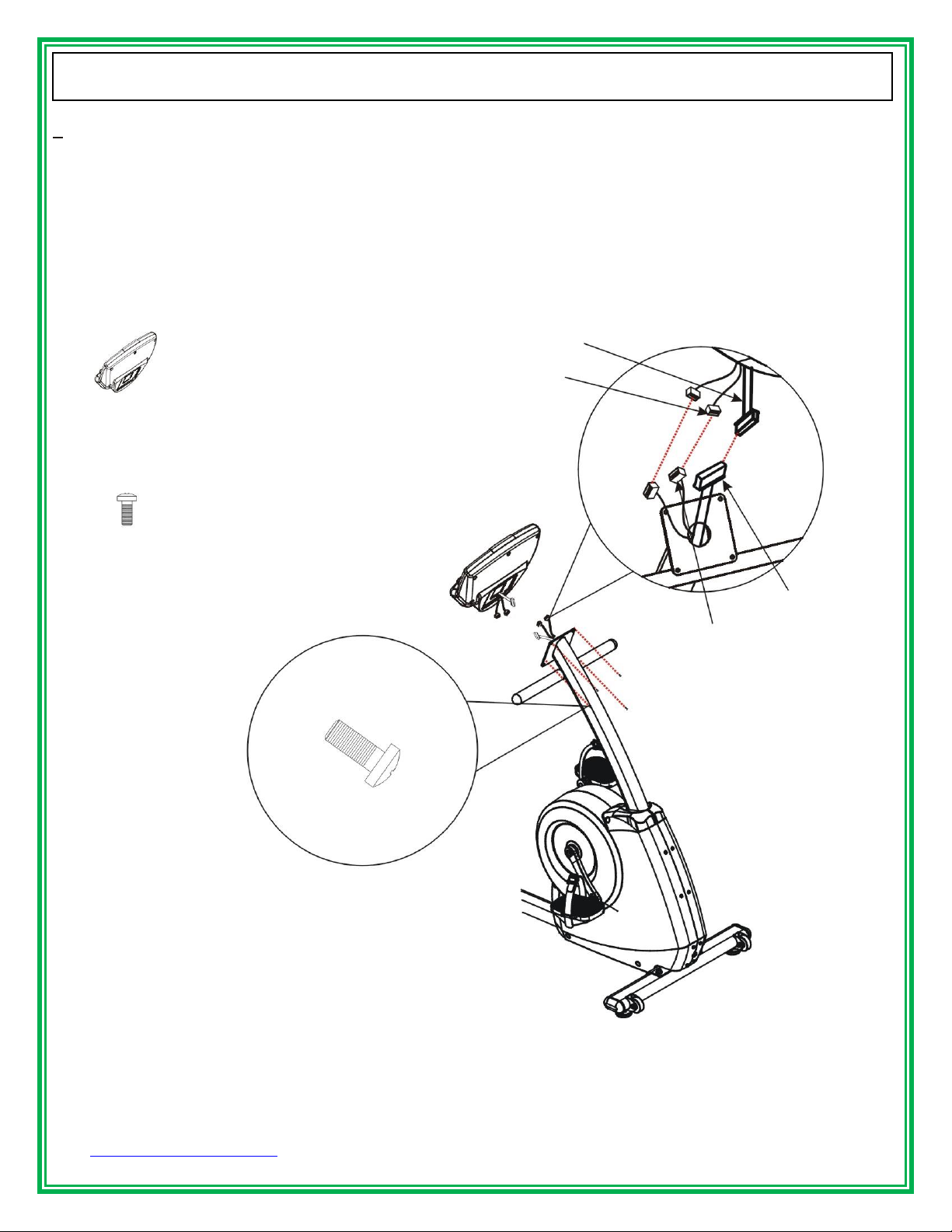

Step4: Assemble console with handle bar post
1). Put the console into handle bar post, connected upper console wire with lower console wire.
2). Using (4) M5x15mm screw, tighten all screws.
X1
#4-32
X4
#4-12
M5x15mm
Upper handle pulse wire
Upper console wire
Lower console wire
Lower handle pulse wire
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
12
5

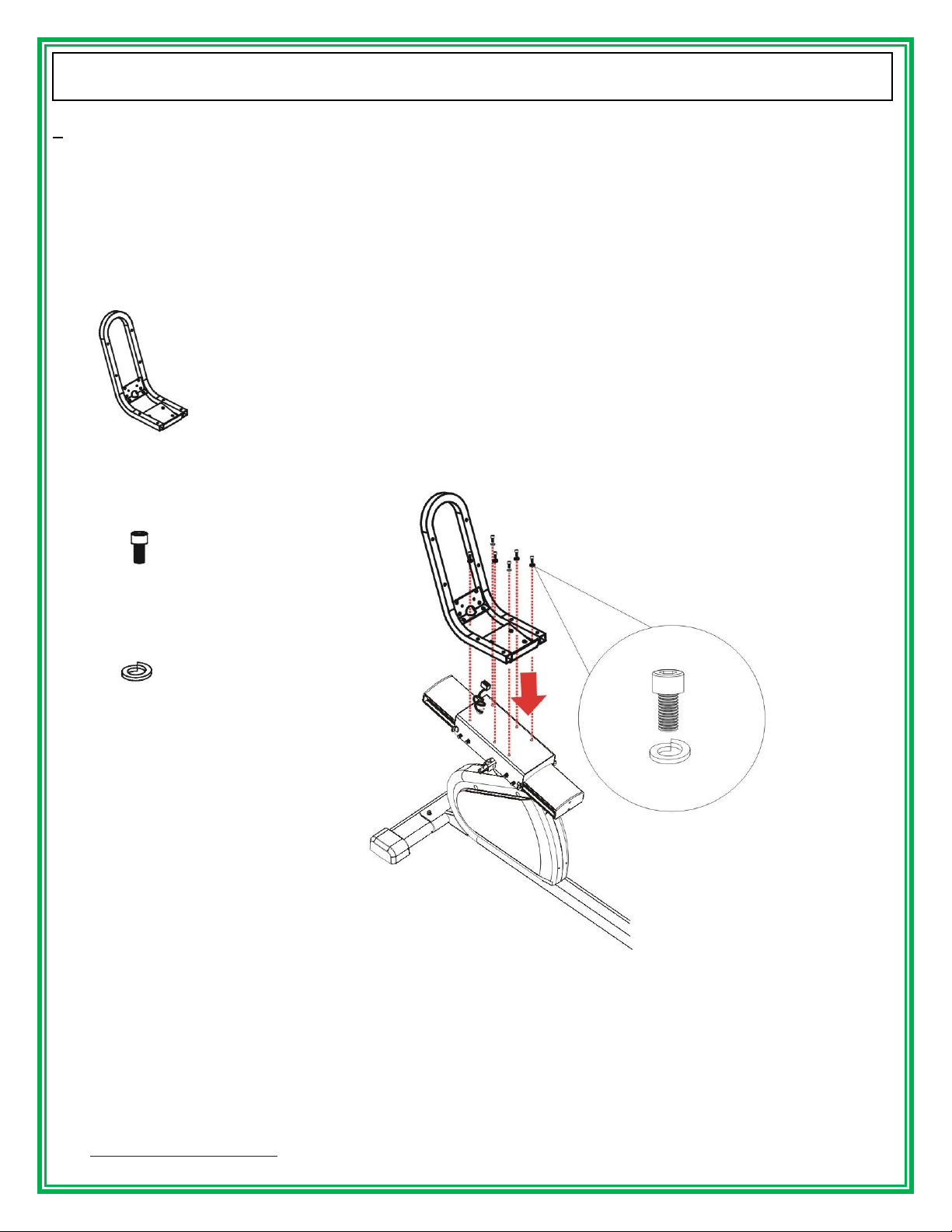

Step5: Assemble backrest frame and main frame.
1). Take out the backrest frame from box.
2). Set the backrest frame on main frame, then fasten backrest frame by (6) M10x25mm screws and
(6) M10 spring washers.
X6
M10x25mm
X 1
X 6
M10 S washer
#4-14
#4-15
#4-13
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
13
6

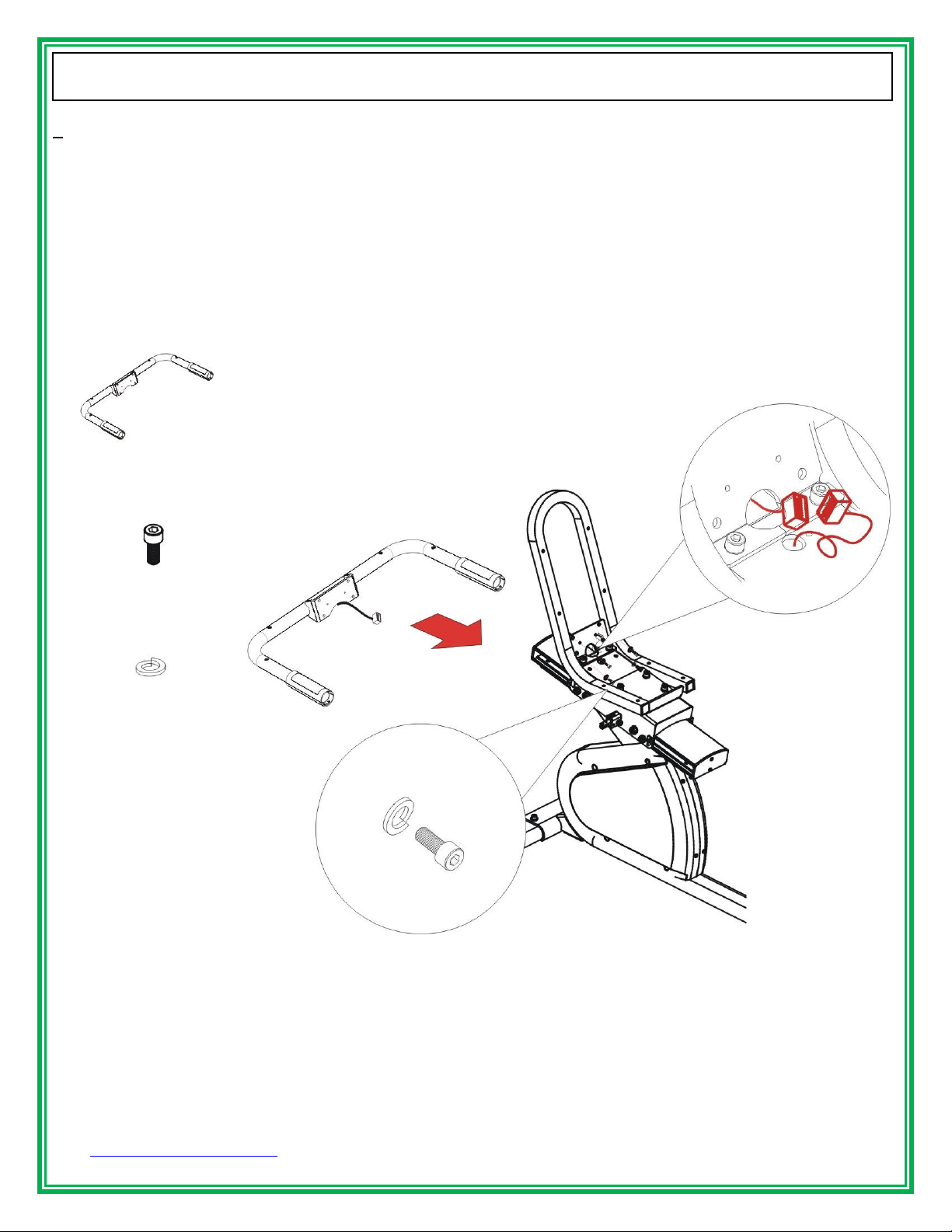

Step6: Assemble lower hand pulse and backrest frame.
1). Take out lower hand pulse from box.
2). Take hand pulse wire through the hole and connect hand pulse wire on the main frame.
3). Put the lower hand pulse on the backrest frame fasten by (4) M8x15mm screws and (4) M8 spring
washers.
M8x15mm
X 1
#4-20
M8 S washer
X 4
#4-21
X 4
#4-38
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
14
7
Step7: Assemble seat bottom and backrest.
1). Take out seat bottom from box.
2). Set seat bottom on the backrest frame and fasten by (4) M6x40mm screws and (4) M6 spring
washers.
M6 S washer
X 1
#4-16
X 4
#4-17
X 4
#4-18
M6x40mm
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
15
8

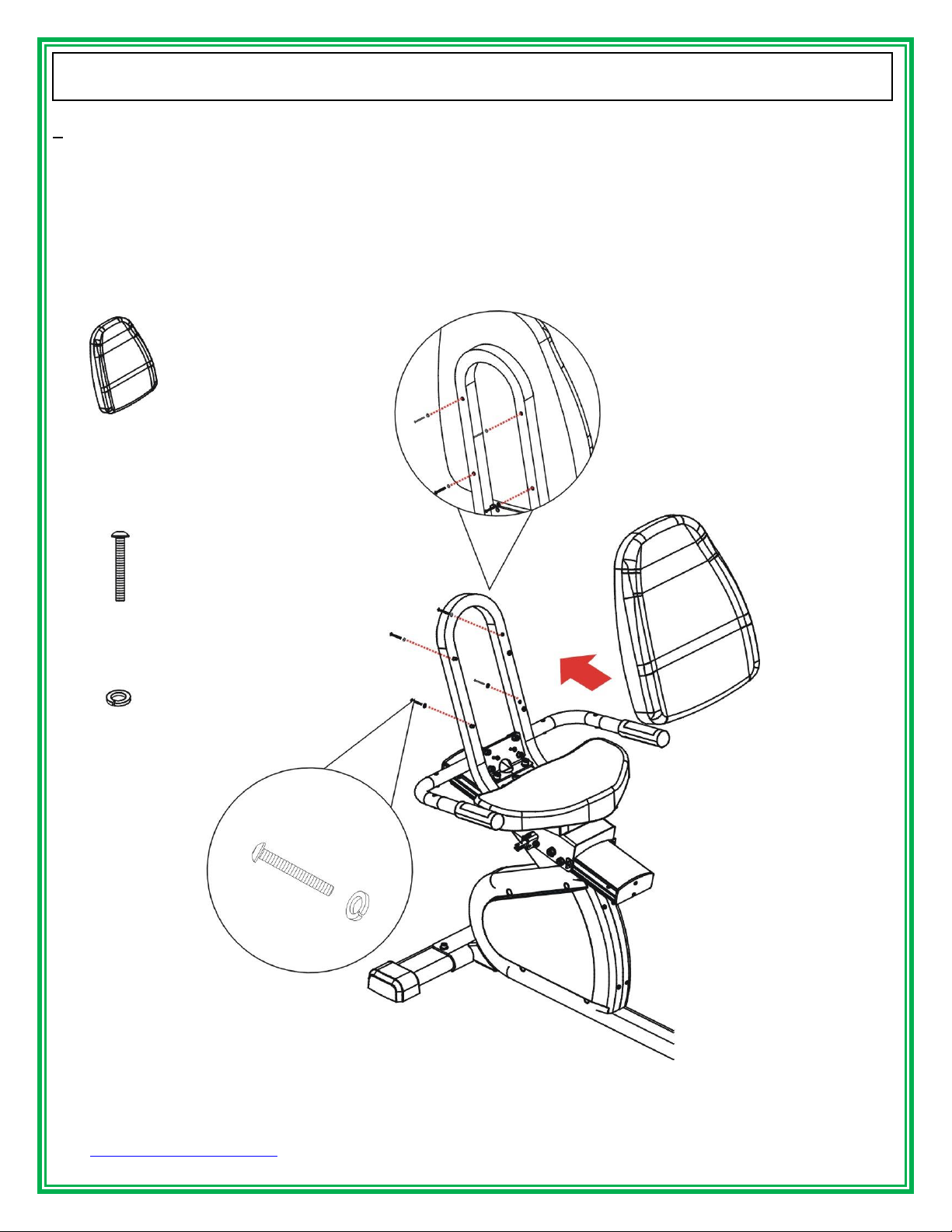

Step8: Assemble seat backrest and backrest frame.
1). Take out seat backrest from box.
2). Set seat backrest on backrest frame and fasten by (4) M6x40mm screws and (4) M6 spring
washers.
M6x40mm
X 1
#4-19
X 4
#4-17
M6 S washer
X 4
#4-18
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
16
9
Step9: Assemble water bottle holder and lower hand pulse.
1). Take out the left and right water bottle holder from box.
2). Put the left water bottle holder on the lower hand pulse and fasten by (2) M4x12mm screws.
3). Put the right water bottle holder on the lower hand pulse and fasten by (2) M4x12mm screws.
M4x12mm
X 1
#4-22
X 4
#4-24
X 1
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
17
10
Step10: Assemble backrest cover with seat set.
1). Fasten front backrest cover by (2) M4x20mm screws on the seat.
2). Fasten rear backrest cover by (2) M4x10mm screws on the seat.
M4x10mm
#4-25
X 1
#4-26
X 1
#4-11
X 2
M4x20mm
#4-23
X 2
UNPACKING & ASSEMBLY
#4-23
#4-11

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
18
11

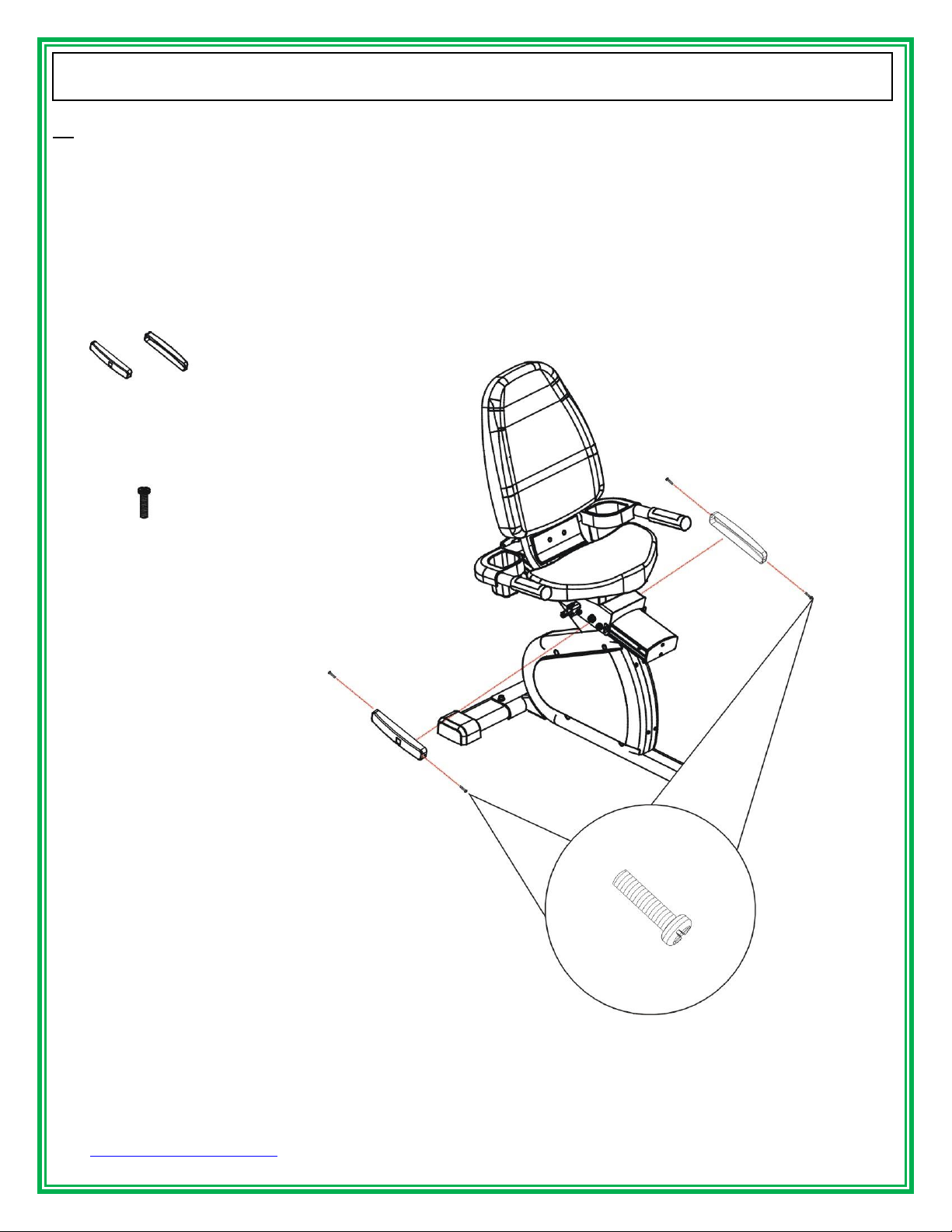

Step11: Assemble left/right track cover on the seat set.
1). Fasten left track cover by (2) M4x10mm screws on the seat set.
2). Fasten right track cover by (2) M4x10mm screws on the seat set.
M4x10mm
#4-28
X 1
#4-11
X 4
#4-27
X 1
UNPACKING & ASSEMBLY

www.GreenSeriesFitness.com ©April 2017 Call Toll free at [phone]
CIR-RB6000-G1 Revision 1.3
19
12
Step12: Assemble seat adjust lever and seat set.
1) Fasten seat adjust lever on the seat set by (2) M4x18mm screws.
M4x18mm
#4-29
#4-30
X 1
#4-31
X 2
UNPACKING & ASSEMBLY
