GreenJet – Mixed Flow Jet Fan 1

Document 486047

Model GJI

GreenJet®- Mixed Flow Jet Fan

Installation, Operation and Maintenance Manual

Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,

operate or maintain the product described. Protect yourself and others by observing all safety information. Failure

to comply with these instructions will result in voiding of the product warranty and may result in personal injury

and/or property damage.

DANGER

Always disconnect, lock and tag power source before

installing or servicing. Failure to disconnect power

source can result in fire, shock or serious injury.

CAUTION

When servicing the fan, motor may be hot enough

to cause pain or injury. Allow motor to cool before

servicing.

CAUTION

Precaution should be taken in explosive atmospheres.

Only qualiﬁed personnel should install this fan.

Personnel should have a clear understanding of these

instructions and should be aware of general safety

precautions. Improper installation can result in electric

shock, possible injury due to coming in contact with

moving parts, as well as other potential hazards. Other

considerations may be required if high winds or seismic

activity are present. If more information is needed,

contact a licensed professional engineer before moving

forward.

1. Follow all local electrical and safety codes, as well as

the National Electrical Code (NEC), the National Fire

Protection Agency (NFPA), where applicable. Follow

the Canadian Electrical Code (CEC) in Canada.

2. The rotation of the wheel is critical. It must be free

to rotate without striking or rubbing any stationary

objects.

3. Motor must be securely and adequately grounded.

4. Do not allow the power cable to kink or come in

contact with oil, grease, hot surfaces, or chemicals.

Replace cord immediately if damaged.

5. Verify the power source is compatible with the

equipment.

Features

Input speed control options:

0-10VDC signal

Adjustable speed dial in terminal box

General Safety Information

GreenJet – Mixed Flow Jet Fan2

Receiving

Upon receiving the product, check to ensure all items

are accounted for by referencing the delivery receipt or

packing list. Inspect each crate or carton for shipping

damage before accepting delivery. Alert the carrier

of any damage detected. The customer will make

a notation of damage (or shortage of items) on the

delivery receipt and all copies of the bill of lading which

is countersigned by the delivering carrier. If damaged,

immediately contact your local sales representative. Any

physical damage to the unit after acceptance is not the

responsibility of the manufacturer.

Unpacking

Verify that all required parts and the correct quantity

of each item have been received. If any items are

missing; report shortages to your local representative to

arrange for obtaining missing parts. Sometimes it is not

possible that all items for the unit be shipped together

due to availability of transportation and truck space.

Conﬁrmation of shipment(s) must be limited to only

items on the bill of lading.

Handling

Handle in such a manner as to keep from scratching

or chipping the coating. Damaged ﬁnish to parts may

reduce ability of unit to resist corrosion.

Fans are to be lifted using a minimum of four (4) points

on the fan housing or attach two suitable chains / straps

around the entire fan housing.

Storage

Fans are protected against damage during shipment. If

the unit cannot be installed and operated immediately,

precautions need to be taken to prevent deterioration of

the unit during storage. The user assumes responsibility

of the unit and accessories while in storage. The

manufacturer will not be responsible for damage during

storage. These suggestions are provided solely as a

convenience to the user.

INDOOR - The ideal environment for the storage of

units and accessories is indoors, above grade, in a

low humidity atmosphere which is sealed to prevent

the entry of blowing dust, rain, or snow. Temperatures

should be evenly maintained between 30°F (-1°C) and

110°F (43°C) (wide temperature swings may cause

condensation and “sweating” of metal parts).

All accessories must be stored indoors in a clean, dry

atmosphere.

Remove any accumulations of dirt, water, ice, or snow

and wipe dry before moving to indoor storage. To avoid

“sweating” of metal parts, allow cold parts to reach

room temperature. To dry parts and packages use a

portable electric heater to eliminate any moisture build

up. Leave coverings loose to permit air circulation and

to allow for periodic inspection.

The unit should be stored at least 3-1/2 in. (89 mm) off

the ﬂoor on wooden blocks covered with moisture proof

paper or polyethylene sheathing. Aisles between parts

and along all walls should be provided to permit air

circulation and space for inspection.

Removing From Storage

As units are removed from storage to be installed

in their ﬁnal location, they should be protected and

maintained in a similar fashion, until the equipment goes

into operation. Prior to installing the fan and system

components, inspect the unit assembly to make sure it

is in working order. Check all fasteners and accessories

for tightness.

GreenJet – Mixed Flow Jet Fan 3

To ensure a successful installation, the instructions in

this manual should be read and adhered to. Failure to

comply with proper installation procedures may void the

warranty.

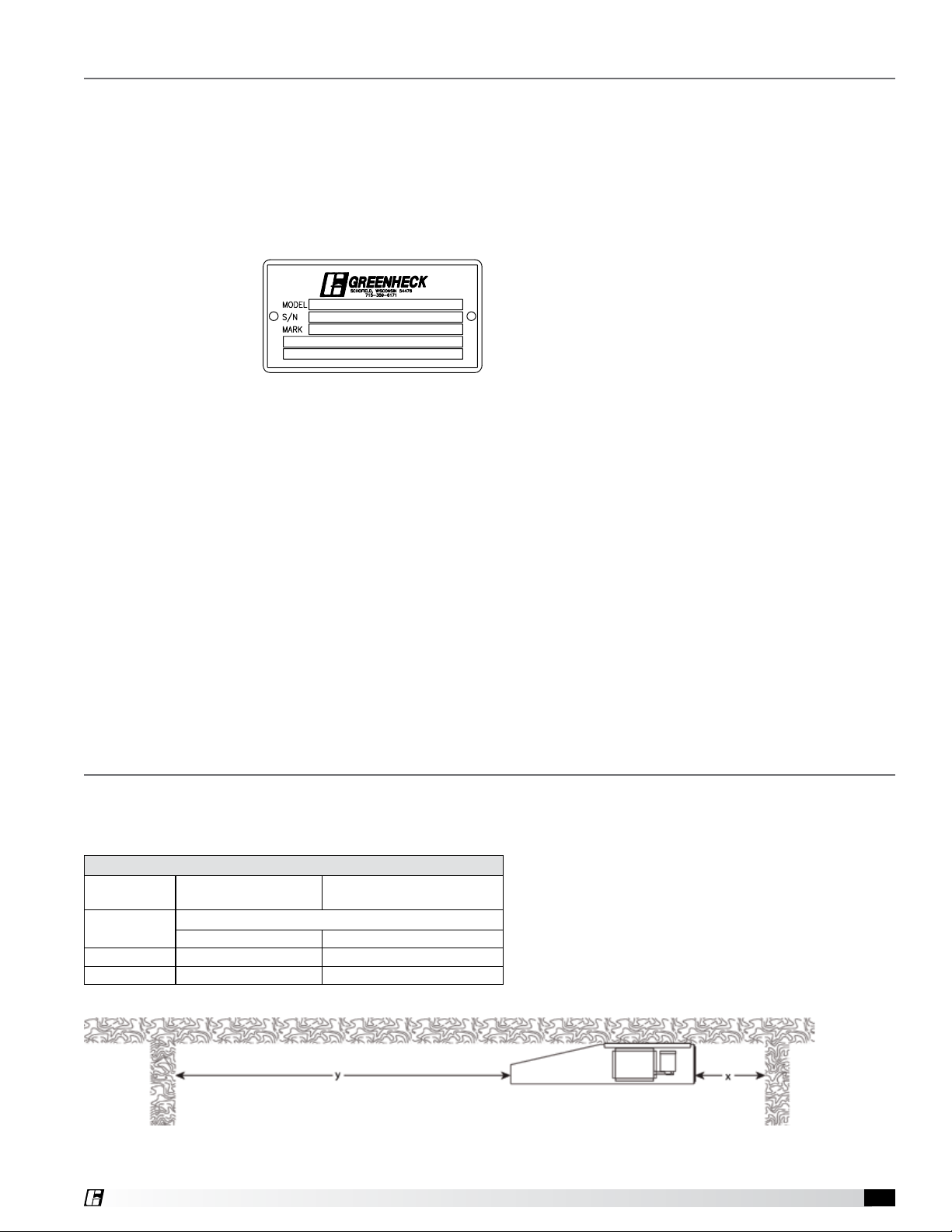

Unit and System Identiﬁcation Tags

Each fan has a permanently afﬁxed manufacturer’s

engraved aluminum nameplate containing the model

number and individual serial number.

The tag shown is

an example of an

identiﬁcation nameplate

on the fan. The

information provides

general details about the

fan, as well as containing

speciﬁc information unique to the unit. When contacting

your local sales representative with future needs or

questions, please have the information on this label

available. Tags are mounted in an area which is clearly

visible.

Pre-Installation Information

Before installation, it is important to be certain the

mounting surface will bear the operating weight of the

unit. For proper unit operation, it is also important that it

be operated in a completely level position.

For further details on safety practices involving

industrial and commercial fans, please refer to AMCA

Publication410.

Electrical Disconnects

Fan is provided with an integrated service disconnect.

Service disconnects shall be locked-out when

maintenance is being performed.

Moving Parts

All moving parts must have guards to protect personnel.

Refer to local codes for requirements as to the

number, type and design. The fan wheel may start

“free wheeling” even if all electrical power has been

disconnected. Before the initial start-up or any restart,

check the following items to make sure that they are

installed and secure.

• Do not spin fan wheel faster than the maximum

cataloged fan rpm.

Guards

Do not operate fans without proper protective devices in

place. Failure to do so may result in serious bodily injury

and property damage. Check local codes to ensure

compliance for all protective devices.

Air Pressure and Suction

In addition to the usual hazards associated with rotating

machinery, fans also create a dangerous suction at the

inlet. Special caution needs to be used when moving

around a fan, whether it is in operation or not. Before

start-up, make sure the inlet area is clear of personnel

and loose objects.

General Information

Clearances

For best airﬂow and throw distance, proper inlet and discharge clearances should be maintained.

Blocking the fan’s inlet or discharge; mounting the fan close to an obstruction or wall will inhibit proper airﬂow into

the fan, thereby reducing its effectiveness or causing performance issues.

Recommended Clearances

Model Minimum Inlet

Clearance (ft)

Minimum Outlet Clearance (ft)

from a 2 foot beam

GJI Feet (m)

x y

26 1.5 (0.5) 6.6 (2.0)

50 2 (0.6) 5 (1.5)

Beams less than 2 feet will have a shorter recommended minimum discharge clearance distance.

GreenJet – Mixed Flow Jet Fan4

Typical Installation

CAUTION

All products must be installed and maintained

according to instructions to ensure proper operation.

Only qualified technicians should install and maintain

the equipment.

Fan Mounting

The GJI model fan is designed for horizontal ceiling

mount applications. The fan should be mounted either

rigidly or using vibration isolators.

Anchor Ceiling

Fan Rail

Washer

3/8 inch MAX rod, nut

and washer (mounting

hardware by others)

Mounting

Holes

(Qty 4)

Figure 1 – Top view of GJI mounting hole locations

Figure 2 – Mounting GJI model to a ceiling utilizing

Greenheck provided neoprene isolator

(hardware by others)

Figure 3 – Illustration showing isolators mounted under

fan rails

Isolator

Mounting holes are 7/16 inch for hanging rod or

rigid mount when supplied without factory isolators.

Mounting holes are 1-3/16inch when isolators are

provided by Greenheck.

Fan Dimensions

Model Width

(W)

Length

(L)

Height

(H)

Mounting Holes

(X)

GJI Inches (mm)

26 27.6 (701) 50.4 (1,280) 11.1 (282) 20.0 (508)

50 37.1 (942) 70.4 (1,788) 14.6 (371) 32.0 (813)

GreenJet – Mixed Flow Jet Fan 5

Electrical

NOTE

All field installation and wiring of electrical equipment

must be done to meet NEC, CEC and local codes.

Must use appropriately sized wire for the full load amp

draw.

The GJI fan requires single phase 115, 208-

277V 50/60Hz power. Amperage ranges

depending on voltage.

Particular attention should be given when

connecting power to the unit. Supply wiring

must be properly fused and conform to local

and national electrical codes.

Two electrical knockouts are located on the

side of the terminal box (Figure 4). Utilize one

knockout for motor power supply and the second for control wiring. Each set of wiring connections are to be run

separately into the unit.

To access the wiring terminal strip, remove the electrical access panel. Motor supply power and control wires are

connected to a terminal strip as shown in the wiring diagrams on the next page (Figures 7 and 8).

After the electrical connections have been made secure, reattach the access panel back into position.

Figure 4 – Side Panel

Potentiometer/Speed Dial Control

GJI model comes pre-wired from the factory for use with the potentiometer dial. The speed control is intended for

local control of fans and receives its power supply through terminals 1 (COM) and 2 (V-IN). The position to which the

rotary knob is turned produces a proportional control signal output to terminal 3 (V-OUT).

ELECTRICAL DATA

GJI-26 GJI-50

115V 208-230/277 115V 208-230/277

Phase 1 (Single) 1 (Single) 1 (Single) 1 (Single)

Hz 50 / 60 50 / 60 50 / 60 50 / 60

Voltage 115 208 230/277 115 208 230/277

MCA 22.1 12.2 11.0 36.0 19.8 18.0

MOP 30 15 15 50 25 25

Electrical Conduit Knock-Outs

• Power

• Control Wiring

Disconnect Switch

Lockable Cover Plate –

Nema 3R

Incoming power

by others

Black

Red

Yellow

Figure 6 – Control Wiring

Wiring for 0 - 10 VDC

Potentiometer

Dial Wiring

Figure 5 – Potentiometer mounted in terminal box

GreenJet – Mixed Flow Jet Fan6

Figure 7 – GJI 115V wiring diagram

Figure 8 – GJI 208-230/277V wiring diagram

0-10 VDC Signal Control

GJI model comes pre-wired from the factory for use with the speed dial / potentiometer control.

To utilize a 0-10 VDC control signal, disconnect the factory installed potentiometer wiring at the terminal strip. For

control signal, connect common wire to terminal GND and 0-10 VDC to terminal AN1.

Contact the factory for instructions on how to change the voltage.

GreenJet – Mixed Flow Jet Fan 7

General maintenance for the GJI model:

• Motor bearings are sealed and do not need lubrication.

• Inspection and cleaning should be limited to remove any dirt accumulation on the fan wheel, fan inlet and fan

discharge.

If the fan environment possesses a consistent humidity of 80% or more, the fan must be run for 2 hours on high,

once a month to remove condensation.

Paint Touch-Up for Scratched Areas

For ﬁeld paint repairs, refer to replacement part HAZ2920 Concrete Gray, Touch Up Paint,

Spray Can RAL 7023.

Maintenance

Problem Cause Corrective Action

Excessive noise Wheel unbalance Clean all dirt off wheel. Check wheel balance, replace if

necessary.

Impeller blocked Inspect and remove debris from inlet and outlet.

Fan doesn’t operate

Electrical supply Check fuses/circuit breakers. Check for switches turned

off or disconnected. Check for correct supply voltage.

Control signal Verify control signal and wiring. Check connections to

terminal strip.

Low airﬂow Inlet / outlet blocked Remove debris from inlet and outlet.

* Excessive fan speed may overload the motor and result in motor failure. Do not exceed the maximum cataloged

rpm of the fan.

Troubleshooting

As a result of our commitment to continuous improvement, Greenheck reserves the right to change speciﬁcations

without notice.

Product warranties can be found online at Greenheck.com, either on the speciﬁc product page or in the literature

section of the website at Greenheck.com/Resources/Library/Literature.

Phone: 715.359.6171 • Fax: 715.355.2399 • Parts: 800.355.5354 • E-mail: [email protected] • Website: www.greenheck.com

Our Commitment

Greenheck’s GreenJet Jet Fans catalog provides additional information describing the equipment, fan performance, available

accessories, and speciﬁcation data.
