Greenlee Textron Inc. / Subsidiary of Textron Inc. 19 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070

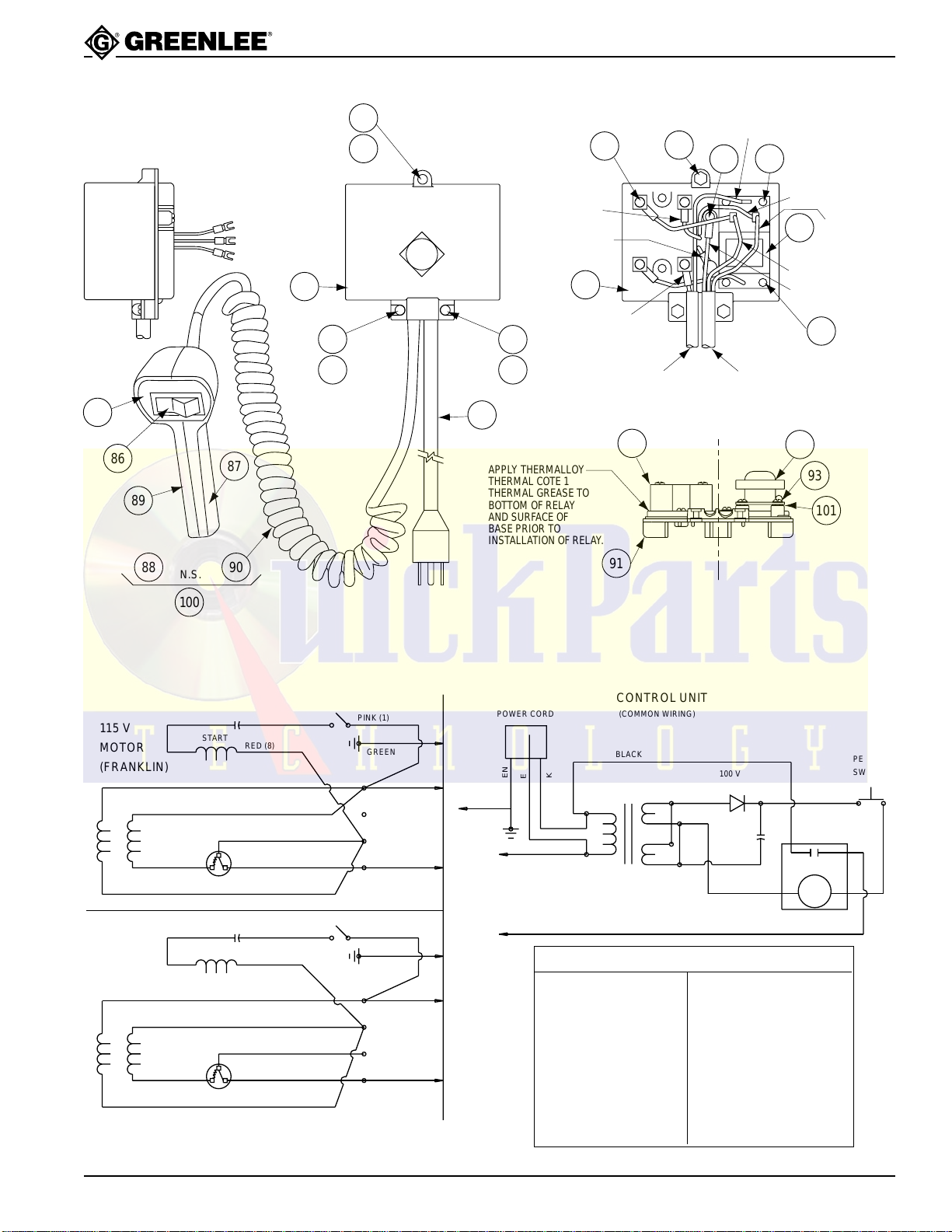

980 Hydraulic Power Pump
Service
Motor Control Unit
R1 2
43
+-
3-32 VDC
PENDANT
SWITCH
240 VAC
45 AMP
BLACK
WHITE
BLACK
BLACK
8
7
6
5
4
1
100 V
1 AMP
BLACK
GREEN
16 VDC
47yF +
WHITE
POWER CORD
WHITE
115 V 8 V
@ 1.12 VA
4
3
2
1
1
3
2BROWN (10)
VIOLET (9)
BLUE (4)
BLACK (2)
RED (8)
START
ORANGE (5)
4
3
2
1
1
3
2BROWN (10)
VIOLET (9)
BLUE (4)
BLACK (2)
RED (8)
START
ORANGE (5)
WHITE
BLACK
WHITE
BLACK
PINK (1)
PINK (1)
GREEN
GREEN
GREEN
115 V
MOTOR
(FRANKLIN)
220 V
MOTOR
(FRANKLIN)
CONTROL UNIT
(COMMON WIRING)
APPLY THERMALLOY
THERMAL COTE 1
THERMAL GREASE TO
BOTTOM OF RELAY
AND SURFACE OF
BASE PRIOR TO
INSTALLATION OF RELAY.
100
90
N.S.
88
89
87
86
85 99
92 95
93
101
91
96
94
UNDER PC BOARD
101
95
94
91
97A
98
97
98
97
98
93
92
G
ELECTRONIC MOTOR CONTROL
GREENLEE
TO MOTOR
GRN-GRD
BLK-L1
WHT-L2
BLACK WIRE
MOTOR L1
WHITE WIRE
WHITE WIRE
MOTOR L2
BLACK WIRE L1
WHITE WIRE L2
POWER CORD
PENDANT CORD
GREEN WIRE
MOTOR GROUND
BLACK WIRE
MOTOR WIRE CHART
FRANKLIN ELEC. GENERAL ELEC.
BROWN (10) PURPLE (P1)
VIOLET (9) BROWN (P2)
PINK (1) BLACK (T5)
ORANGE (5) ORANGE (T3)
BLACK (2) YELLOW (T4)
RED (8) RED (J10)
BLUE (4) WHITE (T2)

Greenlee Textron Inc. / Subsidiary of Textron Inc. 20 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump

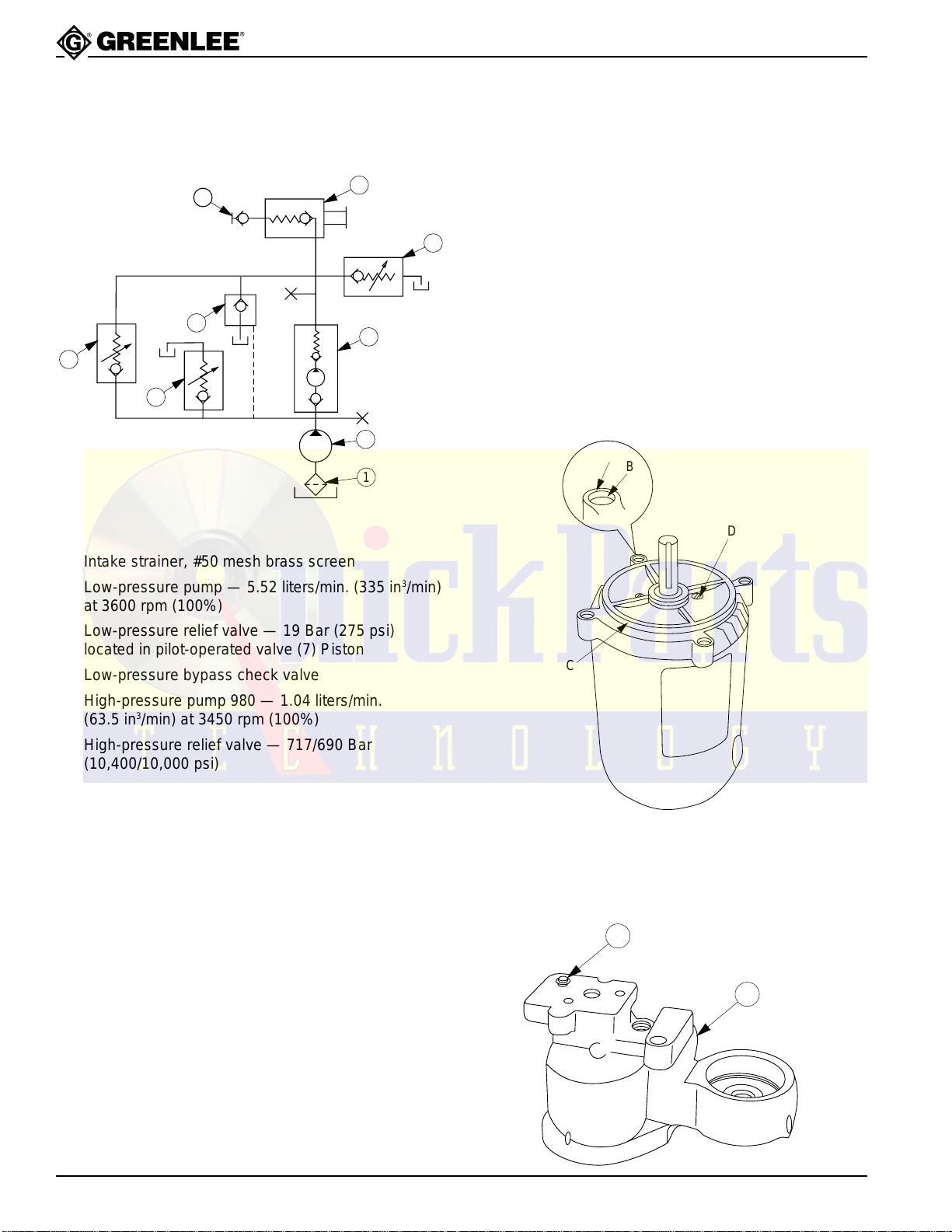

(1) Intake strainer, #50 mesh brass screen
(2) Low-pressure pump — 5.52 liters/min. (335 in3/min)
at 3600 rpm (100%)
(3) Low-pressure relief valve — 19 Bar (275 psi)
located in pilot-operated valve (7) Piston
(4) Low-pressure bypass check valve
(5) High-pressure pump
980 — 1.04 liters/min.
(63.5 in3/min) at 3450 rpm (100%)
(6) High-pressure relief valve — 717/690 Bar
(10,400/10,000 psi)
(7) Pilot-operated directional control valve — 3 way,
2 position
(8) Manually operated check valve
(9) Female coupler half
Service (cont’d)
98
6
5
2
1
7
3
4
Driv-Lok Pin
Seal the Driv-Lok pin (73) to the pump block (84) with
a 1.5 mm (1/16") bead of an RTV-type silicone-based
sealant, such as Dow Corning 732™ Multipurpose
Sealant or equivalent.
Sealing Instructions for Assembly
Motor
If the motor has been disassembled, seal with a 3 mm
(1/8") bead of a silicone-based gasket/flange sealant,
such as Loctite®587 Ultra Blue®, as follows:
(A) To the mounting surface around the threads
(four locations)
(B) To the chamfer (four locations)
(C) Around the innermost machined circumference
of the mounting surface
Apply a 1.5 mm (1/16") bead of an RTV-type silicone-
based sealant, such as Dow Corning 732™ Multipurpose
Sealant, as follows:
(D) Around the motor bearing screws (two locations)
Assemble immediately.
73
84
AB
D
C
Hydraulic Schematic

Greenlee Textron Inc. / Subsidiary of Textron Inc. 21 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump
Repairs
The following section and figures describe pertinent
details for refinishing ball seats and component
re-assembly and adjustments.
Motor Face Seal
When reassembling the motor, refer to Figure A1 for the
face seal seating dimension. Also, refer to this figure for
setting the vertical position of counterweight (32).

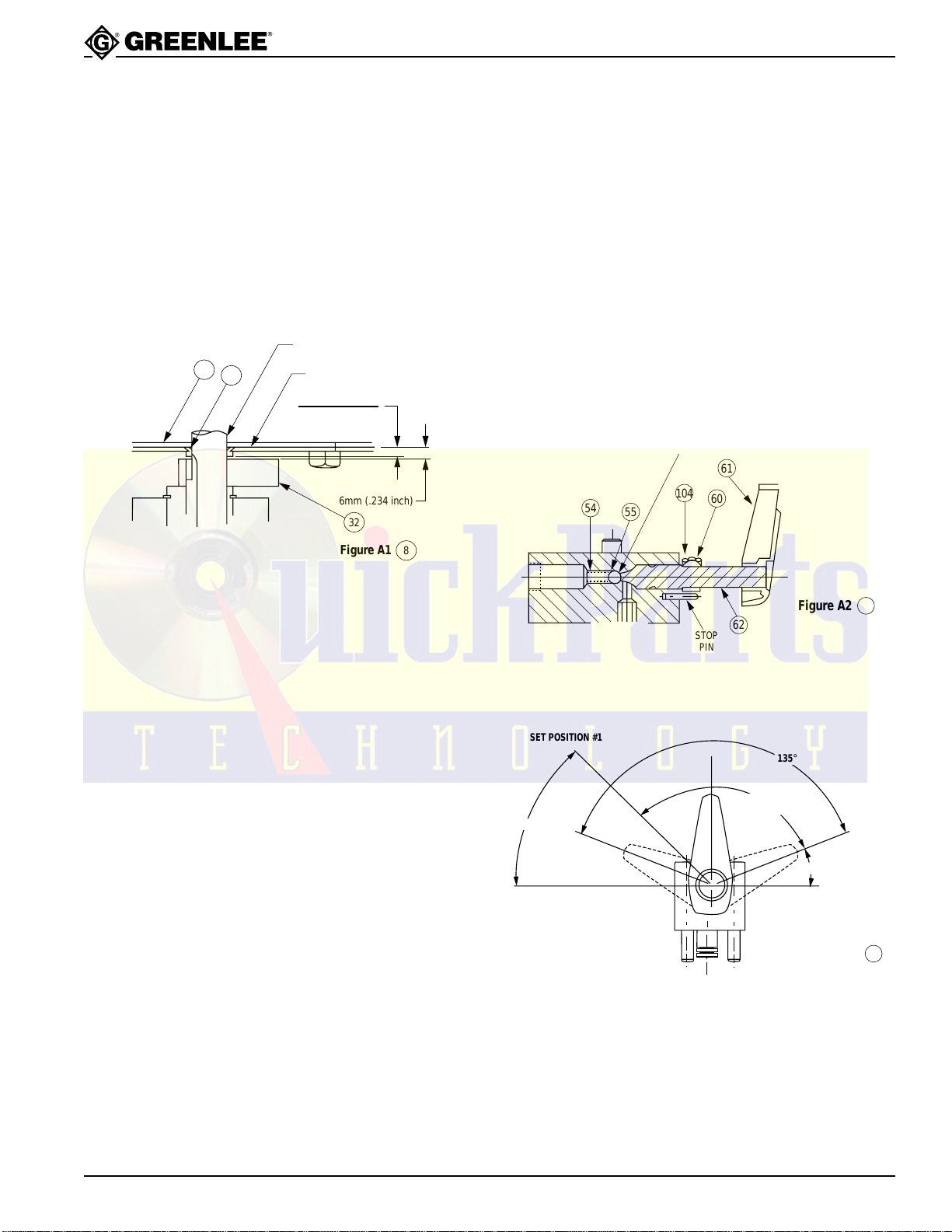

Manual Release/Automatic Release Valve
Handle Setting
Refer to Figures A2 and A3. Thread in the shaft (62) until
it just touches the check ball (55) (in its spring-loaded
closed position). Slide collar (104) on the shaft. Position
the handle (61) at the location “Position 1” (Figure A3),
with the other surface of the handle flush with the end of
the shaft. Lock in place. Rotate the handle to “Position 2”
(Figure A3). Slide the collar toward the valve body until
it contacts the 15.9 mm (5/8") diameter portion of the
control shaft. Rotate the lock collar clockwise until it
touches the stop pin, and lock in place.
When locking control handle and lock collar in place,
torque set screws tight to 2.8–3.4 N·m (25–30 inch-pounds).
22
21
MOTOR SHAFT
MOTOR FACE
4.6mm (.180 inch)
4.1mm (.160 inch)
32
6mm (.234 inch)
Figure A1
8
54 55 60
62
104
61
Figure A2
7.938 mm (0.312") ø BALL SEAT
STOP
PIN
8
45°
STOP
CLOSED
STOP
OPEN
BALL OPEN
112.5
° (.99 mm [.039"])
POSITION 2
SET POSITION #1
22.5 (REF.)
135°
Figure A3
8

Greenlee Textron Inc. / Subsidiary of Textron Inc. 22 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump
Low-Pressure Bypass Check Pressure Adjustment

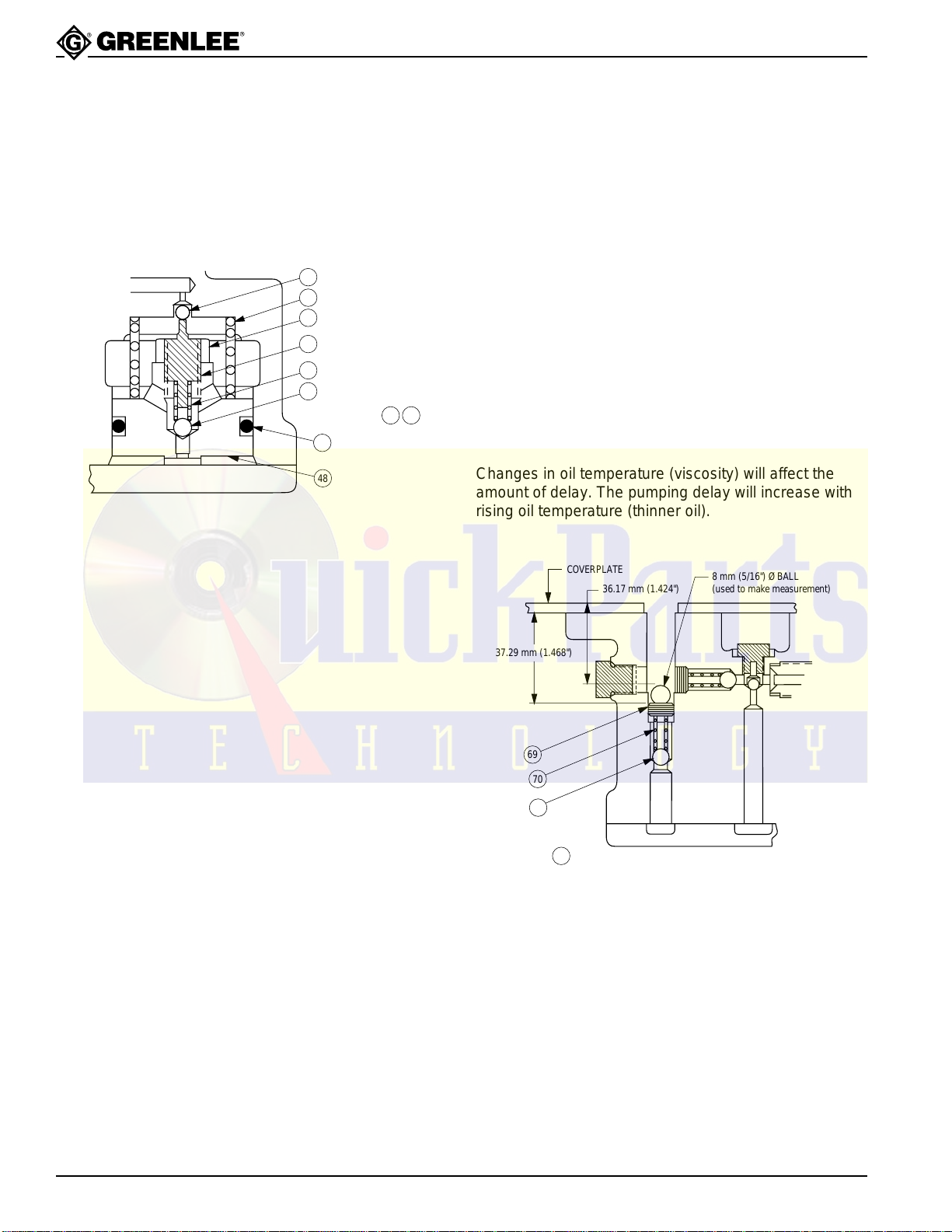

When properly set to the dimension shown in Figure A5,
the high pressure stage operation of the pump will be
delayed approximately one (1) second after the motor
starts. This delay is created by the closing time of the
pilot-operated valve.
Note: This dimension must be increased if ball
seat depth is increased by more than
.4 mm (1/64 inch).
Increasing the bypass pressure (CW rotation of adjusting
screw—increase of set dimension) will shorten delay. If
delay becomes too short, the motor will not restart when
high pressure is held in the line. The motor should restart
with a maximum required off time of 1/2 to 1 second.
Decreasing the bypass pressure (CCW rotation of
adjusting screw) will increase delay. The pilot-operated
valve will not close if pressure is set too low.
Changes in oil temperature (viscosity) will affect the
amount of delay. The pumping delay will increase with
rising oil temperature (thinner oil).
Low Pressure Relief Setting
Refer to Figure A4. Lightly bottom the stem (44) on the
ball (46). Then, back out the stem 3-1/2 turns. Tighten
nut (43). The resulting pressure setting should be
approximately 19 Bar (280 psi).
Repairs (cont’d)
44
3
Figure A4 7
42
47
43
45
46
49
48
COVERPLATE
36.17 mm (1.424") 8 mm (5/16") Ø BALL
(used to make measurement)
37.29 mm (1.468")
69
70
71
4
Figure A5

Greenlee Textron Inc. / Subsidiary of Textron Inc. 23 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump

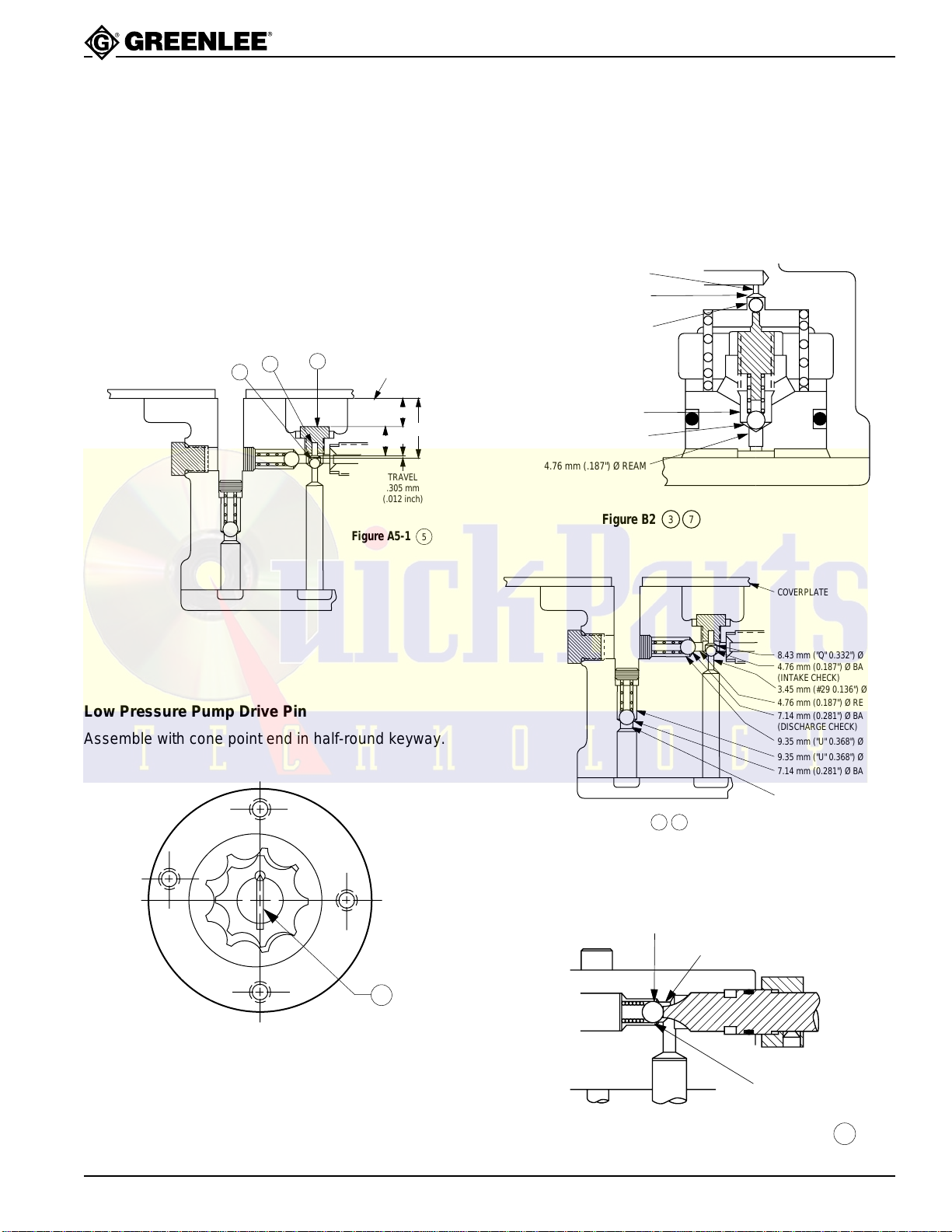

High-Pressure Inlet Check Ball Travel
The amount of allowable ball travel is critical to the
optimum high pressure output (flow rate). Refer to Figure
A5-1. Carefully and accurately measure (depth “mike”)
the “A” dimension (top of pump block to seated ball)
and “B” dimension (top of pump block to head of plug—
at center). Carefully and accurately set the “C” dimension
(overall length of assembled plug and pin) of a
new plug and pin equal to “A” minus “B” minus
.305 ±.050 mm (.012 ±.002 inches).
Ball Seat Refinishing
Refer to Figures B2, B3, and B4 for the proper drill size
to refinish the conical seat and finish ream size. These
operations must be performed with the pump or valve
block properly held and using a drill press. Only a very
small amount of material should be removed.
Repairs (cont’d)
TOP OF
PUMP BLOCK
A
5
Figure A5-1
C
B
TRAVEL
.305 mm
(.012 inch)
42 79
105
8
Figure B4
9.53 mm (0.375") Ø DRIL
L
7.14 mm (0.281") Ø REAM
7.94 mm (0.312") Ø BALL SEAT
(LINE CHECK VALVE)
4
Figure B3
COVERPLATE
5
8.43 mm ("Q" 0.332") Ø DRILL
4.76 mm (0.187") Ø BALL SEAT
(INTAKE CHECK)
3.45 mm (#29 0.136") Ø REAM
4.76 mm (0.187") Ø REAM
7.14 mm (0.281") Ø BALL SEAT
(DISCHARGE CHECK)
9.35 mm ("U" 0.368") Ø DRILL
9.35 mm ("U" 0.368") Ø DRILL
7.14 mm (0.281") Ø BALL SEAT
(BYPASS CHECK)
4.76 mm (0.187") Ø REAM
3
Figure B2 7
3.175 mm (.125) Ø REAM
4.76 mm (.187") Ø BALL SEAT
(P.O. VALVE)
7.14 mm (.281") Ø DRILL
11.51 mm (.453") Ø DRILL
6.35 mm (.250") Ø BALL SEAT
(LO-P RELIEF VALVE)
4.76 mm (.187") Ø REAM
Low Pressure Pump Drive Pin
Assemble with cone point end in half-round keyway.
Figure A6
78

Greenlee Textron Inc. / Subsidiary of Textron Inc. 24 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump

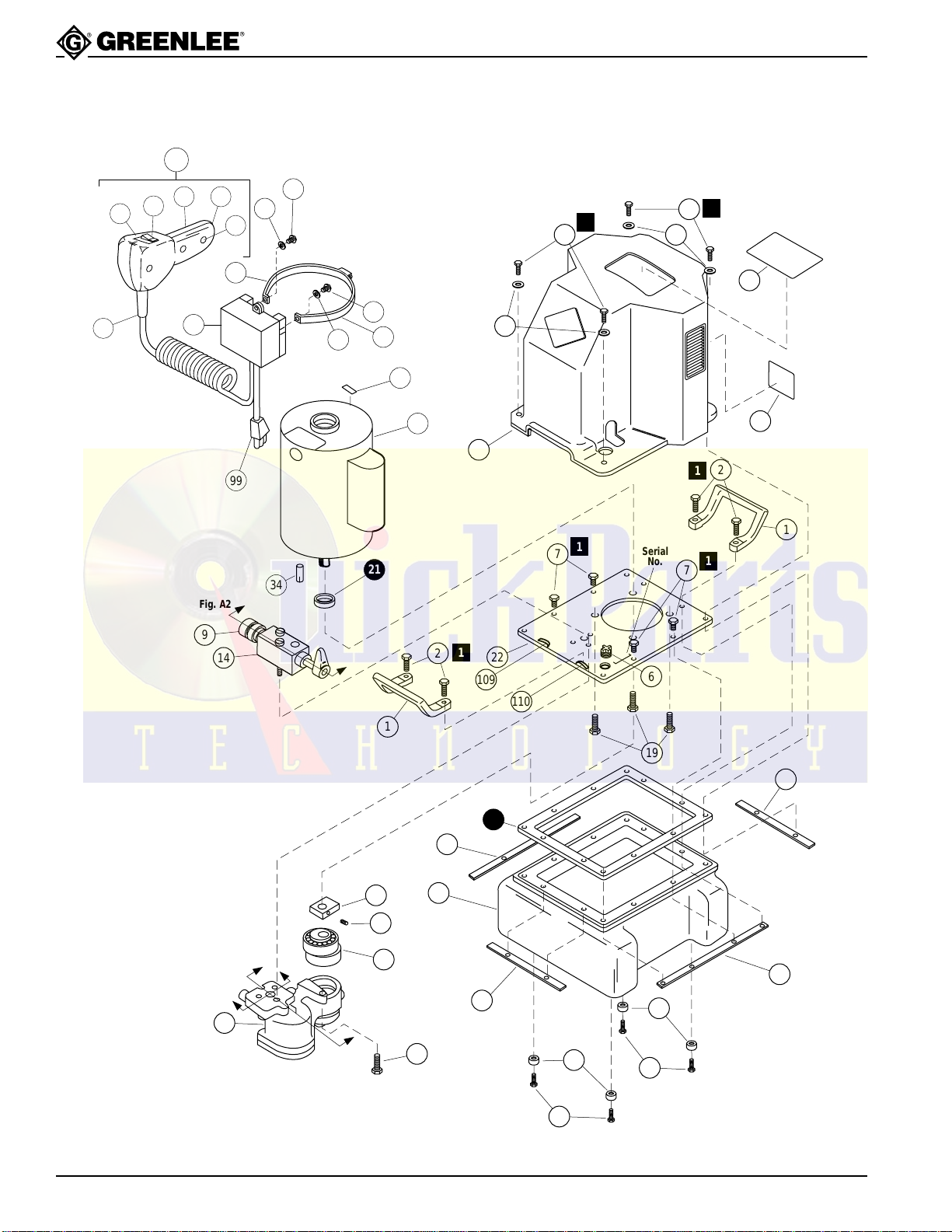

ExplodedView
19
7
7
6
12
222
1
13
23
21
10
4
16
26
31
27
99
26
27
31
8
100
34
14
9
2 28
2
3
15
2
1
13
24
25
24
25
12
35
17
18
33
32 11
28
11
1
1
1
1
Figs A1 & A5
Fig. A2
Fig A4
Serial
No.
85
90
86 87 89
88
109
110

Greenlee Textron Inc. / Subsidiary of Textron Inc. 25 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump

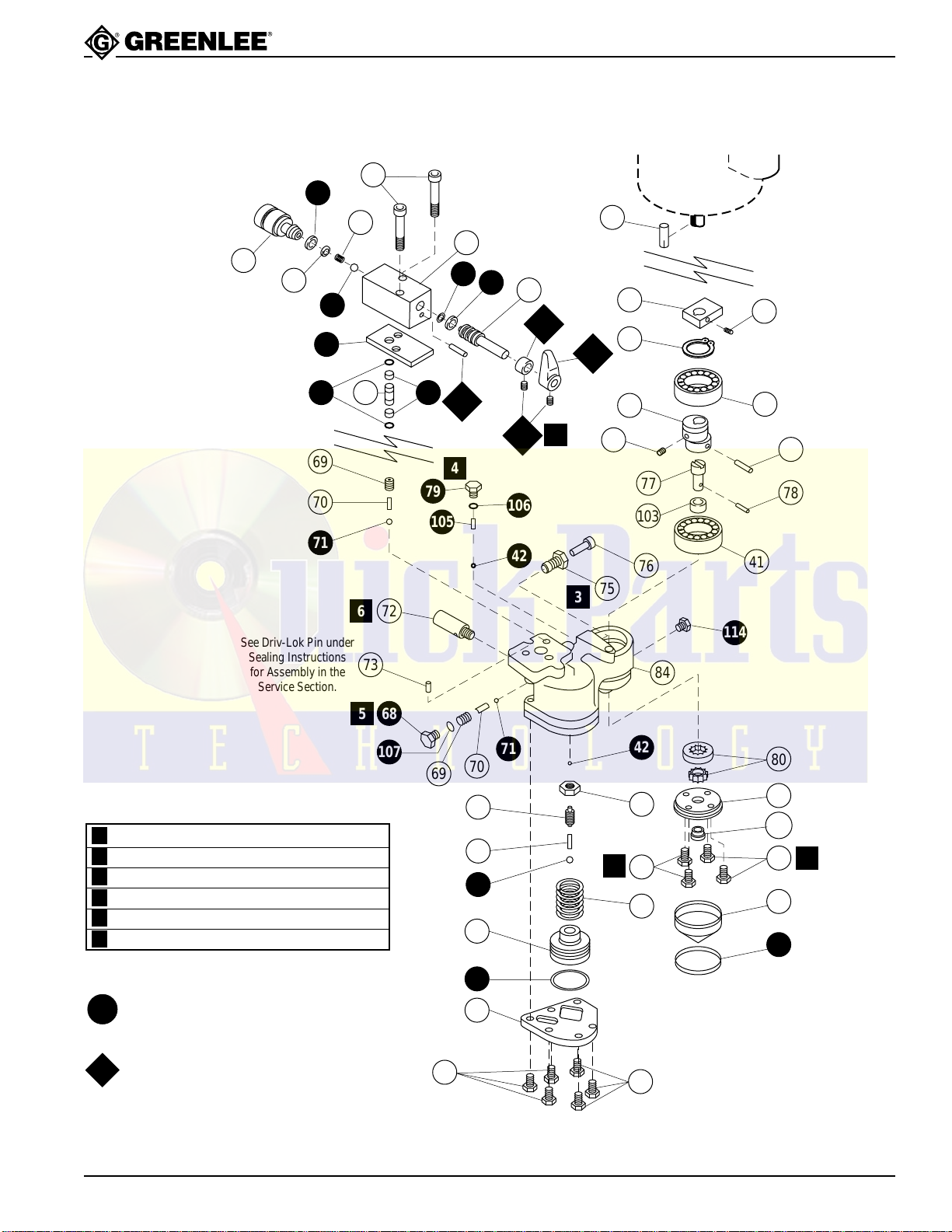

ExplodedView—Pump Block
78
7
7
50
49
48
46
45
44
47
7
43
42
71
70
69
107
68
73
72
71
70
69
105
79 106
42
58 56 57
104
61
60
112
55
52
64 63
59
66
65
34
32
36
33
38
39
40
77
103
41
76
75
84
80
81
102
82
83
7
37
114
62
54
53
9
2
2
5
63
4
2
See Driv-Lok Pin under
Sealing Instructions
for Assembly in the
Service Section.
503 4369.6
Hydraulic Repair Kit
503 5464.7
Release Knob Retrofit Kit
11.13 - 1.35 N•m 10 - 12 inch-pounds
22.8 - 3.4 N•m 25 - 30 inch-pounds
3110 N•m 80 foot-pounds
427 N•m 20 foot-pounds
534 N•m 25 foot-pounds
668 N•m 50 foot-pounds
TorqueTable

Greenlee Textron Inc. / Subsidiary of Textron Inc. 26 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump

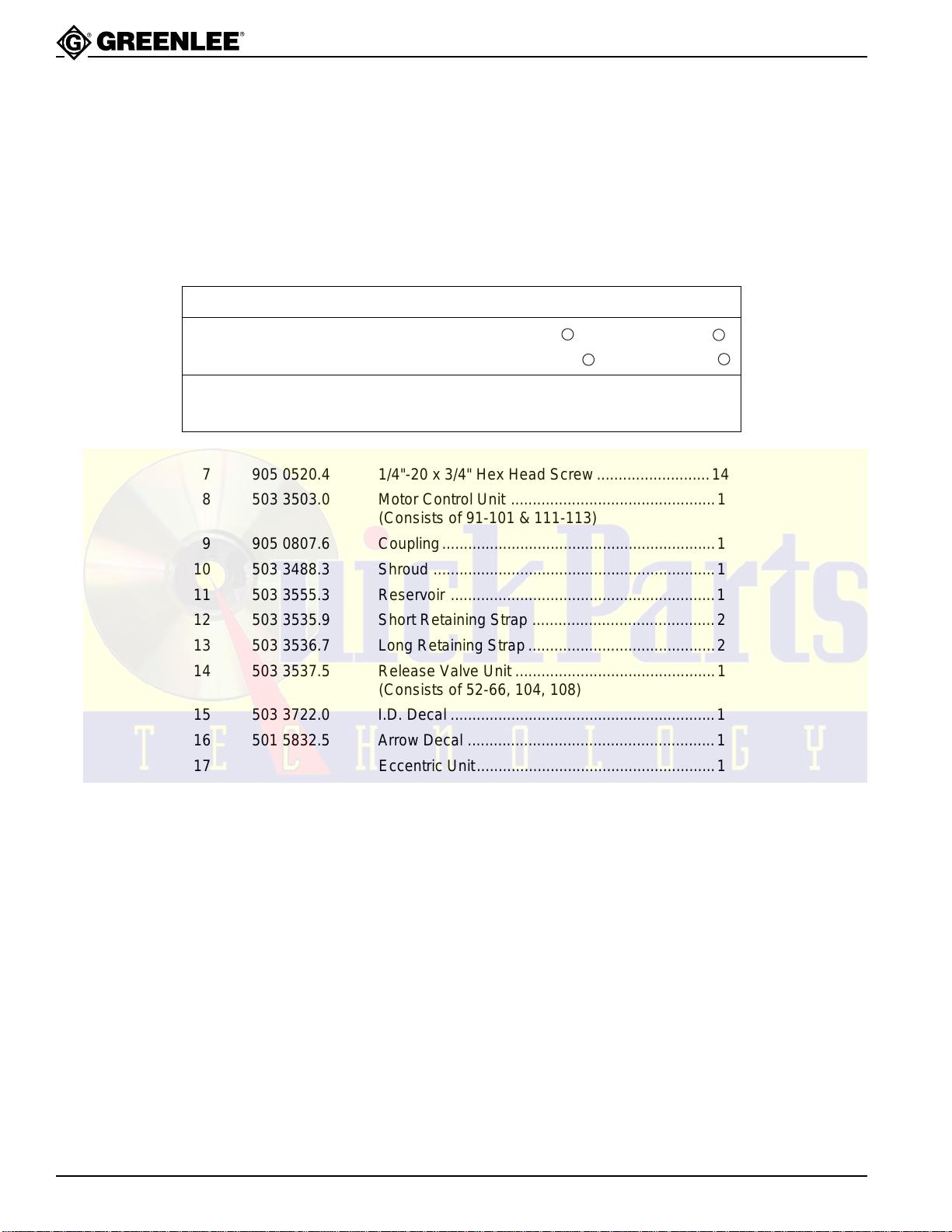

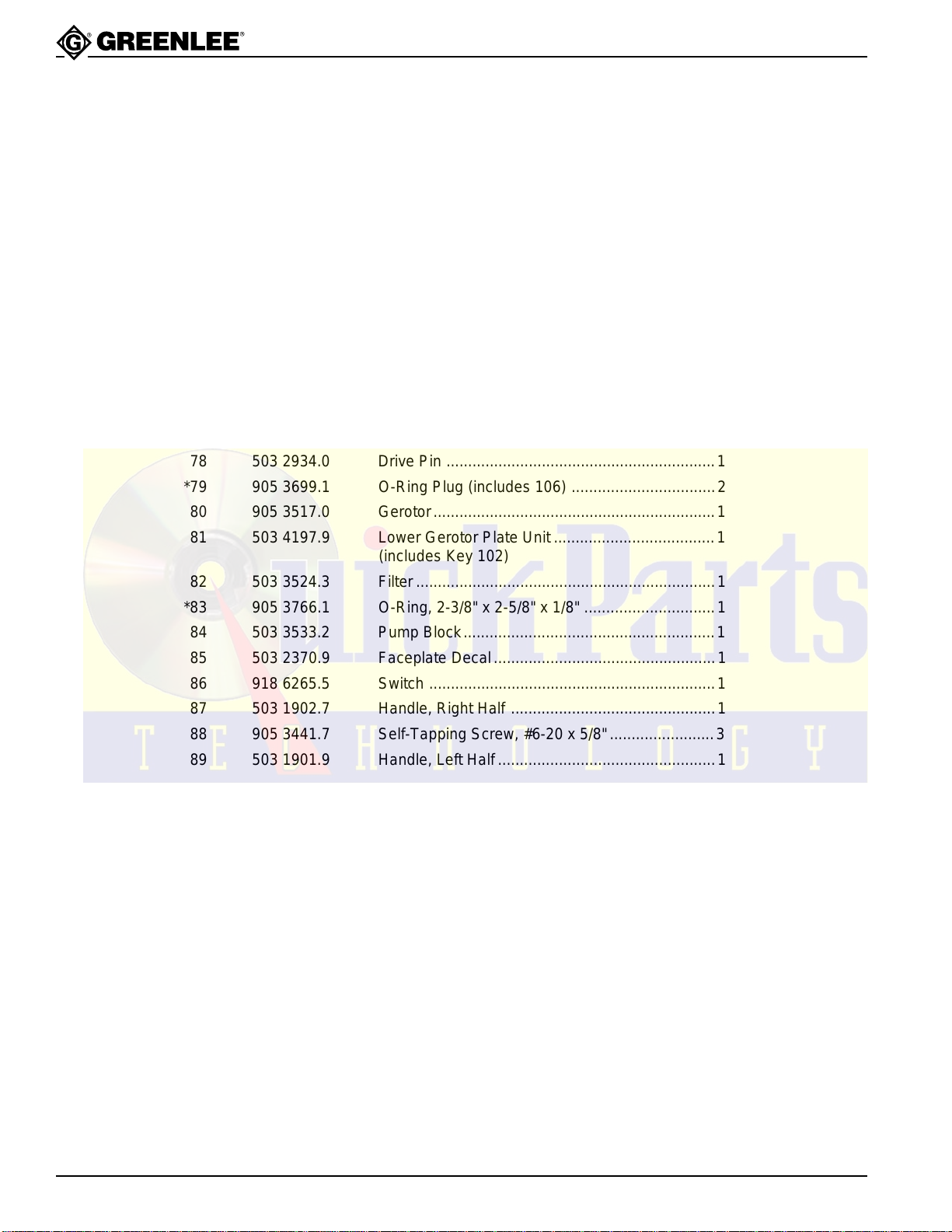

KEY PART NO. DESCRIPTION QTY.
1 503 3518.9 Carrying Handle...................................................2
2 905 3709.2 1/4"-20 x 1-1/4" Hex Head Screw........................8
3 503 3962.1 Decal....................................................................1
4 918 6314.7 Motor, 115 VAC, 1-1/2 HP...................................1
GE Motor 5KC48NG848X
FE Motor 1103007483
SERVICE PARTS: GE FE
Greenlee No. 918 5349.4
1
918 6548.4
2
Capacitor Manufacturer No. 8753704AX16
1
275463-103
2
Greenlee No. 918 5353.2 918 6549.2
Cover, Cap Manufacturer No. 111B276AA1 290312-101
6 503 2661.9 Fill-Vent Plug .......................................................1
7 905 0520.4 1/4"-20 x 3/4" Hex Head Screw..........................14
8 503 3503.0 Motor Control Unit ...............................................1
(Consists of 91-101 & 111-113)
9 905 0807.6 Coupling...............................................................1
10 503 3488.3 Shroud .................................................................1
11 503 3555.3 Reservoir .............................................................1
12 503 3535.9 Short Retaining Strap ..........................................2
13 503 3536.7 Long Retaining Strap...........................................2
14 503 3537.5 Release Valve Unit ..............................................1
(Consists of 52-66, 104, 108)
15 503 3722.0 I.D. Decal .............................................................1
16 501 5832.5 Arrow Decal .........................................................1
17 Eccentric Unit.......................................................1
(see Exploded View—Pump Block for breakdown)
18 Pump Block Unit ..................................................1
(see Exploded View—Pump Block for breakdown)
19 905 0530.1 Hex Hd. Cap Screw #3/8-16 x 1.00.....................3
*21 905 3682.7 Seal......................................................................1
22 503 3517.0 Cover Plate ..........................................................1
*23 503 2627.9 Cover Plate Gasket .............................................1
24 905 3829.3 Rubber Foot.........................................................4
25 905 1185.9 Screw, 1/4"-20 x 1/2" ...........................................4
26 905 1460.2 Self-Tapping Screw #10 x 3/8" ............................2
Parts List

Greenlee Textron Inc. / Subsidiary of Textron Inc. 27 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump
KEY PART NO. DESCRIPTION QTY.
27 905 3468.9 #10 Flat Washer ..................................................2
28 905 2339.3 1/4" Flat Washer ..................................................4
31 503 9896.2 Mounting Strap ....................................................1
32 503 3527.8 Counterweight......................................................1
33 905 1269.3 Set Screw, 1/4"-20 x 1/4".....................................1
34 501 4557.6 Motor Shaft Key, 3/16" x 1-3/8" ...........................1
35 905 0533.6 Hex Hd. Cap Screw 3/8"-16 x 1.50......................1
36 905 3707.6 Retaining Ring .....................................................1
37 905 3758.0 Ball Bearing #1206 ..............................................1
38 503 3526.0 Eccentric Shaft.....................................................1
39 905 0699.5 Rollpin, 3/16" x 1" ................................................1
40 905 0791.6 Set Screw, #10-32 x 1/4".....................................1

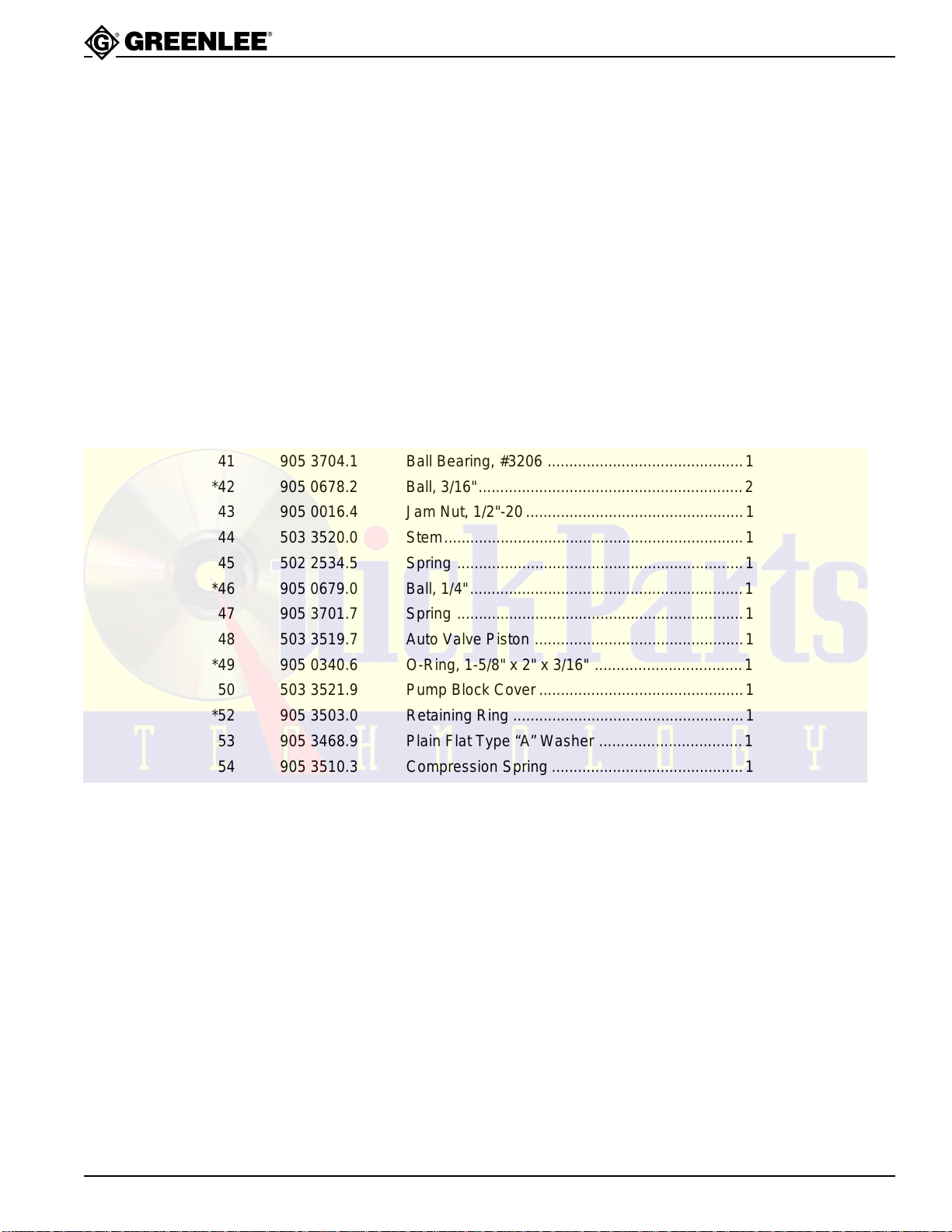

41 905 3704.1 Ball Bearing, #3206 .............................................1
*42 905 0678.2 Ball, 3/16".............................................................2
43 905 0016.4 Jam Nut, 1/2"-20..................................................1
44 503 3520.0 Stem.....................................................................1
45 502 2534.5 Spring ..................................................................1
*46 905 0679.0 Ball, 1/4"...............................................................1
47 905 3701.7 Spring ..................................................................1
48 503 3519.7 Auto Valve Piston ................................................1
*49 905 0340.6 O-Ring, 1-5/8" x 2" x 3/16" ..................................1
50 503 3521.9 Pump Block Cover...............................................1
*52 905 3503.0 Retaining Ring .....................................................1
53 905 3468.9 Plain Flat Type “A” Washer .................................1
54 905 3510.3 Compression Spring ............................................1
*55 905 0680.4 Ball, 5/16".............................................................1
56 503 2622.8 Coupling...............................................................1
*57 905 1290.1 Back-up Ring, 3/8" x 1/2" x 1/16" ........................2
*58 905 0168.3 O-Ring, 3/8" x 1/2" x 1/16"...................................2
*59 503 2626.0 Gasket .................................................................1
+60 905 1269.3 Set Screw, 1/4"-20 x .38......................................2
+61 503 4796.9 Release Valve Knob ............................................1
62 503 3541.3 Control Shaft........................................................1
*63 905 3827.7 Back-up Ring, 1/2" x 5/8".....................................1
Parts List (cont’d)

Greenlee Textron Inc. / Subsidiary of Textron Inc. 28 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump
KEY PART NO. DESCRIPTION QTY.
*64 905 0912.9 O-Ring, 1/2" x 5/8" x 1/16"...................................1
65 905 3496.4 Cap Screw, 5/16"-18 x 2.50.................................2
66 503 2623.6 Release Valve Body ............................................1
*68 905 3698.3 O-Ring Plug (includes 107) .................................1
69 905 3712.2 Jam Screw, 7/16".................................................2
70 905 3702.5 Spring ..................................................................2
*71 905 0436.4 Ball, 9/32".............................................................2
72 500 6067.8 High Pressure Relief Valve..................................1
73 905 3706.8 Type “D” Driv-Lok Pin, 1/4" x 1/2" .......................1
75 503 3530.8 High Pressure Bushing........................................1
76 503 3528.6 High Pressure Piston...........................................1
77 503 3525.1 Drive Shaft ...........................................................1
78 503 2934.0 Drive Pin ..............................................................1
*79 905 3699.1 O-Ring Plug (includes 106) .................................2
80 905 3517.0 Gerotor.................................................................1
81 503 4197.9 Lower Gerotor Plate Unit .....................................1
(includes Key 102)
82 503 3524.3 Filter.....................................................................1
*83 905 3766.1 O-Ring, 2-3/8" x 2-5/8" x 1/8" ..............................1
84 503 3533.2 Pump Block..........................................................1
85 503 2370.9 Faceplate Decal...................................................1
86 918 6265.5 Switch ..................................................................1
87 503 1902.7 Handle, Right Half ...............................................1
88 905 3441.7 Self-Tapping Screw, #6-20 x 5/8"........................3
89 503 1901.9 Handle, Left Half..................................................1
90 503 2362.8 Cord .....................................................................1
91 503 3491.3 Motor Control Base..............................................1
92 918 6292.2 Relay....................................................................1
93 905 3840.4 Self-Tapping Screw, #6-32 x 5/16"......................6
94 905 3695.9 Pan Head Type C Screw, #6-32 x 1/4" ...............2
95 503 3733.5 Transformer Unit..................................................1
96 503 3492.1 Motor Control Cover ............................................1
97 905 3580.7 Pan Head Mach. Screw, #6-32 x 5/8" .................2
97A 905 0430.5 Pan Head Mach. Screw, #6-32 x 3/8" .................1
Parts List (cont’d)

Greenlee Textron Inc. / Subsidiary of Textron Inc. 29 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
980 Hydraulic Power Pump
KEY PART NO. DESCRIPTION QTY.
98 905 0632.4 Hex Nut, #6–32....................................................3
99 918 6487.9 96" Long Cord......................................................1
100 503 2363.6 Pendant Switch Unit ............................................1
(Consists of 85-90)
101 905 3831.5 Nylon Spacer, .150 ID x 5/16" OD x .050............4
102 905 3839.0 Bearing, Bronze ...................................................1
103 905 3320.8 Bearing, Bronze, 1/2" x 5/8" x 1/2" ......................1
+104 503.4886.8 Shaft Stop Collar .................................................1
*105 905 3816.1 Pin, 1/8" x 1/4" Driv-Lok.......................................1
106 905 3878.1 O-Ring .................................................................2
107 905 3880.3 O-Ring .................................................................1
+108 905 0078.4 Roll Pin, .187 Dia. x 3/4" Long.............................1

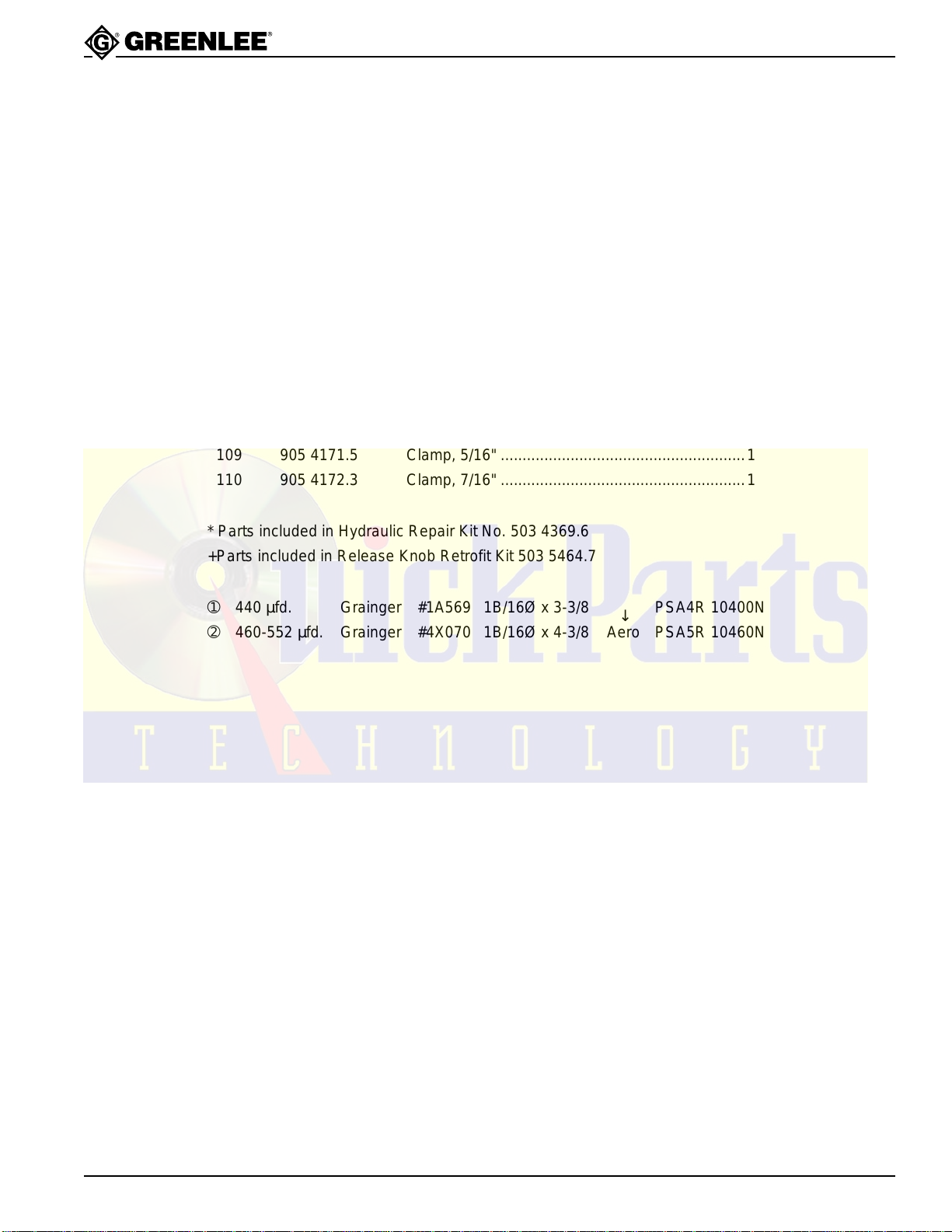

109 905 4171.5 Clamp, 5/16" ........................................................1
110 905 4172.3 Clamp, 7/16" ........................................................1
* Parts included in Hydraulic Repair Kit No. 503 4369.6
+Parts included in Release Knob Retrofit Kit 503 5464.7
➀440 µfd. Grainger #1A569 1B/16Ø x 3-3/8 ↓PSA4R 10400N
➁460-552 µfd. Grainger #4X070 1B/16Ø x 4-3/8 Aero PSA5R 10460N
Parts List (cont’d)
